Brighter PATT RGB User manual

–
User manual
Please read the instructions carefully before use
This
product
manual
contains
important
information
about
the
safe
installation
and
use
of
this
projector.
Please
R–––
ead
and
follow
these
instructio
ns
carefully
and
keep
this
manual
in
a
safe
place
for
future
reference.
PATT RGB
Vintage Retro Lamp with tungsten 750W Lamp and LED Aura

1
Content
SUMMARIZE ......................................................................................................... 2
MAIN PERFORMANCE............................................................................................ 2
SAFETY INSTRUCTIONS........................................................................................ 3
DIMENSIONS.......................................................................................................... 4
CONTROL PANEL................................................................................................... 5
BUTTON ................................................................................................................ 5
DISPLAY ................................................................................................................. 5
COMMON SETTINGS ............................................................................................ 5
MANUAL CONTROL....................................................................................................... 5
STATIC COLOR............................................................................................................ 6
SET SLAVE................................................................................................................. 7
MASTERSETTING METHOD......................................................................................... 7
SETTING DMX ADD .................................................................................................... 8
4／6／9CHANNEL MODE SELECTION............................................................................. 8
DMX CHANNEL FUNCTION.................................................................................... 9

2
4CHANNEL DEFINITION:LAMP+HSV............................................................................ 9
6CHANNEL DEFINITION:.............................................................................................. 9
9CHANNEL DEFINITION（DEFAULT）： .........................................................................10
MENU.....................................................................................................................11
1.DMX512MENU................................................................................................11
2. MANUALDIMMING MENU..............................................................................12
3.DEMO_RUNDEMO MODEMENU .................................................................12
4.AUTO PROGRAMMENU.................................................................................13
5.SETTING MENU..............................................................................................13
TECHNICAL PARAMETERS...................................................................................14
Summarize
Please read this manual thoroughly and carefully, so that you can use it for
reference. This manual contains important information on the installation and
use of high power LED light. Please strictly follow these instructions when
installing and using.
This lamp is beautiful in appearance, highly efficient and energy-saving, durable
and suitable for indoor use. The products fully comply with the international
standard DMX512 agreement, which can be controlled by a single unit, or can be
used in conjunction with each other. It is suitable for large-scale theatrical
performances, theaters, studios, and other places.
When receiving the product, please check whether the product is damaged due to
transportation and check the following accessories:
Power input conversion line -------- 1 pcs
DMX input conversion line ---------- 1 pcs
DMX output conversion line --------- 1 pcs
User manual------------------------- 1 pcs

3
This product complies with the following standards：
GB7000.1-2015/IEC60598-1:2014
GB7000.217-2008/IEC60598-2-17:1984+A2:1990
Main performance
OLED display with power indication, signal indication.
1peice of 750W Halogen light bulb，32pcs RGB LEDs
LED controlled strobe, color wheel, and self-propelled effects.
4／6／9channels for choice.
Over-temperature automatic protection.
Super halogen brightness can be adjusted.
Innovative grayscale adjustment technology makes dimming changes smoother.
Safety instructions
All personnel involved in the installation and maintenance of this equipment must
understand:
(1) Qualified as an Electronic Technician.
(2) The lamp can’t be shipped unless it passes the strict inspection before leaving
the factory. In order to ensure the normal and safe operation of these conditions,
the user must comply with the following safety regulations and precautions in this
manual.
(3) Key point: The manufacturer will not be responsible for any accidents and
losses caused by unauthorized changes to the equipment without following the
normal operation of this manual and without permission.
Equipment Installation and Maintenance Note:
Pay particular attention to whether the power supply voltage is consistent with the
voltage marked by the host, and ensure that the voltage used is within the voltage
range identified by the technical parameters.
Make sure the lamp is well grounded.
When moving or installing, take care to avoid metal hard objects hitting the lamp
body.
If you do not use the lamp for a long time, disconnect the power.

4
Make sure the power cord is not curled or scratched by sharp objects. Always
check the equipment and power cord. If the external cord of this lighting
equipment is damaged, the cord must be replaced by the manufacturer or its
service agent or a qualified person to avoid danger.
Do not use the lighting equipment during lightning storms and disconnect the
power supply. High voltage will destroy the lighting equipment.
The maximum ambient temperature (Ta) is 40°C.
After the lamp is stable, the surface temperature of the lamp is 60°C.
Don't look directly at the light source, because sensitive people can cause epilepsy
(especially for people with epilepsy).
In the range of 1m from the front of the lighting equipment, no objects are
allowed to be shielded. Combustible items (such as cloth, wood, paper, etc.) are
not allowed within a range of 0.5m around the lighting equipment.
When the lighting equipment is hung above the ground, it must be verified that it
can withstand the weight of the device that is suspended 10 times.
Ensure that the external protection, ropes, and hardware are secure, and then use
one or more protective measures, such as an insurance rope.
In the process of moving the lamp, it is not allowed to directly hold the cord and
can only be moved by the handle.

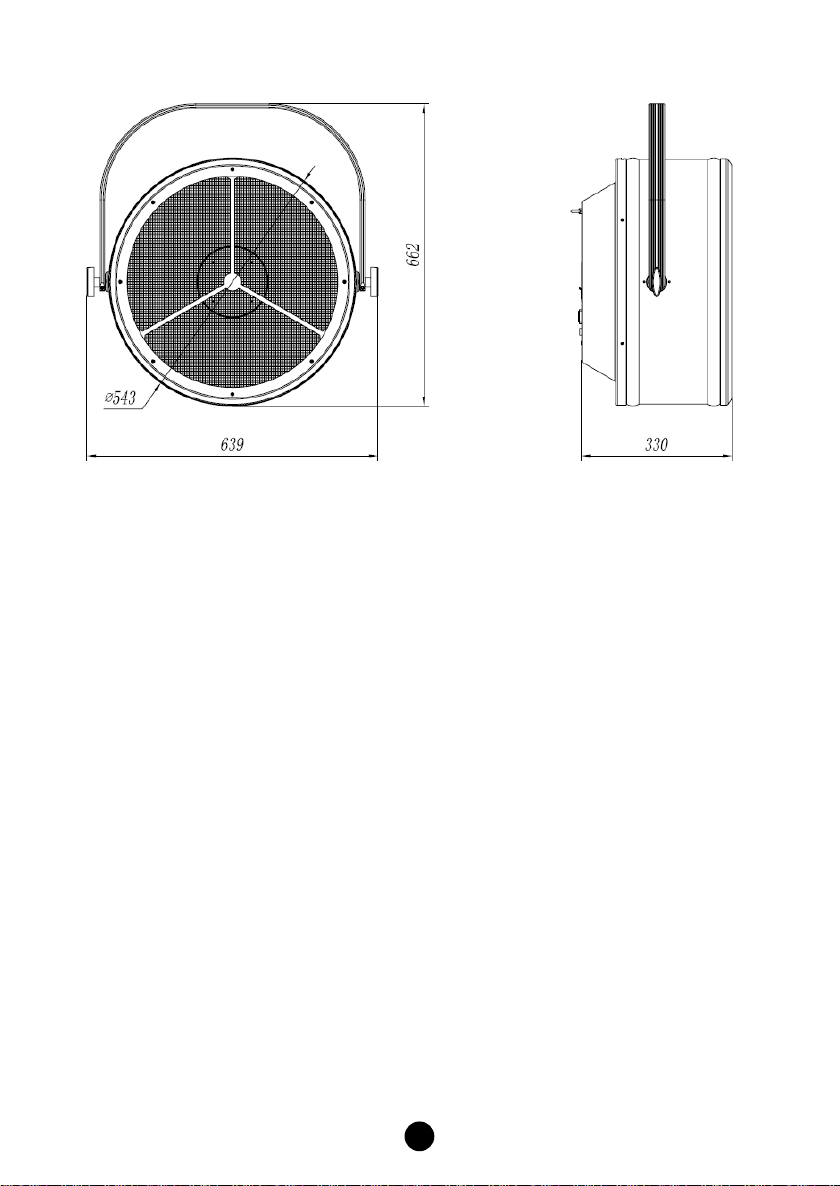

Dimensions

5
CONTROL PANEL
Button
SET
UP
DOWN
ENTER
Callout the main menu, or exit the current menu (that is, return to
the previous menu and give up options or parameters)
Upwards browse menu item or parameter increment
Browse down menu items or decrement parameters
Confirm selections or parameters (ie go to the next menu, or exit

6
the current menu and save the selection or parameters)
Display
OLED display signal indication information in the upper left corner, the function
is as follows：
1、No sign——No external control signal access
2、DMX OK——External DMX512 signal access
3、Sla OK——Slave signal access
4、Master——Master mode
Common settings
Manual control
Display the xxx page of large font address code,
Press ENTER to enter Main Menu,
Press the UP or DOWN key to press MANUAL (manual dimmer).
Press ENTER to enter the adjustment menu ,
Press UPor DOWN to browse the following menus (7 total):
LAMP Halogen dimming
RED red LED dimming
GREEN green LED dimming
BLUE blue LED dimming
STROB LED strobe
SPEED LED Built-in program self-propelled speed adjustment
MACRO LED Built-in program self-propelled, the highest priority, greater
than 9 effective, each 5 number to switch an effect
If you want to adjust one of the options, press ENTER to enter, then press UP or

7
DOWN to set the parameters and press ENTER to confirm.
Static color
The xxx page of the large font address code is displayed on the boot.
Press ENTER to enter Main Menu,
Press UP or DOWN to find DEMO_RUN,
Press ENTER to confirm entry, browse through the menu below
Press ENTER to confirm the selected color. At this time, the lighting equipment
will play static color light
RED (red)
GEN (green)
BLU (blue)
YEL （yellow）
CYN (cyan)
PUR (purple)
AWHI (mixed white)
3200 (3200K white)
5600 (5600K white)
6500 (6500K white)
8500 (8500K white)
1000 (1000K white)
CHCL (Color change program)
STOB (strobe program)
FADE (fade program)
Slave setting
In slave mode, the lighting equipment is not controlled by any signal and the
slave operates. The slave mode setting method is as follows:
Enter SETTING (Setup menu)
Press UP or DOWN to find MasSla
Press ENTER to enter

8
Press UP or DOWN to find Slav
Press ENTER to confirm
Master setting method：
Enter SETTING (Setup menu)
Press UP or DOWN to find MasSla
Press ENTER to enter
Press UP or DOWN to find Mast (master)
Press ENTER to confirm
Note: Set up the master slave
One of the Lighting equipment is set as the master and the other is the slave
(DMX mode). Then all the lights are synchronized with the master. Note that
there can only be one host.
Setting DMX address
In DMX mode, the lighting equipment receives the control signal through the
address. The address of the first channel of the lighting equipment is called the
start address. If there are 3 channels for a fixture and the start address is set to 1,
then the channel occupied by this lamp has 1, 2, and 3 channels. If you want to
add another lighting equipment, the starting address can be set to 4, and the
occupied channels have 4, 5, and 6 channels. And so on. If different fixtures are
assigned the same address, then the different fixtures receive the same control
signal. If you want to control each lighting equipment individually, you need to
allocate the unoccupied start address of 1-512 to the lighting equipment (also
ensure that the rear channel of the lighting equipment is unoccupied), and record
it for later inquiry.

9
4／6／9 Channel mode selection
Enter DMX512 (DMX menu)
Press UP or DOWN to find ChMo and enter,
Press the UP or DOWN button to select the number of channel modes
(4CH/6CH/9CH) and confirm with ENTER.
Set the running status when the DMX signal is not received in the DMX mode
Enter the DMX512 menu and press ENTER,
Then press UP or DOWN to find Sign
Press ENTER to enter
Press UP or DOWN to select Stop / Hold (hold the last received signal, default)
Select the option you want to press ENTER to confirm, or press ESC to cancel the
setting and return.
DMX channel function
A total of 3 modes, the default is 9-channel mode, can enter the DMX512 menu to
change
4Channel definition：LAMP+HSV
Channel
value
function
CH1:
000-255
Halogen dimming 0~100%
CH2
000-255
LED chromaticity（H）
CH3
000-255
LED Saturability（S）
CH4
000-255
LED purity (V)

10
6channel definition：
Channel
value
function
CH1:
000-255
Halogen dimming 0~100%
CH2
000-255
Red LED dimming 0~100%
CH3
000-255
Green LED dimming 0~100%
CH4
000-255
Blue LED dimming 0~100%
CH5
000-255
macrospeed
CH6
000-255
Macro run effect selection
9 channel definition（default）：
Channel
value
function
CH1
000-255
dimming 0~100%
CH2
000-005
006-064
065-069
070-084
085-089
090-104
105-109
110-124
125-129
130-144
145-149
150-164
165-169
strobe
no strobe
strobe 1(fast-slow)
no strobe
strobe 2: Fast-forward and slow-out (faster to slower)
no strobe
strobe 3: Slow forward (faster to slower)
no strobe
strobe 4: Random strobe (faster to slower)
no strobe
strobe 5: Randomly fast forward (slow to fast)
no strobe
strobe 6: Randomly go in and out slowly (faster to
slower)

11
170-184
185-189
190-204
205-255
no strobe
strobe 7: Pulse strobe (faster to slower)
no strobe
strobe 8: Random Pulse Strobe (faster to slower)
no strobe
CH3
000-255
Halogen dimming 0~100%
CH4
000-255
Red LED dimming 0~100%
CH5
000-255
Green LED dimming 0~100%
CH6
000-255
Blue LED dimming 0~100%
CH7
000-255
Macro speed setting
CH8
000-255
Macro effect selection
CH9
000-255
Color wheel
.Menu
Menu navigation
1、DMX512 menu
(dmx mode)
2、Manually adjust the menu
(Manual mode)
3、Manually adjust the menu
(Manual mode)
4、Self-propelled menu
(self-propelled mode)
5、setting menu
(System Settings)

12
1.DMX512 menu
Main menu
Item
Options
remark
DMX512
DMX menu
ADDR
Set the address code
value：
1-512
Defaults：1
ChMo
Channel mode
selection
4CH
4 channel mode
6CH
6 channel mode
9CH （Default）
9 channel mode
Sign
Operation without
DMX signal
STOP
Stop running
HOLD
Keep the last signal
received
（Default）
2. Manual dimming menu
Main menu
item
Options
remark
MANUAL
LAMP
000-255
Halogen dimming 0~100%
RED
000-255
Red LED dimming 0~100%
GREEN
000-255
Green LED dimming 0~100%
BLUE
000-255
Blue LED dimming 0~100%
STROB
000-255
LED strobe
SPEED
000-255
Macro speed setting
MACRO
000-255
Macro effect selection

13
3. DEMO_RUN Demo mode menu
item
Options
remark
DEMO
RED
GEN
BLU
YEL
CYN
PUR
AWHI
3200
5600
6500
8500
1000
CHCL
STOB
FADE
red
green
blue
yellow
cyan
purple
Mixed white
3200Ｋ
5600Ｋ
6500Ｋ
8500Ｋ
10000Ｋ
Change color
strobe
fade
4. Auto-run program menu
Main
menu
item
option
remark
AUTO_
RUN
SPEEDuto-run
speedauto-run
speed
1~50
1~50
PROJ
Effect selection
1~50
46-50 same effect

14
5. Setting menu
Main
menu
Submenu
Submenu
Submenu
SETTING
Reload
Data overload
Yes
Reload
No
Don’t reload
MasSla
Master/slave
setting
Mast
Master mode (Slave presses
DMX mode to run
synchronously with the master.
Note that only one master can be
set. The master will exit master
mode when it reaches DMX
mode)
Slav
SLAVE Mode
Tempra
Temperature
control switch
settings,
ultra-high
temperature
reduce output.
TemEn
Temperature
switch enable
ON
OFF
CapT
Temperature
capture
Get LED board real-time
temperature
SetT
Temperature
setting
0-125℃，Default 60℃
BackLi
15s
（Default）
15s without information after the
operation of the screen
on
Screen on
Rotate
0°
normal display
180°
Reverse display
LampCal
-128~127
Lamp calibration（Use caution！）
SofVer
Software version information
query

15
Technical Parameters
Voltage:
AC 100 or AC 240V，50/60HZ (Select halogen model according to voltage)
Rate power:
800W
Lamp:
1、OSRAM HPL750 halogen 220V
2、OSRAM HPL750 halogen 110V
LED
TX-RGB05A140-002A 96pcs 3in1 RGB LEDs
LED life:
50000h
Channels:
4／6／9 channels option
Agreement:
DMX-512
Control mode:
DMX512 ; master/slave
Materials:
Aluminum alloy
IP rate:
IP20
Dimension:
639*330*661 mm
N.W.:
7.5kg
