SYSTEM BOILER
Central Heating
Faned Flue system
Installation and
System 40
Operating instructions
System 60 “heygFJ& v
AA

These instructions are suitable for the following boilers :
Britony System 40
Britony System 60

CUSTOMER CARE
Chaffoteaux et Maury Ltd , as a leading manufacturer of domestic and commercial water heating appliances, is committed to providing high quality products and a
high quality after sales service. If it is necessary to contact an engineer, then telephone your local Chaffoteaux Service Centre. The number can be obtained from
the leaflet enclosed in the customer care pack with your boiler or by telephoning the Chaffoteaux Customer Services Department at Telford.
Advice on installation or servicing can also be obtained by contacting the Chaffoteaux Customer Services Department at Telford
CUSTOMER SERVICES DEPARTMENT
Tel. [phone]
Fax [phone]
GUARANTEE
The manufacturer’s guarantee is for 12 months from the date of purchase. The guarantee is voidable if the appliance is not installed in accordance with the
recommendations made herein or in a manner not approved by the manufacturer. To assist us in providing you with an efficient after sales service, please return the
guarantee registration card enclosed with the boiler without delay
STATUTORY REQUIREMENTS
The installation of this appliance must be carned out by a CORGI Registered person or other competent person and in accordance with the requirements of the Gas
Safety (Installation and Use) Regulations
In addrtron, the mstallation must also comply with the current byelaws of Local Water Undertakings, Building Regulations, IEE Wiring Regulations, Local Authority
EJurldtng Standards (Scotland) Regulations and the Safety Document 635 The Electricity at work Regulation.
It should also be carried out in accordance with current editions of the following British Standards Codes of practice: BS 6891, BS 5440 parts 1 and 2, BS 5449 part
1, BS 7593, BS 6798, BS 5546, BS 4814, BS 7074 part 1 and 2, BS 7671 and BG DM2.
If there IS a possrbrltty of the Incoming mains water pressure exceedmg 10 bar then a suitable pressure limiting valve must be fitted.
Precautions: During servicing, keep the dust generation to a minimum and avoid inhaling any dust and contact with the skin and eyes, Normal handling and use will
not present any discomfort, although some people with a hrstory of skin complaints may be susceptible to irritation. When disposing of the lining, ensure that it is
securely wrapped and wash hands after contact.

Page
3
3
3
4
5
6
6
8
10
12
12
14
14
14
15
15
15
16
16
17
19

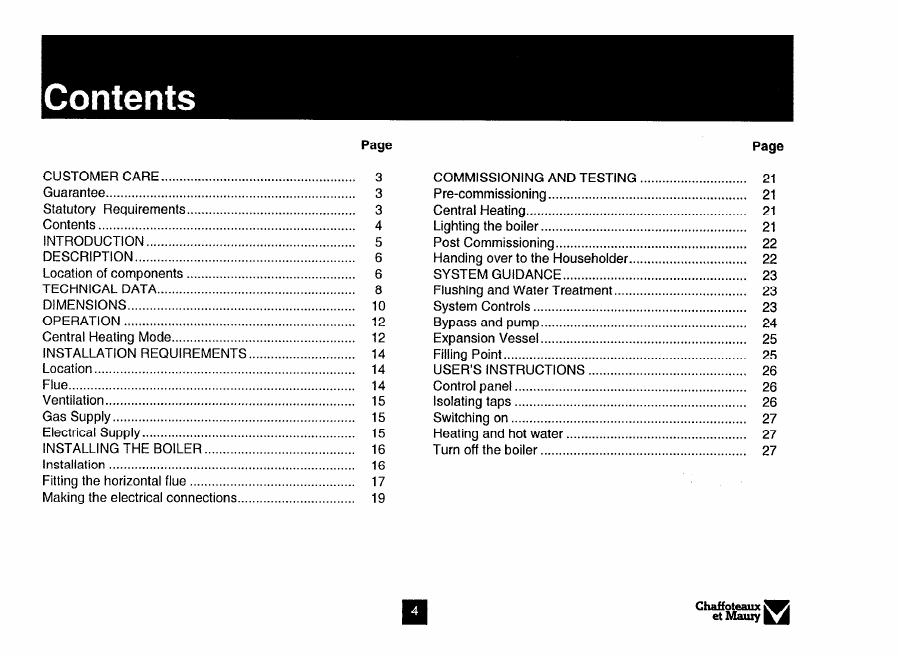

Page
CUSTOMER CARE.. ...................................................
Guarantee.. ..................................................................
Statutory Requirements.. ............................................
Contents ......................................................................
INTRODUCTION.. .......................................................
DESCRIPTION.. ..........................................................
Location of components ..............................................
TECHNICAL DATA.. ....................................................
DIMENSIONS.. ............................................................
OPERATION ...............................................................
Central Heating Mode.. ................................................
INSTALLATION REQUIREMENTS.. ...........................
Location.. .....................................................................
Flue.. ............................................................................
Ventilation.. ..................................................................
Gas Supply.. ................................................................
Electrical Supply.. ........................................................
INSTALLING THE BOILER.. .......................................
Installation ...................................................................
Fitting the horizontal flue .............................................
Making the electrical connections.. ..............................
COMMISSIONING AND TESTING .............................
Pre-commissioning ......................................................
Central Heating ............................................................
Lighting the boiler.. ......................................................
Post Commissioning.. ..................................................
Handing over to the Householder.. ..............................
SYSTEM GUIDANCE.. ................................................
Flushing and Water Treatment.. ..................................
System Controls ..........................................................
Bypass and pump.. ......................................................
Expansion Vessel.. ......................................................
Filling Point.. ................................................................
USER’S INSTRUCTIONS ...........................................
Control panel ...............................................................
Isolating taps ...............................................................
Switching on ................................................................
Heating and hot water .................................................
Turn off the boiler.. ......................................................
21
21
21
21
22
22
23
23
23
24
25
25
26
26
26
27
27
27

The BRITONY SYSTEM is a fully automatic, wall mounted, low water content boiler. It is a room sealed, fan
assisted, balanced flued appliance providing central heating. It has electronic ignition and is suitable for use with all
modern electrical control systems. The boiler is designed for sealed systems only and a circulating pump,
expansion vessel together with a pressure gauge and safety valve are included within the boiler.
The standard horizontal flue kit is suitable for lengths 300 mm minimum to 680 mm maximum and includes an
elbow adapter that can be rotated through 360”. The horizontal flue can be extended (refer to Flue Installation
Instructions), 45” and 90” flue bends are also available as accessories.
The BRITONY SYSTEM is also suitable for concentric vertical and twin pipe flueing. Adapters and accessories are
available.
The boiler is packed in two cartons:
1. the boiler
2. the flue assembly and the pre installation kit

Location of components
1. Air pressure switch
2. Steel chassis complete with expansion vessel
3. Main heat exchanger
4. Combustion chamber
5. Multi- gas burner assembly comprising ignition and
ionisation electrodes
6. Automatic air separator and automatic vent
7. Heating circuit flow switch
8. Pump
9. Electrical box
11. Overheat thermostat
12. Gas valve assembly
13. Sealed chamber
14. Flue hood with fan
16, Central heating control thermistor
18. CH Flow isolating valve
19. Two position Selector switch
20. User’s instruction panel.
21. Heating flow temperature adjustment
22. Green indicator - Power ON
23. Orange indicator - Burner ON
24. Red indicator - Lock out f flame failure
25 Reset button

-
18' 27' 29'
26. Pressure gauge
27. Gas service tap
29. CH Return isolating valve
30. Pressure relief valve
32. By pass
33. By pass adjustment screw
34. Location of central heating filter

BRITONY SYSTEM type
Appliance category .....................
Heat input C/H
Maximum in kW ....................
Maximum in Btu/h .................
Heat output C/H
Maximum in kW ....................
Maximum in Btu/h .................
C/H circuit pressures
Min operating in bar ..............
in lb/in* ............
Max operating in bar .............
in IblirV............
40 60
Cat II 2H 3+ Cat II 2H 3+
13.41 20.22
45764 69005
12 18
40952 61428
0.7 0.7
10 10
2.5 2.5
36.3 36.
Compartment ventilation is not required
BRITONY SYSTEM type 40
Natural gas G20
Gas rate
Maximum in m”/h ............-..
Maximum in ttYh .................... 1.42 2.14 50 76
Inlet pressure
Nominal in mbar ....................
Nominal in in wg ....................
Burner pressure
20 20
8 8
Nominal in mbar ....................
Nominal in in wg ....................
Burner injector diameter
Natural gas G20 in mm ........
2.9
1.2
1.18
6.7
2.7
1.23
PROPANE L.P.G. G31
Gas rate
Maximum in kg/h ................... 1.03
Maximum in ftVh .................... 2.27
Inlet pressure
1.55
3.42
Nominal in mbar ....................
Nominal in in wg ....................
Burner pressure
37 37
14.8 14.8
Nominal in mbar .................... 9.2 21.0
Nominal in in wg .................... 3.7 8.4
60
13
: “ygr U

BRITONY SYSTEM type 40
BUTANE L.P.G. G30
Gas rate
Maximum in kg/h ................... 1.05
1.58
Maximum in Lbslh ................. 2.32 3.48
Inlet pressure
Nominal in mbar .................... 28 28
Nominal in in wg .................... 11.2 11.2
Burner pressure
Nominal in mbar ....................
Nominal in in wg ....................
Burner injector diameter
LPG G30 and G31 in mm ..... 0.70 0.70
Compartment ventilation not requir
BRITONY SYSTEM type 40
Safety discharge
in bar ......................................
in lb/in* ....................................
Expansion vessel
Pre-charge pressure in bar ..
Pre-charge pressure in lb/in*
Net capacity at 3 bar in liter .
Adjustable by-pass
Minimum flow rate in I/h .......
Minimum flow rate in gal/min
Maximum flow rate in l/h ......
Maximum flow rate in gallmin
3
43.5
0.7
9.4
5.44
100 100
0.36 0.36
700 700
2.56 2.56
Electrical characteristics
ed
Supply ...................*................
Consumption .........................
Protection ..............................
Fuse no1 ............................-
Fuse no2 .................................
External controls ...................
230~ 50Hz
150w 150w
IP44 IP 44
2A 2A
1.25A 1.25A
24~ 24~
60
3
43.5
0.7
9.4
5.44

Weights
With packaging :
-BRITONY SYSTEM 40 :
-BRITONY SYSTEM 60 :
Without packaging :
-BRITONY SYSTEM 40:
-BRITONY SYSTEM 60 :
Lift weight :
-BRITONY SYSTEM 40 :
-BRITONY SYSTEM 60 :
41.5 kg
41.5 kg
39.5 kg
39.5 kg
33.5 kg
33.5 kg
Tails diameter
I Safety valve outlet 015mm
J Heating flow 022mm
L Gas supply 022mm
N Heating return 022mm
Outer case dimensions :
-Width : 440
(minimum space required 450)
- Height : 850
- Depth, 380
/
/
/
/
/
:~
/
,
I
/
/
,
:.
,
,
,
I-
All dimensions in mm
Fig. 4
q
t
Safety valve
center line
chaffotfiaux~
e-U

Minimum clearances :
- Both sides 5mm
- Above casing 170 mm
- Below casing
200 mm
- Front ( for servicing) 500 mm
- Frdnt (in operation) 5 mm
TYPE Cl2 or C42
Fig. 5 Dimensions in mm
The boiler is suitable for the 3 flue types :
l typeC12orC42
l type C 22
l typeC32xxorC32xy
TYPE C32 xx TYPE C32 xy

25
Fig. 6 20
Central Heating
To be able to supply heating, the selector switch 19 fig. 6 must
be turned fully clockwise to ‘ffff position.
This will be confirmed by the green indicator light 0 22 fig. 6.
When there is a demand for heating (either from the room
thermostat or the external programmer) and the boiler
temperature control is calling for heat.
The pump starts and at a flow rate of 4 Itr/min the central heating
flow switch operates allowing the ignition sequence to begin.
The first stage solenoid 12a fig. 7 and safety solenoid 12c fig. 7
open together to allow gas to the burner.
The ignition sequence begins and a continuous high speed
spark ignites the gas.
As soon as a flame is detected the orange indicator bulb 0 23
fig. 6 will light.

After 45 seconds the second stage solenoid 12b fig. 7 opens to
allow the full gas rate.
If a flame is not detected, after 8 seconds, the security solenoid
closes and shuts off the gas.
The red lockout indicator bulb 9 24 fig. 6 will light.
The central heating flow temperature is controlled by the central
heating control thermistor 16 fig. 7.
The boiler has been designed to minimise cycling and will not
attempt to relight for at least 3 minutes after the boiler
thermostat has been satisfied (this <tTAC delay,, can be set to
30 seconds if required. See Maintenance and Service Guide).
When the room thermostat is satisfied the burner will switch off
and the pump will remain running for a further 3 minutes.
NB
It is possible to override the TAC delay by pressing the RESET
button (25 fig. 6).

Location - F From an internal or external corner 300 mm
- G Above ground roof or balcony level 300 mm
The boiler can be installed on any suitable internal wall. _H From a surface facing the terminal 600 mm
Provision must be made to allow the correct routing of the _f From another terminal facing the terminal 600 mm
flue and siting of the terminal to allow the safe and efficient
removal of the flue products. The appliance may be - J From an opening into the dwelling when
under a car port 1200 mm
installed in any room, although reference must be made to _K Vertically from a terminal on the same wall 1500 mm
the IEE regulations if it contains a bath or shower. A _L Horizontally from a terminal on the same wall 300 mm
compartment or cupboard may be used provided that it has _
been purpose-built or modified for the purpose. It is not M fixed by the flat roof ubbink rolux 4GM flue terminal
_
necessary to provide permanent ventilation for cooling N fixed by a pithed roof ubbink rolux 4GM flue terminal
purposes. Detailed recommendations are given in BS 5440
pt 2. If it is proposed that it is installed in a timber framed
building then reference must be made to British Gas
Document DM2, or advice sought from CORGI.
Flue
The boiler must be installed so that the flue terminal is
exposed to the free passage of external air at all times. It
must not be allowed to discharge into another room or
space such as an outhouse or closed lean-to. The
minimum acceptable clearances are shown below:
- A Directly below an opening, window, etc
- B Below gutters soils pipes or drain pipes
- C Below eaves
- D Below balconies or car port roof
- E From a vertical drain pipe or soil pipe
200mm
200 mm
75 mm
q
1 chaffot-v
--A.A

It may be necessary to protect the terminal with a guard if it is
accessible and could be damaged. Reference should be made to
the Building Regulations for guidance. Suitable guards may be
obtained from the following maufacturer:
Quinnel Barret & Quinnel Wireworks
Old Kent Road
London SE15 1NL
Tel: [phone]
Ventilation
The room in which the boiler is installed does not require specific
ventilation. IF IT IS INSTALLED IN A CUPBOARD OR
COMPARTMENT PERMANENT VENTILATION IS NOT
REQUIRED FOR COOLING PURPOSES. If vents are installed,
they must communicate with the same room or be on the same
wall to outside air.
Gas Supply
The gas installation and soundness testing must be in
accordance with the requirements of BS 6891.The boiler
requires a 22 mm supply. Ensure that the pipe size is
adequate for the demand including other gas appliances on
the same supply.
Electrical Supply
The appliance requires an earthed 230V - 50 Hz supply and
must be in accordance with current I.E.E. It must also be
possible to be able to completely isolate the appliance
electrically. Connection should be via a 3 amp fused double-
pole isolating switch with contact separation of at least 3 mm
on both poles. Alternatively, a fused 3 Amp. 3 pin plug and
unswitched socket may be used, provided it is not used in a
room containing a bath or shower. It should only supply the
appliance.

Please check that you are familiar with the installation
requirements before commencing work.(section 6)
Installation
The installation kit included with the flue components
comprise following items :
- Hanging bracket
- A paper template (showing the dimensions of the boiler with
5 mm side clearances, fitting instructions and
commissioning instructions)
- Connection tails
- Screws and wall plugs
- Connection washers
- Pre-piping jig
- Installation manual
Method of positionning the boiler on the wall.
The paper template can be used to ensure the correct
positioning of kitchen cabinets etc. It also details the
commissioning instructions.
The paper template is fixed to the wall and used to locate the
position of the hanging bracket, the centre for the flue hole
and, if required, the fixings for the pre-piping jig.
Drill and plug the wall and secure the hanging bracket using
the screws provided (refer to the paper template drawings~.
Remove the boiler from its packaging as shown in fig. 13 and
remove the outer case as shown in fig.14. Place the boiler on
the wall on the hanging bracket after removing the pre-
installation jig.
If required, there is space for all piping to pass behind the
Fig. 13
Fig. 14

boiler. Using fig. 15 for reference, connect the gas and water
pipes to the valves located at the base of the appliance using
the tails provided. There is a 190 mm space between the
valves and the wall to make these connections.
Provision must be made to fill and recharge the system
Fig. 15
Safety valve outlet
J Heating flow
L Gas supply
N Heating return
015mm
022mm
022mm
022mm
q
chaffotealuc~
H-U
pressure. This can be achieved using a filling loop or other
methods approved by the local water authority.
The pressure relief should terminate below the boiler over a
tundish or 22 mm pipe (see I fig 15) which should in turn
discharge safely outside the premises. Care should be taken
that it does not terminate over an entrance or window or
where a discharge of heated water could endanger occupants
or passers by.
The system should be carefully checked for leaks, as frequent
refilling could cause premature system corrosion or
unnecessary scaling of the heat exchanger.
Fitting the Horizontal Flue
The instructions for the elevated horizontal, vertical and biflux
(twin pipe) flue options are included with the relevant adapter
kits.
The standard flue supplied with the appliance is suitable for
lengths from 300 mm minimum to 610 mm maximum. This
means for rear flueing, the standard kit will accommodate a
maximum wall thickness of 490 mm, and for side flueing a
maximum wall thickness of 477 mm. This takes into account
the minimum appliance side clearances of 5 mm.
If the fixing is a rear exit flue, the template provides the
position of the centre for drilling the flue hole with a core drill.
If the flue is a side exit installation then calculate the position
of the hole with a slope of 5 mm / metre to the terminal.

Connecting of the boiler to the system
- Hinge down the electrical box to gain access to the valves
connections. Push in the tabs (P Fig 19) on either side of the
boiler and pivot the box forward.
- Remove the yellow caps from connecting pipes and connect
the boiler to the taps using gaskets provided in the plastic
bag.
Rubber washer “R” for gas connection.
I
Fig 16

Making the Electrical Connections
Hinge down the electrical box to gain access to the
electrical connections. Push in the tabs (P fig. 19) on
either side of the boiler and pivot the box forward.
Undo the two retaining screws, remove cover and
remove cable clamp. (A fig. 19)
Connect the live and neutral wires to the multipin plug
leaving sufficient earth wire to connect to the earthing
point. (B fig. 20).
Note: The connections should be made so that should
the lead be pulled from its anchorage, the current
carrying wires become taut before the earth wire. Fig. 19

connector C
1 2
Fig. 20
If using a room thermostat or other external control, they can
be connected in place of the link on the multipin plug (fig 21).
Connect multipin plug onto into the socket on the power
board. Secure the cable using the cable clamp and replace
the cover.
Earth pillar B
Fig. 21
