Overview
The SilkWorm 12000 world wide name (WWN) card is highly reliable and contains fully redundant circuits. It should not
usually require replacement under normal operating conditions. Before replacing the card, make sure you actually need to
replace it by referring to the information provided under Verifying Necessity of Replacement on page 6. Contact your support
provider if you have any questions about whether the WWN card requires replacement. If the WWN card does fail, the
SilkWorm 12000 can continue operating until the new WWN card is installed if the configuration is not modified, no hardware
components are replaced, and the SilkWorm 12000 is not rebooted.
The WWN card is located on the non-port side of the chassis underneath the WWN bezel (see Figure 1 on page 4).
This procedure requires a command line interface (CLI) to the SilkWorm 12000. The CLI can be either a telnet session or a
serial console session; instructions are provided for both. The steps required to replace the WWN card depend on the version
of Fabric OS; one procedure is provided for Fabric OS v4.1.0 or later, and another procedure is provided for earlier versions.
Note: If a serial console is used, all commands must be entered through the active CP card unless otherwise indicated. For
command details, refer to the Fabric OS Reference.
This document provides the following information:
•Time and Items Required on page -4
•Location of Components on page -4
•Verifying Necessity of Replacement on page -6
•Replacing the WWN Card on a SilkWorm 12000 Running Fabric OS v4.1 on page -7
•Replacing the WWN Card on a SilkWorm 12000 Running a Version of Fabric OS Prior to 4.1 on page -13
•Reference Information for the frureplace Command on page -35
•Reference Information for the fruinfoset Command on page -37
•Reference Information for the chassisshow Command on page -39
All the instructions required to replace the WWN card are provided in this document. Additional related information can be
found in the following documentation:
•SilkWorm 12000 Hardware Reference Manual
•Diagnostic and System Error Message Reference
Caution If the Fabric OS version is earlier than v4.1.0, the SilkWorm 12000 must be powered off to replace the
WWN card. Before replacing the card, determine the version of Fabric OS installed and ensure the
correct procedure is followed when performing the replacement.
DO NOT power cycle or reboot the SilkWorm 12000 or replace the CP cards or port cards until the
WWN card is verified as functional or a replacement WWN card is installed. If any of these events
happen while the WWN card is failed or uninstalled, the configuration information is lost, and it will be
necessary to reconfigure the SilkWorm 12000 after installing the new WWN card.
Disassembling any part of the WWN card voids the part warranty and regulatory certifications. The
WWN card contains no user-serviceable parts.

4 of 41 SilkWorm 12000 WWN Card Replacement Procedure
Time and Items Required
For Fabric OS v4.1, allow approximately 20 minutes to replace the WWN card. For earlier versions of Fabric OS, allow
approximately 60 minutes.
The following items are needed to replace the WWN card:
•ESD (electrostatic discharge) grounding strap
•#2 Phillips screwdriver (only required for some versions of the WWN card)
•Required if a serial console session is used: A serial cable and a workstation computer with a terminal emulator
application (such as HyperTerminal for Windows systems or TIP for Solaris systems)
Location of Components
Figure 1 shows the non-port side of the SilkWorm 12000, which contains the WWN bezel and card.
Figure 1 Non-Port Side of SilkWorm 12000
scale:
3/16" = 1"
Fig. 006
10 pwr4
pwr3
pwr2
pwr1
987654321
Port Card and
CP Card LEDs
WWN
Bezel
Power Supply
LEDs
Blower
Fault
LED
Blower
Handle
Blower
Assembly
#3
Blower
Assembly #2
Blower
Assembly #1
Blower
Power
LED

SilkWorm 12000 WWN Card Replacement Procedure 5 of 41
Figure 2 shows the port side of the SilkWorm 12000 chassis and the location of the grounding strap connector.
Figure 2 Port Side of SilkWorm 12000
scale:
3/16" = 1"
Fig. 001
POWER SUPPLY 2
POWER SUPPLY 3
POWER SUPPLY 4
POWER SUPPLY 1
12345678910
200-240 VAC 12A 50-60 Hz 200-240 VAC 12A 50-60 Hz
!
d
c
b
a
11
d
10
c
9
b
8
a
d
c
b
a
3
d
2
c
1
b
0
a
!
d
c
b
a
11
d
10
c
9
b
8
a
d
c
b
a
3
d
2
c
1
b
0
a
!
d
c
b
a
11
d
10
c
9
b
8
a
d
c
b
a
3
d
2
c
1
b
0
a
!
d
c
b
a
11
d
10
c
9
b
8
a
d
c
b
a
3
d
2
c
1
b
0
a
!
d
c
b
a
11
d
10
c
9
b
8
a
d
c
b
a
3
d
2
c
1
b
0
a
!
d
c
b
a
11
d
10
c
9
b
8
a
d
c
b
a
3
d
2
c
1
b
0
a
Link
10/100 Mb/s
!
I O I O IRS - 232
Link
10/100 Mb/s
!
I O I O IRS - 232
!
!
!
!
!
!
!
!
POWER SUPPLY 1 & 3 POWER SUPPLY 2 & 4
CP Card
Exhaust
Vent
16-Port
Card
AC Power
Switch
AC Power
Connector
(for Power Supply 1 & 3) (for Power Supply 2 & 4)
AC Power
Switch
AC Power
Connector
Grounding
Strap
Connector
Power
Supply #4
Power
Supply #3
Filler
Panels
Power
Supply #2
Power
Supply #1
Cable
Management
Tray

6 of 41 SilkWorm 12000 WWN Card Replacement Procedure
Verifying Necessity of Replacement
Before replacing the WWN card, verify the replacement is necessary. Ensure the current card is firmly seated when performing
troubleshooting steps, and contact your support provider if you have any questions about whether the card should be replaced.
Any of the following events may indicate that the card requires replacement:
•Visible mechanical damage to the WWN card
•Any of the Status LEDs on the WWN card do not reflect the actual status of the components
•Problems viewing or modifying the data stored on the WWN card (see Data Stored on the WWN Card, below)
•Error messages regarding WWN units #1 or #2 (see Messages that May Indicate WWN Card Failure, below)
Data Stored on the WWN Card
The data listed in Table 2-1 is stored on the WWN card. Difficulty retrieving or modifying this data may indicate WWN card
failure.
Messages that May Indicate WWN Card Failure
If the error log or serial console display error messages that indicate problems with WWN units #1 or #2, the WWN card may
have failed. WWN units #1 and #2 correspond to information specific to the WWN card and are displayed by the chassisshow
command.
Note: WWN units #1 and #2 do not correspond to the WWNs for logical switches 0 and 1.
For more information about error messages, refer to the Diagnostics and System Error Message Reference.
Table 2-1 Data Stored on the WWN Card
Data Related Commands
WWN values wwn, chassisshow
License keys licenseshow, licenseadd, licenseremove
Data about the chassis and WWN card chassisshow
Ethernet and fibre channel IP address information for the CP
(control processor) cards ipaddrshow, ipaddrset
History log information historyshow, historylastshow
Names of logical switches switchname
Table 2-2 Messages That May Indicate WWN Card Failure
Type of Message Sample Error Message
WWN unit #1 or #2 fails its FRU (field
replaceable unit) header access. 0x24c (fabos): Switch: 0, error EM-I2C_TIMEOUT, 2, WWN 1 I2C timed out: state 0x4
WWN unit #1 or #2 is being faulted. 0x24c (fabos): Switch: 0, Critical EM-WWN_UNKNOWN, 1,
Unknown WWN #2 is being faulted
WWN unit #1 or #2 is not present or is
not accessible. 0x24c (fabos): Switch: 0, Error EM-WWN_ABSENT, 2, WWN #1 not present
Writing to the FRU history log
(hilSetFruHistory) has failed. 0x24c (fabos): Switch: 0, Error EM-HIL_FAIL, 2, HIL Error: hilSetFruHistory failed, rc=-3 for SLOT 3

SilkWorm 12000 WWN Card Replacement Procedure 7 of 41
Replacing the WWN Card on a SilkWorm 12000
Running Fabric OS v4.1
Note: For more information about specific commands, refer to the Fabric OS Reference.
1. Open a CLI session (telnet or serial) to Switch 0 and log in as admin. The default password is “password”.
Instructions are provided for both a telnet session and a serial console session.
Logging in by Telnet
Telnet to the IP address of Switch 0.
Figure 3 Opening a Telnet Session to Switch 0 and Logging in as Admin
Logging in by Serial Console
To log in by serial console, you must first determine which CP card is active by entering the hashow command through
either a serial or telnet session, and then connect to the active card.
a. Connect the serial cable to the active CP card. If the active card is not known, connect to the card in slot 5 (CP0).
b. Disable any serial communication programs running on the workstation (such as synchronization programs).
c. Insert one of the serial cables into the terminal serial port on the CP card in slot 5 (the terminal serial port is the
second serial port from the top of the CP card). See Figure 1 on page 4.
d. Connect the other end of the serial cable to a serial port on the workstation. If necessary, the adapter on the serial
cable can be removed to allow for a serial RJ45 connection.
e. Open the terminal emulator application and configure as described below.
•For Windows 95, 98, 2000, or NT, enter the parameters provided in the following list:
Parameter Value
Bits per second 9600
Databits 8
Parity None
Stop bits 1
Flow control None
•For most UNIX systems, enter the following string at the prompt:
tip /dev/ttyb -9600
f. When the terminal emulator application stops reporting information, press <Enter> and log in as admin (the default
password is “password”), then enter “0” to log into Switch 0 (see Figure 4).
Figure 4 Opening a Serial Console Session to CP0 and Logging in as Admin
Fabric OS (tm) Release v4.1
login: admin
Enter Switch Number to Login <0 or 1>: 0
Password:
SW0:admin>
<Initial text printed on console not shown>
Fabric OS (cp0)
cp0 Console Login: admin
Enter Switch Number to Login <0 or 1>: 0
Password:
SW0:admin>

8 of 41 SilkWorm 12000 WWN Card Replacement Procedure
g. Enter the hashow command to determine which CP card is active (see Figure 5).
Figure 5 Sample Output for hashow Command
h. If CP0 is not the active CP card, connect the serial cable to CP1 and log in as admin to Switch 0 (see Figure 6).
Figure 6 Opening a Serial Console Session to CP1 and Logging in as Admin
2. Enter the version command to verify the firmware version (see Figure 7).
•If the firmware is Fabric OS v4.1 or later, continue with this procedure.
•If the firmware is an earlier version, follow the procedure provided under Replacing the WWN Card on a
SilkWorm 12000 Running a Version of Fabric OS Prior to 4.1 on page 13.
Figure 7 Sample Output for the version Command in Fabric OS v4.1
3. Enter frureplace wwn and wait for the phrase “Do you wish to continue [y/n]?” to display, then enter “y” (see Figure 8).
4. Verify that the following has occurred:
•The phrase “Please enter the word ‘continue’...” displays in the CLI (see Figure 8). Do NOT enter continue; the
mechanical replacement must be completed first.
•All the LEDs on the WWN card turn off.
These events indicate that data has been backed up and the card can now be replaced.
SW0:admin> hashow
Local CP (Slot 5, CP0) : Active
Remote CP (Slot 6, CP1) : Standby, Healthy
HA Enabled, Heartbeat Up, HA State synchronized
SW0:admin>
<Initial text printed on console not shown>
Fabric OS (cp1)
cp1 Console Login: admin
Enter Switch Number to Login <0 or 1>: 0
Password:
SW0:admin>
SW0:admin> version
Kernel: 2.4.19
Fabric OS: v4.1.0
Made on: Mon Oct 7 09:27:16 2002
Flash: Tue Oct 8 12:13:47 2002
BootProm: 3.2.4
SW0:admin>

SilkWorm 12000 WWN Card Replacement Procedure 9 of 41
Figure 8 Initial Output for the frureplace Command with WWN Parameter
5. Unscrew both retaining screws on the WWN bezel (see Figure 9 or Figure 10), then pull bezel away from chassis and set
aside. The WWN card is now visible.
6. Remove the old WWN card and set on a static free surface, such as a grounding pad.
There are two possible versions of the WWN card; one that is secured against the chassis by the pressure of the bezel
against a pad (“Push Pad)” on the card face (see Figure 9), and one that attaches to the chassis by screws (see Figure 10).
Removing a WWN Card that Has a Push Pad
If the card has a Push Pad, use the handles (see Figure 9) to gently pull the card away from the chassis.
SW0:admin> frureplace wwn
This is the WWN card hot swap interface.
Continuing from this point will require
the whole process to be completed.
If this process is not complete due to
a power cycle, or CP failover, please follow
the recovery procedure in
Core Switch WWN Card Removal and
Replacement document.
Do you wish to continue [y/n]? y
Backing up WWN card data, please
wait about 25 seconds for further
instruction.
Please install the new FRU now.
If this session lost for any reason,
please reenter the frureplace command and
follow the instructions to complete the
operation.
Please enter the word `continue' after the
new WWN card has been installed:
Caution To protect the WWN card components, wear an ESD grounding strap and prepare an anti-static bag
or grounding pad on which to place the WWN card. Do not place anything on top of the card. See
Figure 2 for the location of the grounding connector on the chassis.

10 of 41 SilkWorm 12000 WWN Card Replacement Procedure
Figure 9 Push Pad Version of WWN Card on SilkWorm 12000
Fig. 008
scale: 5/32" = 1"
WWN
Card
Push
Pad
SilkWorm 12000
Chassis
PULL
PULL
PUSH
.15625" = 1"
10
pwr4
pwr3
pwr2
pwr1
9
8
7
6
5
4
3
2
1
Captive
Screw
(2x)
Bezel
Handle
(2x)
WWN
Connector
Alternate WWN Card

SilkWorm 12000 WWN Card Replacement Procedure 11 of 41
Removing a WWN Card that Does Not Have a Push Pad
Unscrew both screws that attach the card to the chassis (see Figure 10) and set aside. Grasp the card around the edges
and gently pull it away from the chassis. Save the screws in case they are required for the replacement card.

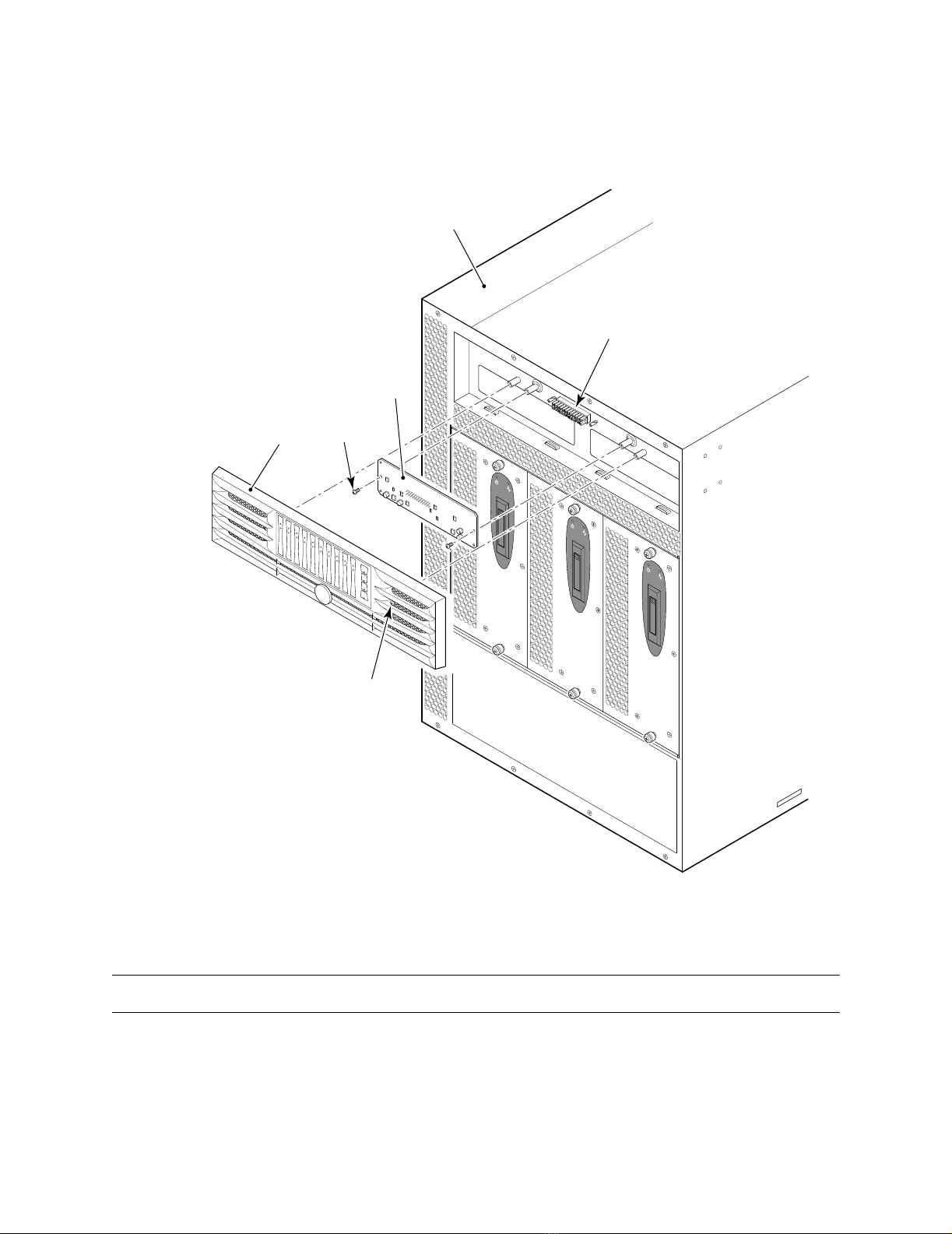

Figure 10 Non-Push Pad Version of WWN Card on SilkWorm 12000
7. Unpack the new WWN card and install according to the type of card, as described below. Save the packaging for use
when returning the old WWN card.
Installing a WWN Card that Has a Push Pad
Hold the card by the handles and orient with the LEDs at the top (see Figure 9), then align the connector on the card
with the connector on the chassis (the connectors are keyed to ensure correct installation), and use the Push Pad to
gently press the card onto the connector until it is fully seated.
The card retains slight freedom of movement after installation.
Caution Do not force the installation; if the card does not install easily, ensure it is correctly oriented.
Fig. 009
scale: 5/32" = 1"
WWN
Card
SilkWorm 12000
Chassis
PULL
PULL
PUSH
.15625" = 1"
10
pwr4
pwr3
pwr2
pwr1
9
8
7
6
5
4
3
2
1
Captive
Screw
(2x)
Bezel
Attaching
Screw (2x)
WWN
Connector
Alternate WWN Card

12 of 41 SilkWorm 12000 WWN Card Replacement Procedure
Installing a WWN Card that Does Not Have a Push Pad
Hold the card by the edges with the LEDs at the top (see Figure 10), then align the connector on the card with the
connector on the chassis (the connectors are keyed to ensure correct installation), and gently press the card onto the
connector until it is fully seated. Insert and tighten the screws saved from the old card.
8. Re-install the WWN bezel: Orient the bezel on the chassis as shown in Figure 9 on page 10 or Figure 10 on page 11, then
insert both retaining screws into the standoffs on the chassis and tighten to finger-tight.
Note: If a serial console session is active, several “removal detected” and “insertion detected” messages display on the
console as a result of the replacement (see Figure 11).
Figure 11 Sample Messages Sent by frureplace Command to a Serial Console
9. In the CLI session, enter “continue” to indicate that the replacement has been completed (see Figure 12).
Figure 12 Sample Output for the frureplace Command After Entering “Continue”
10. Verify that the WWN card is correctly connected by verifying that the LEDs on the WWN card reflect the status of the
components (see Figure 13).
Note: The LEDs may take up to 2 minutes after card installation to begin functioning.
0x24f (fabos): Switch: 0, Info EM-FRU_REM, 4, WWN #1 removal detected.
0x24f (fabos): Switch: 1, Info EM-FRU_REM, 4, WWN #1 removal detected.
0x24f (fabos): Switch: 0, Info EM-FRU_REM, 4, WWN #2 removal detected.
0x24f (fabos): Switch: 1, Info EM-FRU_REM, 4, WWN #2 removal detected.
0x24f (fabos): Switch: 0, Info EM-FRU_INS, 4, WWN #1 insertion detected.
0x24f (fabos): Switch: 1, Info EM-FRU_INS, 4, WWN #1 insertion detected.
0x24f (fabos): Switch: 0, Info EM-FRU_INS, 4, WWN #2 insertion detected.
0x24f (fabos): Switch: 1, Info EM-FRU_INS, 4, WWN #2 insertion detected.
Please enter the word `continue' after the
new WWN card has been installed: continue
Restoring the information to the
replacement FRU now, please wait about
20 seconds to complete
Verifying the replacement FRU now...
WWN card hot swap is now complete.
FRU replacement completed successfully!

SilkWorm 12000 WWN Card Replacement Procedure 13 of 41
Figure 13 LED Indicators on WWN Bezel
11. Pack the old WWN card in the packaging provided with the new card and return it to the switch supplier.
Replacing the WWN Card on a SilkWorm 12000
Running a Version of Fabric OS Prior to 4.1
Replacing the WWN card in versions of Fabric OS prior to v4.1 requires powering off the SilkWorm 12000. Inform the SAN
administrator of this requirement before beginning the replacement. The replacement process involves the following steps,
which must be performed in the order listed:
1. Record critical switch information (see Recording Critical Switch information on page 14)
2. Remove Software License Keys (see Removing Software License Keys on page 20)
3. Replace the WWN Card (see Replacing the WWN Card on page 22)
4. Restore the Configuration (see Restoring the Configuration on page 23)
5. Verify Operation of the New WWN Card (Verifying Correct Operation of the New WWN Card on page 31)
Fig. 021
scale:
5/16" = 1"
Power LED
(upper LED)
Badge Captive
Screw (2x)
Power LED
(upper LED)
Power LED/
Status LED
Port Cards
(Slots 1-4 and 7-10)
CP Cards
(Slots 5 and 6)
Power Supplies
Status LED
(lower LED)
Status LED
(lower LED)
10 pwr4
pwr3
pwr2
pwr1
987654321

14 of 41 SilkWorm 12000 WWN Card Replacement Procedure
Recording Critical Switch information
Note: Use the checklist provided on page 19 to ensure all required information is recorded.
1. Open a CLI session (telnet or serial) to Switch 0 and log in as admin. The default password is “password”.
Instructions are provided for both a telnet session and a serial console session.
Logging in by Telnet
Telnet to the IP address of Switch 0.
Figure 14 Opening a Telnet Session to Switch 0 and Logging in as Admin
Logging in by Serial Console
To log in by serial console, you must first determine which CP card is active by entering the hashow command through
either a serial or telnet session, and then connect to that card.
a. Connect the serial cable to the active CP card. If the active card is not known, connect to the card in slot 5 (CP0).
b. Disable any serial communication programs running on the workstation (such as synchronization programs).
c. Insert one of the serial cables into the terminal serial port on the CP card in slot 5 (the terminal serial port is the
second serial port from the top of the CP card). See Figure 2 on page 5.
d. Connect the other end of the serial cable to a serial port on the workstation. If necessary, the adapter on the serial
cable can be removed to allow for a serial RJ45 connection.
e. Open the terminal emulator application and configure as described below.
•For Windows 95, 98, 2000, or NT, enter the parameters provided in the following list:
Parameter Value
Bits per second 9600
Databits 8
Parity None
Stop bits 1
Flow control None
•For most UNIX systems, enter the following string at the prompt:
tip /dev/ttyb -9600
f. When the terminal emulator application stops reporting information, press <Enter> and log in as admin (the default
password is “password”), then enter “0” to log into Switch 0 (see Figure 15).
Figure 15 Opening a Serial Console Session to CP0 and Logging in as Admin
Fabric OS (tm) Release v4.0.2
login: admin
Enter Switch Number to Login <0 or 1>: 0
Password:
SW0:admin>
<Initial text printed on console not shown>
Fabric OS (cp0)
cp0 Console Login: admin
Enter Switch Number to Login <0 or 1>: 0
Password:
SW0:admin>

SilkWorm 12000 WWN Card Replacement Procedure 15 of 41
g. Enter the hashow command to determine which CP card is active (see Figure 16).
Figure 16 Sample Output for hashow Command
h. If CP0 is not the active CP card, connect the serial cable to CP1 and log in as admin to Switch 0 (see Figure 17).
Figure 17 Opening a Serial Console Session to CP1 and Logging in as Admin
2. Enter the version command to verify the firmware version (see Figure 18).
•If the firmware is earlier than Fabric OS v4.1, continue with this procedure.
•If the firmware is Fabric OS v4.1 or later, follow the procedure provided under Replacing the WWN Card on a
SilkWorm 12000 Running Fabric OS v4.1 on page 7.
Figure 18 Sample Output for the version Command on Fabric OS v4.1
3. Back up the current configuration for Switch 0: enter the configupload command then enter the requested information at
the prompts (see Figure 19).
This command uploads the switch configuration to the customer-defined FTP server, so that it is available for
downloading if required. For details about this command, refer to the Fabric OS Reference.
Figure 19 Sample Output for the configupload Command on Switch 0
SW0:admin> hashow
Local CP (Slot 5, CP0) : Active
Remote CP (Slot 6, CP1) : Standby, Healthy
HA Enabled, Heartbeat Up, HA State synchronized
SW0:admin>
<Initial text printed on console not shown>
Fabric OS (cp1)
cp1 Console Login: admin
Enter Switch Number to Login <0 or 1>: 0
Password:
SW0:admin>
SW0:admin> version
Kernel: 2.4.19
Fabric OS: v4.1.0
Made on: Mon Oct 7 09:27:16 2002
Flash: Tue Oct 8 12:13:47 2002
BootProm: 3.2.4
switch12k:admin>
SW0:admin>
SW0:admin> configupload
Server Name or IP Address [host]: 123.123.123.123
User Name [None]: Admin24
File Name [config.txt]: config-switch0.txt
Password: xxxxxxxx
upload complete
SW0:admin>

16 of 41 SilkWorm 12000 WWN Card Replacement Procedure
4. Record the WWN value for Switch 0: enter the wwn command (see Figure 20) then copy the command output into a file
named “config-miscinfo.txt”.
Figure 20 Sample Output for the wwn Command on Switch 0
5. Record the switch name for Switch 0 and the chassis name (see Figure 21):
a. Enter the switchname command and copy the command output into a text file.
b. Enter the chassisname command and copy the command output into a text file.
Figure 21 Sample Output for the switchname (for Switch 0) and chassisname Commands
6. Log into Switch 1: Enter the login command, log in as admin, then enter “1” to log into Switch 1 (see Figure 22).
Figure 22 Logging Into Switch 1
7. Back up the current configuration for Switch 1: enter the configupload command then enter the requested information at
the prompts (see Figure 23).
Note: The configupload command can be entered through a telnet or serial session,but the switch must have an ethernet
connection to the Server Name or IP of the host for the upload process to complete. For more information, refer
to the help configupload command or the Fabric OS Reference.
Figure 23 Sample Output for the configupload Command on Switch 1
8. Record the WWN value for Switch 1: enter the wwn command (see Figure 24), then copy the command output into the
“config-miscinfo.txt” file.
Figure 24 Sample Output for the wwn Command on Switch 1
SW0:admin> wwn
10:00:00:60:69:00:00:0a
SW0:admin>
SW0:admin> switchname
SW0
SW0:admin> chassisname
north lab
SW0:admin>
SW0:admin> login
login:admin
Enter Switch Number to Login <0 or 1>: 1
password: xxxx
SW1:admin>
SW1:admin> configupload
Server Name or IP Address [host]: 123.123.123.123
User Name [None]: Admin24
File Name [config.txt]: config-switch1.txt
Password: xxxxxxxx
upload complete
SW1:admin>
SW1:admin> wwn
10:00:00:60:69:00:00:0b
SW1:admin>

SilkWorm 12000 WWN Card Replacement Procedure 17 of 41
9. Record the switch name for Switch 1: enter the switchname command (see Figure 25), then copy the command output
into the “config-miscinfo.txt” file.
Figure 25 Sample Output for the switchname Command on Switch 1
10. Record the IP address information: enter ipaddrshow 4(see Figure 26), then copy the command output into the
“config-miscinfo.txt” file.
Figure 26 Sample Output for the ipaddrshow Command
SW1:admin> switchname
SW1
SW1:admin>
SW1:admin> ipaddrshow 4
SWITCH0
Ethernet IP Address: 192.168.1.10
Ethernet Subnetmask: 255.255.255.0
Fibre Channel IP Address: 0.0.0.0
Fibre Channel Subnetmask: 255.255.255.0
SWITCH1
Ethernet IP Address: 192.168.1.11
Ethernet Subnetmask: 255.255.255.0
Fibre Channel IP Address: 0.0.0.0
Fibre Channel Subnetmask: 0.0.0.0
CP0
Ethernet IP Address: 192.168.1.12
Ethernet Subnetmask: 255.255.255.0
HostName : cp0
Gateway Address: 192.168.1.1
CP1
Ethernet IP Address: 192.168.1.13
Ethernet Subnetmask: 255.255.255.0
HostName : cp1
Gateway Address: 192.168.1.1
Backplane IP address of CP0 : 10.0.0.5
Backplane IP address of CP1 : 10.0.0.6
SW1:admin>

18 of 41 SilkWorm 12000 WWN Card Replacement Procedure
11. Display and record the manufacturer serial numbers: enter the chassisshow command (see Figure 27), then copy the
command output into the “config-miscinfo.txt” file.
Note: In versions of Fabric OS prior to v4.1, the chassisshow command uses “Brocade Part Number” and “Brocade
Serial Number” where “Factory Part Number” and “Factory Serial Number” are shown here.
The chassisshow command lists up to two serial numbers:
•“Factory Serial Num” is listed under “Chassis/WWN Unit 1” (see Figure 27). If the current WWN card is the
original card, this serial number is the same as the chassis serial number provided on the bar code sticker inside
the door of the chassis.
•“Serial Num” is listed under “Chassis/WWN Unit 1”. If a “Serial Num” value displays, contact the switch
provider to determine whether this serial number should be modified after the new WWN card is installed.
Figure 27 Partial Sample Output for the chassisshow Command
12. Record the chassis serial number provided on the bar code sticker inside the door of the chassis.
SW1:admin> chassisshow
<Previous text not shown; see Reference Information for the chassisshow Command on page 39 for a
more complete command output>
CHASSIS/WWN Unit: 1(in same assembly as WWN Unit: 2)
Header Version: 2
Power Consume Factor: -3
Factory Part Num: 60-0001501-04
Factory Serial Num: FZ02X804460
Manufacture: Day: 5 Month: 6 Year: 2002
Update: Day: 6 Month: 6 Year: 2002
Time Alive: 175 days
Time Awake: 8 days
Serial Num: OEMssn12345
<remaining text not shown>
SW1:admin>
