Brocade VDX 8770-4
QuickStart Guide

2 of 32 Brocade VDX 8770-4 QuickStart Guide
Publication Number: 53-1002554-01
Copyright © 2012, Brocade Communications Systems, Incorporated.
Brocade, Brocade Assurance, the B-wing symbol, BigIron, DCX, Fabric OS, FastIron, MLX, NetIron, SAN Health, ServerIron, TurboIron, VCS, and VDX
are registered trademarks, and AnyIO, Brocade One, CloudPlex, Effortless Networking, ICX, NET Health, OpenScript, and The Effortless Network
are trademarks of Brocade Communications Systems, Inc., in the United States and/or in other countries. Other brands, products, or service
names mentioned may be trademarks of their respective owners.
Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning any equipment,
equipment feature, or service offered or to be offered by Brocade. Brocade reserves the right to make changes to this document at any time,
without notice, and assumes no responsibility for its use. This informational document describes features that may not be currently available.
Contact a Brocade sales office for information on feature and product availability. Export of technical data contained in this document may
require an export license from the United States government.
The authors and Brocade Communications Systems, Inc. shall have no liability or responsibility to any person or entity with respect to any loss,
cost, liability, or damages arising from the information contained in this book or the computer programs that accompany it.
The product described by this document may contain “open source” software covered by the GNU General Public License or other open source
license agreements. To find out which open source software is included in Brocade products, view the licensing terms applicable to the open
source software, and obtain a copy of the programming source code, please visit
http://www.brocade.com/support/oscd.
Brocade Communications Systems, Incorporated
Document History
Corporate and Latin American Headquarters
Brocade Communications Systems, Inc.
130 Holger Way
San Jose, CA 95134
Tel: [phone]
Fax: [phone]
E-mail: inf[email protected]
Asia-Pacific Headquarters
Brocade Communications Systems China HK, Ltd.
No. 1 Guanghua Road
Chao Yang District
Units 2718 and 2818
Beijing 100020, China
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
European Headquarters
Brocade Communications Switzerland Sàrl
Centre Swissair
Tour B - 4ème étage
29, Route de l'Aéroport
Case Postale 105
CH-1215 Genève 15
Switzerland
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
Asia-Pacific Headquarters
Brocade Communications Systems Co., Ltd. (Shenzhen WFOE)
Citic Plaza
No. 233 Tian He Road North
Unit 1308 – 13th Floor
Guangzhou, China
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
Document Title Publication
Number
Summary of
Changes
Publication
Date
Brocade VDX 8770-4 QuickStart Guide 53-1002554-01 New document. August 2012

Brocade VDX 8770-4 QuickStart Guide 3 of 32
Publication Number: 53-1002554-01
In this guide
•Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
•Safety notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
•Danger notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
•Caution notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
•ESD precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
•Brocade VDX 8770-4, port side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
•Brocade VDX 8770-4, nonport side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
•Items included with the Brocade VDX 8770-4 . . . . . . . . . . . . . . . . . . . . . . . . 8
•Preparing for the Brocade VDX 8770-4 installation. . . . . . . . . . . . . . . . . . . . 9
•Unpacking and installing the Brocade VDX 8770-4. . . . . . . . . . . . . . . . . . . 13

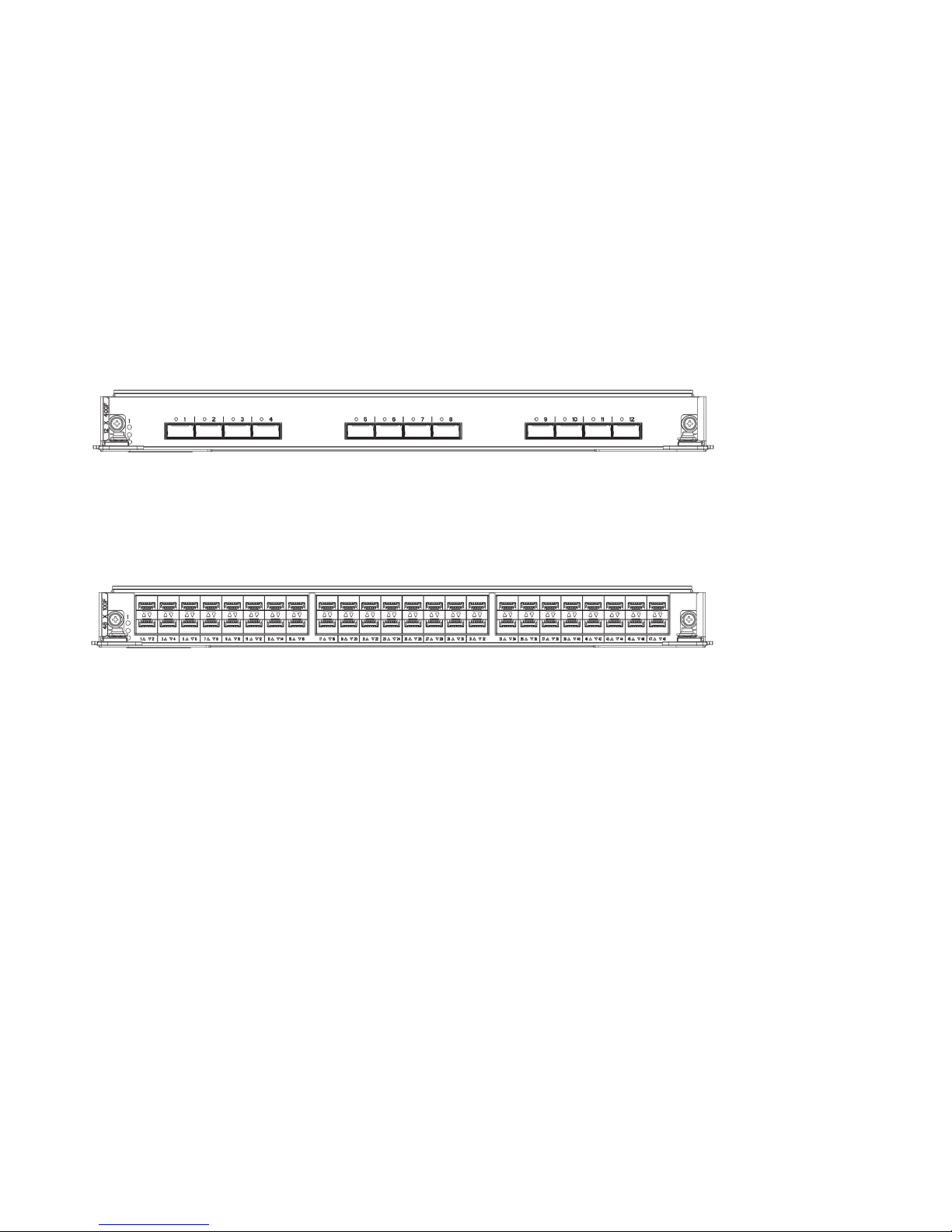

•Port numbering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

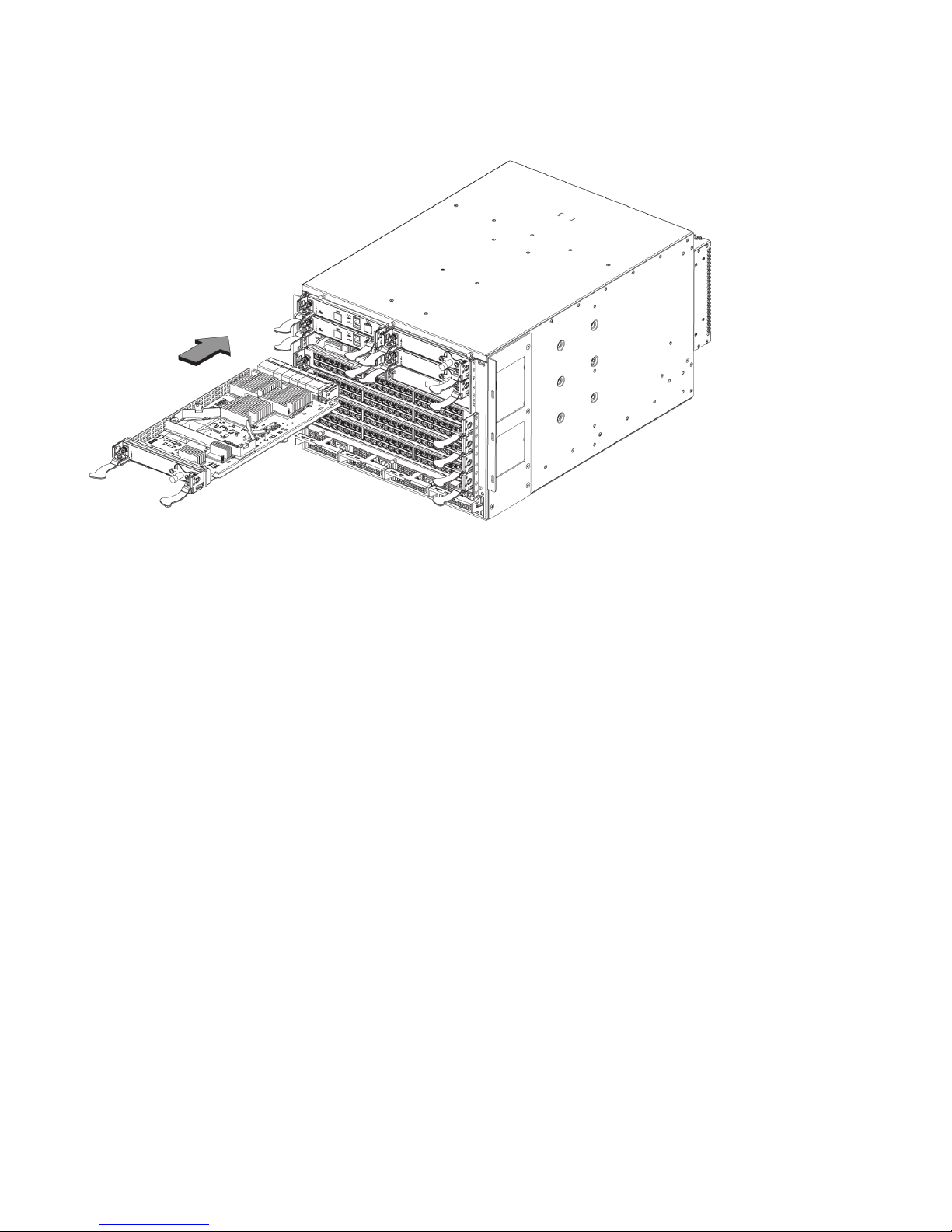

•Inserting a management module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
•Inserting a switch fabric module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

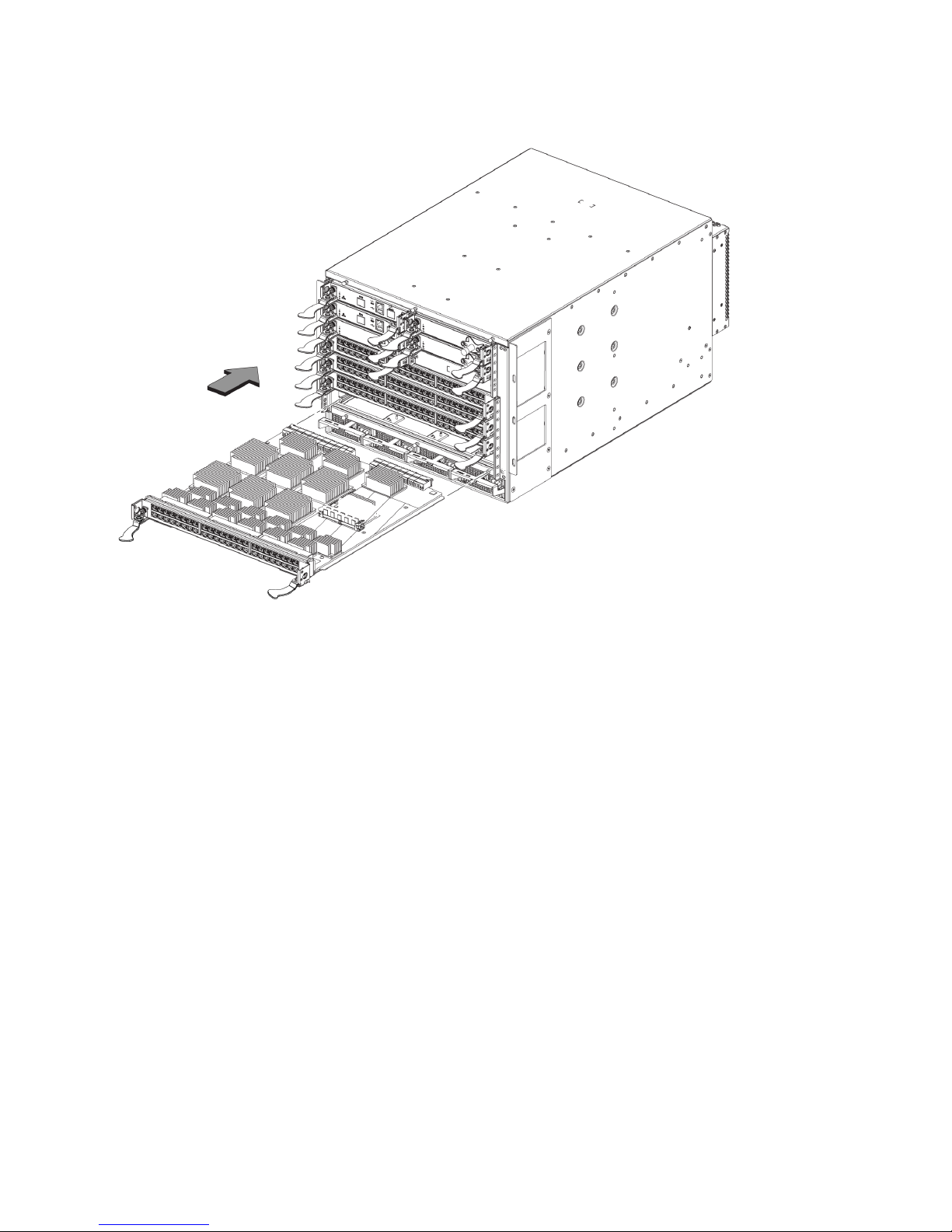

•Inserting a line card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
•Inserting power supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
•Providing power to the Brocade VDX 8770-4 . . . . . . . . . . . . . . . . . . . . . . . . 19
•Preparing to configure the Brocade VDX 8770-4. . . . . . . . . . . . . . . . . . . . . 20
•Establishing a serial connection to the Brocade VDX 8770-4. . . . . . . . . . . 20
•Logging in to the serial console port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
•Changing the RBridge ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
•Assigning permanent passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
•Configuring the IP addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
•Logging off the serial console port and disconnecting the serial cable. . . 24
•Establishing an Ethernet connection to the Brocade VDX 8770-4 . . . . . . . 24
•Customizing a host name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
•Customizing a switch name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
•Setting the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
•Determining installed software licenses. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
•Saving your changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
•Verifying correct operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
•Backing up the configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
•Connecting network devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
•Installing transceivers and attaching cables . . . . . . . . . . . . . . . . . . . . . . . . 30
•Managing cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
•Creating Brocade inter-switch link trunks. . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4 of 32 Brocade VDX 8770-4 QuickStart Guide
Publication Number: 53-1002554-01
Introduction
You can set up and install the Brocade VDX 8770-4 in the following ways:
•As a standalone unit on a flat surface
•In a four-post rack with the Intake Duct Kit
•In a four-post rack
•In a two-post telecommunications (Telco) rack
This manual describes how to set up the Brocade VDX 8770-4 as a standalone unit. For rack mount installation
instructions, refer to the manual that comes with the separately ordered rack kit.
Table 1 describes the main installation and setup tasks, the estimated time required for each, and the items
required to complete the task based on a fully populated Brocade VDX 8770-4 (192 10 GbE ports). Configurations
with fewer ports require less time. These time estimates assume a prepared installation site and appropriate power
and network connectivity.
DANGER
The procedures in this manual are for qualified service personnel.
TABLE 1 Installation tasks, time, and items required
Installation task Time estimate Items required
Site preparation and unpacking Brocade
VDX 8770-4
30 minutes #2 Phillips screwdriver.
Pallet jack.
Hydraulic lift or assisted lift, able to raise to a
minimum of 140 cm (55 in.), with a minimum
capacity of 113 kg (250 lb). A fully loaded
version of the Brocade VDX 8770-4 weighs
86.18 kg (190 lbs).
Installing the rack mount kit or
intake duct rack mount kit
30 minutes
Refer to the proper rack mount kit instructions
for your specific rack..
Mounting and securing Brocade VDX
8770-4 in the rack
30 minutes
Inserting modules and power supplies 5-10 minutes per
unit
Management modules, switch fabric modules,
line cards, power supplies (AC or DC).
Installing power cables and powering on
the Brocade VDX 8770-4
20 minutes Power cables (provided in the Brocade VDX
8770-4 accessory kit).
Establishing a serial connection, logging on
to the Brocade VDX 8770-4, and
configuring the IP addresses
20 minutes Serial cable (also called the console cable -
provided in the accessory kit).
Workstation computer with a serial (console)
port or terminal server port and a terminal
emulator application (such as HyperTerminal).
Ethernet IP addresses for the Brocade VDX
8770-4 switch and for management modules:
total two or three addresses, depending on the
number of management modules installed.

Brocade VDX 8770-4 QuickStart Guide 5 of 32
Publication Number: 53-1002554-01
CAUTION
The Brocade VDX 8770-4 with DC power sources are intended for installation in restricted access areas
only. A restricted access area is a location where access can be gained only by service personnel through
the use of a special tool, lock and key, or other means of security, and is controlled by the authority
responsible for the location.
CAUTION
The Brocade VDX 8770-4 with AC power sources are intended for installation in restricted access areas
only. A restricted access area is a location where access can be gained only by service personnel through
the use of a special tool, lock and key, or other means of security.
Safety notices
When using this product, observe the danger, caution, and attention notices in this manual. The notices are
accompanied by symbols that represent the severity of the safety condition.
NOTE
Translated safety notices are in the Brocade Product Safety Notices publication, which is on the CD-ROM that
accompanies this product.
The danger and caution notices are listed in numerical order based on their IDs, which are displayed in parentheses,
for example (D004), at the end of each notice. Use this ID to locate the translations of these danger and caution
notices in the Brocade Product Safety Notices.
Installing an Ethernet cable, opening a
Telnet session, and configuring the
Brocade VDX 8770-4 date and time and
additional system parameters. Verify and
back up configuration.
20 minutes Ethernet cabling (optional) for Telnet access.
Refer to the Brocade Network OS
Administrator’s Guide.
Installing transceivers as needed 30-60 minutes Copper and optical transceivers and
direct-attach cables as needed.
Attaching cables, cable ties, and cable
guides
2-3 hours Cables, cable ties, and cable management
fingers.
TABLE 1 Installation tasks, time, and items required (Continued)
Installation task Time estimate Items required

6 of 32 Brocade VDX 8770-4 QuickStart Guide
Publication Number: 53-1002554-01
Danger notices
A danger notice calls attention to a situation that is potentially lethal or extremely hazardous to people. A
lightning bolt symbol accompanies a danger notice to represent a dangerous electrical condition. Read and
comply with the following danger notice before installing or servicing this device.
DANGER
Use the supplied power cords. Ensure the facility power receptacle is the correct type, supplies the
required voltage, and is properly grounded. (D004)
Caution notices
A caution notice calls attention to a situation that is potentially hazardous to people because of some existing
condition. Read and comply with the following caution notice before installing or servicing this device.
CAUTION
Use safe lifting practices when moving the product. (C015)
ESD precautions
The Brocade VDX 8770-4 contains ESD-sensitive FRUs. When working with any Brocade VDX 8770-4 FRU, use
correct electrostatic discharge (ESD) procedures.
•Wear a wrist grounding strap connected to chassis ground (if the Brocade VDX 8770-4 is plugged in) or a
bench ground. Refer to Figure 1 on page 7 for the location of the ESD jack.
•Store ESD-sensitive components in antistatic packaging.
Brocade VDX 8770-4, port side
NOTE
Airflow in the Brocade VDX 8770-4 is from the port side and left side (viewed from the port side) to the rear (fan side)
of the switch.
Figure 1 displays a sample configuration of the port side of the Brocade VDX 8770-4.

Brocade VDX 8770-4 QuickStart Guide 7 of 32
Publication Number: 53-1002554-01
FIGURE 1 Port side of the Brocade VDX 8770-4 (sample configuration)
Brocade VDX 8770-4, nonport side
Figure 2 displays a sample configuration of the nonport side view of the Brocade VDX 8770-4.
1 Management module slot 1 7 Line card slot 4
2 Management module slot 2 8 Switch fabric module slot 2
3 Switch fabric module slot 1 9 Switch fabric module slot 3
4 Line card slot 1 10 Blank slot - unused
5 Line card slot 2 11 ESD jack
6 Line card slot 3 12 Power supplies (1-4, left to right)

8 of 32 Brocade VDX 8770-4 QuickStart Guide
Publication Number: 53-1002554-01
FIGURE 2 Nonport side of the Brocade VDX 8770-4 (sample configuration)
Items included with the Brocade VDX 8770-4
The Brocade VDX 8770-4 ships with the following items:
•Brocade VDX 8770-4 chassis, populated with: (management modules, switch fabric modules, and line cards are
all packaged separately)
-Management modules (one)
-Switch fabric modules (up to three)
-Line cards (up to four)
-Filler panels for unoccupied slots for all modules
-Power supplies (up to four)
-Power supply filler panels for unoccupied bays
-Fan assemblies (two)
1Fan#1 3Groundlug
2Fan#2

Brocade VDX 8770-4 QuickStart Guide 9 of 32
Publication Number: 53-1002554-01
•Accessory kit containing the following items:
-Console cable (RS-232 serial cable: The RS-232 cable has an adapter at one end that can be removed to
provide an RJ-45-style connector.)
-Wrist strap (ESD grounding strap)
-Ground lug kit
-SFP extraction tool kit
-China RoHS guide
-Cable management finger assemblies
-Brocade-branded USB device
-Power cord retainer kit
-Brocade VDX 8770-4 QuickStart Guide (this publication)
-Hardware for securing the switch in a rack
-Web pointer document
-Air filter
The rack mount kits must be ordered separately.
Order the Brocade-branded transceivers (SFP, SFP+, or QSFP) and cables or direct-attach cables from your Brocade
distributor. The Brocade VDX 8770-4 supports SR and LR SFP and SFP+ transceivers. The QSFP transceivers are SR
transceivers only.
NOTE
For information about the transceivers that are qualified for the Brocade VDX 8770-4, refer to
http://www.brocade.com/downloads/documents/matrices/Brocade_Compatibility_Matrix.pdf.
Preparing for the Brocade VDX 8770-4 installation
NOTE
Refer to the safety notices before installation (“Safety notices”).
Refer to “Power specifications” to plan for meeting power supply standards before installing the switch.
Refer to “Environmental requirements” to plan for your environmental needs.
Refer to “Managing cables” to plan for cable management.
The following steps are required to ensure correct installation and operation.
1. Provide a space that is 8 rack units (8U) high, 61.19 cm (24.09 in.) deep, and 43.74 cm (17.22 in.) wide. One
rack unit is equal to 4.45 cm (1.75 in.). If you are using the Air Intake Kit, you will need a space that is 10U high
to accommodate both the Intake Kit and the switch.
Plan to install the Brocade VDX 8770-4 with the port side facing the air-intake aisle. Airflow is from the left side
of the switch to the fan side. If you are using the Intake Air Duct rack kit for mounting the Brocade VDX 8770-4,
then the airflow is from the port side to the fan side.
Ensure that the rack is balanced and mechanically secured to provide stability in the event of an earthquake
and that the equipment does not exceed the rack’s weight limits.
NOTE
Doorways must be wider than 91 cm (36 in.) to accommodate the switch.

10 of 32 Brocade VDX 8770-4 QuickStart Guide
Publication Number: 53-1002554-01
2. Ensure that dedicated electrical branch circuits with the following characteristics are available:
•Up to four dedicated fused 200–240 VAC, 50–60 Hz feeds or -48 VDC (one per power supply)
•One cable for each power supply
CAUTION
Use a separate branch circuit for each AC power cord for redundancy in case one of the circuits fails.
•Protected by a circuit breaker in accordance with local electrical codes
•Supply circuit, line fusing, and wire size adequate to the electrical rating on the switch nameplate
•Location close to the switch and easily accessible
•Grounded outlets installed by a licensed electrician and compatible with the power cords
DANGER
If the installation requires a different power cord than the one supplied with the switch, make sure you
use a power cord displaying the mark of the safety agency that defines the regulations for power cords in
your country. The mark is your assurance that the power cord can be used safely with the switch.
3. Plan for cable management before installing the switch.
Cables can be managed in a variety of ways, such as by routing cables below the switch, to either side of the
switch, through cable channels on the sides of the rack, or by using patch panels.
4. Ensure that the following items are available for configuration of the Brocade VDX 8770-4:
•Workstation with an installed terminal emulator, such as HyperTerminal
•Console (serial) cable (provided)
•Ethernet cables (not provided)
•Either access to an FTP server or a Brocade USB device for backing up the switch configuration or collecting
supportsave output data (optional)
•Transceivers (copper and optical) and compatible cables and direct-attach cables if needed
5. Ensure that the air intake and exhaust vents have a minimum of 5.1 cm (2 in.) of airspace.
6. Ensure that the air temperature on the air intake side is less than 40°C (104°F) during operation.
Power specifications
Power for the Brocade VDX 8770-4 can be supplied with either AC- or DC-based 3000 watt power supplies. The
Brocade VDX 8770-4 has room for up to four power supplies.
Table 2 shows the basic power specifications for each power supply.

Brocade VDX 8770-4 QuickStart Guide 11 of 32
Publication Number: 53-1002554-01
.
CAUTION
For the DC input circuit to the system of a Brocade VDX 8770-4 (3000W power supply), make sure there
is an 80 Amp circuit breaker, minimum -48 VDC, double pole, on the input lugs to the power supply. The
input wiring for the connection to the switch should be copper wire, 2 American Wire Guage (AWG),
marked VW-1, and rated minimum 90°C.
The power requirements for a given switch configuration depend on which modules have been installed in the
switch. Table 3 shows the power consumption for the modules that can be used in the Brocade VDX 8770-4 switch
along with the power consumption for the cooling fans.
All numbers for the line cards assume that the card is fully populated with optical transceivers, including QSFPs for
the 12x40 GbE line cards. All ports are Ethernet.
You can calculate your power requirements by combining the power demands for the various modules and fan units
in your configuration. While you may use fewer ports in a given line card, it is always safer to use the power
requirement of a fully populated card.
TABLE 2 Power specifications
Specification Value for 3000W AC power supply Value for 3000W DC power supply
Input rating 16A 70A
Input voltage 200–240 VAC, 50-60 Hz, 16.0 Amp
maximum
-48 VDC
Operating range 180 ot 264 VAC -40 to -60 VDC
Inrush current Limited to 60 Amp peak for any initial
current surge or spike of 10 ms or less at
either cold or warm start. Any additional
inrush current surges or spikes in the form
of AC cycles or multiple AC cycles greater
than 10 ms and less than 150 ms, must not
exceed 25 Amp peak.
Limited to 70 Amp peak for any initial
current surge or spike of 10 ms or less at
either cold or warm start.
Output 12 VDC, 245 Amps 12 VDC, 245 Amps
TABLE 3 Power demands per component
Module or fan units Power demand at idle -
blades enabled, no
optics, ports disabled
(Watts)
Nominal power demand -
blades enabled, optics, 50%
line rate, random packets
(Watts)
Maximum power demand - blades
enabled, optics, traffic present, full line
rate, 64 byte smallest packet, 40°C
ambient temp., maximum power for all
supported optics (Watts)
Management module 46 46 50
Switch fabric module 120 120 132
48x1G line card 245 310 460
48x10G line card 245 310 460
12x40G line card 247 290 440
Fan unit 25 25 268

12 of 32 Brocade VDX 8770-4 QuickStart Guide
Publication Number: 53-1002554-01
CAUTION
For the NEBS-compliant installation of a Brocade VDX 8770-4 with AC or DC systems, use a ground wire
of at least 2 AWG. The ground wire should have an agency-approved crimped connector (provided with
the device) attached to one end, with the other end attached to building ground. The connector must be
crimped with the proper tool, allowing it to be connected to both ground screws on the enclosure. Before
crimping the ground wire into the provided ground lug, ensure that the bare copper wire has been
cleaned and antioxidant is applied to the bare wire.
Environmental requirements
DANGER
Do not install the router in an environment where the operating ambient temperature might
exceed 40°C (104°F).
Table 4 lists the environmental operating ranges for the Brocade VDX 8770-4. The requirements for non-operating
conditions are also provided for acceptable storage and transportation environments.
NOTE
The 0°to 40°C (32°to 104°F) range applies to the ambient air temperature at the air intake vents on the left side
(as you face the port side) and port side of the Brocade VDX 8770-4.
The temperature inside the Brocade VDX 8770-4 can be up to 90° C (194°F) for some modules during operation.
Cooling policy is based on a combination of ambient temperature and measured temperature on the modules.
Various combinations will result in an increase in fan speed to create more cooling in the switch.
If a component approaches a critical temperature that will trigger a module shutdown, there will be a WARNING
message in the raslog, followed by a CRITICAL message saying that the module will shut down in two minutes.
Use the show environment command to view temperature status.
TABLE 4 Environmental requirements
Condition Acceptable range during operation Acceptable range during non-operation
Ambient temperature 0°to 40°C (32°to 104°F) outside
switch
-25°to +70°C (-13°to 158°F) outside
switch
Humidity 5% to 90% RH noncondensing, at 40°C
(104°F), with maximum gradient of 10%
per hour
10% to 90% RH noncondensing, at 70°C
(158°F)
Altitude 0 to 3 km (10,000 ft.) above sea level 0 to 12 km (40,000 ft.) above sea level
Shock 20G, 6 ms duration, half-sine wave 33G, 11 ms duration, half-sine wave
Vibration 0.5G p-p, 5-500 Hz at 1.0 octave/minute 2.0G p-p, 5-500 Hz at 1.0 octave/minute
Airflow Maximum: 675 cu ft/min. (1147 cu
m/hr)
Nominal: 200 cu ft/min. (340 cu m/hr
None required
Maximum heat
dissipation
Up to 6000W or 20,500 BTU/hr Not applicable

Brocade VDX 8770-4 QuickStart Guide 13 of 32
Publication Number: 53-1002554-01
Switch slots
Switch slots are coded and numbered to differentiate between management module slots, switch fabric module
slots, and line card slots. Management modules (MM) must be installed only in slots M1 and M2. Switch fabric
modules (SFM) must be installed only in slots S1 through S3. There must be at least one SFM installed in either slot
S1 or slot S2. The line card slots, L1 through L4, can be filled with either 48x1G, 48x10G, or 12x40G line cards.
Unused slots must be filled with the correct filler panels to maintain adequate cooling.
Unpacking and installing the Brocade VDX 8770-4
Use the following procedure to unpack and install your Brocade VDX 8770-4.
CAUTION
Use safe lifting practices when moving the product. (C015)
NOTE
A fully populated Brocade VDX 8770-4 weighs approximately 86.18 kg (190 lb) and requires a hydraulic or assisted
lift to install it.
1. Unpack the Brocade VDX 8770-4.
a. Cut the bands that encircle the packaging.
b. Slide the upper portion of the cardboard shipping box up off the pallet and shipping tray.
NOTE
The Brocade VDX 8770-4 packaging incorporates a wood pallet and brackets. The switch sits on top of a
corrugated cardboard shipping tray.
c. Save the packing materials for use when returning a switch.
d. Leave the switch on top of the shipping tray and pallet if the switch must be transported to the installation
location.
2. Use a pallet jack or other assisted lift to transport the new switch to the installation area.
3. Using the rack mount instructions, install the rack components in the rack and mounting flanges on the switch.
The rack mount kit and instructions are shipped separately from the switch.
4. Remove the accessory kit (cardboard box), packing foam, and antistatic plastic from the switch and set them
aside.
5. Remove the foam inserts around the base of the switch.
6. Use a lift to raise the switch to the correct level. If installing the switch in a rack, follow the instructions provided
by the rack kit manufacturer.
7. If applicable, lock the wheels of the lift.
8. Ensure that the switch is oriented so that the left side and port side (front) have access to intake air.
9. Gently slide the switch onto the final installation surface, ensuring that it remains supported during the transfer.

14 of 32 Brocade VDX 8770-4 QuickStart Guide
Publication Number: 53-1002554-01
10. Before you apply power to the switch, you can install the MM, SFM, and line card modules as well as power
supplies to speed up your installation. Refer to the following tasks for information on inserting thet various
modules.
Port numbering
The Brocade VDX 8770-4 uses the following port numbering method:
•12x40G line card module — Ports are numbered from 1 through 12 from from left to right when installed in the
switch. Refer to Figure 3.
FIGURE 3 12x40G line card
•48x1G and 48x10G line card modules — Ports are numbered from 1 through 48, from left to right, with the
odd-numbered ports on the upper row and the even-numbered ports on the lower row when installed in the
switch. Refer to Figure 4.
FIGURE 4 48x10G line card (48x1G line card similar)
Inserting a management module
For this procedure, refer to “ESD precautions” and Figure 5.
Complete the following steps to insert an MM.
1. Unpack the new MM and remove it from the anti-static bag.
2. Inspect the module for damage.
3. Remove the protective caps from the b ackplane connectors.
4. Rotate the ejectors toward the center of the module.
5. Align the module pan with the guides in the slot. The first MM should be installed in slot M1.
6. Slide the MM into the slot until it is firmly seated.
7. Rotate the ejectors away from the center of the module face until the module is tight in the slot.
8. Tighten the captive screws using the Phillips screwdriver.

Brocade VDX 8770-4 QuickStart Guide 15 of 32
Publication Number: 53-1002554-01
FIGURE 5 Inserting a management module
Inserting a switch fabric module
For this procedure, refer to “ESD precautions” and Figure 6.
Complete the following steps to insert the SFM.
1. Unpack the new SFM and remove it from the anti-static bag.
2. Inspect the module for damage.
3. Remove the protective caps from the backplane connectors.
4. Unscrew the power enable pin, pull it outward, and move the slider toward the center of the module face.
5. Open the ejectors on the new SFM by rotating them toward the center of the module face. Orient the switch
fabric module so that the ejectors are toward you.
6. Align the module pan with the guides in the slot. The first SFM ashould be installed in slot S1.
7. Push the SFM firmly into the slot.
8. Close the ejectors by rotating them away from the center of the SFM. The levering action of the ejectors seats
the module in the slot.
9. Tighten the captive screws using the Phillips screwdriver.
10. Pull out the power enable pin and move the slider all the way to the right.
11. Screw in the power enable pin.
12. Tighten the screws on the slider.

16 of 32 Brocade VDX 8770-4 QuickStart Guide
Publication Number: 53-1002554-01
FIGURE 6 Inserting a switch fabric module
Inserting a line card
For this procedure, refer to “ESD precautions” and Figure 7.
Complete this procedure to insert a new line card.
1. Unpack the new line card and remove it from the anti-static bag.
2. Inspect the module for damage.
3. Remove the protective covers from the backplane connectors.
4. Orient the line card so that the ports are at the front of the switch. The component side of the card should face
up.
5. Open the ejectors by rotating them toward the center of the line card face and align the flat side of the line card
inside the left and right rail guides in the slot. Line cards can be inserted in any of the slots labelled L1 through
L4.
6. Slide the line card all the way into the slot.
7. Close the ejectors by rotating them away from the center of the line card. The levering action of the ejectors
seats the line card in the slot.
8. Tighten the captive screws using the Phillips screwdriver.

Brocade VDX 8770-4 QuickStart Guide 17 of 32
Publication Number: 53-1002554-01
FIGURE 7 Inserting a line card (48x10G card shown)
Inserting power supplies
The switch can be powered with either AC or DC power supplies. They are slightly different in appearance and in the
way that the power cord is attached. Follow the procedure below for your type of power supply.

18 of 32 Brocade VDX 8770-4 QuickStart Guide
Publication Number: 53-1002554-01
FIGURE 8 Inserting a power supply
Inserting an AC power supply
For this procedure, refer to “ESD precautions” and Figure 8.
To replace a power supply, complete the following steps.
DANGER
High Touch Current. Earth connection is essential before connecting the power supply.
1. Unpack the new power supply and remove it from the anti-static bag.
2. Inspect the power supply for damage.
3. Ensure that the handle of the replacement power supply is pushed down.
4. Insert the power supply into the slot.
5. Rotate the handle upward to fully seat the power supply.
6. Tighten the captive screw.
Inserting a DC power supply
For this procedure, refer to “ESD precautions” and Figure 8.

Brocade VDX 8770-4 QuickStart Guide 19 of 32
Publication Number: 53-1002554-01
To replace a DC power supply, complete the following steps.
1. Unpack the new power supply and remove it from the anti-static bag.
2. Inspect the power supply for damage.
3. Use a #1 Phillips screwdriver to remove the screw that secures the safety cover over the power lugs. Remove the
safety cover.
4. Ensure that the handle of the replacement power supply is rotated down.
5. Insert the power supply into the slot.
6. Rotate the handle upward to fully seat the power supply.
7. Tighten the captive screw.
ATTENTION
This equipment installation must meet NEC/CEC code requirements. Consult local authorities for regulations.
Providing power to the Brocade VDX 8770-4
Complete the following steps to provide power to the chassis. Each power supply has one power cord.
DANGER
Use the supplied power cords. Ensure the facility power receptacle is the correct type, supplies the
required voltage, and is properly grounded. (D004)
Connecting an AC power cord
1. Plug the power cord into the power supply.
2. Route the cable so it will be out of the way when connected to the power source.
3. Plug the other end of the cable into the power source.
Connecting a DC power cord
1. Use a #1 Phillips screwdriver to remove the screw that secures the safety cover over the power lugs and remove
the safety cover.
2. Use a #2 Phillips screwdriver to unscrew the power lugs.
3. Crimp the #2 AWG power supply wires into the power lugs.
4. Connect the power lugs to the power supply unit.
Connect the -48V wire to the negative terminal and the 0V wire to the positive terminal.
NOTE
The DC return must be isolated from the chassis ground (DC-I) when making connections to the connections to
the power supply.
5. Replace the safety cover.

20 of 32 Brocade VDX 8770-4 QuickStart Guide
Publication Number: 53-1002554-01
6. Plug the other end of the cable into the power source.
ATTENTION
Do not connect the switch to the network until the IP addresses are configured.
Preparing to configure the Brocade VDX 8770-4
The Brocade VDX 8770-4 must be configured before it is connected to the fabric, and all of the configuration
commands must be entered through the active MM. The Brocade VDX 8770-4 configuration includes the following
parameters:
•RBridge ID, If you are going to have more than one switch in a fabric.
•IP address and gateway address for the switch
•IP addresses, host names, and gateway addresses for one or two MMs, as needed
•Host name
You also need to change passwords from their default values and set the time and date, either via NTP or manually.
In order to retain the changes made during configuration you will have to copy the running configuration file to the
startup configuration file. This will ensure that the switch reboots to your preferred configuration.
The configuration information is mirrored to the standby MM, if you have installed one, which allows the current
configuration to remain available even if the active MM fails. The configuration information for the Brocade VDX
8770-4 is stored in the CID cards and the flash memory of the MMs. The configuration can be backed up to a
workstation (uploaded) and then downloaded to the active MM if necessary.
By default, the Brocade VDX 8770-4 is in VCS™ mode. It cannot be configured in standalone mode. Without a VCS
license, the switch can be part of a two-node cluster where two switches are connected in VCS mode to form an
Ethernet fabric. To be part of a larger cluster, you must install a VCS license.
In VCS mode, the switch is part of an Ethernet fabric involving two or more VCS-enabled switches. VCS technology
embodies the concept of distributed intelligence. Distributed intelligence means that all configuration and
destination information is automatically distributed to each member switch in the fabric. Distributed intelligence has
three major characteristics:
•The fabric is self-forming. When two or more VCS-enabled switches with unique Rbridge IDs are connected to
form an Ethernet fabric, the fabric is automatically created and the switches discover the common fabric
configuration.
•The fabric is masterless. No single switch stores configuration information or controls fabric operations. Any
switch can fail or be removed without causing disruptive fabric downtime or delayed traffic.
•The fabric is aware of all members, devices, and Virtual Machines (VMs). Automatic Migration of Port Profiles
(AMPP) supports VM migration to another physical server. If the VM moves, it is automatically reconnected to all
of its original resources.
Establishing a serial connection to the Brocade VDX 8770-4
The serial port is located on the port side of the Brocade VDX 8770-4. The switch uses an RJ-45 connector for the
serial port. An RJ-45 to DB9 adapter is also provided with the Brocade VDX 8770-4. The cable supplied with the
switch is a rollover cable. The serial port is used to connect to a workstation to configure the Brocade VDX 8770-4
IP address before connecting the switch to a fabric or IP network.
