Bryant 310AAV Operation manual

310AAV/310JAV
4--Way Multipoise Induced Combustion Gas Furnace
Sizes 045 thru 155
Series E
Product Data
A10252
The 310AAV/310JAV 4--Way Multipoise Gas Furnace was
designed by Bryant dealers for Bryant dealers. Applications are
easy with 4--way Multipoise design, through--the--furnace
downflow venting, 13 different venting options, and a design for
easy service access. An inner blower door is provided for tighter
sealing in sensitive applications. The 310AAV/310JAV furnace is
approved for use with natural or propane gas, and the 310JAV is
approved for use in Low NOx Air Quality Management Districts.
STANDARD FEATURES
SNoise elimination combustion system
SFour--position furnace: Upflow, Horizontal Right,
Horizontal Left, Downflow
Thirteen different vent options
SCompact design only 33--1/3 in. (846 mm) tall
SMicroprocessor based “smart” control center
Adjustable heating air temperature rise
Enhanced diagnostics with LED and reflective sight glass,
non--volatile fault code memory, and self--test feature
On--board fuse for transformer protection
SPatented blocked--vent safeguard to ensure proper furnace
venting
SCertified to leak 2 percent or less of its nominal air
conditioning CFM delivered when pressurized to 1--In. W.C.
with all present air inlets, air outlets, and condensate drain
port(s) sealed.
SHYBRID HEATrDual Fuel System compatible
SAll models are chimney friendly when used with accessory
vent kit
STwinning in Upflow, Downflow, and Horizontal
SPerfect LighttIgniter
SResidential installations eligible for consumer financing
through the Comfort Credit Program

2
DIMENSIONS
A
A
B
[736.9]
[736.9]
29
29
Ø7/8
Ø7/8
[22.2]
[22.2]
ACCESSORY
ACCESSORY
5 15/16
5 15/16
[150.7]
[150.7]
28.39
28.39
[721.2]
[721.2]
Ø7/8
Ø7/8
[22.2]
[22.2]
ACCESSORY
ACCESSORY
14 7/8
14 7/8
[337.3]
[337.3]
(BOTH SIDES)
(BOTH SIDES)
Ø7/8
Ø7/8
[22.2]
[22.2]
ACCESSORY
ACCESSORY
Ø7/8
Ø7/8
[22.2]
[22.2]
ACCESSORY
ACCESSORY
Ø1 3/4
Ø1 3/4
[44.5]
[44.5]
GAS ENTRY
GAS ENTRY
Ø1/2
Ø1/2
[12.7]
[12.7]
THERMOSTAT WIRE ENTRY
THERMOSTAT WIRE ENTRY
22 1/16
22 1/16
[560]
[560]
SIDE INLET
SIDE INLET
(BOTH SIDES)
(BOTH SIDES)
11 7/16
11 7/16
[290.7]
[290.7]
9 11/16
9 11/16
[245.4]
[245.4]
[197.8]
[197.8]
7 13/16
7 13/16
Ø7/8
Ø7/8
[22.2]
[22.2]
J.BOX PROVISION
J.BOX PROVISION
Ø7/8
Ø7/8
[22.2]
[22.2]
JUNCTION BOX
JUNCTION BOX
LOCATION
LOCATION
Ø1 3/4
Ø1 3/4
[44.5]
[44.5]
GAS ENTRY
GAS ENTRY
1 15/16
1 15/16
[49.2]
[49.2]
1
[25.4]
[25.4]
1 1/4
1 1/4
[31.8]
[31.8]
29 9/16
29 9/16
[750.7]
[750.7]
1 15/16
1 15/16
[49.2]
[49.2]
5 5/8
5 5/8
[143.3]
[143.3]
5 7/16
5 7/16
[138.5]
[138.5]
6 13/16
6 13/16
[172.3]
[172.3]
Ø1/2
Ø1/2
[12.7]
[12.7]
THERMOSTAT WIRE ENTRY
THERMOSTAT WIRE ENTRY
19
19
[481.7]
[481.7]
OUTLET
OUTLET
D
21.6
21.6
[549.5]
[549.5]
BOTTOM INLET
BOTTOM INLET
C
33 1/4
33 1/4
[843.9]
[843.9]
9 9/16
9 9/16
[243.3]
[243.3]
3/4
3/4
[19.1]
[19.1]
5 7/8
5 7/8
[148.5]
[148.5]
3 7/16
3 7/16
[86.8]
[86.8]
9 7/8
9 7/8
[250.7]
[250.7]
27 3/4
27 3/4
[704.7]
[704.7]
2 5/16
2 5/16
[59]
[59]
FRONT OF CASING
FRONT OF CASING
TOP OF CASING
TOP OF CASING
4 13/16
4 13/16
[122.2]
[122.2]
27 3/4
27 3/4
[704.7]
[704.7]
5 7/8
5 7/8
[148.5]
[148.5]
8 5/8
8 5/8
[219]
[219]
5 1/2
5 1/2
[140.3]
[140.3]
8 7/16
8 7/16
[213.5]
[213.5]
FRONT OF CASING
FRONT OF CASING
TOP OF CASING
TOP OF CASING
6.1
6.1
[155.7]
[155.7]
2 1/16
2 1/16
[51.6]
[51.6]
5.1
5.1
[130.5]
[130.5]
1.7
1.7
[43.5]
[43.5]
Ø7/8
Ø7/8
[22.2]
[22.2]
ACCESSORY (2)
ACCESSORY (2)
AIR FLOW
AIR FLOW
AIR FLOW
AIR FLOW
BOTTOM RETURN
BOTTOM RETURN
WIDTH
WIDTH
AIR FLOW
AIR FLOW
KNOCK OUTS FOR
KNOCK OUTS FOR
VENTING(5
VENTING(5
PLACES)
PLACES)
A10271
NOTES:
1. Two additional 7/8---in. (22 mm) diameter holes are located in the top plate.
2. Minimum return---air openings at furnace, based on metal duct. If flex duct is used, see flex duct manufacturer’s recommendations for equivalent diameters.
a. For 800 CFM---16---in. (406 mm) round or 14 1/2 x 12---in. (368 x 305 mm) rectangle.
b. For 1200 CFM---20 ---in. (508 mm) round or 14 1/2 x 19 1/2---in. (368 x 495 mm) rectangle.
c. For 1600 CFM---22 ---in. (559 mm) round or 14 1/2 x 22 1/16---in. (368 x 560mm) rectangle.
d. For airflow requirements above 1800 CFM, see Air Delivery table in Product Data literature for specific use of single side inlets. The use of both side
inlets, a combination of 1 side and the bottom, or the bottom only will ensure adequate return air openings for airflow requirements above 1800
CFM.
FURNACE SIZE
A
CABINET WIDTH
IN (mm)
B
OUTLET WIDTH
IN (mm)
C
TOP &
BOTTOM FLUE
COLLAR
IN (mm)
D
BOTTOM
INLET WIDTH
IN (mm)
VENT
CONNECTION
SIZE
IN (mm)
SHIP WT
LB (KG)
024045 14--- 3/16 (360) 12--- 9/16 (319) 9--- 5/16 (237) 12--- 11/16 (322) 4 (102) 104 (47)
036045 14--- 3/16 (360) 12--- 9/16 (319) 9--- 5/16 (237) 12--- 11/16 (322) 4 (102) 107 (49)
024070 14--- 3/16 (360) 12--- 9/16 (319) 9--- 5/16 (237) 12--- 11/16 (322) 4 (102) 111 (50)
036070 14--- 3/16 (360) 12--- 9/16 (319) 9--- 5/16 (237) 12--- 11/16 (322) 4 (102) 115 (52)
048070 17--- 1/2 (445) 15--- 7/8 (403) 11--- 9/16 (294) 16--- 1/8 (410) 4 (102) 126 (57)
042090 17--- 1/2 (445) 15--- 7/8 (403) 11--- 9/16 (294) 16--- 1/8 (410) 4 (102) 127 (58)
048090 21 (533) 19--- 3/8 (492) 13--- 5/16 (338) 19--- 1/2 (495) 4 (102) 140 (64)
060090 21 (533) 19--- 3/8 (492) 13--- 5/16 (338) 19--- 1/2 (495) 4 (102) 146 (66)
036110 17--- 1/2 (445) 15--- 7/8 (403) 11--- 9/16 (294) 16--- 1/8 (410) 4 (102) 135 (61)
048110 21 (533) 19--- 3/8 (492) 13--- 5/16 (338) 19--- 1/2 (495) 4 (102) 146 (66)
066110 21 (533) 19--- 3/8 (492) 13--- 5/16 (338) 19--- 1/2 (495) 4 (102) 152 (69)
048135 21 (533) 19--- 3/8 (492) 13--- 5/16 (338) 19--- 1/2 (495) 4 (102)* 149 (68)
066135 24--- 1/2 (622) 22--- 7/8 (581) 15--- 1/16 (383) 23 (584) 4 (102)* 163 (74)
060155 24--- 1/2 (622) 22--- 7/8 (581) 15--- 1/16 (383) 23 (584) 4 (102)* 170 (77)
*135 and 155 size furnaces require a 5 or 6 ---in. (127 or 152 mm) vent. Use a vent adapter between furnace and vent stack. See Installation Instructions for
complete installation requirements.
310AAV / JAV

3

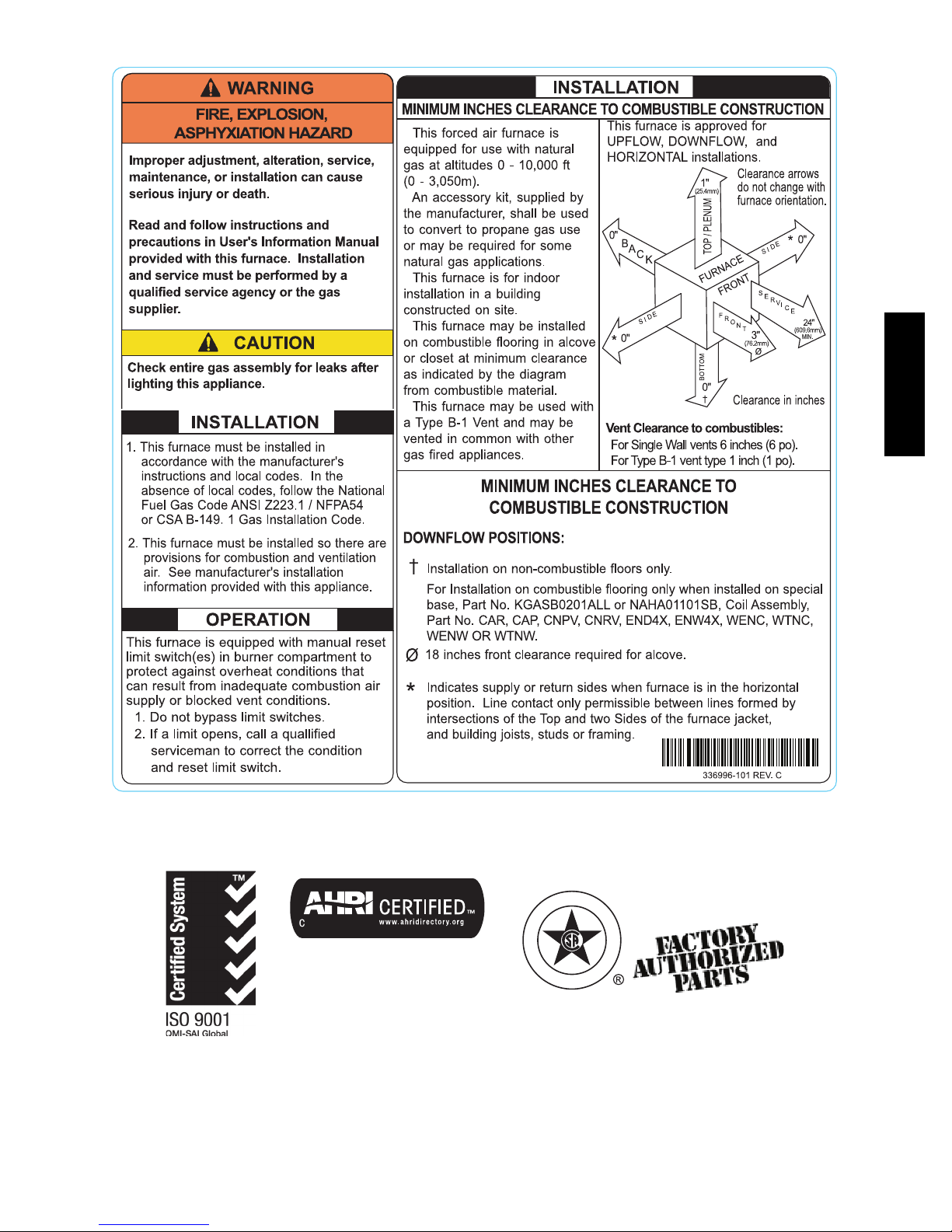

CLEARANCE TO COMBUSTIBLES
A10269
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
Always Ask For
Use of the AHRI Certified TM Mark indicates a
manufacturer’s participation in the program. For
verification of certification for individual products,
go to www.ahridirectory.org.
310AAV / JAV

4
SPECIFICATIONS
UNIT SIZE 024045 036045 024070 036070 048070 042090 048090
RATINGS AND PERFORMANCE
Input Btuh* 310JAV Upflow; all
310AAV
44,000 44,000 66,000 66,000 66,000 88,000 88,000
Nonweatherized ICS 310JAV Downflow/
Horizontal
42,000 42,000 63,000 63,000 63,000 84,000 84,000
Output Capacity
(Btuh)†
310JAV Upflow; all
310AAV
35,000 36,000 53,000 54,000 53,000 71,000 71.000
Nonweatherized ICS 310JAV Downflow/
Horizontal
34,000 34,000 51,000 51,000 51,000 68,000 68,000
AFUE† 80.0 80.0 80.0 80.0 80.0 80.0 80.0
Certified Temperature Rise Range --- ° F (° C) 30-60
( 1 7 --- 3 3 )
20-50
( 1 1 --- 2 8 )
40-70
( 2 2 --- 3 9 )
30-60
( 1 7 --- 3 3 )
25-55
( 1 4 --- 3 0 )
40-70
( 2 2 --- 3 9 )
30-60
( 1 7 --- 3 3 )
Certified External Static Pressure Heat/Cool 0.10/0.50 0.10/0.50 0.12/0.50 0.12/0.50 0.12/0.50 0.15/0.50 0.15/0.50
Airflow CFM‡
Heating 920 1250 720 1195 1450 1375 1505
Cooling 845 1160 900 1200 1530 1385 1720
ELECTRICAL
U n i t V o l t s --- H e r t z --- P h a s e 115-60-1
Operating Voltage Range Min-Max 104-127
Maximum Unit Amps 5.4 7.0 5.0 6.8 9.5 8.2 10.0
Maximum Wire Length (Measure 1 Way in Ft (M) 49 (14.9) 39 (11.8) 52 (15.8) 40 (12.1) 29 (8.8) 34 (10.3) 28 (8.5)
Minimum Wire Size 14
MaximumFuseorCktBkrSize(Amps)** 15
Transformer (24v) 40va
External Control Heating 12va
Power Available Cooling 35va
Air Conditioning Blower Relay Standard
CONTROLS
Limit Control SPST
Heating Blower Control Solid-State Time Operation
Burners (Monoport) 2233344
Gas Connection Size 1/2-in. NPT
GAS CONTROLS
Gas Valve (Redundant) Mfr. White-Rodgers
Min. inlet pressure
(In. W.C.)
4.5 (Natural Gas)
Max. inlet pressure
(In. W.C.)
13.6 (Natural Gas)
Ignition Device Hot Surface
Factory-installed orifice Size 43
BLOWER DATA
Direct-Drive Motor HP (PSC) 1/5 1/3 1/5 1/3 1/2 1/3 1/2
Motor Full Load Amps 2.9 5.2 2.9 5.2 7.9 5.2 7.9
RPM (Nominal)-Speeds 1075-3 1075-3 1075-3 1075-3 1075-3 1075-3 1075-3
Blower Wheel Diameter x Width --- In. (mm) 10 x 6
(254 x 152)
10 x 6
(254 x 152)
10 x 6
(254 x 152)
10 x 6
(254 x 152)
11 x 8
(279 x 203)
10 x 8
(254 x 203)
10 x 10
(254 x 254)
* Gas input ratings are certified for elevations to 2000 ft. (610 M). In USA, For elevations above 2000 ft (610 M), reduce ratings 4 percent for each 1000 ft (305
M) above sea level. Refer to National Fuel Gas Code NFPA 54/ANSI Z223.1---2009 Table F.4 or furnace installation instructions.
† Capacity in accordance with U.S. Government DOE test procedures.
‡ Airflow shown is for bottom only return-air supply for the as-shipped speed tap. For air delivery above 1800 CFM, see Air Delivery table for other options. A
filter is required for each return-air supply. An airflow reduction of up to 7 percent may occur when using the factory-specified 4-5/16---in. (110 mm)wide,
high efficiency media filter.
** Time---delay type is recommended.
ICS Isolated Combustion System
310AAV / JAV

5
SPECIFICATIONS (continued)
UNIT SIZE 060090 036110 048110 066110 048135 066135 060155
RATINGS AND PERFORMANCE
Input Btuh* 310JAV Upflow; all
310AAV
88,000 110,000 110,000 110,000 132,000 132,000 154,000
Nonweatherized ICS 310JAV Downflow/
Horizontal
84,000 105,000 105,000 105,000 126,000 126,000 147,000
Output Capacity
(Btuh)†
310JAV Upflow; all
310AAV
71,000 89,000 89,000 89,000 107,000 107,000 125,000
Nonweatherized ICS 310JAV Downflow/
Horizontal
68,000 85,000 85,000 85,000 102,000 102,000 119,000
AFUE† 80.0 80.0 80.0 80.0 80.0 80.0 80.0
Certified Temperature Rise Range ° F (° C) 25-55
( 1 4 --- 3 0 )
50-80
( 2 8 --- 4 4 )
40-70
( 2 2 --- 3 9 )
30-60
( 1 7 --- 3 3 )
50-80
( 2 8 --- 4 4 )
40-70
( 2 2 --- 3 9 )
45-75
( 2 5 --- 4 1 )
Certified External Static Pressure Heat/Cool 0.15/0.50 0.20/0.50 0.20/0.50 0.20/0.80 0.20/0.50 0.20/0.50 0.20/0.50
Airflow CFM‡
Heating 1990 1335 1515 1900 1525 1850 1790
Cooling 2025 1355 1680 2220 1710 2110 2230
ELECTRICAL
U n i t V o l t s --- H e r t z --- P h a s e 115-60-1
Operating Voltage Range Min-Max 104-127
Maximum Unit Amps 13.6 8.2 10.2 14.8 10.2 14.4 15.0
Maximum Wire Length (Measure 1 Way in Ft (M)) 32 (9.7) 34 (10.3) 28 (8.5) 30 (9.1) 27 (8.2) 30 (9.1) 29 (8.8)
Minimum Wire Size 12 14 12 14 11
MaximumFuseorCktBkrSize(Amps)** 20 15 20 15 20
Transformer (24v) 40va
External Control Heating 12va
Power Available Cooling 35va
Air Conditioning Blower Relay Standard
CONTROLS
Limit Control SPST
Heating Blower Control Solid-State Time Operation
Burners (Monoport) 4555667
Gas Connection Size 1/2-in. NPT
GAS CONTROLS
Gas Valve (Redundant) Mfr. White-Rodgers
Min. inlet pressure
(In. W.C.)
4.5 (Natural Gas)
Max. inlet pressure
(In. W.C.)
13.6 (Natural Gas)
Ignition Device Hot Surface
Factory-installed orifice Size 43
BLOWER DATA
Direct-Drive Motor HP (PSC) 3/4 1/3 1/2 3/4 1/2 3/4 3/4
Motor Full Load Amps 11.1 5.2 7.9 11.1 7.9 11.1 11.1
RPM (Nominal)-Speeds 1075-3 1075-3 1075-3 1075-3 1075-3 1075-3 1075-3
Blower Wheel Diameter x Width --- In. (mm) 11 x 11
(279 x 279)
10 x 8
(254 x 203)
10 x 10
(254 x 254)
11 x 11
(279 x 279)
10 x 10
(254 x 254)
11 x 11
(279 x 279)
11 x 11
(279 x 279)
* Gas input ratings are certified for elevations to 2000 ft. (610 M). In USA, for elevations above 2000 ft. (610 M), reduce ratings 4 percent for each 1000 ft.
(305 M) above sea level. Refer to National Fuel Gas Code NFPA 54/ANSI Z223.1---2009 Table F.4 or furnace installation instructions.
† Capacity in accordance with U.S. Government DOE test procedures.
‡ Airflow shown is for bottom only return-air supply for the as-shipped speed tap. For air delivery above 1800 CFM, see Air Delivery table for other options. A
filter is required for each return-air supply. An airflow reduction of up to 7 percent may occur when using the factory-specified 4-5/16---in. (110 mm)wide,
high efficiency media filter.
** Time---delay type is recommended.
ICS Isolated Combustion System
310AAV / JAV

6
A02058
SEE NOTES: 1,2,4,7,8,9
UPFLOW
SEE NOTES: 1,2,3,4,7,8,9
UPFLOW
SEE NOTES: 1,2,4,5,7,8,9
DOWNFLOW
A02059 A02061
SEE NOTES:1,2,3,4,5,7,8,9
DOWNFLOW
SEE NOTES: 1,2,3,4,5,7,8,9
DOWNFLOW
SEE NOTES: 1,2,4,5,6,7,8,9
DOWNFLOW
A02060 A02063 A02062
Venting Notes
1. For common vent, vent connector sizing and vent material: United States, latest edition of the National Fuel Gas
Code (NFGC), ANSI Z223.1/NFPA 54.
2. Immediately increase to 5-in. (127 mm) vent connector outside furnace casing when 5-in. (127 mm) vent connector
required, refer to Note 1.
3. Side outlet vent for upflow and downflow installations must use Type B vent immediately after exiting the furnace,
except when Downflow Vent Guard is used in downflow position.
4. Type B vent where required, refer to Note 1.
5. 4---in. (102 mm) single wall vent must be used inside furnace casing and the Downflow Vent Guard Kit.
6. Accessory Downflow Vent Guard Kit required in downflow installations with bottom vent configuration.
7. Chimney Adapter Kit required for exterior masonry chimney applications. Refer to Chimney Adapter Kits for sizing
and complete application details.
8. Secure vent connector to furnace elbow with (2) corrosion-resistant sheet metal screws, space approximately 180°
apart.
9. Secure all other single wall vent connector joints with (3) corrosion-resistant screws spaced approximately 120°
apart. Secure Type B vent connectors per vent connector manufacturer’s recommendations.
310AAV / JAV

7
SEE NOTES: 1,2,4,5,7,8,9
HORIZONTAL RIGHT
A02068
SEE NOTES: 1,2,4,5,7,8,9
HORIZONTAL RIGHT
A02070
SEE NOTES: 1,2,4,7,8,9
HORIZONTAL RIGHT A02069
SEE NOTES: 1,2,4,7,8,9
HORIZONTAL LEFT A02064
SEE NOTES: 1,2,4,5,7,8,9
HORIZONTAL LEFT A02065
SEE NOTES: 1,2,4,5,7,8,9
HORIZONTAL LEFT
A02066
SEE NOTES: 1,2,4,5,7,8,9
HORIZONTAL LEFT
A02067
310AAV / JAV

8
ACCESSORIES
DESCRIPTION PART NO. 024045 036045 024070 036070 048070 042090 048090 060090 036110 048110 066110 048135 066135 060155
Media Filter Cabinet
FILCABBB0016 XXXXXX X
FILCABBB0020 X X X X X
FILCABBB0024 X X
Cartridge Media Filter
FILBBCAR0016 XXXXXX X
FILBBCAR0020 X X X X X
FILBBCAR0024 X X
EZ Flex Media Filter with End
Caps
EXPXXUNV0016 XXXXXX X
EXPXXUNV0020 X X X X X
EXPXXUNV0024 X X
Replacement EZ Flex Filter
Media
EXPXXFIL0016 XXXXXX X
EXPXXFIL0020 X X X X X
EXPXXFIL0024 X X
External Bottom Return
Filter Rack
KGAFR0401B14 XXXX
KGAFR0501B17 X X X
KGAFR0601B21 X X X X X
KGAFR0701B24 X X
External Side Return Filter Rack KGAFR0801SRE XXXXXXXXXXXXXX
Unframed Filter, 3/4--- in.
(19 mm)
KGAWF1301UFR†XXXXXX X
KGAWF1401UFR X X X X X
KGAWF1501UFR X X
KGAWF1306UFR†XXXXXX X
KGAWF1406UFR X X X X X
KGAWF1506UFR X X
Flue Extension KGAFE0112UPH XXXXXXXXXXXXXX
Twinning Kit KGATW0601HSI XXXXXXXXXXXXXX
Combustible Floor Base KGASB0201ALL XXXXXXXXXXXXXX
Downflow Vent Guard KGBVG0101DFG XXXXXXXXXXXXXX
Vent Extension Kit KGAVE0101DNH XXXXXXXXXXXXXX
Chimney Adapter Kit
KGACA02014FC XXXXXXXXXXX
KGACA02015FC X X X
N a t ur a l --- t o --- P r o p a ne
Conversion Kit * KGANP4601ALL XXXXXXXXXXXXXX
P r o p a n e --- t o --- N a t u ra l
Conversion Kit KGAPN3901ALL XXXXXXXXXXXXXX
Label Kit KGALB0101KIT XXXXXXXXXXXXXX
KitGasketDoor KGBAC0101DGK XXXXXXXXXXXXXX
Gas Orifice Kit (Qty 50)
KGAHA0150N42
See Installation Instructions for model, altitude, and heat value usages.
KGAHA0250N43
(factory supplied)
KGAHA0350N44
KGAHA0450N45
KGAHA0550N46
KGAHA1550N47
KGAHA1650N48
KGAHA0650P54
KGAHA0750P55
KGAHA0850P56
KGAHA5750125
KGAHA5750130
UV Lights Model UVL
Heat/Energy Recovery Ventilator Models HRV or ERV
Humidifier Model HUM
Electronic or Mechanical
Air Cleaner‡ Model EACA, EZXCAB, or FILCAB
* Factory authorized, field installed. Fuel conversion kits are CSA (formerly AGA/CGA) recognized.
† Suitable for Side Return Filter Rack.
‡ An external filter is required for all side return---air installations.
X = Accessory
S=Standard
310AAV / JAV

9
CONTROLS — THERMOSTAT & ZONING
DESCRIPTION PART NO.
NON-PROGRAMMABLE
For use with 1-speed Air Conditioner --- deg. F/C, Auto Changeover T 6 --- N A C , T 2 --- N A C
For use with 1-speed Heat Pump --- deg. F/C, Auto Changeover T 6 --- N H P, T 2 --- N H P *
For use with 2-speed Air Conditioner --- deg. F/C, Auto Changeover T 6 --- N R H *
For use with multi-use / stage configurations --- deg. F/C, Auto Changeover/Temperature and Humidity Control T 6 --- P R H †
PROGRAMMABLE THERMOSTAT SELECTION
For use with 1-speed Air Conditioner --- deg. F/C, Auto Changeover, 7-Day Programmable T 6 --- PA C
For use with 1-speed Heat Pump --- deg. F/C, Auto Changeover, 7-Day Programmable T6---PHP*
For use with 2-speed Air Conditioner --- deg. F/C, Auto Changeover, 7-Day Programmable T 6 --- P R H *
For use with 1-speed Air Conditioner --- deg. F/C, 5---2 Day Programmable T 6 --- PA C
For use with multi-stage applications --- deg. F/C, Auto Changeover, 7-Day Programmable T2---PHP‡
For multi-use / stage configurations --- deg. F/C, Auto Changeover, 7-Day Programmable/Temperature and
Humidity Control
T 6 --- P R H †
ZONING CONTROL SELECTION
Zone Perfect 3-Zone kit ZONEBB3ZAC01,
ZONEBB3ZHP01
Zone Perfect Plus 2-Zone kit/Temperature and Humidity Control ZONEBB2KIT01-B
Zone Perfect Plus 4-Zone kit/Temperature and Humidity Control ZONEBB4KIT01-B
Zone Perfect Plus 8-Zone kit/Temperature and Humidity Control ZONEBB8KIT01-B
* Model HP and 2S thermostat must be field converted to air conditioner operation.
† Thermidistat Control can be configured for multiple use and staging. It must be configured for each specific application.
‡ Dual Fuel thermostat is used with furnace and heat pump application.
MODEL NUMBER NOMENCLATURE
310 E
VA
Bryant Type Code
Gas Furnace, 4--- Way
Multipoise, 80%
F i x e d --- C a p a c i t y
Cooling Size
000 --- None
014 --- 14,000 Btuh
018 --- 18,000 Btuh
024 --- 24,000 Btuh
A
Heating Size
000 --- None
050 --- Heating Input
005 --- Electrical Output
105 --- Oil Input
037 --- Boiler Size
012 --- Air
060 --- Humidifiers
Variations
066 135
Series
A
B
C
D
E
A
Brand Name
A --- C o m m o n U n i t
Electrical Supply
A = 110 to 125 Volts
Variations
JA
Model Code
A=Standard
J=LowNOx
310AAV / JAV

10
AIR DELIVERY—CFM (With Filter)*
310AAV/JAV
UNIT SIZE
RETURN-AIR
SUPPLY SPEED
EXTERNAL STATIC PRESSURE (In. W.C.)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
024045
Bottom
or
Side(s)
High
Med-High
Med-Low
1085
920
820
1035
875
775
975
830
730
915
770
680
845
710
620
770
640
555
675
555
470
565
440
360
390
250
190
195
—
—
036045
Bottom
or
Side(s)
High
Med-High
Med-Low
1440
1360
1250
1375
1300
1210
1305
1240
1160
1240
1175
1100
1160
1115
1040
1070
1040
965
975
950
885
870
850
790
730
725
670
560
575
520
024070
Bottom
or
Side(s)
High
Med-High
Med-Low
1030
835
725
1010
815
700
980
790
675
945
760
645
900
720
600
845
675
555
775
610
475
680
490
390
490
375
300
335
265
—
036070
Bottom
or
Side(s)
High
Med-High
Med-Low
1425
1320
1200
1375
1280
1175
1320
1240
1145
1265
1205
1105
1200
1140
1050
1125
1075
990
1035
995
920
940
905
840
830
790
725
655
620
555
048070
Bottom
or
Side(s)
High
Med-High
Med-Low
1805
1630
1460
1740
1585
1420
1670
1530
1385
1600
1470
1325
1530
1405
1280
1445
1330
1220
1360
1255
1155
1280
1170
1080
1180
1080
995
1075
990
910
042090
Bottom
or
Side(s)
High
Med-High
Med-Low
1650
1515
1385
1600
1485
1360
1535
1440
1320
1465
1380
1260
1385
1300
1195
1285
1220
1120
1175
1115
1025
1055
990
915
895
830
710
645
600
565
048090
Bottom
or
Side(s)
High
Med-High
Med-Low
2060
1790
1505
1985
1765
1505
1915
1715
1480
1820
1645
1440
1720
1560
1375
1610
1470
1300
1490
1345
1190
1340
1195
1045
1135
1010
890
925
820
740
060090
Bottom
Only
High
Med-High
Med-Low
2405
2225
2020
2310
2155
1955
2220
2080
1880
2130
1995
1805
2025
1895
1730
1920
1785
1630
1790
1675
1535
1660
1565
1420
1530
1420
1275
1350
1260
1135
Both Sides
or 1
Side & Bottom
High
Med-High
Med-Low
2530
2285
1995
2450
2215
1945
2365
2150
1900
2270
2075
1840
2165
1985
1770
2065
1890
1685
1940
1780
1600
1805
1660
1480
1670
1525
1350
1505
1360
1180
1SideOnly
High
Med-High
Med-Low
2475
2260
1950
2395
2190
1910
2300
2110
1855
2200
2035
1795
2090
1940
1730
1985
1845
1650
1865
1735
1555
1730
1620
1445
1585
1475
1310
1425
1325
1150
036110
Bottom
or
Side(s)
High
Med-High
Med-Low
1625
1510
1360
1575
1470
1335
1515
1415
1295
1445
1355
1250
1355
1285
1180
1260
1185
1100
1165
1070
985
990
890
810
785
725
—
—
—
—
048110
Bottom
or
Side(s)
High
Med-High
Med-Low
2035
1745
1530
1965
1710
1515
1880
1650
1470
1790
1560
1400
1680
1450
1310
1495
1340
1215
1365
1205
1095
1215
1090
990
1075
955
830
875
750
670
066110
Bottom
Only
High
Med-High
Med-Low
2530
2230
1920
2470
2205
1900
2400
2165
1880
2320
2110
1845
2220
2035
1795
2115
1950
1730
2000
1855
1650
1865
1740
1555
1730
1615
1460
1590
1485
1340
Both Sides
or 1
Side & Bottom
High
Med-High
—
2235
—
2200
2415
2155
2350
2100
2250
2040
2145
1955
2015
1850
1875
1740
1715
1595
1560
1470
1SideOnly
High
Med-High
Med-Low
2540
2125
1790
2495
2120
1795
2430
2105
1790
2355
2060
1765
2265
2010
1720
2175
1940
1650
2065
1840
1585
1935
1730
1500
1785
1615
1390
1650
1485
1280
048135
Bottom
or
Side(s)
High
Med-High
Med-Low
2090
1790
1545
2010
1755
1520
1930
1705
1500
1835
1640
1450
1710
1550
1380
1590
1465
1315
1470
1360
1215
1335
1210
1005
1025
945
855
835
785
670
066135
Bottom
Only
High
Med-High
Med-Low
2485
2195
1880
2400
2150
1850
2310
2090
1820
2215
2000
1780
2110
1920
1715
2000
1825
1635
1880
1720
1540
1725
1565
1415
1535
1405
1290
1355
1255
1160
Both Sides
or 1
Side & Bottom
High
Med-High
Med-Low
—
2180
1880
—
2145
1850
2385
2060
1820
2305
2010
1780
2195
1945
1715
2085
1865
1635
1960
1765
1540
1825
1660
1415
1670
1515
1290
1465
1325
1160
1SideOnly
High
Med-High
Med-Low
—
2135
1880
—
2085
1850
2245
2035
1820
2155
1975
1780
2055
1895
1715
1940
1795
1635
1825
1685
1540
1695
1565
1415
1555
1445
1290
1385
1265
1160
060155
Bottom
Only
High
Med-High
Med-Low
2465
2115
1800
2430
2105
1790
2375
2075
1770
2305
2030
1735
2230
1980
1695
2110
1910
1640
2000
1830
1570
1865
1725
1465
1725
1590
1345
1545
1425
1225
Both Sides
or 1
Side & Bottom
High
Med-High
Med-Low
—
2155
1800
—
2135
1790
2375
2095
1770
2285
2040
1735
2200
1975
1695
2105
1895
1640
1995
1790
1570
1870
1685
1465
1730
1550
1345
1570
1400
1225
1SideOnly
High
Med-High
Med-Low
—
2140
1800
—
2095
1790
2260
2040
1770
2180
1975
1735
2085
1890
1695
1975
1810
1640
1865
1705
1570
1740
1595
1465
1605
1480
1345
1455
1325
1225
* A filter is required for each return ---air supply. Airflow performance includes 3/4 in. (19 mm) washable filter media such as contained in factory---authorized
accessory filter rack. To determine airflow performance without this filter, assume an additional .1 available external static pressure.
— Indicates unstable operating conditions.
310AAV / JAV

11
310AAV / JAV

12
GUIDE SPECIFICATIONS
Gas Furnace
310AAV/JAV
General
SYSTEM DESCRIPTION
Furnish a _________________ fixed capacity gas-fired
furnace for use with natural gas or propane (factory
authorized conversion kit required for propane); furnish
cold air return plenum.
QUALITY ASSURANCE
Unit will be designed, tested and constructed to the
current ANSI Z 21.47/CSA 2.3 design standard for
gas-fired central furnaces.
Unit will be 3rd party certified by CSA to the current
ANSI Z 21.47/CSA 2.3 design standard for gas-fired
central furnaces.
Unit will carry the CSA Blue StarRlabel.
Unit efficiency testing will be performed per the current
DOE test procedure as listed in the Federal Register.
Unit will be certified for capacity and efficiency and
listed in the latest AHRI Consumer’s Directory of
Certified Efficiency Ratings.
Unit shall carry the current Federal Trade Commission
Energy Guide efficiency label.
DELIVERY, STORAGE AND HANDLING
Unit shall be shipped as single package only and is
stored and handled per unit manufacturer’s
recommendations.
WARRANTY (for inclusion by specifying engineer)
U.S. and Canada only. Warranty certificate available
upon request.
Products
EQUIPMENT
Components shall include: slow-opening gas valve to
reduce ignition noise, regulate gas flow, with electric
switch gas shut-off; flame proving sensor, hot surface
igniter, pressure switch assembly, flame rollout switch,
blower and inducer assembly, 40va transformer;
low--voltage (heating) (heating/cooling) thermostat.
Blower Wheel and Blower Motor
Galvanized blower wheel shall be centrifugal type,
statically and dynamically balanced. Blower motor of PSC
type shall be permanently lubricated with sealed bearings,
of _______hp, and shall be multiple-speed direct drive.
Blower motor shall be soft mounted to the blower scroll to
reduce vibration transmission.
Filters
Furnace may have reusable-type filters. Filter shall be
_______ in (x) _______in. (mm).
Casing
Casing shall be of .030 in. (.76 mm) thickness
minimum, pre--painted galvanized steel.
Inducer Motor
Inducer motor shall be soft mounted to reduce vibration
transmission.
Draft Safeguard Switch
Draft Safeguard Switch (blocked vent safeguard) shall
be factory installed to reduce the possibility of vent gas
infiltration due to a blocked or restricted vent pipe.
Heat Exchangers
Heat exchangers shall be a 4-Pass 20 gage aluminized
steel of fold-and-crimp sectional design when applied
operating under negative pressure.
Controls
Control shall include a micro-processor non--volatile
memory based integrated electronic control board with at
least 11 service troubleshooting codes displayed via
enhanced flashing LED diagnostic light on the control, a
self-test feature that checks all major functions of the
furnace within one minute, and a replaceable
automotive-type circuit protection fuse. Multiple
operational settings available including, separate blower
speeds for heating, cooling, and continuous fan.
Continuous fan speed may be adjusted from the
thermostat. Cooling airflow will be selectable between 350
or 400 CFM per ton of air conditioning.
OPERATING CHARACTERISTICS
Heating Capacity shall be ________ Btuh input;
________ Btuh output capacity.
Fuel Gas Efficiency shall be 80% AFUE.
Air delivery shall be ___________ CFM minimum at
0.50 In. W.C. external static pressure.
Dimensions shall be: depth __________ in. (mm);
width _________ in. (mm); height_________in. (mm)
(casing only). Height shall be_________in. (mm) with
A/C coil and _____________in. (mm) overall with
plenum.
ELECTRICAL REQUIREMENTS
Electrical supply shall be 115 volts, 60 Hz,
single--phase (nominal). Minimum wire size shall
be_________AWG; maximum fuse size or circuit breaker
shall be __________Amps.
SPECIAL FEATURES
Refer to section of the product data sheet identifying
accessories and descriptions for specific features and
available enhancements.
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
E2010 Bryant Heating & Cooling Systems D7310 W. Morris St. DIndianapolis, IN 46231 Printed in U.S.A. Edition Date: 09/10
Replaces: PDS 310A.45.5
Catalog No. PDS310A.45.6
310AAV / JAV
