Bryant PLUS 95S 355CAV User manual

1
Owner’s Manual
PLUS 95S -- MODEL 355CAV
DIRECT VENT 4--WAY MULTIPOISE
MODULATING CONDENSING GAS FURNACE
WITH PERFECT SENSETPERFECT HUMIDITYT
NOTE TO INSTALLER:
THIS MANUAL MUST BE LEFT WITH THE EQUIPMENT
USER.
USER: Please read all instructions in the manual and retain all
manuals for future reference.
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in
injury, death, or property damage.
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
--Do not try to light any appliance.
--Do not touch any electrical switch; do not use any
phone in your building.
--Leave the building immediately.
--Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
--If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
!WARNING
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal
injury and/or death.
Carbon Monoxide is invisible, odorless, and toxic! Bryant
Heating and Cooling Systems recommends a carbon
monoxide alarm in your home, even if you do not own a
gas appliance. Locate the carbon monoxide alarm in the
living area of your home and away from gas appliances and
doorways to attached garages. Follow the alarm
manufacturer’s instruction included with the alarm.
!WARNING
CERTIFIED
As an ENERGY STAR®Partner,
Bryant Heating & Cooling
Systems has determined that
this product meets the ENERGY
STAR®guidelines for energy
efficienc
y
.
A05085
Do not use this furnace if any part has been under water. A
flood--damaged furnace is extremely dangerous. Attempts to
use the furnace can result in fire or explosion. A qualified
service agency should be contacted to inspect the furnace
and to replace all gas controls, control system parts,
electrical parts that have been wet or the furnace if deemed
necessary.

2
TABLE OF CONTENTS
WELCOME TO A NEW GENERATION OF COMFORT 2...
FURNACE COMPONENTS 3..........................
SAFETY CONSIDERATIONS 4........................
BEFORE STARTING YOUR FURNACE 4................
STARTING AND SHUTTING DOWN YOUR FURNACE 5..
Steps for Starting Your Furnace 5..................
Shutting Down Your Furnace 7....................
PERFORMING ROUTINE MAINTENANCE 7............
Filtering Out Trouble 8............................
COMBUSTION AREA AND VENT SYSTEM 10..........
Heading South for the Winter 11...................
A CHECK--UP CHECKLIST 12.........................
BEFORE YOU REQUEST A SERVICE CALL 13..........
INSTALLATION DATA 14............................
WELCOME TO A NEW GENERATION
OF COMFORT
Congratulations! In light of rising energy costs, the Plus95s
Gas--Fired, Modulating Condensing Furnace is among the wisest
investment today’s homeowner can make.
Your new furnace is truly a triumph of technology in home
heating. A revolutionary design employs two heat exchangers to
maximize the amount of heat from the fuel consumed. In fact,
your new furnace is so efficient, up to95%* of the heat generated
during combustion is captured and delivered inside your home.
That is more than a 33%* increase in heating efficiency over
conventional furnaces.
These are among the most energy--efficient furnaces you can buy
today. They also are among the safest and most dependable. We
are proud of the technological advances incorporated into the
design of these furnaces. With only minimal care, your new
furnace will deliver many years of money--saving home comfort
and enjoyment. Spend just a few minutes with this manual to
learn the operation of your new furnace and the small amount of
maintenance it takes to help keep it operating at peak efficiency
year after year.
* The output capacity and any representations of efficiency for this furnace
are based on standard U.S. Department of Energy test procedures.
A05085

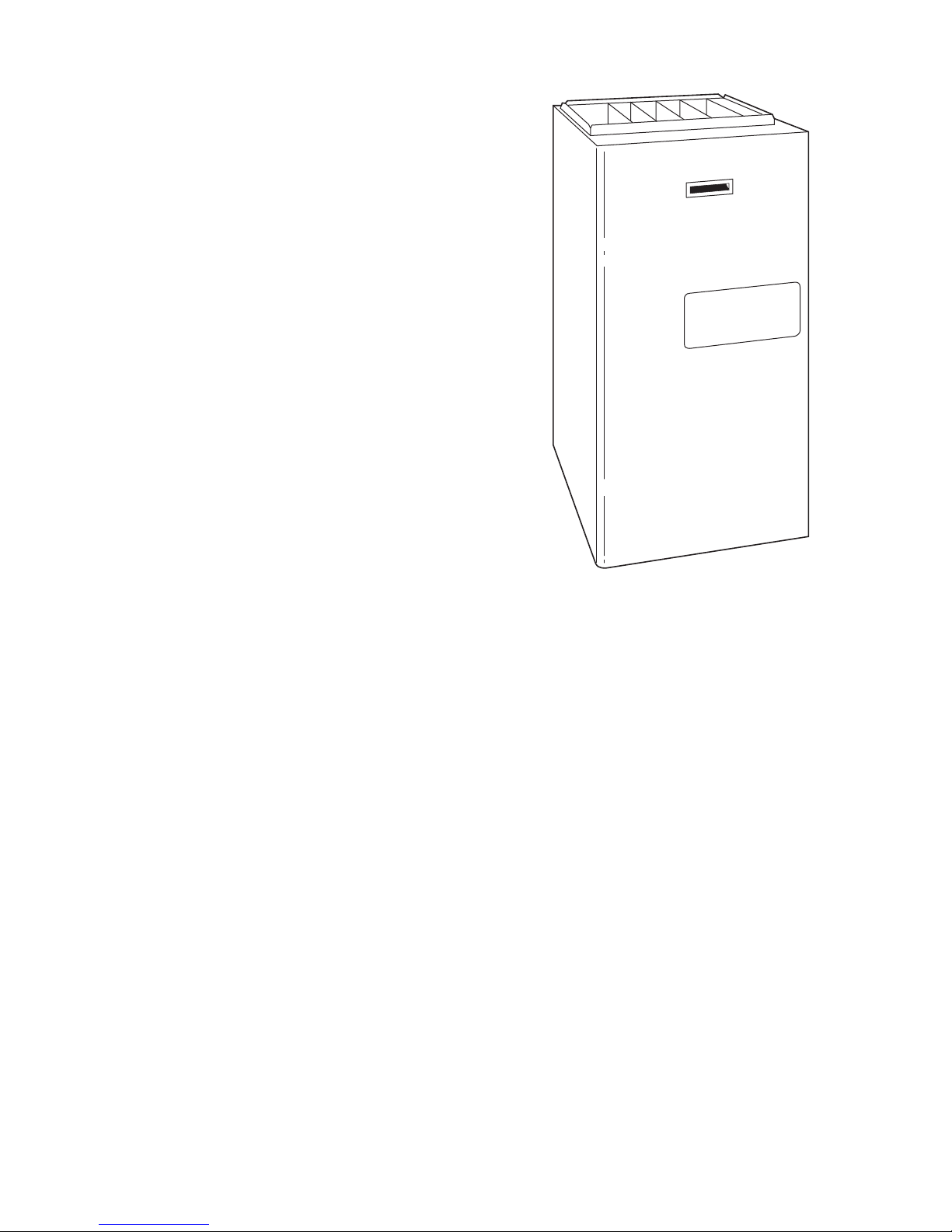

Fig. 1 -- Plus95s Variable Capacity Furnace

3
FURNACE COMPONENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
5
15
A07609
Fig. 2 -- Model 355CAV Furnace
1. Combustion--air intake connection to ensure contaminant--
free air (right or left side).
2. Burner sight glass for viewing burner flame.
3. Burner assembly (inside). Operates with energy--saving
inshot burners and hot surface igniter for safe, dependable
heating.
4. Redundant gas valve. Safe and efficient. Features 1 gas
control with 2 internal shutoff valves and one throttling
valve.
5. Vent outlet. Uses PVC pipe to carry flue gas from the
furnace’s combustion system (right or left side).
6. Inducer motor. Pulls hot flue gases through the heat
exchangers, maintaining negative pressure for added
safety.
7. Blower access panel safety interlock switch.
8. Air filter and retainer (location in furnace may vary).
9. Condensate drain connection. Collects moisture
condensed from burned gases for disposal into home drain
system. (Location in furnace varies.)
10. Heavy--duty blower. Circulates air across the heat
exchangers to transfer heat into the home.
11. EverlastictSecondary condensing heat exchanger
(inside). Wrings out more heat through condensation.
Constructed with polypropylene--laminated steel to ensure
durability.
12. Primary serpentine heat exchanger (inside). Stretches fuel
dollars with the S--shaped heat--flow design. Solid
construction of corrosion--resistant aluminized steel means
reliability.
13. Furnace control board.
14. 3--amp fuse provides electrical and component protection.
15. Light emitting diode (LED) on furnace control board.
Status code light is for diagnosing furnace operation and
service requirements.
16. Pressure switches ensure adequate flow of flue gas
through furnace and out vent system.
17. Rollout switch (manual reset) to prevent overtemperature.
18. Junction box for 115--v electrical power supply. (May be
located on right or left side)
19. Transformer (24v) behind furnace control board provides
low--voltage power to furnace control board and
thermostat.

4
SAFETY CONSIDERATIONS
Recognize safety information. This is the safety--alert symbol
. When you see this symbol on the furnace and in instructions
or manuals, be alert to the potential for personal injury.
Understand the signal words: DANGER, WARNING, and
CAUTION. DANGER identifies the most serious hazards which
will result in severe personal injury or death. WARNING signifies
hazards which could result in personal injury or death.
CAUTION is used to identify unsafe practices which may result
in minor personal injury or product and property damage. NOTE
is used to highlight suggestions which will result in enhanced
installation, reliability or operation.
To minimize the possibility of serious personal injury, fire,
furnace damage, or improper operation; carefully follow these
safety rules:
SYour gas furnace uses air from outside the home for
combustion and vents flue gas to the outdoors. It is not
to be installed using indoor air for combustion. The
vent pipe must terminate outside the structure and must
not be obstructed in any way. The air--intake pipe must
terminate outside the structure or in a well ventilated
area that is isolated from the living space and the garage
(e.g. well ventilated attic or crawlspace). Do not block
or obstruct air openings on furnace or spaces around
furnace.
A05089
Fig. 3 -- Venting
SKeep the area around your furnace clear and free of
combustible materials, gasoline, and other flammable
liquids and vapors.
A92182
Fig. 4 -- Combustible Materials
SDo not cover the furnace, store trash or debris near it, or
in any way block the flow of fresh air to the unit.
SA furnace installed in an attic or other insulated space
must be kept free and clear of insulating material.
Examine the furnace area when the furnace is installed
or when insulation is added. Some materials may be
combustible.
SThis furnace contains SAFETY DEVICES which must
be MANUALLY RESET. If the furnace is left
unattended for an extended period of time, have it
checked periodically for proper operation. This
precaution will prevent problems associated with no
heat, such as frozen water pipes, etc. See “Before You
Request a Service Call” section in this manual.
FIRE OR EXPLOSION HAZARD
Failure to follow this warning could result in personal
injury/death or property damage.
Do not keep combustible materials, gasoline, and other
flammable liquids or vapors around your furnace.
!WARNING
FIRE AND UNIT OPERATION HAZARD
Failure to follow this warning could result in personal
injury/death or property damage.
For proper and safe operation the furnace needs air for
combustion and ventilation. Do not block or obstruct
the openings on the furnace, air openings to the area in
which the furnace is installed, and the space around the
furnace.
!WARNING
BEFORE STARTING YOUR FURNACE
Examine the furnace installation monthly to determine that:
1. All flue gas carrying areas external to the furnace (i.e.
chimney, vent connector) are clear and free of
obstructions.
2. The vent connector is in place, slopes upward and is
physically sound without holes or excessive corrosion.
3. The return--air duct connection(s) is physically sound, is
sealed to the furnace casing, and terminates outside the
space containing the furnace.
4. The physical support of the furnace is sound without
sagging cracks, gaps, etc. around the base.
5. There are no obvious signs of deterioration of the furnace.
6. The burner flames are in good adjustment. (See Fig. 5.)
A92330
Fig. 5 -- Burner Flame

5
STARTING AND SHUTTING DOWN
YOUR FURNACE
Instead of a continuously burning pilot flame which wastes
valuable energy, your furnace uses an automatic, hot surface
ignition system to light the burners each time the thermostat starts
your furnace. Follow these important safeguards:
SNever attempt to manually light the burners with a
match or other source of flame.
A92319
Fig. 6 -- Do Not Light Burner with Match
SRead and follow the operating instructions on inside of
main furnace door, especially the item that reads as
follows:
Wait 5 minutes to clear out any gas. Then smell for gas,
including near the floor. If you smell gas, STOP!
Follow “B” in the safety information above on this
furnace label. If you don’t smell gas, go to the next
step.
SIf a suspected malfunction occurs with your gas control
system, such as the burners do not light when they
should, refer to the shutdown procedures on inside of
main furnace door, or in the “Shutting Down Your
Furnace” section and call your dealer as soon as
possible.
FIRE AND EXPLOSION HAZARD
Failure to follow this warning could result in personal
injury/death or property damage.
Should the gas supply fail to shut off or if overheating
occurs, turn off the manual gas valve to the furnace
BEFORE turning off the electrical supply. (See Fig. 8.)
!WARNING
SCHECK AIR FILTER: Before attempting to start
your furnace, be sure the furnace filter is clean and in
place. See “Performing Routine Maintenance” section
in this manual. Then proceed as follows:
Steps For Starting Your Furnace
1. Set your room thermostat to the lowest temperature
setting. (See Fig. 7.)
2. Close the external manual gas valve. (See Fig. 8.)
A08013
Fig. 7 -- Lowest Temperature Setting
C
L
O
S
E
A06188
Fig. 8 -- Close Valve
3. Turn OFF electrical supply to the furnace. (See Fig. 9.)
4. Remove main furnace door. (See Fig. 10.)
5. The gas valve will have a control switch to turn off and
on. Turn the control switch on the gas control to the OFF
position and wait 5 minutes. (See Fig. 11.) Then smell for
gas, including near the floor. If you smell gas, STOP!
Follow “B” on furnace label. If you don’t smell gas, go to
next step.
6. After waiting 5 minutes, turn the control switch on the gas
control to the ON position. (See Fig. 12.)
A92185
Fig. 9 -- Turn Off Electrical Supply

6
A05087
Fig. 10 -- Remove Furnace Door
A04150
Fig. 11 -- Control Switch to OFF
A04151
A04151
Fig. 12 -- Control Switch to ON
A05088
Fig. 13 -- Furnace Door Replaced
A92359
Fig. 14 -- Turn On Electrical Supply
O
P
E
N
A06189
Fig. 15 -- Open Valve
7. Replace main furnace door. (See Fig. 13.)
8. Turn ON the electrical supply to the furnace and wait 1
minute. (See Fig. 14.)
9. Open the external manual gas valve. (See Fig. 15.)
10. Set the room thermostat to a temperature slightly above
the room temperature. This will automatically signal the
furnace to start.
11. When the furnace receives the start signal, the inducer is
started. When the pressure switch senses that there is suf--
ficient combustion air, the hot surface igniter is energized.
After the hot surface igniter is heated for 17 seconds, the
gas valve permits gas to flow to the main burners. After
ignition and a time delay of about 30 sec, the furnace
blower will start. Variable--capacity furnaces start at
medium speed until the control makes the necessary
adjustments to operate the blower at either the low--,
medium--, or high--heat speed.
NOTE: If the burners fail to ignite after 4 attempts, the furnace
control system will lock out. If lockout occurs, main burners fail
to light, or blower does not come on, shut down the furnace and
call your dealer for service.
12. Set your thermostat to the temperature that satisfies your
comfort requirements.
SUGGESTION: Setting the thermostat back a few degrees
and compensating for the difference with warmer clothing
can make a big difference in your fuel consumption. The
few degrees at the top of your thermostat “comfort level”
are the most costly degrees to obtain.
When the room temperature drops below the temperature selected
on the thermostat, the furnace will switch on automatically.
When the room temperature reaches the temperature selected on
the thermostat, the furnace will be switched off automatically.
Some thermostats have a FAN mode with 2 selections: AUTO
and ON. When set on AUTO, the furnace blower cycles on and
off. In the ON mode, the furnace blower runs continuously.
Continuous fan keeps the temperature level in your home more
evenly balanced. It also permits the indoor air to be continuously
filtered. With the unique feature Fan On Plust,the blower speed
can be increased or decreased if desired due to change of seasons,
large gatherings in your home, etc. Simply change your FAN
from ON to OFF for 1 to 3 seconds (or AUTO depending on

7
your thermostat), and then return to ON. The blower will switch
to the next higher speed. There are at least 3 speeds to choose
from. If the blower is running on its highest speed, a request to
change will direct the blower to return to its lowest speed.
If you own an Evolution Control, simply push the “fan” button
to change the fan speed.
SHUTTING DOWN YOUR FURNACE
Should you ever need to shut down your furnace for service or
maintenance, you will need to turn the furnace off. The following
procedures must be followed:
A08013
Fig. 16 -- Lowest Temperature Setting
1. Set your room thermostat to the lowest temperature
setting. (See Fig. 16.)
2. Turn off electrical supply to the furnace. (See Fig. 17.)
3. Remove main furnace door. (See Fig. 10.)
4. Turn the switch on the gas control to the OFF position.
(See Fig. 18.)
A92185
Fig. 17 -- Turn Off Electrical Supply
A04150
Fig. 18 -- Control Switch to OFF
5. Replace the main furnace door. (See Fig. 13.)
6. If the furnace is being shut down because of a
malfunction, call your dealer as soon as possible.
UNIT AND PROPERTY DAMAGE
Failure to follow this caution may result in damage to the
furnace and other property damage.
Furnace is not to be installed, operated, and then turned off
and left turned off in an unoccupied structure during winter.
(See “Heading South for the Winter” procedures in
maintenance section on page 12).
CAUTION
!
PERFORMING ROUTINE
MAINTENANCE
NOTE: The qualified installer or agency must use only
factory--authorized replacement parts, kits, and accessories when
modifying this product.
Installing and servicing heating equipment can be hazardous due
to gas and electrical components.
Only trained and qualified personnel should install, repair, or
service heating equipment. Untrained personnel can perform
basic maintenance functions such as cleaning and replacing air
filters.
All other operations must be performed by trained and qualified
service agency personnel. Observe safety precautions in this
manual, on tags, and on labels attached to the furnace, and other
safety precautions that may apply.
With proper maintenance and care, your furnace will operate
economically and dependably. Instructions for basic maintenance
are found on this and the following pages. However, before
beginning maintenance, follow these safety precautions:
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury/death.
Turn off electrical power supply to your furnace before
removing the access doors to service or perform
maintenance.
!WARNING
CUT HAZARD
Failure to follow this caution may result in minor personal
injury.
Although special care has been taken to minimize sharp
edges, be extremely careful when handling parts or reaching
into the furnace.
CAUTION
!
FILTERING OUT TROUBLE
UNIT PERFORMANCE HAZARD
Failure to follow this caution may result in product damage.
Never operate your furnace without a filter in place. Doing
so may damage the furnace blower motor. An
accumulation of dust and lint on internal parts of your
furnace can cause a loss of efficiency.
CAUTION
!
A dirty air filter will cause a loss of airflow in your duct system.
When excessive loss of airflow occurs, the furnace may cycle on
its safety controls. If this condition is left unattended, the furnace

8
will eventually lock out. It is recommended that the furnace air
filter be checked every 3 or 4 weeks and cleaned if necessary.
If installed with factory--specified disposable media filter, check
or replace filter before each heating and cooling season. Replace
disposable media filter at least once a year.
The air filter is normally located in the blower compartment or
in the factory--supplied filter cabinet attached to the side or
bottom of the furnace casing. If air filter has been installed in
another location, contact your dealer for instructions. To inspect,
clean, and/or replace the air filter(s), follow these steps:
1. Turn off electrical supply to furnace. (See Fig. 17.)
2. Remove door/access panel.
a. Air Filters Located in Blower Compartment
(1.) Remove main furnace door. (See Fig. 19.)
(2.) Remove blower access panel. (See Fig. 20.)
NOTE: It will be necessary to remove 2 screws
b. Air Filters Located in Filter Cabinet
Remove filter cabinet door. (See Fig. 21 and 22.)
NOTE: It will be necessary to remove 1 thumbscrew
3. Remove air filter from furnace.
a. Air Filters Located in Blower Compartment Bottom:
(1.) Slide filter retainer sideways until it is free of
latch. (See Fig. 23.)
(2.) Slide air filter out of furnace. (See Fig. 24.)
b. Air Filters Located in Blower Compartment Side:
(1.) Remove filter retainer from latch. (See Fig. 25.)
(2.) Gently remove air filter and carefully turn the
dirty side up (if dirty) to avoid spilling dirt from
the filter. (See Fig. 26.)
c. Air Filter Located in Filter Cabinet:
Slide air filter out of furnace. Keep dirty side up (if
dirty) to avoid spilling dirt. (See Fig. 27 and 28.)
4. Inspect the filter. If torn, replace it.
NOTE: If washable filter that was shipped with the furnace has
been replaced by:
--Factory specified disposable media filter: Do not clean. If dirty,
replace only with media filter having the same part number and
size. Install with airflow direction arrow pointing towards blower.
--Electronic air cleaner (EAC): Refer to EAC Owner’s Manual
for maintenance information.
A05087
Fig. 19 -- Removing Furnace Door
A93204
Fig. 20 -- Removing Blower Access Panel
A06190
Fig. 21 -- Removing Side Filter Cabinet Door
A06191
Fig. 22 -- Removing Bottom Filter Cabinet Door

9
A93010
Fig. 23 -- Sliding Filter Retainer Sideways
A93011
Fig. 24 -- Slide Air Filter Out of Furnace
A93012
Fig. 25 -- Removing Filter Retainer from Latch
A93013
Fig. 26 -- Removing Air Filter
A00227
Fig. 27 -- Slide Side Filter Out of Furnace
A00228
Fig. 28 -- Slide Bottom Filter Out of Furnace
A93205
Fig. 29 -- Replace Blower Access Panel

10

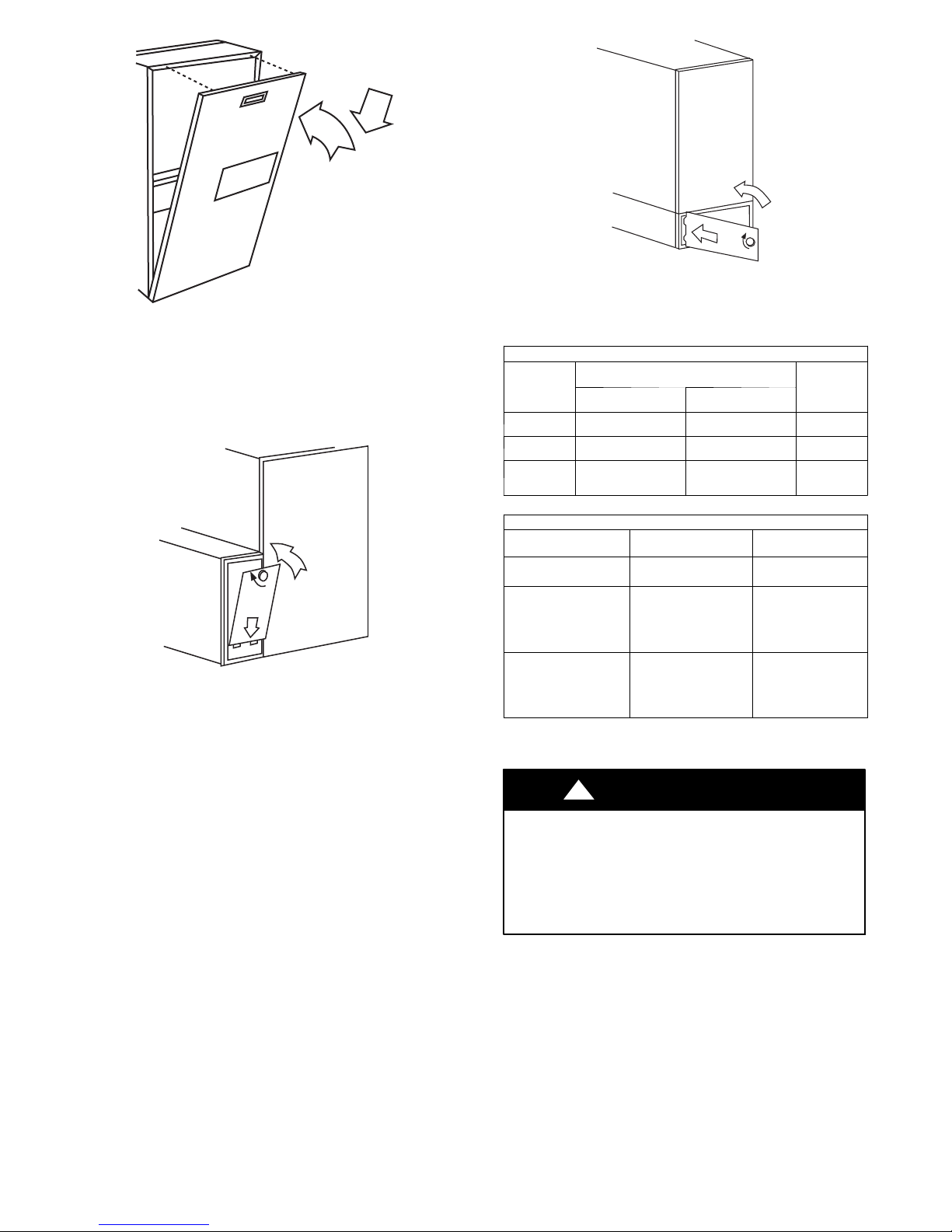

A05088
Fig. 30 -- Replace Furnace Door
A06192
Fig. 31 -- Replace Side Filter Cabinet Door
5. If washable filter, wash filter (if dirty) in sink, bathtub, or
outside with a garden hose. Always use cold tap water. A
mild liquid detergent may be used if necessary. Spray
water through filter in the opposite direction of airflow.
Allow filter to dry.
6. Reinstall clean air filter.
7. Reinstall filter retainer (for blower compartment locations
only).
8. Replace blower access panel and main furnace door (Fig.
29 and 30.) or filter cabinet door. (Fig. 31 and 32.)
9. Turn on electrical supply to furnace.
If your furnace air filter needs to be replaced, be sure to use a
factory--authorized filter of the same size that was originally
supplied. Use the filter tables and compare your furnace size with
the proper filter size.
A06193
Fig. 32 -- Replace Bottom Filter Cabinet Door
FURNACE AIR FILTER TABLE
AIR FILTER LOCATED IN BLOWER COMPARTMENT
FURNACE
CASING
WIDTH
IN (mm)
FILTER SIZE --- IN (mm) FILTER
TYPE
Side Return†* Bottom Return*
17–1/2
(445)
(1) 16 X 25 X 3/4
(406 X 635 X 19)
(1) 16 X 25 X 3/4
(406 X 635 X 19) Washable
21 (533) (1) 16 X 25 X 3/4
(406 X 635 X 19)
1) 20 X 25 X 3/4
(508 X 635 X 19) Washable
24–1/2
(622)
(1 or 2) 16 X 25 X
3/4
(406 X 635 X 19)
(1) 24 X 25 X 3/4
(610 X 635 X 19) Washable
AIRFILTERLOCATEDINFILTERCABINET
FILTER CABINET
HEIGHT --- IN (mm)
FILTER
SIZE --- IN (mm)
FILTER
TYPE
16 (406) (1) 16 x 25 x 3/4*
(406 X 635 X 19) Washable
20 (508)
(1) 20 x 25 x 3/4*
(508 X 635 X 19)
or
(1) 20 x 25 x 4---5/16
(508 X 635 X 110)
Washable
24 (610)
(1) 24 x 25 x 3/4*
(610 X 635 X 19)
or
(1) 24 x 25 x 4---5/16
(610 X 635 X 110)
Washable
*Factory---provided with the furnace. Filters may be field modified by
cutting filter material and support rods (3) in filters.
{Upflow only. Alternate sizes and additional filters may be ordered from
your dealer.
PERSONAL INJURY HAZARD
Failure to follow this warning could result in personal
injury.
Use care when cutting support rods in filters to protect
against flying pieces and sharp rod ends. Wear safety
glasses, gloves, and appropriate protective clothing.
!WARNING
COMBUSTION AREA AND VENT
SYSTEM
Visually inspect the combustion area and vent system before each
heating season. Make sure that all PVC pipes leading into the
combustion area and vent are free from any cracks and sags.

11
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal
injury or death.
If holes are found in the pipes or if any portion has
become disconnected, toxic fumes can escape into your
home. DO NOT OPERATE YOUR FURNACE. Call
your dealer for service.
!WARNING
Check the combustion--air intake and vent pipe on the outside of
your home for blockage.
When dirt, soot, scale, or rust is allowed to build up, your furnace
can suffer a loss of efficiency and perform improperly.
Accumulations on the main burners can result in firing out of
normal sequence. This delayed ignition creates an alarmingly
loud sound.
UNIT OPERATION HAZARD
Failure to follow this caution may result in property
damage.
If your furnace makes an especially loud noise when the
main burners light, shut down your furnace and call your
dealer.
CAUTION
!
To inspect the combustion area and vent system, you will need
a flashlight. Refer to Fig. 3 and proceed as follows:
1. Turn off the gas and electrical supplies to the furnace and
remove the main furnace door. (See Fig. 8, 9, and 10.)
2. Remove burner enclosure front. (See Fig. 33.)
Inspect the gas burners, igniter area, and remainder of furnace for
dirt, rust, soot, or scale.
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal
injury or death.
If dirt, rust, soot, or scale accumulations are found, call
your dealer. Do not operate your furnace.
!WARNING
3. Inspect the combustion--air and vent PVC pipes for sags,
holes, cracks, water leaks, blockage or disconnections.
Horizontal portions of pipes must slope downward toward
furnace.
4. Reinstall burner enclosure front.
5. If your furnace is free of the above conditions, replace
main furnace door and turn on electrical and gas supplies
to the furnace. (See Fig. 13, 14, and 15.)
6. Start the furnace and observe its operation. Watch the
burner flames to see if they are clear blue, almost
transparent. (See Fig. 34.) If you observe a suspected
malfunction, or the burner flames are not clear blue, call
your dealer.
A00223
Fig. 33 -- Remove Burner Enclosure Front
A92330
Fig. 34 -- Burner Flame
HEADING SOUTH FOR THE WINTER?
DON’T FORGET YOUR FURNACE!
UNIT AND PROPERTY DAMAGE HAZARD
Failure to follow this caution may result in damage to the
furnace and other property damage.
If the furnace is installed in an unconditioned space where
the ambient temperatures may be 32_F(0_C) or lower,
freeze protection measures must be taken to prevent minor
property or product damage.
CAUTION
!
Since the furnace uses a condensing heat exchanger, some water
will accumulate in the unit as a result of the heat transfer process.
Therefore, once it has been operated, it cannot be turned off and
left off for an extended period of time when temperatures will
reach 32_F(0_C) or lower unless winterized. Follow these
procedures to winterize your furnace:
1. Obtain propylene glycol (RV/swimming pool antifreeze or
equivalent).
UNIT COMPONENT DAMAGE HAZARD
Failure to follow this caution may result in damage to the
furnace and other property damage.
Do not use ethylene glycol (Prestone II antifreeze coolant or
equivalent). Failure of plastic components may occur.
CAUTION
!

12
2. Turn off electrical supply to the furnace. (See Fig. 17.)
3. Remove main furnace door. (See Fig. 19.)
4. Remove upper inducer housing drain connection cap.
(See Fig. 35.)
A06456
Fig. 35 -- Upper Inducer Housing Drain
Connection Cap
5. Connect field--supplied 1/2--in. ID tube to upper inducer
housing drain connection.
6. Insert field--supplied funnel into tube.
7. Pour 1 quart of antifreeze into funnel/tube. Antifreeze
should run through inducer housing, overfill condensate
trap, and flow into open field drain. (See Fig. 36.)
8. Remove funnel and tube from inducer housing and replace
drain connection cap and clamp.
9. Replace main furnace door. (See Fig. 30.)
10. Propylene glycol need not be removed before restarting
furnace.
A06457
Fig. 36 -- Pour Antifreeze
UNIT AND PROPERTY DAMAGE HAZARD
Failure to follow this warning could result in damage to
unit components.
This furnace is designed for continuous return--air
minimum temperature of 60_F (15.6_C) db or intermittent
operation down to 55_F (12.8_C) db, such as when used
with a night setback thermostat. Return--air temperature
must not exceed 85_F (29.4_C) db.
CAUTION
!
If you choose to leave your furnace on during extended absences
do not set your thermostat lower than the limits shown in the
Caution box above.
To protect your property from damage from potential problems
due to unintended interruptions in utility services or other events,
it is recommended that you either winterize your plumbing
system or have someone check on your house regularly while
you are away.
Your dealer or a licensed plumber can give you additional advice
about winterizing your plumbing system.

13
A CHECK--UP CHECKLIST
Your furnace represents an important investment in your family’s
comfort and your home’s value. To keep it performing properly
and to prevent future problems, have a trained service specialist
give your furnace a professional check--up annually. The
following checklist can be used as a guideline to proper service:
SInspect all flue gas passages, burners, heat exchangers,
coupling box(es), and inducer assembly.
SInspect all combustion--air and vent piping inside
structure and vent pipe termination outside the
structure.
SCheck gas pipes leading to and inside your furnace for
leaks.
SInspect and clean the blower motor and wheel.
NOTE: The inducer and blower motors are pre--lubricated and
require no additional lubrication. These motors can be identified
by the absence of oil ports on each end of the motor.
SInspect and change or clean air filters(s), if necessary.
SInspect all supply-- and return--air ducts for
obstructions, air leaks, and insulation. Remedy any
problem when necessary.
SInspect the return--air duct connections(s) at the furnace
to ensure it is physically sound, sealed to the furnace
casing, and terminates outside the space containing the
furnace.
SInspect electrical wiring, connections, and components
for loose connections.
SPerform an operational checkout to determine whether
your furnace is working properly and if it requires
adjustments.
SInspect all condensate drain tubes and condensate trap
assembly for leaks. The condensate removal system
should be cleaned annually by a qualified service
agency. Refer to the Service and Maintenance
Instructions for further information.
SExamine the physical support of the furnace. Support
should be sound with no cracks, sagging, gaps, etc.
around the base.
SCheck furnace for any obvious signs of deterioration.
BEFORE YOU REQUEST A SERVICE
CALL
If your furnace is not operating or not performing properly, you
may save the expense of a service call by checking a few things
yourself before calling for service.
For Insufficient Airflow:
SCheck for dirty air filter(s).
SCheck for blocked return--air or supply--air grilles
throughout your home. Ensure they are open and
unobstructed.
If problem still exists, call your dealer for service.
If Furnace Fails to Operate:
Follow this checklist step by step, advancing to the next step only
if furnace fails to start.
SCheck thermostat for proper temperature. Is thermostat
set above room temperature?
SIs thermostat set on HEAT?
SCheck fuses and circuit breakers. Is electrical supply
on?
SIs manual shutoff valve in gas supply pipe in open
position? (Follow start--up procedures if you open gas
valve.)
NOTE: Turn off electrical supply before continuing with
checklist.
SIs control switch on gas valve in ON position? (Follow
startup procedures if you must reset switch to ON
position.)
SCheck manual reset flame rollout switch located on the
burner box. If furnace has experienced high
temperature conditions, this switch will shut off the
furnace. Reset it by pushing the button on the switch. If
it trips again, shut down the furnace and call for
service. See “Shutting Down Your Furnace” section in
this manual.
SCheck for obstructions around the vent termination
outside the structure.
If the furnace still fails to operate, call your service representative.
For your convenience, record the furnace product and serial
numbers on back page. Should you ever require service, you will
have ready access to the information needed by your service
representative.
This furnace has a light--emitting--diode (LED) status code
display to aid the installer, service technician, or homeowner
while installing or servicing the unit. The LED code can be seen
by removing the main furnace door and viewing the LED
through the view port in the blower access panel. (See Fig. 2.)

14
NOTE TO EQUIPMENT OWNER:
For your convenience, please record the model and serial numbers of your new equipment in the spaces
provided. This information, along with the installation data and dealer contact information will be helpful
should your system require maintenance or service.
FURNACE
Model # _____________________________________
Serial # ______________________________________
AIR CONDITIONER OR HEAT PUMP
Model # _____________________________________
Serial # _____________________________________
INDOOR COIL (Furnace Coil or Fan Coil)
Model # _____________________________________
Serial # _____________________________________
INSTALLATION INFORMATION:
Date Installed ________________________________
DEALERSHIP CONTACT INFORMATION:
Company Name_______________________________
Address______________________________________
_____________________________________________
Phone Number _______________________________
Technician Name _____________________________
_____________________________________________
_____________________________________________
NOTE TO INSTALLER:
This manual must be left with the equipment owner.
HEATING & COOLING
TO OBTAIN INFORMATION ON PARTS: Consult your installing dealer or classified section of your local telephone directory under the
“Heating Equipment” or “Air Conditioning Contractors & Systems” heading for dealer listing by brand name.
Have available the Model No., Series Letter, & Serial No. of your equipment to ensure correct replacement part.
Carrier Corporation SIndianapolis, IN
46231
Copyright 2008 Bryant Heating & Cooling Systems Printed in the U.S.A. Edition Date: 12/08 Catalog No: OM05---57
R e p l a c e s : O M 0 5 --- 5 3Manufacturer reserves the right to change, at any time, specifications and design without notice and without obligation.
Bryant Heating & Cooling Systems
