GBM 13 RE
1
2
4
3
3
6 5
OBJ_BUCH-1774-002.book Page 2 Monday, April 18, 2016 10:13 AM

| 3
Bosch Power Tools 1 609 92A 2UM | (18.4.16)
C
BA
6
6
7
8
1
9
OBJ_BUCH-1774-002.book Page 3 Monday, April 18, 2016 10:13 AM

4| English
1 609 92A 2UM | (18.4.16) Bosch Power Tools
English
Safety Notes
General Power Tool Safety Warnings
Read all safety warnings and all in-
structions. Failure to follow the warnings
and instructions may result in electric shock, fire and/or seri-
ous injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
Work area safety
Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
Electrical safety
Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric
shock.
Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges and moving parts. Damaged
or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an exten-
sion cord suitable for outdoor use. Use of a cord suitable
for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoid-
able, use a residual current device (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.
Personal safety
Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while op-
erating power tools may result in serious personal injury.
Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal inju-
ries.
Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or en-
ergising power tools that have the switch on invites acci-
dents.
Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a ro-
tating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
Dress properly. Do not wear loose clothing or jewel-
lery. Keep your hair, clothing and gloves away from
moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
If devices are provided for the connection of dust ex-
traction and collection facilities, ensure these are con-
nected and properly used. Use of dust collection can re-
duce dust-related hazards.
Power tool use and care
Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or the
battery pack from the power tool before making any
adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or bind-
ing of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power
tools.
Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind
and are easier to control.
Use the power tool, accessories and tool bits etc. in ac-
cordance with these instructions, taking into account
the working conditions and the work to be performed.
Use of the power tool for operations different from those
intended could result in a hazardous situation.
Service
Have your power tool serviced by a qualified repair per-
son using only identical replacement parts. This will en-
sure that the safety of the power tool is maintained.
WARNING
OBJ_BUCH-1774-002.book Page 4 Monday, April 18, 2016 10:13 AM

English | 5
Bosch Power Tools 1 609 92A 2UM | (18.4.16)
Safety Warnings for Drills
Hold the tool by the insulated gripping surfaces when
performing operations where the application tool or
the screw could contact hidden wiring or its own power
cord. Contact with a “live” wire will also make exposed
metal parts of the power tool “live” and shock the operator.
Use appropriate detectors to determine if utility lines
are hidden in the work area or call the local utility com-
pany for assistance. Contact with electric lines can lead
to fire and electric shock. Damaging a gas line can lead to
explosion. Penetrating a water line causes property dam-
age.
Switch off the power tool immediately when the tool in-
sert jams. Be prepared for high reaction torque that
can cause kickback. The tool insert jams when:
— the power tool is subject to overload or
— it becomes wedged in the workpiece.
Secure the workpiece. A workpiece clamped with clamp-
ing devices or in a vice is held more secure than by hand.
Always wait until the machine has come to a complete
stop before placing it down. The tool insert can jam and
lead to loss of control over the power tool.
Product Description and Specifica-
tions
Read all safety warnings and all instruc-
tions. Failure to follow the warnings and in-
structions may result in electric shock, fire
and/or serious injury.
Intended Use
The machine is intended for drilling in wood, metal, ceramic
and plastic. Machines with electronic control and right and
left rotation are also suitable for screwdriving and tapping.
Product Features

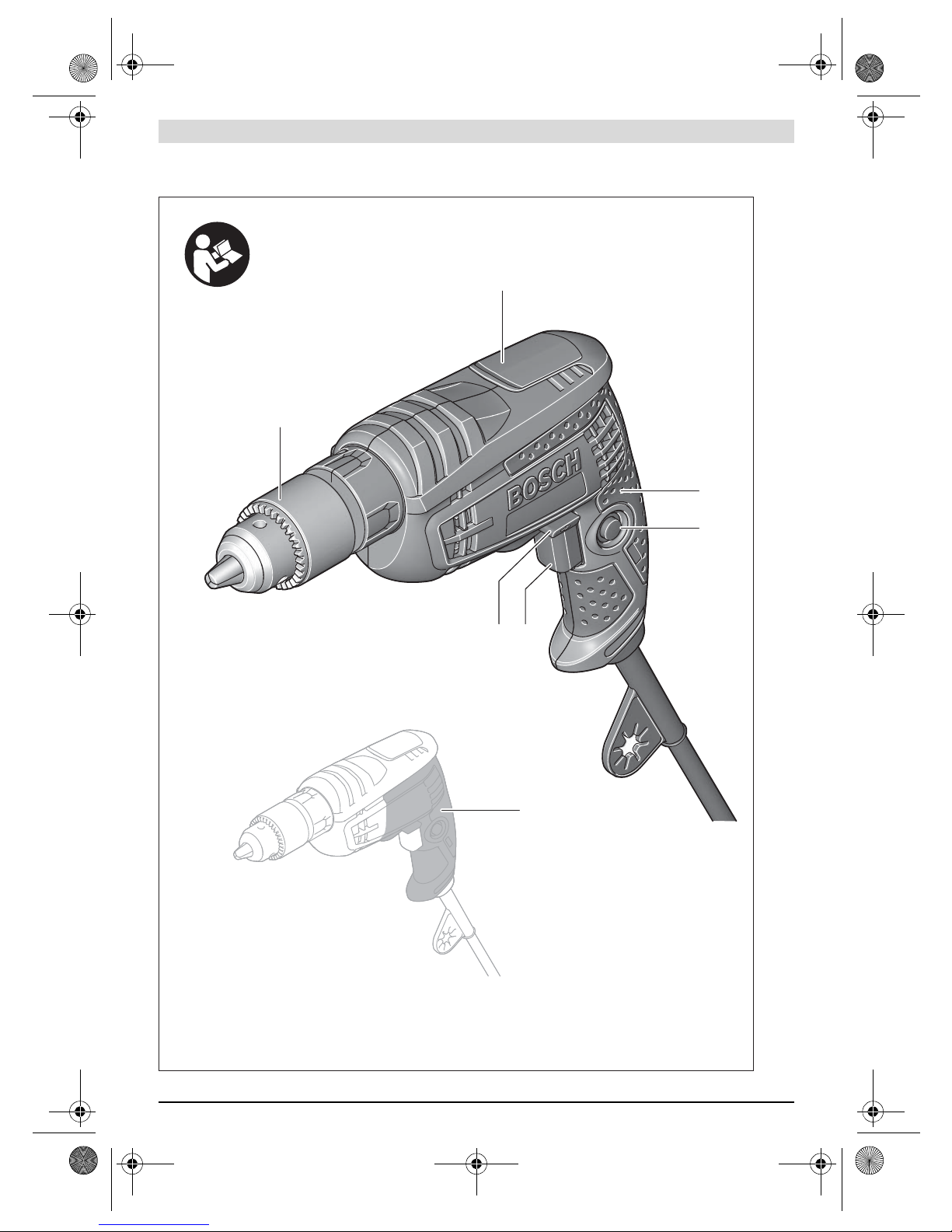

The numbering of the product features refers to the illustra-
tion of the machine on the graphics page.
1Key type drill chuck
2Belt clip
8Handle (insulated gripping surface)
4Lock-on button for On/Off switch
5On/Off switch
6Rotational direction switch (GBM 10 RE, GBM 13 RE)
7Chuck key
8Screwdriver bit*
9Universal bit holder*
*Accessories shown or described are not part of the standard de-
livery scope of the product. A complete overview of accessories
can be found in our accessories program.
Technical Data
Rotary drill GBM 6 GBM 10 RE GBM 13 RE
Article number 3 601 D72 0.. 3 601 D73 5.. 3 601 D77 5..
Rated power input W 350 450 600
Output power W 136 236 360
No-load speed min-1 4000 0–2600 0–2600
Rated speed min-1 3116 0–1760 1676
Rated torque Nm 12.3 14 20
Spindle collar dia. mm 43 43 43
Speed control –
Right/left rotation –
Max. drilling dia.
– Steel
– Wood
–Aluminium
mm
mm
mm
6.5
15
6
10
25
10
13
30
13
Chuck clamping range mm 0.5–6.5 1–10 1.5–13
Weight according to EPTA-
Procedure 01:2014 kg 1.1 1.3 1.7
Protection class /II /II /II
The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.
OBJ_BUCH-1774-002.book Page 5 Monday, April 18, 2016 10:13 AM

6| English
1 609 92A 2UM | (18.4.16) Bosch Power Tools
Assembly
Changing the Tool
Before any work on the machine itself, pull the mains
plug.
Wear protective gloves when changing the tool. The
drill chuck can become very hot during longer work peri-
ods.
Key Type Drill Chuck (see figure A)
Open the key type drill chuck 1by turning until thetool can be
inserted. Insert the tool.
Insert the chuck key 7into the corresponding holes of the key
type drill chuck 1and clamp the tool uniformly.
Screwdriver Tools (see figure B)
When working with screwdriver bits 8, a universal bit holder 9
should always be used. Use only screwdriver bits that fit the
screw head.
Replacing the Drill Chuck
For power tools without spindle lock, the drill chuck must be
replaced by an authorised after-sales service agent for Bosch
power tools.
The drill chuck must be tightened with a tighten-
ing torque of approx. 31–35Nm.
Dust/Chip Extraction
Dusts from materials such as lead-containing coatings,
some wood types, minerals and metal can be harmful to
one’s health. Touching or breathing-in the dusts can cause
allergic reactions and/or lead to respiratory infections of
the user or bystanders.
Certain dusts, such as oak or beech dust, are considered
as carcinogenic, especially in connection with wood-treat-
ment additives (chromate, wood preservative). Materials
containing asbestos may only be worked by specialists.
– Provide for good ventilation of the working place.
– It is recommended to wear a P2 filter-class respirator.
Observe the relevant regulations in your country for the
materials to be worked.
Prevent dust accumulation at the workplace. Dusts can
easily ignite.
Operation
Starting Operation
Observe correct mains voltage! The voltage of the pow-
er source must agree with the voltage specified on the
nameplate of the machine. Power tools marked with
230 V can also be operated with 220 V.
Reversing the rotational direction (GBM 10 RE,
GBM 13 RE)
(see figure C)
The rotational direction switch 6is used to reverse the rota-
tional direction of the machine. However, this is not possible
with the On/Off switch 5actuated.
Right Rotation: For drilling and driving in screws, push the
rotational direction switch 6left to the stop.
Left Rotation: For loosening and unscrewing screws and
nuts, press the rotational direction switch 6through to the
right stop.
Switching On and Off
To start the machine, press the On/Off switch 5and keep it
pressed.
To lock the pressed On/Off switch 5, press the lock-on button
4.
To switch off the machine, release the On/Off switch 5or
when it is locked with the lock-on button 4, briefly press the
On/Off switch 5and then release it.
When not using the power tool, switch it off in order to save
energy.
Adjusting the Speed (GBM 10 RE, GBM 13 RE)
The speed of the switched on power tool can be variably ad-
justed, depending on how far the On/Off switch 5is pressed.
Light pressure on the On/Off switch 5results in a low rotation-
al speed. Further pressure on the switch results in an increase
in speed.
Working Advice
Apply the power tool to the screw/nut only when it is
switched off. Rotating tool inserts can slip off.
For drilling in metal, use only perfectly sharpened HSS drill
bits (HSS=high-speed steel). The appropriate quality is guar-
anteed by the Bosch accessories program.
Twist drills from 2.5–10 mm can easily be sharpened with
the drill bit sharpener (see accessories).
We recommend the use of a drill stand (see accessories) for
work where greater precision is particularly required.
The machine vice, which is available as an accessory, enables
secure clamping of workpieces. This prevents the workpiece
from turning and any accidents this would cause.
Belt Clip
With the belt clip 2, the machine can be hung onto a belt. The
user has both hands free and the machine is always at hand.
Maintenance and Service
Maintenance and Cleaning
Before any work on the machine itself, pull the mains
plug.
For safe and proper working, always keep the machine
and ventilation slots clean.
OBJ_BUCH-1774-002.book Page 6 Monday, April 18, 2016 10:13 AM

English | 7
Bosch Power Tools 1 609 92A 2UM | (18.4.16)
If the replacement of the supply cord is necessary, this has to
be done by Bosch or an authorized Bosch service agent in or-
der to avoid a safety hazard.
If the machine should fail despite the care taken in manufac-
turing and testing procedures, repair should be carried out by
an after-sales service centre for Bosch power tools.
In all correspondence and spare parts order, please always in-
clude the 10-digit article number given on the type plate of
the machine.
After-sales Service and Customer Assistance
Our after-sales service responds to your questions concern-
ing maintenance and repair of your product as well as spare
parts. Exploded views and information on spare parts can al-
so be found under:
www.bosch-pt.com
Our customer service representatives can answer your ques-
tions concerning possible applications and adjustment of
products and accessories.
India
Bosch Service Center
67, Mathiravedu, Velappan Chavdy, Ponamalle High Road,
Numbal Village
Chennai–600077
Phone: [phone]
Bosch Service Center
Rishyamook, 85A, Panchkuin Road
Delhi–110001
Phone: [phone]
Bosch Service Center
41, 41A, Appa Baug Bldg, Maharshi Karve Marg, Opp Charni
Road Station
Mumbai–400002
Phone: [phone]
Disposal
The machine, accessories and packaging should be sorted for
environmental-friendly recycling.
Do not dispose of power tools into household waste!
Subject to change without notice.
OBJ_BUCH-1774-002.book Page 7 Monday, April 18, 2016 10:13 AM

1 609 92A 2UM | (18.4.16) Bosch Power Tools

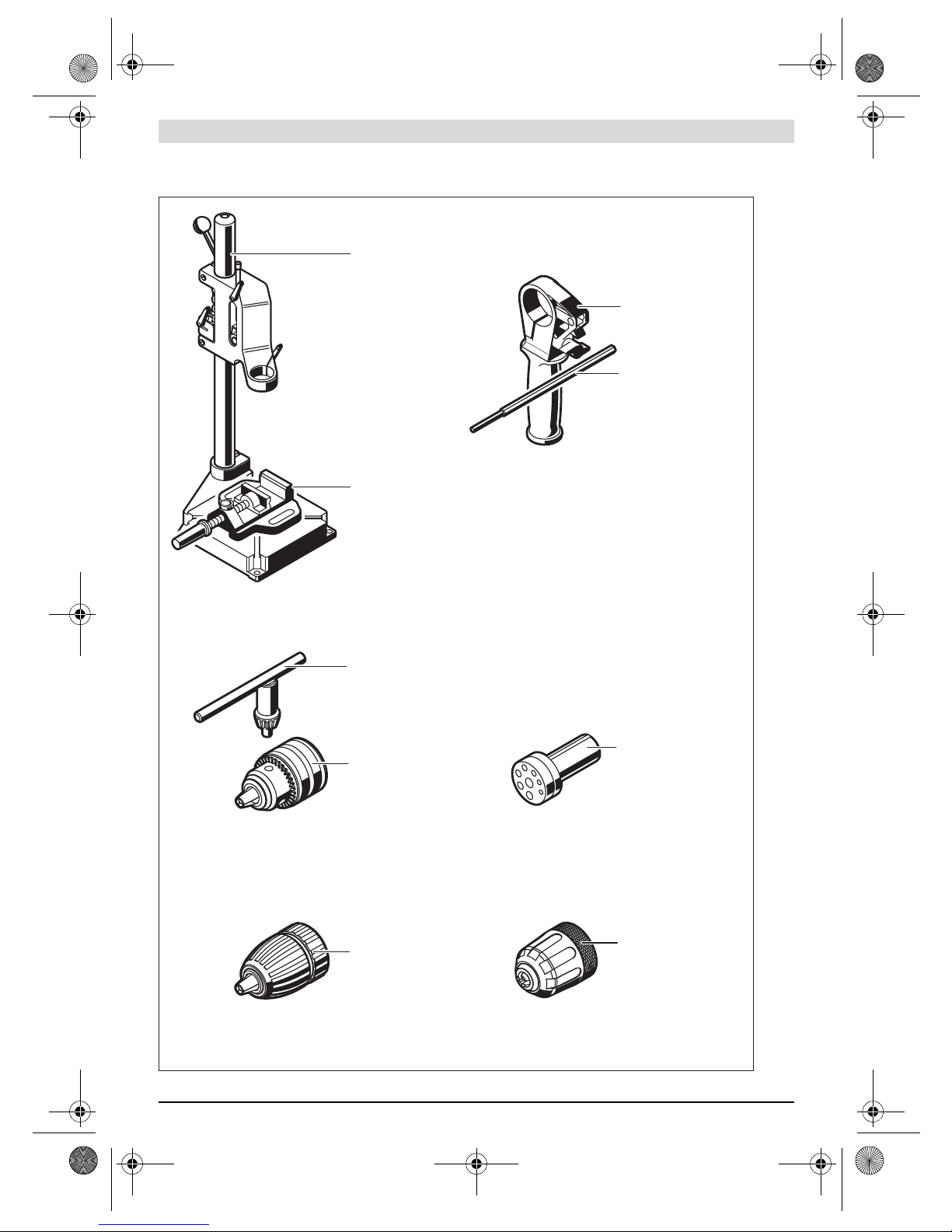

8|
2 607 990 050
(S 41)
1 607 950 045
GBM 10 RE
GBM 13 RE
2 608 572 217
2 608 180 009
(DP 500)
2 608 030 053
(MS 65)
2 608 030 055
(MS 80)
1 612 025 024
2 603 001 019
GBM 6
2 609 110 746
GBM 10 RE
GBM 13 RE
GBM 6
2 608 571 048
GBM 13 RE
2 608 571 079
GBM 10 RE
2 608 571 078
OBJ_BUCH-1774-002.book Page 8 Monday, April 18, 2016 10:13 AM
