Bush WMSAEX1016W User manual

Instruction manual
WMSAEX1214
WMSAEX1016W

You’ll soon be enjoying your new washing machine.
It all begins here, with your instructions. Don’t worry,
there’s nothing too technical coming up. Just simple,
step-by-step guidance to get you up and running
quickly. Sound good? Then let’s get started.
Help and Guidance
We’re here to help you get the most from your . Should you require washing machine
any guidance, a simple solution can often be found online at:
www.bush-support.com
If you still require further assistance, call one of our experts on 0345 257 7271.
Issue 1 4/12/2020

3
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.
Contents
Product support
Troubleshooting 36
Help and assistance 37
Declaration of conformance to product
standards 38
Disposal 39
7
Safety information
Safety information 6
Getting to know your
washing machine
Ready? Let’s begin 10
Accessories 12
Installing your washing
machine
Installation requirements 14
Unpacking 14
Connections (electrical, water, gas) 15
Functions
Functions 18
Using your washing machine
First use of washing machine 24
Standard and advanced functions/use 25
Care and Maintenance
Cleaning 30
Maintenance actions 30
Technical specifications 32
1
2
3
4
5
6

1Safety information

Safety information
Important - Please read these instructions fully before
installing or operating
Safety information
6
If the supply cord is damaged, it
must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order
to avoid a hazard.
The new hose-sets supplied with
the appliance are to be used and
the old hose-sets should not be
reused.
This washing machine is for indoor
use only.
The openings must not be
obstructed by a carpet.
This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of
•
the appliance by a person
responsible for their safety.
•
•
•
•
Pull out its plug from the power
socket before cleaning or
maintenance.
Make sure that all pockets are
•
•
Sharp and rigid items such as a coin,
brooch, nail, screw or stone etc. may
cause serious damages to this machine.
Pull out its plug and cut off water
supply after the operation.
Please check whether the water inside
the drum has been drained before
opening its door. Please do not open
the door if there is any water visible.
Check machine before every operation
to ensure pets and children are not
in the machine.
Glass door may be very hot during
the operation. Keep children and pets
far away from the machine during
the operation.
Take care that power voltage and
frequency shall be identical to those
required by washing machine.
Do not use any socket with rated
current less than that required by
washing machine. Never pull out
power plug with wet hand.
To ensure your safety, the power cord
plug must be inserted into an earthed
three-pole socket. Check carefully
and make sure that your socket is
properly and reliably earthed.
•
•
•
•
•
•
•
•
emptied.

Children of less than 3 years should
be kept away unless continously
supervised.
Do not let children play with the
machine.
Packing materials may be
dangerous to children. Please
keep all packing materials (plastic
bags, foams etc) far away from
children.
Washing machine shall not be
installed in bath room or very wet
rooms as well as in rooms with
explosive or caustic gases.
7
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.
Safety information
Important - Please read these instructions fully before
installing or operating
Safety information
Make sure that the water and
electrical devices are
connected by a qualified technician
in accordance with the
manufacturer's instructions and
local safety regulations.
Before operating this machine, all
packages and transport bolts must
be removed. Otherwise, the washing
machine may be seriously
damaged while washing the
clothes.
After unpacking the washing machine,
please undertake one wash cycle
with no theclothes first to clean
drum before using it for your clothes.
The washing machine with single
inlet valve only can be connected
to the cold water supply.
Your washing machine is only
for home use and is only
designed for textiles suitable
for machine washing.
Flammable and explosive or toxic
solvents are forbidden. Gasoline and
alcohol etc. Shall not be used as
detergents. only select the Shall
detergents suitable for machine
washing.
It is forbidden to wash carpets.
Be careful of burning when washing
machine drains hot washing water.
Never refill the water by hand during
washing.
After the program is completed,
please wait for two minutes to open
the door.
Please remember to disconnect
water and power supply immediately
after the clothes are washed.
Do not climb up and sit on top cover
of the machine.
Do not lean against machine door.
Please do not close the door with
excessive forces. If it is found to be
difficult to close the door, please
check that the loading is not excessive
and the load is distrubted evenly.
The household washing machine
isn't intended to be built-in.
Cautions during Handling Machine
1.Transport bolts shall be reinstalled
to the machine by a qualified
person.
2.The accumulated water shall be
drained out of the machine.
3. Handle the machine carefully.
Never hold each protruded part on
the machine while lifting. Machine
door can not be used as the handle
during the conveyance.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

Safety information
Important - Please read these instructions fully before
installing or operating
Safety information
8
Cord entanglement hazard. The cable of the appliance can give rise
to risks of entanglement, strangulation or tripping if not correctly
placed. You must make sure that the electric cable is positioned safely.

Getting to know your 2
washing machine

Getting to know your washing machine
You’ll be up and running in no time
10
Ready? Let’s begin...
Please read these instructions carefully. They contain
important information which will help you get the best
from your and ensure safe and washing machine
correct installation and operation.
If you require any further assistance, our technical
experts are happy to help. For full details, refer to
the product support section at the end of these
instructions.
Getting to know your washing machine

Component
1.Detergent Drawer 7.Transport bolt x 4
5 6
7
7 7
7
8
11
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.
4.Control Panel
5.Power lead
3.Filter 6.Drain hose
1
2
3
4
5
6
2.Door
Getting to know your washing machine
You’ll be up and running in no time
Getting to know your washing machine
8.Water inlet

Model capacity Spin Speed Energy class
WMSAEX1214 12kg 1400rpm B
Accessories

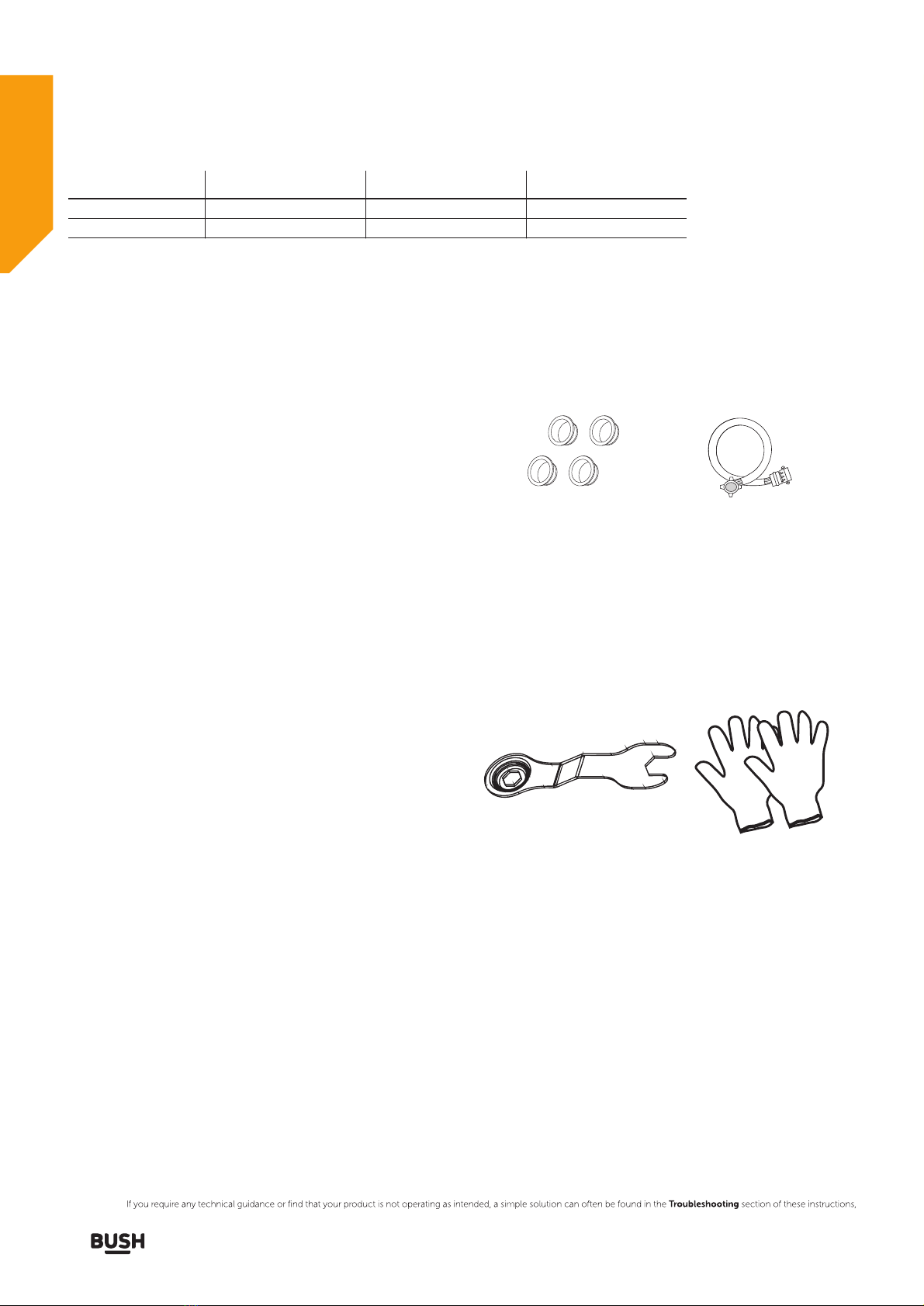

This machine includes below accessories,please install
these parts by yourself before operating.
• plastic hole plug x 4
• Inlet hose
Tools
You may use this tools to help install above parts
•
•
glove
spanner
12
Getting to know your washing machine
You’ll be up and running in no time
Getting to know your washing machine
WMSAEX1016W 10kg 1500rpm B

3
Installing your washing machine

Installing your washing machine
Bringing it all together
14
Installation requirements
Levelling feet
In addition to the instructions mentioned here,
special regulations of the relevant water
companies may apply. If in doubt, have the
washing machine connected by a qualified
technician.
The washing machine is heavy - caution when
lifting it.
Do not lift by projecting components (e.g.
washing machine door).
Warning: Frozen hoses may tear/burst. Do not
install washing machine in outdoor areas or
where there is a risk of frost. Please operate
washing machine above 0℃.
Lay hoses and cables in such a way that there is
of tripping over them.no risk
An additional space (approximately 120mm) is
required at the rear of the washing machine.
This is to allow
Dimension of the machine with door open.
enough space for the water
Unpacking
Unpacking your washing machine
Caution:Two people are required to unpack the
washing machine, it is recommended that gloves
are worn.
Carefully remove all packing materials including
the foam base and dispose of correctly.
Note:When opened, water droplets may be visible
in the drum etc. this is normal as each appliance
is tested before delivery.
Removing the transport bolts

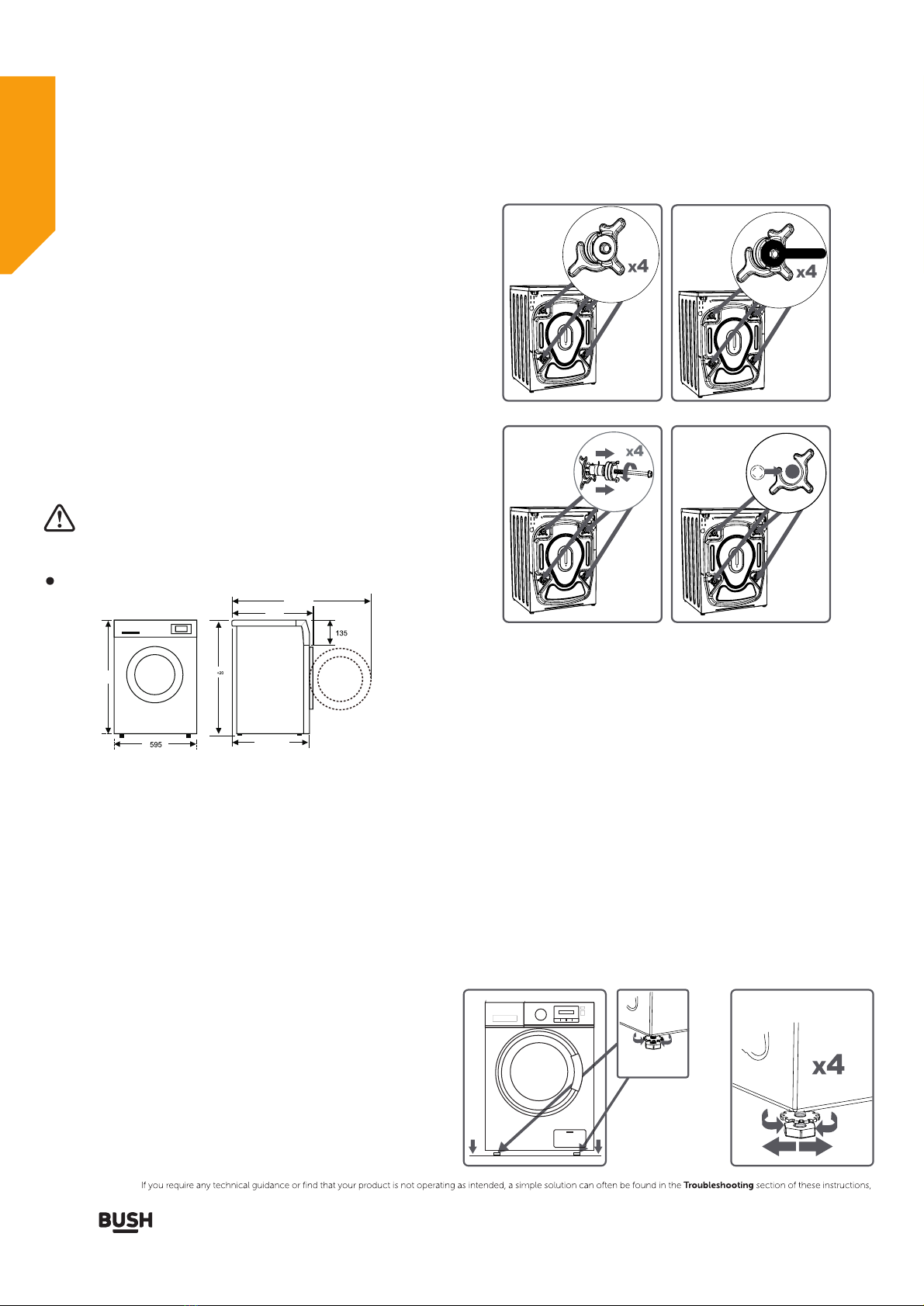

Important:The bolts are designed to
support the internal components during transit and
these MUST be removed before use.
2:Remove the bolts by pulling them. ( 3)
transport
Fig
1:For your machine to work efficiently with
minimum vibration it should be settled on flat,
nonslippery, firm ground.
2:You can adjust the balance of your machine by
changing the positioning of its feet.
3:First, loosen the plastic adjustment nut. (Fig 5)
4:Adjust by rotating the feet upwards or
downwards. (Fig 6)
5:After the desired position has been reached,
tighten the plastic adjustment nut again by rotating
it upwards.
Note: Never put cartons,wooden blocks or similar
materials under the machine to balance
irregularities in the level of the ground.
Fig 1 Fig 2
•
•
•
•
•
Fig 3 Fig 4
Fig 5 Fig 6
1:Loosen the screws by rotating counterclockwise
with a suiltable wrench. (Fig 1, 2)
3:When the transport bolts have been removed,
insert the plastic hole pulgs found in
the accessories bag into the holes. (Fig 4)
Installing your washing machine
hoses.
850 850
10kg:565
12kg:595
10kg :61 0
12kg :64 0
10kg :10 50
12kg :10 80

15
Connections Electrical
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.
Water inlet hose connections
Important:This washing machine MUST only be
connected to a cold water supply.

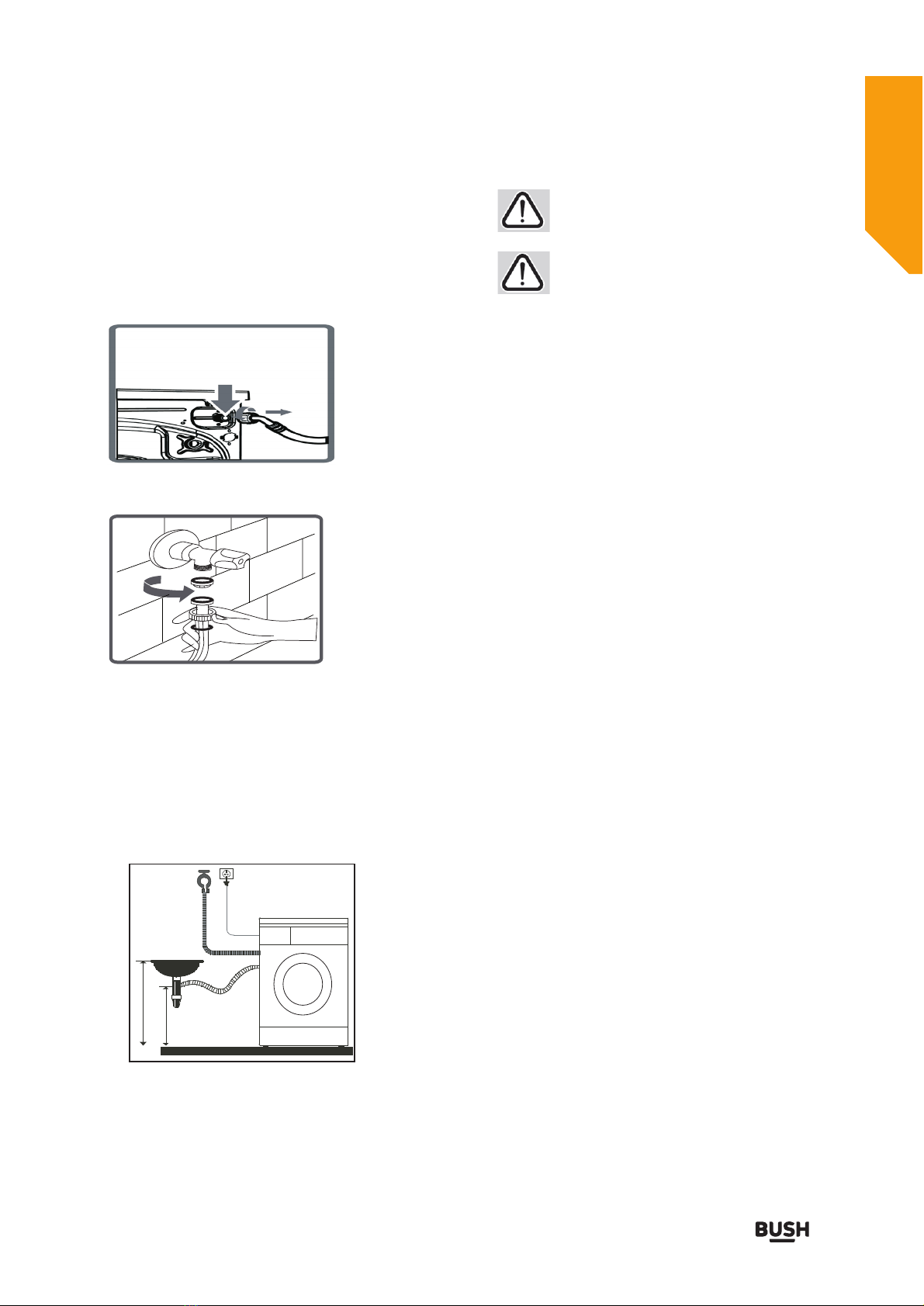

1:Connect the water inlet hose, the angled
connection attaches to the water inlet on the
back of the washing machine. (Fig 7)
2:The straight connection attaches to the water
supply valve. (Fig 8)
3:Ensure all seals are in place before connecting.
Important:Only tighten the hose connection nut
by hand - do not overtighten.
Drain hose connections
Important:The height of the top of the curve in
the drain hose MUST be between 60 - 100cm
from the floor. (Fig 9)
Drain hose can be fitted to the drainer or
a wash basin.
Max.100cm
Min.60cm
Fig 7
Fig 8
Fig 9

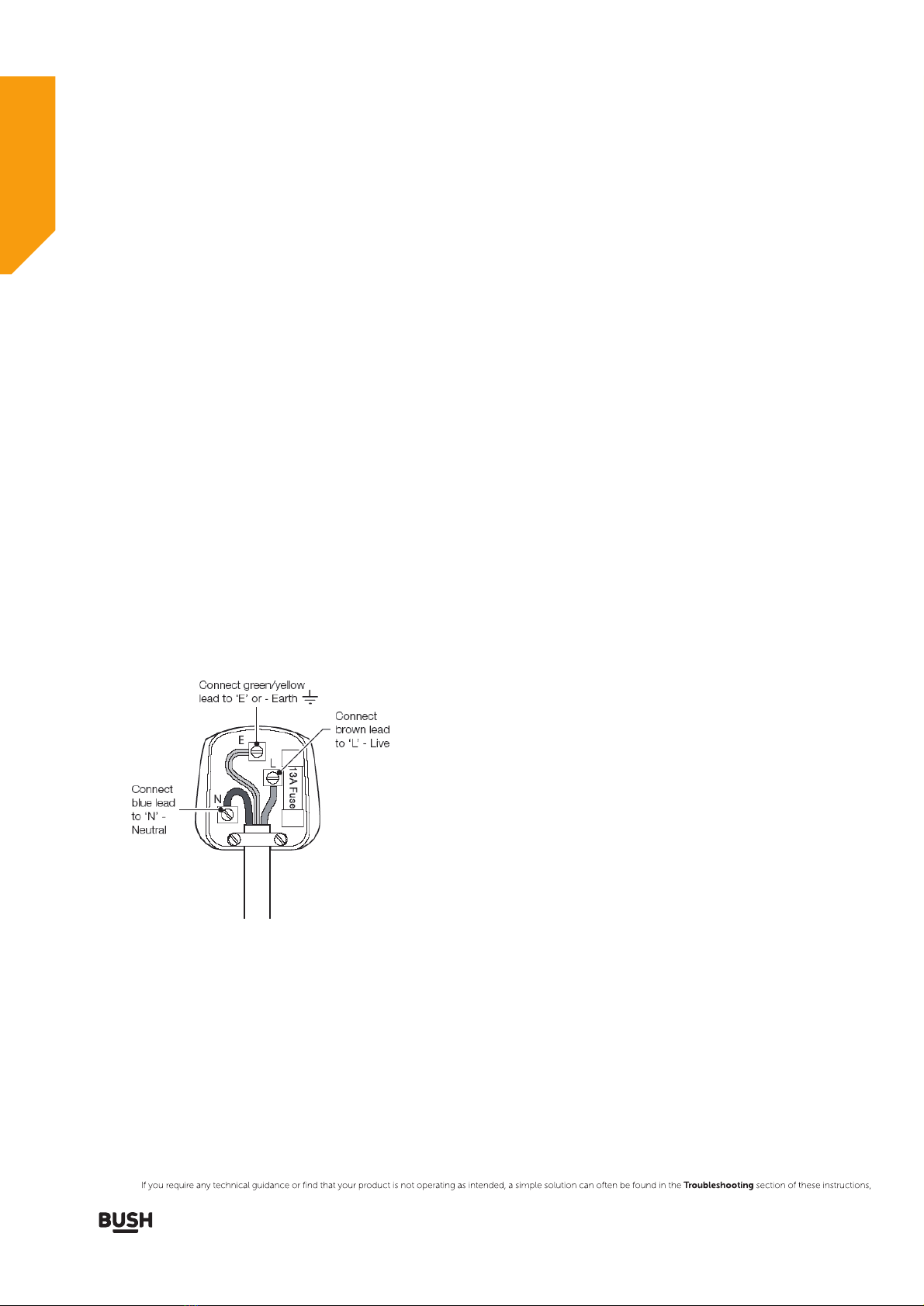

Any electrical work that is required to
install this appliance MUST be carried
out by a qualified electrician.
Warning:THIS APPLIANCE MUST BE
EARTHED
Before making any electrical connections,
ensure that:
Electrical safety is only guaranteed when the
earth system of your house is in accordance
with the related local regulations.
•
• Do not bend, stretch or pull the supply cable
to avoid electric shock.
• Ensure the power socket is suiable for the
maximum power of the machine (fuses in the
power circuit must be 13 amp).
• The supply voltage should be the same as that
indicated in the technical specifications and
the applicance rating plate.
• The appliance should be earthed and in
complicance with the applicable law.
• When installed, the power socket must be
within easy reach.
• If the socket outlets in your home are not
suitable for the plug supplied with this unit
check with a qualified electrician for
replacement.
• To avoid the risk of overloading your plug
socket, the use of adapters, multiple connectors
• The applicance must be connected to a
220-240 volt 50Hz AC supply by means of
a three pin socket, suitably earthed and
protected by a 13 amp fuse.
• Should the fuse need to be replaced , a 13
amp fuse approved to BS 1362/A must be
used.
• The plug contains a removable fuse cover
that must be refitted when the fuse is replaced.
if the fuse cover is lost or damaged, the plug
must not be used until a replacement cover
has been fitted or the plug is replaced.
• A damaged plug should be cut off as close to
the plug body as possible , the fuse should be
removed and the plug disposed of safely.
Installing your washing machine
Bringing it all together
Installing your washing machine
or extension cables are not recommended.

16
Plug replacement (UK lreland only)&
Should you need to replace the plug;the wires
in the power cable are coloured in the following
way:
Blue - Neutral ’ N’
Brown - Live ’ L’
Green Yellow - Earth ’E’ &
As the colour of the wires in the power cable
may not correspond with the coloured markings
identifying the terminals in your plug,and
proceed as follows (Fig 10):
The green yellow wire must be connected to
the terminal in the plug that is marked with the
letter E or by the earth symbol.
&
The blue wire must be connected to the terminal
that is marked with the letter N.
The brown wire must be connected to the terminal
that is marked with the letter L.
If power supply cord is damaged , it must replaced
by the manufacturer or its service agent or a
similar qualified person in order to avoid a hazard.
Fig 10
Installing your washing machine
Bringing it all together
Installing your washing machine

Simple everyday use
Start/Pause
Press the button to start or
pause the wash cycle
On/Off
Press once to turn the washing
machine on, press again to turn
the washing machine off.
Auxiliary functions setting
(press button repeatedly to set time delay in 1 hour
increments), temperature and speed and so on.
Program selection knob
For you to select different washing
program.
Functions
18

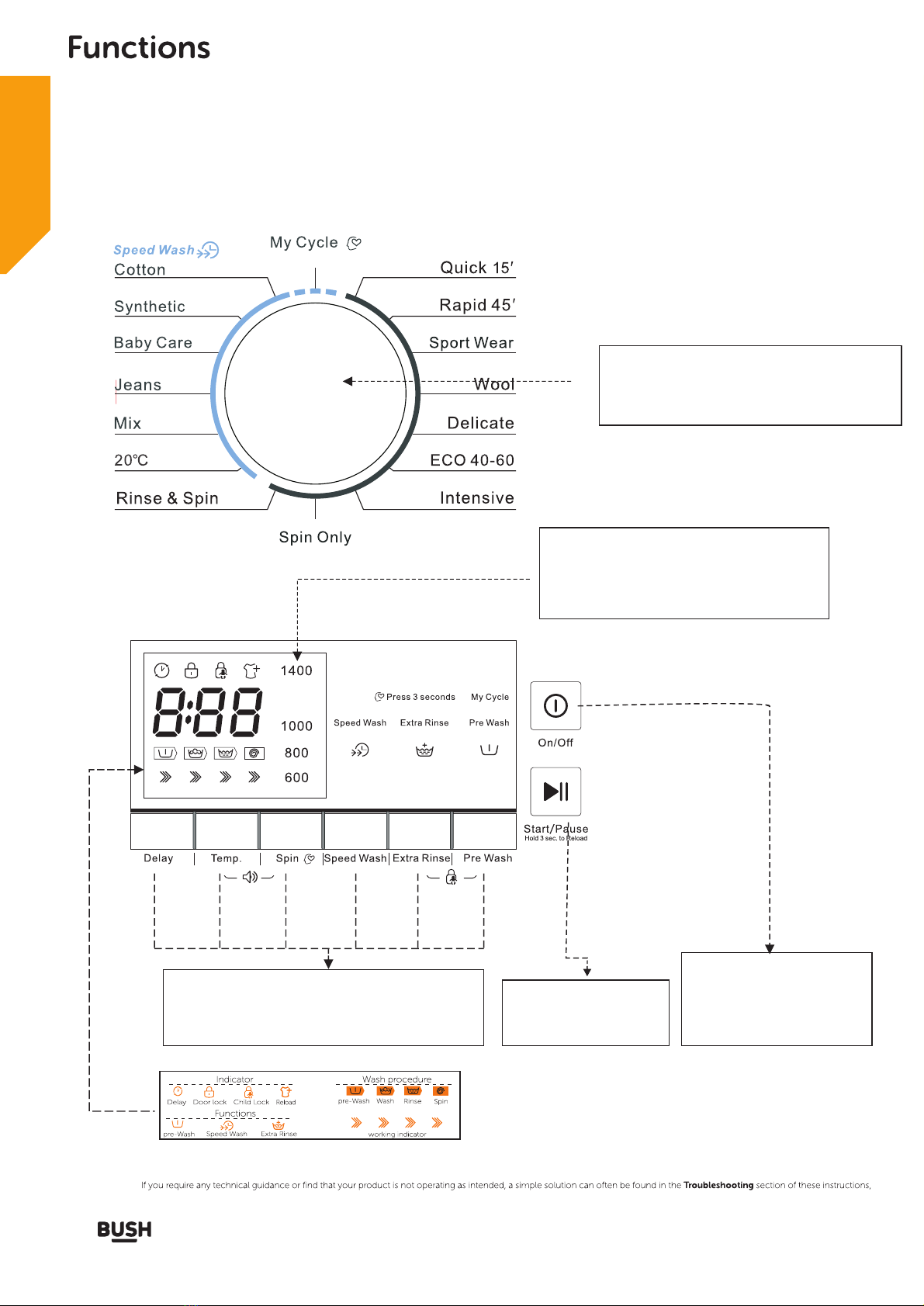

Introduction of control panel
to
1200
Buttons that allow user to set delay time
Spin Speed indicator
Let you know the speed of the washing
program.

Simple everyday use
Functions
Introduction of control panel
19
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.
Intensive
To increase the washing effects, washing
time is increased.
Turning the machine on
Plug in your machine. Place the laundry in the
machine and add detergent and softener. Press
the "on/off" button.
Program selection
The main washing procedures depend on the types
of the clothes to be washed as follows:
Main program
Depending on the type of textile, the following main
programs are avaiblable: Each of these main
programs comprise of a complete washing process,
including washing, rinsing and, if required, spin
cycles.
Spin Only
Extra spin with selectable spin speed.
•
•
Cotton
•
Hard-wearing textiles, heat-resistant textiles
made of cotton or linen.
First, switch the program knob to select
suitable program according to the types
of textiles.
Second, select a proper temperature
by following the care instructions on
the clothes.
Last, select the proper spin speed.
Generally, the higher temperature
will consume more energy; the higher
spin speed will cause more noise.
PLEASE NOTE: to protect the clothes, the delicate
lower spin speed shall be selected.
Synthetic
•
Wash synthetic articles, for example: shirts,
coats, blending.While washing the knitting
textiles, detergent quantity shall be reduced
due to its loose string construction and easily
forming bubbles.
Baby Care
•
Keep the washing temperature above 60
degrees for more than 30 minutes, effectively
remove harmful bacteria.
Jeans
•
Specially for jeans.
Mix
•
Mixed load consisting of textiles made of
cotton and synthetics.
20°C
•
20°C default, can choose cold water.
Rinse&Spin
•
Extra rinse with spin.
ECO 40-60
This program is specially designed for
washing duvet coats. Default 40°C,not
selectable,suitabale for laundry washing at
about 40°C-60°C.
•
Delicate
For delicate, washable textiles, e.g. made of
silk, satin, synthetic fibres or blended fabrics.
•
Wool
Hand or machine-washable wool or richwool
textiles.Especially gentle wash programme
to prevent shrinkage, longer programme
pauses (textiles rest in wash liquor).
•
Sport Wear
Washing the activewear.
•
Rapid 45'
This programme is suitable for washing not
very dirty clothes, save more energy and
washing.
•
Quick 15'
Extra short programme approx, suitable for
lightly soiled washing as a small amounts of
laundry.
•

Simple everyday use
Functions
20
Introduction of control panel
Auxiliary function
These functions can be used based on
the main program, you can press these
functions after you chose the main
program.
Note: you can't use these functions after
the main program has started.
•
Prewash
The Prewash function can get an extra wash
before main wash,it is suitable for washing the
dust rises to surface of the clothes;You need to
put detergent into the Case (I) when select it.
Speed Wash
The function can decrease the washing time.
Extra Rinse
The laundry will undergo extra rinse once after
you select it.
Delay
Set the Delay function:
1. Select a programme;
2.Press the Delay button to choose the time;
3.Press Start/Pause to commence the delay
operation.
Press the [Delay] button until the display be
0H. It should be pressed before starting the
programme. If the programme already started,
should switch off programme to reset a new
one.
•
•
•
Choose the Programme--Setting time--Start
Cancel the Delay function:
•
My Cycle
To memory the frequently used programme.
After choosing the programme and setting the
options, press [Spin] 3 sec. before start to wash.
The default setting course is Cotton.
•
Reload
This operation can be executed during the
washing progress. When the drum is still rolling
and there is large amount of water with high
temperature in the drum. The state is unsafe
and the door cannot be opened forcefully. To
press [Start/Pause] for 3 sec. to reload, and start
the clothes adding in the midway function.
Please follow the steps as bellow:
1.Wait until the drum stops rotation.
2.The door lock is unlocked.
3.Close the door when the clothes are reloaded
and press the [Start/Pause] button.
Press[Start/Pause]3sec.--Reload the clothes--Start
•
Child Lock
To avoid mis operation by children.
Press [Extra Rinse] and [Pre Wash]
3 sec. till buzzer beep.
When child lock is activated and program starts,
child lock indicator will switch on, and the CL
and remaining time on the display are alternately
displayed in 0.5s. Press the other buttons will
make child lock indicator flash for 3s. when
program finish,CL and END alternate for 10s in
0.5s, then the child lock lights flash for 3s
• Only press and hold the two button can release
child lock, even power off, switch off and program
end;
• The "Child Lock" will lock all buttons except
Power button and Child Lock button;
• Please release child lock before selecting
program and staring washing;
•
Mute the buzzer
Choose the Programme
Press the [Temp.]and[Spin] for 3sec., the buzzer
is mute.
To act the buzzer function, press the button again
for 3 seconds. The setting will be kept until the
next reset.
After Muting the buzzer function, the sounds will
not be activated any more.
•
Temp.
Press the button to regulate the temperature.
•
Spin
Press the button to change the speed.
