You’ll soon be enjoying your new washer-dryer.
It all begins here, with your instructions. Don’t worry,
there’s nothing too technical coming up. Just simple,
step-by-step guidance to get you up and running
quickly. Sound good? Then let’s get started.
Help and Guidance
We’re here to help you get the most from your . Should you require washer dryer-
any guidance, a simple solution can often be found online at:
www.bush-support.com
If you still require further assistance, call one of our experts on 0345 257 7271.
Issue 1 28/07/2021

3
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.
Contents
Product support
Troubleshooting 38
Help and assistance 39
Declaration of conformance to product
standards 40
Disposal 41
7
Safety information
Safety information 6
Getting to know your
washer-dryer
Ready? Let’s begin 10
Accessories 12
Installing your washer-dryer
Installation requirements 14
Unpacking 14
Connections (electrical, water, gas) 15
Functions
Functions 18
Using your washer-dryer
First use of washer-dryer 24
Standard and advanced functions/use 25
Care and Maintenance
Cleaning 30
Maintenance actions 30
Technical specifications 32
1
2
3
4
5
6

1Safety information

Safety information
Important - Please read these instructions fully before
installing or operating
Safety information
6
If the supply cord is damaged, it
must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order
to avoid a hazard.
The new hose-sets supplied with
the appliance are to be used and
the old hose-sets should not be
reused.
This washer-dryer is for indoor
use only.
The openings must not be
obstructed by a carpet.
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safeway and understand the
hazards involved.
• the appliance by a person
responsible for their safety.
•
•
•
•
Cleaning and maintenance shall
not be made by children without
supervision.
This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of
•
Pull out its plug from the power
socket before cleaning or
maintenance.
Make sure that all pockets are emptied.
Sharp and rigid items such as coin,
brooch, nail, screw or stone etc. may
cause serious damages to this machine.
Pull out its plug and cut off water
supply after the operation.
Please check whether the water inside
the drum has been drained before
opening its door. Please do not open
the door if there is any water visible.
Pets and children may climb into the
machine. Check the machine before
every operation.
Glass door may be very hot during
the operation. Keep children and pets
far away from the machine during
the operation.
Take care that power voltage and
frequency shall be identical to those
required by .washer-dryer
Do not use any socket with rated
current less than that required by
washer-drier.
wet hand.
To ensure your safety, power cord
plug must be inserted into an earthed
three-pole socket. Check carefully
and make sure that your socket is
properly and reliably earthed.
•
•
•
•
•
•
•
•
•
•
Never pull out power plug with

Children of less than 3 years should
be kept away unless continously
supervised.
Do not let kids play with the
the machine.
Packing materials may be
dangerous to children. Please
keep all packing materials (plastic
bags, foams etc) far away from
children.
W shall not be asher-dryer
installed in bath room or very wet
rooms as well as in rooms with
explosive or caustic gases.
7
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.
Safety information
Important - Please read these instructions fully before
installing or operating
Safety information
Make sure that the water and
electrical devices must be
connected by a qualified technician
in accordance with the
manufacturer's instructions and
local safety regulations.
Before operating this machine, all
packages and transport bolts must
be removed. Otherwise, the
washer-dryer may be seriously
damaged while washing the
clothes.
Before washing the clothes at first
time, the shall be washer-dryer
operated in one round of the
whole procedures without the
clothes inside.
The with single washer-dryer
inlet valve only can be connected
to the cold water supply. The
washer-dryer with double inlet
valves can be connected to the hot
water and cold water supply.
Your is only washer-dryer
for home use and is only
designed for textiles suitable
for machine washing.
Flammable and explosive or toxic
solvents are forbidden. Gasoline and
alcohol etc. Shall not be used as
detergents. only select the Shall
detergents suitable for
washer-dryer.
Be careful of burning when
washer-dryer drains hot washing
water. Never refill the water by hand
during washing.
After the program is completed,
Please wait for two minutes to open
the door.
Please remember to disconnect
water and power supply immediately
after the clothes are washed.
Do not climb up and sit on top cover
of the machine.
Do not lean against machine door.
Please do not close the door with
excessive forces. If it is found difficult
to close the door, please check if the
excessive clothes are put in or
distributed well.
The household washer-dryer
isn't intended to be built-in.
Cautions during Handling Machine
1.Transport bolts shall be reinstalled
to the machine by a specialized
person.
2.The accumulated water shall be
drained out of the machine.
3. Handle the machine carefully.
Never hold each protruded part on
the machine while lifting. Machine
door can not be used as the handle
during the conveyance.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

Safety information
Important - Please read these instructions fully before
installing or operating
Safety information
8
Cord entanglement hazard. The cable of the appliance can give
rise to risks of entanglement, strangulation or tripping if not
correctly placed. You must make sure that the electric cable is
positioned safely.

Getting to know your 2
washer-dryer

Getting to know your washer-dryer
You’ll be up and running in no time
10
Ready? Let’s begin...
Please read these instructions carefully. They contain
important information which will help you get the best
from your and ensure safe and washer-dryer
correct installation and operation.
If you require any further assistance, our technical
experts are happy to help. For full details, refer to
the product support section at the end of these
instructions.
Getting to know your washer-dryer

Component
1.Detergent Drawer 7.Transport bolt x 4
5 6
7
7 7
7
8
11
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.
4.Control Panel
5.Power lead
3.Filter 6.Drain hose
1
2
3
4
5
6
2.Door
Getting to know your washer-dryer
You’ll be up and running in no time
Getting to know your washer-dryer
8.Water inlet

Model
Capacity
Spin Speed
Energy Class
WDSAE86W 8kg 1400rpm B
WDSAE86B 8kg 1400rpm B
Accessories

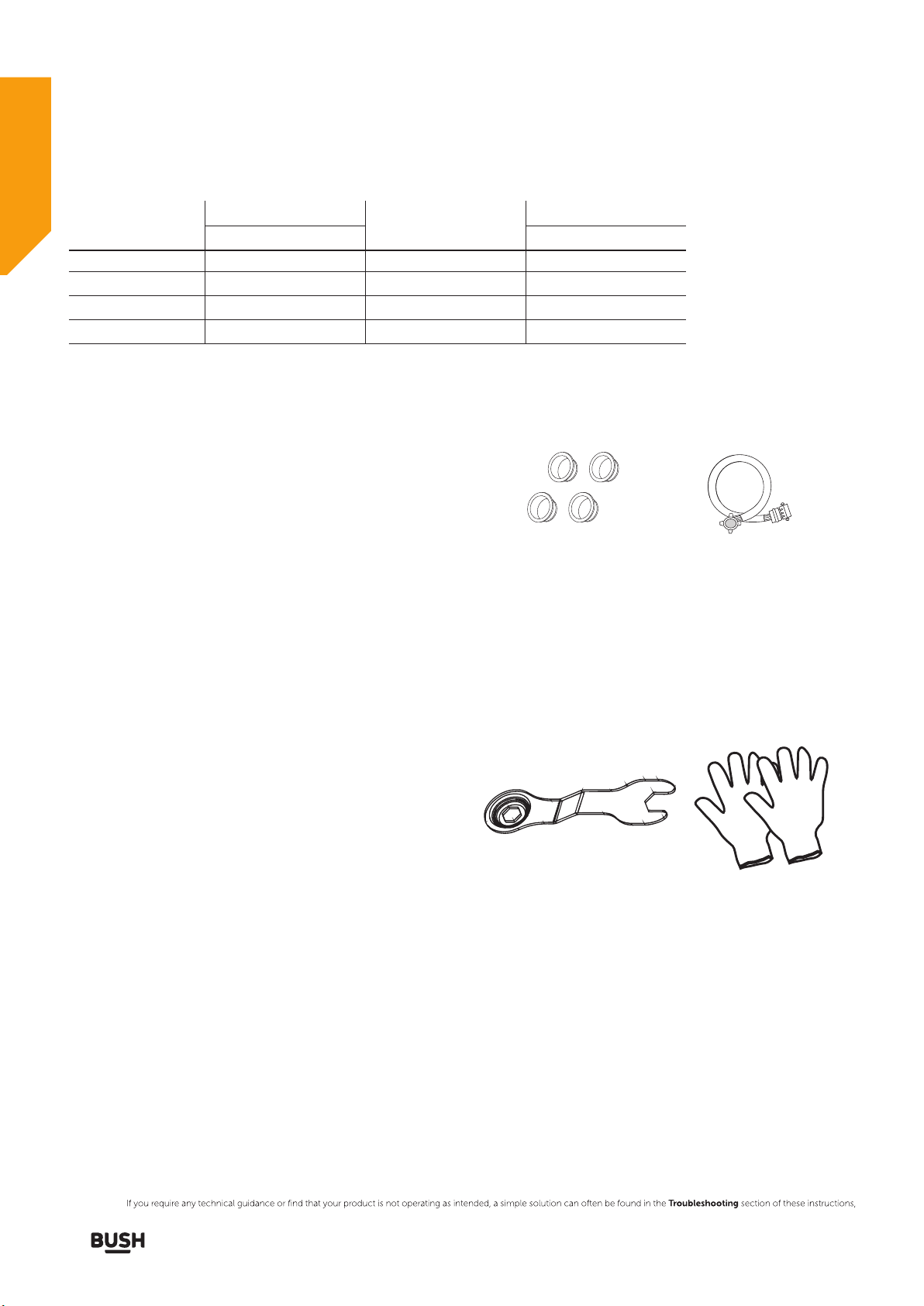

This machine includes below accessories,please install
these parts by yourself before operating.
• plastic hole plug x 4
• nIlet hose
Tools
You may use this tools to help install above parts
•
•
glove
spanner
12
Getting to know your washer-dryer
You’ll be up and running in no time
Getting to know your washer-dryer
WDSAE107W 10kg 1500rpm B
WDSAE107B 10kg 1500rpm B
Washing Drying
6kg
6kg
7kg
7kg
Washing Drying
E
E
D
D

3
Installing your washer-dryer

Installing your washer-dryer
Bringing it all together
14
Installation requirements
Levelling feet
In addition to the instructions mentioned here,
special regulations of the relevant water
companies may apply. If in doubt, have the
washer-dryer connected by a qualified
technician.
The is heavy - caution when washer-dryer
lifting it.
Do not lift by projecting components (e.g.
washer-drier door).
Warning: Frozen hoses may tear/burst. Do not
install in outdoor areas or washer-dryer
where there is a risk of frost.Please operate
washer-dryer above 0 .°C
Lay hoses and cables in such a way that there is
of tripping over them.no risk
An additional space (approximately 120mm) is
required at the rear of the . washer-dryer
This is to allow
hose and drain hose connections.
enough space for the water
Unpacking
Unpacking your washer-dryer
Caution:2 people are required to unpack the
washer-dryer, it is recommended that gloves
are worn.
Carefully remove all packing materials including
the foam base, dispose of correctly.
Note: When opened,water droplets may be visible
in the drum etc. this is normal as each appliance
is tested before delivery.
Removing the transport bolts
Important: The bolts are designed to
support the internal components during transit
these MUST be removed before use.
2: Remove the bolts by pulling them. ( 3)
transport
Fig
1:For your machine to work efficiently with
minimum vibration it should be settled on flat,
nonslippery,firm ground.
2:You can adjust the balance of your machine by
changing the positioning of its feet.
3:First,loosen the plastic adjustment nut. (Fig 5)
4:Adjust by rotating the feet upwards or
downwards. (Fig 6)
5:After the desired position has been reached,
tighten the plastic adjustment nut again by rotating
it upwards.
Note: Never put cartons,wooden blocks or similar
materials under the machine to balance
irregularities in the level of the ground.
Fig 1 Fig 2
•
•
•
•
•
Fig 3 Fig 4
Fig 5 Fig 6
1: Loosen the screws by rotating counterclockwise
with a suiltable wrench. (Fig 1, 2)
3: When the transport bolts have been removed,
insert the plastic hole plugs found in
the accessories bag into the holes. (Fig 4)
Installing your washer-dryer
Dimension of the machine with door open.
850 850
8kg:470
10kg:565
8kg:515
10kg:610
8kg:955
10kg:1050

15
Connections Electrical
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.
Water inlet hose connections
Important: This MUST only bewasher-dryer
connected to a cold water supply.
1: Connect the water inlet hose, the angled
connection attaches to the water inlet on the
back of the washer-dryer. (Fig 7)
2: The straight connection attaches to the water
supply valve. (Fig 8)
3:Ensure all seals are in place before connecting.
Important: Only tighten the hose connection nut
by hand - do not overtighten.
Drain hose connections
Important: The height of the top of the curve in
the drain hose MUST be between 60 - 100cm
from the floor. (Fig 9)
Important: Drain hose can
be fitted to the drainer or a wash basin.
Max.100cm
Min.60cm
Fig 9
Any electrical work that is required to
install this appliance MUST be carried
out by a qualified electrician.
Warning: THIS APPLIANCE MUST BE
EARTHED
Before making any electrical connections,
ensure that:
Electrical safety is only guaranteed when the
earth system of your house is in accordance
with the related local regulations.
•
• Do not bend, stretch or pull the supply cable
to avoid electric shock.
• Ensure the power socket is suiable for the
maximum power of the machine (fuses in the
power circuit must be 13 amp).
• The supply voltage should be the same as that
indicated in the technical specifications and
the applicance rating plate.
• The appliance should be earthed and in
complicance with the applicable law.
• When installed, the power socket must be
within easy reach.
• If the socket outlets in your home are not
suitable for the plug supplied with this unit
check with a qualified electrician for
replacement.
• To avoid the risk of overloading your plug
socket, the use of adapters, multiple connectors
• The applicance must be connected to a
220-240 volt 50Hz AC supply by means of
a three pin socket, suitably earthed and
protected by a 13 amp fuse.
• Should the fuse need to be replaced, a 13
amp fuse approved to BS 1362/A must be
used.
• The plug contains a removable fuse cover
that must be refitted when the fuse is replaced.
if the fuse cover is lost or damaged, the plug
must not be used until a replacement cover
has been fitted or the plug is replaced.
• A damaged plug should be cut off as close to
the plug body as possible, the fuse should be
removed and the plug disposed of safely.
Installing your washer-dryer
Bringing it all together
Installing your washer-dryer
or extension cables are not recommended.
Fig 7
Fig 8

16
Plug replacement (UK lreland only)&
Should you need to replace the plug; the wires
in the power cable are coloured in the following
way:
Blue - Neutral ’ N’
Brown - Live ’ L’
Green Yellow - Earth ’E’ &
As the colour of the wires in the power cable
may not correspond with the coloured markings
identifying the terminals in your plug, and
proceed as follows (Fig 10):
The green yellow wire must be connected to
the terminal in the plug that is marked with the
letter E or by the earth symbol.
&
The blue wire must be connected to the terminal
that is marked with the letter N.
The brown wire must be connected to the terminal
that is marked with the letter L.
If power supply cord is damaged , it must replaced
by the manufacturer or its service agent or a
similar qualified person in order to avoid a hazard.
Fig 10
Installing your washer-dryer
Bringing it all together
Installing your washer-dryer

Simple everyday use
Start/Pause
Press the button to start or
pause the wash cycle
On/Off
Press once to turn the
washer-dryer on, press again
to turn the washer-drier off.
Auxiliary functions setting
Press the button repeatedly to set the Delay time.
Temperature ,speed and so on.
Program selection knob
For you to select different washing
program.
Functions
18
Introduction of control panel
Spin Speed indicator
Let you know the speed of the washing
program.
WDSAE86W , WDSAE86B
WDSAE107W , WDSAE107B
1500

1Hour W/D
Cotton
Hard-wearing textiles, heat-resistant textiles
made of cotton or linen.
Simple everyday use
Introduction of control panel
Rinse & Spin
Extra rinse with spin.
ECO 40-60
This program is specially designed for
washing duvet coats.Suitabale for laundry
washing at about 40°C-60°C.
•
Turning the machine on
Plug in your machine. Place the laundry in the
machine and add detergent and softener. Press
the "on/off" button.
Program selection
First, switch the program knob to select
suitable program according to the types
of textiles.
Second, select a proper temperature
by following the care instructions on
the clothes.
Last, select the proper spin speed.
Generally, the higher temperature
will consume more energy; the higher
spin speed will cause more noise.
PLEASE NOTE: to protect the clothes, the delicate
lower spin speed shall be selected.
The main washing procedures depend on the types
of the clothes to be washed as follows:
Main program
Depending on the type of textile, the following main
programs are avaiblable: Each of these main
programs comprise of a complete washing process,
including washing, rinsing and, if required, spin
cycles.
Spin Only
Extra spin with selectable spin speed.
•
•
•
•
Mix
Mixed load consisting of textiles made of cotton
and synthetics.
•
For small synthetic clothes or shirts, load
limitation is 1 kg(about 4 shirts).
Synthetic
Wash synthetic articles, for example: shirts, coats,
blending.While washing the knitting textiles,
detergent quantity shall bereduced due to its
loose string construction and easily forming
bubbles.
•
Wash and Dry
The standard energy program.
•
Dry Only
Select it to dry clothes, the temperature is different .
The drying time according to the load .
•
Air Wash
Clothes is roated to remove peculiar smell without
water in high temperature.
•
Intensive
To increase the washing effects, washing
time is increased.
•
Jeans
For delicate, washable textiles, e.g. made
of silk, satin, syntheticfibres or blended
fabrics.
•
Wool
Hand or machine-washable wool or rich
wool textiles.Especially gentle wash
programme to prevent shrinkage, longer
programme pauses (textiles rest in wash
liquor).
•
20°C
20 default, can choose cold water.°C
•
Quick 15'
Extra short programme approx, suitable for
lightly soiled washing as a small amounts of
laundry.
•
Functions
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.
19

Simple everyday use
Functions
20
Introduction of control panel
Delay
Set the Delay function:
1. Select a programme; 2.Press the Delay button
to choose the time(the delaying time is 0-24 H.);
3.Press [Start/Pause] to commence the delay
operation.
Choose the Programme--Setting time--Start
Cancel the Delay function:
Press the [Delay] button until the display be 0H.
It should be pressed before starting the
programme. If the programme already started,
should switch off programme to reset a new one.
• Dry
Press the Dry button continuously to choose
the dry level: Extra Dry/Normal Dry (Normal)/
Gentle Dry(Soft).
Extra Dry:Need to wear clothes immediately ,
we can choose this function;
Normal Dry(Normal):The normal dry
procedure;
Gentle Dry(Soft):Only to dry slightly and then
is just ok;
Air Dry: Clothes is roated to remove peculiar
smell without water in high temperature.
•
Pre Wash
The Prewash function can get an extra wash
before main wash,it is suitable for washing the
dust rises to surface of the clothes;You need to
put detergent into the Case (I) when select it.
•
Extra Wash
For very dirty clothes choose this feature, this
will increase the washing time and intensity to
improve the washing effect.
•
Speed Wash
The function can decrease the washing time.
•
Extra Rinse
The laundry will undergo extra rinse once after
you select it.
•
My Cycle
To memory the frequently used programme.
After choosing the programme and setting the
options, press [Spin] 3 sec. before start to wash.
The default setting course is Cotton.
•
Anti-Crease
Anti-Crease function can be used to reduce the
wrinkles of clothes.
•
Reload
This operation can be executed during the
washing progress. When the drum is still rolling
and there is large amount of water with high
temperature in the drum.The state is unsafe and
the door cannot be opened forcefully. To press
[Start/Pause] for 3 sec. to reload, and start the
clothes adding in the midway function. Please
follow the steps as bellow:
1.Wait until the drum stops rotation.
2.The door lock is unlocked.
3.Close the door when the clothes are reloaded
and press the [Start/Pause] button.
Press[Start/Pause]3sec.--Reload the clothes--
Start
•
