SAFETY REGULATIONS

General Operation

Slope Operation

Children

Product Specifications

ASSEMBLY

To remove lawn mower from carton

How to set up your lawn mower

To assemble grass catcher

OPERATION

CUSTOMER RESPONSIBILITIES

SERVICE AND ADJUSTMENTS

STORAGE

WARRANTY

General Instruction For Operation

01-03

05-

- 1 1

12-14

CONTENT

English

Read the operating instructions before you use the machine!

Keep third parties away from the danger zone!

When you are reading the instructions for use, Please unfold the

front and back pages.

Read Operator's manual

Beware of sharp

blades

Remove spark plug

before maintenance

Caution - Donot touch

rotating cutting means

Never operate the lawn mower

with discharge chuteopen

Do not mowexcessively steep slopes, mow a

cross the face of slopes, never up and down

Never pick up or carry a lawnmower while the

engine is running,Use extreme caution when

reversing or pulling the lawnmower towards you.

The guaranteed value is: LWA=96dB(A)

Keep hands andfeet away.

GBGB

Wear eye and earprotection.

The guaranteed value is: LWA =98dB(A)

General hazard safetyalert Beware of thrown orflying

objects to bystanders.

Keep bystanders awayfrom

the machine.

WB537SCV AL

WB487SCV AL

WB507SCV WB537SCV

WB507SCV-3IN1 WB537SCV-3IN1

General hazard safety alert.

Read Operator’s manual.

Beware of thrown or ying objects

to bystanders.

Keep bystanders away from

the machine.

Beware of

sharp blades.

Remove spark

plug before

maintenance.

Caution - Do not touch

rotating cutting means.

Never operate the lawn

mower with the

discharge chute open.

Do not mow excessively steep

slopes, mow across the face of the

slopes, never up and down.

Never pick up or carry a lawnmower

while the engine is running. Use

extreme caution when reversing or

pulling the lawnmower towards you.

The guaranteed value is: LWA=96dB(A)

53AH6IMSP

The guaranteed value is: LWA=98dB(A)

53AH6IMSP

Keep hands and feet away. Wear eye and ear protection.

• Read the operating instructions before you use the machine.

• Keep third parties away from the danger zone.

CONTENT

SAFETY REGULATIONS....................................................................................................

General Operation...............................................................................................................................

Slope Operation..................................................................................................................................

Children...............................................................................................................................................

General Instruction For Operation.......................................................................................................

Product Specications.........................................................................................................................

ASSEMBLY..........................................................................................................................

To remove lawn mower from carton....................................................................................................

How to set up your lawn mower..........................................................................................................

To assemble grass catcher..................................................................................................................

OPERATION........................................................................................................................

CUSTOMER RESPONSIBILITIES......................................................................................

SERVICE AND ADJUSTMENTS.........................................................................................

STORAGE...........................................................................................................................

TROUBLESHOOTING POINTS..........................................................................................

WARRANTY.........................................................................................................................

04 - 07

07 - 08

08 - 12

12 - 14

SAFETY REGULATIONS

1. GENERAL OPERATION

• Before starting to use this machine, read,

understand and follow all instructions that are

provided in this manual. Be thoroughly familiar with

the controls and the proper use of the machine

before starting operations.

• This machine may only be operated by responsible

persons, who are familiar with the operating

instructions. Never allow children or people

unfamiliar with these instructions to use the

lawnmower. Local regulations can restrict the age of

the operator.

• To prevent injury, be sure that there are no persons

in the immediate area where you are mowing. If

any person enters this area, stop the machine by

releasing the drive control bar. Never mow while

people, especially children, or pets are nearby.

• Keep in mind that the operator or user is

responsible for accidents or hazards occurring to

other people or their property.

• While mowing, always wear substantial footwear

and long trousers. Do not operate the equipment

when barefoot or wearing open sandals.

• Thoroughly inspect the area where the equipment

is to be used and remove all objects such as rocks,

toys, wire, bones, sticks and any other items,

which can be thrown by the machine through the

discharge opening.

• Do not pull the mower backwards, unless this

is absolutely necessary. Always look down and

behind you, before and while moving backwards.

Use extreme caution when reversing or pulling the

lawnmower towards you.

• Before operating the mower, make sure that all

protective screens, the grass catcher and other

protective devices are properly installed. Never

operate the lawnmower with defective guards, or

without safety devices, for example deectors and/

or grass catchers in place.

• Observe the instructions of the manufacturer, for

proper operation and installation of accessories .

Only those accessories that have been approved by

the manufacturer may be used.

• Make sure that the blade(s) of the mower is

(are) not rotating, before crossing gravel drives,

walkways or roads.

• Stop the engine (motor) and wait until the blade

comes to a complete stop, before removing the

grass catcher.

• Mowing should only be done during daylight or

under good articial lighting.

• Do not operate the machine while under the

inuence of alcohol or drugs.

• Never operate the mower in wet grass, where

feasible. Always be sure of your footing. Keep a rm

hold on the handle and walk; never run.

• Before starting the engine (motor), disengage all

blade and self-propelling mechanism or drive clutch

on mowers so equipped.

• If the mower should start to vibrate abnormally, stop

the engine (motor) and check immediately for the

cause. Vibration is generally a warning of trouble.

• Keep hands and feet away from the enclosure.

• Worn parts should be referred to your local

Bushranger™ Dealer to be replaced.

• Before using the machine, inspect the machine by

visual to determine whether the cutting, fastening

bolts and the entire mower deck is worn or

damaged. To avoid an imbalance, replace worn out

or damaged cutting attachment bolts sets.

2. SLOPE OPERATION

• Slopes are a major factor related to slip and fall

accidents, which can result in severe injury. All

slopes require extra caution. If you feel uneasy on a

slope, do not mow it.

DO:

• Mow across the face of slopes: never up and down.

Exercise extreme caution when changing direction

on slopes.

• Remove obstacles such as rocks, tree limbs, etc.

WARNING: Do not put hands or feet near

or under moving parts. Keep clear of the

discharge opening at all times.

CAUTION: Do not operate the mower

when barefoot or while wearing open

sandals. Always wear robust footwear when

mowing.

• Watch for holes, ruts, or bumps. Tall grass can

hide obstacles.

DO NOT:

• Do not trim near drop-o󰀨s, ditches or embankments.

The operator could lose footing or balance.

• Do not trim excessively steep slopes.

• Do not mow on wet grass. Reduced footing could

cause slipping.

3. CHILDREN

Tragic accidents can occur if the operator is not alert

to the presence of children. Children are often attracted

to the machine and the mowing activity. Never assume

that children will remain where you last saw them.

• Keep children out of the trimming area and under

the watchful care of another responsible adult.

• Be alert and turn machine o󰀨 if children enter

the area.

• Before and while walking backwards, look behind

and down for small children.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners,

shrubs, trees, or other objects that may obscure

vision.

4. GENERAL INSTRUCTIONS FOR

WORKING WITH YOUR LAWNMOWER

WARNING - petrol is highly ammable. Use extra

care in handling gasoline and other fuels. They are

ammable and vapours are explosive.

• Store fuel in containers specially designed for this

purpose; use only an approved fuel container

• Refuel outdoors only and do not smoke while

refuelling; never refuel the machine indoors.

• Never store the machine or fuel container near an

open ame, such as a water heater.

• Add fuel before starting the engine. Never remove

the cap o󰀨 the fuel tank or add petrol while the

engine is running or when the engine is hot; Allow

the engine to cool before refuelling.

• If petrol is spilled, do not attempt to start the engine

but move the machine away from the area of

spillage and avoid creating any source of ignition

until petrol vapours have dissipated.

• Replace all fuel tanks and container caps securely.

• Do not smoke near around the mower.

• Replace faulty silencers.

• Clean up any oil or fuel spills.

• Do not start the engine when standing in front of the

discharge chute.

• Do not put hands or feet near or under rotating

parts. Keep clear of the discharge opening at

all times.

• Do not operate the engine in a conned space

where dangerous carbon monoxide fumes can

collect; Walk never run.

• Always be sure of your footing on slopes.

• Do not change the engine governor settings or

over-speed the engine.

• Never make adjustments or repairs with the engine

(motor) running. Disconnect the spark plug wire,

and keep the wire away from the plug to prevent

accidental starting.

• Check regularly that nuts and bolts, especially

blade attachment bolts, are fastened tightly and

keep the equipment in a good condition.

• Never tamper with safety devices. Check their

proper operation regularly.

• Make sure that grass, leaves or other debris does

not collect in the mower; check regularly and

remove such residues to blocking.

• Stop and inspect your lawnmower if you strike any

object. Repair, if necessary, before restarting.

• Never attempt to make wheel height adjustments

while the engine (motor) is running.

• Grass catcher components are subject to wear,

damage and deterioration, which could expose

moving parts or allow objects to be ejected.

Frequently check these components and, if

necessary, replace damaged components with

parts recommended by the manufacturer.

• Mower blades are sharp and can cause injuries.

Wrap the blade(s) or wear gloves when handling

them, and use extra caution during blade

maintenance.

• Be especially careful in case you reverse the

mower or going to use the machine.

• Start the engine or switch on the motor carefully

according to instructions and with feet well away

from the blades.

• Do not tilt the lawnmower when starting the engine

or switching on the motor, except if the lawnmower

has to be tilted for starting. In this case, do not tilt

more than absolutely necessary and lift only the

part which is away from the operator.

• Never pick up or carry a lawnmower while the

engine is running.

• Stop the engine and disconnect the spark plug wire;

- Before clearing blockages or unclogging chute.

- Before checking, cleaning or working on

the lawnmower.

- After striking a foreign object. Inspect the

lawnmower for damage and make repairs before

re-starting and operating the lawnmower.

- If lawnmower starts to vibrate abnormally

(check immediately).

• Stop the engine:

- Whenever you leave the lawnmower.

- Before refuelling.

• Reduce the throttle setting during engine shut down

and, if the engine is provided with a shut-o󰀨 valve,

turn the fuel o󰀨 at the conclusion of mowing.

• Allow the engine to cool before storing in

any enclosure.

• Never store the equipment with petrol in the tank

inside a building where fumes can reach an open

ame or spark. To reduce the re hazard, keep the

engine, silencer, battery compartment and petrol

storage area free of grass, leaves, or

excessive grease.

• Check the grass catcher frequently for wear

or deterioration.

• If the fuel tank has to be drained, this should be

done outdoors.

PRODUCT SPECIFICATIONS

CONGRATULATIONS on your purchase of a new

lawnmower. It has been designed, engineered

and manufactured to give you the best possible

dependability and performance.

Should you experience any problem that you cannot

easily x, please contact the nearest Bushranger™

Dealer. We have competent, well-trained technicians

and the proper tools to service or repair this

lawnmower. Please read and retain this manual. The

instructions will enable you to assemble and maintain

your lawn mower properly. Always observe the

“SAFETY REGULATIONS”.

WARNING: Engine exhaust gasses and

some of its constituents, as well as

certain other vehicle components

contain or emit chemicals, which are known to

cause cancer, possible birth defects or harm to

the reproductive organs.

Model 53AH6IMSP

Cutting Width 533mm

Engine HONDA

GXV160

Moving Type Self-Propelled

Cutting Height

(mm) 25 - 76

Cutting Height

Adjustment 7

3 gears

Drive Speed

(3.06 - 4.6kph)

Grass Bag

Capacity (L)

Blade Speed

Max.

Net weight

70L

2800/min

52kg

Note: The lawnmowers’

net weight is depending

on the di󰀨erent model of

engine.

These specications are

provided as a reference,

these are familiarised with

the mower. We reserve

the right to make technical

changes and other without

advance notication. It

is possible that some

details in this manual does

not coincide completely

with your machine. We

recommend that you write

down the serial number

and purchase date in your

user manual, so that you

will always have it at hand.

SERIAL NUMBER ______________________

DATE OF PURCHASE __________________

THE MODEL AND SERIAL NUMBERS WILL

BE FOUND ON A DECAL ATTACHED TO THE

REAR OF THE LAWNMOWER HOUSING.

YOU SHOULD RECORD BOTH SERIAL

NUMBERS AND DATE OF PURCHASE AND

KEEP IN A SAFE PLACE FOR FUTURE

REFERENCE.

2. HOW TO SET UP YOUR LAWN MOWER

IMPORTANT: UNFOLD HANDLE CAREFULLY

SO AS NOT TO PINCH OR DAMAGE CONTROL

CABLES.

• Lift and unfold upper handle to desired height and

pull two levers on both sides to lock upper handle.

Refer to Service and Adjustments section.

CAUTION: Unfold the handle carefully to avoid pinching

and damaging the control cables.

• Remove any packaging material from around the

control bar.

• Your handles may be adjusted for your mowing

comfort. Refer to Service and Adjustments section

of this manual.

PROPER USE

The gasoline lawn mower is for private use in

the home and garden. The mower may only be

used for the maintenance of grass or lawns in the

home and garden. Any application that is not listed

in this guide is prohibited. The above use and

safety instructions must be strictly adhered to. The

manufacturer assumes no liability for any damage

caused by improper operation, improper use, misuse,

unauthorised repairs or alterations performed.

MODEL 3 SPEED SELF PROPELLED

MULCH & CATCH

CUSTOMER RESPONSIBILITIES

• Read and observe the safety regulations

contained in this manual.

• Follow a regular schedule for maintaining, caring

for and using your lawnmower.

Read these instructions and this manual in its entirety

before you attempt to assemble or operate your new

lawn mower.

IMPORTANT: THIS LAWN MOWER IS SHIPPED

WITHOUT OIL OR FUEL IN THE ENGINE.

Your new lawn mower has been assembled at

the factory with the exception of those parts left

unassembled for shipping purposes. All parts such as

nuts, washers, bolts, etc., necessary to complete the

assembly have been placed in the parts bag. To ensure

safe and proper operation of your lawn mower. All

parts and hardware you assemble must be tightened

securely. Use the correct tools as necessary to ensure

proper tightness.

1. TO REMOVE LAWN MOWER FROM

CARTON

• Remove loose parts included with mower.

• Cut down two end corners of carton and lay end

panel down at.

• Remove all packing materials except padding

between upper and lower handle and padding

holding operator presence control bar to upper

handle.

• Roll lawn mower out of carton and check carton

thoroughly for additional loose parts.

ASSEMBLY

• Follow the instructions in the “Customer

responsibilities” and “Storage” sections of this

owner’s manual.

• Remember that the operator is responsible for

accidents with other persons or their property.

RESIDUAL RISKS: Even when the

power tool is used as prescribed it is not

possible to eliminate all residual risk factors.

The following hazards may arise in connection

with the powers tool’s construction and design.

1. Damage to lungs if an e󰀨ective dust mask

is not worn. 2. Damage to hearing if e󰀨ective

hearing protection is not worn. 3. Damages to

health resulting from vibration emission if the

power tool is being used over longer periods of

time or not adequately managed and properly

maintained.

LIFT & TURN TO

DESIRED POSITION

LOCKING

LEVER

FIG. 1

LOCKING

LEVER

FIG. 2

PUSH

LOCK

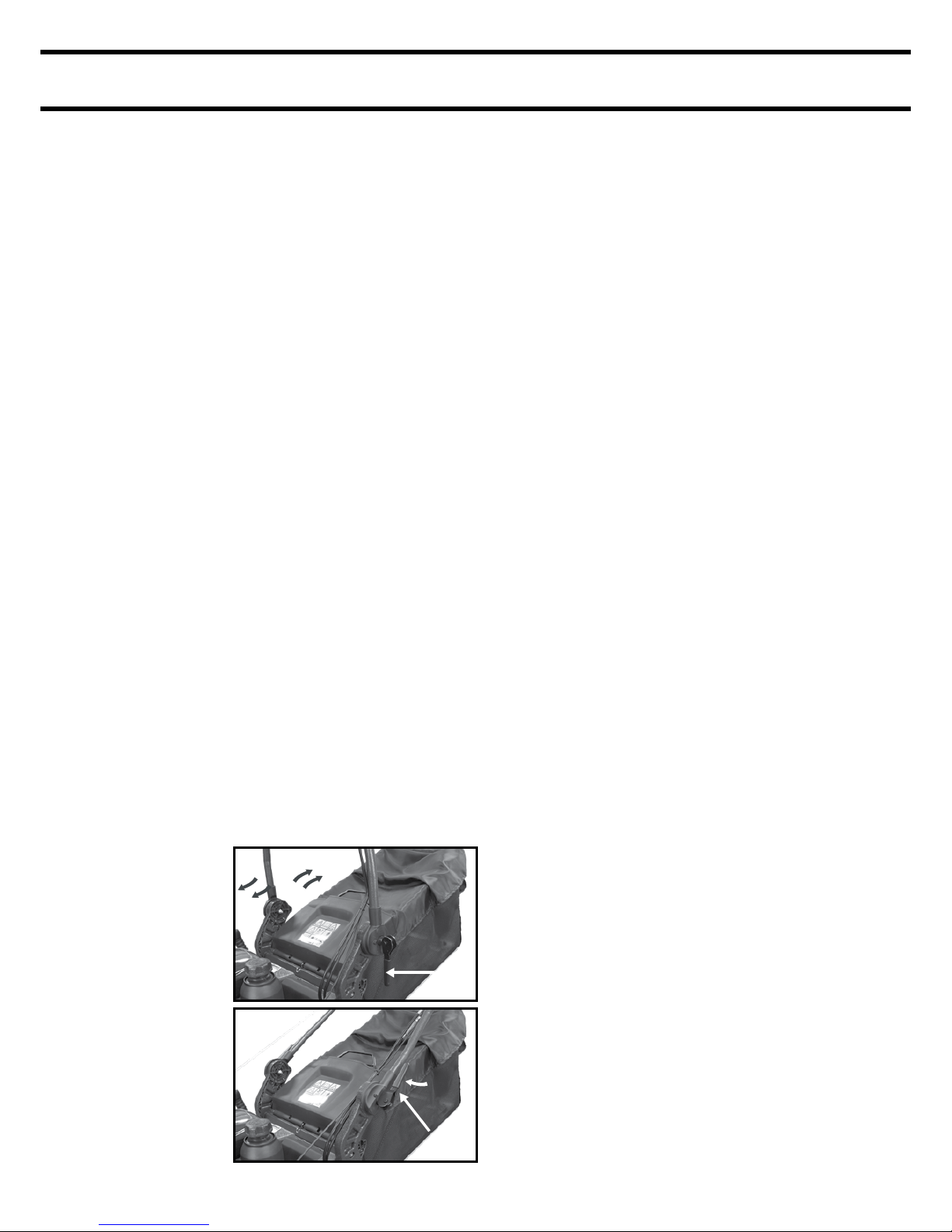

3. TO ASSEMBLE GRASS CATCHER

• Put grass catcher frame into grass bag with rigid

part of bag on the bottom. Make sure the frame

handle is outside of the bag top.

• Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too sti󰀨, hold them in warm

water for a few minutes. If bags get wet, let it dry before

using.

4. ASSEMBLE ENGINE STARTER ROPE

• Pull the starter handle back to the hook ring on

upper handle. Assemble the rope into the zone

starter ring through the opening of hook ring.

• Always keep starter rope in hook ring during all

mowing work.

OPERATION

Fig.5

OPERATION

DRIVE CONTROL BAR-used to engage power-pro-

pelled forward motion lawn mower.

THROTTLE CONTROL-used for starting the engine

and allows you to select either fast or slow engine

speed.

STARTER HANDLE-used for starting the engine.

MULCHER PLUG-located at the discharge opening,

must be removed when converting to bagging operation.

(For 3in1 mower)

MULCHER DOOR-allows conversion to discharge

or bagging operation.(for 3in1/2in1 mower)

PRIMER-pumps additional fuel from the carburetor

to the cylinder for use when starting a cold B&S engine.

OPERATOR PRESENCE CONTROL BAR-must be

held down to the handle to start the engine. Release

to stop the engine.

WARNING: The operation of any lawn

mower can result in foreign objects thrown

into the eyes, which can result in severe

eye damage. Always wear safety glasses or eye

Shields while operating your lawn mower or per-

forming any adjustments or repairs. We recom-

mend wide vision safety mask over spectacles or

standard safety glasses.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

A throttle located on the side of the upper handle

controls the engine speed. Fast position is for

normal cutting, trimming and better grass bagging.

Slow position is for light cutting, trimming and fuel

economy.

ENGINE CONTROL ZONE

Your lawn mower is equipped with an operator

presence control bar which requires the operator to

be positioned behind the lawn mower handle to start

and operate the lawn mower.

TO OPERATE DRIVE SYSTEM(See Fig.6)

To start forward motion, lift drive control bar up to

handle.

Fig.6

Engine throttle

control lever Start

Slow

Fast

Engine brake handle/Blade brake handle(Model with BBC)

Drive speed control lever

Engine

Wheel

Bumper

Chassis

Upper handle

Rear cover

Grass catcher

Starter knob

Throttle and drive controler

Height adjustment lever

Locking lever

Adjuster

Height adjustment lever

Locking lever

Air filter

Fig.8

To stop forward motion, release drive control bar.

IMPORTANT: ALWAYS KEEP DRIVE CONTROL

FULLY ENGAGED AGAINST HANDLE WHEN IN USE.

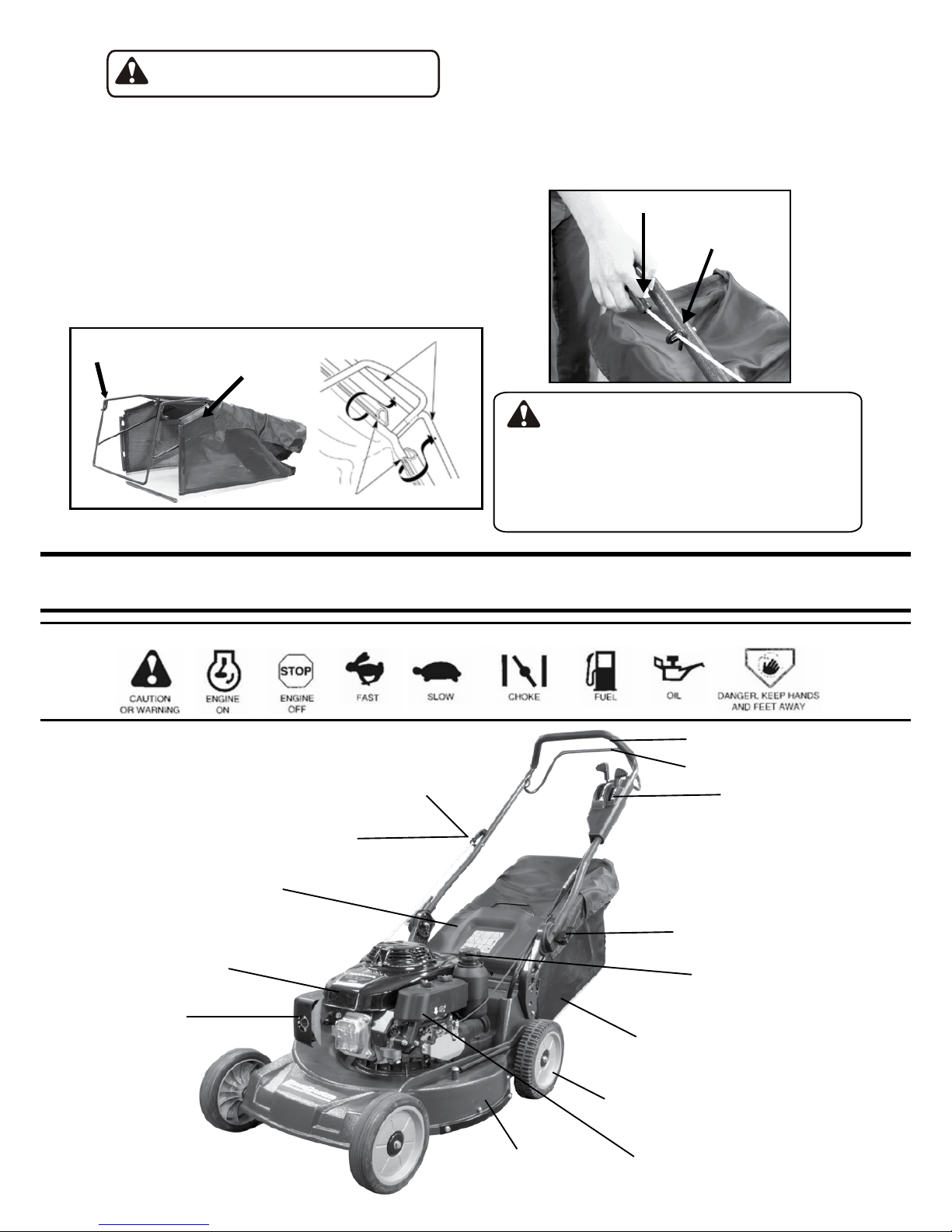

TO ATTACH GRASS CATCHER

1.Lift the rear door of the lawn mower and place the

grass catcher frame side hooks into the slots of the

rear door.

2.The grass catcher is secured to the lawn mower

housing when the rear door is lowered onto the grass

catcher frame.

stop start forward

-First press the lever slightly downwards and adjust

to the desired speed. The lever automatically clicks

back into the nearest new position.

-Position rabbit =fast(max.speed)

-Position tortoise =slow (min.speed)

All four wheels are adjusted by a single lever except

the model 2in1. The 2in1 mower has two levers to

adjust the front wheel and rear wheel individually.

You can set the cutting height to the desired height

to fit different terrain. Pull the lever out from the catch,

move to the desired position and let it fall back into

the catch.

WARNING: The lawnmower can only be used on

level lawns if the lowest cutting height is being

used.

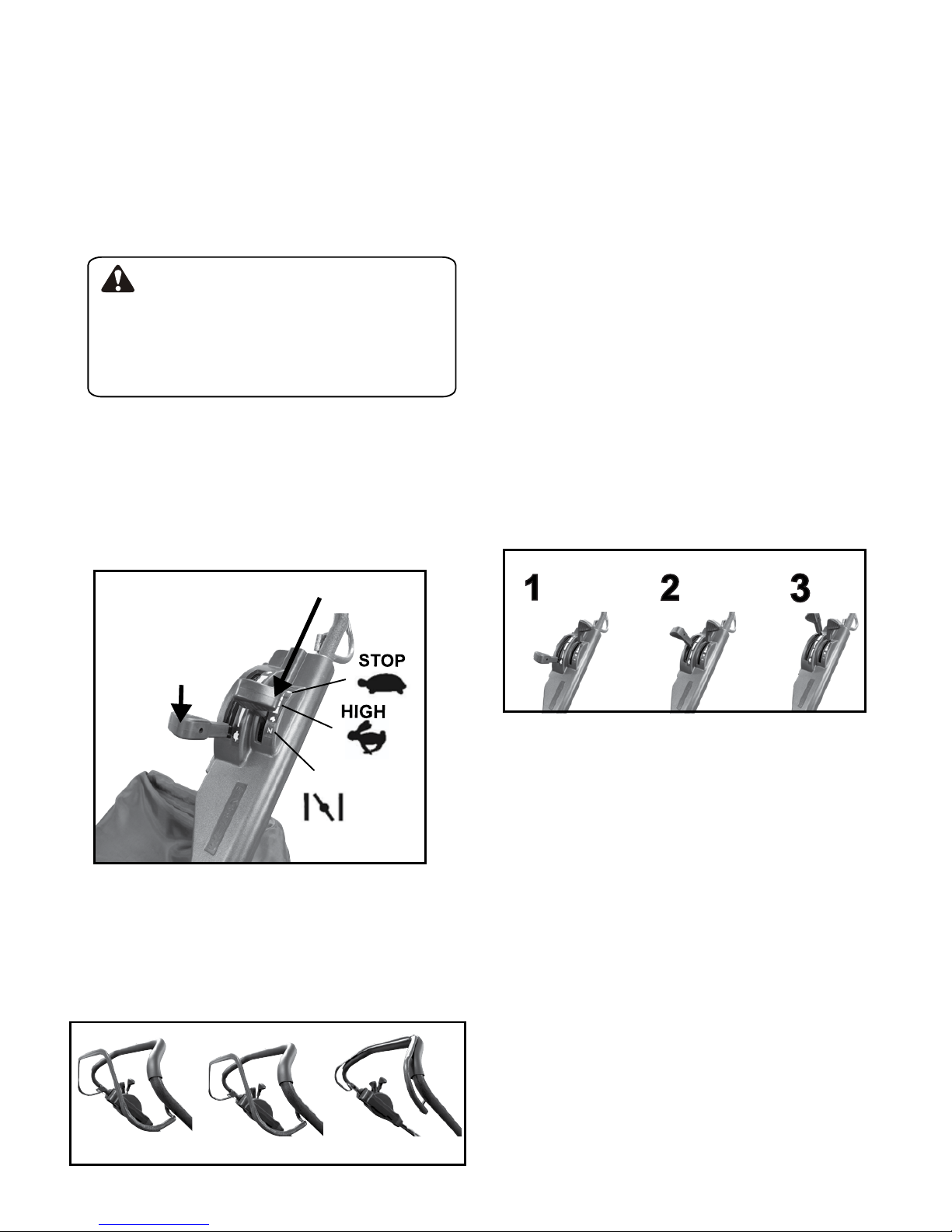

NOTE: The speed may only be adjusted

ADJUSTING THE DRIVE SPEED (See Fig.8)

for speed adjustable model

when the engine is running in order to

avoid damage!

-The driving speed can be continuously adjusted by us-

ing the adjustment lever mounted on the upper hand.

WHEEL ADJUSTER

LEVER

Fig.9

Fig.10

ENGAGE THE BLADE-CLUTCH (See Fig.7)

only for machines with BBC

Fig.7

Blade clutch lever

running.

The mower is adjusted to one cutting height upon

delivery.

Never adjust the cutting height with the motor still

ADJUSTING THE CUTTING HEIGHT (See Fig. 9)

Fig.6

Upper handle

Step 1

Step 2

Slow

(tortoise)

Fast

(rabbit)

Drivespeed

controllever

for low cut

Raise wheels

for high cut

Lower wheels

for high cut

Lower wheels

for low cut

Raise wheels

WHEEL ADJUSTER

LEVER

CENTRAL ADJUSTER ON RIGHT SIDE

ADJUSTER ON EACH WHEEL

2.Press the blade-clutch-lever close to the handle-

bar completely to engage blade.

3.Release the lever about 2'' away from the hand-

lebar, until the lever make a 'click' sound. And

then re-press the lever and hold it togather with

the handlebar.

4.Release the blade-clutch-lever completely to

dis-engage and stop the blade.

1. For safety, the blade-clutch-lever can not be en-

gaged directly after releasing. Push the lever

forward until it make a 'click' sound, and then

you can engaged the clutch again.

These symbols may appear on your lawnmower or in literature supplied with the product. Learn and understand their meaning.

CAUTION: Wear protective gloves during

operation of setting up your mower.

WARNING: The safety position for starting the

engine is at the back of upper handle. Users

must keep the rope always in the middle of the hook

ring during starting the engine and mowing work. It

is dangerous to start an engine away from the safety

position, which could lead to serious injury to feet or

bodily parts.

GRASS BAG

FRAME

CAUTION: Unfold the handle carefully to avoid

pinching and damaging the control cables.

• Remove any packaging material from around the

control bar.

• Your handles may be adjusted for your mowing

comfort. Refer to Service and Adjustments section

of this manual (except 2in1 mower).

3. TO ASSEMBLE GRASS CATCHER

• Put grass catcher frame into grass bag with rigid

part of bag on the bottom. Make sure the frame

handle is outside of the bag top.

• Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold them in warm

water for a few minutes. If bags get wet, let it dry before

using.

4. ASSEMBLE ENGINE STARTER KNOB

• Pull the knob of starter rope back to the hook ring

on upper handle. Assemble the rope into the zone

starter ring through the opening of hook ring.

• Always keep starter rope in hook ring during all

mowing work.

OPERATION

Fig.5

OPERATION

DRIVE CONTROL BAR-used to engage power-pro-

pelled forward motion lawn mower.

THROTTLE CONTROL-used for starting the engine

and allows you to select either fast or slow engine

speed.

STARTER HANDLE-used for starting the engine.

MULCHER PLUG-located at the discharge opening,

must be removed when converting to bagging operation.

(For 3in1 mower)

MULCHER DOOR-allows conversion to discharge

or bagging operation.(for 3in1/2in1 mower)

PRIMER-pumps additional fuel from the carburetor

to the cylinder for use when starting a cold B&S engine.

OPERATOR PRESENCE CONTROL BAR-must be

held down to the handle to start the engine. Release

to stop the engine.

WARNING: The operation of any lawn

mower can result in foreign objects thrown

into the eyes, which can result in severe

eye damage. Always wear safety glasses or eye

Shields while operating your lawn mower or per-

forming any adjustments or repairs. We recom-

mend wide vision safety mask over spectacles or

standard safety glasses.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

A throttle located on the side of the upper handle

controls the engine speed. Fast position is for

normal cutting, trimming and better grass bagging.

Slow position is for light cutting, trimming and fuel

economy.

ENGINE CONTROL ZONE

Your lawn mower is equipped with an operator

presence control bar which requires the operator to

be positioned behind the lawn mower handle to start

and operate the lawn mower.

TO OPERATE DRIVE SYSTEM(See Fig.6)

To start forward motion, lift drive control bar up to

handle.

Fig.6

Engine throttle

control lever Start

Slow

Fast

Engine brake handle/Blade brake handle(Model with BBC)

Drive speed control lever

Engine

Wheel

Bumper

Chassis

Upper handle

Rear cover

Grass catcher

Starter knob

Throttle and drive controler

Height adjustment lever

Locking lever

Adjuster

Height adjustment lever

Locking lever

Air filter

Fig.8

To stop forward motion, release drive control bar.

IMPORTANT: ALWAYS KEEP DRIVE CONTROL

FULLY ENGAGEDAGAINST HANDLE WHEN IN USE.

TO ATTACH GRASS CATCHER

1.Lift the rear door of the lawn mower and place the

grass catcher frame side hooks into the slots of the

rear door.

2.The grass catcher is secured to the lawn mower

housing when the rear door is lowered onto the grass

catcher frame.

stop start forward

-First press the lever slightly downwards and adjust

to the desired speed. The lever automatically clicks

back into the nearest new position.

-Position rabbit =fast(max.speed)

-Position tortoise =slow (min.speed)

All four wheels are adjusted by a single lever except

the model 2in1. The 2in1 mower has two levers to

adjust the front wheel and rear wheel individually.

You can set the cutting height to the desired height

to fit different terrain. Pull the lever out from the catch,

move to the desired position and let it fall back into

the catch.

WARNING: The lawnmower can only be used on

level lawns if the lowest cutting height is being

used.

NOTE: The speed may only be adjusted

ADJUSTING THE DRIVE SPEED (See Fig.8)

for speed adjustable model

when the engine is running in order to

avoid damage!

-The driving speed can be continuously adjusted by us-

ing the adjustment lever mounted on the upper hand.

WHEEL ADJUSTER

LEVER

Fig.9

Fig.10

ENGAGE THE BLADE-CLUTCH (See Fig.7)

only for machines with BBC

Fig.7

Blade clutch lever

running.

The mower is adjusted to one cutting height upon

delivery.

Never adjust the cutting height with the motor still

ADJUSTING THE CUTTING HEIGHT (See Fig. 9)

Fig.6

Upper handle

Step 1

Step 2

Slow

(tortoise)

Fast

(rabbit)

Drivespeed

controllever

for low cut

Raise wheels

for high cut

Lower wheels

for high cut

Lower wheels

for low cut

Raise wheels

WHEEL ADJUSTER

LEVER

CENTRAL ADJUSTER ON RIGHT SIDE

ADJUSTER ON EACH WHEEL

2.Press the blade-clutch-lever close to the handle-

bar completely to engage blade.

3.Release the lever about 2'' away from the hand-

lebar, until the lever make a 'click' sound. And

then re-press the lever and hold it togather with

the handlebar.

4.Release the blade-clutch-lever completely to

dis-engage and stop the blade.

1. For safety, the blade-clutch-lever can not be en-

gaged directly after releasing. Push the lever

forward until it make a 'click' sound, and then

you can engaged the clutch again.

Fig.5

OPERATION

DRIVE CONTROL BAR-used to engage power-pro-

pelled forward motion lawn mower.

THROTTLE CONTROL-used for starting the engine

and allows you to select either fast or slow engine

speed.

STARTER HANDLE-used for starting the engine.

MULCHER PLUG-located at the discharge opening,

must be removed when converting to bagging operation.

(For 3in1 mower)

MULCHER DOOR-allows conversion to discharge

or bagging operation.(for 3in1/2in1 mower)

PRIMER-pumps additional fuel from the carburetor

to the cylinder for use when starting a cold B&S engine.

OPERATOR PRESENCE CONTROL BAR-must be

held down to the handle to start the engine. Release

to stop the engine.

WARNING: The operation of any lawn

mower can result in foreign objects thrown

into the eyes, which can result in severe

eye damage. Always wear safety glasses or eye

Shields while operating your lawn mower or per-

forming any adjustments or repairs. We recom-

mend wide vision safety mask over spectacles or

standard safety glasses.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

A throttle located on the side of the upper handle

controls the engine speed. Fast position is for

normal cutting, trimming and better grass bagging.

Slow position is for light cutting, trimming and fuel

economy.

ENGINE CONTROL ZONE

Your lawn mower is equipped with an operator

presence control bar which requires the operator to

be positioned behind the lawn mower handle to start

and operate the lawn mower.

TO OPERATE DRIVE SYSTEM(See Fig.6)

To start forward motion, lift drive control bar up to

handle.

Fig.6

Engine throttle

control lever Start

Slow

Fast

Engine brake handle/Blade brake handle(Model with BBC)

Drive speed control lever

Engine

Wheel

Bumper

Chassis

Upper handle

Rear cover

Grass catcher

Starter knob

Throttle and drive controler

Height adjustment lever

Locking lever

Adjuster

Height adjustment lever

Locking lever

Air filter

Fig.8

To stop forward motion, release drive control bar.

IMPORTANT: ALWAYS KEEP DRIVE CONTROL

FULLY ENGAGEDAGAINST HANDLE WHEN IN USE.

TO ATTACH GRASS CATCHER

1.Lift the rear door of the lawn mower and place the

grass catcher frame side hooks into the slots of the

rear door.

2.The grass catcher is secured to the lawn mower

housing when the rear door is lowered onto the grass

catcher frame.

stop start forward

-First press the lever slightly downwards and adjust

to the desired speed. The lever automatically clicks

back into the nearest new position.

-Position rabbit =fast(max.speed)

-Position tortoise =slow (min.speed)

All four wheels are adjusted by a single lever except

the model 2in1. The 2in1 mower has two levers to

adjust the front wheel and rear wheel individually.

You can set the cutting height to the desired height

to fit different terrain. Pull the lever out from the catch,

move to the desired position and let it fall back into

the catch.

WARNING: The lawnmower can only be used on

level lawns if the lowest cutting height is being

used.

NOTE: The speed may only be adjusted

ADJUSTING THE DRIVE SPEED (See Fig.8)

for speed adjustable model

when the engine is running in order to

avoid damage!

-The driving speed can be continuously adjusted by us-

ing the adjustment lever mounted on the upper hand.

WHEEL ADJUSTER

LEVER

Fig.9

Fig.10

ENGAGE THE BLADE-CLUTCH (See Fig.7)

only for machines with BBC

Fig.7

Blade clutch lever

running.

The mower is adjusted to one cutting height upon

delivery.

Never adjust the cutting height with the motor still

ADJUSTING THE CUTTING HEIGHT (See Fig. 9)

Fig.6

Upper handle

Step 1

Step 2

Slow

(tortoise)

Fast

(rabbit)

Drivespeed

controllever

for low cut

Raise wheels

for high cut

Lower wheels

for high cut

Lower wheels

for low cut

Raise wheels

WHEEL ADJUSTER

LEVER

CENTRAL ADJUSTER ON RIGHT SIDE

ADJUSTER ON EACH WHEEL

2.Press the blade-clutch-lever close to the handle-

bar completely to engage blade.

3.Release the lever about 2'' away from the hand-

lebar, until the lever make a 'click' sound. And

then re-press the lever and hold it togather with

the handlebar.

4.Release the blade-clutch-lever completely to

dis-engage and stop the blade.

1. For safety, the blade-clutch-lever can not be en-

gaged directly after releasing. Push the lever

forward until it make a 'click' sound, and then

you can engaged the clutch again.

These symbols may appear on your lawnmower or in literature supplied with the product. Learn and understand their meaning.

CAUTION: Wear protective gloves during

operation of setting up your mower.

WARNING: The safety position for starting the

engine is at the back of upper handle. Users

must keep the rope always in the middle of the hook

ring during starting the engine and mowing work. It

is dangerous to start an engine away from the safety

position, which could lead to serious injury to feet or

bodily parts.

GBGB

OPERATION

Fig.4

05 06

WB436SB AL V

WB536SB ALV

Drive control handle

Height adjustment

meanwhile pull the knob of starter rope back to the

hook ring on upper handle, assemble. The rope into

the hook ring through the opening of hook ring .

Always keep starter rope in hook ring during all

mowing work.

IV. ASSEMBLE ENGINE STARTER KNOB

Press down engine brake handle by left hand, and

WARNING:The safety positionof start-

ing engineis at theback of upperhandle.

Users must keep the rope always in the

middle of thehook ringduringstarting engine

andmowingwork. It is dangerto starting engine

away from thesafetyposition,which will lead to

theriskoffeethurting.

CAUTION: Wear protective gloves

during operation of setting up your

mower.

WARNING: The operation of any lawn

mower can result in foreign objects thrown

into the eyes, which can result in severe

eye damage. Always wear safety glasses

or eye shields while operating your lawn

mower or performing any adjustments or

repairs. We recommend wide vision safety

mask over spectacles or standard safety

glasses.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

Athrottle located on the side of the upper handle

controls the engine speed. Fast position is for

DRIVE CONTROL BAR-used to engage power-pro-

pelled forward motion lawn mower.

THROTTLE CONTROL-used for starting the engine

and allows you to select either fast or slow engine

speed.

STARTER HANDLE-used for starting the engine.

PRIMER-pumps additional fuel from the carburetor

to the cylinder for use when starting a cold engine.

OPERATOR PRESENCE CONTROL BAR-engine

brake,it must be held down to the handle to start the

engine. Release it to stop the engine.

and allows you to select either fast of slow speed.

DRIVE SPEED LEVER -used for adjusting the drive speed

normal cutting, trimming and better grass bagging.

Slow position is for light cutting, trimming and fuel

economy.

Your lawn mower is equipped with an operator

presence control bar which requires the operator to

be positioned behind the lawn mower handle to start

and operate the lawn mower.

ENGINE CONTROL ZONE

TO OPERATE DRIVE SYSTEM

To start forward motion, lift drive control bar up to

handle.

To stop forward motion, release drive control bar.

IMPORTANT: ALWAYS KEEP DRIVE CONTROL

FULLY ENGAGED AGAINST HANDLE WHEN IN USE.

Fig.5

Fig.3

Hook ring

Starter rope



Zone Starter Ring

ZONE STARTER

RING

STARTER ROPE FIG. 3

Mower chassis

Wheel

Grass catcher

Upper handle

adjustement lever

Fuel cap

Throttle and

Gearshift Controller

Upper handle

Drive control lever

Starter handle

Rear cover

Engine

Mu󰀪er

Zone starter ring

Air lter

PLASTIC EDGE

FRAME

DRIVE CONTROL BAR - used to engage the gearbox

and propel the lawn mower forward.

THROTTLE CONTROL - used for starting the engine

and allows you to select either fast or slow

engine speed.

MULCHING PLUG - Allows the grass to be cut multiple

times under the cutting deck until small enough to be

left on the lawn.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

A throttle located on the side of the upper handle

controls the engine speed. Fast position is for

normal cutting, trimming and better grass bagging.

Slow position is for light cutting, trimming and

fuel economy.

TO OPERATE DRIVE SYSTEM (See Fig.4)

To start forward motion, push drive control bar forward

to handle.

To stop forward motion, release drive control bar.

IMPORTANT: ALWAYS KEEP DRIVE CONTROL

FULLY ENGAGED AGAINST HANDLE WHEN IN USE

ADJUSTING THE DRIVE SPEED (See g.5)

(For speed adjustable model).

Note: The speed may only be adjusted when the

engine is running in order to avoid damage!

GEAR SHIFT LEVER

1. Start engine.

2. Select the speed/gear required - 1st slow, 2nd

medium, 3rd fast.

3. For good mowing performance from your mower

the throttle control lever should be set to high.

4. Before pushing the drive lever to engage the gear

box. Push the mower forward manually while slowly

pushing the drive lever towards the top handle.

Mower will start to move forward.

5. Be sure the gear shift lever is engaged in one of

the three detent positions.

NOTE: Get used to how your mower will engage and

drive forward, rstly start with the throttle lever set to

low or medium.

• 1st (slow) - Mowing long/thick grass.

• 2nd (medium) - Intermediate mowing speed.

• 3rd (fast) - Max. Self propelled mowing.

WARNING: The operation of any lawn mower

can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always

wear safety glasses or eye shields while operating

your lawn mower or performing any adjustments or

repairs. We recommend a wide vision safety mask

over spectacles or standard safety glasses.

FIG. 4

STOP START FORWARD

FIG. 5

1st

(SLOW) 2nd

(MEDIUM)

3RD

(FAST)

THROTTLE LEVER

CHOKE

GEARSHIFT

LEVER

NOTE: Do not drag the bag when emptying;

it will cause unnecessary wear.

TO CONVERT MOWER

Your lawn mower was shipped ready to be used as

a mulcher. To convert to bagging/catching.

REAR BAGGING/CATCHING

• Open rear ap and remove mulcher plug. Store

mulcher plug in a safe place.

• You can now install the grass catcher (See to attach

grass catcher).

• To convert to mulching, install mulch plug into rear

discharge opening of mower.

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in the engine.

Engine holds approximately 0.6L refer to engine

manufacturers specications in engine hand book.

For type and grade of oil to use, see “ENGINE”

in Customer Responsibilities section of this manual.

ADJUSTING THE CUTTING HEIGHT (See

Fig.6)

• Never adjust the cutting height with the motor

still running.

• The mower is adjusted to one cutting height

upon delivery.

• All four wheels are adjusted by a single lever except

the model 2in1. The 2in1 mower has two levers to

adjust the front wheel and rear wheel individually.

• You can set the cutting height to the desired height

to t di󰀨erent terrain. Pull the lever out from the

catch, move to the desired position and let it fall

back into the catch.

WARNING: The lawnmower can only be used on

level lawns if the lowest cutting height is being used.

TO ATTACH GRASS CATCHER

1. Lift the rear ap of the lawn mower and place the

grass catcher frame side hooks into the slots of the

lower handle brackets.

2. The grass catcher is secured to the lawn mower

housing when the rear ap is lowered onto the grass

catcher frame.

TO EMPTY GRASS CATCHER

1. Lift up on grass catcher using the frame handle.

2. Remove grass catcher with clippings from under

lawn mower handle.

3. Empty clippings from bag using both frame handle

and bag handle.

CAUTION: During operation of emptying

clippings from grass catcher, please wear

protective gloves to prevent environmental inuence

on your skin.

CAUTION: Do not run your lawn mower without

clipping deector or approved grass catcher in

place. Never attempt to operate the mower with rear

door removed or propped open.

CAUTION: Do not run your lawn mower without

clipping deector or approved grass catcher in

place. Never attempt to operate the mower with rear

door removed or propped open.

MULCHER PLUG

CENTRAL ADJUSTER ON RIGHT SIDE

LOWER

WHEELS FOR

HIGH CUT

RAISE WHEELS

FOR LOW CUT

WHEEL ADJUSTER

LEVER

FIG. 6

LOWER BRACKET

SLOTS

CATCHER

FRAME HOOK

FIG. 7

GRASS

CATCHER

FRAME HANDLE

BAG

HANDLE

FIG. 8

1. Be sure lawnmower is level and area around oil ller

is clean.

2. Remove engine oil cap and ll to the full line on the

dipstick. Pour oil slowly. Do not over ll.

NOTE: Allow oil to settle down into engine for accurate

reading. Insert and remove dipstick without screwing it

into the ller-neck. Check oil level shown on dipstick.

3. Reinstall engine oil cap and tighten.

• Check oil level before each use. Add oil if needed.

Fill to full line on dipstick.

• Change the oil after every 25 hours of operation or

each season. You may need to change the oil more

often under dusty, dirty conditions.

ADD FUEL

NOTE: Before lling fuel tank, remove and discard the

debris plug that is inside the tank. Fill fuel tank. Use

fresh, clean, regular unleaded fuel with a minimum of

95 octants. Do not mix oil with fuel. Purchase fuel in

quantities that can be used within 30 days to assure fuel

freshness.

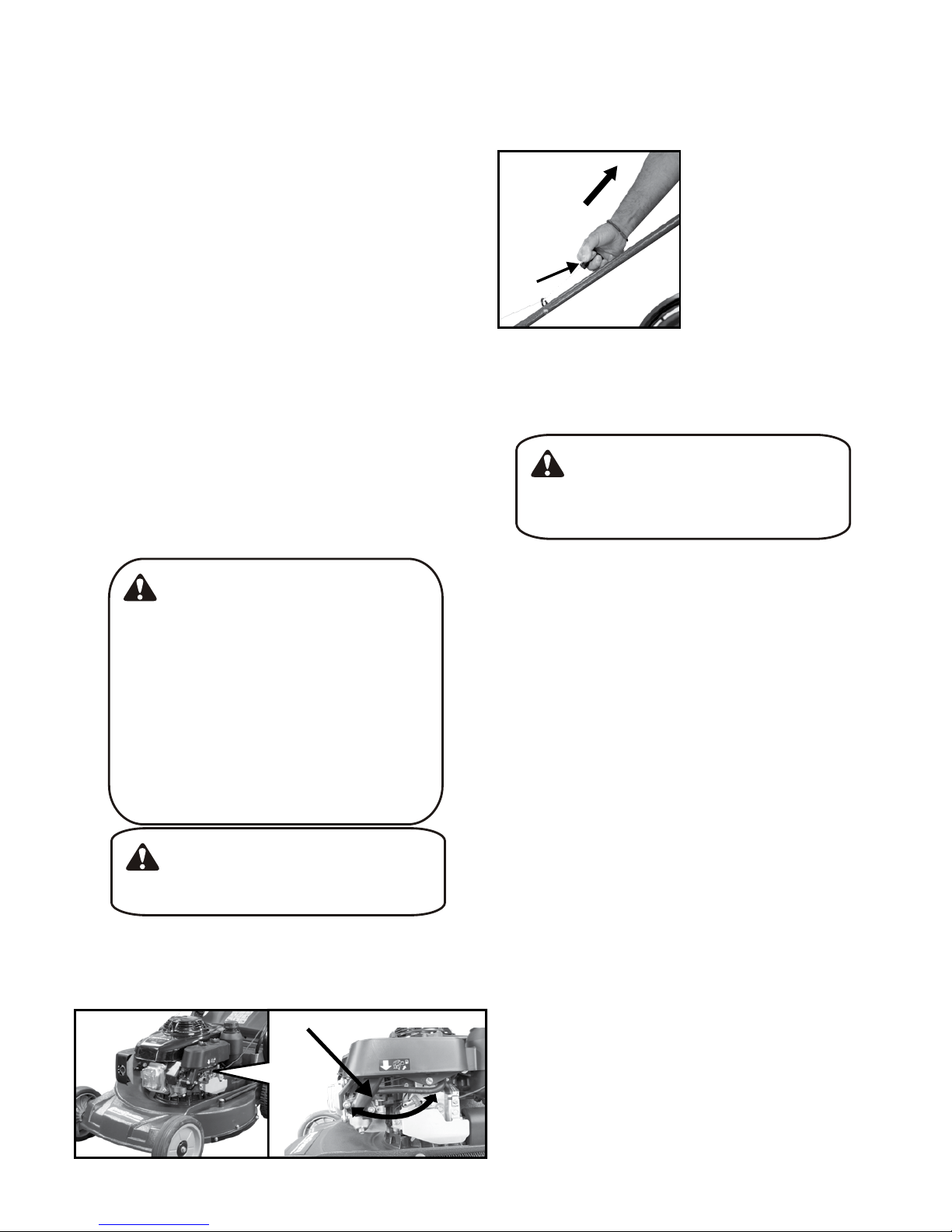

TO START ENGINE

NOTE: Due to protective coatings on the engine, a small

amount of smoke may be present during initial use of the

product and should be considered normal.

FUEL TAP

OFF

WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can damage

the fuel system of an engine while in storage.

To avoid engine problems, the fuel system

should be emptied before storage of 30 days or

longer. Drain the fuel tank, start the engine and

let it run until the fuel lines and carburettor are

empty. Use fresh fuel next season. See storage

instructions for additional information. Never

use engine or carburettor cleaner products in

the fuel tank or permanent damage may occur.

CAUTION: Fill to bottom of fuel tank ller

neck. Do not overll. Wipe o󰀨 any spilled

oil or fuel. Do not store, spill, or use gasoline

near an open ame.

1. Turn the fuel tap to the on position (See gure 9).

2. Move throttle lever to the choke/starting position.

*Pre-Run engine - move the throttle to the high/fast

position.

5. Select required speed.

6. To move forward push drive lever towards handle.

TO STOP ENGINE

• To stop engine, release drive lever control bar.

• Move throttle lever to stop position.

MOWING TIPS

• Under certain conditions, such as very tall grass,

it may be necessary to raise the height of cut to

reduce pushing e󰀨ort and to keep from overloading

the engine and leaving clumps of grass clippings.

It may also be necessary to reduce ground speed

and /or run the lawn mower over the area a second

time.

• For extremely heavy cutting, reduce the width of cut

by overlapping previously cut path and mow slowly.

• For better grass catching and most cutting

conditions, the engine speed should be set in the

fast position.

• Pores in cloth grass catchers can become lled with

dirt and dust with use and catchers will collect less

grass. To prevent this, regularly hose catcher o󰀨

with water and let dry before using.

• Keep top of engine around starter clear and clean

of grass clippings and cha󰀨. This will help engine air

ow and extend engine life.

CAUTION: If the engine fails to start in

30 seconds after repeated starting

operation by pulling the starter knob, please

stop your operation and check the causes. See

trouble shooting.

3. Pull the starter handle

lightly till resistance is

felt, then pull briskly

towards yourself/upwards

return starter handle to

zone starter ring.

4. After a few seconds

move throttle away from

choke position.

FIG. 9

STARTER

GRIP

DIRECTION

TO PULL

MULCHING MOWING TIPS

• The special mulching blade will re-cut the grass

clippings many times and reduce them in size so

that as they fall onto the lawn they will disperse into

the grass and not be noticed. Also, the mulched

grass will biodegrade quickly to provide nutrients

for the lawn. Always mulch with your highest engine

(blade) speed, as this will provide the best

re-cutting action of the blades.

• Avoid cutting your lawn when it is wet. Wet grass

tends to form clumps and interferes with the

mulching action. The best time to mow your lawn is

the early afternoon. At this time the grass has dried

and the newly cut area will not be exposed to the

direct sun.

CUSTOMER RESPONSIBILITIES

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. See “CLEANING” in customer

responsibilities section of this manual.

• For best results, adjust the lawn mower cutting

height so that the lawn mower cuts o󰀨 only the

top one-third of the grass blades. If the lawn is

overgrown it will be necessary to raise the height

of cut to reduce pushing e󰀨ort and to keep from

overloading the engine and leaving clumps of

mulched grass. For extremely heavy mulching,

reduce your width of cut by overlapping previously

cut path and mow slowly.

• Certain types of grass and grass conditions may

require that an area be mulched a second time to

completely hide the clippings. When doing a second

cut, mow across or perpendicular to the rst cut

path.

• Change your cutting pattern from week to week

mow north to south one week then change to east

to west the next week. This will help prevent matting

and graining of the lawn.

WARNING: Make sure all operations are

performed while the engine is stopped.

MAINTENANCE SCHEDULE

GBGB

MOWING TIPS

Under certain conditions, such as very tall grass,

it may be necessary to raise the height of cut to re-

duce pushing effort and to keep from overloading the

engine and leaving clumps of grass clippings. It may

also be necessary to reduce ground speed and /or

run the lawn mower over the area a second time.

For extremely heavy cutting, reduce the width of

cut by overlapping previously cut path and mow slowly.

For better grass bagging and most cutting condi

tions, the engine speed should be set in the fast position.

Pores in cloth grass catchers can become filled

with dirt and dust with use and catchers will collect

less grass. To prevent this, regularly hose catcher off

with water and let dry before using.

Keep top of engine around starter clear and clean

of grass clippings and chaff. This will help engine air

flow and extend engine life.

IMPORTANT: FOR BEST PERFORMAN-

CE, KEEP MOWER HOUSING FREE OF

BUILT-UP GRASS AND TRASH. SEE

CLEANING IN CUSTOMER RESPON-

SIBILITIES SECTION OF THIS MANUAL.

MAINTENANCE SCHEDULE

CUSTOMER RESPONSIBILITIES

Replace Air Filter Paper

Cartridge

Lubrication Chart

Check Engine Oil Level

Change Engine Oil

Clean Air Filter

Inspect Muffler

Clean or replace Spark

Plug

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

Check for loose fasteners

Clean/Inspect Grass

Catcher (If Equipped)

Clean Lawnmower

Clean Under Drive

Cover (Power-

Propelled Mowers)

RCheck/Sharpen/

Replace Blade

BEFORE

EACH USE

AFTER

EACH USE

EVERY 25HOURS

OR EVERY SEASON

EVERY

10 HOURS

BEFORE

STORAAGE

SERVICE

DATES

GENERAL RECOMMENDATIONS

The warranty on this lawnmower does not cover

articles that have been subjected to operator

abuse or negligence.To maintain a complete

coverage by the warranties provided,the opera-

tor must maintain the mower as instructed in

this manual.For a proper maintenance of your

mower,some adjustments will need to be made

Service and Adjustments section of this manual should

be checked at least once each season.

Once a year, replace the spark plug, clean or replace

air filter element and check blade for wear. A new

spark plug and clean/new air filter element assures

proper air-fuel mixture and helps your engine run

better and last longer.

Follow the maintenance schedule in this manual.

periodically.All adjustments in the Service

Adjustments section of this manual should be

checked at least once each season.

1Change more often when operating under a heavy

load or in high ambient temperatures.

2Service more often when operating in dirty or dusty

conditions.

3Replace blades more often when mowing in sandy

soil.

WARNING: MAKE SURE DOING ALL

OPERATIONS WHEN THE ENGINE

STOPPED.

BEFORE EACH USE

1Check engine oil level.

2Check for loose fasteners.

LUBRICATION

Keep unit well lubricated.

LAWN MOWER

Always observe safety rules when performing any

maintenance.

TIRE

Keep tires free of gasoline, oil, or insect control

chemicals which can harm rubber.

Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

BLADE CARE

For best results, mower blade must be kept sharp.

Replace bent or damaged blades.

to prevent blade from turning when removing blade

bolt.

1.Disconnect spark plug wire from spark plug and

place wire where it cannot come in contact with spark

plug.

2.Turn lawn mower on its side. Make sure air filter

and carburetor are up.

3.Use a woodblock between blade and mower deck

TO REMOVE BLADE

NOTE: Protect your hands with gloves and/or wrap

blade with heavy cloth.

4.Remove blade bolt by turning counter-clockwise.

5.Remove blade and attaching hardware.

NOTE: Remove the blade adapter and check the

key inside hub of blade adapter. The key must be in

good condition to work properly. Replace adapter if

damaged.

TO REPLACE BLADE

1.Position the blade adapter on the engine crank-

shaft.Be sure key in adapter and crankshaft keyway

are aligned.

2.Be sure the trailing edge of blade(opposite sharp

edge) is up toward the engine.

3.Install the blade bolt with the spring washer into

blade adapter and crankshaft.

4.Use block of wood between blade and lawn mower

housing and tighten the blade bolt, turning clockwise.

IMPORTANT: BLADE BOLT IS GRADE

10.9 HEAT TREATED.

Shield

Screw

Pulley

Screw

Block

Blade brake

clutch

Central bolt

Fan

Blade

Spring washer

Screw

Models with BBC

Spring

Woodruff key

TO SHARPEN BLADE

NOTE: We do not recommend sharpening blade but

if you do, be sure the blade is balanced.

Care should be taken to keep the blade balanced.An

unbalanced blade will cause eventual damage to lawn

mower or engine.

The blade can be sharpened with a file or on a

grinding wheel. Do not attempt to sharpen while on

the mower.

To check blade balance, drive a nail into a beam

or wall. Leave about one inch of the straight nail

exposed. Place center hole of blade over the head

of the nail. If blade is balanced, it should remain in

a horizontal position. If either ends of the blade moves

downward, sharpen the heavy end until the blade is

balanced.

GRASS CATCHER

The grass catcher may be hosed with water, but

must be dry when used.

Check your grass catcher often for damage or

deterioration. Through normal use it will wear. If

catcher needs replacing,replace only with a manu-

facturer approved replacement catcher.Give the

lawn mower model number when ordering.

disc

For power

propelled mower

Models without BBC

Pulley

Shield

Adapter

Woodruff key

Friction disc

Lock ring

Spring washer

Central bolt

Blade

Fig.12

5380401010B



1. Change more often

when operating under

a heavy load or in high

ambient temperatures.

2. Service more often when

operating in dirty or dusty

conditions.

3. Replace blades more

often when mowing in

sandy soil.

GENERAL

RECOMMENDATIONS

The warranty on this

lawnmower does not cover

articles that have been

subjected to operator

abuse or negligence.

To maintain a complete coverage by the warranties provided, the operator must maintain the mower as instructed

in this manual. For a proper maintenance of your mower, some adjustments will need to be made Service and

Adjustments section of this manual and should be checked at least once each season.

Once a year, replace the spark plug, clean or replace air lter element and check blade for wear. A new spark plug

and clean/new air lter element assures proper air-fuel mixture and helps your engine run better and last longer.

Follow the maintenance schedule in this manual.

BEFORE EACH USE

1. Check engine oil level.

2. Check for loose fasteners.

LUBRICATION

Keep unit well lubricated.

LAWN MOWER

Always observe safety rules when performing any

maintenance.

TYRE

• Keep tyres free of fuel, oil, or insect control

chemicals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tyre damage.

BLADE CARE

For best results, the mower blade must be kept sharp.

Replace bent or damaged blades. Contact your local

Bushranger™ dealer for mower blade replacement.

TO SHARPEN BLADE

We do not recommend sharpening the blade.

GRASS CATCHER

• The grass catcher may be hosed with water, but

must be dry when used.

• Check your grass catcher often for damage or

deterioration. Through normal use it will wear.

If catcher needs replacing, replace only with a

manufacturer approved replacement catcher. Give

the lawn mower model number when ordering.

DRIVE WHEELS (Self Propelled)

Check rear drive wheels each time you mow to be

sure they move freely. The wheels not turning freely

means trash, grass cuttings, etc. may be inside the

drive wheel and dust cover area and must be cleaned

out to free drive wheels. If necessary to clean the drive

wheels, check both rear wheels.

1. Remove hubcaps, bolt, spring lock washer

and washer.

2. Remove wheels from wheel adjuster axles. If

installed incorrectly, the drive system will not work.

3. Remove any trash or grass cutting from inside the

dust cover, pinion and/or drive wheel gear teeth.

NOTE: The pinion gear, on both sides of the mower,

are the same, however, they must be installed correctly.

If installed incorrectly, the drive system will not work.

4. Place wheels back on adjuster axles.

5. Replace spring lock washer, washer, bolt and

hub caps.

NOTE: Although multi-viscosity oil (5W30, 10W30 etc)

improve starting in cold weather, these multi-viscosity

oils will result in increased oil consumption when used

above 32 F. Check your engine oil level more frequently

to avoid possible engine damage from running low on

oil. Change the oil after every 25hours of operation

or at least once a year if the lawn mower is not used

for 25hours in one year. Check the crankcase oil level

before starting the engine and after each ve (5) hours

of continuous use. Tighten oil plug securely each time

you check the oil level.

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to drain oil, drain

fuel tank by running engine until fuel tank is empty.

1. Disconnect spark plug wire from spark plug and

place wire where it cannot come in contact with

spark plug.

2. Remove engine oil cap; lay aside on a clean surface.

3. Tip lawn mower on its side as shown and drain oil

into a suitable container. Rock lawn mower back and

forth to remove any oil trapped inside of engine.

4. Return lawn mower to upright position. Wipe o󰀨 any

spilled oil from lawn mower or side of engine.

5. Fill engine with oil. See ADD OIL in the Operation

section of this manual.

6. Reconnect spark plug wire to spark plug.

ENGINE

Read the Maintenance section of your engine manual.

FUEL TAP

LUBRICATION

Use only high quality detergent oil rated with API

service classication SF-SJ. Select the oil’s SAE

viscosity grade according to your expected

operating temperature.

OIL RECOMMENDATIONS

Oil is a major factor a󰀨ecting the performance and

life of your mower engine. Always use a good quality

4 stroke engine oil. SAE 10W-30 is recommended

for general use in Australia. When checking the label

on your oil bottle be sure it includes the letters SG or

higher. If you have any concerns contact your local

Bushranger™ dealer.

CLEANING

1. Clean the underside of your lawn mower by scraping

to remove build-up of grass and trash.

2. Clean engine often to keep trash from accumulating.

A clogged engine runs hotter and shortens

engine life.

3. Keep nished surfaces and wheels free of all

fuel, oil, etc.

4. We do not recommend using a garden hose to clean

lawn mower unless the electrical system, mu󰀪er, air

lter and carburettor are covered to keep water out.

Water in engine can result in shortened engine life.

AIR FILTER

Your engine will not run properly and may be damaged

by using a dirty air lter. Clean the element after every

25 hours of operation, more often if lawn mower is used

in very dusty, dirty conditions. See the maintenance

section of your engine manual.

MUFFLER

Inspect and replace corroded mu󰀪er as it could create

a re hazard and/or damage your engine.

SPARK PLUG

Change your spark plug each year to make your engine

start easier and run better. Set spark plug gap at 0.7 -

0.8mm or .030 inch.

CAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come in contact with spark plug.

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean the underside of your

mower after each use.

AIR CLEANER

NUTS

AIR

CLEANER

COVER

PRE FOAM

FILTER

PAPER FILTER

ELEMENT

AIR CLEANER

HOUSING

0.7 - 0.8mm

SERVICE AND ADJUSTMENTS

CAUTION: BEFORE YOU CHANGE SETTINGS OR

MAINTENANCE TASKS:

1. Release drive control bar to stop the lawn mower.

2. Make sure the blade and all moving parts have

stopped completely.

3. Disconnect cable from the spark-plug and place

where it cannot come in contact with plug.

4. Make sure that all the nuts, bolts and screws

are tightened and the device in a safe condition.

5. Let the mower to cool before using it in a

closed area o󰀨.

6. In order to avoid the risk of re, keep motor

housing and ventilation openings free of grass,

leaves and oil or fat.

7. Replace worn out or damaged parts for

security reasons.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See “TO ADJUST CUTTING HEIGHT” in the Operation

section of this manual.

TO ADJUST HANDLE

The handle on your lawn mower has di󰀨erent

height positions-adjust to height that suits you.

1. Loosen the 2 lever A on both sides.

2. Rotate upper handle to new catch desired.

3. Re-tighten lever A.

REAR DEFLECTOR

The rear deector, attached between the rear wheels

of your mower, is provided to minimize the possibility

that objects will be thrown out of the rear of the mower

into the operator’s mowing position. If the deector

becomes damaged, it should be replaced.

ENGINE

ENGINE SPEED

Your engine speed has been factory set. Do not

attempt to increase engine speed or it may result in

personal injury. If you believe that the engine is running

too fast or too slow, take your lawn mower to

an authorized service centre for repair and adjustment.

THROTTLE CONTROL

If it becomes necessary to adjust or replace the

throttle control, see the adjustment section of your

engine manual.

CARBURETTOR

The carburettor has been preset at the factory and

adjustment should not be necessary. However, minor

adjustment may be required to compensate for

di󰀨erences in fuel, temperature, altitude or load.

• The air lter must be assembled to the carburettor

when running engine - never run an engine without

an air-lter.

• Best carburettor adjustment is obtained when fuel

tank is 1/4 full.

LIFT & TURN TO

DESIRED POSITION

LOCKING

LEVER

FIG. 10

LOCKING

LEVER

FIG. 11

PUSH

LOCK

STORAGE

Immediately prepare your lawn mower for storage at

the end of the season or if the unit will not be used for

30 days or more.

LAWN MOWER

When your lawn mower is to be stored for a period of

time, clean it thoroughly, remove all dirt, grease, leaves,

etc. Store in a clean, dry area.

1. Clean entire lawn mower (See “CLEANING” in the

Customer Responsibilities section of this manual).

2. Lubricate as shown in the Customer Responsibilities

section of this manual.

3. Be sure that all nuts, bolts, screws, and pins are

securely fastened. Inspect moving parts for damage,

breakage and wear. Replace if necessary.

4. Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

HANDLE

You can fold your lawn mower handle for storage.

1. Loosen lever A on sides of the upper handle and

pivot entire handle assembly forward and allow it to

rest on mower. Re-tighten lever A.

2. When setting up your handle from the storage

position, loosen lever A on both sides. and rotate

handle and set it to new catch desired.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL

SYSTEM PARTS SUCH AS CARBURETTOR. FUEL

FILTER, FUEL HOSE, OR TANK DURING STORAGE.

ALSO, EXPERIENCE INDICATES THAT ALCOHOL

BLENDED FUELS (CALLED GASOHOL OR USING

ETHANOL OR METHANOL) CAN ATTRACT

MOISTURE WHICH LEADS TO SEPARATION AND

FORMATION OF ACIDS DURING STORAGE. ACIDIC

GAS CAN DAMAGE THE FUEL SYSTEM OF AN

ENGINE WHILE IN STORAGE.

• Drain the fuel tank.

• Start the engine and let it run until the fuel lines and

carburettor are empty.

• Never use engine or carburettor cleaner products in

the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimising the formation of fuel gum deposits during

storage container. Always follow the mix ratio found on

the stabilizer container. Run engine at least 10 minutes

after adding stabilizer to allow the stabilizer to reach the

carburettor. Do not drain the fuel tank and carburettor

if using fuel stabilizer. Drain oil (with engine warm)

and replace with clean engine oil. (See ENGINE in

the CUSTOMER RESPONSIBILITIES section of this

manual).

CYLINDER

1. Remove spark plug.

2. Pour one ounce (29ml) of oil through spark plug

hole into cylinder.

3. Pull starter handle slowly a few times to distribute oil.

4. Replace with new spark plug.

OTHER

• Do not store fuel from one season to another.

• Replace your fuel can if your can starts to rust.

Rust and /or dirt in your fuel will

cause problems.

• If possible, store your unit indoors and cover it to

give protection from dust and dirt.

• Cover your unit with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form

and will cause your unit to rust.

IMPORTANT: Never cover mower while

engine and exhaust areas are still warm.

CAUTION: Never store the lawn mower

with fuel in the tank inside a building

where fumes may reach an open ame or

spark. Allow the engine to cool before storing in

any enclosure.

TROUBLESHOOTING POINTS

GBGB

13 14

CYLINDER

1.Remove spark plug.

2.Pour one ounce (29ml) of oil through spark plug

hole into cylinder.

3.Pull starter handle slowly a few times to distribute oil.

4.Replace with new spark plug.

OTHER

Do not store gasoline from one season to another.

Replace your gasoline can if your can starts to rust.

Rust and /or dirt in your gasoline will cause problems.

If possible, store your unit indoors and cover it to

give protection from dust and dirt.

Cover your unit with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form

and will cause your unit to rust.

CAUTION: Never store the lawn mower

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

IMPROTANT: NEVER COVER MOWER

WHILE ENGINE AND EXHAUST AREAS

ARE STILL WARM.

carburetor if using fuel stabilizer.

Drain oil (with engine warm) and replace with clean

engine oil. (See ENGINE in the CUSTOMER RES-

PONSIBILITIES section of this manual).

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL SYSTEM

PARTS SUCH AS CARBURETOR. FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS(CALLED GASOHOL OR USING ETHANOL

OR METHANOL) CAN ATTRACT MOISTURE WHICH

LEADS TO SEPARATION AND FORMATION OF

ACIDS DURING STORAGE. ACIDIC GAS CAN DA-

MAGE THE FUEL SYSTEM OF AN ENGINE WHILE

IN STORAGE.

utes after adding stabilizer to allow the stabilizer to

reach the carburetor. Do not drain the gas tank and

Drain the fuel tank.

Start the engine and let it run until the fuel lines and

carburetor are empty.

Never use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative

in minimizing the formation of fuel gum deposits dur-

ing storage. Add stabilizer to gasoline in fuel tank or

storage container. Always follow the mix ratio found

on stabilizer container. Run engine at least 10 min-

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

1.Dirty air filter.

2.Out of fuel.

3.Stale fuel.

4.Water in fuel.

5.Spark plug wire is

disconnected.

6.Bad spark plug.

7.Loose blade or broken

blade adapter.

8.Control bar in released

position.

9.Control bar defective.

1.Clean/replace air filter.

2.Fill fuel tank.

3.Drain tank and refill with fresh clean fuel.

4.Drain fuel tank and carburetor a

nd refill tank with fresh gasoline.

5.Connect wire to plug

6.Replace spark plug.

7.Tighten blade bolt or replace

blade adapter.

8.Depress control bar to handle.

9.Replace control bar.

Does not start

1.Engine flywheel brake is on when

control bar is released.

2.Bent engine crankshaft.

3.Blade adapter broken.

4.Blade dragging in grass.

1.Depress control bar to upper

handle before pulling starter rope.

2.Contact a qualified service center.

3.Replace blade adapter.

4.Move lawn mower to cut grass or

to hard surface.

1.Cutting height too low.

2.Lift on blade worn off.

3.Catcher not venting air.

1.Raise cutting height.

2.Replace blade.

3.Clean grass catcher.

1.Grass is too high or wheel height

is too low.

2.Rear of lawn mower housing/blade

dragging in grass.

3.Grass catcher too full.

4.Handle height position not right for you.

1.Raise cutting height

2.Raise rear of lawn mower housing

one (1) setting higher.

3.Empty grass catcher.

4.Adjust handle height to suit.

1. Belt wear.

2.Belt off of pulley.

3.Dirt in drive pinions.

1.Check/replace drive belt.

2.Check/reinstall drive belt.

3.Clean drive pinions.

Grass catcher not filling

(If required)

Hard to push

Loss of drive

(Power propelled)

Starter rope hard to pull

1.Rear of lawn mower housing of

cutting blade dragging in heavy grass.

2.Cutting too much grass.

3.Dirty air filter.

4.Buildup of grass, leaves, and

trash under mower.

5.Too much oil in engine.

6.Walking speed too fast.

1.Set to Higher Cut position.

2.Set to Higher Cut position.

3.Clean/replace air filter.

4.Clean underside of mower housing.

5.Check oil level.

6.Cut at slower walking speed.

1.Worn, bent or loose blade.

2.Wheel heights uneven.

3.Buildup of grass, leaves and trash

under mower.

1.Replace blade. Tighten blade bolt.

2.Set all wheels at same height.

3.Clean underside of mower housing.

1.Worn, bent or loose blade.

2.Bent engine crankshaft.

1.Replace blade. Tighten blade bolt.

2.Contact a qualified service center.

Loss of power

Poor cut-uneven

Excessive vibration

1)Ensure the engine and blades are stopped and the spark plug disconnected

before performing any maintenance, do not touch the engine muffler after use

at very high temperature.

ATTENTION: Before the mower is stored, make sure the engine cool.

TRANSPORTATION:

Turn off the engine. Make sure the blade are not bent or damaged when you are pus-

hing the mower over obstacles.

HANDLE

You can fold your lawn mower handle for storage.

Loosen lever A on sides of the upper handle and

pivot entire handle assembly forward and allow it to

2.When setting up

your handle from the storage po-

sition, loosen lever A on both sides. and rotate handle

and set it to new catch desired.

rest on mower. Re-tighten lever A.

GBGB

13 14

CYLINDER

1.Remove spark plug.

2.Pour one ounce (29ml) of oil through spark plug

hole into cylinder.

3.Pull starter handle slowly a few times to distribute oil.

4.Replace with new spark plug.

OTHER

Do not store gasoline from one season to another.

Replace your gasoline can if your can starts to rust.

Rust and /or dirt in your gasoline will cause problems.

If possible, store your unit indoors and cover it to

give protection from dust and dirt.

Cover your unit with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form

and will cause your unit to rust.

CAUTION: Never store the lawn mower

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

IMPROTANT: NEVER COVER MOWER

WHILE ENGINE AND EXHAUST AREAS

ARE STILL WARM.

carburetor if using fuel stabilizer.

Drain oil (with engine warm) and replace with clean

engine oil. (See ENGINE in the CUSTOMER RES-

PONSIBILITIES section of this manual).

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL SYSTEM

PARTS SUCH AS CARBURETOR. FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS(CALLED GASOHOL OR USING ETHANOL

OR METHANOL) CAN ATTRACT MOISTURE WHICH

LEADS TO SEPARATION AND FORMATION OF

ACIDS DURING STORAGE. ACIDIC GAS CAN DA-

MAGE THE FUEL SYSTEM OF AN ENGINE WHILE

IN STORAGE.

utes after adding stabilizer to allow the stabilizer to

reach the carburetor. Do not drain the gas tank and

Drain the fuel tank.

Start the engine and let it run until the fuel lines and

carburetor are empty.

Never use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative

in minimizing the formation of fuel gum deposits dur-

ing storage. Add stabilizer to gasoline in fuel tank or

storage container. Always follow the mix ratio found

on stabilizer container. Run engine at least 10 min-

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

1.Dirty air filter.

2.Out of fuel.

3.Stale fuel.

4.Water in fuel.

5.Spark plug wire is

disconnected.

6.Bad spark plug.

7.Loose blade or broken

blade adapter.

8.Control bar in released

position.

9.Control bar defective.

1.Clean/replace air filter.

2.Fill fuel tank.

3.Drain tank and refill with fresh clean fuel.

4.Drain fuel tank and carburetor a

nd refill tank with fresh gasoline.

5.Connect wire to plug

6.Replace spark plug.

7.Tighten blade bolt or replace

blade adapter.

8.Depress control bar to handle.

9.Replace control bar.

Does not start

1.Engine flywheel brake is on when

control bar is released.

2.Bent engine crankshaft.

3.Blade adapter broken.

4.Blade dragging in grass.

1.Depress control bar to upper

handle before pulling starter rope.

2.Contact a qualified service center.

3.Replace blade adapter.

4.Move lawn mower to cut grass or

to hard surface.

1.Cutting height too low.

2.Lift on blade worn off.

3.Catcher not venting air.

1.Raise cutting height.

2.Replace blade.

3.Clean grass catcher.

1.Grass is too high or wheel height

is too low.

2.Rear of lawn mower housing/blade

dragging in grass.

3.Grass catcher too full.

4.Handle height position not right for you.

1.Raise cutting height

2.Raise rear of lawn mower housing

one (1) setting higher.

3.Empty grass catcher.

4.Adjust handle height to suit.

1. Belt wear.

2.Belt off of pulley.

3.Dirt in drive pinions.

1.Check/replace drive belt.

2.Check/reinstall drive belt.

3.Clean drive pinions.

Grass catcher not filling

(If required)

Hard to push

Loss of drive

(Power propelled)

Starter rope hard to pull

1.Rear of lawn mower housing of

cutting blade dragging in heavy grass.

2.Cutting too much grass.

3.Dirty air filter.

4.Buildup of grass, leaves, and

trash under mower.

5.Too much oil in engine.

6.Walking speed too fast.

1.Set to Higher Cut position.

2.Set to Higher Cut position.

3.Clean/replace air filter.

4.Clean underside of mower housing.

5.Check oil level.

6.Cut at slower walking speed.

1.Worn, bent or loose blade.

2.Wheel heights uneven.

3.Buildup of grass, leaves and trash

under mower.

1.Replace blade. Tighten blade bolt.

2.Set all wheels at same height.

3.Clean underside of mower housing.

1.Worn, bent or loose blade.

2.Bent engine crankshaft.

1.Replace blade. Tighten blade bolt.

2.Contact a qualified service center.

Loss of power

Poor cut-uneven

Excessive vibration

1)Ensure the engine and blades are stopped and the spark plug disconnected

before performing any maintenance, do not touch the engine muffler after use

at very high temperature.

ATTENTION: Before the mower is stored, make sure the engine cool.

TRANSPORTATION:

Turn off the engine. Make sure the blade are not bent or damaged when you are pus-

hing the mower over obstacles.

HANDLE

You can fold your lawn mower handle for storage.

Loosen lever A on sides of the upper handle and

pivot entire handle assembly forward and allow it to

2.When setting up

your handle from the storage po-

sition, loosen lever A on both sides. and rotate handle

and set it to new catch desired.

rest on mower. Re-tighten lever A.

TROUBLESHOOTING POINTS

Ensure the engine and blades are stopped and the spark plug disconnected before performing any

maintenance, do not touch the engine mu󰀪er after use at very high temperature.

ATTENTION

Before the mower is stored, make sure the engine cool.

TRANSPORTATION

Turn o󰀨 the engine. Make sure the blade are not bent or damaged when you are pushing the mower

over obstacles.

GBGB

13 14

CYLINDER

1.Remove spark plug.

2.Pour one ounce (29ml) of oil through spark plug

hole into cylinder.

3.Pull starter handle slowly a few times to distribute oil.

4.Replace with new spark plug.

OTHER

Do not store gasoline from one season to another.

Replace your gasoline can if your can starts to rust.

Rust and /or dirt in your gasoline will cause problems.

If possible, store your unit indoors and cover it to

give protection from dust and dirt.

Cover your unit with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form

and will cause your unit to rust.

CAUTION: Never store the lawn mower

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

IMPROTANT: NEVER COVER MOWER

WHILE ENGINE AND EXHAUST AREAS

ARE STILL WARM.

carburetor if using fuel stabilizer.

Drain oil (with engine warm) and replace with clean

engine oil. (See ENGINE in the CUSTOMER RES-

PONSIBILITIES section of this manual).

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL SYSTEM

PARTS SUCH AS CARBURETOR. FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS(CALLED GASOHOL OR USING ETHANOL

OR METHANOL) CAN ATTRACT MOISTURE WHICH

LEADS TO SEPARATION AND FORMATION OF

ACIDS DURING STORAGE. ACIDIC GAS CAN DA-

MAGE THE FUEL SYSTEM OF AN ENGINE WHILE

IN STORAGE.

utes after adding stabilizer to allow the stabilizer to

reach the carburetor. Do not drain the gas tank and

Drain the fuel tank.

Start the engine and let it run until the fuel lines and

carburetor are empty.

Never use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative

in minimizing the formation of fuel gum deposits dur-

ing storage. Add stabilizer to gasoline in fuel tank or

storage container. Always follow the mix ratio found

on stabilizer container. Run engine at least 10 min-

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

1.Dirty air filter.

2.Out of fuel.

3.Stale fuel.

4.Water in fuel.

5.Spark plug wire is

disconnected.

6.Bad spark plug.

7.Loose blade or broken

blade adapter.

8.Control bar in released

position.

9.Control bar defective.

1.Clean/replace air filter.

2.Fill fuel tank.

3.Drain tank and refill with fresh clean fuel.

4.Drain fuel tank and carburetor a

nd refill tank with fresh gasoline.

5.Connect wire to plug

6.Replace spark plug.

7.Tighten blade bolt or replace

blade adapter.

8.Depress control bar to handle.

9.Replace control bar.

Does not start

1.Engine flywheel brake is on when

control bar is released.

2.Bent engine crankshaft.

3.Blade adapter broken.

4.Blade dragging in grass.

1.Depress control bar to upper

handle before pulling starter rope.

2.Contact a qualified service center.

3.Replace blade adapter.

4.Move lawn mower to cut grass or

to hard surface.

1.Cutting height too low.

2.Lift on blade worn off.

3.Catcher not venting air.

1.Raise cutting height.

2.Replace blade.

3.Clean grass catcher.

1.Grass is too high or wheel height

is too low.

2.Rear of lawn mower housing/blade

dragging in grass.

3.Grass catcher too full.

4.Handle height position not right for you.

1.Raise cutting height

2.Raise rear of lawn mower housing

one (1) setting higher.

3.Empty grass catcher.

4.Adjust handle height to suit.

1. Belt wear.

2.Belt off of pulley.

3.Dirt in drive pinions.

1.Check/replace drive belt.

2.Check/reinstall drive belt.

3.Clean drive pinions.

Grass catcher not filling

(If required)

Hard to push

Loss of drive

(Power propelled)

Starter rope hard to pull

1.Rear of lawn mower housing of

cutting blade dragging in heavy grass.

2.Cutting too much grass.

3.Dirty air filter.

4.Buildup of grass, leaves, and

trash under mower.

5.Too much oil in engine.

6.Walking speed too fast.

1.Set to Higher Cut position.

2.Set to Higher Cut position.

3.Clean/replace air filter.

4.Clean underside of mower housing.

5.Check oil level.

6.Cut at slower walking speed.

1.Worn, bent or loose blade.

2.Wheel heights uneven.

3.Buildup of grass, leaves and trash

under mower.

1.Replace blade. Tighten blade bolt.

2.Set all wheels at same height.

3.Clean underside of mower housing.

1.Worn, bent or loose blade.

2.Bent engine crankshaft.

1.Replace blade. Tighten blade bolt.

2.Contact a qualified service center.

Loss of power

Poor cut-uneven

Excessive vibration

1)Ensure the engine and blades are stopped and the spark plug disconnected

before performing any maintenance, do not touch the engine muffler after use

at very high temperature.

ATTENTION: Before the mower is stored, make sure the engine cool.

TRANSPORTATION:

Turn off the engine. Make sure the blade are not bent or damaged when you are pus-

hing the mower over obstacles.

HANDLE

You can fold your lawn mower handle for storage.

Loosen lever A on sides of the upper handle and

pivot entire handle assembly forward and allow it to

2.When setting up

your handle from the storage po-

sition, loosen lever A on both sides. and rotate handle

and set it to new catch desired.

rest on mower. Re-tighten lever A.

GBGB

13 14

CYLINDER

1.Remove spark plug.

2.Pour one ounce (29ml) of oil through spark plug

hole into cylinder.

3.Pull starter handle slowly a few times to distribute oil.

4.Replace with new spark plug.

OTHER

Do not store gasoline from one season to another.

Replace your gasoline can if your can starts to rust.

Rust and /or dirt in your gasoline will cause problems.

If possible, store your unit indoors and cover it to

give protection from dust and dirt.

Cover your unit with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form

and will cause your unit to rust.

CAUTION: Never store the lawn mower

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

IMPROTANT: NEVER COVER MOWER

WHILE ENGINE AND EXHAUST AREAS

ARE STILL WARM.

carburetor if using fuel stabilizer.

Drain oil (with engine warm) and replace with clean

engine oil. (See ENGINE in the CUSTOMER RES-

PONSIBILITIES section of this manual).

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL SYSTEM

PARTS SUCH AS CARBURETOR. FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS(CALLED GASOHOL OR USING ETHANOL

OR METHANOL) CAN ATTRACT MOISTURE WHICH

LEADS TO SEPARATION AND FORMATION OF

ACIDS DURING STORAGE. ACIDIC GAS CAN DA-

MAGE THE FUEL SYSTEM OF AN ENGINE WHILE

IN STORAGE.

utes after adding stabilizer to allow the stabilizer to

reach the carburetor. Do not drain the gas tank and

Drain the fuel tank.

Start the engine and let it run until the fuel lines and

carburetor are empty.

Never use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative

in minimizing the formation of fuel gum deposits dur-

ing storage. Add stabilizer to gasoline in fuel tank or

storage container. Always follow the mix ratio found

on stabilizer container. Run engine at least 10 min-

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

1.Dirty air filter.

2.Out of fuel.

3.Stale fuel.

4.Water in fuel.

5.Spark plug wire is

disconnected.

6.Bad spark plug.

7.Loose blade or broken

blade adapter.

8.Control bar in released

position.

9.Control bar defective.

1.Clean/replace air filter.

2.Fill fuel tank.

3.Drain tank and refill with fresh clean fuel.

4.Drain fuel tank and carburetor a

nd refill tank with fresh gasoline.

5.Connect wire to plug

6.Replace spark plug.

7.Tighten blade bolt or replace

blade adapter.

8.Depress control bar to handle.

9.Replace control bar.

Does not start

1.Engine flywheel brake is on when

control bar is released.

2.Bent engine crankshaft.

3.Blade adapter broken.

4.Blade dragging in grass.

1.Depress control bar to upper

handle before pulling starter rope.

2.Contact a qualified service center.

3.Replace blade adapter.

4.Move lawn mower to cut grass or

to hard surface.

1.Cutting height too low.

2.Lift on blade worn off.

3.Catcher not venting air.

1.Raise cutting height.

2.Replace blade.

3.Clean grass catcher.

1.Grass is too high or wheel height

is too low.

2.Rear of lawn mower housing/blade

dragging in grass.

3.Grass catcher too full.

4.Handle height position not right for you.

1.Raise cutting height

2.Raise rear of lawn mower housing

one (1) setting higher.

3.Empty grass catcher.

4.Adjust handle height to suit.

1. Belt wear.

2.Belt off of pulley.

3.Dirt in drive pinions.

1.Check/replace drive belt.

2.Check/reinstall drive belt.

3.Clean drive pinions.

Grass catcher not filling

(If required)

Hard to push

Loss of drive

(Power propelled)

Starter rope hard to pull

1.Rear of lawn mower housing of

cutting blade dragging in heavy grass.

2.Cutting too much grass.

3.Dirty air filter.

4.Buildup of grass, leaves, and

trash under mower.

5.Too much oil in engine.

6.Walking speed too fast.

1.Set to Higher Cut position.

2.Set to Higher Cut position.

3.Clean/replace air filter.

4.Clean underside of mower housing.

5.Check oil level.

6.Cut at slower walking speed.

1.Worn, bent or loose blade.

2.Wheel heights uneven.

3.Buildup of grass, leaves and trash

under mower.

1.Replace blade. Tighten blade bolt.

2.Set all wheels at same height.

3.Clean underside of mower housing.

1.Worn, bent or loose blade.

2.Bent engine crankshaft.

1.Replace blade. Tighten blade bolt.

2.Contact a qualified service center.

Loss of power

Poor cut-uneven

Excessive vibration

1)Ensure the engine and blades are stopped and the spark plug disconnected

before performing any maintenance, do not touch the engine muffler after use

at very high temperature.

ATTENTION: Before the mower is stored, make sure the engine cool.

TRANSPORTATION:

Turn off the engine. Make sure the blade are not bent or damaged when you are pus-

hing the mower over obstacles.

HANDLE

You can fold your lawn mower handle for storage.

Loosen lever A on sides of the upper handle and

pivot entire handle assembly forward and allow it to

2.When setting up

your handle from the storage po-

sition, loosen lever A on both sides. and rotate handle

and set it to new catch desired.

rest on mower. Re-tighten lever A.

WARRANTY

Proper maintenance of your Bushranger™ Lawn Mower is the owner’s responsibility. Follow the

instructions in your owners guide for correct lubricants and maintenance schedule. Your

Bushranger™ dealer carries a complete line of quality lubricants and lters for your equipments

engine, transmission, chassis and attachments.

We provide an extensive warranty from date of purchase: see below warranty chart. During that time

we will replace free of charge replacement of any part or parts found to be defective in material or

workmanship or both, after examination by an authorised Bushranger™ dealer, or by the service

department of Bushranger™.

If your lawnmower has malfunctioned within the warranty period, and on presentation of a properly lled

in warranty certicate and the purchase invoice, please contact your local Bushranger™dealer.

All normal wear and tear and/or consumable parts are protected from manufacturer’s defects in material

and workmanship for a period of thirty (30) days from the date of purchase.

Damages caused by an inappropriate or faulty operation, by non-observance of the safety regulations

and operating instructions contained in this manual, by unauthorised repairs or a dismantling of the

machine by unauthorised persons, or any other deciency that cannot be attributed to faulty workmanship

or materials, do not fall under this guarantee. Such deciencies, malfunctions or damages are the sole

responsibility of the owner, and eventually necessary repairs are at the owner’s expense.

This limited warranty gives you specic legal rights, and which is in addition to any statutory rights

to which you may be entitled and your statutory rights are not a󰀨ected by this warranty. If you need

additional information concerning this written warranty, or assistance in obtaining services, please

contact:

Powerup Lawn Care

a division of

Roy Gripske & Sons Pty. Ltd

11 Sodium St, Narangba QLD 4504

Telephone: 1300 363 027

Fax: 1800 332 213

Email: [email protected]

For more information please visit our website:

poweruplawncare.com.au

WARRANTY

NAME QTY. REMARK

Lawn Mower

Grass Catcher

Mulching Plug

Engine Operator’s Manual

Lawn Mower Operator’s Manual

Lawn Mower Packing List

Record of maintenance/service works

Date Type Content Maintenance

Technician Remarks

Visit www.rgs.com.au or call 1300 363 027 for more information.

Bushranger™is a trademark of Roy Gripske & Sons Pty Ltd. PLP shall not be liable for technical or editorial errors

or omissions contained herein, nor for incidental or consequential damages resulting from furnishing this material. The

information is provided “as is” without warranty of any kind and is subject to change without notice. PLP also reserves

the right to revise the content of this document at any time without prior notice. No part of this document may be

reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or

storing in a retrieval system, or translated into any language form without prior written permission of PLP.

Powerup Lawncare Products

Phone 1300 363 027

Fax: 1800 332 213

Email: [email protected]

Web: www.rgs.com.au

Table of contents

Other Bushranger Lawn Mower manuals

Bushranger

Bushranger 48AB6IM User manual

Bushranger

Bushranger 7101E-RIDER User manual

Bushranger

Bushranger 46TB55M User manual

Bushranger

Bushranger 53TBU65 User manual

Bushranger

Bushranger 46TBU6 User manual

Bushranger

Bushranger BRU36v9501 User manual

Bushranger

Bushranger 600SF User manual

Bushranger

Bushranger BRU36v9601 User manual

Bushranger

Bushranger 500SF User manual

Bushranger

Bushranger 530SPB User manual

Bushranger

Bushranger BUSH46TKU6 User manual

Bushranger

Bushranger 48AL7M User manual

Bushranger

Bushranger 46TBU7 User manual

Bushranger

Bushranger 46TB5 User manual

Popular Lawn Mower manuals by other brands

Toro

Toro Recycler 21463 owner's manual

MTD

MTD 123-332A owner's manual

RedMax

RedMax CWP21 Operator's manual

Rover

Rover 7091 Features & benefits

Toro

Toro 13-32XLE Wheel Horse Operator's manual

MTD

MTD 54M Series Operator's manual

Husqvarna

Husqvarna LTH2038 Operator's manual

Toro

Toro 77281 Operator's manual

Craftsman

Craftsman 917.37841 owner's manual

Sunlawn

Sunlawn MM-2 owner's manual

Craftsman

Craftsman CMCMW270Z1 user manual

MTD

MTD 131-410A owner's guide

LELY

LELY SPLENDIMO 320 PC manual

Husqvarna

Husqvarna LZ30XP parts manual

Craftsman

Craftsman 25741 instruction manual

Ariens

Ariens 936047 Operator's manual

DEK

DEK Z-BEAST 62ZB owner's manual

Craftsman

Craftsman 917.374367 owner's manual

Bushranger 53AH6IMSP User manual

Popular Lawn Mower manuals by other brands
