PARK BENCH WITH
SOLAR LIGHTS
Model 95845
SETUP AND OPERATION INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND
ALL WARNINGS AND INSTRUCTIONS BEFORE USE.
Copyright©2007 by Harbor Freight Tools®. All rights reserved. No portion of this manual
or any artwork contained herein may be reproduced in any shape or form without the
express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.

Page 2
SKU 95845 For technical questions, please call 1-800-444-3353
SPECIFICATIONS
Bench Dimensions 48” Long x 15-1/4” Deep x 14-1/4” High (Back Rest)
16” High from Ground
Light Panels Qty. 6 “V” Design Crinkled Panels with LED Lighting
Solar Panel Mount 9.33 Ft. Long Cord
Batteries 3 Rechargeable “AA” 1.2V 500mAH (Included)
Net Weight 31.1 Lbs.
Maximum Weight Capacity 400 lb.
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instruc-
tions, operating and maintenance procedures, parts list and diagram. Keep your invoice with
this manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in electric
shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit. Dark areas invite accidents.
Keep bystanders, children, and visitors away while assembling this product.
PERSONAL SAFETY.
Replace or repair damaged or worn parts immediately.
Do not exceed the max. weight capacity of 400 lb. Injury could occur if the bench
is overloaded or unbalanced.
Do not stand or climb on this bench.
Do not set up this product if under the influence of alcohol or drugs. Read warning
labels on prescriptions to determine if your judgement or reflexes are impaired while
taking drugs. If there is any doubt, do not attempt to use this product.
Use eye protection when assembling this product. Wear ANSI-approved safety
impact eye goggles when assembling this product.
Two adults are better at assembling this product. Be careful not to pinch fingers
between the wooden seat slats.
1.
2.
1.
2.
3.
4.
5.
6.

Page 3
SKU 95845 For technical questions, please call 1-800-444-3353
Do not allow children to play on this Park Bench. Children under 10 years of age
should be accompanied by an adult. Do not let children stand on this Park Bench. The
Bench could topple if overloaded or if weight is distributed unevenly.
Do not let children or animals near the power source of this product.
Check for damaged parts. Before using this product, carefully check that it will oper-
ate properly and perform its intended function. Check for damaged parts and any other
conditions that may affect its operation. Service and maintenance should be performed
by a qualified technician. LED lights are designed to last for a very long time. They
should not need to be replaced.
Do not force any part of the assembly and do not overtighten the bolts. Serious
damage can occur.
Use this product ONLY with the Solar Panel with Stake and Cord that accompa-
nies this product. Do not use any other accessory.
The Solar Panel with Stake must be placed where sunlight can recharge the Solar
Lights. Placing it in a shady area or near a street light will cause the Solar Park Bench
to not light up.
When placing the Solar Panel with Stake into the ground, avoid any electrical
wires or plumbing underground that are not visible.
Avoid accidently cutting the electrical cord attached to the Solar Panel with Stake
and to the Bench. This electric cord could cause tripping or be accidently cut by a lawn
mower or gardening equipment. Avoid water around the cord. Always be cautious and
avoid electrical shocks. Do not use if the cord is frayed or worn. If cord is damaged,
contact a qualified technician to replace the electric cord.
Use only on a flat, level surface that is capable of withstanding the weight of the
Park Bench (31 lb.) and the Bench’s max weight capacity (400 lb.)
The warnings, precautions, and instructions discussed in this instruction
manual cannot cover all possible conditions and situations that may occur. It
must be understood by the operator that common sense and caution are factors
which cannot be built into this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS.
UNPACKING
When unpacking, check to make sure that the item is intact and undamaged. If any
parts are missing or broken, please call Harbor Freight Tools at the number on the cover of
this manual as soon as possible.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.

Page 4
SKU 95845 For technical questions, please call 1-800-444-3353
ASSEMBLY
We suggest you assemble the unit on a soft surface to avoid damage to the finish.
Attach the five wooden Seat Slats (3) onto the right and left Arm Rests (1) using the
Screws (9) on the top side of the Slats and the Washers (8) and Nuts (10) on the
underside. Hand tighten. See Figure 1.
5
7 & 8
FIGURE 2
3
Attach the Seat Brace (5) to the wooden Seat Slats (3) using the Tap Screws (7).
Tighten all hardware after assembly. See Figure 2.
Note: It may become necessary to enlarge the holes in the Seat Slats (3). Clear the hole of
paint or varnish by sliding a bolt through the hole or using a drill (not included).
1.
2.
1
19, 8 & 10
3
1
8, 9 &10
3FIGURE 1
1
19, 8 & 10
3
1
8, 9 &10
3FIGURE 1
07f
7

Page 5
SKU 95845 For technical questions, please call 1-800-444-3353
Armrest (1)
Screw (6)
FIGURE 3
Backrest (2)
Attach the Back Assembly with LED Lights (2) to the Armrest (1), right and left. Use
the four Screws (6) through the brackets on both Armrests (1) and through the Back
Assembly (2). Tighten Screws. See Figure 3.
To secure the Bench to the ground, hammer the Ground Nails (9) through the pre-drilled
holes at the base of each leg. Make sure that when hammering nails into ground that
the area is clear of any underground wires or cables.
3.
4.

Page 6
SKU 95845 For technical questions, please call 1-800-444-3353
OPERATING THE PARK BENCH

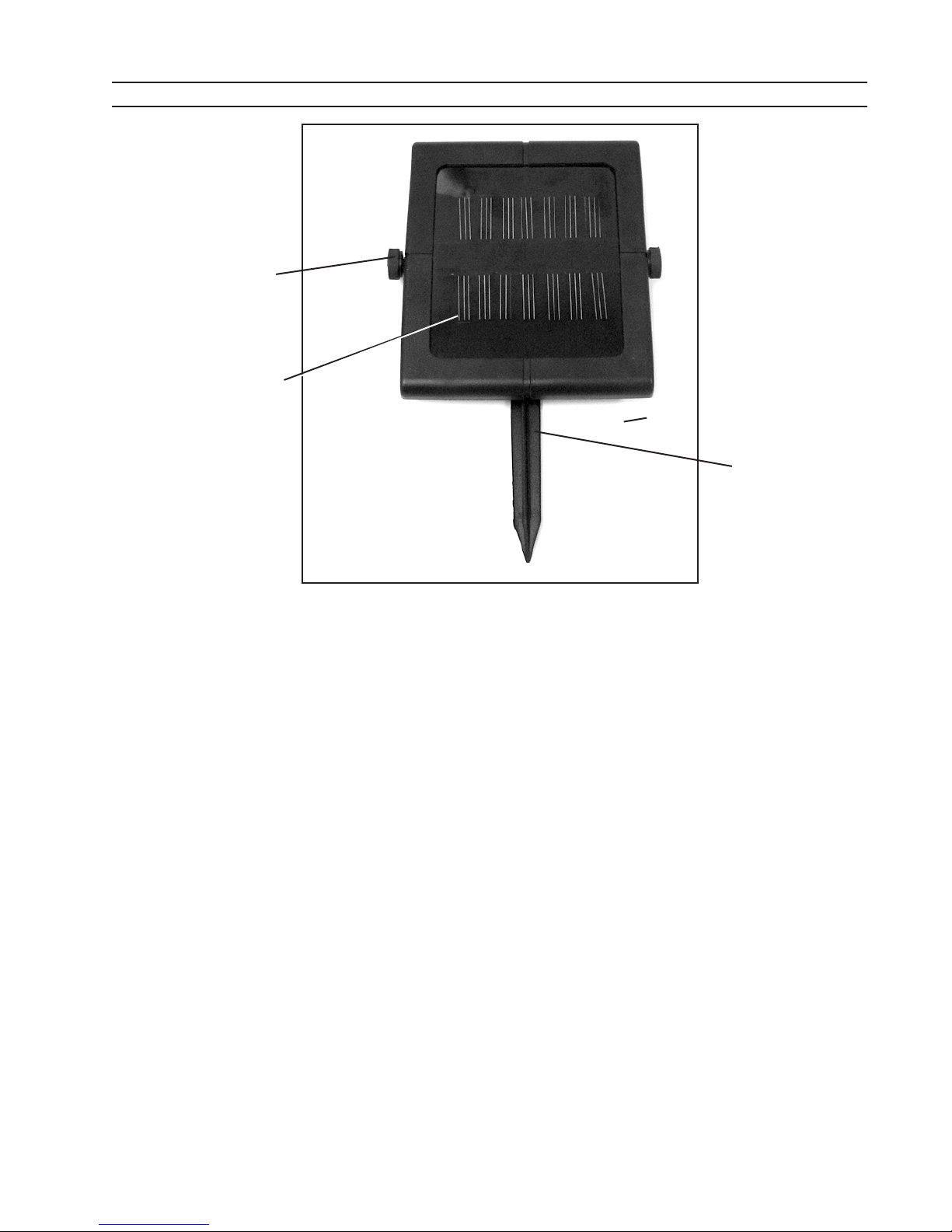

FIGURE 4
Side Knob
Solar Panel
Stake
Place the Park Bench in a location where the sun can shine on the Solar Panel. Attach
the Power Cord to the Solar Panel with Stake (4). Anchor or bury the Power Cord to
avoid someone tripping over the wires. (Power Cord not shown above. See assembly
drawing on page 8). See Figures 3 & 4.
Press the Solar Panel with Stake (4) into the Ground.
1.
2.

Page 7
SKU 95845 For technical questions, please call 1-800-444-3353
FIGURE 5
Power Cord Leading
to the Solar Panel with
Stake (4) (not shown)
Warning: Avoid any electrical wires or cables hidden underground.
Use the two side knobs on the side of the Solar Panel (4) to tilt the Solar Panel to ab-
sorb the suns rays for charging. See Figure 4 on page 5.
With the Cord from the back of the Park Bench connected to the Solar Panel with Stake
(4), allow eight to twelve hours for the charge from the sun to take affect.
Have the Power Switch (11) that is on the back of the Solar Panel (4) in the “ON” po-
sition. Leave it in the “ON” position all the time. The sensor shuts it off when daylight
comes. If you do not want the Park Bench to light up at night, turn the Switch to the
“OFF” position. See Figure 6, next page.
Shade will limit the amount of light you get from your product.The LED Bulbs in the Seat
Back Assembly (2) are long lasting and non-replaceable. After being in the sunlight for
at least 8 hours of charging time and the light does not come on, check your batteries.
The battery life is about one year in normal conditions
REPLACING THE BATTERIES
The batteries are standard “AA” 500 mAH rechargeable batteries. If the lights remain
dim or do not come on at all, replace the batteries.
3.
4.
5.
6.
6.
1.

Page 8
SKU 95845 For technical questions, please call 1-800-444-3353
PARTS LIST
Part Description Q’ty
1 Arm Rest (right/left) 2
2 Back Assembly with LED Lights and Cord 1
3 Wood Slat 5
4 Solar Panel with Stake 1
5 Seat Brace 2
6 Screw (6 X 15mm) 5
7 Tap Screw (5 X 15mm) 10
8 Washer 10
9 Screw (6 X 32mm) 10
10 Nut 10
11 Power Switch 1
12 Ground Nail 4
(6)
(7)
(8)
(9)
(10)
ASSEMBLY DIAGRAM
Note: Some parts are listed as shown for illustration purposes only and are not available individually as
replacement parts.
1
4
5
7
3
2
6
6
6
6
12
9
8
10
11
