BVE SENZA User manual

BroadcastVision Entertainment Technical Support
Telephone: [phone] ext.3
Email: [email protected]
Page 1

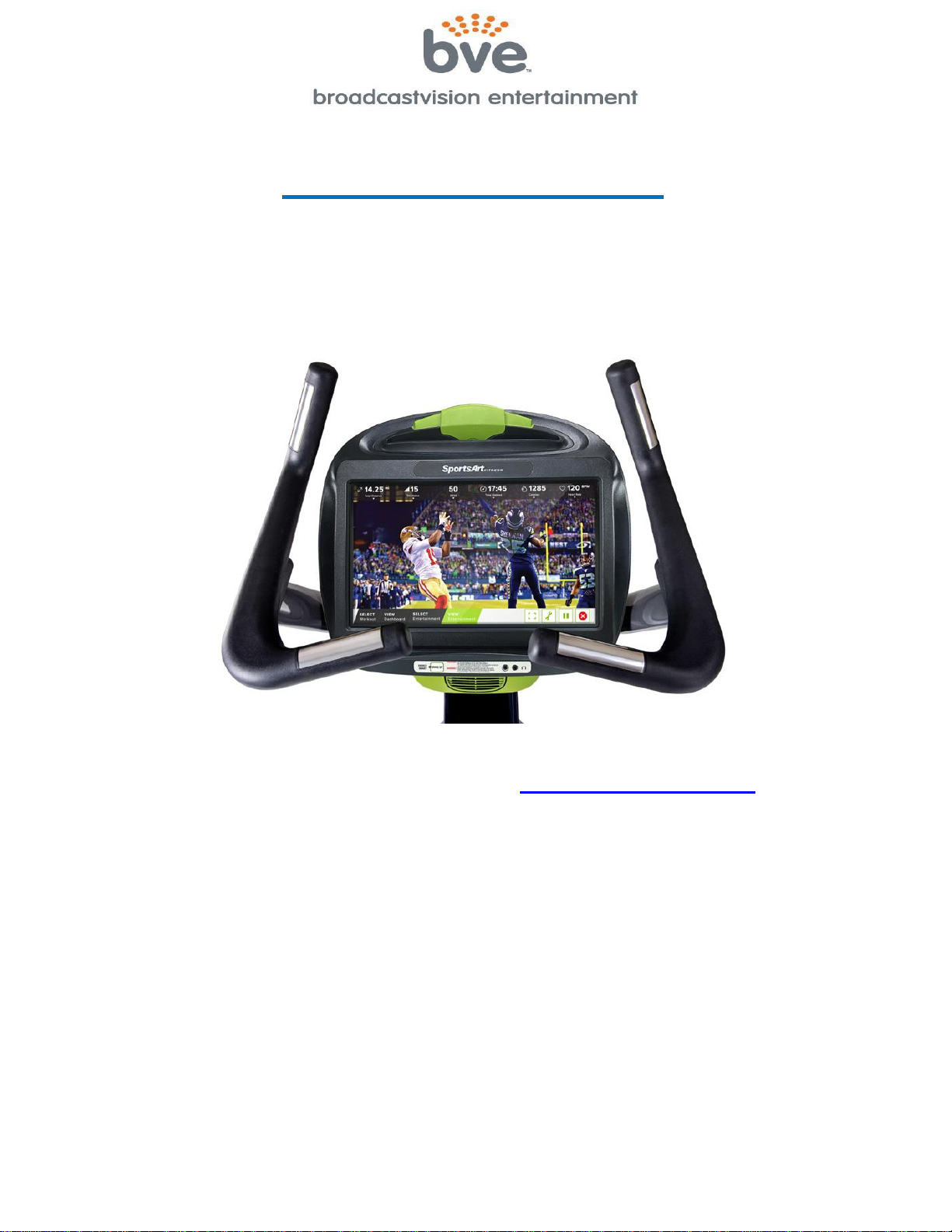

CAB –SPORTSART
The new SENZA console from SportsArt facilitates console control of
any cable, satellite or IPTV set top box using the CAB from
Broadcastvision Entertainment.
Online Service Manuals available at: www.broadcastvision.com
Benefits:
• Eliminates the hand-held battery operated remotecontrol.
• Members can control the TV using cardio equipment consolecontrols.
• An expensive head-end system is notrequired.
• Club operators can choose ANY cable, satellite or IPTVprovider.
• TV channels are not restricted. More channels and more HD content.
• Members can access all the channels available per yoursubscription.
• No troublesome wireless devices to manage.
• Proven Technology - Broadcastvision first offered a solution for set
topbox control in 2011 and is the clear-cut market leader in this
technology.

BroadcastVision Entertainment Technical Support
Telephone: [phone] ext.3
Email: [email protected]
Page 2
Your CAB is enabled for an application as follows:
Proposal Number:
Set Top Box:
Console Description: SportsArt Senza
If your equipment differs from the information above, please call BVE technical support
at 1(888)330-4283 ext.3 for instructions on how to reprogram the CAB onsite.
CAB CONFIGURATION
The CAB ships pre-configured by BVE for the target STB at customer facility. Normally,
no additional configuration steps are required. If the CAB does not work for any
reason, please call technical support at 1(888)330-4283 ext.3 before leaving the
facility. BVE’s technical support staff is happy to help troubleshoot issues to get the
CAB working properly.
The CAB contains 8 dip-switches internally. Normally these should all be in the OFF
position. To help solve specific deployment compatibility challenges, BVE Technical
Support may instruct that some of the switch positions be changed –see the
Troubleshooting section at the end of this manual for common settings or call
Broadcastvision technical support for additional assistance.
Note: The Broadcastvision CAB should always be installed after the cable/satellite
service has already been installed, and you have a picture on the screen. If the Set Top
Box (STB) is not available at the time of installation you can still run all of the wires and
hook up the CAB, but you will not be able to test the CAB to make sure that it is changing
channels on the STB.

BroadcastVision Entertainment Technical Support
Telephone: [phone] ext.3
Email: [email protected]
Page 3
INSTALLATION

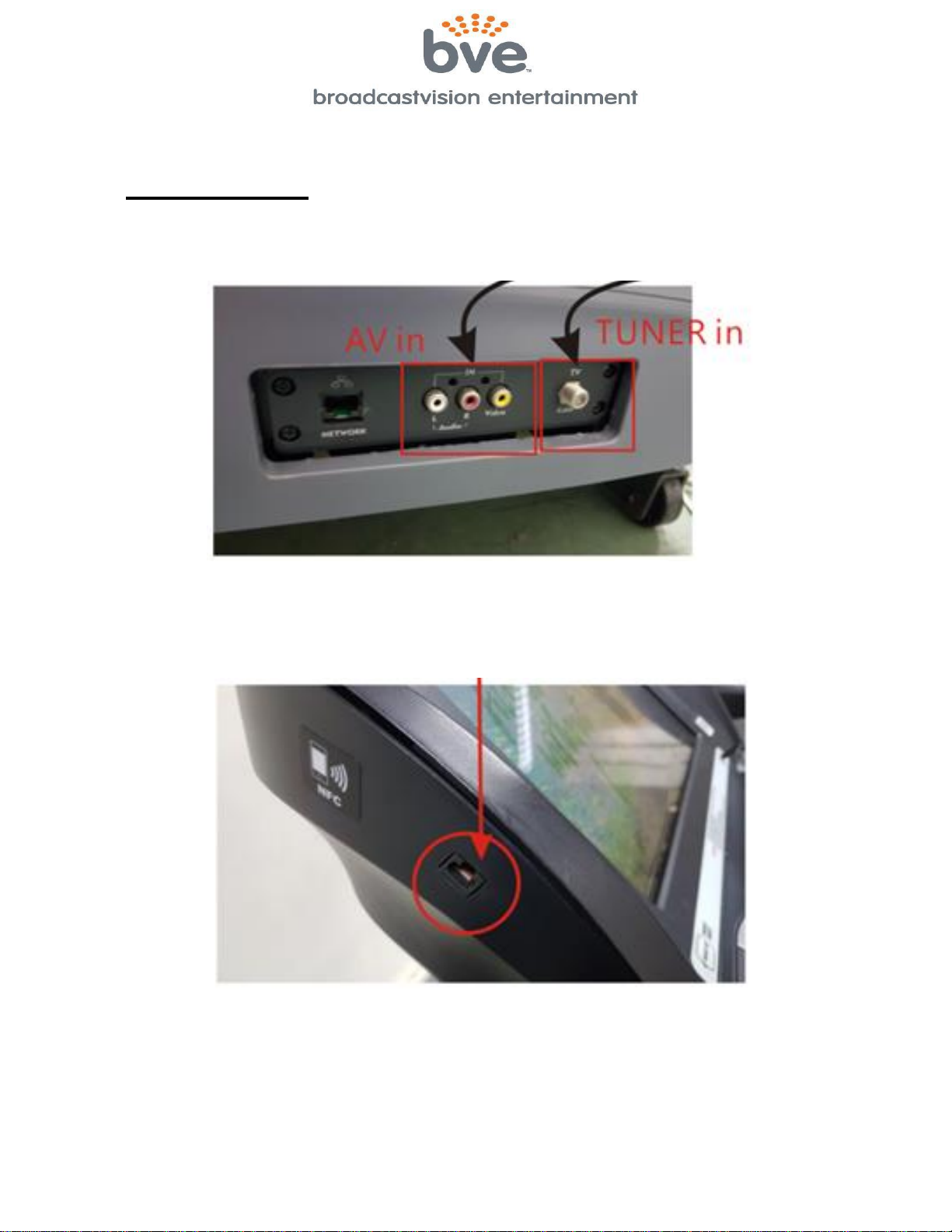

1. Connect the cable/satellite Set Top Box (STB) to either the AV input or the tuner
(coax) input at the base of the SportsArt machine.
2. Connect the CAB to the RJ45 CSAFE port located on the side of the console
(Pictured below).
3. Once the CAB is hooked up it will connect to either the set top box or a cat5/6
cable for sending the signal to an AV closet.

BroadcastVision Entertainment Technical Support
Telephone: [phone] ext.3
Email: [email protected]
Page 4

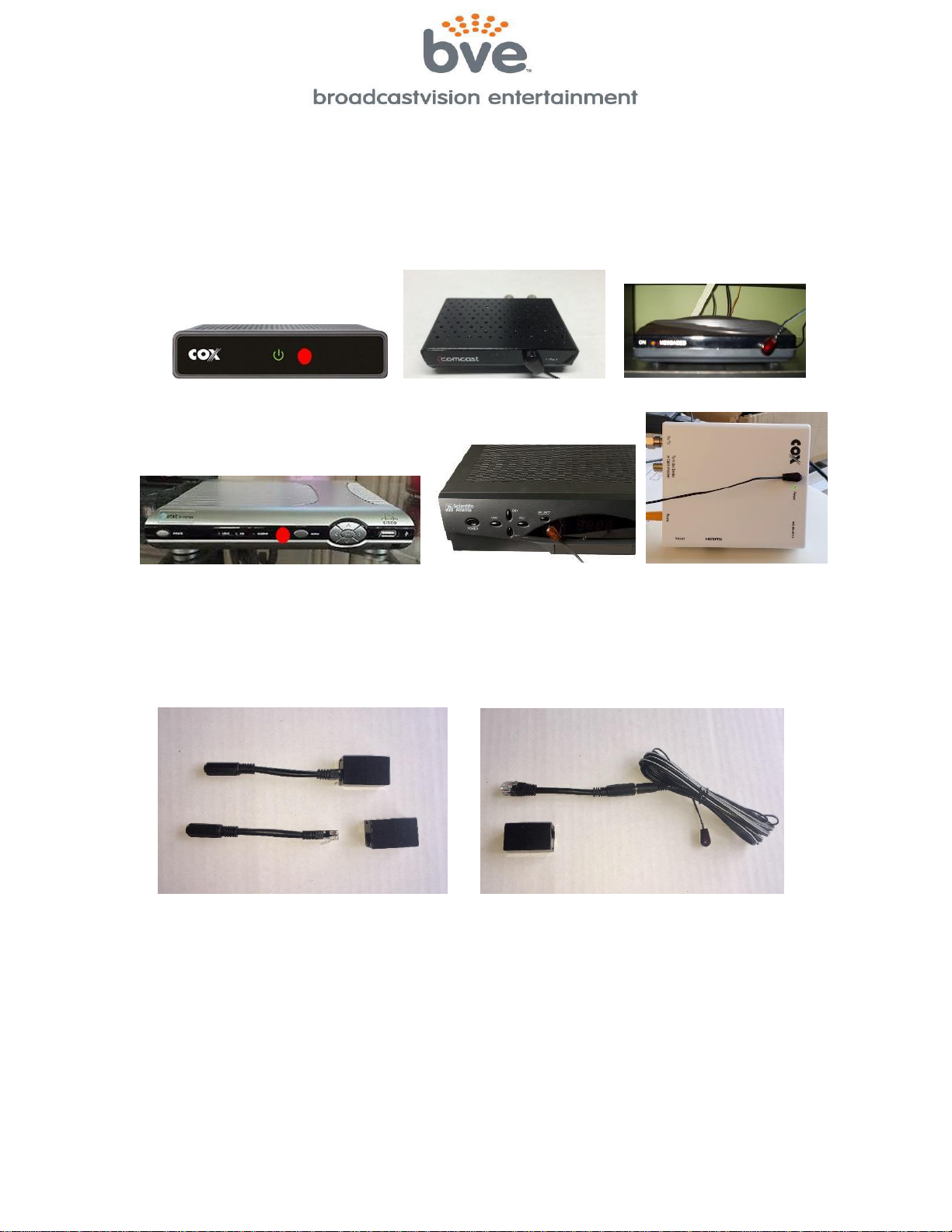

4. The IR emitter should be placed over the infrared eye on the front of the set top
box. If you cannot see where the IR eye is on the front of the STB, shining a
flashlight at the front of the box will usually help you to see the IR eye. Please
see the IR eye locations of some of the most common STB’s below:
5. If the set top boxes are located in another room, cat5 adapters (pictured below)
will allow you to use a standard cat5/6 wire to pass the IR signal back to the AV
closet.

BroadcastVision Entertainment Technical Support
Telephone: [phone] ext.3
Email: [email protected]
Page 5
CONSOLE CONFIGURATION
Note:
* Your console must have these versions of firmware or newer in order to support the CAB
feature: Treadmill v0.31or newer, Bike / Elliptical v0.32 or newer.
Connecting to the coax input (Tuner in):
1. Press the Settings icon in the upper right corner of the Main Menu page.
(Please refer to SENZA Manual for the Password)
2. Turn on the TV Enabled option and select TV Type Cable.
3. Press menu key in VIRTUAL CONTROLLER.
4. Press enter key to change to Cable in the Air/Cable section. Then press the down
arrow key to highlight Auto Scan and press the enter key.
1.
2.
3.
4.

BroadcastVision Entertainment Technical Support
Telephone: [phone] ext.3
Email: [email protected]
Page 6
5. Press the right arrow key to start the auto scan.
6. After scanning can press the CH +, and CH- buttons to see how many channels have
been saved. Your stb will usually output its signal on channel 3 or 4. Make sure the TV is on
the correct channel that displays the picture from the cable/satellite box before you proceed
to the next step.
7. Finally, turn on the CAB Enabled option to activate the CAB.
Connecting to the AV input (AV in):
1. Press the Settings icon in the upper right hand corner of the Main Menu page.
(Please refer to SENZA Manual for the Password)
2. Turn on the TV Enabled and CAB Enabled options and select TV Type AV in.
3. Press the CH +, and the CH- below to test that the channels are changing.
After finishing the Cable/AV settings above, you must press on
the top of the right corner of the screen.
5.
1.
2.
3.

BroadcastVision Entertainment Technical Support
Telephone: [phone] ext.3
Email: [email protected]
Page 7

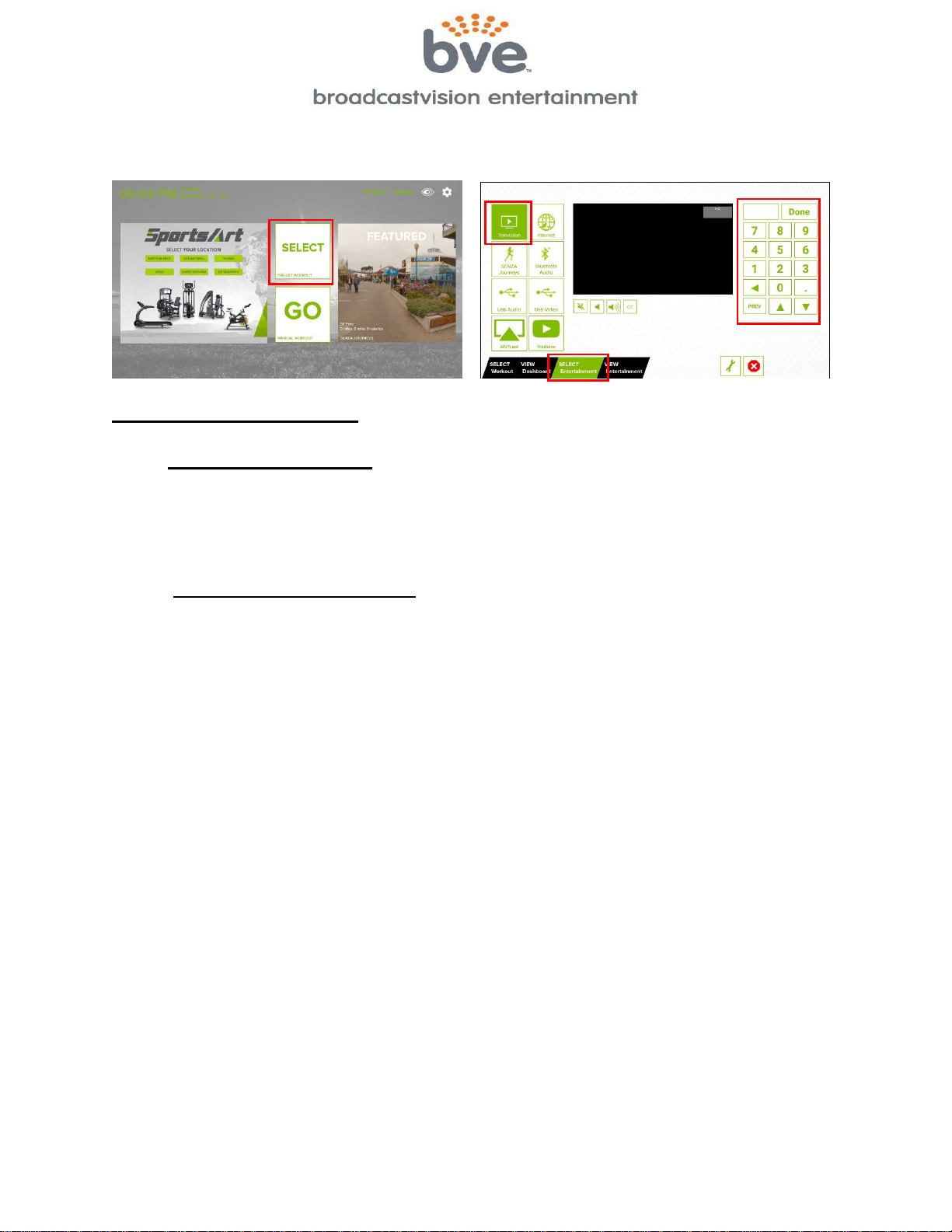

To check for proper operation in Main menu press SELECT, then SELECT ENTERTAINMENT, and
then Television and try to change channel using the controls on right side of the screen.
Troubleshooting Guide:
1. Double button presses –Some set top boxes respond to more than one of the
IR codes that we send out. If you notice that pressing a channel button on the
console results in multiple presses, simply remove the 2 screws that hold the lid
on the CAB and turn on dip switch 2 and 4. If this does not solve the problem,
call [phone] ext.3 for further assistance.
2. No control over set top box
a. Check if CAB is getting power and channel commands from the
console –CAB contains internal LED power lights. Two indicator LEDs
are located on either side of the console-side connector inside the
enclosure.
· GREEN - Power LED, on whenever the CAB is powered
· RED - Activity LED, flashes whenever the CAB receives and processes
commands
The location of the LEDs is such that they should be visible through the
enclosure around the CAB connector to the console.
b. Incorrect IR emitter placement –If the IR emitter is not in the correct
location on the front of the box you may need to move it around until you
find the location that works.
Tip:Try initially holding the IR emitter away from the front of the STB
initially then continue pressing the channel button while “zeroing in” on the
correct IR emitter placement.
c. Set top box is in RF mode –change to IR mode –Many set top boxes
can operate with a hand-held remote in RF or IR mode. For the CAB to
function, it is critical that the STB accepts IR channel commands. To test
if the STB is in RF mode, place your hand over the hand-held remote
control IR transmitter and see if the STB receives channel change

BroadcastVision Entertainment Technical Support
Telephone: [phone] ext.3
Email: [email protected]
Page 8
commands. If the answer is yes, the STB is in RF mode. Check online for
instructions to change the STB remote control mode from RF to IR.
d. IR signal strength issue –In rare circumstances, the CAB may output
too strong of an IR signal for the set top box IR receiver. To test if the IR
emitter is over-driving the set top box receiver, pull the emitter away from
the front of the set top box, and press the channel button to see if the set
top box now receives the channel command. Opening up the CAB and
turning on dip switch #8 will reduce the IR current by 50% and solve this
issue.
e. No Continuity between CAB and IR emitter –In some circumstances
utilizing the “Far” set top box scenario, the CAT5/6 cable between the set
top box and the CAB may not provide full continuity through wall plates
etc. It may be helpful to re-locate the STB at the base of the cardio and
re-test. Or, it may be helpful to temporarily run an alternate CAT5/6 cable
from the CAB to the set top box then re-test.
f. CAB not programed for the correct set top box - Your CAB is
defaulted for Broadcastvision’s popular “Unicode” setting which provides
control of the most popular cable and IPTV set top boxes including, but
not limited to:
•AT&T Uverse, Brighthouse, Comcast, Time Warner, and Verizon

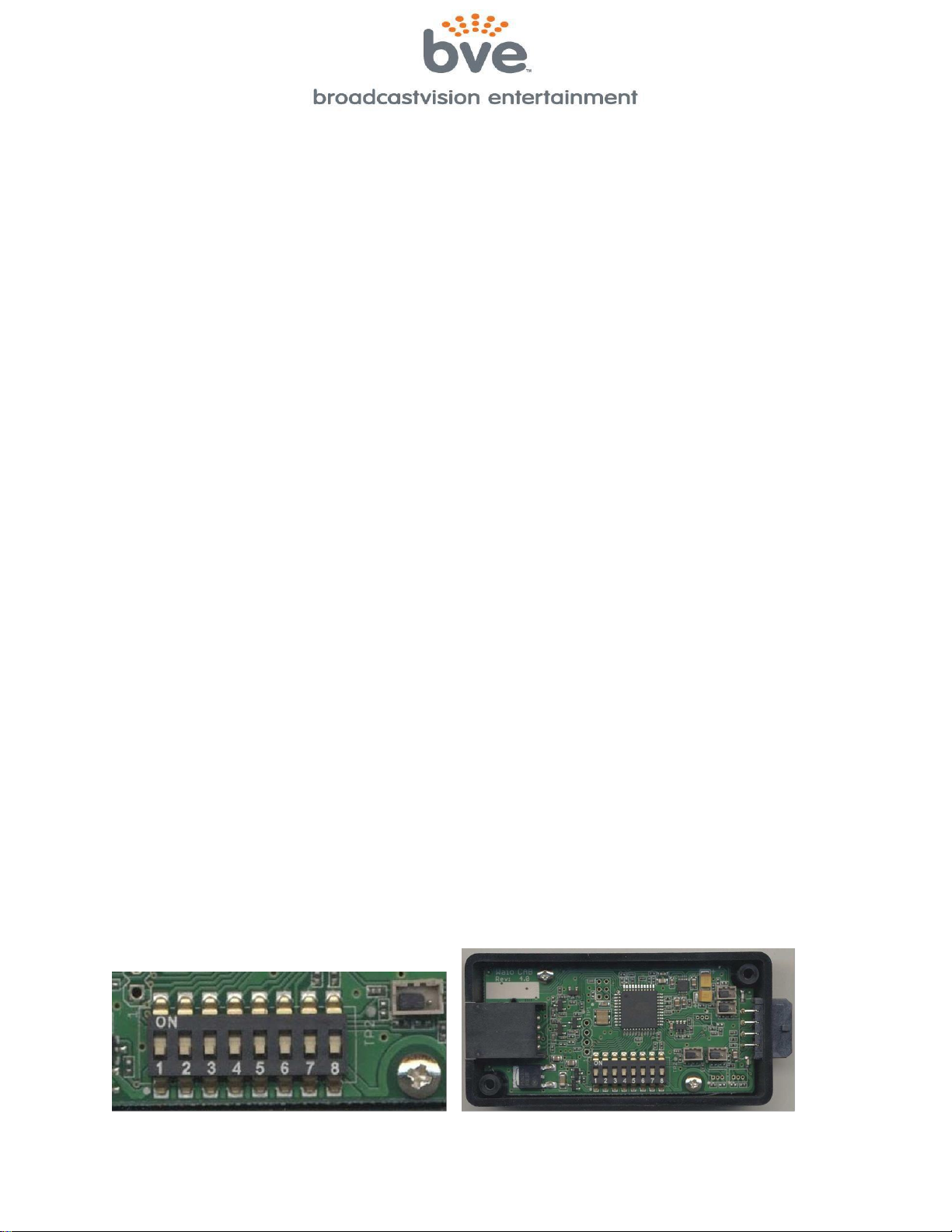

The CAB can be quickly configured on site to operate other popular set top boxes by
flipping dip switches inside the CAB enclosure as pictured below. CAB operates with
many other set top boxes not included in the list below. Please call BroadcastVision
support at 8883304283 x3 to determine the dip switch settings for your cable, satellite,
or IPTV provider.
1 2 3 4 5 = Dip Switch settings for the following set top boxes:
0 0 0 1 1 - CAB will output commands for Amino set top boxes
1 1 1 0 1 - CAB will output commands for Enseo set top boxes
0 0 1 0 1 - CAB will output commands for LG set top boxes
0 1 0 0 1 - CAB will output commands for Rogers set top boxes
1 0 0 0 1 - CAB will output commands for Cox set top boxes
0 1 0 1 0 - CAB will output commands for Charter set top boxes
1 0 0 1 0 - CAB will output commands for Unicode-Satellite for DirecTV and Dish set
top boxes

BroadcastVision Entertainment Technical Support
Telephone: [phone] ext.3
Email: [email protected]
Page 9
