C. Crane Twin Coil Ferrite User manual

PLEASE READ ALL THE INSTRUCTIONS COMPLETELY BEFORE
USE AND SAVE THIS MANUAL FOR FUTURE REFERENCE.
TWIN COIL FERRITE®
AM ANTENNA
BY
C.C.RFINE-

TWIN COIL FERRITE AM ANTENNA Page 3
For your future reference:
Serial No. (Found inside battery compartment): ___________________ _
Date of purchase/ Name & address of dealer: _____________________
_________________________________________________________ _
The box should contain the Antenna Element, AC 9 Volt Adapter, 5’ PS2
Connection Cable, Tuner Control, 1/8” Mono to RCA Connector
Patchcord, 1” Piece of Hook and Loop Fastener for Ferrite Stick,
Mounting Screws, RCA Female Patchcord to Two Bare Wire Ends, and
the Ferrite Stick.
One Year Limited Warranty.
If anything is missing or damaged, please contact C. Crane
immediately. We recommend that you keep the box in the unlikely event
that your product needs servicing.
Unpacking
Thank you for purchasing the Twin Coil Ferrite®AM Antenna by C. Crane.
The antenna can be used on a small portable or desktop radio with
excellent results. It is also the rst AM antenna that can provide
exceptional improvement to a large home stereo system. It can actually
reduce static and radio noise on AM.
Introduction / Owners Record

TWIN COIL FERRITE AM ANTENNAPage 4
Safety Instructions
Please read IMPORTANT SAFETY INSTRUCTIONS before use. It is
important to read and understand all instructions. Keep these
precautions and instructions where all who will use this antenna will read
them.
WARNING: To prevent re or electric shock hazard do not expose
this product to rain or moisture.
CAUTION: To reduce the risk of electric shock, do not open the unit.
No user serviceable parts inside. Refer servicing to qualied service
personnel.
THE LIGHTNING
FLASH AND
ARROWHEAD
WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU
OF "DANGEROUS
VOLTAGE" INSIDE
THE ANTENNA.
CAUTION: TO
REDUCE THE RISK
OF ELECTRIC SHOCK,
DO NOT REMOVE THE
BACK. NO USER
SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
THE
EXCLAMATION
POINT WITHIN
THE TRIANGLE IS
A WARNING SIGN
ALERTING YOU
OF IMPORTANT
INSTRUCTIONS
ACCOMPANYING
THIS ANTENNA.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
w w

TWIN COIL FERRITE AM ANTENNA Page 5
Safety Instructions
READ BEFORE OPERATING EQUIPMENT
SAVE THESE INSTRUCTIONS
1. Read and understand all safety and operating instructions before the
Twin Coil Ferrite AM Antenna by C. Crane is operated.
2. Retain Instructions: The safety and operating instructions should be
retained for future reference.
3. Heed Warnings: All warnings on this appliance and all operating
instructions should be followed.
4. Water and Moisture: The Twin Coil Ferrite AM Antenna should not
be used near water. Do not use near a bathtub, washbowl, laundry
tub, kitchen sink, wet basement, swimming pool, etc. Risk of electric
shock may result.
5. Unplug the Twin Coil Ferrite AM Antenna from the AC power adapter
before cleaning. Only use a damp cloth for cleaning the exterior
surfaces of the antenna.
6. Do not place the Twin Coil Ferrite AM Antenna on an unstable cart,
stand, bracket or table. The antenna may fall, causing serious
personal injury and or damage to the antenna may result.
7. Heat: Never put the Twin Coil Ferrite AM Antenna in direct sunlight or
behind glass such as a car's interior. The antenna should be kept
away from heat sources such as radiators, heat registers, stoves, or
other appliances that produce heat.
8. AC Wall Adapter: The AC Wall Adapter should be positioned so it is
not walked on, pinched, or items placed on top of it. All power and
connector cables should be routed away from walkways or areas of
foot tra󰀩c to avoid being tripped on. Always unplug the AC power
adapter by gripping the adapter unit and pulling it out of the wall
socket. Never pull on the cord. Always operate the Twin Coil Ferrite
AM Antenna using the correct supplied AC wall adapter. Adapters that
are not correctly rated can damage the antenna. If you are not sure of
the correct AC wall adapter, consult your dealer.
9. Never insert objects of any kind into the Twin Coil Ferrite AM Antenna
through openings. The objects may touch dangerous voltage points or
short out parts causing damage to the antenna.

TWIN COIL FERRITE AM ANTENNAPage 6
10. If the antenna is stored for long periods of time, unplug it from the
wall outlet and remove the batteries. This will prevent damage
caused by lightning or power line surges and battery acid from
leaking inside of the antenna.
11. Never attempt to service the Twin Coil Ferrite AM Antenna by
C. Crane yourself. Removing the cover may expose you to
dangerous voltage levels and will void the warranty. Refer all
servicing to authorized service personnel.
12. The Twin Coil Ferrite AM Antenna by C. Crane should be serviced by
qualied service personnel when:
a) Objects have fallen or liquid has been spilled into the antenna;
b) The antenna has been exposed to rain;
c) The antenna does not appear to operate normally or exhibits a
marked change in performance; or
d) The antenna has been dropped or the enclosure damaged.
13. The user should not attempt to service this antenna beyond that
described in the operating instructions. All other servicing should be
referred to qualied service personnel.
Safety Instructions

TWIN COIL FERRITE AM ANTENNA Page 7
Table of Contents
Introduction/Owners Record....................................................
Safety Instructions ..................................................................
Parts List .................................................................................
Initial Setup .............................................................................
Connection to Power................................................................
Battery Installation (Optional) ..................................................
Antenna Operation..................................................................
With a Portable Radio .......................................................
With a Home Stereo ..........................................................
With a Loop Antenna .........................................................
Remote Installation .................................................................
Grounding the Antenna Element..............................................
Outdoor Installation Precautions .............................................
Radio Noise ............................................................................
Radio Noise Troubleshooting...................................................
Specications ..........................................................................
3
4
8
9
10
10
10
10
12
12
13
14
14
14
15
16

TWIN COIL FERRITE AM ANTENNAPage 8

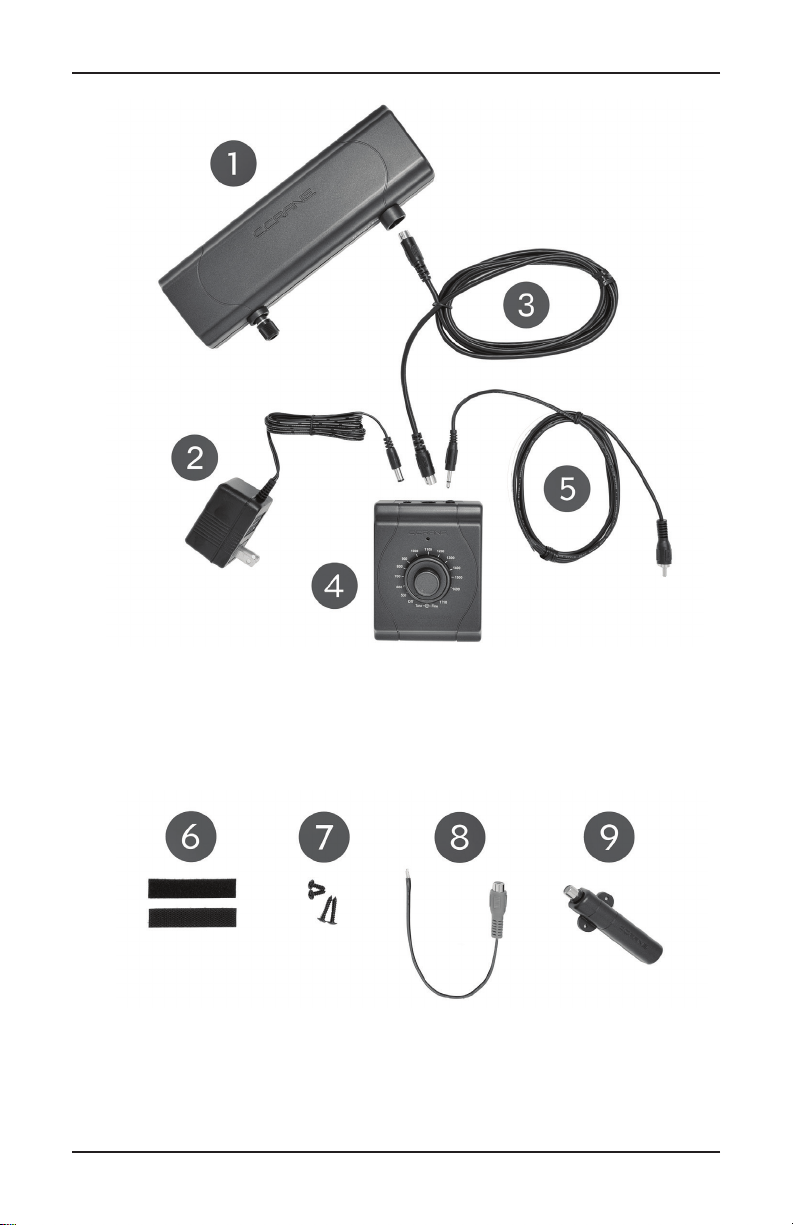

1) Antenna Element
2) AC 9 Volt Adapter
3) 5’ PS2 Connection Cable
6) 1” Piece of Hook & Loop
Fastener for Ferrite Stick
7) Mounting Screws
Parts List
4) Tuner Control
5) 1/8” 5’ Mono to RCA Connector
Patchcord
8) RCA Female Patchcord to Two
Bare Wire Ends
9) Ferrite Stick

TWIN COIL FERRITE AM ANTENNA Page 9

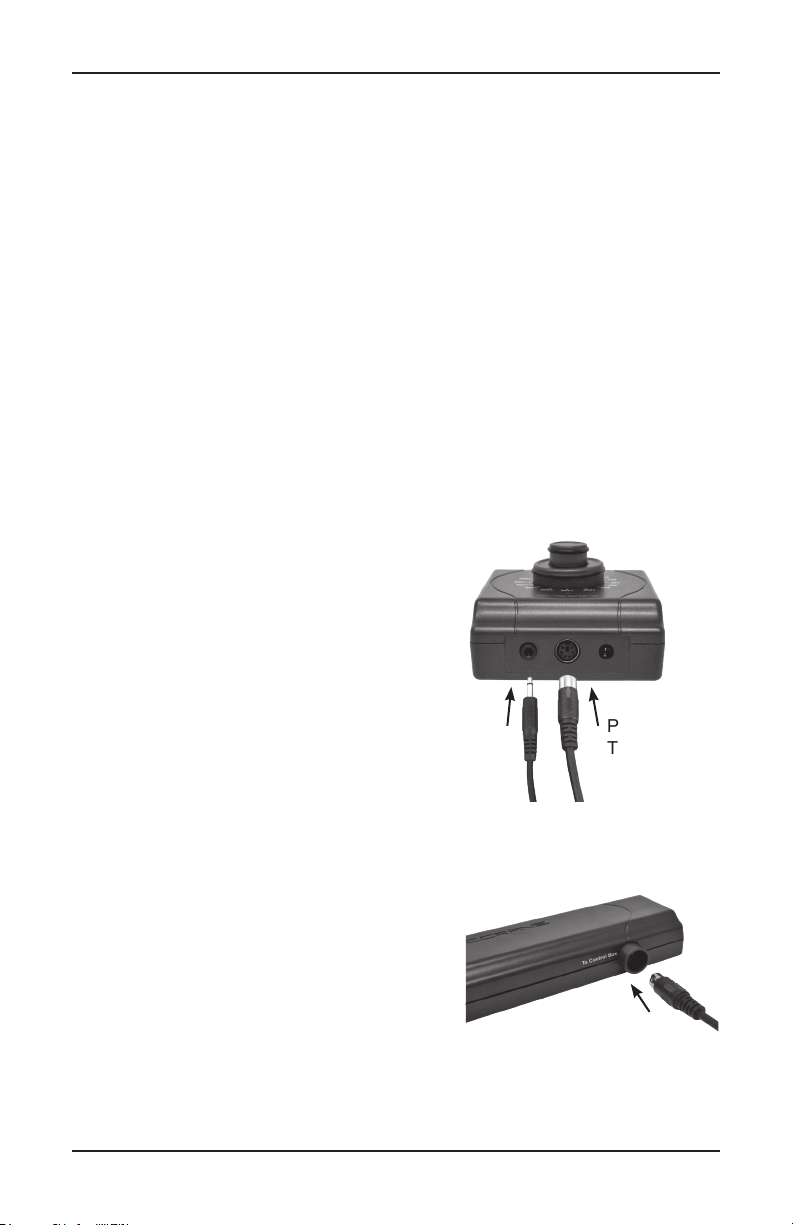

Initial Setup
Connection to Radio and
Antenna
These instructions cover the
basic setup.
Attach one end of the 5' PS2
cable to the jack, labeled
To Antenna, on the back of the
Tuner Control unit. The arrow on
the plug should face up. Please,
DO NOT force the plug into the
Tuner Control. It will plug in nicely
when the pins are aligned.
Connecting Antenna Element
The other end of the PS2 cable
will plug into the jack on the
Antenna Element labeled To
Control Box. The arrow on this
plug should also face up.
Antenna Element
The rst time you use the Twin Coil Ferrite AM Antenna by C. Crane it
takes time, planning, and a little bit of patience. You will need to re-check
and re-tune the unit to nd the best position.
After you have found the best spot for the Tuner Control, Ferrite Stick,
and Antenna Element, you can take the time to secure and make
permanent the installation to your liking. The Ferrite Stick can be xed to
the radio using the included hook and loop fastener.
If you have a problem nding a location for the Antenna Element that
produces good results, be sure to try di󰀨erent areas within 50' of your
radio. If you nd a good position, you have the option of locating the
Antenna Element there. If you need to mount the Antenna Element away
from the radio for best reception, you may order additional cable in
longer lengths.
Please refer to ccrane.com for optional accessories.
Tuner Control
To Radio To Antenna 9VDC
PS2 cable
To Antenna
1/8” Mono
x RCA
To Radio

TWIN COIL FERRITE AM ANTENNAPage 10
Antenna Operation
With a Portable Radio
To use the Twin Coil Ferrite AM Antenna with a radio that does not have
antenna connectors:
1. Find the patchcord with the 1/8” x RCA male connector.
2. Insert the RCA plug into the Ferrite Stick.
3. Insert the other end of the patchcord into the jack labeled To Radio on
the Tuner Control. (See photo on page 9.)
RCA Connector Ferrite Stick
Battery Installation (Optional)
Remove the battery compartment cover on the
bottom of the Tuner Control. Connect the
battery. The antenna will run for approximately
45 hours on battery power. the 9 Volt battery
(not included) is automatically disconnected
when the AC adapter is plugged in.
Note: Operating on battery power can improve
reception over AC power.
Connection to Power
The AC adapter is simply plugged
into the wall and then into the jack
labeled: “9V DC” on the back of
the Tuner Control.
To Radio To Antenna 9VDC
l !

TWIN COIL FERRITE AM ANTENNA Page 11
Antenna Operation
With a Portable Radio (Continued)
Place the Tuner Control in a comfortable location
relative to your radio. Place the Antenna Element
a few feet away. If the Antenna Element is placed
too close to the radio, it will cause noise on your
radio.
1. Place the Ferrite Stick on top
of the radio near the center.
Placement will vary depending on
where the internal AM antenna
of the radio is located.
2. For testing purposes, tune
your radio to any weak AM
station. It is important that
the station be weak so you
can clearly detect the
improvement in reception.
3. Rotate the Fine Tune control,
it will click on and the red LED
indicator light will come on.
Turn the Coarse Tune control
knob slowly and you will likely
notice a change in reception at
some point on the dial. Adjust the
control knob until you notice the
most improvement on your signal.
Now you can use the Fine Tune
control for further renement.
4. Move the Ferrite Stick around the radio
to nd the position that a󰀨ects the signal the most. This position is the
"sweet spot", or the best position.
5. Again, adjust the Fine Tune on the Tuner Control for the best reception
possible.
6. Now you can orientate the Antenna Element for best reception. In
most cases, the Antenna Element does not have to be adjusted again.
When radio noise is a problem, try rotating the Antenna Element in the
direction which reduces noise to a minimum.
LED
Indicator
Light
Fine
Tune
Coarse
Tune

TWIN COIL FERRITE AM ANTENNAPage 12
Antenna Operation
With a Home Stereo
You can directly connect the Twin
Coil Ferrite AM Antenna by
C. Crane to a home stereo by
connecting the 1/8” Mono x RCA
control patchcord to the RCA x two
wire patchcord, as shown.
You can then attach one wire to the
Ground and one wire to the AM
terminal on the back of the receiver,
as shown below. Most of the time
you will nd spring clips or screw
terminals. It will not matter which
wire you connect to which terminal.
Next, plug the other end into the jack labeled To Radio on the Tuner
Control. If you want to experiment or if your receiver does not have
antenna terminals, you can also use the Ferrite Stick on whatever “loop”
or “loopstick antenna” that was supplied with the receiver.
1. Tune your radio to any weak AM frequency. It is important that the
station be weak so you can clearly detect the improvement in
reception.
2. Rotate the Fine Tune control, it will click on and the red LED light
indicator will come on. Turn the Coarse Tune control knob slowly and
you will likely notice a change in reception at some point on the dial.
Turn the Coarse Tune control until you notice the most signal
improvement.
3. Adjust the Fine Tune control for the best reception possible.
4. Now orientate the Antenna Element for best reception. In most cases,
the Antenna Element does not have to be adjusted again.
After you have found the best spot for the Tuner Control and Antenna
Element you can take the time to secure and make permanent the
installation to your liking.
Back of Receiver
AM GND
With a Loop Antenna

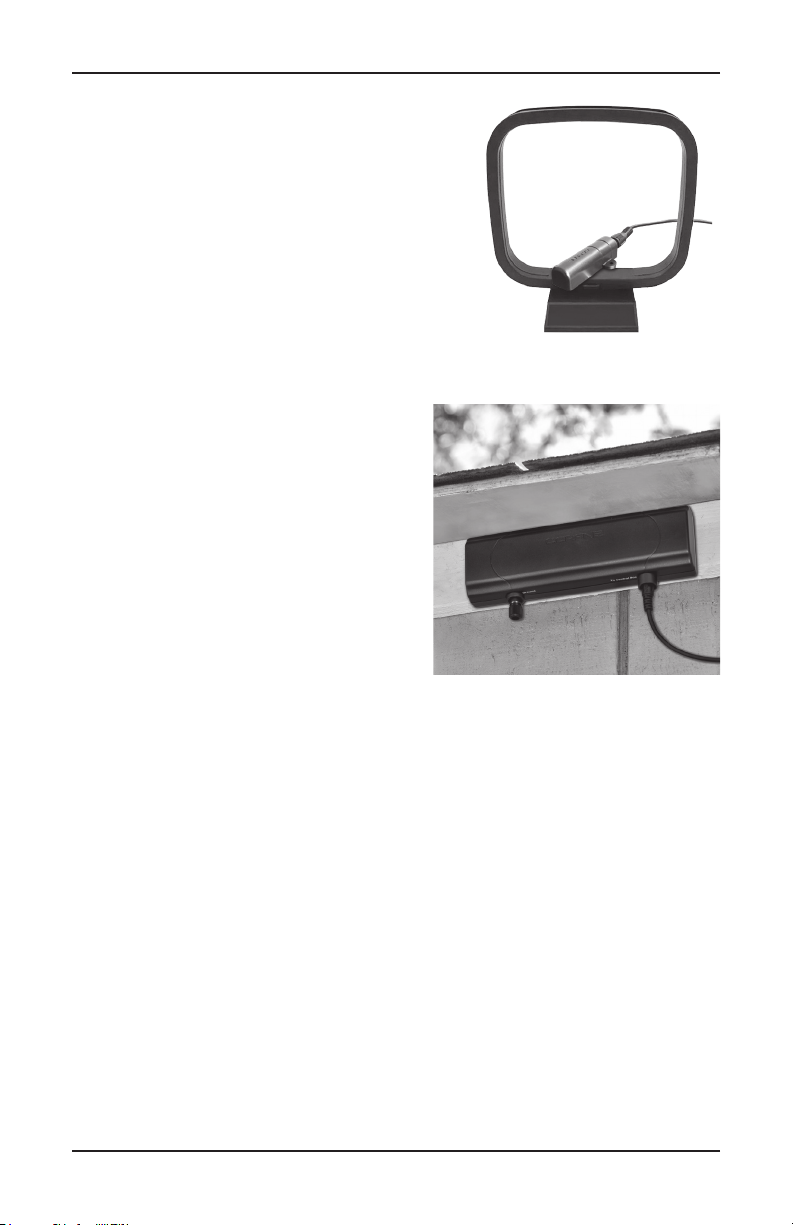

Occasionally a home receiver will include a loop type antenna. You can
use the Ferrite Stick in conjunction with a loop, as shown at right. Move
the Ferrite Stick around until you nd the “sweet spot” that works best.
't

TWIN COIL FERRITE AM ANTENNA Page 13
Antenna Operation
With a Loop Antenna (Continued)
Some older receivers have a ferrite stick
similar to the one we provide. In this
case, for best reception, put them parallel
to each other and nd the “sweet spot”.
In either case, you can use the hook and
loop fastener to keep the Ferrite Stick in
place.
Remote Installation of Antenna Element
If after thorough testing, you nd the
Antenna Element must be mounted
outdoors for best reception, you may
order additional cable in longer lengths
(refer to ccrane.com for optional
accessories). Generally, you will only
need to mount the antenna outdoors if
radio noise and static reduce reception
indoors.
When planning your remote installation
try not to make vertical runs with the
long cables. If the cable is vertical, it
will pick up more radio noise than if you run it horizontally because most
radio noise is vertically polarized. You can run a cable up to 75’ by using
a special order cable coupler (refer to ccrane.com for optional
accessories). At 100’ you will experience about a 25% loss in the
performance.
Always mount the Antenna Element in a sheltered area to protect it from
water. Two mounting holes are provided on the back to help install the
unit. Refer to page 14 for important information regarding Outdoor
Installation Precautions.
If using outdoors, apply silicone grease to the cable connector before
plugging into the Antenna Element. Also apply Coax-Seal to the
perimeter seam of the plastic case, screw holes, cable connection and
ground lug. This will provide water resistance.

TWIN COIL FERRITE AM ANTENNAPage 14
Outdoor Installation Precautions - Lightning Protection
Lightning poses a serious hazard to you and to your radio
equipment. Your antenna is a conductor. If it is struck by
lightning (or touched by a live power line), it will conduct this
electricity into your home.
Safety precautions require that you equip your antenna with lightning
protection equipment. The equipment needed and installation methods
can vary from area to area.
We recommend that you hire a licensed, bonded, and experienced
professional to help with outside installations. An injury, of any
kind, is simply not worth it. Please be careful!
Radio Noise
If radio noise and static are a problem, start by nding a place as close
as possible to the radio where the static is absent. This is done by tuning
a portable radio to a point on the AM dial where there is no station and
static is at a high level. Bring the portable near an outside wall or even
outside up to 50’ away from your host radio. When you nd a place
without static, this is where you may want to mount the Antenna Element.
Please refer to Grounding the Antenna Element above, and Radio Noise
Troubleshooting on page 15 for additional information.
Grounding the Antenna Element
If radio noise is present, many times
grounding the Antenna Element will
reduce it signicantly. It is not
necessary to ground the antenna if
there is no radio noise.
The easiest way to ground the
Antenna Element is to use a #10 solid
copper wire attached to a grounding rod
inserted into the ground three to four feet deep. The end of the wire is
then connected to the ground lug on the Antenna Element. The wire can
either be wrapped around the lug or shaped with needle nose pliers rst.
You can mount the Antenna Element away from where you have placed
the grounding wire attached to the grounding rod but it is best to keep
the distance as short as possible. If there is radio noise, the lead from
the grounding point to the Antenna Element may pick up additional radio
noise. Moisture content of the soil may a󰀨ect performance. Damp soil is
better than dry soil.
Antenna Operation
Ground Lug
w·

TWIN COIL FERRITE AM ANTENNA Page 15
Radio Noise Troubleshooting
AM radio noise problems and possible solutions.
If you hear an annoying buzz when listening to AM radio, it’s most
likely radio noise. Here are some of the usual culprits:
• Dimmer switch (even in an adjacent room).
• Lights: uorescent light, “touch lamp” type xtures, automatic night
lights, motion-activated outdoor lights, dying bulbs, blinking bulbs.
• Nearby television or computer.
• Electronic bug and pest controllers.
• Faulty electrical switch.
• Radios & scanners.
• Dirty insulators on a nearby power pole.
• Electric blanket.
• Smoke detectors that run from an AC current (battery operated
units are OK).
• C-Pap machines.
Now what can you do about it?
• Turn o󰀨 the circuit breakers to see if the noise stops, and if the source
comes from inside your house. Turn o󰀨 one circuit at a time to isolate
the source of the noise.
• Using a battery-operated radio, check if the interference comes from
the AC 120V line, through the air, or both. To locate the direction of
the noise, turn the radio until you hear the loudest noise. The front
and the back of the radio will point to the noise origin.
• If the noise comes from outside, carry the radio around the neighbor
hood to check for the origin of the noise. Ask your neighbors if they
hear the same noise.
• If you suspect a power pole, call the utility company. Dirty power pole
insulators are sometimes a cause of hard-to-nd radio interference.
• Sometimes grounding can greatly reduce the hum from AC line noise.
Unfortunately, most radios do not have a ground connection. Finding
a good earth ground may also be di󰀩cult.
For more detailed information, please visit;
ccrane.com/radio-noise

TWIN COIL FERRITE AM ANTENNAPage 16
General Specications
Size:
Weight:
AC Power:
DC Power:
Power Consumption:
Gain:
Output Impedance:
AM Antenna:
Input Jacks:
Output Jacks:
Warranty:
Tuner: 3.25" W x 4.25" H x 1.25" D
Antenna: 8.5" W x 2.5" H x 1.25"D
Tuner: 4.5 ozs.
Antenna: 8.5 ozs.
AC Adapter (Included): 9V, 100 mA, center
tip negative, 2.1 mm tip.
9 V Battery (Not Included).
11 mA.
-37 dBm /vm.
<50 Ohms.
Single ferrite element with twin coil.
Tuner: 2.1 mm jack for AC adapter
PS2 jack for connecting cable to antenna
element.
Antenna: PS2 jack for connecting cable to
tuner.
Tuner: 1/8" jack for connecting patch cord
to radio.
60 day satisfaction guarantee.
1 year warranty parts & labor.

All rights reserved. No part of this booklet may be reproduced, in any
form or means whatsoever, without permission in writing from C. Crane.
R16-2020
Model: Twin Coil Ferrite AM Antenna
ANSI C63.4: 2003
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS:
1.) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
2.) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
Patent #US 6,529,169 B2
Copyright ©2020 by C. Crane, Fortuna, CA 95540
NOTICE: Any changes or modications not expressly approved by the
party responsible for compliance could void the users authority to
operate the equipment.
Copyright ©2020 by C. Crane, Fortuna, CA 95540
Phone: [phone] Web: ccrane.com
