C.R. Plastic Products St. Tropez L38 User manual

L38 St. Tropez Chaise Lounge
C.R. Plastic Products Inc.
1 –533 Romeo Street South
Stratford Ontario N5A 4V3
Toll Free: 800-490-1283
Fax: [phone]
www.crpproducts.com

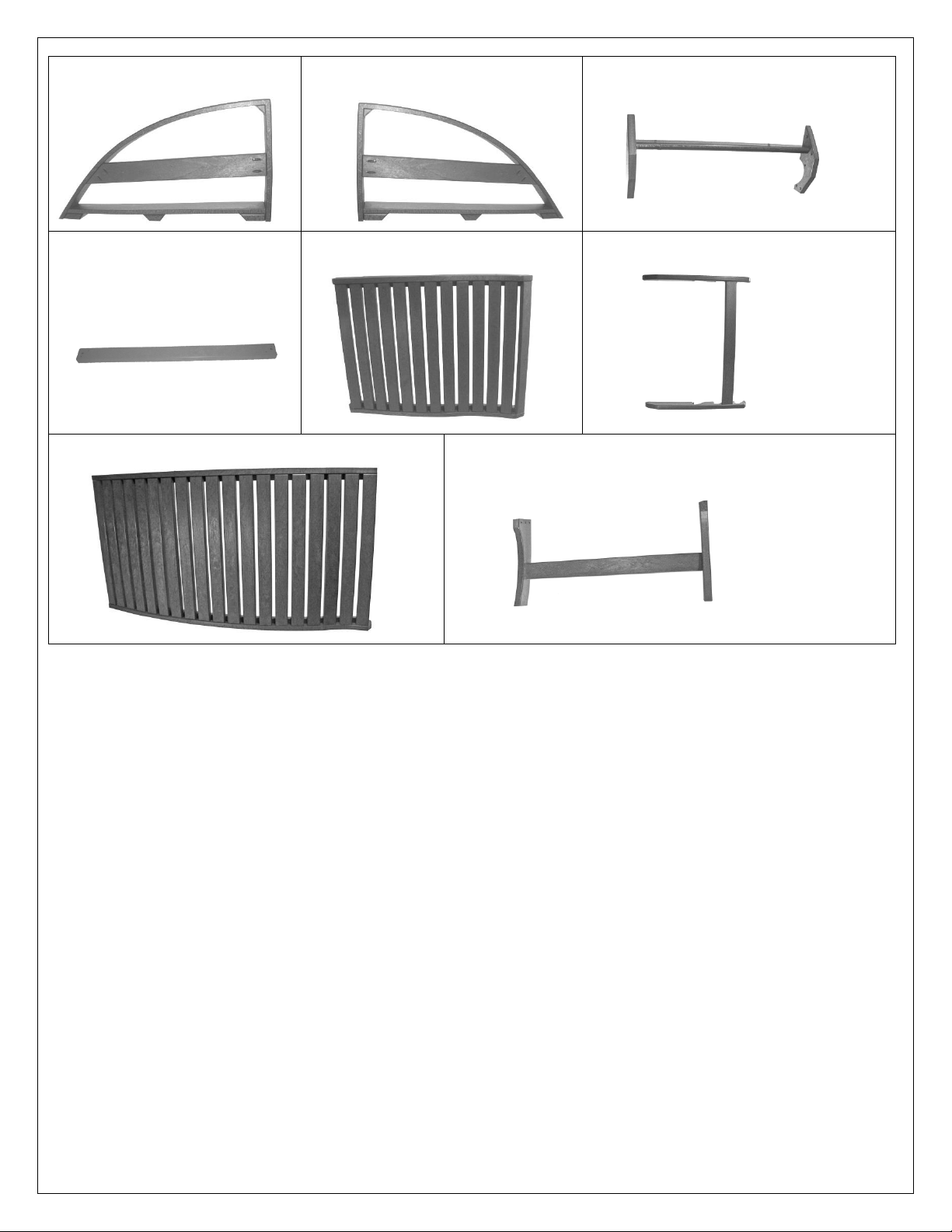

A. Left Arm Qty: 1
B. Right Arm Qty 1
C. Rear Stringer Qty: 1
D. Front Stringer Qty. 1
E. Back Qty. 1
F. Back Support Qty. 1
G. Seat Qty. 1
H. Front Legs Qty. 1
PARTS LIST:
A Left Leg
B Right Leg
C Rear Stringer
D Front Stringer
E Back
F Back Support
G Seat
H Front Legs
HARDWARE LIST:
16 Screws 1-1/2”
8 Bolts
8 Nylock Nuts
Note:
Read these instructions carefully before assembling.
Tools required: # 2 Phillips or #2 Robertson bit a power drill and two 7/16” wrenches.
Find a clean, smooth area on which to work, such as a carpet, in order to avoid scratching the plastic surfaces.
Two people might be required for assembly.
Caution! Do not over tighten screws.

Step 1: Set the Left Arm (A) on its side as shown and attach Rear Stringer (C) with two 2” and
three 1-1/2”screws. (Detail X)
Step 2: Stand assy. on end and secure Right Arm (B) with two 2” and three 1-1/2” screws.
Step 3: Set assy. down flat and attach Front Stringer (D) with six 1-1/2” screws (detail Y)
Required
Qty
Left Arm Assy. (A)
1
Rear Stringer (C)
1
Right Arm (B)
1
Front Stringer
1
1-1/2” screws
12
2” Screws
4
Step 1
Step 2
Step 3
1-1/2” Screws
X
Y
2 “ Screws
1-1/2” Screws

Step 4: Attach Back Support (F) to Back (E) using two 2” bolts and nylock nuts.
Step 5: Attach back to leg assy. using two 2” bolts and nylock nuts.
Step 6: Attach Front Leg assy. (H) to Seat (G) using six 1/1/2” screws.
Step 7: Attach Seat to completed leg and back assy using four 2” bolts and nylock nuts
Required
Qty
Back Assy. (E)
1
Back Support (F)
1
Seat (G)
1
Front Legs (H)
2
1-1/2” Screws
6
2” Bolt
8
Nylock Nut
8
Step 6
Use 1-1/2”Screws and
align with back of 3rd slat.
Step 7
Step 4
Step 5
