C2STek TR-11E User manual

Fleets Vehicle GPS Tracker

TR-11E User Manual

(Version 1.0)

Index Contents

1.Introduction:......................................................................................................................3

1.1Features......................................................................................................................3

1.2Specification...............................................................................................................3

1.3MechanicalSize:..............................................................................................................3

2.KnowledgebeforeUsage:.....................................................................................................4

2.1FactoryDefaultSetting.....................................................................................................4

2.2PowerSupplyandconsumption......................................................................................4

2.3HowtoInsertSimcard.....................................................................................................4

2.4Deviceconfiguration........................................................................................................4

2.5ChangeSMSPassword.....................................................................................................5

2.6I/OPortsIntroductionandslotPindefinition.................................................................5

2.7LEDIndication..................................................................................................................5

2.8TimezoneLocalizationSetting:.......................................................................................6

3.FunctionalityandOperation:.................................................................................................6

3.1VoiceListen‐in.................................................................................................................6

3.2RemoteCut‐engine(Immobilizer)...................................................................................6

3.3ResetMileagereportvalue.............................................................................................6

3.4Trackingparametersetting:............................................................................................7

3.5TrackinglocationbySMScommand...............................................................................7

3.6Recoverfactorysetting....................................................................................................7

3.7Remotereboot................................................................................................................7

3.8AlarmAlerts.....................................................................................................................7

3.9OTAOperation:................................................................................................................7

4.Appendix................................................................................................................................8

‐SMScommandList..............................................................................................................8

‐WiringDiagram....................................................................................................................8

1. Introduction:

TR-11E is a GSM/GPS tracker for car tracking application. It's with superior GPS receiver

sensitivity, fast TTFF and Quad bands (850/900/1800/1900MHz) design. And it can

continuously report current position to backend server.

TR-11E is developed by "openCPU" technology which brought lower cost, lower power

consumption and fast response speed advantages.

1.1 Features

-SMS/GPRS Communication

-Wide Power range: 9-36V DC/1.5A

-I/O Ports: Ignition, Immobilizer, Panic, Door Status detection

-Low Power consumption with Open CPU technology

-Internal memory store for GPRS null zone data 2000waypoints

-Time based/Distance based position report

-Mileage Report

-Alarm alerts: GEO Fence, Speed over, Power tamper and Panic

-Voice Listen-in

-Backup Internal battery included

-OTA

1.2 Specification

- GSM / GPRS features:

. FIBOCOM G510 (Quad-bands, 850/900/1800/1900MHz)

. GPRS class 10

. SMS (text, data)

. Voice calling

-GPS features:

. Skylab GPS Receiver (Sirf III chip)

. -160dB Sensitivity

-Hardware features:

. OpenCPU Technology

. 2000Waypoints for GPRS Null zone data storage

. External GSM/GPS Antenna

. Internal backup battery with 350mAH

1.3 Mechanical Size:

2. Knowledge before Usage:

2.1Factory Default Setting

-IP/Port: Empty

-APN, User and pass: Empty

-Speed Limit: Off=000Km/H

-Position data Update Time Interval: 60Minutes

-Authorized Phone numbers A/B/C: None

-Device SMS password: 1234

2.2 Power Supply and consumption

This device is expected to connect with a DC power source with range of 11.2-36V DC.

Working current maximum 2A input.

In standby mode, device working current < 40mA @12V DC

In sleep mode, working current is less than 6mA @12V DC.

2.3 How to Insert Simcard

N/A

2.4 Device configuration

TR-11E allow user to use SMS Commands to configure necessary parameters.

Details please check as follows instruction:

-Configure GPRS Parameter

SMS Command:

*1234*GPRS:211.154.142.150,9114,T,apnName,apnUser,apnPass

T is data transmit mode. T=1 is using UDP mode. T=0, is using TCP mode. Default as

-Device ID

TR-11E doesn’t need configure device ID. The device is default using Device SN

code as ID.

On the unit case side is with a barcode sticker. please use this code as device ID when

you register device tracking platform.

-ConfigureAuthorized Phone Numbers for alarm alerts:

SMS command:

*1234*A8613554806820*B13554806821*C13554806822#

2.5 Change SMS Password

TR-11E only will accept SMS command with correct password and correct command format.

The factory default password is 1234.

User can change it with SMS command:

*1234*E4321#

<<1234 is the original password.

4321 is the new password>>

2.6 I/O Ports Introduction and slot Pin definition

Item Pin No. Wire Color Remark

Power 5 Black Power Ground

6 Red Power +(12-36V DC)

I/O

1 Blue Door Status detection(=0V Effective)

2 Brown High Trigger Input

3 Yellow Cut-off, Digital output

4 White Ignition Detection(ACC)

2.7 LED Indication

-Green Indicator (GPS):

Blink every second (Off 0.5S, ON 0.5S) >> After Power on, Antenna or GPS receiver is

malfunction

Blink every 2Seconds (Off 1.5S, ON 0.5S) >>After Power ON, Searching GPs signal

Blink every 5Seconds ( Off 4.5S, ON0.5S) >> After Power ON, GPS position fixed and

working normal

-GSM Indicator (GSM):

Blink every second (Off 0.5S, ON 0.5S) >> No SIMCARD found, network register failure

Blink every 2Seconds (Off 1.5S, ON 0.5S) >>in registering network

Blink every 5Seconds ( Off 4.5S, ON0.5S) >> GPRS connected

SolidONfor5Seconds >>VoicecallorGPRSdatainsending

2.8 Time zone Localization Setting:

TR-11W adopts UTC time as standard system time. In order to get correct Local time

in SMS data, please use command to configure your time zone to device.

SMS Command:

*1234*GMT+/-AABB#

<AA= Hour, BB=Minutes>

Example: China is in Eastern 8 Zone.

So we need to send command as *1234*0800 to device.

3. Functionality and Operation:

3.1 Voice Listen-in

By connect the microphone to TR-11E, it can achieve Voice listen-in feature.

The user can use this function by two methods:

- Authorized Number A/B/C call device in, device auto pickup to activate voice Listen-in

- By send following SMS command to get device call back to you:

*1234*VMxxxxxxxx# <xxxxxxx is call back phone No. for system>

- Activate from GPS tracking center platform.

Details please check 7-24Tracking Platform user guide.

3.2 Remote Cut-engine (Immobilizer)

User can use any phone to send SMS command to cut-off engine immediately by correct

Password and command format.

*1234*Stop# < Wireless cut-off engine SMS command>

*1234*K# <Wireless disable engine lock status SMS command>

By connecting TR-11E to remote GPRS server, the server platform also can achieve the same.

Please refer to 7-24Tracking Platform user’s guide.

3.3 Reset Mileage report value

In every GPRS Position data packet to GRPS server,TR-11E data package includes the current

travel mileage.And the user can by SMS command to reset or adjust the mileage report value.

*1234*M:1,115,15000# <Reset Mileage report value SMS command>

Explain:

1: Unit. =1 Km, =0 Meter. Default=0

115: Different rate, default=100.

15000: Mileage. Default as 0 Meter

3.4 Tracking parameter setting:

By following SMS command to setup device data update interval in Moving/Static:

*1234*E:1,30,180# <Tracking parameter configuration>

1: Monitoring mode. Define position data update by moving/Static.

30: Position update interval, 30Seconds when in moving.

180: Position update interval, 180seconds when in static

Default setting: 1,30,30. <Update interval cannot less than 10seconds>

3.5 Tracking location by SMS command

TR-11E can track location by SMS commands.

Check details as:

-Query vehicle status:

SMS command: *1234*X#

Device reply:

<Unarmed; Engine:On/Off; Door:Off/On;LAC:xxxxxx;CID:xxxxx;Signal Strength:xx

$GPRMC,xxxxxx.xxx,A,xxxx.xxxx,N,xxxxx.xxxx,E,x.x,xxx.x, xxxxxx,,,A*xx >

-Query GPRMC data:

SMS command: *1234*GPS#

Device reply:

<$GPRMC,063231.00,A,2232.64712,N,11355.45466,E,0.581,195.93,050811,,,A*6C>

-Query Google map Position Link:

SMS command: *1234*P#

Device reply:

<2011-12-08 12:32:13,V,60Km/H,Heading:60,LAC:2638,CID:0ECF;

http://maps.google.com/maps?hl=en&q=22.537222,114.020948>

3.6 Recover factory setting

By SMS command or GPRS command, TR-11E can be initialized to be factory default setting

status.

SMS Command: *1234*V#

3.7 Remote reboot

By SMS command <*1234*Z#> user can reboot TR-11E wirelessly.

3.8 Alarm Alerts

TR-11E only provide two type alarm alerts. See:

-Power tamper alarm alert < Disconnect TR-11E external power to trigger>

-Panic(SOS) alarm alert <By press panic button to trigger>

3.9 OTA Operation:

TR-11E allow user to do firmware upgrading via GPRS connection. Details operation

command and procedure, please consult with your seller.

4. Appendix

- SMS command List

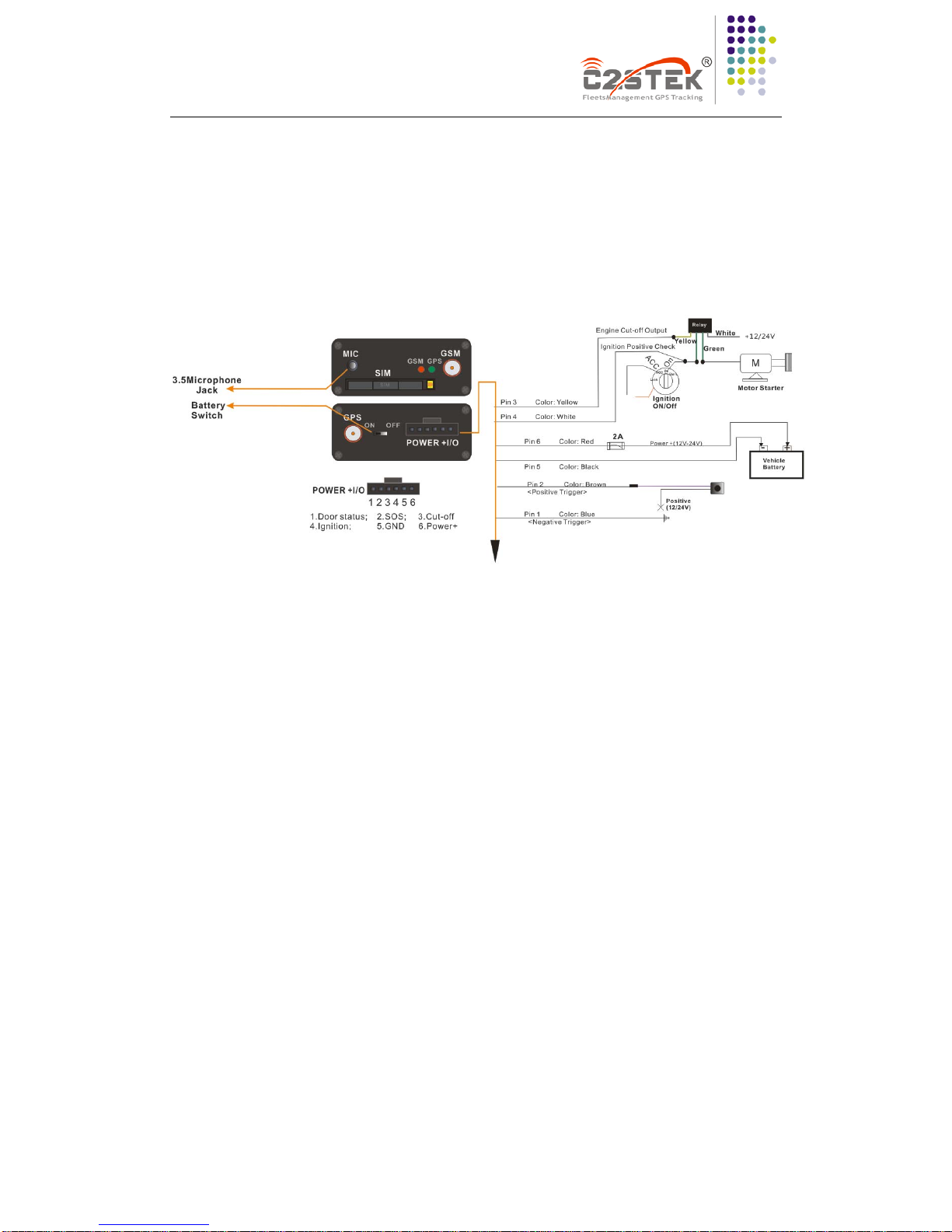

- Wiring Diagram
