Camlux PTI-403I User manual

Ver. 1.0 / 2011.01
User’s Manual
In-ceiling Mount Camera
IP PTZ Indoor

Safety Information

This symbol indicates that dangerous voltage
consisting a risk of electric shock is present within
this unit.
Warning Precaution
This exclamation point symbol is intended to alert the
user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION:
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
To prevent damage which may result in fire or electric shock
hazard, do not expose this appliance to rain or moisture.
Be sure to use only the standard adapter that is specified in
the specification sheet. Using any other adapter could cause
fire, electrical shock, or damage to the product.
Incorrectly connecting the power supply or replacing battery
may cause explosion, fire, electric shock, or damage to the
product.
Do not connect multiple cameras to a single adapter.
Exceeding the capacity may cause abnormal heat generation
or fire.
Securely plug the power cord into the power receptacle.
Insecure connection may cause fire.
When installing the camera, fasten it securely and firmly.
A falling camera may cause personal injury.
Do not place conductive objects (e.g. screw drivers, coins,
metal things, etc.) or containers filled with water on top of
the camera. Doing so may cause personal injury due to fire,
electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations.
Doing so may cause fire or electric shock.
If any unusual smells or smoke come from the unit, stop
using the product. In such case, immediately disconnect the
power sorce and contact the service center. Continued use
in such a condition may cause fire or electric shock.
If this product fails to operate normally, contact the nearest
service center. Never disassemble or modify this product in
any way.
When cleaning, do not spray water directly onto parts of the
product. Doing so may cause fire or electric shock.
WARNING
WARNING
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Precautions
Operating
t Before using, make sure power supply and others are
properly connected.
tWhile operating, if any abnormal condition or malfunction
is observed, stop using the camera immediately and then
tcontact your Special dealer.
Handling
tDo not disassemble or tamper with parts inside the camera.
tDo not drop or subject the camera to shock and vibration as
this can damage camera.
tCare must be taken when you clean the clear dome cover.
Especially, scratch and dust will ruin your quality of camera.
Installation and Storage
tDo not install the camera in areas of extreme temperature,
which exceed the allowable range.
tAvoid installing in humid or dusty places.
tAvoid installing in places where radiation is present.
tAvoid installing in places where there are strong magnetic
elds and electric signals.
tAvoid installing in places where the camera would be subject
to strong vibrations.
tNever expose the camera to rain and water.


1. Read these instructions. - All these safety and operating instructions should be read before the product is operated.
2. Keep these instructions. - The safety, operating and use instructions should be retained for future reference.
3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.
4. Follow all instructions. - All operating and use instructions should be followed.
5. Do not use this apparatus near water. - For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a
wet basement; near a swimming pool; etc.
6. Clean only with dry cloth. - Unplug this product from the wall outlet befor cleaning. Do not use liguid cleaners.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Slots and
openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protec it
from over-heating. The openings should never be blocked by placing the product on bed, sofa, rug or other similar
surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided and the manufacturer’s unstructions have been adhere to.
8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including ampliers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
Important Safety Instructions


Disposal of Your Old Appliance
1. When this crossed-out wheel bin symbol is attached to a product it mean the product is covered by
the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately form the municipal waste
stream via designated by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for
the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city oce,
waste disposal service or the shop where you purchased the product.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interferenece at his own expense.

Contents

6
7
8
10
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
64
65
67
68
69
71
73
75
77
78
79
80
81
83
84
85
87
88
89
90
Product & Accessories
Part Name & Functions
DIP Switch Setup
Installation
Cabling
Cabling the Audio Cable
Inserting/Removing an SD Memory Card
Quick Start of Network Connection
Initial Setup via a Crossover Cable
DDNS Registration
Guide to Network Environment
Setup Case A, B
Setup Case C, D
Port Forwarding
Starting IP Speed Dome
Basic Screen
PTZ Control & Aux Function Control
Backup Control & OSD Setup
Etc. Setup & Motion Detection Setup
Auto-map
Viewer Interface
Setup Screen
Video Setup
Audio Setup
Backup Setup
TCP/IP Setup
DDNS Setup
Status
Alarm Input 1 Setup
Alarm Input 2 ~ 8 Setup
Motion Detection Setup
Schedule Setup
Auto Tracking Setup
Transfer Setup
FTP Setup
SMTP Setup
SD CARD Setup
Users Setup
Date/Time Setup
Firmware Update
Default Set
Restart
Log
Search
Check Points before Operation
Aux Functions
OSD Information
General Rules of Menu Operation
ROOT MENU & SYSTEM INFORMATION
DISPLAY SETUP > CAMERA ID
DISPLAY SETUP > PRIVACY ZONE
MOTION SETUP
FUNCTION SETUP > PRESET SETUP
FUNCTION SETUP > SCAN SETUP
FUNCTION SETUP > PATTERN SETUP
FUNCTION SETUP > GROUP SETUP
FUNCTION SETUP > SCHEDULE SETUP
CAMERA SETUP > WB SETUP
CAMERA SETUP > AE SETUP
CAMERA SETUP > SPECIAL
INTELLIGENCE > MASK AREA
INTELLIGENCE > ALARM OUT
SYSTEM SETUP
SYSTEM INITIALIZE
A : Current TCP/IP Settings
B : Changing IP address and subnet mask
C : Port Forwarding
FAQ
Demension
Specification
Network Specification
1. Introduction
2. Installation
7. OSD
8. Appendix
9. FAQ
10. Specifications
6. SD Card Search
3. Network Setup
4. Web Viewer Screen
5. Setup


Product & Accessories
Introduction -
1
Manual CD
Product Accessories
Quick Manual
Dome Cover
In-ceiling Hosing
with PTZ Mechanism
Safety Wire x2


Part Name
Introduction -
1
Dome Cover Hooks
Dome Cover
Dome Cover Side Hole
PTZ Mechanism
PTZ Mechanism Hook
In-ceiling Housing
PTZ Mechanism Hook Guide
Mounting Clip
Inceiling Housing Border
Mounting Clip Bolt
Housing Safety Wire Hanger
Junction Box
Junction Box Hook
Junction Box Cover
Junction Box Cover Side Hole



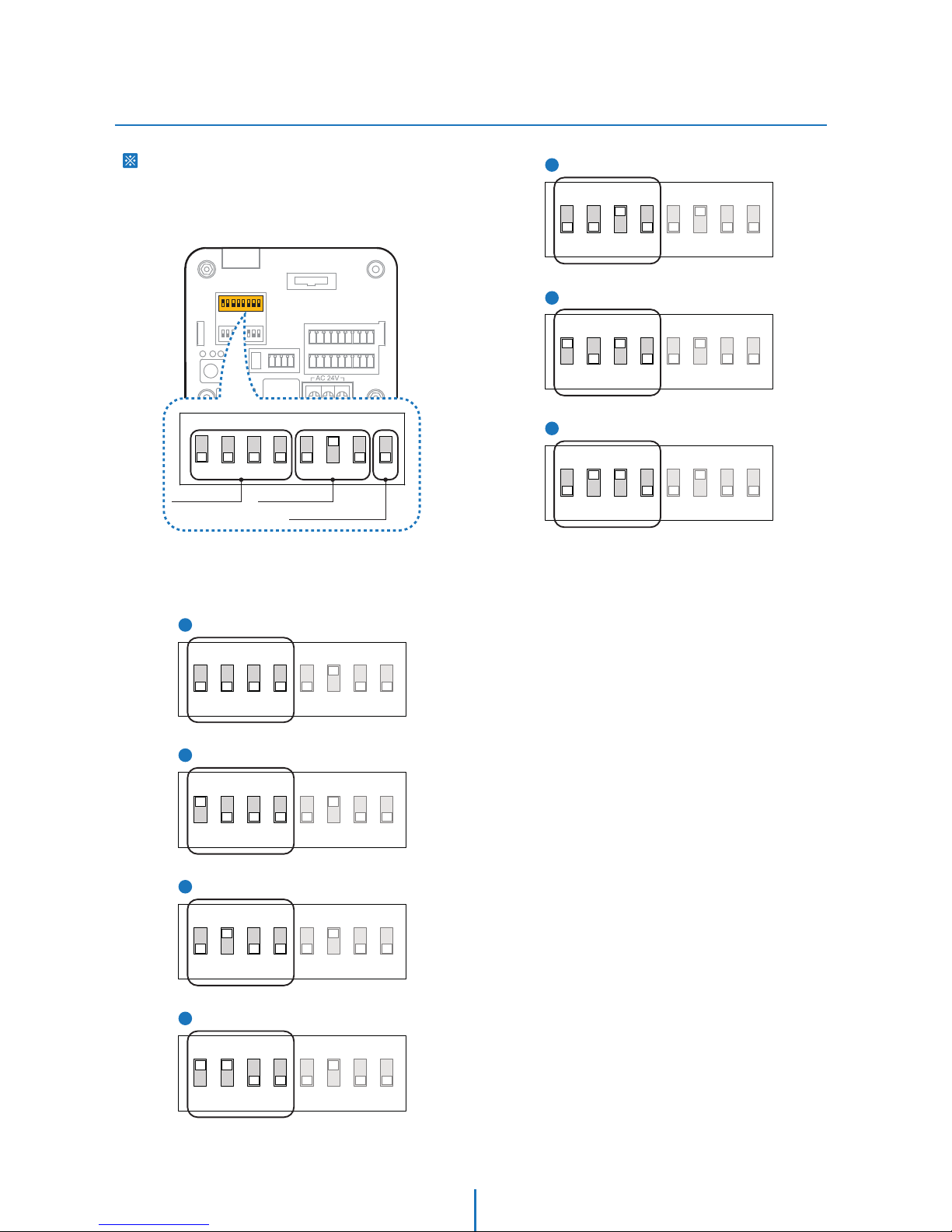

DIP Switch Setup
Installation -
2
Before installing the camera, you should set
the DIP switch to configure the camera ID,
communication protocol.
Inner Box
1. Communication Protocol Setup
Select the appropriate protocol with DIP switch combination.
- If you set the protocol as ‘Auto’ protocol, camera
will
automatically recognize PELCO-D or PELCO-P protocol.
- If you want to control using DVR or system keyboard, their
protocol must be identical to camera. Otherwise, you can
not control the camera.
- If you change camera protocol by changing DIP switch, the
change will be eective after you reboot the camera.
Protocol Setup Baud Rate Setup RS-485
Termination Resistor
ON
8J 21 345678
1Auto - Factory Default
ON
8J 21345678
2
ON
8J
21345678
PELCO-D
3
ON
8J
21345678
PELCO-P
4
5
6
7
SAMSUNG
ON
21345678
Panasonic
8J
ON
21345678
GE(Kalatel)
8J
ON
21345678
AD(American Dynamics)
ON
8J
21345678


DIP Switch Setup
Installation -
2
2. Communication Baud Rate Setup
Select the appropriate baud rate with DIP switch combination.
4. Camera ID Setup
ID number of camera is set using binary number.
The example is shown below.
Inner Box
1
2
3
4
5
ON
8J
21345678
2400 BPS - Factory Default
ON
8J
21345678
4800 BPS
ON
8J
21345678
9600 BPS
ON
8J
21345678
19200 BPS
38400 BPS
ON
8J
21345678
3. RS-485 Termination Resistor
- Pin 8 is used for on/off of RS-485 termination.
- Normally, it must be off state.
- Especially, when you have trouble with long daisy chain style
connection, turn on this termination switch of the last camera.
ON
8J 21 345678
Pin 1234 56 78
1 2 4 8 16 32 64 128ID Value
ex) ID=5
ex) ID=10
on
off
off
on
on
off
off
on
off
off
off
off
off
off
off
off
- If you want to control a certain camera, you must match the
camera ID with ‘CAM ID’, setting of DVR or keyboard controller.
- ID number of the camera is set using binary number.
- The range of ID is 0~255.
- Factory default of camera ID is 1.
- Camera ID will be effective without rebooting the camera.


Installation
Installation -
2
2
1
3

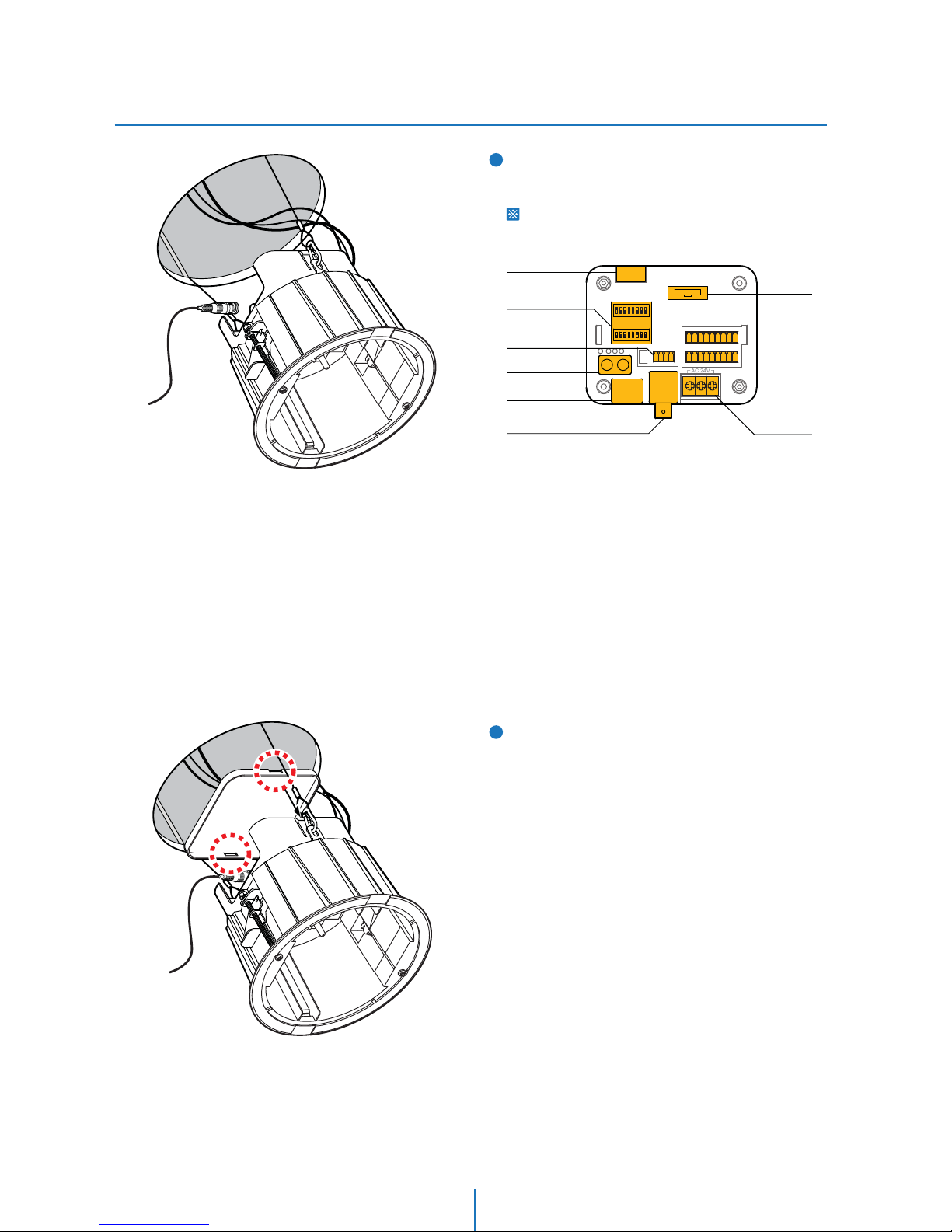

Detach the PTZ Mechanism and the Junction Box Cover
By pressing down and holding up the hooks in both sides of
PTZ Mechanism, detach PTZ Mechanism from the housing.
Then, detach the junction box cover by pressing down the
hooks in both sides of the junction box.
Drill the hole on the ceiling
To install the in-ceiling housing in the ceiling, drill a hole
(190mm diameter) on the ceiling.
Hook the Safety Wires
Connect one of the rings of safety wire for preventing falling
down with the housing safety wire hanger in either sides of
Housing. Then, connect the remained ring of the safety wire
with the hanger bolt of the ceiling.


Installation
Installation -
2
4
RS-485 Port
Protocol,
Address DIP Switch
BNC Video Port
Alarm Out
Micro SD
Card Slot
Alarm In
Power Port
Inner Box
Main Connector Port
Audio I/O Port
Network Cable Port
5Close the Junction Box Cover
Close the junction box cover by inserting the both junction
box cover side holes to the junction box hooks.
Connect the Wires and Terminal blocks
Connect cables to terminal blocks and BNC in the inner box
of junction box.
See the cabling in the next section.


Installation
Installation -
2
Mount the PTZ Mechanism
Fix the PTZ Mechanism to the housing by inserting PTZ
Mechanism hook to the mechanism hook guides.
Fix the In-ceiling Housing
Fix the In-ceiling housing by turning the mounting clip bolts
clockwise.
6
7
8
Insert the In-ceiling Housing
Insert the housing to the ceiling hole and press the edge of
housing against the ceiling.


Installation
Installation -
2
Attach the Dome Cover
Attach the dome cover by fixing the dome cover side hooks
to the edge of housing.
Detach the Protection Vinyl
Detach the Dome Cover
Detach the dome cover from the cover side hole by using a
flathead screwdriver or a coin.
9
10


2
Cabling
Installation -
1
3
4
2
RS-485
(Keyboard Controller/DVR)
Video Output
Power
Video Output
Video out check the screen during installation.
Network Connection
Connect the crossover cable into the RS-45.
RS-485 Communication (DVR/Keyboard)
For PTZ control, connect this line to keyboard and DVR.
To control multiple cameras at the same time, RS-485
communication lines of them are connected in parallel as
shown below.
Power Connection
Please, check the voltage and current capacity of rated
power carefully.
BNC Cable
Crossover Cable
Inner Box
1
2
3
4
Keyboard Controller/DVR
RS-485
#1 #2 #n
a
~
~
Rate Power Current
Consumption
AC 24V Heater Off: 24W Heater On: 55W
RS-485


Cabling
Installation -
2

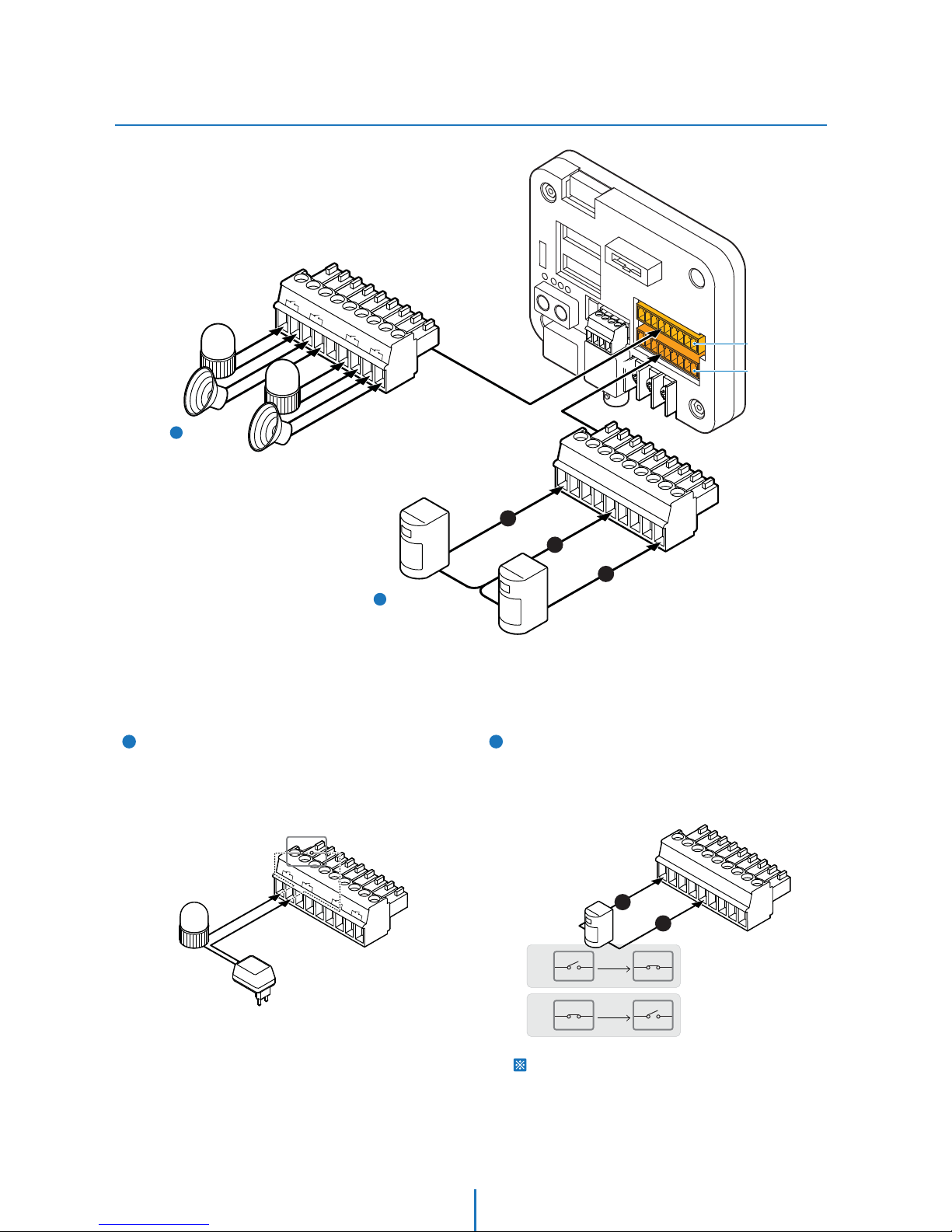

OUT1 OUT2 OUT3 OUT4
65
Alarm Output
Alarm Input
Inner Box
Alarm Input/Sensor
6
5
ALARM INPUT
GND
12345678
COM
In 1
In 8
Alarm Output
OUT1 OUT2 OUT3 OUT4
Alarm Output
There are 4 alarm outputs and all of them are relay contact
type. Therefore, you do not have to care about polarity,
AC/DC, and isolations between channels. Care must be taken
for the power capacity of relay contact written above.
Out Out
N.C
Activation
Activation
N.O ,Q
&20
,Q
&20
,Q
&20
,Q
&20
It is noted that short circuit between GND and Input pin
means alarm activation.
Sensor Input
If you want to use alarm input, the types of sensor must be
selected in OSD menu. The sensor types are ‘Normal Open’
and ‘Normal Close’. If sensor type is not selected properly,
the alarm can be activated reversely.
COM
In 1
ALARM INPUT
GND1 234 5678


Cabling the Audio Cable
Installation -
2
Audio In
7
Audio Out
8
8Audio Out
Connect the ‘Audio Out’ port of the camera to the ‘Line In’
port of the speaker.
In case the microphone connects directly to ‘Audio Out’
port, the speaker does not work. The ‘Mic In’ function
is not supported.
Audio In
Connect the ‘Audio In’ port of the camera to the
microphone directly or ‘Line Out’ port of the amplifier
connected with microphone.
7
Inner Box
Amplifier
Mic.
Speaker
Line Out
Connection
Direct Connection
Mic.
Line In Connection


2
Micro
Inserting/Removing an SD Memory Card
Installation -
1Inserting an SD Memory Card
Insert the SD card in the arrow direction.
Don’t insert the SD memory card while it’s upside down by force.
Otherwise, it may damage the SD memory card.
2Removing an SD Memory Card
Removing an SD Memory Card Gently press down on the
exposed end of the memory card as shown in the diagram
to eject the memory card from the slot.
Pressing too hard on the SD memory card can cause the card to
shoot out uncontrollably from the slot when released.
If you have saved data in the SD memory card, removing the SD
memory card prior to setting record to OFF will cause damage to
the data stored in the card.
Recommended SD Card Specication (Not Included)
- Type: Micro SD (SDHC)
- Manufacturer: Transcend, Kingston, Toshiba, Sanddisk
- Capacity: 4~16G
- Class: over Class 6
The memory card is an external data storage device
that has been developed to oer an entirely new way
to record and share video, audio, and text data using
digital devices.


Quick Start of Network Connection
Network Setup -
3
Please follow the steps below to complete
the initial setup of the network function.
You will need to access a PC/laptop and should configure
that PC in order to communicate with the IP Camera.
Record the current TCP/IP properties of that PC. (IP address,
subnet mask, gateway, DNS, etc.d)
1.
Please do not power on the IP Camera until instructed.
Temporarily disable any proxy servers configured in internet
Explorer.
If connecting the IP Camera directly to a modem, power down
and reset the modem. Leave the modem powered down until
configurations are finalized with the IP Camera and the IP Camera
has been correctly connected to the modem.
Change the IP address of that host PC to 192.168.1.11 and
subnet mask to 255.255.255.0 (leave all other entries blank)
Connect the IP Camera to your PC’s Ethernet port via the
supplied crossover cable. (It does not matter what end is
used for the PC)
Power on the IP Camera using the according to the power
rated.
After 1 minute of power, verify a flashing ACTIVE indicator,
and a flashing or solid LINK indicator. After the
corresponding indicator lights are properly displayed, open
Internet Explorer.
Type - http://192.168.1.80 (the default IP of the IP Camera)
into your address bar.
Default ID/Password to access IP Camera are both the
word: admin.
Familiarize yourself with the Viewer Interface Screen.
Locate the TCP/IP configuration under Setup. Supply the
same ID and Password to enter Setup. (admin : admin)
Under‘Network Type’select STATIC. You will only select
Dynamic if you are connecting the IP Camera directly to
your cable/DSL/Broadband modem and your Internet
Service Provider is supplying you a dynamic address.
2.
3.
4.
5.
6.
7.
8.
9.
10.
If your PC obtains its IP address automatically, then there is no
need to record any information.
If you have a network with other devices (such as PC/laptop, etc.)
or a router, you will NEVER select Dynamic.
Configure the IP Camera’s TCP/IP settings as you would any
other PC on your network, providing a proper IP address,
subnet mask, default gateway, and DNS server.
11.
If this is standalone unit with a direct connection to a cable/DSL/
Broadband modem then input the addresses you have received
from your ISP. If you received no IP address from your ISP, please
select Dynamic and choose the proper settings.
Current TCP/IP Settings
IP Address
Subnet Mask
Default Gateway
Primary DNS Server
Secondary DNS Server (Option)
Access your IP Camera via the Internet :
If you use a static IP address assigned by your ISP
1) Open Internet Explorer.
2) Type the IP of the IP Camera.
3) If you use a router, type the routers’static IP and the web port
number of the IP Camera.
If you have a dynamic address provided by your ISP
1) Open Internet Explorer and visit the DDNS website.
2) Register the IP Camera.
3) Reboot the IP Camera.
4) Give the DDNS server 10 minutes to locate your IP Camera’s
IP information.
5) Click the refresh button in the Internet Explore.
6) After your camera is connected, select your camera.
15.
The IP Camera utilizes five TCP ports - a Web Port for utilizing
Internet Explorer, a Video Port, a Control Server Port, Audio
ports. A Web Port is for utilizing Internet Explorer, a Video
Server port is to support the streaming video, and a Control
Control Port is to transmit to control command. Also Audio
Port are to transmit and to receive Audio data. If this IP
Camera will be directly attached to a cable/DSL/Broadband
modem or has been assigned a static IP from your ISP, then
leave the default port settings.
If you are installing the IP Camera on a network, you must
define a Web Port other than 80. The other ports, a Video
Port, a Control Port, Audio Ports can remain unchanged.
If the IP Camera is connected to a network which utilizes a
router, you must have Port Forwarding configured on your
personal router to forward all ports to the IP address you
have assigned the IP Camera.
After configuring Port Forwarding on your router (if necessary),
you may then access your IP Camera on your local network
by opening Internet Explorer and specifying the IP address
and Web Server Port that you have assigned to the IP
Camera.
12.
13.
14.
Examples: http://192.168.0.200:8888
If you left your Web Port set to 80, then you don’t need to specify
the port in the Address Bar when accessing your IP Camera.


Initial Setup via a Crossover Cable
Network Setup -
3
This section provides a guide on how to
connect the IP Camera to your PC/Laptop for
initial setup.
Please follow the instructions in the order they
appear, without skipping steps. Do not supply
power to the IP Camera, until instructed.
In order to access the IP Camera’s firmware
you will need to connect the Video Server
directly to a PC or Laptop computer via the
supplied crossover cable.
Before you begin, you must determine the current network/
INTERNET (TCP/IP) settings on the PC or laptop you plan to
setup the IP Camera. Write down your entries below for
quick reference.
1.
You will have to click‘Yes’twice to two individual prompts. This
allows your video to be displayed in Internet Explorer.
Current TCP/IP Settings
IP Address
Subnet Mask
Default Gateway
Primary DNS Server
Secondary DNS Server (Option)
In order for the IP Camera to communicate with your PC, you
have to change your PC’s IP address and subnet mask.
2.
Now you will be able to see the login screen for the IP
Camera.
7.
The default ID and Password are both the word‘admin’
(without the“ ”)
If at any time you are prompted to download ActiveX controls,
you must click‘Yes’, all contents are safe.
8.
9.
We recommend that you change your IP address to 192.168.1.11
and change the subnet mask to 255.255.255.0
Leave all other entries (Default Gateway, DNS Servers, etc.) blank.
For information on how to change your IP address and subnet
mask, see Appendix B.
After you have made the changes to your IP address and
subnet mask, you may then attach the IP Camera to your
PC via the supplied crossover cable. Plug-in either end of
the crossover cable into the PC’s network card and the other
end into your IP Camera.
After connecting the PC and IP Camera using the crossover
cable, power on the IP Camera by plugging in the power
supply shipped with the IP Camera.
No longer than 1 minute after powering on the IP Camera,
verify that the ACTIVE indicator light is flashing, and the
LINK indicator light is flickering or solid. If they are not,
please read the FAQ.
3.
4.
5.
Open Internet Explorer and type the IP address of 192.168.1.80
(default IP of the IP Camera from the factory) into the Address Bar
of the web browser (as seen below). Press Enter.
If a message appears after pressing ‘Enter’ similar to the image
depicted below, choose ‘Try Again’. This message will vary
depending on the operating system.
The 3 authorities are available :
Administrator, Operator and Viewer. The authority setup is
available in Setup.
t7JFXFS 0OMZNPOJUPSJOHJTBMMPXFE
t0QFSBUPS Most of the functions are allowed except
‘Setup’.
t"ENJOJTUSBUPS"MMGVODUJPOTBSFBMMPXFE
For information on how to determine your currents settings, see
Appendix A.
If you are obtaining an IP Address automatically, then there is no
need to write down this information.
Now you will be able to access the viewer software within
the IP Camera.
6.


DDNS Registration
Network Setup -
3
If you have DYNAMIC IP service from your
Internet Service Provider (ISP), you can’t tell
what current IP address of IP Camera is.
To solve this problem, you have to register to
our DDNS service.
At first, we recommend, you have to check if
you are using dynamic addressing. If so, please,
register your IP Video Server on our DDNS
website before you configure, setup, or install
the IP Camera.
Even though your IP is not dynamic, you will
get a benefit if you register to DDNS. In this
case, you just remember ‘alex.net4c.net/gate1’
instead of complicated series of number like
http://201.23.4.76:8078.
For more detail information, please contact
our Support Center.
To register IP Camera to DDNS, you should know the‘Serial No.’ of
your IP Camera. The ‘Serial No.’ can be found in section 6 ‘Setup -
DDNS’menu.
To use a public DDNS called ‘dyndns’ or ‘no-ip’, you can find detail
information on how to use this service.
(Please, visit its web site : http://www.dyndns.com or
http://www.no-ip.com)
