CamOne Xplore User manual
Full HD Videocamera
Manual
Vers.: 1.00
CamOneTec is a Division of ACME the game company GmbH, Germany
"FlyCamOne", “CarCamOne” and "CamOne" are registered Trademarks of ACME the game company GmbH, Germany
© copyright 2011 by CamOneTec
2
Safety advice
WARNING:
Follow these instruction to prevent damage of
the unit:
DO NOT USE UNPROTECTED AT RAIN OR
WATER. PREVENT CONTACT WITH ANY
KIND OF LIQUIDS
USE RECOMMENDED ACCESSORIES
ONLY
DO NOT DISASSEMBLE
THERE ARE NO PARTS AT THE INSIDE
THAT NEED TO ME MAINTAINED
REPAIRS SHOULD BE MADE BY
QUALIFIED PERSONNEL ONLY
SERVICE & SUPPORT
CamOneTec
by ACME
Industriestr. 10a
33397 Rietberg
Germany
Tel: +49 5244 7000 70
service@camonetec.com
or
http:// www.camonetec.com
WARNING LiPo BATTERY
Mishandling the battery may occur
explosion, fire and smoke including
damage of health or goods. It will also
reduce battery performance.
Never charge a damaged LiPo battery
pack.
Stop charging if the LiPo battery pack
is getting deformed (blown up).
Charge and store the battery pack at a
temperature of 0°C to 40°C – avoid a
temperature higher than 65°C when
discharging.
Do not shortcut – Risk of explosion and
fire!
CE Declaration
Herewith we declare that this item is in
accordance with the essential requirements and
other relevant regulations of the directive
2004/108/EC. A copy of the original declaration
of conformity can be obtained at the address
above.
WEEE Reg. Nr.: DE64989527
Information for disposal of crossed
Bin marked products
This symbol is marked on a product or
packaging, it means that the product including
the batteries must not be disposed of with your
general household waste. Only discard
electrical/electronic items in separate collection
schemes, which cater for the recovery and
recycling of materials contained within. Your
co-operation is vital to ensure the success of
these schemes and for the protection of the
environment.
This product uses Li-Ion batteries. LiPo batteries
are recyclable, and a valuable resource. To
dispose of the battery, remove it and take it to a
resource recovery facility.
ATTENTION!
The privacy of others is protected by law and should be taboo. The recording of
third party can be an illegal act. You are responsible for your acting.
Electrostatic discharge or strong electromagnetic fields can affect the Camera.
Restart the Camera in this case.
3
Content of Box
Check the completeness before using the product
CamOne Xplore 1080p Camera
(not waterproof)
USB-Cable USB –AV-Cable Manual
Long connector Short connector Bike Mount M-Mount
Helmet Mount Universal Mount Velcro Pad small Velcro Pad big
4
Preparation
Compensation for recorded content
ACME will not be responsible in any case for any consequential or direct problems that will
lead to a loss of recorded or edited data. Furthermore ACME will not guarantee the content in
case the recording or saving is not working properly. The above limitations are as well valid in
case the unit has been repaired.
Do not remove the micro SD Card while recording or saving. Do not switch off or take out the
battery before the recording has been stopped or as long there is access to the memory,
indicated by a rotating circle.
Protect the unit from extreme temperatures. Stop recording at temperatures less than minus
10°C and higher than 60°C. Remove the camera from the windshield/sucking pad in case
extreme temperatures might be possible!
It is known that forged accumulators which remarkably look like the original product are
offered for the sale again and again. Some of these accumulators are not equipped with a
proper protection circuit which would satisfy the regulations of the prevailing safety
regulations. These accumulators can perhaps lead to fires or explosions. We assume no
liability for accidents, damages or failures which result from the use of a forged accumulator.
Please note that the camera is splashproof. A strong and durable suspension of
moisture harms the camera!
!!!The cam is not waterproof!!!

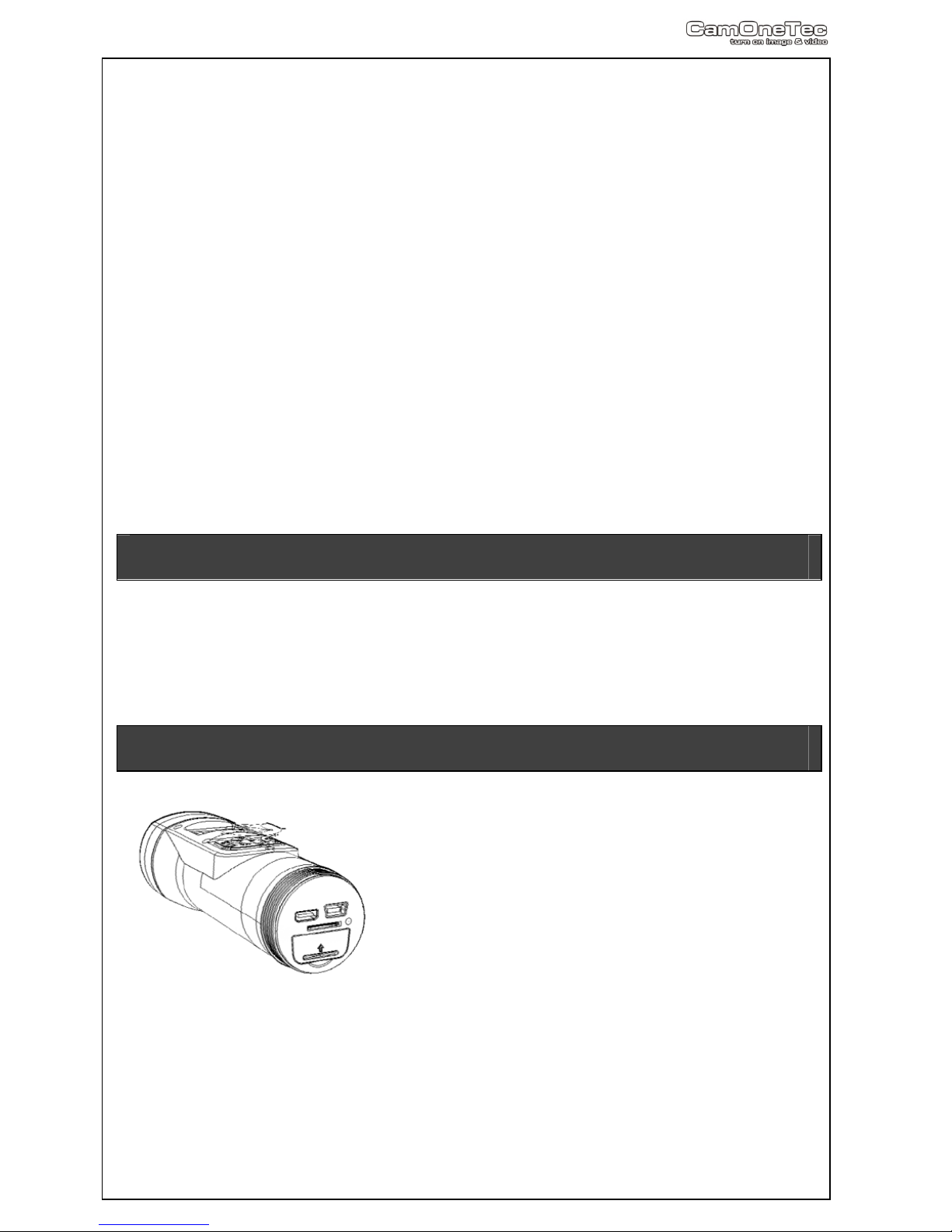

Insert/ Replace battery
Twist off the end cap of the camera. Below you will find the battery case and further
interfaces.
Insert the battery by following the contacts of the camera.
Only use the original replacement battery (Art-Nr.: COXP08).
Batteries of other suppliers may have different polarities and cause damages.
Charging the battery
The inside battery is not fully charged when being
purchased. Please charge the battery before using
the CamOne Xplore for the first time.
Connect the camera with your computer using the
included USB-cable. The charging process is
indicated by the red LED light which switches to
green as soon as charging is finished.
Charging takes around 2 hours.
You can alternately use the 5V USB-Power adaptor (Art. No.: FCHD43).
5

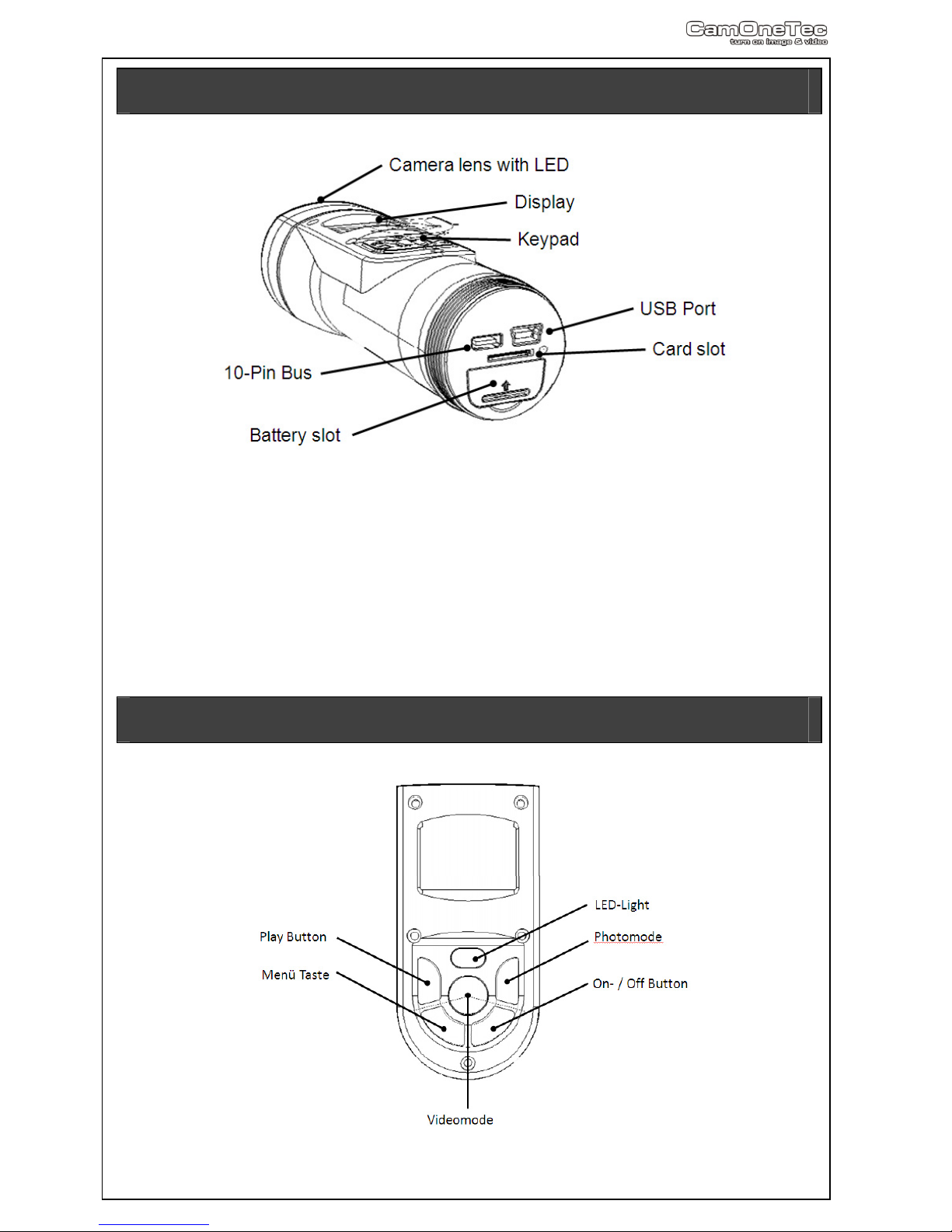

Functional diagram
The USB comport has the following setup:
-AV-Out
-5V IN
-Signal IN for external Start/Stop (CarCamOne-Cable / Motion sensor)
-GPS-Module / Video transmitter Set data input
Due to limitations in the technology of the display production, single or few dark or
light dots might appear. This is not a defect and will not have any impact to the
recorded video or photo!
Key Panel Overview
6

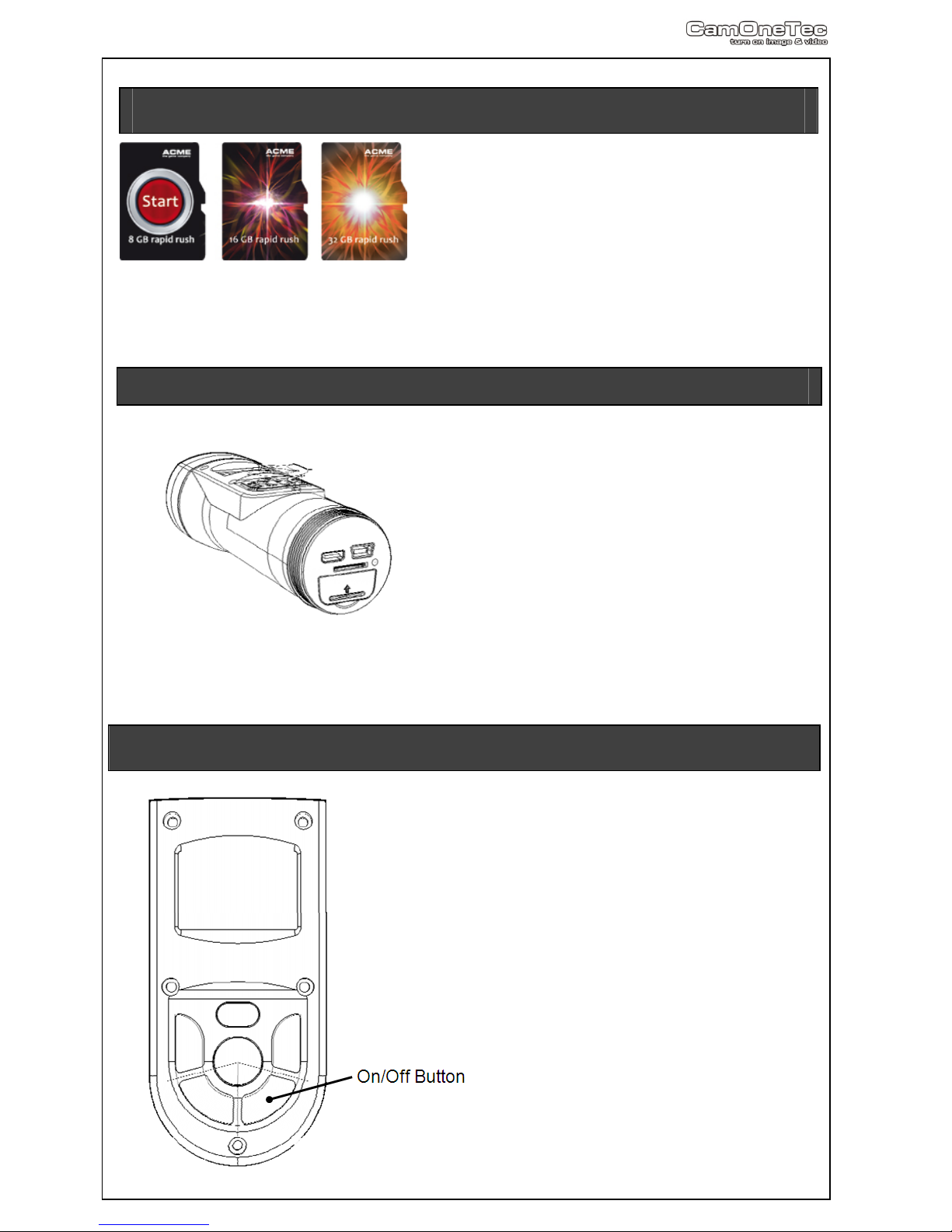

Compatible cards
Only use Micro-SDHC-Cards rank „Class4“ or
higher. The camera can be used with cards up to
32GB. The recommended cards are "FCO Rapid
Rush" cards at a minimum size of 8GB.
Using a 32GB card allows a recording time of 4,5
hours at highest resolution (according to camera
settings).
8 GB Micro-SD-Karte Art.-No.: FC3008
16 GB Micro-SD-Karte Art.-No.: FCHD16
32 GB Micro-SD-Karte Art.-No.: FCHD32
Insert/ Remove Memory Card
Remove the bolted connection (Port-Cover), that
covers the communication port and card slot.
Insert the card as following: The contacts of the
card must point up and in direction of the display
(printed side to the bottom).
The card snaps into place.
Turn on the cam
On/ Off
Press the power button on the top of the
cam until it turns on.
7
SETUP Menu
Please press the M- Button for 3 seconds until you will enter the setup.
Languages Choose between German, English, French, Spanish or Italian.
Date Setting the date (Year-Month-Day)
Time Setting the time (Hour : Minute)
Timestamp If the timestamp is activated, you will see the date and time embedded
in the video
Recording time Choose between: Normal, 5/15/30 or 60 min
Video Quality Choose between: low, normal and high
Serial Picture Normal, 1 frame per second (FPS), 6 FPM, 2 FPM or 1 FPM
Motion Set the lighting conditions
Flip/Mirror Normal / Flipped or mirrored picture
Auto Power Off Select the Auto off function: Off, 60 Sec., 120 Sec. or 300 Sec.
Auto Screen Off Battery saving to be selected here:
Off, 30 Sec., 60 Sec. or 120 Sec.
Press any button to reactivate!
Light Frequency 50/60Hz - Before you start recording indoor, choose the correct
frequency:
Europe, Asia and Australia: 50Hz
America: 60Hz
Japan: Depending on the area 50 or 60Hz
Card formatting All recorded data will be deleted!
Reset Resetting the camera
Update Information about current firmware and update
Please note that some functions are only available after a firmware-/ software update.
Foto / Video Record
After activating the camera you can directly
start the recording by pressing the “record
button“ (Photo-/ or Video recording). By
pressing this button again the recording stops
and will be saved.
Never remove the card or battery during
the data saving (shown by a rotating circle
in the display).
8

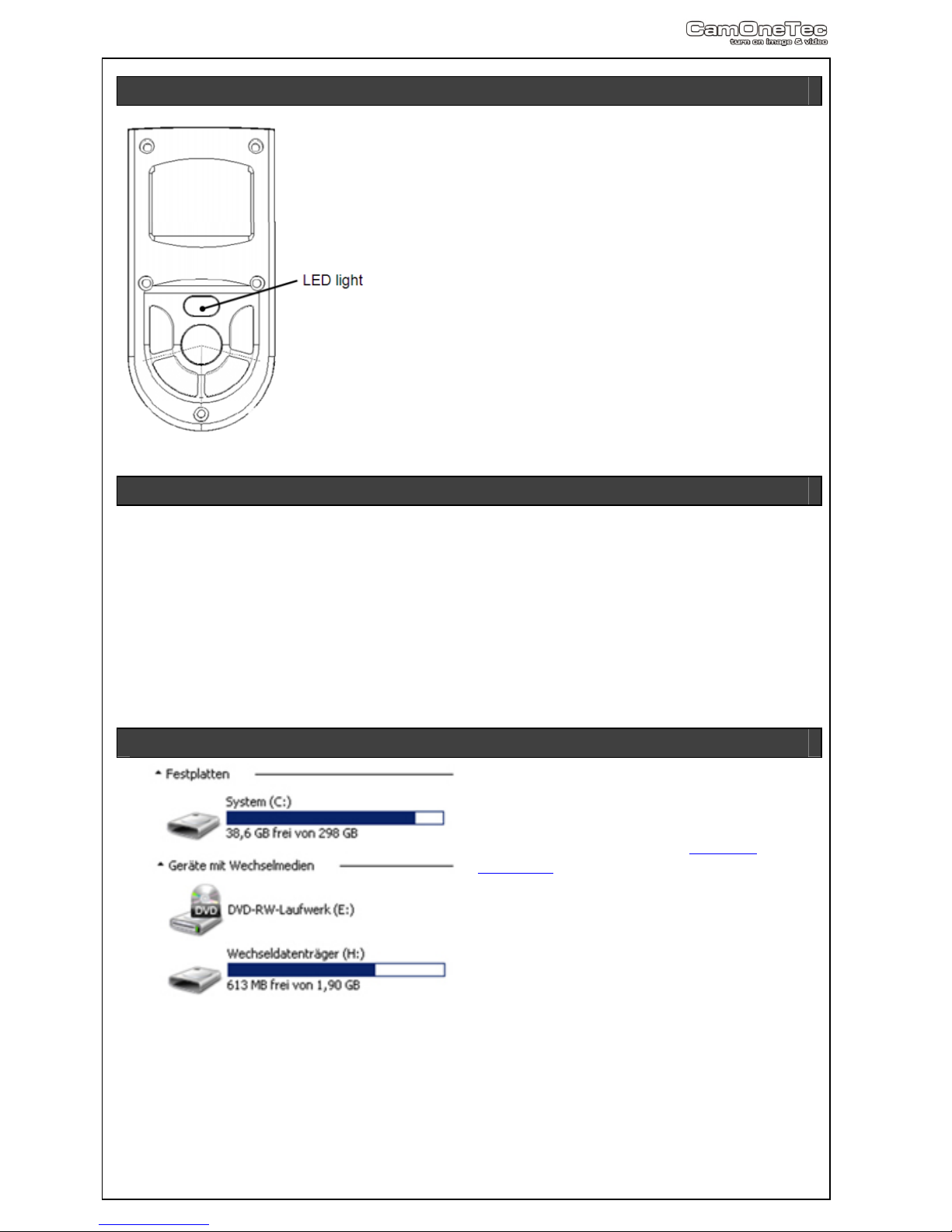

Using the flashlight
The camera has a built- in LED light.
You can also use the light when the
cam is switched off by pressing the
light button.
During the recording you can also
switch on the light to use it as a
illumination for the video.
Playback of Videos and Photos
To watch your recorded data, press the „Play“ button.
You have the choice between photos and videos. Choose this with the Photo and Video
button.
Confirm your choice by pressing the Play button.
To playback the recordings, press „Play“. The display shows the name of the files.
Playback on PC (MS Windows)
The videos can be easily watched on your
PC.
We recommend the free VLC- Player.
This can be downloaded on www.vlc-
player.org
Connect the camera to your PC by using the
USB- Cable. Turn on the camera.
Choose the card access with the buttons
„Photo and Video“ and confirm with the Play
button. The PC will recognize the cam as a
hard drive.
The display will show „Connect to PC“ for a short time.
9
Usage of external Video Transmission / Screen / Motion
Sensor / GPS
(
optional
)
With the 10pin Port it is possible to use the camera with many accessories from the
FlyCamOne HD family
The following products are available
(optional):
-GPS Module (Art. No. FCHD15)
Indication of various GPS-Data

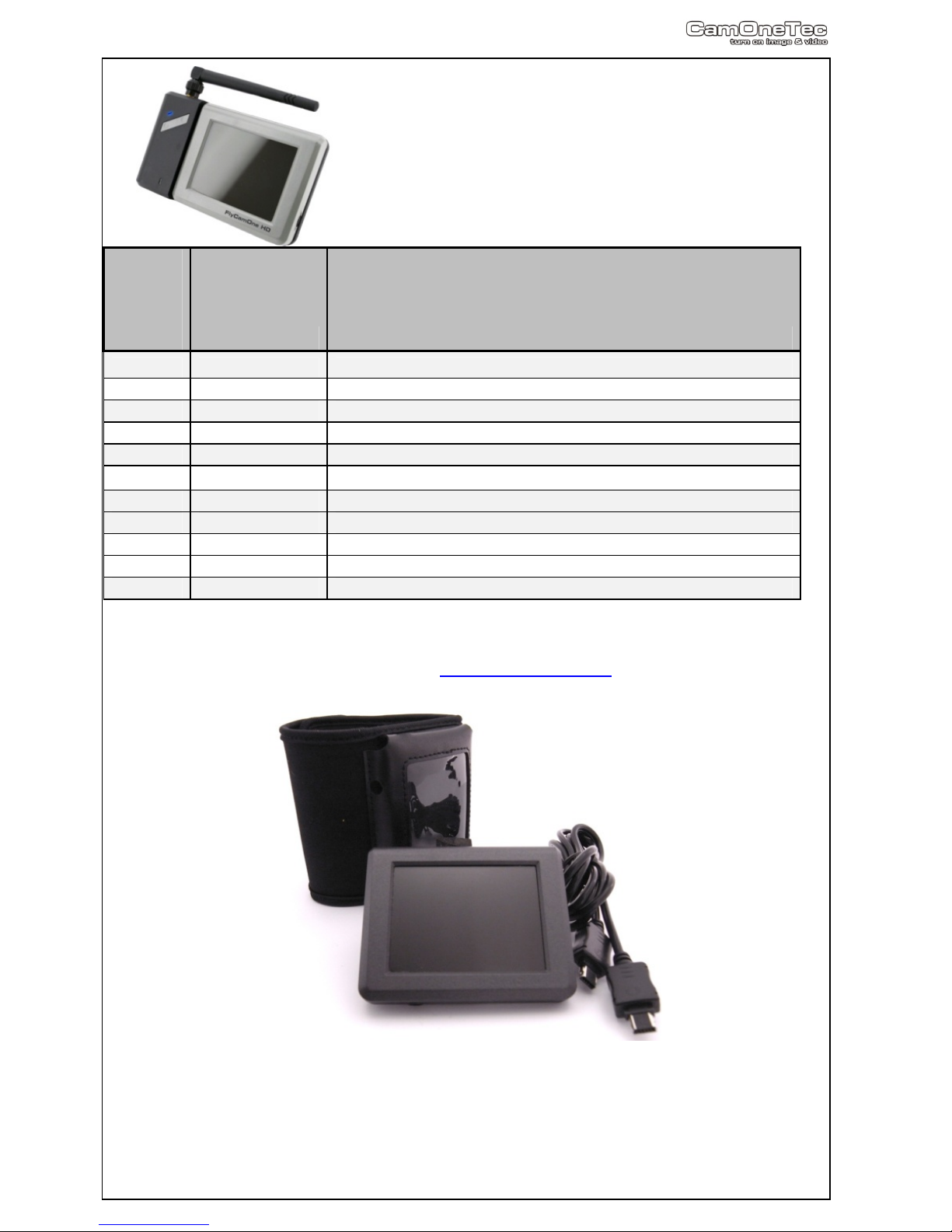

-2,5“ external screen (Art. No. FCHD02)
Watch the video on the bigger display. The
camera display shuts off automatically.
-Video Transmission 5,8GHz (Art. No.
FCHD03)
Transmit the picture on the screen or the
video goggles. The camera display shuts off
automatically.
PIR Motion Sensor (Art.-No.: FCHD07)
Use the camera as an observation cam, recordings will be released automatically.
V-Eyes Video goggles (Art.-No.: FCHD08)
Shows the video picture on 2 high- contrast video cubes in 640x480 pixel. The goggles come
directly with an integrated head tracker and are prepared for the Looka-O Fixation! Other
video sources can also be connected.
Motion sensor (Art.-No.: FCHD07)
Convert your CamOne Xplore to an observation camera. The sensor detects all movements
that get captured through heat and starts the recording automatically.
External battery pack
With the additional battery pack (Art.-No.: COXP12) you can provide the camera with
external power. The additional battery pack has a capacity of 2600mAh.
Unscrew the cap from the camera and connect the battery pack. Charge the battery pack
separately by USB.
10
Firmware Update
To get the most out of your camera, install the latest software (Firmware).
www.camonetec.com
The current firmware version is displayed when pressing the M- button for a longer time.
Download the ZIP file from our homepage first.
Unzip the file on the main root
of the memory card. Enter the
system settings of the camera
and choose Firmware Update.
This process takes about 1
minute. The display shows the
procedure.
Do not turn off the cam while updating!
Make sure that the battery is fully charged.
Technical Data
Operating Voltage: 5V (USB) / 3,7V (LiPo-battery, 650mAh)
Consumption: 250 - 450mAh (depending to camera settings)
Size: 40 x 45 x 112mm
Weight: 88g incl. battery
Battery: 3,7V 650mAh LiPo
Format: MPEG4, AVI or MOV
Sensor: 5MPix CMOS
Lens: 130°
Screen: 1“ / 38mm TFT
Microphone: yes (Mono, 48 kHz)
AV-Output: yes, via 10 PinBus
USB: Hi-Speed USB (2.0)
Operating-/Storagetemp.: -10°C till 60°C
Memory: Micro SD/SDHC-<= 32GB – Class 4 or higher
White Balance: automatical
Lighting: 6 LED
11
Troubleshooting
Error Reason Solution
Camera switches off
immediately.
Battery is not charged
correctly.
Charge the camera for at least
4 hours.
Unable to switch ON the
camera
Battery is not plugged
correctly.
Check connection between
camera and battery.
Battery is defective.
Replace the battery.
The camera had a hang-
up during recording.
Remove the battery for 10
seconds.
The Video jerks when
playing at the PC.
The USB- connection is
too slow.
Download the file to the PC
first.
The micro SD- Card is too
slow.
Try one of the recommended
micro SD- Cards.
The computer is too slow Connect the camera and your
TV with the AV- Cable.
The data rate is too high
for the computer.
Reduce data rate to
“Standard”."
The video is turned 180°
Wrong Settings
Use setup configuration
To turn the picture
Date and time will not be
displayed in a correct way
Wrong Settings Change Settings in the Setup
Display shows „Error“ The memory card is not
working correctly
Format the memory card.
Card is possibly damaged.
12
CamOne Xplore HD
Accessories
Art.‐Nr.:EANArtikel
FCHD02 4260033049520FlyCamOneHDExternalScreen 2,5“
FCHD03 4260033049537FlyCamOneHDVideo TransmissionSet5.8GHz
CCHD02 4260033049544FlyCamOneHDCarCamOneCable;12‐24V
COXP084260033042750CamOneXplore1080pBattery3,7V650mAh
COXP12CamOneXploreexternBattery2600mAhLiPo
FCHD07 4260033049575FlyCamOneHDMotionSensorwith120cmCable
FCHD434260033048578PowerAdapter110‐240VUSBSocket(EU)
FCHD154260033049650FlyCamOneHDGPS‐Module
FCHD16 4260033049667FCHDRapidRush16GBMicroSD‐Card
FCHD32 4260033049827FCHDRapidRush32GBMicroSD‐Card
FC3104 42600330487215.8GHzTransmittersetExternalantenna +500m
...get inside at www.camonetec.com
Table of contents
