Accessories Introduction

Thank you for choosing Campark X20C camera. Please
carefully read the manual before using, and keep it at a safe
place for future reference.
The compilation of the user manual refers to the latest
information. The manual quotes captured screen displays and
graphics, with the aim to introduce the digital camera through
detailed and direct methods. Due to system update and
product batch, those captured screen displays and graphics
indicated in the manual may differ from the actual camera you
received.
When you are not using the camera for some time, please
keep it in a dry place and avoid direct sun light.
Camera Maintenance
Use protective cases to avoid the scratches on lens and
screen.
Please clean the lens with soft clothes or tissue, DO NOT use
organic solvent to clean the lens.
DO NOT touch the lens with your fingers or other hard
subjects.
Please put the camera in the waterproof case when using in
moist or dusty place, in case of any leakage.
Avoid dropping or bumping the camera.
Precaution
1

DO NOT use the camera in high temperature environment for
a long time.
The camera will get warmer while working, that is normal.
Please do not put heavy objects onto the screen. It may
scratch or crush the screen.
2

Button Function and Interfaces:
1.OK/Shutter
2.WiFiIndicator
3.UP
4.Down
5.Speaker
6.FrontScreen
7.Lens
1
2
3
45
6 7
8
9 10
11
12 13
8.Power/Mode
9.MicroUSB
10.CardSlot
11.HDMI
12.BatteryCover
13.MountBracket
3

Buttons Function
1.Press and hold to turn ON/OFF the camera
2.In standby, short press to switch between Video
and Photo mode.
3.In Setup menu, short press to switch sections.
4.In Playback, short press to return to Video/
Photomode.
Power /
Mode
1. In video mode, short press to start / stop video
recording.
2. In photo mode, short press to take a photo.
3. In playback, short press to start / stop video
playing.
4.In setup menu, short press to confirm selection
and changes.
OK /
Shutter
1. In standby, press and hold to turn on / off WiFi.
2. In playback, short press to select media files.
3. In setup menu, short press to select option and
adjust values.
UP
Down
1. In playback, short press to select media files.
2. In setup menu, short press to select option and
adjust values.
4

B. How to use memory card.
1. The camera uses Micro SD card as storage, capacity up to
64GB supported, and to ensure normal function, please use
high speed memory card, Class 10 or above cards are
recommended.
2. Before using the camera please insert the memory card first,
and format the memory card in setting menu before using.
3. This camera does not support Hot swap,turn off the camera
before inserting or taking out the memory card.
4. Insert the memory card as indicated by the icon into the slot
until the card totally inside.To remove the memory card,
gently press the edge of the memory card until it pops out.
C. Power ON / OFF
1. Power on: Keep pressing the Power key for 3s till the
screen is on.
2. Power off: keep pressing the camera for 3s to power off
How to start :
A. Charge the detachable Li-ion battery
1. Use a 5V/2A standard USB adapter to charge the camera via
USB cable, or connect the camera to your computer to charge
the camera.
2. When charging is in progress, the charging indicator will be on,
and the indicator will turn off after fully charging.
3.Normally it will take about 2~3 hours to fully charge the camera.
5

Button Function and Interfaces:

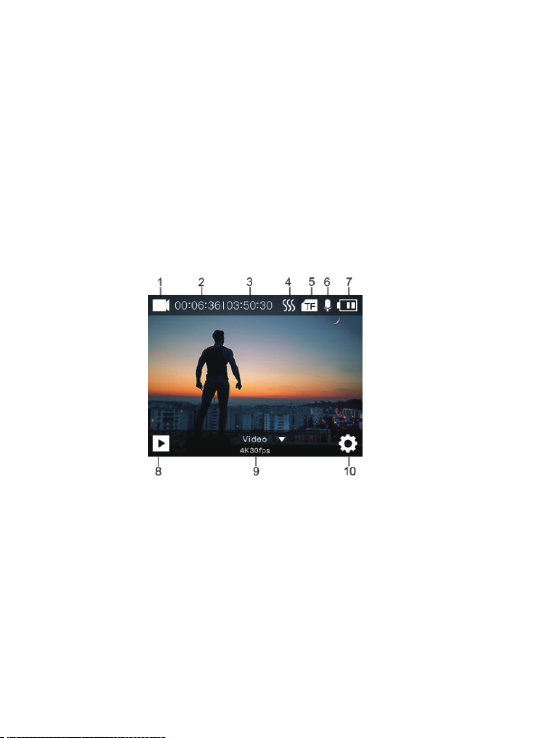

Video Mode :
1. Video Mode Icon
2. Recording Time
4. Image Stabilizer Icon
3. Remaining Recording
Time
5. Memory Card Status
6. Audio Recording
Status
8. Playback
7. Power Status
9. Mode Selection
10. Setting Menu
3. Auto power off: The camera will turn off after the camera is
idle for a certain time (Default time is 3mins)
4. Low power : When the camera is in low power, battery
symbol shows blank. Please charge the camera in time. Or
The camera will turn off automatically.
6

17
18
16
Playback :
16. Video Parameter Setup 17. System Setup Menu
18. Back
11
12
13
14
15
Playback :
11. Play and Pause 12.Previous
14. Next
13. Back
15.Delete
7

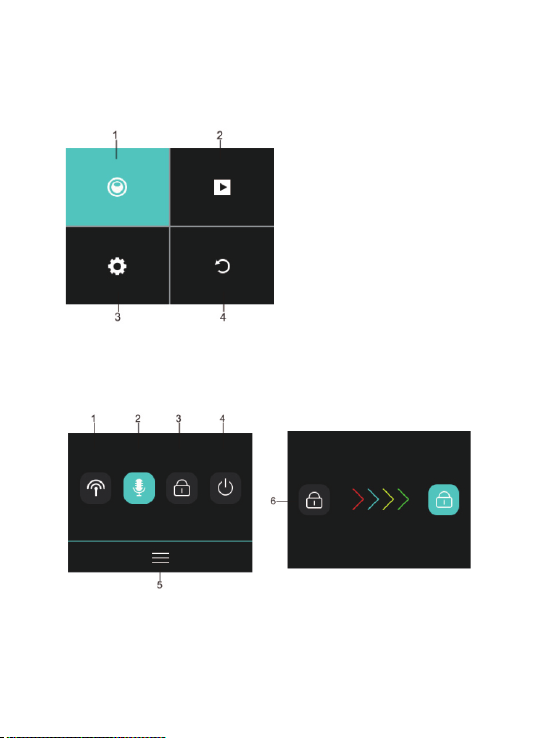

Mode Menu:
1. Mode Select
2. Playback
4.Back
3. System Setup
(Long press OK to access this menu.)
Shortcut Menu:
(In standby, slide down on the screen to pull out the short cut
menu, 4 common functions can be accessed here.)
1. WiFi Switch 2. Audio Recording Switch
4.Power OFF
3. Lock Screen
5. Exit 6. Slide to Unlock
8

The X20C camera mainly works in 3 modes : Video Recording
Mode / Photo Mode / Playback Mode.
Working Mode
Video Recording Mode :
The camera will automatically enter video recording mode
when powered on.
In Video Recording Mode, you can short press the OK/
Shutter button to start video recording, and press the OK/
Shutter button again to stop video recording.
In Video Recording Mode, you can touch the Playback Icon
and the Setup Icon to enter Playback and Setup.
Slide horizontally to switch to Photo Mode.
Photo Mode :
In Video Recording Mode, Slide horizontally to switch to
Photo Mode.
In Photo Mode, you can short press the OK/Shutter button to
take a photo, and touch the Playback Icon and the Setup Icon
to enter Playback and Setup.
Slide horizontally to switch to Video Recording mode.
In Video Recording Mode and Photo Mode, press the playback
icon to enter Playback Mode.
In Playback, you can view and manage all the recorded video
and photos.
Playback Mode ：
9

In Video Recording Mode and Photo Mode, press the Setup
icon to enter Setup Mode.
There are video mode setup, photo mode setup menu and
system setup menu, you can configure the parameters for the
specific mode.
Setup Mode ：
10

Setup Menu Options
Mode Menu Options Application
Adjust video resolution,
with higher resolution,
the video will be clearer.
4K 30fps /
2.7K 30fps /
1080P 120fps/
1080P 60fps /
1080P 30fps/
720P 240fps /
720P 120fps/
720P 60fps/
720P 30fps
Rec
Resolution
EIS ON / OFF Turn ON to activate Electronic
Image Stabilizer
Distortion
Correction ON / OFF Turn ON to correct wide angle
distortion
Auto/Sunny/
Cloudy/
Incandescent/
Fluorescent
White
Balance
Choose the right white balance
according to using conditions,
normally we recommend keep
it in Auto.
Video
11

Exposure -3 / -2 / -1 / 1 / 2 / 3
Adjust exposure according to
using conditions to adjust
picture brightness.
Metering
Mode
Average / Center /
Spot / Matrix
Adjust camera light
metering mode.
Sharpness High / Middle / Low Adjust video sharpness
Video
Quality High / Middle / Low Adjust video quality
Auto / 100 / 200 /
400 / 800 / 1600 /
3200 / 6400 /
Adjust ISO values to adjust
brightness of video. Default
at Auto
ISO
Time
Watermark ON / OFF Turn ON / OFF time watermark
in video
Rec Audio ON / OFF Turn ON / OFF
audio recording in video
Slow Motion
1080P 4X /
1080P 2X /
720P 8X /
720P 4X
Adjust video resolution and
slow down rate.
Slow
Motion
Video
2/3/5 minutes
In loop recording, the camera
will record video in 2/3/5
minutes clips, and when the
memory card is full,the camera
will overwrite the earliest video
with the latest one, and so
forth.
Video
Length
Loop
Recording
Choose the video encoding
type, H.264 / H.265 available.
H.264 coding has better
compatibility.
H.265 is more efficient
compared to H.264.
H.264 / H.265
Encoding
Type
12

Choose the video lapse interval
time to activate time lapse
function. Eg: set it to 1 second
means the camera will capture
1 frame of video per second,
and if you set resolution to
1080P/30fps, then after 30
seconds you will get 1 second
video recorded. so you can
concentrate one day in a
several minutes video.
0.5S / 1S / 2S / 5S /
10S / 30S /60S
Rec
Interval
Lapse
Resolution
Adjust photo resolution, with
higher resolution, the photo
will be clearer.
20MP / 16MP /
13MP / 8MP
White
Balance
Choose the right white balance
according to using conditions,
normally we recommend keep
it in Auto.
Auto/Sunny/
Cloudy/
Incandescent/
Fluorescent
Exposure -3 / -2 / -1 / 1 / 2 / 3
Adjust exposure according to
using conditions to adjust
picture brightness.
Metering
Mode
Average / Center /
Spot / Matrix
Adjust camera light metering
mode.
Sharpness High / Middle / Low Adjust photo sharpness
Long
Exposure
Auto / 2S / 5S / 10S /
15S / 20S / 30S
Under low-light conditions, you
can choose to extend exposure
time to get a brighter photo.
13

ISO
Auto / 100 / 200 /
400 / 800 / 1600 /
3200 / 6400 /
Adjust ISO values to adjust
brightness of photo.
Default at Auto
Time
Watermark ON / OFF Turn ON / OFF time watermark
in photo
Choose a time value to turn on
the automatic timer, then the
camera will keep taking photos
after the preset time gap, eg.
With “Auto” value set to 3s,
then the camera will keep
taking photos every 3 seconds.
Interval 3S/10S/15S/
20S/30S
Choose a value to turn on
continuous shooting, so when
you press the shutter once, the
camera will take multiple photos.
Frequency 3P/S; 5P/S;
10P/S
Burst
Choose a time value to turn on
timer, and the camera will take
a photo after preset time when
you press the shutter.
Countdown 3S / 5S /
10S / 20S
Timer
Turn on to rotate screen
display by 180°
ON / OFF
Rotation
Turn on to turn on WiFi on the
camera, so it can be found and
connected.
ON / OFF
WiFi
WiFi
Information
Choose to access WiFi
information
System
Setup
Auto
Auto
Reset WiFi Confirm/ Cancel Confirm to reset WiFi.
