V Series Python
SERVICE MANUAL

2
TABLE OF CONTENTS
PAGE
1. Specifications 3
1.1. Product Specifications 3
1.2. Name Plate 3
2. Installation Instructions 4
2.1. Moving and Installing 4
2.2. Detergent Box Group 5
3. Operating Instructions 6

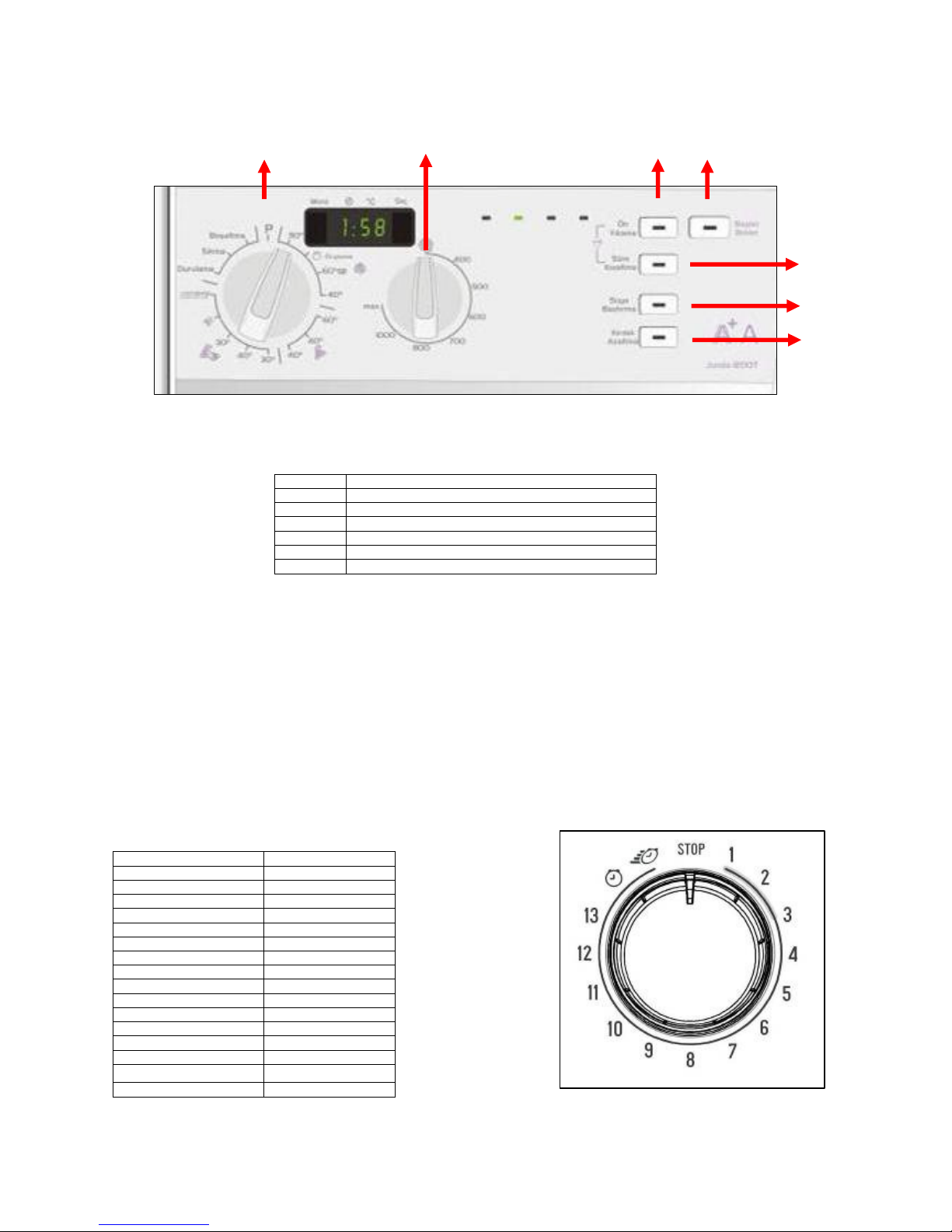

5.1. LCD Screen, Function Buttons & Knobs 6
5.2. Program List 6
5.3. Program Details 7
5.5. Child Lock 8

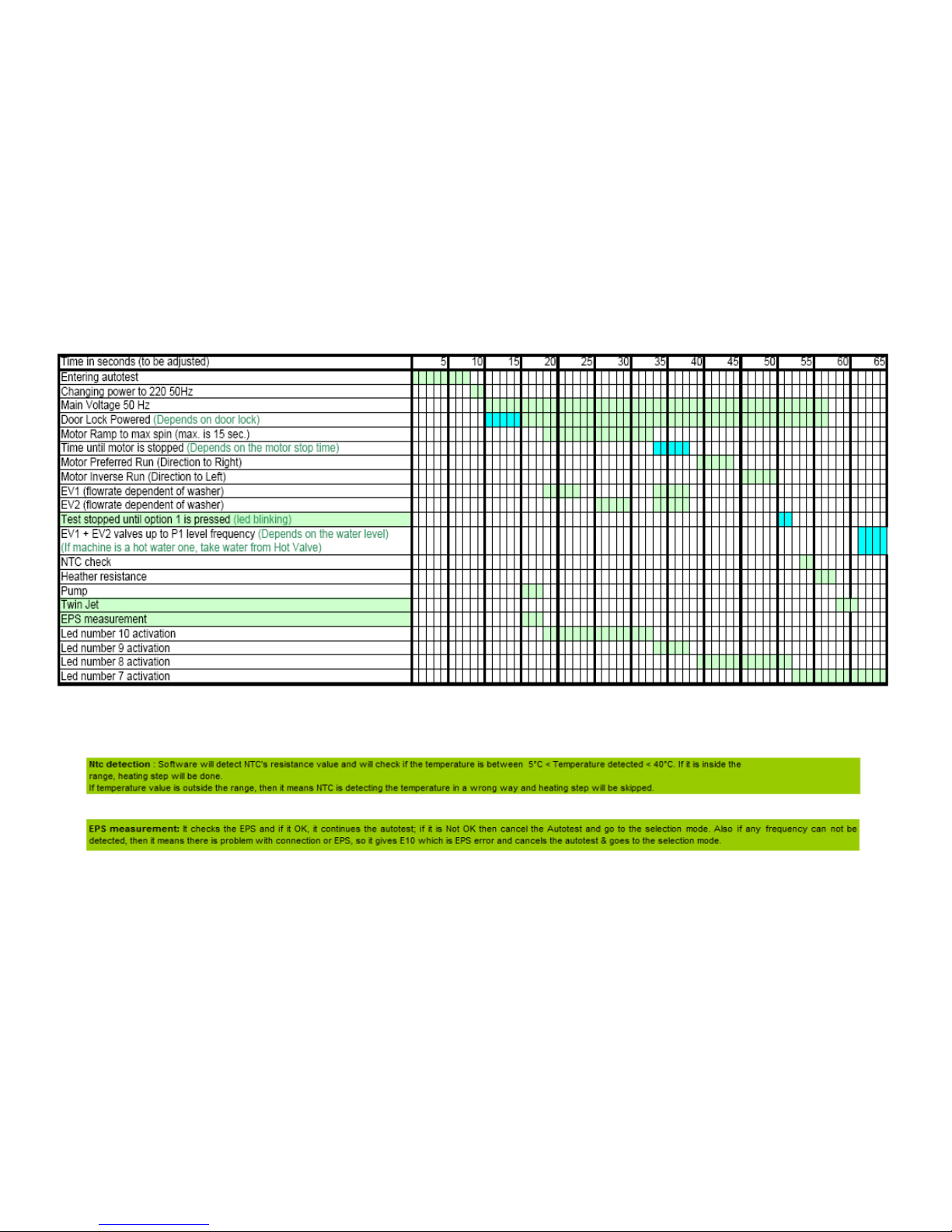

4. Test Mode 9
6.1. Autotest 9
5. Service Mode 11
5.1. Service Autotest 11
5.2. Failure Codes 12
6. Troubleshooting Guide 12
7. Disassembly and Assembly Instructions 14

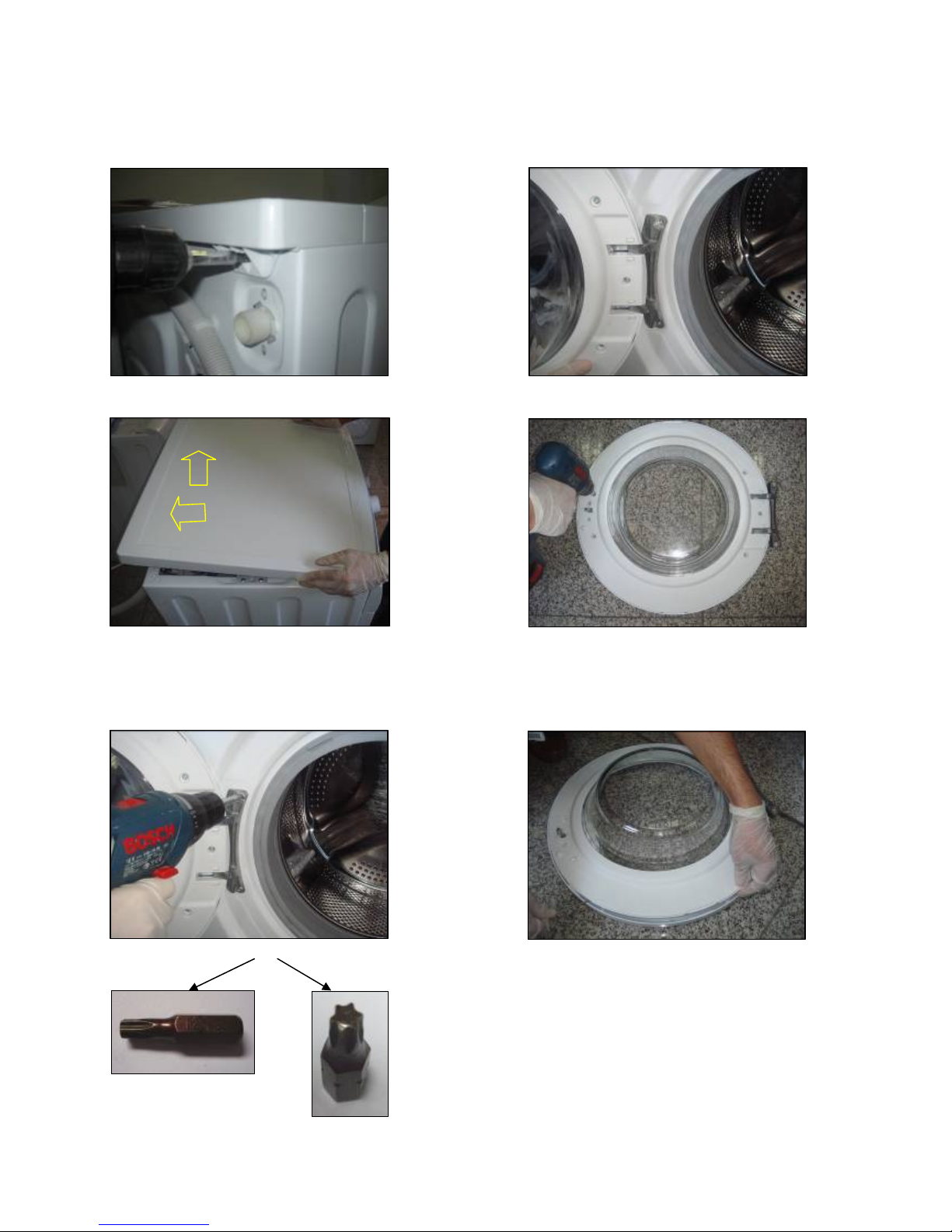

7.1. Top Plate 14

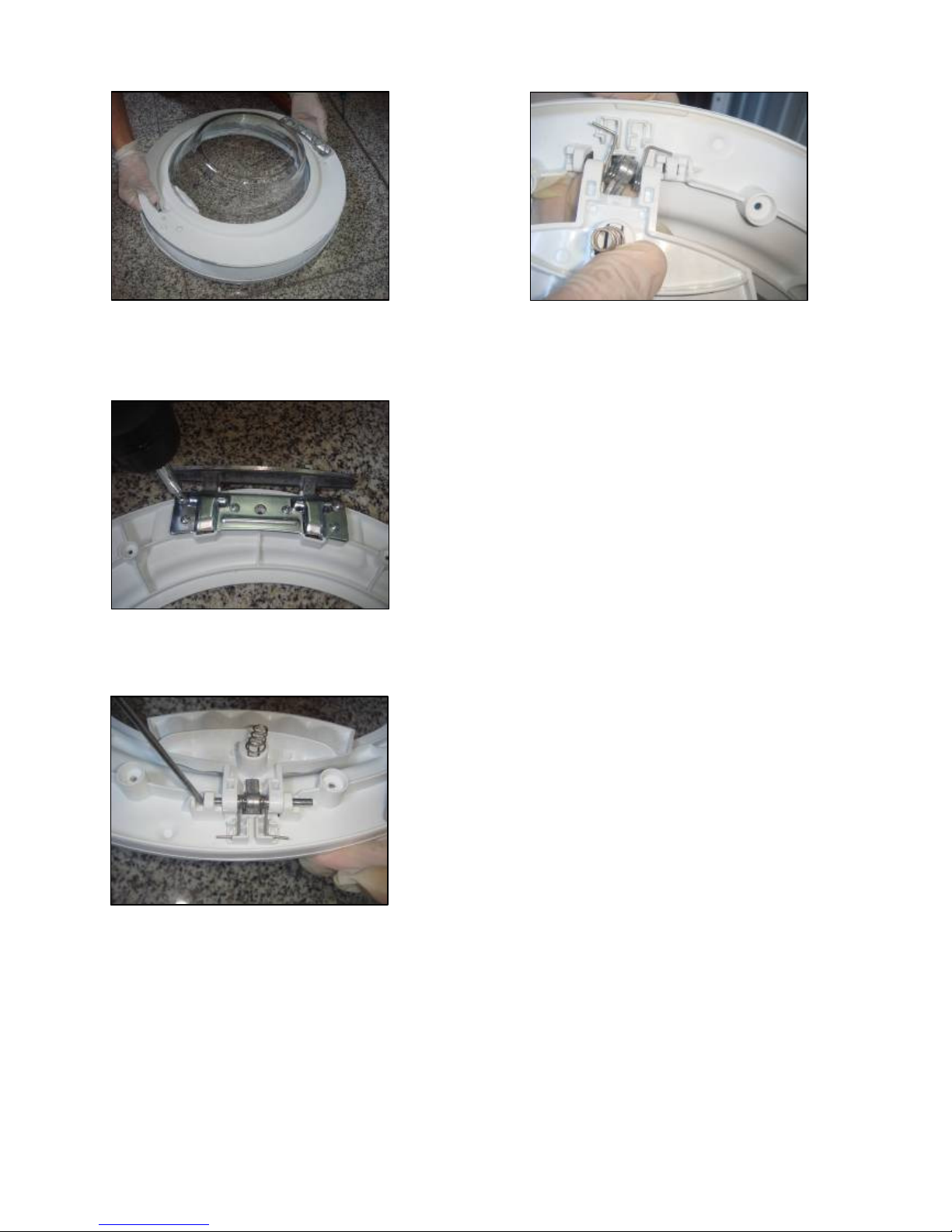

7.2. Door 14
7.3. Tub Bellows Seal 16

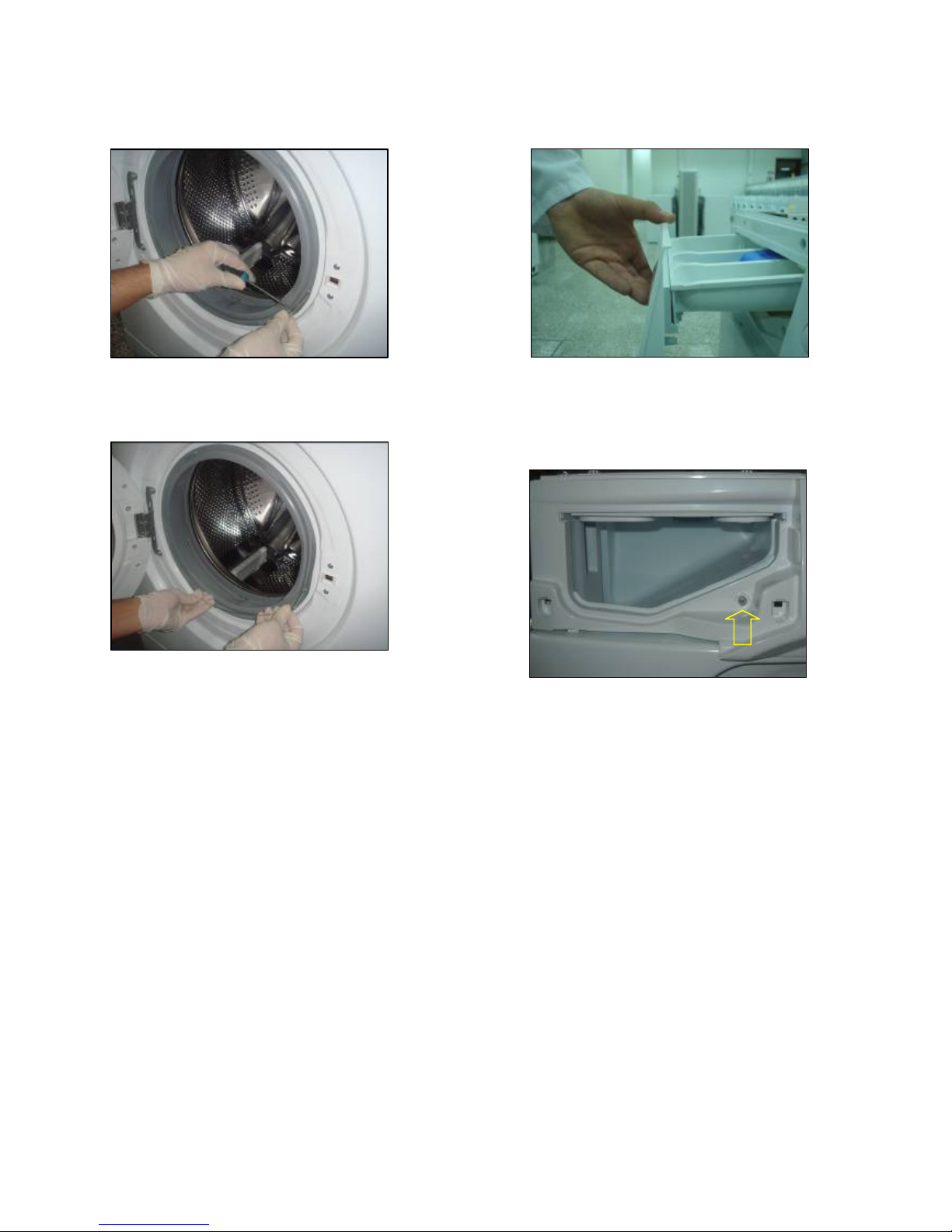

7.4. Detergent Drawer 16

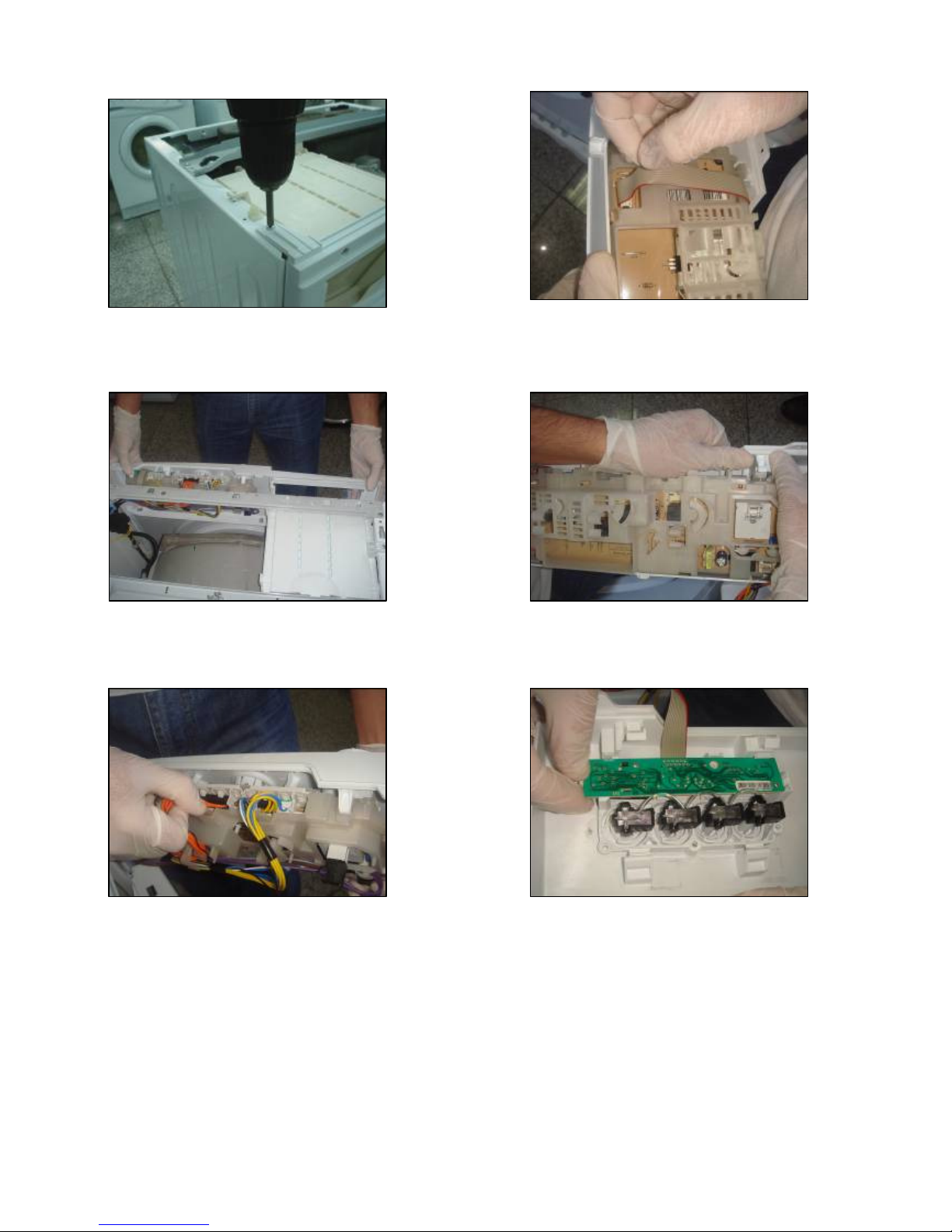

7.5. Control Panel 16
7.6. Kick Plate 18
7.7. Front Panel 18

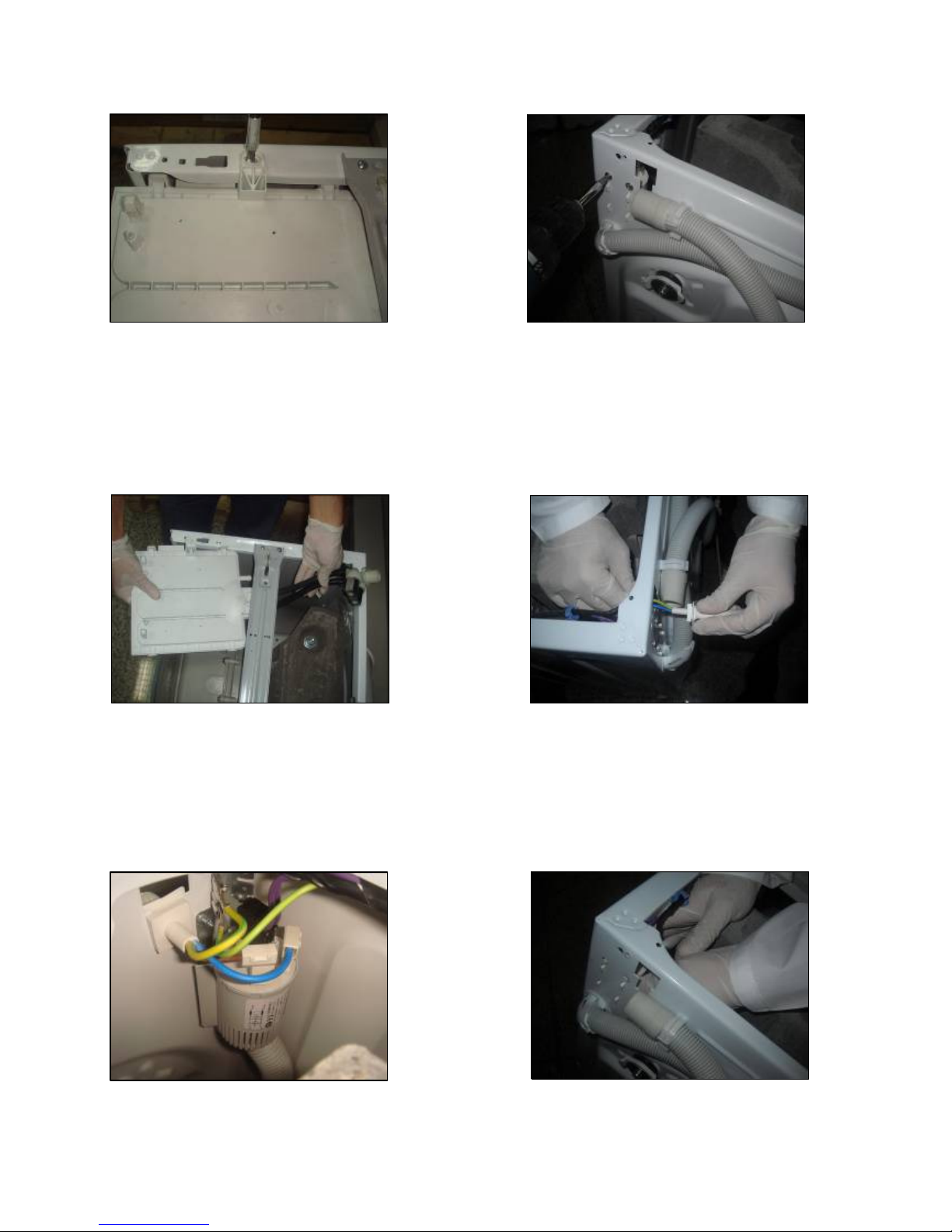

7.8. Upper Support Bracket 20
7.9. Detergent Drawer Housing 20
7.10. Power Cable Group and Parazit Filter 21
7.11. Electronic Pressure Switch (EPS) 22
7.12. Door Lock 22
7.13. Pump Motor 22
7.14. Front Counterweight 23
7.15. Heater 23
7.16. Tub Bellows Seal 24
7.17. Transport Screw 24
7.18. Upper Counterweight 25
7.19. Washing Group 25
7.20. Shock Absorber PIN 26
7.21. Belt 26
7.22. Driven Pulley 26
7.23. Motor 26
7.24. Tub Entrance with Bellow Hose 27
7.25. Pressure Switch Hose Group 27
7.26. Tub 27
7.27. Drum 27
8. Component Specifications 28
8.1. Drain Pump 28
8.3. Resistance 30
8.4. NTC 32
8.5. Valve 34
8.6. Electronic Pressure Switch (EPS) 36
8.7. Motor 37
8.8. Door Lock 40
9. Wiring Diagram 42
9.1. Wiring Diagram NA-127VB3 and NA-147VB3 42

3
1. Specifications
1.1. Product Specifications
50 lt
Product Type Front Loader
Capacity 7 kg
Max Spin Speed (r/min) 1200
Energy Consumption A+
Control Panel LED display
Wash Programs 15 settings
Dimensions
Height 84,5 cm
Width 59,7 cm
Depth 52,7 cm
Other Features
Child Lock
Delay Time
1.2. Name Plate
0000
SERVICE IN
DEX
NUMBER

2. Installation Instructions
2.1. Moving and Installing
2.1.1. Removal of Transportation Screw
1. Transportation screws, which are located at the back
side of the machine, must be removed before running
the machine.
2. Loosen the screws by turning them anticlockwise with a
suitable spanner.
3. Pull out the screws and rubber washers.
2.1.2. Foot Adjustment
1. Do not install machine on rugs or similar surfaces.
2. For machine to work silently and without any vibration, it
should be installed on a flat, non-slippery firm surface.
Any suspended floor must be suitably strengthened.
3. You can adjust the level of machine using its feet.
4. First, loosen the plastic adjustment nut away from the
cabinet base.
2.1.3. Electrical Connection
1. Washing machine requires a 50Hz supply of 220-
240Volts.
2. A special earthed plug has been attached to the supply
cord of washing machine. This plug must be fitted to an
earthed socket. The fuse value fitted to this plug should
be 13 amps. If you have any doubts about electrical
supply, consult a qualified electrician.
4. The holes where the transport screws have been
removed should be covered with the plastic transport
caps found in the accessories bag.
5. The transportation screws that have been removed from
the machine must be re-used in any future transporting
of the machine.
5. Change the level by adjusting the feet upwards or
downwards.
6. After level has been reached, tighten the plastic
adjustment nut again by rotating it upwards
against the base of the cabinet.
7. Never put cartons, wooden blocks or similar
materials under the machine to balance
irregularities of the floor.
THIS APPLIANCE MUST BE EARTHED.
Insert the machine’s plug to a grounded
socket which you can easily reach.

5
2.1.4. Water Supply Connection
1. Washing machine is supplied with a single (cold) water
inlet.
2. To prevent leakage from the connection joints, a rubber
washer is included in the hose packing. Fit this washer
at the end of water inlet hose on the tap side.
3. Connect the hose to the water inlet valve. Tighten the
plastic connector by hand. Please call a qualified
plumber if you are unsure about this.
4. Water pressure of 0,1-1 MPa from tap will enable
machine to work more efficiently.(0,1 MPa pressure
means water flow of more than 8 litres in 1 minute from
a fully opened tap)
2.1.5. Drain Connection
1. Make sure that water inlet hoses are not folded, twisted,
crushed or stretched.
2. The drain hose should be mounted at a minimum height
of 60 cm, and a maximum height of 100 cm from the
floor.
2.2. Detergent Box Group
PREWASH = WATER ENTRY VALVE 1
MAIN = WATER ENTRY VALVE 2
SOFTENER = WATER ENTRY VALVE 1 + VALVE 2
5. After connection is complete, check for leakage by
turning on tap completely.
6. Make sure that water inlet hoses can not become folded,
damaged, stretched or crushed when the washing
machine is in its final position.
7. Mount the water inlet hose to a ¾” threaded water tap.
3. The end of the drain hose can be connected directly to a
drainage stand-pipe or alternatively to a specific
connection point designed for that purpose on the waste
outlet of a sink unit.
4. Do not extend the drain hose or guarantee will be
invalidated.
MAIN
SOFTENER
PREWASH
VALVE1
VALVE2
