GPS TRACKER USER MANUAL

- -2

1, Overview

Thank you for purchasing MT018 This device is an advanced 2G /4G network ,if your device is 2g version pls use 2g sim card, 4g version

pls use 4g sim card. This tracker is waterproof IPX6, innovative miniature size personal remote positioning device with GPS and

GSM/GPRS technology. It’s for monitoring and protecting people and property. It can be used in all walks of life from traveling lone

workers and mobile nursing staff to children and the elderly, Dementia etc.

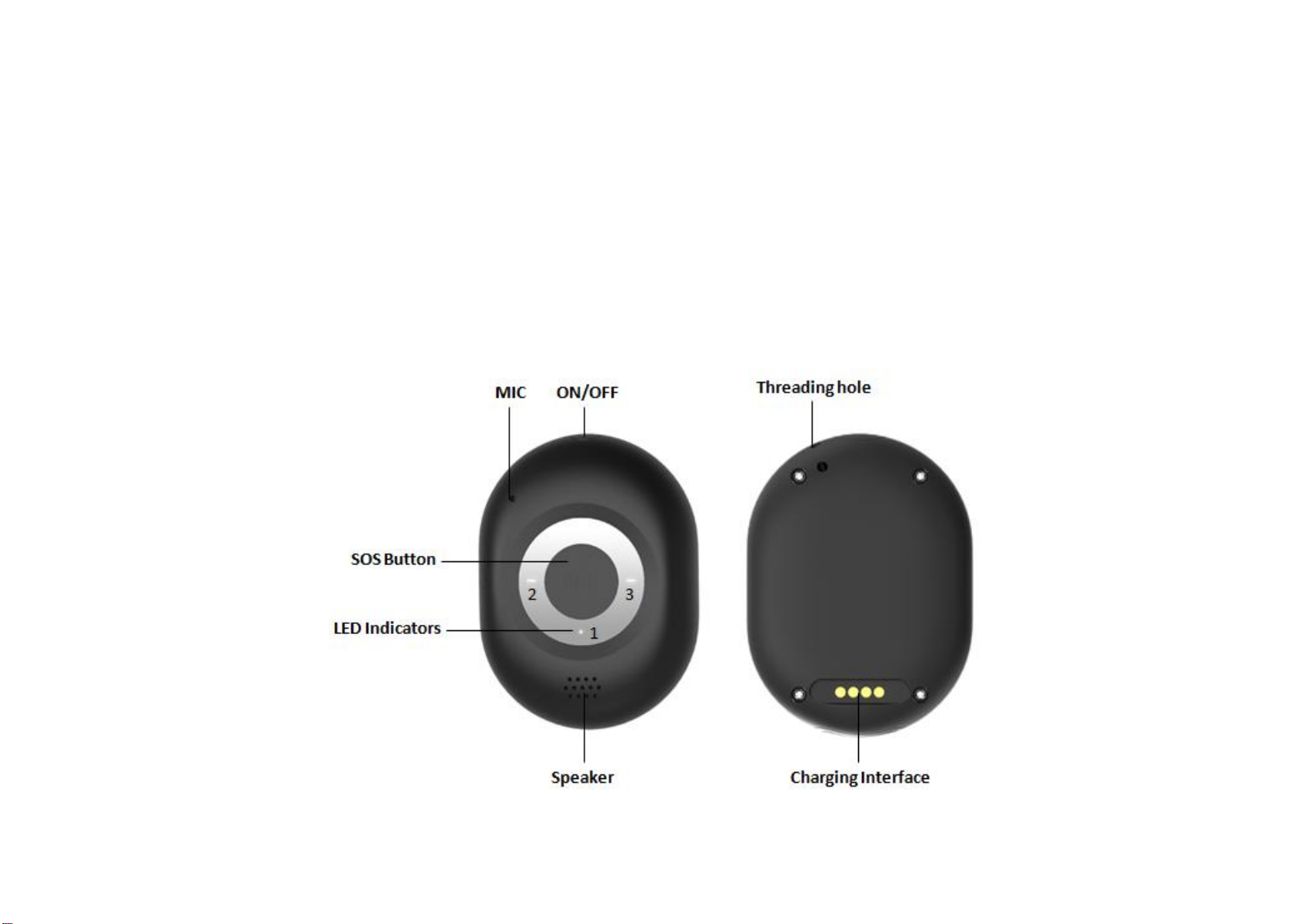

1) Structure :

- -3

2) Features :

1. Mini sized, can be hung on the neck or wear on your hands

2. Real time tracking by GPS, AGPS, LBS and WiFi

3. Dual alarm way: Shock alarm and Voice alarm

4. Fall down function very suitable for children, elderly and patient.

5. AGPS, TTFF in 30 seconds (10 seconds for GPRS included).

6. Magnetic suction charging way

7. Rechargeable 800mAh Lithium battery, standby time over 30days.

8. Voice monitoring and Two way Voice communication

9. SOS emergency button

10. Geo-fencing alarm

11. Movement alarm and Over speed alarm

12. GPRS blind area data re-upload function

13. GPS signal lost and recovery alert

14. Reply map link of current position

15. Real-time tracking platform and mobile APP

16. Use Nano SIM Card

17. Remote upgrade function

18. Certified with CE, RoHs and SAR Certications

19. Waterproof IPX6

- -4

3) Hardware specifications :

No.

Items

Hardware Specifications

Size

60mm* 45m* 18mm

Weight

≤35g

Frequency-2G

850/900/1800/1900 MHz

Frequency-4G

Type A: B1/B3/B7/B8/B20; Type B: B2/B4/B12; Type C: B1/B3/B5/B7/B8/B28

GPS Chip-3G

U-Blox sara(Support AGPS)

GPS Chip-2G/4G

MTK+SIMCOM(Support AGPS)

WIFI Frequency

802.11 b/g/n, 2.4G

Sensor

Motion & vibration sensor

Connectors

4 Pin-Magnet for charging

Microphone & speaker

Built-in

Antenna

Built-in ceramic and FPC antenna

SIM card slot

Nano SIM card

Charging Voltage

5V DC

Battery

Rechargeable 3.7V 800mAh

Temperature

Operating Condition:-40°C to +85°C ; Storage Condition:-30°C to +60°C

Relative humidity

5% -95% noncondensing

Charger

Magnetic USB cable; UK/AU/EU/US plug for option

- -5

2, Operation :

1) Install the SIM card

The SIM card is not included in the package. A Nano SIM card is available from the user's local operator.

A) Unscrew the back cover and remove the cover.

B) Insert SIM card and make sure it’s activated with credits

C) Put the cover back and tighten the screws.

Note: Before installing the SIM card, check if the SIM card has PIN code or not, if yes, please use a cell-phone to unlock the card's PIN code.

2) Device Charging

Note: For the first time use, please fully charge the battery for around 2 hours.

A) Using the USB connection terminal connect to the designated AC power source (USB/AC adaptor).

B) Connect the Magnetic connection terminal to the charging interface of the device.

When charging, the RED LED will be lighting Solid. After fully charged, the RED LED will turn off.

3) Turning the device on/off

A) Turn on: press the side button (ON/OFF) for 2 seconds, the device will turned on with vibrates and LEDs on

B) Turn off: press and hold the side button (ON/CALL) and SOS button together for 1 second until the device vibrates and LEDs off.

Note: In order to get an initial location and locate on the satellites more easier, please use outdoors or near a window. Default working mode is MD2, for

the first positioning, please ensure that the GPS chip working time is long enough, or you can change the working mode in MD1 to let the gps chip always

on, and then back to MD2 working mode.

- -6

4) The meaning of LED indicators

LED1

(Red-mid)

Light Solid (not flashing)

Red blinking slowly

Red OFF

The device is charging

Battery power is lower than 20%

Device has been fully charged or not

charging

LED2

(Blue-left)

Light shows a flash rapidly every 3 seconds

Light shows a double flash rapidly every 3

seconds

Light shows a slow flash every 3 seconds

The device is connected to the GSM network

The device is registered to the GPRS network

The device is connecting to the GSM

network

LED3

(Green-right)

Light shows a flash rapidly every 3 seconds

Light shows a slow flash every 3 seconds

Green Off

The device has a GPS positioning fix

The device has no GPS fix

The GPS chip is sleeping

First of all need to Set the Authorized Number

※It is not mandatory for all Five of the authorized numbers to be set, however a minimum of one must always be set.

Command:N1/2/3/4/5,phone number

Note: With no spaces in the text, case-insensitive.

Example: N1,123456789; N2,123456789.

The device will reply: Set mobile number 1 OK!

※To delete this number, you can send N1/2/3/4/5,0 to the device, Example: N1,0. Device will reply: Del phone number N1 OK!

- -7

5) Trigger SOS alarm

Press and hold the SOS button for 3 seconds until the device vibrates, and then blue light will start to flash rapidly to confirm the request. After that, an SOS Alarm "Help me!

SOS!" will be sent to all authorized phone numbers by text message and to the platform by GPRS. It will also dial the 5 authorized numbers in sequence. If the tracker fails to

connect to the first number, it will call the second number after delay of 10 seconds. (In this time, user can prevent a possible false alarm by pressing SOS button). In case

the second number fails to be connected as well, the system will connect to the third number etc. Between each call, it will have 10 seconds delay, user can press SOS

button to stop to call next number. This will continue until one of the phones answer the call

To end the call and sequence, user can press SOS button or the receiver of the call can answer on their mobile phone to stop it.

6) Making a Phone Call

To make a call, press and hold the side button for 3 seconds and you will hear a beep. The green light will flash rapidly to confirm the request, and then it will

dial the first SOS number (default setting),you can set the Second / Third. To end the call, press the SOS button.

7) Fall detection

A simple fall may cause a devastating consequence. The authorized numbers will be alerted without the user pushing SOS button when the fall sensor is

activated.

Command: FD1,1/2/3

1 equals least sensitive, 3 equals most sensitive; After send FD1, device will send SMS alarm to all registered phone numbers once detect fall.

The device must sense height, impact and angle. The height must at least above 1 meter.

After send FL1, device will send SMS alarm to all registered phone numbers once detect fall alarm.

Command: FD2

After send FL2, device will send SMS alarm to all registered phone numbers once detect fall alarm. It will also the dial the 5 authorized numbers in sequence.

To turn off this function, please send FD0

- -8

8) Location request: Reply with coordinates and web link

Command: locate

The device will reply “GPS Info! Time: xxxxx; Lat: xxxx; Lon: xxxx; Spd: xxxxx, Altitude:xxxx Bt: xxx

maps.google.com/maps?q=loc:22.647379,114.030998

※Put coordinates to Google earth or Google maps. Click on search button, then you will find the position fixed.

※Click on the link then the location can be shown directly on Google Map on your mobile phone.

3, Commands lists:

Note: 1) All commands text no spaces and case-insensitive

2) The device has some default setting, if you want to modify them, please read the contents carefully as below.

1) Working mode:

No.

Mode type

Command

Example

Instruction

Live Tracking Mode

MD1

In this mode, Both GSM and GPS chip are always working, Battery can last 12~36

hours

Smart Power Saving

Mode

(Default working

mode)

MD2

In this mode, GSM/GPRS chip is always working to receives calls, SMS and transmits

location. GPS chip is off when there is no movement or no phone usage/alarm/SMS.

The GPS chip is activated by motion, incoming calls and SMS. Battery life is not

wasted when the device isn't moving. Under normal use, battery can last 3 ~ 5 days.

- -9

Deep Sleeping Mode

MD3,xxm/H

MD3,05M

xx = 00 ~ 99，m =Minute，H =Hour；Both GSM and GPS chip will be off to save

power, the device is unable to receive calls or SMS. It can be only activated by

movement. Once movement is detected, it will run for the set time and sleep again if

no movement is detected. Battery can last 40 days if no movement at all.

Working Mode

MD4

In this working mode, device can always receive SMS/calls. But GPS chip only wakes

up and updates location to the tracking platform if user press button or receive

phone call/text message. Without press button or phone call/message, GPS chip will

always sleep

Time Interval Working

Mode

MD5,XXM/H

MD5,30M

xxx = 00 ~ 99, m =minute, H =hour; In this working mode, device can always receive

SMS, calls. And it updates location to the tracking platform according to the time you

set. Device will update location to the tracking platform every 30 minutes.

2) GPS and WiFi position mode switch setting

No.

Mode type

Command

Example

Instruction

WiFi and GPS

WIFI1

WiFi and GPS both working on, gps first, if no gps signal, change to wifi tracking

WiFi OFF

WIFI0

WiFi off, the device only tracking with GPS

3) Configuration and Operation by SMS

No.

Function

Command

Example

Instruction

To Set the Authorized

Number

N1/2/3/4/5,phone

number

N1,12345678900

It is not mandatory for all three of the authorized numbers to be set, however a

minimum of one must always be set

To delete this number

N1/2/3/4/5,0

N1,0

Feedback: Del phone number N1 OK!

- -10

Incoming call control

IN1

After send IN1, device only answer the call automatically from authorized numbers.

(authorized numbers mean number N1~N5)

IN0

After send IN0, device can answer the call automatically from all numbers. Default

setting is off: IN0

Modify the time zone

TZ+00/-00

TZ+02

UTC time has been set as default time. TZ+02 means the system will add 2 hours

based on the UTC time.

Note: the time must amounts be in 2 digits and at maximum 23 hours in value. “+”

in the “time zone” portion of the text indicates east. The symbol“-”in the “time

zone”indicates west.

User defined name in

SMS content

name1,user name

name1,AAA

The default name is empty

Delete name

name0

Feedback: Delete name OK!

Get location

information

locate

Reply with coordinates and web link. Put coordinates to Google earth or Google

maps. Click on search button, then you will find the position fixed. Click on the link

then the location can be shown directly on Google Map on your mobile phone.

Low battery alarm

low1

When the unit’s battery is less than 5%, it will send an SMS alarm “Battery: LOW!”

to all authorized numbers. (Default: on)

low0

Feedback: low battery alarm off!

Command password

protection

123456Lock

123456lock

After send this command, then it will require a password in front of all commands

(except reboot). For example 123456N1.

123456UNLock

123456unlock

Feedback: UNLOCK OK! (Default:off)

Change password

old password+ to

+new password

123456to666666

The password is changed to 666666. Make sure new password is in 6 digits, or else

the tracker cannot recognize the password

- -11

Geo-fence alarm

(Default: off and only

message alarm)

GeoN,A,B,xxxM/KM

Geo1,1,1,200M

N = Geo-fence number (1 ~ 3) , user can set three Geo fences;

A = 0 means to turn off the function;

A = 1 means to turn on the function;

B = 1 means to set alarm when th tracker enters the preset area

B = 0 means to set alarm when the tracker breaches the district.

xxx is the preset distance to the tracker original place, must be 3 digitals and above

100m. M means meters, KM means kilometers. The device will send the message to

the authorized numbers as ‘Geo fence alarm!+GPS info’when it enter the area you

set. (User must set this function when the device has a GPS positioning fix.)

Delete Geo-fence

Geo1 or 2 or 3,0

Geo1,0

Feedback: Geo fence alarm 1 off!

Over speed alarm

speed1,Speed

speed1,100

The speed must be in km/h in 3 digitals. (001~255km/h);

Suppose the over-speed alert that we want to set is 100km/h, when the device

exceeds 100km/h, it will send the message “Over-speed! +GPS Info” to all registered

phone numbers. (Default: off)

Turn off

over speed alarm

speed0

Feedback: Cancel over speed alarm OK!

Movement alarm

MV1,xxxM/KM

MV1,200m

xxx must be 3 digitals and above 100m. M=meters, KM= kilometers. The

tracker must be stationary when setting this function; When the tracker

moves beyond 200 meters, it will send an SMS alarm to all registered phone

numbers. (Default: off)

Turn off

movement alarm

MV0

Feedback: Movement alarm off!

No motion alarm

NA1,XXM/H

NA1,05M

M means minutes, H means hours, xx means the time you set and must be

two digitals. If device detect no motion more than 5 minutes and it will send

SMS alarm to the authorized numbers. (Default: off)

- -12

Turn off no motion

alarm

NA0

To turn off this function

Listen-in function

(Voice wiretapping)

Listen1

N1-N5 can make a silence call to the tracker. The tracker answers the call

automatically and allows the caller to hear what is happening around the

tracker. There is no voice indication that the call is in progress. (Default

setting is off)

Turn off

listen-in function

Listen0

Feedback: Listen-in off!

Sound function

sound1

After send this command, when device accept incoming calls, device will

make a ring sound and also vibrate. (default:on)

Turn off

Sound function

sound0

After send this command, when device accept incoming calls, device will not

make a ring sound, only vibrate.

SOS button DING sound

ding1

After send ding1, after user press SOS button, device will make a sound and

also vibrate (default:on)

Turn off DING sound

ding0

After send this command, after user press SOS button, device will not make a

sound, only vibrate.

LEDS function

LED1

Feedback: LEDs on! (default:on)

Turn off LEDS

LED0

Feedback: LEDs off!

The device LEDs will stop flashing, but the device is actually on.

To set number for the

side(on/call) button

C,123456789

Side button can be configured to call anyone number, after set this

command. Press and hold the call button for 2 seconds until the device

vibrates, it will call the setting number. If you have not set it will call number

N1 default. (Default:off)

Fall down alarm

(message alarm)

FD1,1-3

FD1,3

1 equals least sensitive, 3 equals most sensitive; After send FD1, device will

send SMS alarm to all registered phone numbers once detect fall.

Fall down alarm

(message and call

alarm)

FD2

After send FD2, device will send SMS alarm to all registered phone numbers

once detect fall, It will also dial the authorized numbers in sequence. The

authorized numbers will be alerted without the user pushing SOS button

when the fall sensor is activated. If this situation may cause false alarm,

- -13

users can manually cancel the fall alert by pressing SOS button during its

beeping. If the fall down alarm triggered, you should answer on your mobile

phone to stop it.

Turn off fall down

Alarm function

FD0

Feedback: Falling detection off!

Default off

Turn on dial function

DIAL1

With this command, all registered numbers can receive the call from device

if has SOS alarm or fall alarm (Default: on)

Turn off dial function

DIAL0

With this command, all registered numbers can’t receive the call from device

if has SOS alarm or fall alarm.

Turn on SMS alarm

SMS1

Enable SMS and GPRS alarms. (Default: on)

Turn off SMS alarm

SMS0

It only sends alarms via GPRS to the platform and without text message to

the authorized numbers.

Check device status

status

Status

Feedback the settings of the device.

Note: ’1’ means that the function is turned on, ‘0’ means that the function is

turn off.

Reboot device

reboot

The device will restart itself without changing any settings.

Default device

default

The device will turn off when reset is complete. This is to make all settings

back to the factory default.

Get IMEI

IMEI

Feedback the IMEI information of the device

4) GPRS Settings by SMS

No.

Function

Command

Example

Instruction

APN

APN1,APN,user

name,password

APN1,cnnet

Note: Some access point name without user name and password, so please

leave it blank. (‘cnnet’ is the APN from the SIM card provider; therefore, the

user must set their particular APN for their own country which the unit

resides.)

- -14

Make sure that the SIM card in the tracker supports the GPRS function. The

APN can be acquired from your local GSM operators.

GPRS Time interval

TxxS/M

T08M

‘xx’ must be 2 digitals can be set with 01-99; S means second, M means

minute. The unit must be second or minute.

Turn off GPRS

GPRS0

Feedback: GPRS off!

Reconnect GPRS

GPRS2

Reconnect the website via GPRS for real time tracking

Change IP and Port

IP1,IP/website,port

IP1,58.61.154.232,

2018

Feedback: Set IP and port OK!

Check APN, IP and Port

CHECK1

Feedback the APN and IP information of the device

Delete tracking history

data

DEL

The device will stop sending the stored tracking history data to tracking

platform.

Setting reporting time

interval when no

movement

NMxxM/H

NM30M

xx=00~99, M=Minute, H=Hour；After send the above command,device will

transmit data every 30 minutes to the platformwhen device no motion.

Suitable for MD2

Setting a Heartbeat

Packet Reporting

Interval

HBxxS/M

HB30M

After send the above command, the tracker will send the GPRS heartbeat

packet to the platform every 30 minutes in MD1 and MD2 mode. The

heartbeat function is used to keep the platform connection smooth, but GPS

positioning data is invalid

The heartbeat packet function is used to keep the Transmission Control

Protocol (TCP) connection open when the interval of scheduled GPRS

reporting is long. The heartbeat packet function is only available for the MD1

and MD2 working mode

Note: ‘xx’ can be set with 00-99; S means second, M means minute.

Turn off Heartbeat

Packet function

HB00M

When the interval is 0, the heartbeat packet function is disabled

- -15

5):Real time tracking on platform

www.18gps.net. For more information please contact the seller.

4, Notices:

GPS does not work well indoors

Because The signals from the satellites are attenuated and scattered by roofs, walls and other objects.

GPS satellites transmit at least 2 low-power radio signals. The signals travel by line of sight, meaning they will pass through clouds, glass and plastic but will

not go through most solid objects, such as buildings and mountains.

So we suggest put it outside for first time use.

1. Please make sure GSM SIM card supports making calls, sending messages, GPRS network.

2. If you want to get high quality of GPS signals, please set APN to active the AGPS function and put it outside.

3. Please make sure the GSM card has opened the call shows and turned off the call transfer.

4. When you send message to the device success, the blue LED will flash quickly.

5. Clear the unit with a piece of dry cloth. Do not clean in chemicals or detergent.

Please comply with the instructions to extend the unit life. Changes or modifications not expressly approved by the party responsible for compliance might

cause harmful or damaged.

Contents of this manual are subject to changes without prior notice.

All information contained in this manual is believed to be correct. We shall not be liable for errors contained herein nor for incidental or consequential
