1
58CMR
Multipoise Oil Furnace
Input Capacities: 70,000 thru 154,000 Btuh
Series 120
Product Data
A06625
THE LATEST IN OIL FURNACE
TECHNOLOGY
The model 58CMR combines high efficiency and quiet operation
with oil heating technology. The 58CMR is available in 2 sizes.
Each size can be fired at 3 different rates by a simple nozzle
change. Unit 58CMR105 covers input ranges from 70,000 to
105,000 Btuh. Unit 58CMR120 covers input ranges from
119,000 to 154,000 Btuh. The furnace design is a multipoise
style for upflow, downflow, and horizontal applications.
The components of the 58CMR are the finest in the industry. The
unit uses a Riello oil burner with a UTEC fan timer control.
The 58CMR is a standard part of a quality--built home. This
energy--efficient furnace will provide years of quality service to
home builders and homeowners alike.
As with other Carrier furnaces, this model is designed to work as
part of a total home comfort system which includes elements for
cooling, air cleaning, humidification, ventilation, and zoning.
58CMR FEATURES/BENEFITS
Riello Oil Burner and UTEC Controls
SHigh quality Riello oil burner allows safe and efficient
combustion of oil.
SUTEC fan timer board provides reliable operation and
easy connection of thermostat and accessory wiring.
Casing
SMade of 20--gauge, powder--painted steel for years of
durability and attractiveness.
SCabinet features a reversible door, ensuring ease of
service access even in downflow applications.
Insulation and Soundproofing
SUnique silencer baffle, insulated walls and rubber
blower mounts capture most combustion noise and
vibration and make this unit one of the quietest on the
market.
Combustion Products Venting
STop or side flue outlet.
SUnit may be vented using Type L vent material and a
factory--built metal or masonry chimney.
SUnit may also be sidewall vented with an approved
power venter.
Adjustable Blower Speed
S4--speed blower for precise airflow selection of heating
or cooling operation.
Constant Low--Speed Blower Switch
SAllows continual low--speed air circulation through the
home to maximize comfort while maintaining
efficiency.
SAir is constantly filtered and stagnant air is avoided.
SThis option can be controlled by the homeowner.
Combustion Chamber/Heat Exchanger
SComposed mainly of stainless and aluminized steel, the
unique combination combustion chamber/heat
exchanger resists corrosion, overheating, and
deterioration.
SHeat transfer properties make it energy efficient.
SAll seams are tightly welded for leak--free operation.
Certifications
S58CMR unit is CSA certified.
SThe efficiency is GAMA efficiency--rating certified.

2
Warranties
SLimited Lifetime Warranty on combustion chamber/
heat exchanger.
SFive--year Warranty on Riello burner and remaining
components.
Contact your dealer for details.
COMBUSTION CHAMBER/
HEAT EXCHANGER
A96369
CONTROL CENTER
A96370
UNUSED
LEADS
1233
H
U
M
45
6
N
7
2
S
E
A
C
C
O
N
T
C
O
O
L

H
E
A
T

C
X
GWR Y C
ON
12
MODEL NUMBER NOMENCLATURE
58CMR 105 120 12
Riello Burner
Multipoise Oil Furnace
Series
Cooling Size Airflow
(Nominal 400 CFM per 12,000
Btuh Cooling)
12 --- 1200 CFM
Input Capacity
105 --- 70,000 Btuh with 0.40 gph nozzle @ 160 psi
91,000 Btuh with 0.50 gph nozzle @ 170 psi
105,000 Btuh with 0.65 gph nozzle @135 psi
120 --- 119,000 Btuh with 0.75 gph nozzle @ 130 psi
140,000 Btuh with 0.85 gph nozzle @140 psi
154,000 Btuh with 1.00 gph nozzle @ 125 psi
ama
C US
58CMR

3
12
11
10
9
8
7
6
5
4
3
2
1
Left side, right side, or bottom.
13, 14 SEE NOTES:
A97244
1. Heavy--duty blower circulates air across the heat
exchanger to transfer heat into the home.
2. Stainless steel combustion chamber/primary heat
exchanger.
3. Unique silencer system reduces combustion noise.
4. Heat exchanger designed and shaped to efficiently transfer
heat from furnace into the home.
5. Fully insulated internal walls to minimize heat loss and
reduce sound.
6. Supply--air plenum.
7. High limit control to prevent overtemperature operation.
8. Reversible door provides easy access to burner and
controls.
9. High performance oil burner.
10. Manual switch to allow user control of constant
low--speed blower operation.
11. Adjustable electronic fan timer control (inside) has low
voltage electrical terminal strip for easy connection of
thermostat, cooling control, electronic air cleaner, and
humidifier.
12. Access door to blower.
13. Air filter (field supplied).
14. Return--air plenum.
58CMR

4
CLEARANCE TO COMBUSTIBLES
UNIT APPLICATION UPFLOW DOWNFLOW HORIZONTAL
SIDES
Furnace 0 2 2
Supply Plenum and Warm---Air Duct Within 6 Ft
of Furnace
1 2 1
BACK Furnace 0 1 0
TOP
Furnace Casing or Plenum 2 2 2
Horizontal Warm---Air Duct Within 6 Ft of
Furnace
2 2 3
BOTTOM Furnace 00* 0*
FLUE PIPE Horizontally or Below Pipe 4 4 4
Vertically Above Pipe 9 9 9
FRONT 8 8 24
*For combustible floor, use approved accessory subbase.
NOTE: Adequate service clearance should be provided over and above these dimensions as required.
PHYSICAL DATA
UNIT SIZE 105---12 120---20
INPUT (BTUH) 70,000 91,000 105,000 119,000 140,000 154,000
HEATING CAPACITY (BTUH)* 57,000 74,000 85,000 97,000 115,000 126,000
NOZZLE 0.40 --- 70A 0.50 --- 70W 0.65 --- 70W 0.75 --- 70B 0.85 --- 70W 1.00 --- 70W
FIRING RATE (GPH){0.50 0.65 0.75 0.85 1.00 1.10
AFUE% UPFLOW 80.5 80.5 80.5 80.5 80.5 80.5
DOWNFLOW 80 80 80 80 80 80
HORIZONTAL 80 80 80 80 80 80
OIL PUMP STAGES/PRESSURE
(PSIG) 1/160 1/170 1/135 1/130 1/140 1/125
HEATING TEMP RISE _F55---85 55 --- 85 55--- 85 55--- 85 55---85 55 --- 85
COOLING CFM @ 0.5---IN. WC
STATIC PRESSURE 1250 1250 1250 1865 1865 1865
HEATING CFM @ 0.2---IN. WC
STATIC PRESSURE 840 1130 1425 1555 1890 2080
RECOMMENDED HEATING
BLOWER SPEED M e d --- L o w M e d --- H i g h High M e d --- L o w M e d --- H i g h High
SHIPPING WEIGHT (LB) 230 230 230 275 275 275
BURNER MODEL (3450 RPM) RIELLO
4 0 --- F 3
RIELLO
4 0 --- F 3
RIELLO
4 0 --- F 3
RIELLO
4 0 --- F 5
RIELLO
4 0 --- F 5
RIELLO
4 0 --- F 5
* Capacity and AFUE in accordance with U.S. Government DOE test procedures.
{For rating purposes only.
Shaded cells are as Factory Shipped.
58CMR

5
PERFORMANCE DATA
UNIT SIZE 105---12 120---20
DIRECT---DRIVE MOTOR Hp (PSC) 1/3 3/4
MOTOR FULL LOAD AMPS 6.2 9.5
R P M ( N o m i n a l ) --- S P E E D S 1075--- 4 1075---4
BLOWER WHEEL DIAMETER X WIDTH (In.) 10 x 10 12 x 10
F I LT E R S I Z E ( I n . ) --- (Disposable, Field Supplied) 16 x 24 or 25 x 1 20 x 30 x 1
AIR DELIVERY --CFM (WITH FILTER)
UNIT SIZE BLOWER
MOTOR HP SPEED EXTERNAL STATIC PRESSURE (In. wc)
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
105---12 1/3 PSC
High 1425 1350 1305 1250 1170 1030 925 805
M e d --- H i g h 1130 1045 1000 950 885 820 745 670
M e d --- L o w 840 810 770 740 685 635 580 500
Low 725 730 740 745 730 715 690 665
120---20 3/4 PSC
High 2080 2040 1965 1865 1700 1575 1475 1335
M e d --- H i g h 1890 1860 1770 1675 1550 1450 1330 1215
M e d --- L o w 1555 1475 1395 1320 1210 1135 1050 940
Low 1220 1165 1080 1000 925 855 780 655
ELECTRICAL DATA
UNIT SIZE 105---12 120---20
U N I T V O LT S --- H E R T Z --- P H A S E 1 1 5 --- 6 0 --- 1 1 1 5 --- 6 0 --- 1
OPERATING VOLTAGE RANGE (Min---Max)* 104 --- 132 104 --- 132
MAXIMUM UNIT AMPS 12.2 15.7
MINIMUM WIRE SIZE (AWG) 14 12
MAXIMUM WIRE LENGTH (Ft){26 26
MAXIMUM FUSE SIZE OR CKT BKR (Amps)}15 20
TRANSFORMER (24v) 40va 40va
EXTERNAL CONTROL POWER AVAILABLE Heating 40va 40va
Cooling 30va 30va
AIR CONDITIONING RELAY Standard Standard
* Permissible limits of the voltage range at which the unit will operate satisfactorily.
{Length is a measured one way along wire path between unit and service panel for maximum 2% voltage drop.
}Time---delay fuse type is recommended.
58CMR

6
DIMENSIONS
3″
19″
20″
20″
19″
2″
PULL
OIL INLET
(BOTH SIDES)
VENT CONN
ELECTRICAL
CONNECTIONS
(BOTH SIDES)
.88 DIAM TYP
KNOCK-OUT BOTH SIDES
FOR JDIAM VENT
TOP KNOCK-OUT
FOR JDIAM VENT
A
E
G
B
LH
C
D
FK
A98037
DIMENSIONS (IN.)
UNIT SIZE A B C D E F G H J K L
105---12 35 48--- 3/4 31--- 1/4 16--- 5/8 20 22 12 14 51 --- 1 / 2 1 --- 3 / 4
120---20 39--- 1/2 53 33--- 1/4 18--- 3/4 24 28 12--- 19/32 16 61 --- 5 / 8 1 --- 1 / 2
58CMR

7

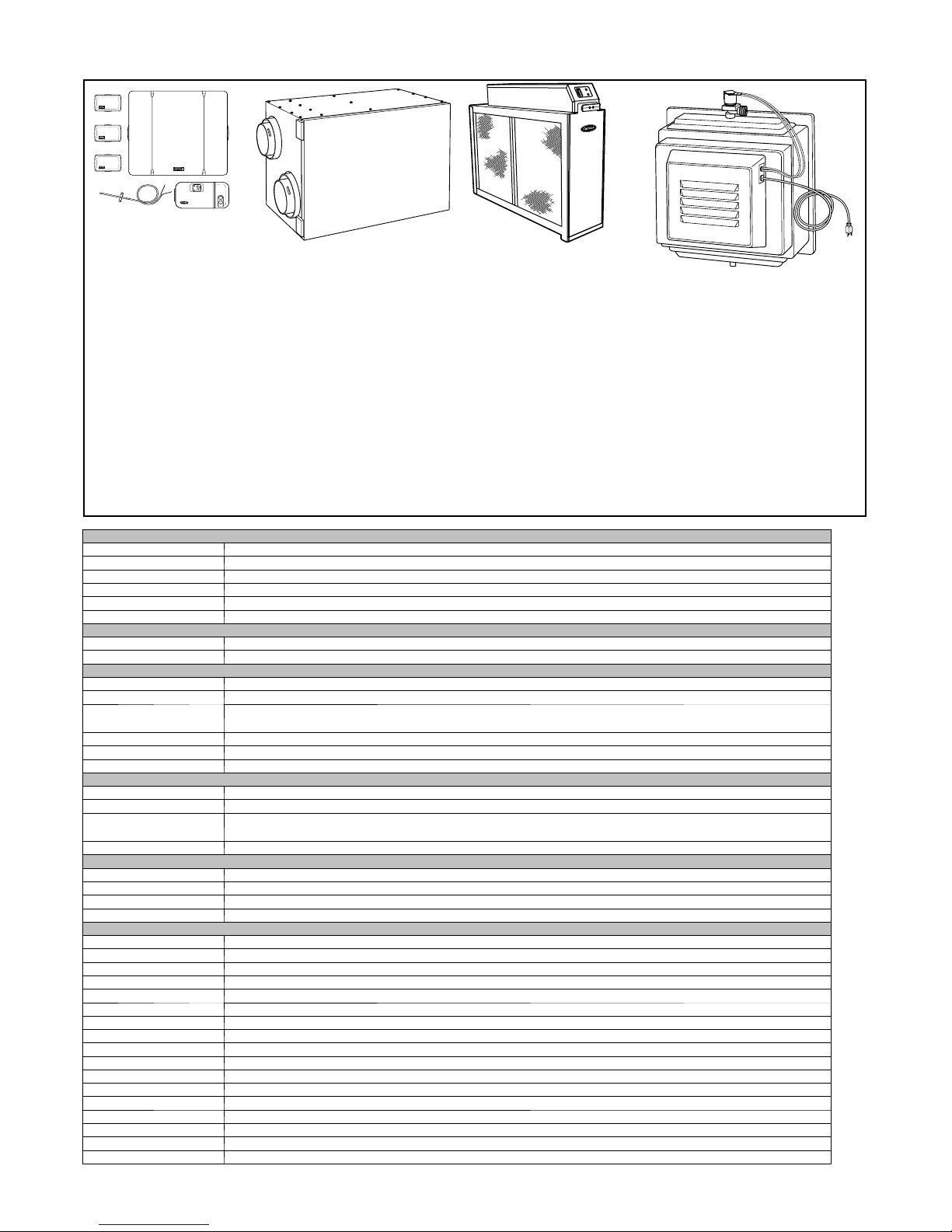

ACCESSORIES
CONTROLS:
THERMOSTATS
AND ZONING
A97432
ENERGY/HEAT
RECOVERY
VENTILATOR
A94336
HUMIDIFIER
A91365
Available in programmable and
non ---programmable models,
Carrier thermostats maintain a
constant, comfortable tempera-
ture level in the home.
For the ultimate in home com-
fort, Carrier’s 2, 4, and 8---zone
systems allow temperature con-
trol of individual “zones” of the
home. This is accomplished
through a series of electronic
dampers and remote room sen-
sors. The 4 ---zone system is
shown.
Carrier’s energy or heat re-
covery ventilators exhaust
stale indoor air and provide
fresh outdoor air to the home
while minimizing heat loss
and humidity level. Especial-
ly useful for today’s tighter
constructed houses.
Energy recovery ventilator is
shown.
ELECTRONIC OR
MECHANICAL AIR
CLEANER
A97380
Cleans the air of smoke, dirt,
and many pollens commonly
found. Saves decorating and
cleaning expenses by keeping
carpets, furniture, and drapes
cleaner.
Electronic air cleaner is
shown.
By adding moisture to winter ---
dry air, Carrier humidifiers can
often improve comfort and
keep woodwork, wallpaper,
and paint in better condition.
Moisturizing household air
also helps to retain normal
body heat and provides com-
fort at lower temperatures.
®
FURNACE ACCESSORIES
KLASB0601DET Downflow Subbase Kit --- Required for combustible floors
KLASB0701DET Horizontal Subbase Kit --- Required for combustible floors
KLABV0101DET Blocked Vent Shutoff Kit
KLADC0101DET Downflow Conversion/Vent Guard --- Required for downflow operation, Model 105--- 12
KLADC0201DET Downflow Conversion/Vent Guard --- Required for downflow operation, Model 120--- 20
HYBRID HEAT/THERMIDISTAT CONTROL
TSTATCCPHH01---B Hybrid Heat Thermostat, Programmable, Outdoor Temperature Sensor Included
PROGRAMMABLE THERMOSTAT SELECTION
TSTATCCPAC01---B Thermostat, Auto Changeover, 7---Day Programmable, °F/°C , 1 --- S t a g e H e a t / 1 --- S t a g e C o o l
TSTATCCPHP01---B Thermostat, Auto Changeover, 7---Day Programmable, °F/°C , 2 --- S t a g e H e a t / 1 --- S t a g e C o o l
TSTATCCP2S01--- B Thermostat, Auto Changeover, 7---Day Programmable, °F/°C , 2 --- S t a g e H e a t / 2 --- S t a g e C o o l i n A C , 3 --- S t a g e
Heat/2--- Stage Cool in HP mode
TSTATCCPRF01 Thermostat, Auto Changeover, 7---Day Programmable, °F/°C, Wireless Transmitter
TSTATCCPF701 Thermostat, Auto Changeover, 7---Day Programmable, °F/°C, Flatstat
NON---PROGRAMMABLE THERMOSTAT SELECTION
TSTATCCNAC01---C Thermostat, Auto Changeover, Non---Programmable, °F/°C , 1 --- S t a g e H e a t / 1 --- S t a g e C o o l
TSTATCCNHP01---C Thermostat, Auto Changeover, Non---Programmable, °F/°C , 2 --- S t a g e H e a t / 1 --- S t a g e C o o l
TSTATCCN2S01--- C Thermostat, Auto Changeover, Non---Programmable, °F/°C , 2 --- S t a g e H e a t / 2 --- S t a g e C o o l i n A C , 3 --- S t a g e
Heat/2--- Stage Cool in HP mode
ZONING CONTROL SELECTION
ZONECC2KIT01---B Comfort Zone II---B --- 2 Zone Kit/Temperature and Humidity Control
ZONECC4KIT01---B Comfort Zone II---B --- 4 Zone Kit/Temperature and Humidity Control
ZONECC8KIT01---B Comfort Zone II---B --- 8 Zone Kit/Temperature and Humidity Control
HEALTHY HOME SOLUTIONS
EACBAXCC0014 Electronic Air Cleaner --- 120V, 1400 CFM
EACBAXCC0020 Electronic Air Cleaner --- 120V, 2000 CFM
EACBAXCC2020 Electronic Air Cleaner --- 240V, 2000 CFM
HUMCCSBP2312 Humidifier --- 12 g./day, 24V Standard, Small Bypass
HUMCASBP2312 Humidifier --- 12 g./day, 24V Automatic, Small Bypass
HUMCCLBP2317 Humidifier --- 17 g./day, 24V Standard, Large Bypass
HUMCALBP2317 Humidifier --- 17 g./day, 24V Automatic, Large Bypass
HUMCCLFP1318 Humidifier --- 18 g./day, 24V Standard, Fan Powered
HUMCALFP1318 Humidifier --- 18 g./day, 24V Automatic, Fan Powered
HRVCCSHA1100 Heat Recovery Ventilator --- Small Horizontal Unit, 100 CFM
HRVCCSVA1100 Heat Recovery Ventilator --- Small Vertical Unit, 100 CFM
HRVCCLHA1150 Heat Recovery Ventilator --- Large Horizontal Unit, 150 CFM
HRVCCLHA1250 Heat Recovery Ventilator --- Large Horizontal Unit, 250 CFM
HRVCCSVU1150 Heat Recovery Ventilator --- Small Vertical Unit, 150 CFM
HRVCCSVU1200 Heat Recovery Ventilator --- Small Vertical Unit, 200 CFM
HRVCCLVU1150 Heat Recovery Ventilator --- Large Vertical Unit, 150 CFM
HRVCCLVU1200 Heat Recovery Ventilator --- Large Vertical Unit, 200 CFM

8
ACCESSORIES (CONT.)
HRVCCLVU1330 Heat Recovery Ventilator --- Large Vertical Unit, 330 CFM
ERVCCSHA1100 Energy Recovery Ventilator --- Small Horizontal Unit, 100 CFM
ERVCCSVA1100 Energy Recovery Ventilator --- Small Vertical Unit, 100 CFM
ERVCCLHU1150 Energy Recovery Ventilator --- Large Horizontal Unit, 150 CFM
ERVCCLHU1200 Energy Recovery Ventilator --- Large Horizontal Unit, 200 CFM
EZXCABCC1016 Media Filter Cabinet --- 1600 CFM (Replacement Filter: EXPXXFIL0016)
EZXCABCC1020 Media Filter Cabinet --- 2000 CFM (Replacement Filter: EXPXXFIL0020)
TYPICAL INSTALLATION
OIL TANK
VENT
PIPE
BAROMETRIC
DRAFT
DAMPER
A/C COIL
OIL FURNACE
SUPPLY-AIR DUCT
AIR CONDITIONER
OR HEAT PUMP
AIR FLOW
CHIMNEY
RETURN-
AIR DUCT
A98026
Copyright 2007 Carrier Corp. S7310 W. Morris St. SIndianapolis, IN 46231
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
Catalog No: 58CMR---3PD
Replaces: 58CMR--- 2PD
Printed in U.S.A. Edition Date: 01/07
58CMR
