CellarPro 3200VSi User manual

CellarPro Cooling Systems
3200 Series

Summary

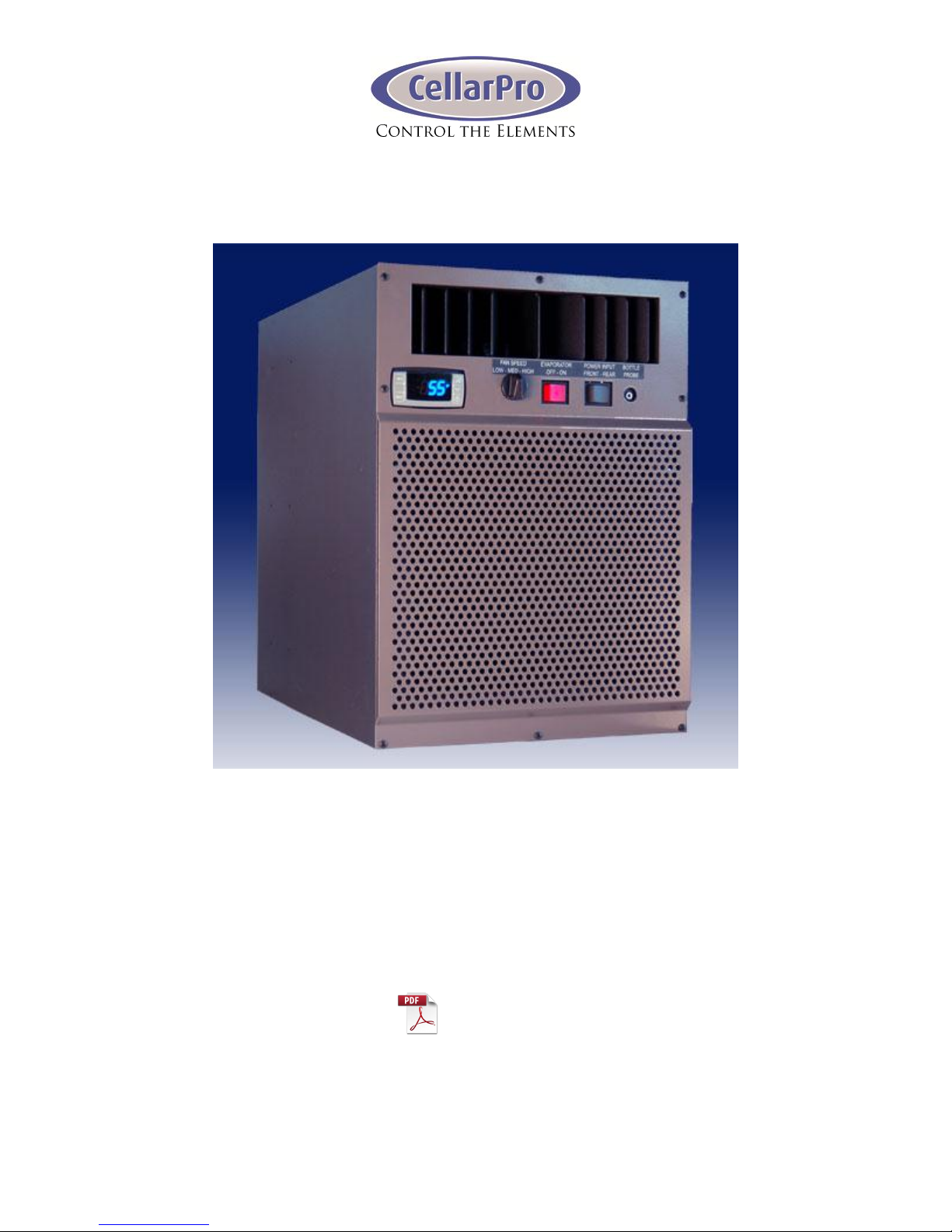

CellarPro 3200 Series cooling units are designed for cellars from 400 to 800 cu ft, as follows:
CellarPro 3200VSi –rated for interior use
CellarPro 3200VSx –rated for interior & exterior use
CellarPro’s 3200 cooling units use two powerful, variable-speed centrifugal fans and offer three
fan-speed settings from super-quiet to high-performance for maximum installation and
application flexibility:
Low fan-speed setting –CellarPro’s 3200VS wine cooling unit is nearly ten decibels
quieter and produces almost as much BTU as Whisperkool’s XLT 3000
Medium fan-speed setting –CellarPro’s 3200VS cooling unit is 15% more powerful and
more than 5 decibels quieter than Whisperkool’s XLT 3000
High fan-speed setting –CellarPro’s 3200VS provides 22% more BTU than Whisperkool’s
XLT 3000, handles extreme conditions from 40 to 115 degrees, and the cooling unit can be
ducted up to 100 equivalent feet (50 per vent)
Specifications
3200VSi 3200VSx
Capacity: 800 Cu Ft 800 Cu Ft
Size (inches): 14.1w x 25.1d x 19.6h 14.5w x 27.6d x 19.7h
Weight (lbs): 92 100
Ship Weight (lbs): 127 137
Ship Dims (inches): 19w x 30d x 25h 19w x 30d x 25h
Power/Rating: 115V AC / 60 Hz; 9.2 Amps 115V AC / 60 Hz; 9.2 Amps
Warranty: 2 Years (Entire System) / 2 Years (Entire System) /
5 Years (Compressor) 5 Years (Compressor)

Key Features
800 Cu Ft Capacity
Designed to operate in extreme temperature conditions (115°F)
High-performance compressor
Oversized Electrofin-coated evaporator coils (VSi & VSx) and condenser coils (VSx)
Dual high-output centrifugal fans
Advanced LED display and electronic temperature control
Adjustable humidity control via electronic display
Thermostat-modulated condensate evaporator with “On/Off” control
Stainless steel drain pan and 1/2"I.D. drain line
Dual power source (front and rear)
Adjustable mounting brackets (eliminates the need for a support shelf)
Removable condenser air filter (3200VSi –fiberglass and 3200VSx –Aluminum)
1/4" refrigeration service (Schraeder) valve & removable steel case
Energy-Saver and Quick-Chill modes
Multiple audible and visual alarms
Compatible with a dedicated 15-Amp circuit
ETL tested and certified (UL Standards)
3200VSx Exterior Package: Weather Hood, Coated Condenser Coils, Double-
Powdercoated Case, Reusable Aluminum Filter, and Exterior-Grade Power Cord

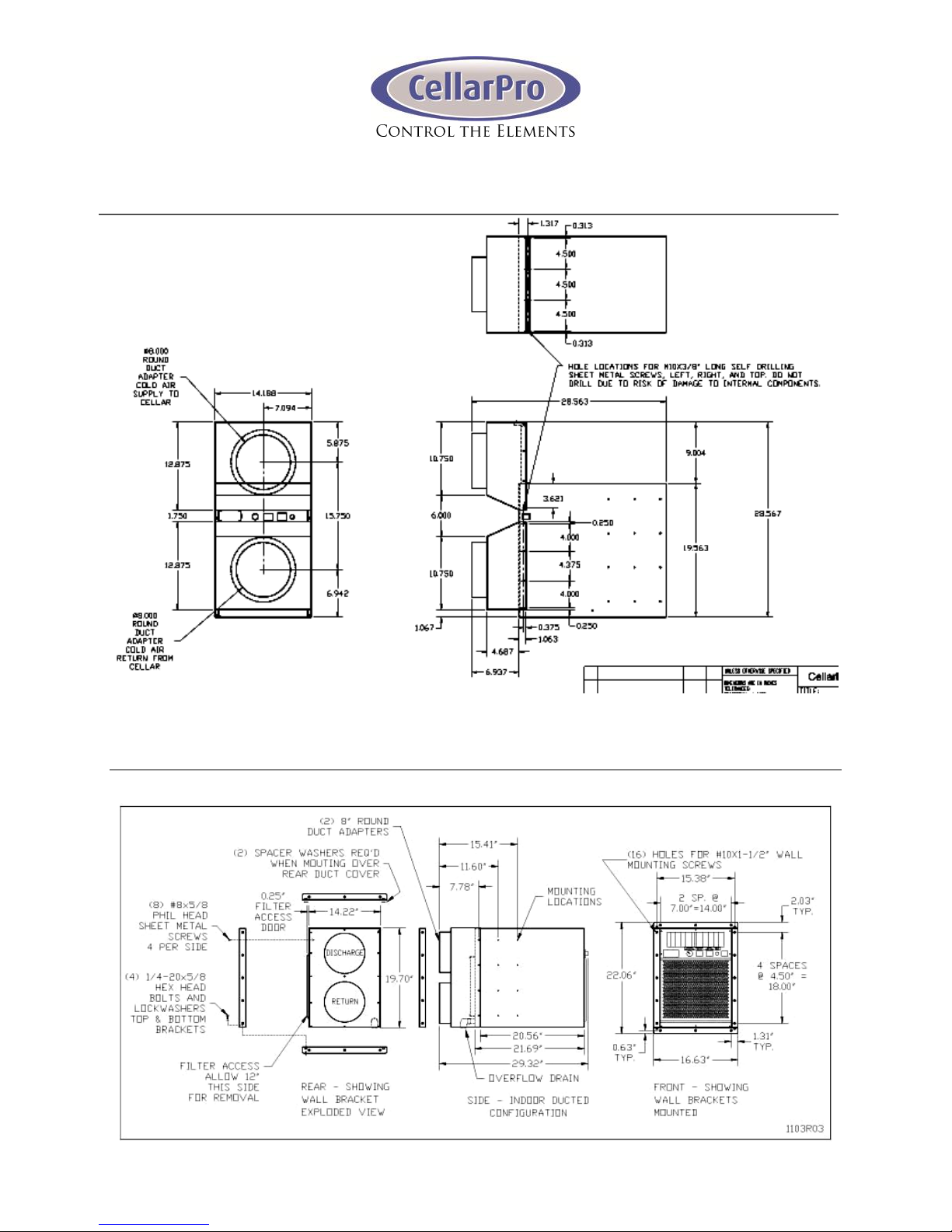

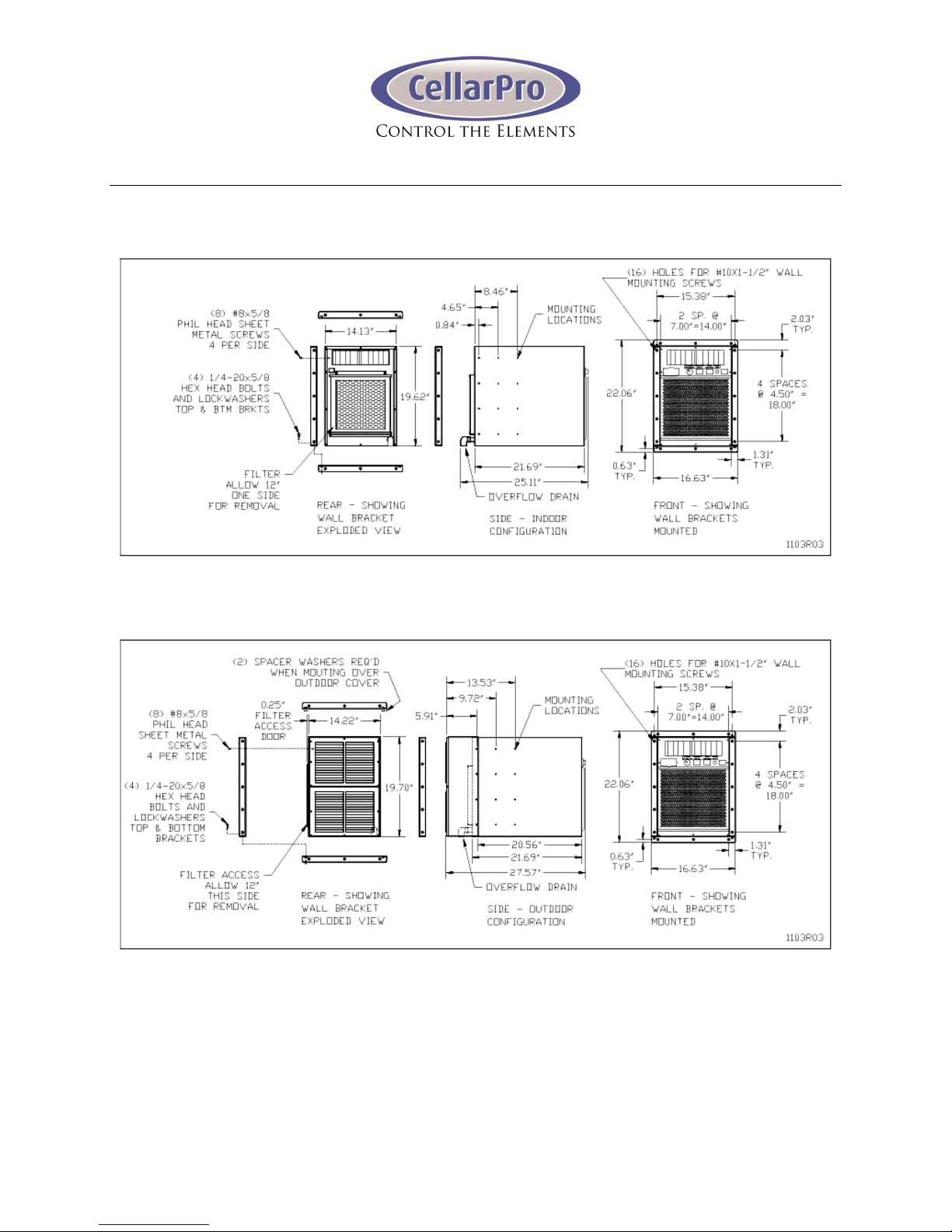

Cut Sheets Table I
3200VSi
3200VSx

Front Duct Hood
Rear Duct Hood

3200VS Cooling Capacity (@ 60°F) Table II
Low Fan Speed
BTUH: 2487 Decibels: 54
Med Fan Speed
BTUH: 2876 Decibels: 58
High Fan Speed
BTUH: 3040 Decibels: 66
Cellar Insulation
R12
R19
R30
Cellar Size
Ambient Temperature
Thermal Load (BTUH
70°F
1593
1475
1404
75°F
1690
1535
1440
400 Cu Ft
80°F
1789
1594
1475
85°F
1888
1654
1511
90°F
1985
1712
1547
95°F
2085
1773
1584
70°F
1858
1723
1643
75°F
1969
1791
1683
500 Cu Ft
80°F
2082
1859
1723
85°F
2196
1927
1765
90°F
2307
1995
1806
95°F
2402
2064
1848
70°F
2076
1929
1841
75°F
2200
2005
1886
600 Cu Ft
80°F
2322
2079
1931
85°F
2446
2152
1975
90°F
2570
2227
2020
95°F
2693
2302
2065
70°F
2314
2156
2059
75°F
2448
2237
2108
700 Cu Ft
80°F
2582
2318
2158
85°F
2716
2398
2205
90°F
2850
2480
2255
95°F
2984
2561
2303
70°F
2554
2386
2284
75°F
2694
2470
2335
800 Cu Ft
80°F
2834
2556
2387
85°F
2976
2641
2438
90°F
X
2725
2487
95°F
X
2811
2541
Summary
The table above is shaded to show how the 3200 cooling unit will work at 60°F using various fan
speeds under various thermal loads. The thermal loads are derived from assumptions about the
temperature inside the cellar, the size of the cellar; the R-value in the six cellar surfaces (ie
walls, floor and ceiling) and the ambient temperature outside the cellar, as follows:
The light-shaded numbers represent thermal loads that are within the capacity of the cooling
unit at the low fan speed
The medium-shaded numbers represent thermal loads that are within the capacity of the
cooling unit at the medium fan speed
The dark-shaded numbers represent thermal loads that are within the capacity of the cooling
unit at the high fan speed
"X" indicates conditions that are beyond the capacity of the 3200 Series cooling units

(1) The thermal loads above are calculated based on the R-Values shown for all walls, floor
and ceiling. Lower R-Values in the cellar (eg from glass doors) will increase the thermal load on
the wine cellar and will require the cooling unit to operate at higher fan speeds. Warmer
climates require higher insulation to enable the cooling unit to operate at lower fan speeds. To
be certain that the thermal load won't exceed the capacity of the cooling unit, email your wine
cellar specifications to us and we'll be glad to assist you.
(2) For reference purposes, the calculated BTUH at 60°F for WhisperKool XLT 3000 is 2500.
3200VS Cooling Performance Table III
Summary
We tested CellarPro's 3200VSi wine cooling unit for 24 hours by heating the condenser
environment to 115°F. Despite the grueling heat, CellarPro's 3200VSi was able to maintain
temperatures at 55°F and relative humidity at 62% inside the wine cellar. (The short spikes
reflect the cooling unit's auto-defrost cycle.)
Test Conditions
The cooling unit was tested in a 750 cubic foot wine cellar with R-13 rigid foam insulation
and a moisture barrier
The wine cellar was filled with approximately 750 bottles
The cooling unit was set to maintain 55°F (53°F "off" and 4°F Differential) (1)
The temperature measurements inside the wine cellar were taken at the far wall
(approximately 12' from the cooling unit)

Option and Upgrades Table IV
Front Duct Kit: Custom duct hood allows the cold air intake/exhaust to be ducted
up to 100 equivalent feet (50 feet per opening). Duct openings are
designed to attach to two 8" ducts for condenser intake and
exhaust. Design allows easy access to cooling unit controls;
requires an additional 9” of height at the front of the unit. Kit
includes duct hood and 50 feet (2x25) of 8-inch insulated (R-6)
ducting.
Rear Duct Kit: Custom duct hood allows the hot air intake/exhaust to be ducted
up to 100 equivalent feet (50 feet per opening). Duct openings are
designed to attach to two 8" ducts for condenser intake and
exhaust. Removable slot plate provides easy access to
removable air filter. Kit includes duct hood and 50 feet (2x25) of 8-
inch insulated (R-6) ducting.
Rear Duct Kit with Fan: Custom duct hood and inline fan allow the hot air intake/exhaust to
be ducted up to 200 equivalent feet (100 feet per opening). Duct
openings are designed to attach to two 8" ducts for condenser
intake and exhaust. Removable slot plate provides easy access
to our air filter. Inline fan receives switched power from the cooling
unit. Kit includes duct hood, 240 CFM 8-inch inline fan and 50
feet (2x25) of 8-inch insulated (R-6) ducting.
Bottle Probe: CellarPro 3200 cooling units are designed to cycle on and off
based on the temperature of the return air in the wine cellar.
Because the cooling unit is located near the top of the cellar, it will
cycle based on the temperature of the air at the top of the cellar,
which is by design given that warm air rises. However, for
instances when the wine cellar is unevenly shaped and/or the
cooling unit cannot be mounted near the ceiling, it may be useful
to use a bottle probe for determining the on/off cycle of the cooling
unit. In addition to being able to accommodate bottle probes,
CellarPro cooling units can be programmed to have a tighter
temperature differential, so that wine temperature variations
remain in a tight band.
Crankcase Heater: When the cooling unit is exposed to temperatures below 40°F, the
refrigerant in the compressor can migrate into the crankcase oil
when the compressor is not running. On startup, this can cause
excessive motor wear and a loss of refrigeration efficiency. Our
self-regulating crankcase heater is wrapped around the
compressor and provides reliable peak heating during critical cold
periods down to 20°F, and reduces its heating once the
compressor starts up or the air temperature rises.
Air Filters: We sell replacement fiberglass filters (interior use only), as well as
aluminum air filters that can be used in interior or exterior
environments. The aluminum filter is reusable and can be
cleaned with steam or hot water spray. Filters meet UL Class 2
flame retardance requirements. Maximum temperature is 240°F.

CellarPro 3200 Series Price Sheet
3200VSi $2,195
3200VSx 2,699
Front Duct Hood 299
Rear Duct Hood 299
Rear Duct Hood with Fan 399
Remote Control Panel 225
Bottle Probe 99
Cold-Temperature Crankcase Heater 99
Reusable Aluminum Air Filter 50
Poly-Coated Fiberglass Air Filter (2-Pack) 25
