Changhong Electric WF-Q379-USA1 Series User manual

WF-Q379-USA1Series
IEEE 802.11a/b/g/n/ac 2T2R USB WiFi Module
特性 Features：
接收制式 Reserving System
IEEE Std. 802.11a
IEEE Std. 802.11b
IEEE Std. 802.11g
IEEE Std. 802.11n
IEEE Std. 802.11ac
芯片方案 Chip Solution
Qualcomm 9379-7
结构大小 Size
18.0mm x 27.0mm x 3.0mm
型号预览 Model Overview：
型号
安装方式
支持标准
速率
频段
天线接口
备注
WF-Q379-USA1
SMD
IEEE 802.11a/b/g/n/ac
866.7Mbps
2.4G/5G
外置天线
3.3V
供电
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd.
地址 Add: 四川省绵阳市安州工业园区
Anzhou,Industrial park,Mianyang,Sichuan
传真 Fax :[phone]
网址 : http://www.changhong.com

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 2 of 16
客户确认反馈
Feedback of customer’s Confirmation
经确认，我方承认该规格书
We accept the specification after Confirmed
客户名称
Customer name
客户签字
Customer signature
确认日期
Confirmation Date
请签字后将此页与首页按以下地址回传我公司，谢谢！
Please feed back this paper and first paper after your signature by the address,thanks!
地址：四川省绵阳市安州工业园区
ADD：Anzhou,Industrial park,Mianyang,Sichuan
公司：四川爱联科技有限公司
Factory：Sichuan AI-Link Technology Co.,Ltd.
批准
Approved
审核
Checked
拟制
Designed
产品
Product
无线模块
WiFi Module
型号
Model
WF-Q379-USA1
日期
Date
2018-03-06

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 3 of 16
更改记录 Record of Modification
序号
No
更改日期
Date of
modification
主要更改内容
Main content of
modification
更改原因
Reason of
modification
更改通知编号
Serial number of
modification
确认
Confirm
1
2018/03/06
首次承认
黄伟

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 4 of 16
1. Introduction
WF-Q379-USA1 module design is based on Qualcomm 9379-7 solution,The QCA9379-7 is a
highly integrated single chip which has built in a 2x2 dual-band wireless LAN radio. The Module is a
highly integrated MAC/BBP and 2.4/5GHz PA/LNA single chip which supports a 866.7Mbps PHY rate.
The Module is designed to support standard-based features in the areas of security, quality of service,
and international regulations, giving end users the greatest performance anytime and in any
circumstance. This documentation describes the engineering requirements specification.
1.1 RF module Overview
The general HW architecture for the module is shown in Figure 1. This WLAN Module design is based
on Qualcomm QCA9379-7. It is a highly integrated single-chip MIMO(Multiple In Multiple Out) Wireless
LAN (WLAN) network interface controller complying with the 802.11 specification and Bluetooth over
USB interface. It combines a MAC, a 2T2R capable baseband, and RF in a single chip. An intelligent
Wi-Fi coexistence algorithm is implemented to provide the best harmonized Wi-Fi radio performance.
3.3V INPUT
2.4G TX0/RX0
GPIO
5G TX0/RX0
WLAN USB2.0 Interface
2.4G TX1/RX1
5G TX1/RX1
Figure 1 WF-Q379-USA1 Block Diagram
QCA9379-7
Dixplexer
Dixplexer
Antenna0
Antenna1
48MHz
WF_
RFIO
WF_
RFIO

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 5 of 16
1.2 Specification reference
This specification is based on additional references listed below.
_ IEEE Std. 802.11a
_ IEEE Std. 802.11b
_ IEEE Std. 802.11g
_ IEEE Std. 802.11n
_ IEEE Std. 802.11ac
1.3 System Functions
Table1: General Specification as below:
Main Chipset
Qualcomm QCA9379-7
Operating Frequency
2.4G/5G
WiFi Standard
802.11a/b/g/n/ac (2x2)
Modulation
WIFI:11b: DBPSK, DQPSK and CCK and DSSS
11a/g: BPSK, QPSK, 16QAM, 64QAM and OFDM
11n: BPSK, QPSK, 16QAM, 64QAM and OFDM
11ac: BPSK, QPSK, 16QAM, 64QAM,256QAM and OFDM
Data rates
11b: 1, 2, 5.5 and 11Mbps
11a/g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
11n: MCS0~15, up to 300Mbps
11ac: MCS0~9, Nss=2, up to 866.7Mbps
Form factor
32pins ,
Host Interface
USB 2.0 for WLAN
PCB Stack
6-layers design
Dimension
Typical，18mm x 27mm x 3mm
Antenna
External Antennas Design
Operation Temperature
0℃to +70℃
Storage Temperature
-15℃to +45℃
Operation Voltage
3.3V +/-10%

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 6 of 16
2. Mechanical Specification
2.1 Mechanical Outline Drawing
Typical Dimension (W x L x H): 18.0mm x 27.0mm x 3.0mm
General tolerance: ±0.15mm
2.2 Pin definition
TOPVIEW

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 7 of 16
Pin
Define
Description
Pin
Define
Description
1
NC
NC
17
NC
NC
2
NC
NC
18
GND
Ground
3
NC
NC
19
WL_RF0
Wi-Fi RF port0 ， connect
to external antenna
4
NC
NC
20
GND
Ground
5
GND
Ground
21
GND
Ground
6
WL_USB_DP
WLAN USB2.0 DP Signal
22
WL_RF1
Wi-Fi RF port1 ， connect
to external antenna
7
WL_USB_DM
WLAN USB2.0 DM Signal
23
GND
Ground
8
GND
Ground
24
GND
Ground
9
NC
NC
25
GND
Ground
10
NC
NC
26
QOW(GPIO
35)
General GPIO single.
11
GND
Ground
27
BT_EN
Bluetooth enable ， active
high
12
BT_RF
BT RF Output ， connect to
external antenna
28
WLAN_EN
WLAN enable ， active
high
13
GND
Ground
29
GND
Ground
14
BT_WAKE_HOST
(GPIO24)
Bluetooth wakeup the host ，
active high
30
VDD_3.3V
3.3V input
15
HOST_WAKE_BT
(GPIO33)
Host wakeup Bluetooth
through UART ， active low
31
3D_SYNC
(GPIO34)
Frame sync signals from
TV to sync with 3D glass
via Bluetooth
16
NC
NC
32
GND
Ground
2.3 Product Picture
2.4
TOP VIEW BOTTOM VIEW
丝印说明:
1、红色框内为我司 PCB 图号；
2、橙色框内为生产批次号；
3、黄色框内为阻燃标志；
4、蓝色框内为 SMT 管控丝印；
5、紫色框内为天线通道说明；

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 8 of 16
3. Electrical Specification
This Specification is based-on conductive DVT testing result. The extreme condition include overall
temperature (0℃,+25℃,+40℃) and overall voltage (3.0V,3.3V,3.6V).
3. 1 IEEE 802.11g/a Section:
Items
Contents
Specification
IEEE802.11g & IEEE802.11a
Mode
BPSK, QPSK, 16QAM, 64QAM and OFDM
Channel
CH1 to CH13 @ 11g
CH36 to CH165 @ 11a
Data rate
6, 9, 12, 18, 24, 36, 48, 54Mbps
TX Characteristics
Min.
Typ.
Max.
Unit
Remark
1. Power Levels
1) 16.5dBm Target (For Each antenna port)
@ 11g/6Mbps~24Mbps
14.5
16.5
18.5
dBm
2) 16dBm Target (For Each antenna port)
@ 11g 36Mbps
14
16
18
dBm
3) 15.5dBm Target (For Each antenna port)
@ 11g 48Mbps
13.5
15.5
17.5
dBm
4) 14.5dBm Target (For Each antenna port)
@ 11g 54Mbps
12.5
14.5
16.5
dBm
5) 15.5dBm Target (For Each antenna port)
@ 11a/6Mbps~36Mbps
13.5
15.5
17.5
dBm
6) 14.5dBm Target (For Each antenna port)
@ 11a 48Mbps
12.5
14.5
16.5
dBm
7) 13.5dBm Target (For Each antenna port)
@ 11a 54Mbps
11.5
13.5
15.5
dBm
2. Spectrum Mask @ Target Power
1) at fc +/-11MHz
-
-
-20
dBr
2) at fc +/-20MHz
-
-
-28
dBr
3) at fc > +/-30MHz
-
-
-40
dBr
3. Constellation Error(EVM) @ Target Power
1) 6Mbps
-
-
-5
dB
2) 9Mbps
-
-
-8
dB
3) 12Mbps
-
-
-10
dB
4) 18Mbps
-
-
-13
dB
5) 24Mbps
-
-
-16
dB
6) 36Mbps
-
-
-19
dB
7) 48Mbps
-
-
-22
dB
8) 54Mbps
-
-
-25
dB
4. Frequency Error
1) IEEE802.11g
-25
-
25
ppm
2) IEEE802.11a
-30
30
ppm
RX Characteristics
Min.
Typ.
Max.
Unit
5. Minimum Input Level Sensitivity(each chain)
1) 6Mbps (PER ≦10%)
-
-
-82
dBm
2) 9Mbps (PER ≦10%)
-
-
-81
dBm
3) 12Mbps (PER ≦10%)
-
-
-79
dBm
4) 18Mbps (PER ≦10%)
-
-
-77
dBm

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 9 of 16
5) 24Mbps (PER ≦10%)
-
-
-74
dBm
6) 36Mbps (PER ≦10%)
-
-
-70
dBm
7) 48Mbps (PER ≦10%)
-
-
-66
dBm
8) 54Mbps (PER ≦10%)
-
-
-65
dBm
6. Maximum Input Level (PER ≦10%)
1) IEEE802.11g
-20
-
-
dBm
2) IEEE802.11a
-30
dBm
3.2 IEEE 802.11b Section:
Items
Contents
Specification
IEEE802.11b
Mode
DBPSK, DQPSK and CCK and DSSS
Channel
CH1 to CH13
Data rate
1, 2, 5.5, 11Mbps
TX Characteristics
Min.
Typ.
Max.
Unit
Remark
1. Power Levels(Calibrated)
1) 17dBm Target (For Each antenna port)
@1Mbps~11Mbps
15.5
17.5
19.5
dBm
2. Spectrum Mask @ Target Power
1) fc +/-11MHz to +/-22MHz
-
-
-30
dBr
2) fc > +/-22MHz
-
-
-50
dBr
3. Constellation Error(EVM) @ Target Power
1) 1Mbps
-
-
-10
dB
2) 2Mbps
-
-
-10
dB
3) 5.5Mbps
-
-
-10
dB
4) 11Mbps
-
-20
-10
dB
4. Frequency Error
-25
-
25
ppm
RX Characteristics
Min.
Typ.
Max.
Unit
5. Minimum Input Level Sensitivity(each chain)
1) 1Mbps (FER ≦8%)
-
-83
-76
dBm
2) 2Mbps (FER ≦8%)
-
-80
-76
dBm
3) 5.5Mbps (FER ≦8%)
-
-79
-76
dBm
4) 11Mbps (FER ≦8%)
-
-76
-76
dBm
6. Maximum Input Level (FER ≦8%)
-10
-
-
dBm

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 10 of 16
3.3 IEEE 802.11n HT20 Section:
Items
Contents
Specification
IEEE802.11n HT20 @ 2.4G
IEEE802.11n HT20 @ 5G
Mode
BPSK, QPSK, 16QAM, 64QAM and OFDM
Channel
CH1 to CH13 @ 2.4G
CH36 to CH165 @ 5G
Data rate (MCS index)
MCS0/1/2/3/4/5/6/7/8/9/10/11/12/13/14/15
TX Characteristics
Min.
Typ.
Max.
Unit
Remark
1. Power Levels
1) 16.5dBm Target (For Each antenna port)
@ 2.4G/MCS0~MCS2
14.5
16.5
18.5
dBm
2) 16dBm Target (For Each antenna port)
@ 2.4G/MCS3~MCS4
14
16
18
dBm
3) 15dBm Target (For Each antenna port)
@ 2.4G/MCS5~MCS6
13
15
17
dBm
4) 14.5dBm Target (For Each antenna port)
@ 2.4G/MCS7
12.5
14.5
16.5
dBm
5) 15.5dBm Target (For Each antenna port)
@ 5G/MCS0~MCS2
13.5
15.5
17.5
dBm
6) 15dBm Target (For Each antenna port)
@ 5G/MCS3~MCS5
13
15
17
dBm
7) 14.5dBm Target (For Each antenna port)
@ 5G/MCS6
12.5
14.5
16.5
dBm
8) 13.5dBm Target (For Each antenna port)
@ 5G/MCS7
11.5
13.5
15.5
dBm
2. Spectrum Mask @ Target Power
1) at fc +/-11MHz
-
-
-20
dBr
2) at fc +/-20MHz
-
-
-28
dBr
3) at fc > +/-30MHz
-
-
-45
dBr
3. Constellation Error(EVM) @ Target Power
1) MCS0
-
-
-5
dB
2) MCS1
-
-
-10
dB
3) MCS2
-
-
-13
dB
4) MCS3
-
-
-16
dB
5) MCS4
-
-
-19
dB
6) MCS5
-
-
-22
dB
7) MCS6
-
-
-25
dB
8) MCS7
-
-
-28
dB
4. Frequency Error
1) IEEE802.11n HT20 @ 2.4G
-25
-
25
ppm
2) IEEE802.11n HT20 @ 5G
-20
-
20
ppm
RX Characteristics
Min.
Typ.
Max.
Unit
5. Minimum Input Level Sensitivity(each chain)
1) MCS0 (PER ≦10%)
-
-
-82
dBm
2) MCS1 (PER ≦10%)
-
-
-79
dBm
3) MCS2 (PER ≦10%)
-
-
-77
dBm
4) MCS3 (PER ≦10%)
-
-
-74
dBm
5) MCS4 (PER ≦10%)
-
-
-70
dBm
6) MCS5 (PER ≦10%)
-
-
-66
dBm

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 11 of 16
7) MCS6 (PER ≦10%)
-
-
-65
dBm
8) MCS7 (PER ≦10%)
-
-
-64
dBm
6. Maximum Input Level (PER ≦10%)
1) IEEE802.11n HT20 @ 2.4G
-20
-
-
dBm
2) IEEE802.11n HT20 @ 5G
-30
-
-
dBm
3.4 IEEE 802.11n HT40 Section:
Items
Contents
Specification
IEEE802.11n HT20 @ 2.4G
IEEE802.11n HT20 @ 5G
Mode
BPSK, QPSK, 16QAM, 64QAM and OFDM
Channel
CH3 to CH11 @ 2.4G
CH38 to CH163 @ 5G
Data rate (MCS index)
MCS0/1/2/3/4/5/6/7/8/9/10/11/12/13/14/15
TX Characteristics
Min.
Typ.
Max.
Unit
Remark
1. Power Levels (Calibrated)
1) 15.5dBm Target (For Each antenna port)
@ 2.4G/MCS0~MCS2
13.3
15.5
17.5
dBm
2) 15dBm Target (For Each antenna port)
@ 2.4G/MCS3~MCS4
13
15
17
dBm
3) 14dBm Target (For Each antenna port)
@ 2.4G/MCS5~MCS6
12
14
16
dBm
4) 13.5dBm Target (For Each antenna port)
@ 2.4G/MCS7
11.5
13.5
15.5
dBm
5) 14.5dBm Target (For Each antenna port)
@ 5G/MCS0~MCS2
12.5
14.5
16.5
dBm
6) 14dBm Target (For Each antenna port)
@ 5G/MCS3~MCS5
12
14
16
dBm
7) 13.5dBm Target (For Each antenna port)
@ 5G/MCS6
11.5
13.5
15.5
dBm
8) 12.5dBm Target (For Each antenna port)
@ 5G/MCS7
10.5
12.5
14.5
dBm
2. Spectrum Mask @ Target Power
1) at fc +/-21MHz
-
-
-20
dBr
2) at fc +/-40MHz
-
-
-28
dBr
3) at fc > +/-60MHz
-
-
-45
dBr
3. Constellation Error(EVM) @ Target Power
1) MCS0
-
-
-5
dB
2) MCS1
-
-
-10
dB
3) MCS2
-
-
-13
dB
4) MCS3
-
-
-16
dB
5) MCS4
-
-
-19
dB
6) MCS5
-
-
-22
dB
7) MCS6
-
-
-25
dB
8) MCS7
-
-
-28
dB
4. Frequency Error
1) IEEE802.11n HT20 @ 2.4G
-25
-
25
ppm
2) IEEE802.11n HT20 @ 5G
-20
-
20
ppm
RX Characteristics
Min.
Typ.
Max.
Unit

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 12 of 16
5. Minimum Input Level Sensitivity(each chain)
1) MCS0 (PER ≦10%)
-
-
-79
dBm
2) MCS1 (PER ≦10%)
-
-
-76
dBm
3) MCS2 (PER ≦10%)
-
-
-74
dBm
4) MCS3 (PER ≦10%)
-
-
-71
dBm
5) MCS4 (PER ≦10%)
-
-
-67
dBm
6) MCS5 (PER ≦10%)
-
-
-63
dBm
7) MCS6 (PER ≦10%)
-
-
-62
dBm
8) MCS7 (PER ≦10%)
-
-
-61
dBm
6. Maximum Input Level(PER ≦10%)
1) IEEE802.11n HT20 @ 2.4G
-20
-
-
dBm
2) IEEE802.11n HT20 @ 5G
-30
-
-
dBm
3.5 IEEE 802.11ac Section:
Items
Contents
Specification
IEEE802.11ac
Mode
BPSK, QPSK, 16QAM, 64QAM ,256QAM and OFDM
Channel
CH36 to CH165 VHT20
CH38 to CH163 VHT40
CH42 to CH157 VHT80
Data rate (MCS index)
MCS0/1/2/3/4/5/6/7/8/9
TX Characteristics
Min.
Typ.
Max.
Unit
Remark
1. Power Levels (Calibrated)
1) 15.5dBm Target (For Each antenna port)
@VHT20 MCS0~MCS2
13.5
15.5
17.5
dBm
2) 15dBm Target (For Each antenna port)
@VHT20 MCS3~MCS5
13
15
17
dBm
3) 14.5dBm Target (For Each antenna port)
@VHT20 MCS6
12.5
14.5
16.5
dBm
4) 13.5dBm Target (For Each antenna port)
@VHT20 MCS7
11.5
13.5
15.5
dBm
5) 12.5dBm Target (For Each antenna port)
@VHT20 MCS8
10.5
12.5
14.5
dBm
6) 14.5dBm Target (For Each antenna port)
@VHT40 MCS0~MCS2
12.5
14.5
16.5
dBm
7) 14dBm Target (For Each antenna port)
@VHT40 MCS3~MCS5
12
14
16
dBm
8) 13.5dBm Target (For Each antenna port)
@VHT40 MCS6
11.5
13.5
15.5
dBm
9) 12.5dBm Target (For Each antenna port)
@VHT40 MCS7
10.5
12.5
14.5
dBm
10) 11.5dBm Target (For Each antenna port)
@VHT40 MCS8
9.5
11.5
13.5
dBm
11) 10.5dBm Target (For Each antenna port)
@VHT40 MCS9
8.5
10.5
12.5
dBm
12) 13.5dBm Target (For Each antenna port)
11.5
13.5
15.5
dBm

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 13 of 16
@VHT80 MCS0~2
13) 13dBm Target (For Each antenna port)
@VHT80 MCS3~5
11
13
15
dBm
14) 12.5dBm Target (For Each antenna port)
@VHT80 MCS6
10.5
12.5
14.5
dBm
15) 11.5dBm Target (For Each antenna port)
@VHT80 MCS7
9.5
11.5
13.5
dBm
16) 10.5dBm Target (For Each antenna port)
@VHT80 MCS8
8.5
10.5
12.5
dBm
17) 9.5dBm Target (For Each antenna port)
@VHT80 MCS9
7.5
9.5
11.5
dBm
2. Spectrum Mask @ Target Power
1) at fc +/-11MHz /20MHz/30MHz
-
-
-20
dBr
2) at fc +/-21MHz /40MHz/60MHz
-
-
-28
dBr
3) at fc +/-41MHz /80MHz/120MHz
-
-
-40
dBr
3. Constellation Error(EVM) @ Target Power
1) MCS0
-
-
-5
dB
2) MCS1
-
-
-10
dB
3) MCS2
-
-
-13
dB
4) MCS3
-
-
-16
dB
5) MCS4
-
-
-19
dB
6) MCS5
-
-
-22
dB
7) MCS6
-
-
-25
dB
8) MCS7
-
-
-27
dB
9) MCS8
-30
dB
10) MCS9
-32
dB
4. Frequency Error
-10
-
10
ppm
RX Characteristics
Min.
Typ.
Max.
Unit
5. Minimum Input Level Sensitivity(each chain)
VHT20
VHT40
VHT80
1) MCS0 (PER ≦10%)
-
-
-82
-79
-76
dBm
2) MCS1 (PER ≦10%)
-
-
-79
-76
-73
dBm
3) MCS2 (PER ≦10%)
-
-
-77
-74
-71
dBm
4) MCS3 (PER ≦10%)
-
-
-74
-71
-68
dBm
5) MCS4 (PER ≦10%)
-
-
-70
-67
-64
dBm
6) MCS5 (PER ≦10%)
-
-
-66
-63
-60
dBm
7) MCS6 (PER ≦10%)
-
-
-65
-62
-59
dBm
8) MCS7 (PER ≦10%)
-
-
-64
-61
-58
dBm
9) MCS8 (PER ≦10%)
-
-
-59
-56
-53
dBm
10) MCS9 (PER ≦10%)
-
-
-57
-54
-51
dBm
6. Maximum Input Level(PER ≦10%)
-30
-
-
dBm

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 14 of 16
4. Software Requirements
The driver supports the following operating systems: Linux, Microsoft Windows XP, Vista and Win7.
Mfg. software tool is QDART.

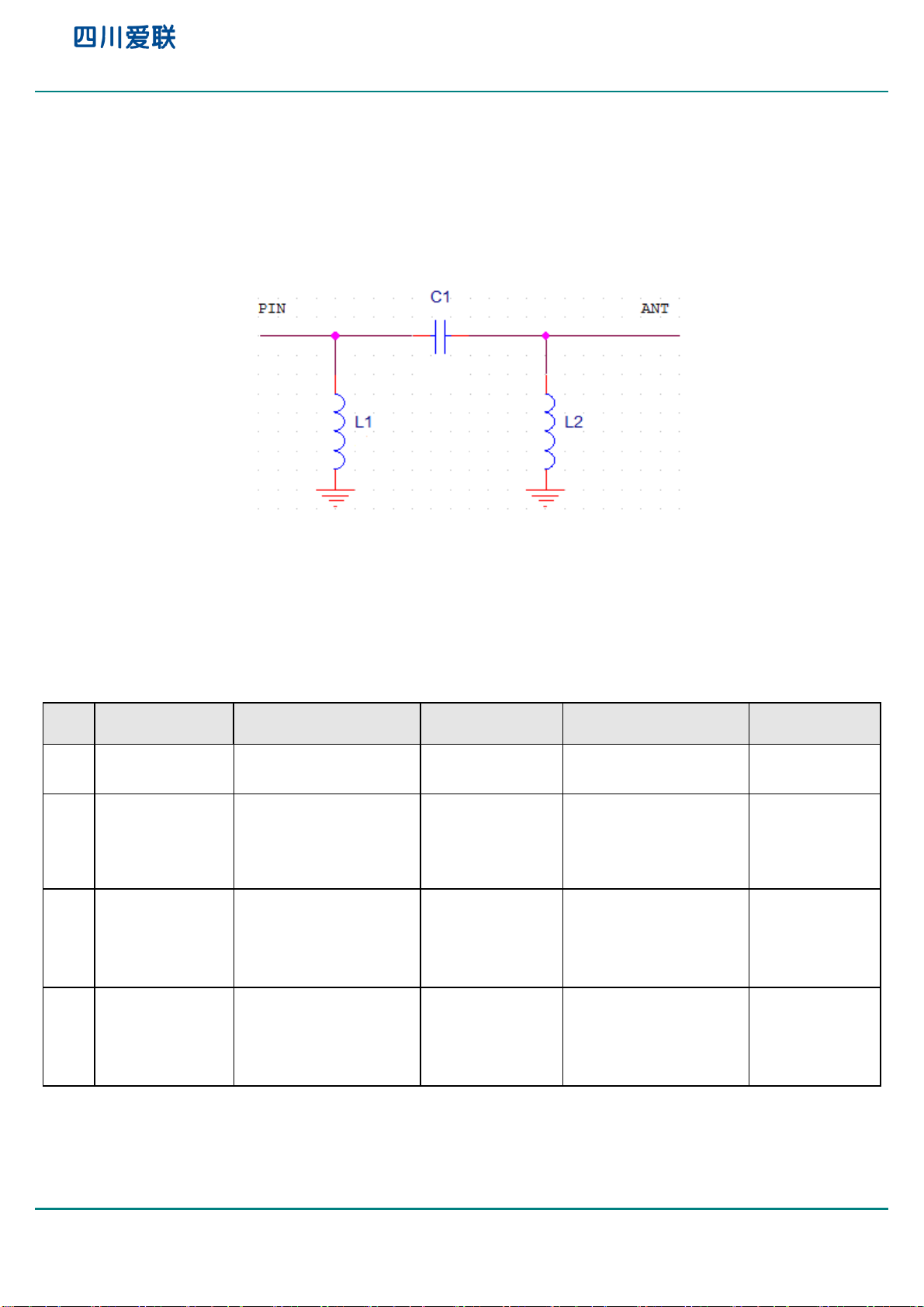

5. Antenna matching
The BT RF ，ANT0 and ANT1 Pin connect to antenna, please refer to design demand
a). 模块和天线要求远离干扰源，模块地和天线地要求为一个整体。
b). PIN12,PIN19和PIN22为模组的RF接口，与天线之间布线要求共面阻抗为50Ω，建议使用弧线和直线，长
度尽可能短。
c). L1, L2, C1组成π型匹配网络并靠近天线接口设计，具体根据天线推荐及排版设计的实测效果进行调整。
6. Key component List
序
号
关键件名称
型号
规格/材料
生产者
备注
1
集成电路
QCA9379-7
QFN
Qualcomm
2
PCB
JUI7.820. 0317系列
FR-6,4LAY
顺络
英创力
昌盛艺龙
3
晶体振荡器
SMD2520-48M
晶威特
Hosonic
加高
TXC
4
双工器
1608
ACX
TDK
华新科
顺络

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 15 of 16
7. Packaging Information:
编带尺寸：
编带方向：（箭头代表编带走向）
包装示意图：

WF-Q379-USA1
IEEE 802.11a/b/g/n/ac 2T2R USB WIFI Module
四川爱联科技有限公司
Sichuan AI-Link Technology Co.,Ltd. page 16 of 16
注：上图 3个框示处为内盒标签粘贴位置。
注：红色箭头处为外箱标签粘贴位置。
标签样式：
内盒标签示例
外箱装箱清单标签示例
包装说明：
1. 产品放置方向、标签粘贴位置、包装按示意图进行；
2. 每卷放600只产品，每小盒放1卷，大箱共5装个小盒，产品数量共3000只/箱;
3. 外箱尺寸：378mm*297mm*370mm，小盒尺寸：355mm*355mm*50mm;
4. 真空包内放置2g干燥剂2袋，6色湿度卡1张;
5.其它按CVTE包装要求执行;

FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Please notice that if the FCC identification number is not visible when the module is
installed inside another device, then the outside of the device into which the module is
installed must also display a label referring to the enclosed module. This exterior label
can use wording such as the following: “Contains FCC ID: 2AFG6-WF-Q379-USA1” any
similar wording
that expresses the same meaning may be used.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator & your body. This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
The module is limited to OEM installation ONLY.
The OEM integrator is responsible for ensuring that the end-user has no manual instruction
to remove or install module.
The module is limited to installation in mobile or fixed application.
A separate approval is required for all other operating configurations, including portable
configurations with respect to Part 2.1093 and difference antenna configurations.
There is requirement that the grantee provide guidance to the host manufacturer for
compliance with Part 15B requirements

Integration instructions for host product manufacturers according to KDB 996369 D03
OEM Manual v01
2.2 List of applicable FCC rules
Part 15.247 and Part 15.407
2.3 Specific operational use conditions
The module is limited to installation in mobile or fixed application.
A separate approval is required for all other operating configurations, including portable
configurations with respect to Part 2.1093 and difference antenna configurations.
2.4 Limited module procedures
Not applicable as this is not a limited modular.
2.5 Trace antenna designs
Not applicable as there is no trace antenna design in this modular.
2.6 RF exposure considerations
For the end host, the antennas used for this transmitter must be installed to provide a
separation distance of at least 20cm from all persons and must not be collocated or operating
in conjunction with any other antenna or transmitter.
2.7 Antennas
For BT&LE
Ant. Brand P/N Antenna Type Connector Gain (dBi)
1TB-SR-41Y Dipole N/A 2.76
For WIFI 2.4G &5G
Ant. Brand Model Name Antenna Type Connector Gain (dBi)
1 N/A PCB N/A 3.95(2.4G)
3.33(5G)
2 N/A PCB N/A 3.95(2.4G)
3.33(5G)
2.8 Label and compliance information
Host product manufacturers are required to provide a physical or e-label stating “Contains
FCC ID: 2AFG6-WF-Q379-USA1” with their finished product.
2.9 Information on test modes and additional testing requirements
Test modes should take into consideration different operational conditions for a stand-alone

modular transmitter in a host, as well as for multiple simultaneously transmitting modules or
other transmitters in a host product.
2.10 Additional testing, Part 15 Subpart B disclaimer
This modular transmitter is only FCC authorized for FCC Part 15.247&15.407 as listed on the
grant, and the host product manufacturer is responsible for compliance to any other FCC
rules that apply to the host not covered by the modular transmitter grant of certification.
The final host product still requires Part 15 Subpart B compliance testing with the modular
transmitter installed.
