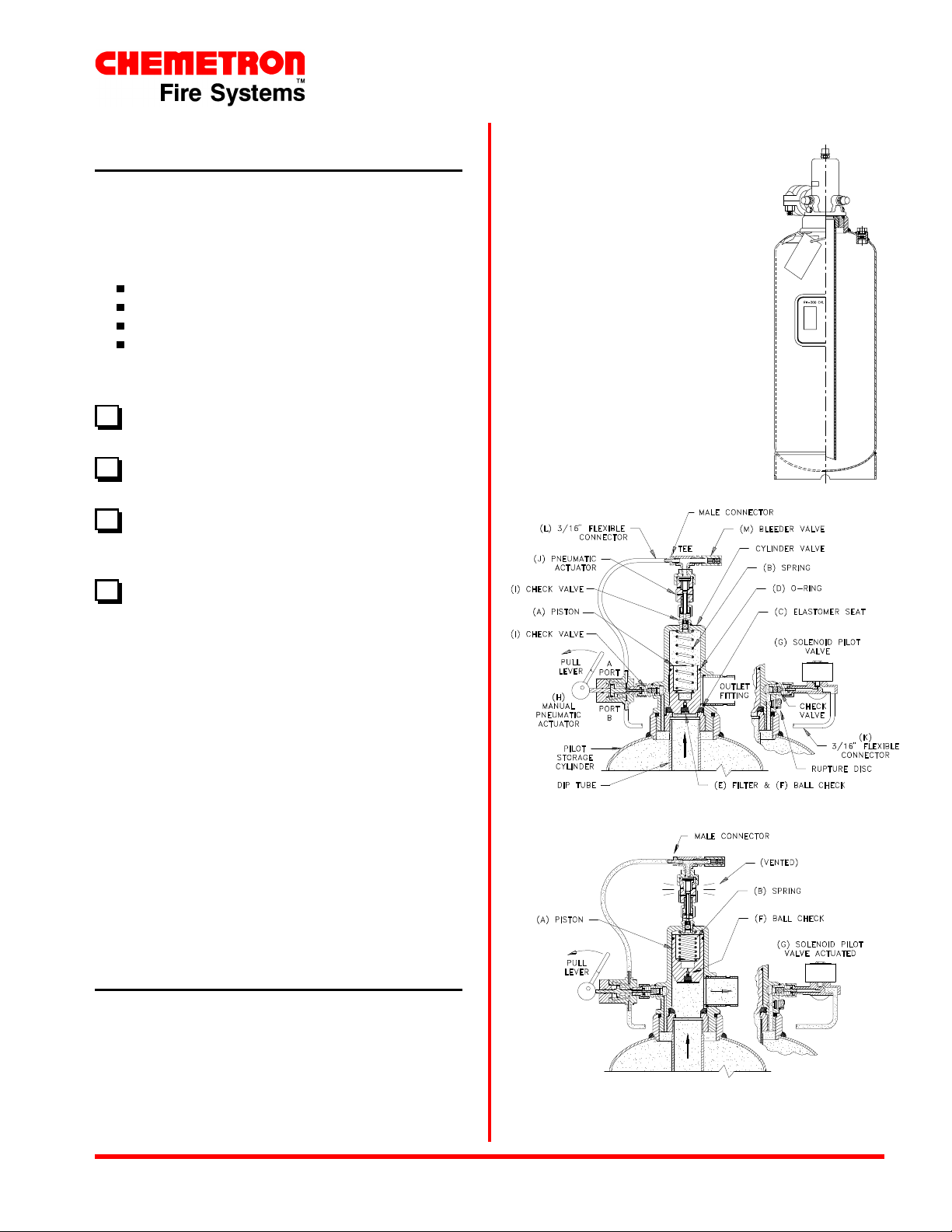

Cylinder Valve - Actuated Mode
Cylinder Valve - Standby Mode
©2000 Chemetron Fire Systems. All rights reserved (1/2000). Chemetron Fire Systems and Cardox are registered trademarks.
FM-200 is aregistered trademark of Great Lakes Chemical Corporation.
FM-200 Gamma Series Systems
®
GENERAL INFORMATION
The Chemetron FireSystems Gamma Series Systems are
automatic suppression systems using the FM-200 chemi-
calagent and consisting of four basic components and
their associated accessories.
FM-200 Components
Control Panels
Detection and Alarm Devices
Completer Kits
Features
The FM-200 components consist of agent containers,
1
container supports (racks), and discharge nozzles.
The control panel is the brains of the system and is
2
used tomonitor the detection and accessories.
The detection, alarm devices,and accessories arethe
3
external devices that actas the eyes and voiceof the
system as they giveaudible or visual signals.
The completer kits consist of warning signs,hoses,
4
connection fittings,pressuregauges or solenoid
valves,and the actuator required to operatethe
cylinder valve.
The system and its components areagencytested for total
flooding applications and should be used in accordance
with the guidelines contained in National FireProtection
Association 2001. Atotal flooding application can be de-
fined as injecting FM-200 intoan enclosureor volume
having the structural integritytoretain the agent during
and after discharge.The design of such asystem requires
that theFM-200 chemical agent be discharged from its
container within 10 seconds and be thoroughly mixed
throughout the protected volume,reaching aminimum
concentration level of 7%, but not exceeding 9% in
normally occupied spaces.
GAMMA SERIES SYSTEM EQUIPMENT
DESCRIPTION
The Gamma System permits higher discharge rates and is
particularly adaptable toareas requiring larger quantities
of FM-200. Adescription of the various equipment com-
ponents unique tothe Gamma System follows.
Cylinder and ValveAssembly
Gamma Series cylinders areavailable in
four different capacities and are
charged with FM-200 toafilling densi-
tyup to70 lb/ft(1121 kg/m )of cylin-
3 3
der volume.All cylinders aresuper-
pressurized with drynitrogen toa
pressureof 360 psig (2482 kPa), at
70°F (21°C). Each cylinder is equipped
with an identification nameplateindi-
cating the quantityof FM-200.
Thestandardcylinder assembly,hav-
ing arigid dip tube,is designed for
mounting in avertical position only.
The cylinder assembly is composed of
acylinder,dip tube,and cylinder
valve.
FM-200 SPECS MENU

©2000 Chemetron Fire Systems. All rights reserved (1/2000). Chemetron Fire Systems and Cardox are registered trademarks.
FM-200 is aregistered trademark of Great Lakes Chemical Corporation.
FM-200 Gamma Series Systems
®

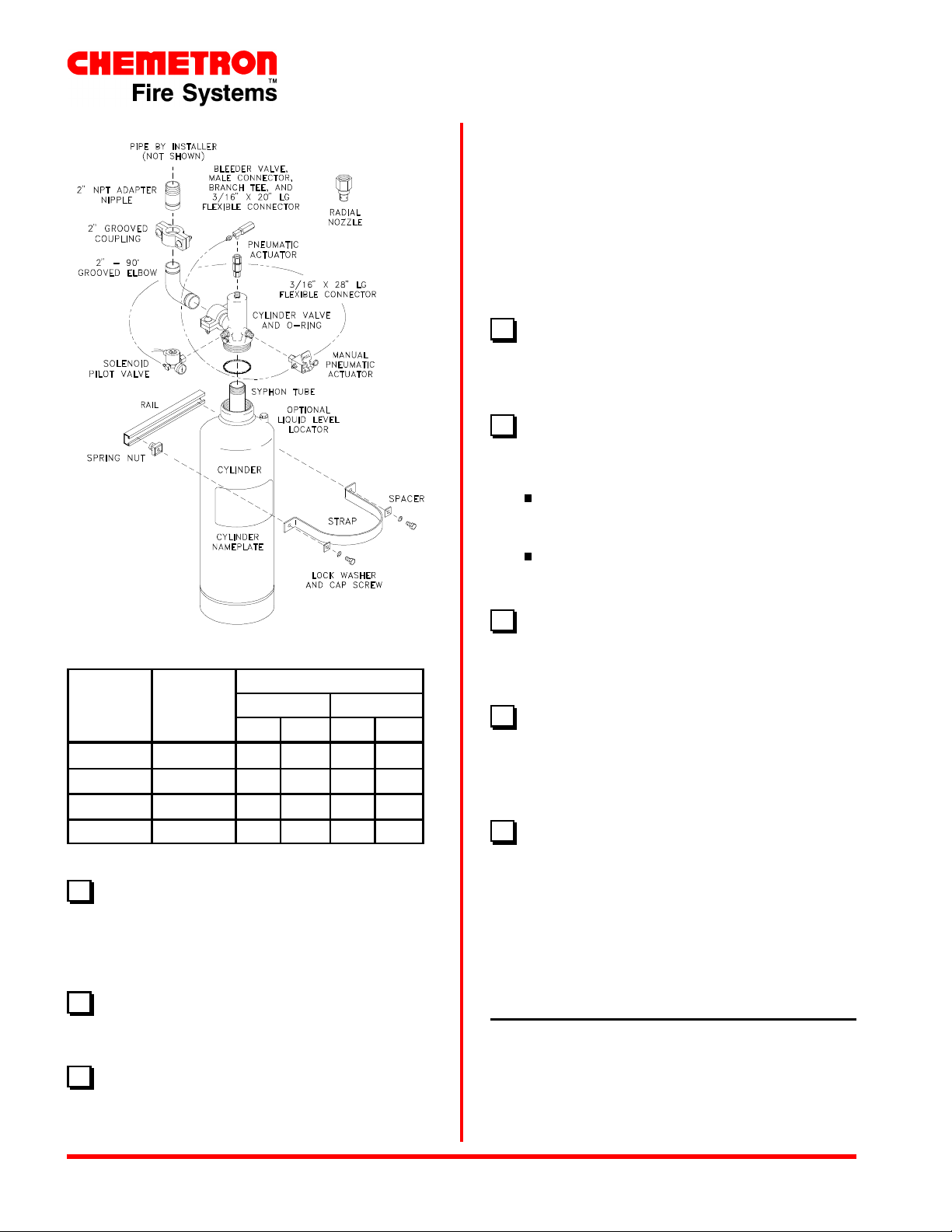

Gamma Series FM-200 Cylinder Assembly
with Completer Kit,Mounting Bracket and Nozzle
Cylinder Stock
Number
Fill Capacity
Minimum Maximum
lbs kglb kg
150 lb.10480993 81 36.7 163 73.9
250 lb.10480982 138 62.6 274 124.3
400 lb.10480983 211 95.7 421 191.0
550 lb.10480984 281 127.5 500 226.8
Cylinder:The welded seam steel cylinders are
A
manufactured tothe requirements of the Depart-
ment of Transportation (DOT)for compressed gas
and haveinternal neck threads for cylinder valve
connection.
Dip Tube:Athreaded dip tube extends from the cyl-
B
inder valvedown towithin approximately 1-1/2 in.
(38 mm) of the bottom of the cylinder.
Cylinder Valve:Apressuredifferential type cylinder
C
valvehaving aforged brass body is attached tothe
cylinder neck and serves tocontrol the flowof FM-
200 from the cylinder.
The valveis secured tothe cylinder bymeans of 4.5-
12UN-2A screw threads and is sealed byacylinder O-
ring.Asynthetic rubber seat is attached toasteel
seat retainer,which is screwed intothe bottom of
the valve.The seat retainer also supports the dip
tube.
The cylinder valvehas six connections,as follows:
Manual-Pneumatic Actuator Connection:This is a
1
threaded connection housing acheck valveand
servesas the attachment point for the manual-
pneumatic actuator.
PressureGauge/Solenoid Pilot ValveAssembly
2
Connection:This is athreaded connection housing
acheck valveand serves for the attachment of:
Solenoid pilot valveassembly (with pressure
gauge) for pilot cylinders.
Pressuregauge assembly for all other system
cylinders.
Pneumatic Actuator Connection:This is athreaded
3
connection housing acheck valvelocated on top of
the cylinder valve.Itserves as an attachment point
for the pneumatic actuators.
SafetyDisc Connection:Twofrangible safetydiscs
4
arelocated on oppositesides and servetoprotect
the cylinder against excessiveinternal pressure.The
discs aredesigned toburst in arange of 850 psi to
1000 psi (5860 kPato6895 Kpa).
Discharge Connection:This connection (2 in. nomi-
5
nal pipe size) (51 mm) is in the form of an outlet fit-
ting that threads intothe valvebody and is sealed
withan O-ring.The exposed end is grooved for at-
tachment of grooved fittings (Victualic, etc.). The
outlet fitting can be removed for replacement if
necessary.
COMPLETER KIT
Either aprimaryor slavecompleter kit is required to
completethe installation of each FM-200 cylinder.The
components included in the primaryand slavecompleter
kits aredetailed in the following chart.

©2000 Chemetron Fire Systems. All rights reserved (1/2000). Chemetron Fire Systems and Cardox are registered trademarks.
FM-200 is aregistered trademark of Great Lakes Chemical Corporation.

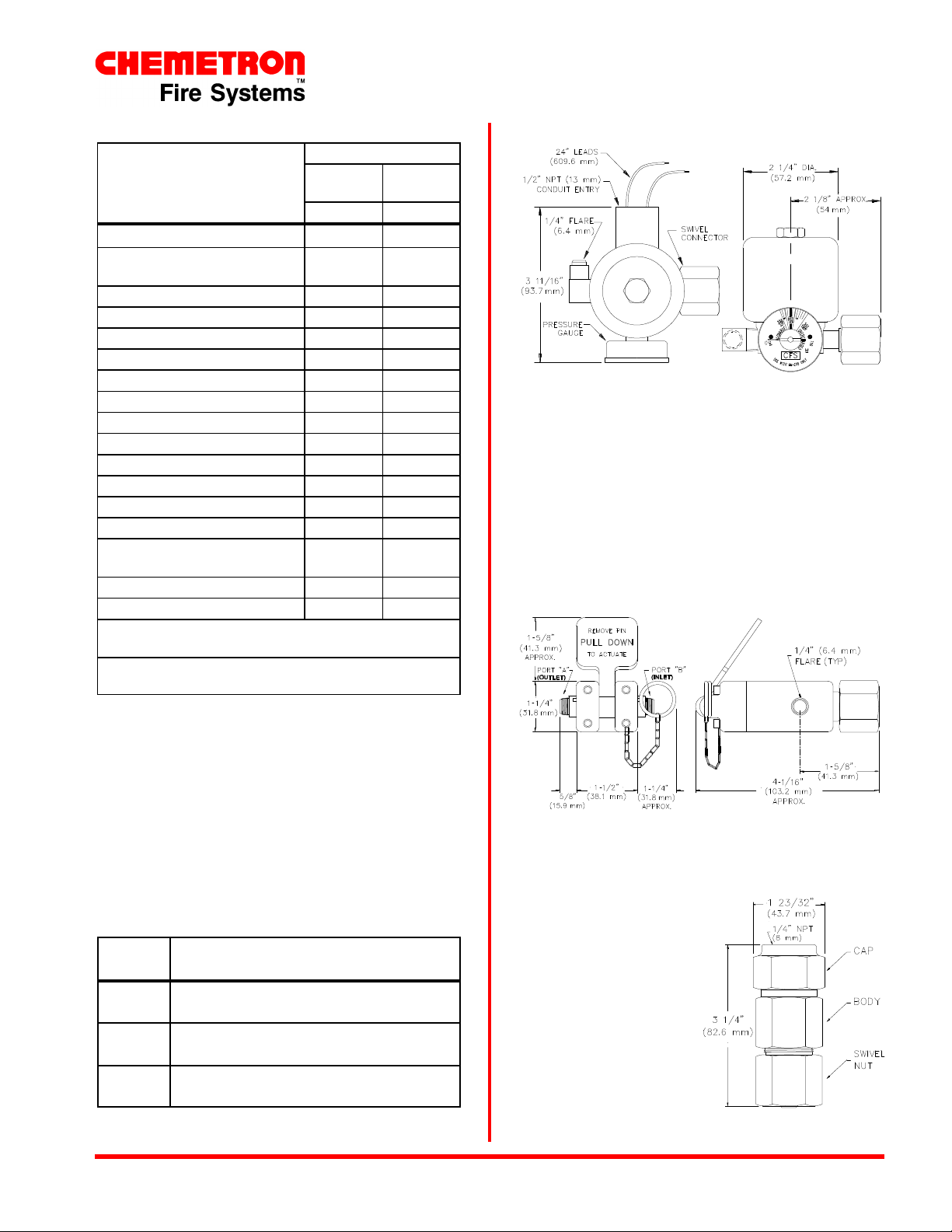

FM-200 Gamma Series Systems
®
Description
Completer Kits
Primary
20480644
Slave
20480645
Quantity Quantity
Solenoid valve1 0
Solenoid valvew/Supervisory
Pressure Switch 1* 0
Pneumatic actuator 1 1
Manual-pneumatic actuator 1 0
1/4" Bleeder valve1 0
3/16" flex hose 20" long 1 0
3/16" flex hose 28" long 1 1
2" 90° Elbow,grooved 1 1
2" Coupling,grooved 1 1
2" Adapter nipple 1 1
Tee,1/4" Fx1/4" Fx1/4" M1 0
Tee,1/4" FL x1/4" FL x1/4" MNPT 0 1
1/4" Male connector 1 0
Pressure gauge 0 1
Pressure gauge w/Supervisory
Pressure Switch 01*
Warning sign 1 0
Cylinder Nameplate 1 0
*Items are partof the Primary(S/N 20480714) and Slave(S/N
20480722) Completer Kits with SupervisoryPressure Switch
If cylinders are used in aMain/Reservesystem, order decals:
Main Decal -S/N 50360753 ReserveDecal -S/N 50360752
Stock
Number Description
20610259 Solenoid pilot valveassembly
120V-60Hz/24VDC
20610260 Explosionproof Solenoid pilot valveassembly
24 VDC
20610261 Solenoid pilot valveassembly with supervisory
pressure switch 120V-60Hz/24VDC
Top View Front View
Solenoid Pilot ValveAssembly
Front View Side View
Solenoid Pilot ValveAssembly
The system utilizes asolenoid pilot valveassembly topro-
vide pilot pressurefor actuation. The solenoid must be
electrically supervised byarecognized firesuppression
system control panel.
The solenoid pilot valveassembly includes apressure
gauge and adapter with swivel nut,elbow,and O-ring seal
that is attached tothe pressuregauge connection of the
cylinder valve.
Manual-Pneumatic Actuator -S/N 10610729
This deviceis required for the manual actuation of acylin-
der and is attached toacheck valveconnection port. This
is adual purpose device,having an actuating piston con-
nected toapin toupset the fill check valvewhen pilot
pressureis applied tothe piston. With the check valve
open, cylinder pressureis applied through the pilot con-
nectiontothe piston of the pneumatic actuator,thereby
opening the cylinder todischarge its contents.
Pneumatic Actuator -S/N 10630022
The pneumatic actuator has apis-
ton connected toaprobe toupset
the connection check valve
when pilot pressureis applied
tothe piston. With the check
valveopen, pressureabovethe
piston of the cylinder valve
is rapidly vented to atmo-
sphere,therebycausing
the cylinder valvetoopen.

©2000 Chemetron Fire Systems. All rights reserved (1/2000). Chemetron Fire Systems and Cardox are registered trademarks.
FM-200 is aregistered trademark of Great Lakes Chemical Corporation.
FM-200 Gamma Series Systems
®
Stock
Number Description
10260260 3/16 in. (5 mm) Connector 16 in. (40.6 cm) long
10260267 3/16 in. (5 mm) Connector 20 in. (50.8 cm) long
10260303 3/16 in. (5 mm) Connector 28 in. (71.1 cm) long
Pressure Gauge
Stock
Number Description
20240041 Pressure Gauge Assembly
20610262 Pressure Gauge Assembly w/supervisory
pressure switch
Bleeder Valve-S/N 10610731 PressureGauge Assembly
Ableeder valveis used in theIn systems requiring morethan one cylinder,apressure
pilot line toprevent accumula-gauge assembly is required for each cylinder other than
tion of pressuredue toacciden- the pilot cylinder as ameans of visual surveillanceof the
tal leakage through asolenoidpressurecondition within the cylinder.
pilot valveassembly,which, if
unvented,could cause afalse
discharge of the system.
Discharge Connection Fittings -S/N 20710212
A 2in. (50 mm) grooved elbow,nipple,and companion
coupling and gasket areused to
extend the discharge outlet
fitting of the cylinder valveto
the piping system. These fit-
tings ease assembly and
accommodatesome mi-
nordifferences in align-
ment.
Flexible Connector
Lengths of 3/16 in. (5 mm) flexible connectors areused to
interconnectthe cylinder valvedevices.These hoses have
astainless steel wirebraid cover and aTeflon liner,and are
fitted at each end with a1/4 in. swivel flarenut.
OPTIONAL EQUIPMENT
PressureSwitch
Apressureswitch isused in the system toimplement the
shut down of power and various items of equipment,such
as fans; and for annunciation and alarm purposes.

RAIL LENGTH
150, 250 &
400 lb = 20"
550 lb = 26"
180° Sidewall Nozzle
360° Radial Nozzle
NOMINAL PIPE SIZE
NOMINAL PIPE SIZE
ORIFICE
TYP 8 PLACES
ORIFICE
TYP 8 PLACES
A
A
©2000 Chemetron Fire Systems. All rights reserved (1/2000). Chemetron Fire Systems and Cardox are registered trademarks.
FM-200 is aregistered trademark of Great Lakes Chemical Corporation.
FM-200 Gamma Series Systems
®
Stock
Number Description
10170089 2 Pole Pressure Switch indoor use only
70170229 Explosionproof 2Pole Pressure Switch
10170065 4 Pole Pressure Switch weatherproof
Stock
Number
Nominal
Cylinder
Size
Dimension
AB
in cm in cm
10480993 150 lb.28 71.1 16 40.6
10480982 250 lb.42-3/8 107.6 26 66.0
10410983 400 lb.61-5/8 156.5 38-1/2 97.8
10480984 550 lb.46-3/8 117.8 33 83.8
Stock
Number
Empty
Cylinder
Weight
Lb (Kg)
Cylinder Assembly Dimensions
Height Diameter
in cm in cm
10480993 177 (80) 58-13/16 149.0 22 56.0
10480982 213 (97) 70-3/8 178.8 24 61.0
10480983 279 (126) 64-1/2 164.0 30 76.2
10480984 347 (157) 53-1/4 135.2 22 55.9
Cylinder Rack
Check Valve-S/N 70610499
Acheck valveis used between the cylinder valvedis-
charge outlet flexible connection and the discharge mani-
fold.The check valveprevents back flowfrom the mani-
fold in the event that the
system is discharged
when one or more
cylinders arediscon-
nected,such as for
weighing or general
servicing.Acheck valveis
not required on single
cylinder systems.
CYLINDER RACK
Single/Multiple Cylinders,Vertically Mounted
150, 250 &400 lb -S/N 20710229
550 lb -S/N 20710264
The cylinder rack, consisting of arail, astrap,and miscella-
neous hardwarefor interconnection, is shipped unassem-
bled.The rail is provided with 1-1/8 in. (2.85 cm) slots on
2in. (5.0 cm) centers for mounting bolts.
NOZZLES
Nozzles (8 port) areused tocontrol the flowof FM-200 to
insureit is discharged within 10 seconds and properly dis-
tributed in the protected hazard.

©2000 Chemetron Fire Systems. All rights reserved (1/2000). Chemetron Fire Systems and Cardox are registered trademarks.
FM-200 is aregistered trademark of Great Lakes Chemical Corporation.
FM-200 Gamma Series Systems
®
Stock Number Nominal
Pipe
Size
Nozzle Height
A
Stainless Brass in mm
360° Radial Nozzle
10371360 10371415 3/8 in (9.5 mm) 2.031 51.6
10371361 10371416 1/2 in (12.7 mm) 2.250 57.2
10371362 10371417 3/4 in (19.05 mm) 2.688 68.3
10371363 10371418 1 in (25.4 mm) 2.875 73.0
10371364 10371419 1-1/4 in (31.75 mm) 3.250 82.6
10371365 10371420 1-1/2 in (38.1 mm) 3.625 92.1
10371366 10371421 2 in (50.8 mm) 4.500 114.3
180° Sidewall Nozzle
10371407 10371423 3/8 in (9.5 mm) 2.031 51.6
10371408 10371424 1/2 in (12.7 mm) 2.250 57.2
10371409 10371425 3/4 in (19.05 mm) 2.688 68.3
10371410 10371426 1 in (25.4 mm) 2.875 73.0
10371411 10371427 1-1/4 in (31.75 mm) 3.250 82.6
10371412 10371428 1-1/2 in (38.1 mm) 3.625 92.1
10371413 10371429 2 in (50.8 mm) 4.500 114.3
Concentration Level ExposureRestriction
9% or below
(current NOAEL) No restriction
Above9%, up to 10.5% Limit to 1minute
Greater than 10.5%
(current LOAEL) Avoid anyexposure
AWorld of Protection
4801 Southwick Drive
Third Floor
Matteson, IL 60443
708/748-1503 •FAX [phone]
PHYSICAL/CHEMICAL PROPERTIES
FM-200 (CF CHFCF -heptafluoropropane) is acompound that
3 3
consistsof carbon, fluorine and hydrogen. Itis colorless,
odorless,electrically non-conductive,and suppresses fire by
interrupting the combustion processand affecting the available
oxygen content in the area of the discharge.
FM-200is clean, efficient,environmentally acceptable,and
leaves no residue,thus minimizing anydowntime after afire.
If exposed to temperatures greater than 1300°F,toxic products
of decomposition (hydrogen fluoride) are formed.The system is
designed to discharge in 10 seconds or less to minimizethe
amount of toxic byproductformed during extinguishment of
flames.Most materials contained in areas protected byFM-200,
such as aluminum, brass,rubber,plastics,steel, and electronic
components,are unaffected when exposed to FM-200.
FM-200 isstored as aliquid in steel containers and super-
pressurized with nitrogen to 360 psig (2482 kPa) to increase its
discharge flowcharacteristics.When discharged,FM-200 will
vaporizeat the discharge nozzles and effectively mixwith the air
throughout the protected area.
SAFETYCONSIDERATIONS
In accordance with NFPA Standard 2001 and the EPA Significant
New AlternativeProgram (SNAP), personnel exposure to FM-200
total flooding system concentrations shall be limited to the
following:
The discharge of FM-200 into ahazard maycause areduction in
visibilityfor abrief period.Anydirectcontactwith the agentcan
cause frostbite.
Acylinder containing FM-200 should be carefully handled.All
anti-recoil devices must be in place atall times when the
cylinder is not restrained.
The Material SafetyData Sheet (MSDS) covering FM-200 should
be read and understood prior to working with the agent.
The seller makes no warranties,express or implied,including,but not limited to,the implied warranties of merchantabilityand
fitness for aparticular purpose,except as expressly stated in seller's sales contractor sales acknowledgment form. Everyattempt
is made to keep our productinformation up-to-date and accurate.All specific applications cannot be covered,nor can all
requirements be anticipated.All specifications are subjectto change without notice.
FM-200 SPECS MENU
