CHINA STIRLING CPF01L86 User manual

CPF01L86
Ultra-low Transportable Cryogenic Freezer
Operating Manual
1 Stirling road, north economic develop: zone, rizhao city, shandong province, China www.chinastirling.com

Operating Manual: CPF01L86 www.chinastirling.com
CPF01L86
Ultra-low Transportable Cryogenic Freezer
Read this operation manual carefully before using the product. Improper
handling may result in an accident. Be sure to save this manual.
Table of Contents
1. Product Intro................................................................................................... 1
1.1. Description.............................................................................................1
1.2. Manual Contents....................................................................................1
2. Precautions for Safe Operation......................................................................2
2.1. Warnings................................................................................................3
2.2. Cautions................................................................................................. 3
3. Features of the CPF01L86.............................................................................. 5
3.1. FPSC and Refrigeration.........................................................................5
3.2. Power and Temperature Control............................................................5
3.3. Power Adapter and Cord....................................................................... 5
3.4. Thermal Insulation.................................................................................5
3.5. Graphical User Interface........................................................................6
3.6. Tracking and Monitoring.......................................................................6
4. Unpacking and Setup...................................................................................... 9
4.1. Unpacking..............................................................................................9
4.2. Setup...................................................................................................... 9
5. Operation........................................................................................................11
5.1. Responsible Operation.........................................................................11
5.2. UI operation guidelines....................................................................... 11
5.3. Error / Alarms and Troubleshooting....................................................17
6. Maintenance & Service................................................................................. 19
6.1. Cleaning the Freezer............................................................................ 19
6.2. Air Intake Filter Cleaning....................................................................19
6.3. Managing Freezer Contents.................................................................19
7. Troubleshooting.............................................................................................20
8. Specifications..................................................................................................21
8.1. Freezer Specifications..........................................................................21
8.2. Freezer Dimensions and Description...................................................22
8.3. Freezer Performance Characteristics................................................... 23
9. Warranty:.......................................................................................................24

Operating Manual: CPF01L86 www.chinastirling.com

Operating Manual: CPF01L86 www.chinastirling.com
1
1. Product Intro
1.1. Description
The CPF01L86 Ultra-low Transportable Cryogenic Freezer with free-piston
Stirling engine technology differs from conventional compressor-based
refrigeration. It provides high temperature efficiency, deep-temperature cooling
in a lightweight package allowing true portable operation.
The China Stirling CPF01L86 Ultra-low Transportable Cryogenic Freezer uses
direct contact technique for refrigeration, highly advanced free piston Stirling
technology, wide temperature range, precise temperature control of ±0.1 °C,
light weight, easy to use, specially designed power control system and built-in
backup battery. Providing low temperature storage and portable carrying for
different products with a stable, AI controlled, deeply-frozen environment. This
product is Using a user friendly UI (User Interface) which is easy to understand
and use.
It is classified for use as stationary equipment in a Pollution Degree 2 and
Over-voltage Category II environment. The unit is designed to operate under the
following environmental conditions:
Indoor use
Altitude up to 2000 Meter
Maximum relative humidity 80% for temperatures up to 35°C
1.2. Manual Contents
This manual consist of:
Safety Precautions
Features
Setup
Product Usage
Maintenance
Troubleshooting
Specifications
Warranty
This operating manual describes all aspects of receiving, installing, using and
storage of the China Stirling CPF01L86 Ultra-low Transportable Cryogenic
Freezer.

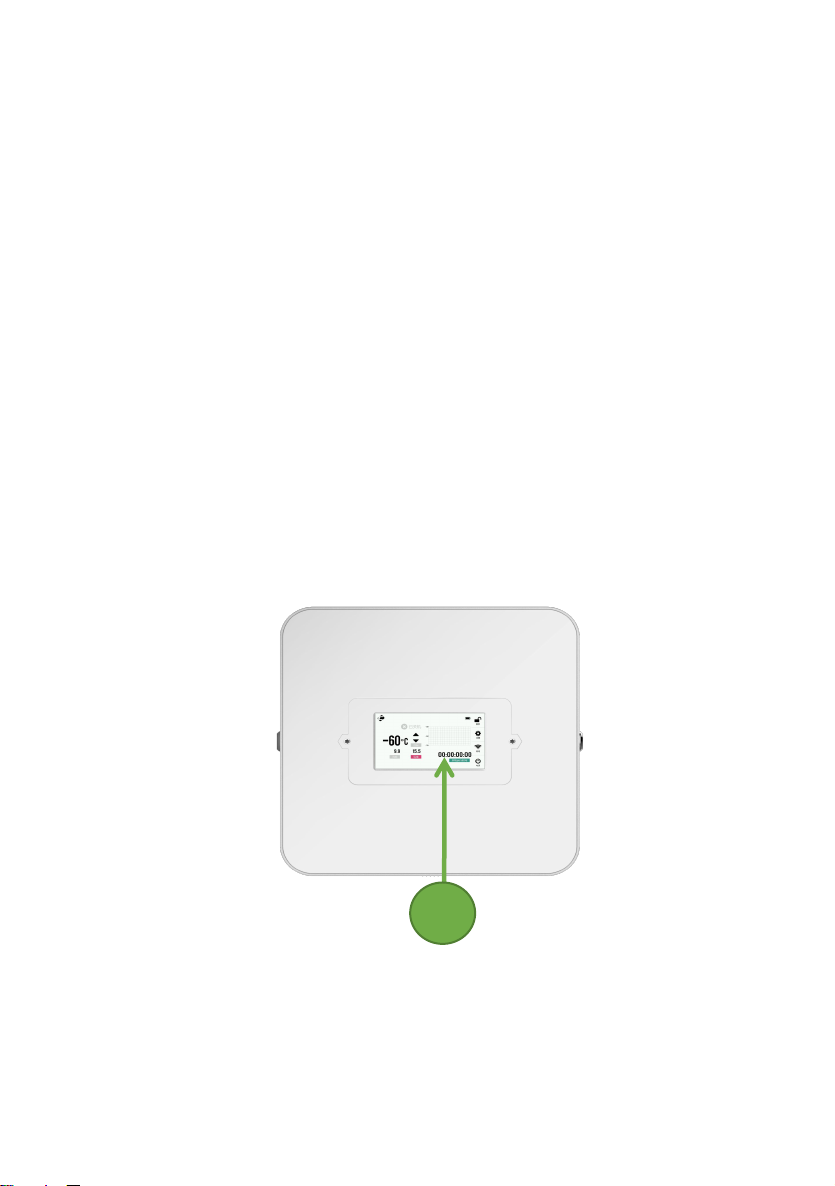

The freezer is controlled with a User Interface (UI) screen. This operating
manual describes use of the UI in Section 5.

Operating Manual: CPF01L86 www.chinastirling.com
2
2. Precautions for Safe Operation
Before use, please read the following safety precautions carefully to prevent you
and people around you from injury and your property from being damaged.
Potential hazards associated with use of the CPF01L86 Ultra-low Transportable
Cryogenic Freezer may impact the safety of persons in the workplace in which
the freezer is placed. The freezer itself may also be damaged and/or its warranty
voided by improper operation or usage. All personnel that operate, transport or
place the freezer into storage should read this entire manual to understand those
hazards. Consider storing this manual for ready reference within close proximity
of the freezer.
Before reading the instruction of how to use, please understand the meaning of
following marks and indications.
User Advisory:
Ultra-low temperatures are dangerous, use proper precautions when operating at
ultra-low temperatures. China Stirling cannot be held responsible for damages or
loss of stored product attributed to unintended use. In no case will China Stirling
be held liable for loss of stored product resulting from electrical, mechanical or
structural failure. As with any ultra-low temperature freezer, appropriate
back-up and redundancy considerations are the responsibility of the user.
To assure the correct use of the product, basic safety measures should always be
followed including the warnings and cautions listed on the product and in this
operating manual.
Hazard Symbols
WARNING: This symbol indicates a potentially hazardous
situations which if not avoided could result in serious injury or
death.
CAUTION: This symbol indicates a potentially hazardous
situation which if not avoided could result in minor to moderate
injury or damage.
This symbol is used to indicate important prohibited handling of
the machine and alert the user to possible risks of personal injury
and equipment damage.

Operating Manual: CPF01L86 www.chinastirling.com
3
2.1. Warnings
WARNING!
Failure to observe WARNING signs could result in a hazard to
personnel possibly resulting in serious injury or Death
Do not put CPF01L86 in water or pouring water on the unit or
operate where water may drip or fall on the unit electrical box.
Operation under extreme environmental conditions, e.g., in very high
humidity environments (RH 80% or more) also may lead to
condensation or water intrusion.
CPF01L86 uses Free piston stirling engine with pressurized Helium
gas . Do Not Drill or Puncture Inner core.
Do not put CPF01L86 near to fire, may catch fire which will cause
the internal gas to expand or even explode.
Do not put store flammable gaseous or liquids.
(Danger of explosion from gasoline, thinner, spray, etc.)
Do not let the children use the unit alone. Keep infant away from unit.
(Risk of burn and electric shocks)
Do not touch inside the freezer with wet hands while operating on
ultra-low temperatures. (Risk of frostbite)
Do not touch any electrical parts such as the power supply plug or any
switches with a wet hand. That may cause electric shock lead to death
or injury.
If there is an unexpected sound, smell, smoke when the power is
turned on, unplug the power and contact the manufacturer or supplier.
Continued abnormal operation may cause electric shock or fire.
Do not disassemble, modify or repair the freezer. There are no user
serviceable parts inside the CPF01L86 unit. Contact China Stirling
for authorized repair procedures as required.
Do not use if power cable, DC plug or power plug are damaged or
loose. (May cause electric shock, short circuit or combustion)
Do not cut, modify, damage, forcefully bend or knot the power
cable. Also placing heavy objects or forcing the cable to put in small
space can damage the cable resulting in electric shock.

Operating Manual: CPF01L86 www.chinastirling.com
4
2.2. Cautions
CAUTIONS!
Failure to observe CAUTIONS signs could result in a hazard to
personnel injury AND damage to the equipment
Operating the unit in extreme environment conditions (35℃ 、RH
80%) using Air conditioner is recommended to extend the life span of
the unit.
Do not fill up the freezer to the top, leave clearance on top for closing
the door properly.
(Temperature may rise causing damage to stored products)
Be especially careful that materials at ultra-low temperatures are not
spilled onto skin or clothing.
(Risk of frostbite and injury)
Do not use freezer in the car trunk without any adequate ventilation.
(Temperature may rise causing damage to product)
Do not place weight or any object on the unit.
(Freezer body may be damaged)
When removing the power plug be sure to hold plug not cable.
(There is Danger of causing electric shock or short circuit )
Avoid strong physical shock or dropping of objects on the unit.
(This may cause damage to electronic components inside)
Remove the plug before turning off engine of the vehicle.
(Power does not turn off after switching off the engine in some
vehicles, freezer can draw power from car battery)
Do not put ice or liquid water directly in the freezer, always use
suitable containers. Also do not store dry ice. (May cause
malfunction or burst)
Do not use glass containers when the contents might freeze and
expand
Do not block the air vents of Freezer (May cause malfunction).
Do not use hard and/or sharp objects, such as knives, screw drivers,
etc. to remove any frost or ice from Freezer. Freezer cabinet is coated
through proprietary technology that can be damaged. Defrosting the
freezer is described later in this operating manual.
Warning: Unauthorized modification to the unit, controls or free-piston Stirling engine is
prohibited and will void all warranty provisions.

Operating Manual: CPF01L86 www.chinastirling.com
5
3. Features of the CPF01L86
The China Stirling CPF01L86 Freezer is designed to provide ultra-low
temperature for storage and transportation for the product need ultra low
temperature such as drugs, vaccine and clinical trail products intended for
medical purposes and many other products.
3.1. FPSC and Refrigeration
The China Stirling CPF01L86 Ultra-low Transportable Cryogenic Freezer use
Cryo S 100 Free Piston Stirling cooler as the refrigeration core. The Cryo S
series Stirling engine uses approximately 3 grams of helium gas as a working
fluid. Working in full temperature zone, low power consumption, low noise,
complete 360 degree omnidirectional defense shake. Freezer have built-in
heating system used for defrosting and also for keeping the hot temperature of
cabinet when ever needed.
3.2. Power and Temperature Control
Freezer is equipped with built-in battery providing the backup power to freezer
for one hour to give stable temperature all the time. G.pro control board with AI
algorithm programming control the FPSC power to maintain the temperature of
freezer, temperature sensors (PT100) measures the internal freezer temperature
and machine cold head temperature and provides input to the controller. The UI
provides the display and control for setting the desired temperature for freezer.

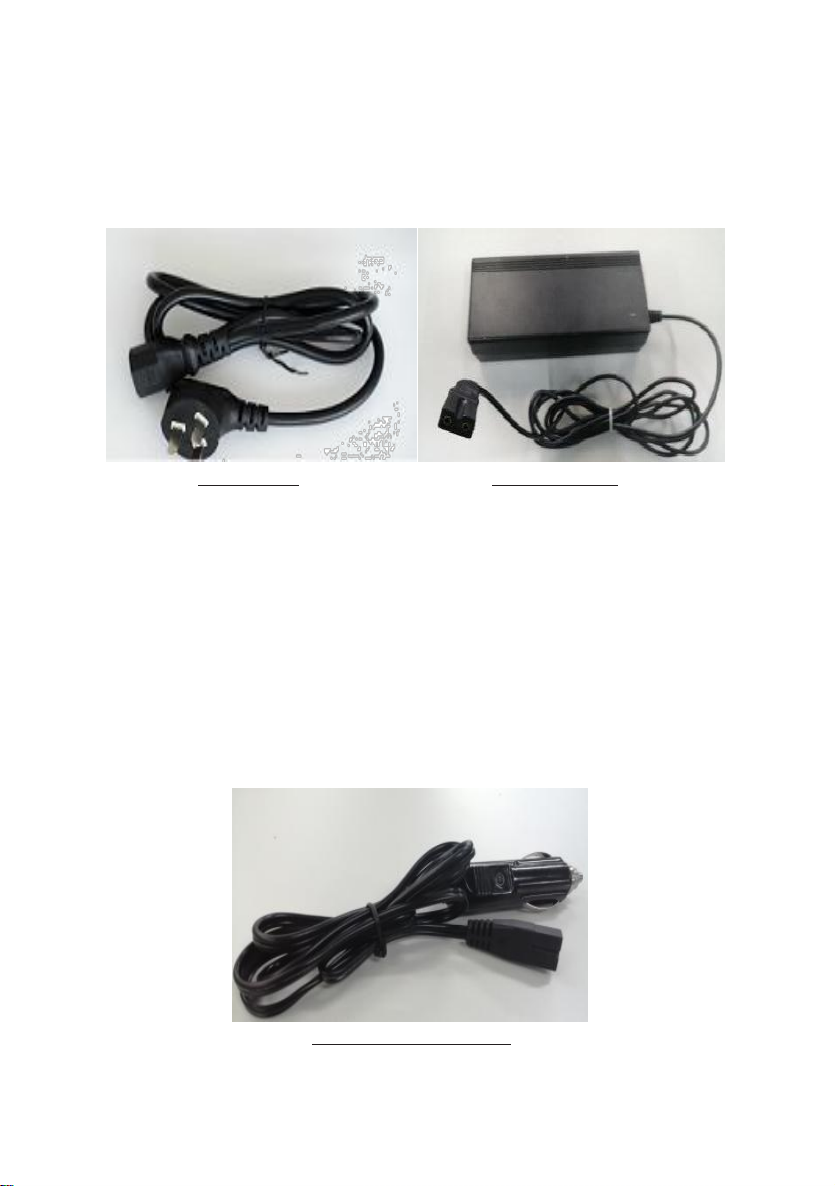

3.3. Power Adapter and Cord
A simple line cord change can allow for multiple power and receptacle types.
Make sure to use the cord and plug appropriate for your location. Power Adapter
operation range is:
Voltage input 100VAC-240VAC (Standard three-pin plug)
Frequency 50Hz or 60Hz
Output DC 24V / 5A (max:)
3.4. Thermal Insulation
For the protection of transported and stored products from the outside
temperature, freezer is designed with dual thermal insulation for the better
results, China Stirling CPF01L86 Ultra-low Transportable Cryogenic Freezer
have high performance vacuum insulated panels VIP and polyurethane foam
insulation.

Operating Manual: CPF01L86 www.chinastirling.com
6
3.5. Graphical User Interface
The User Interface (UI) is implemented on a touch screen control on the top of
the unit. The UI allows the user to:
Display all temperature and power status
Display freezer and WIFI status
Display freezer identification information
Set the temperature and Power
Set freezer control and communications parameters
3.6. Tracking and Monitoring
Equipped with the new Stage mOS 3.0 and LOTA FPSC control hardware,
built-in Glonass, GPS global positioning and timing system, 4G LTE / Wi-Fi /
Bluetooth / Zigbee all-weather stable connection, remote start and stop,
configuration monitoring, real-time temperature curve , 6DOF motion processor
collects and analyzes all equipment motion data, opening a new chapter for your
precise medical products transport and storage service.

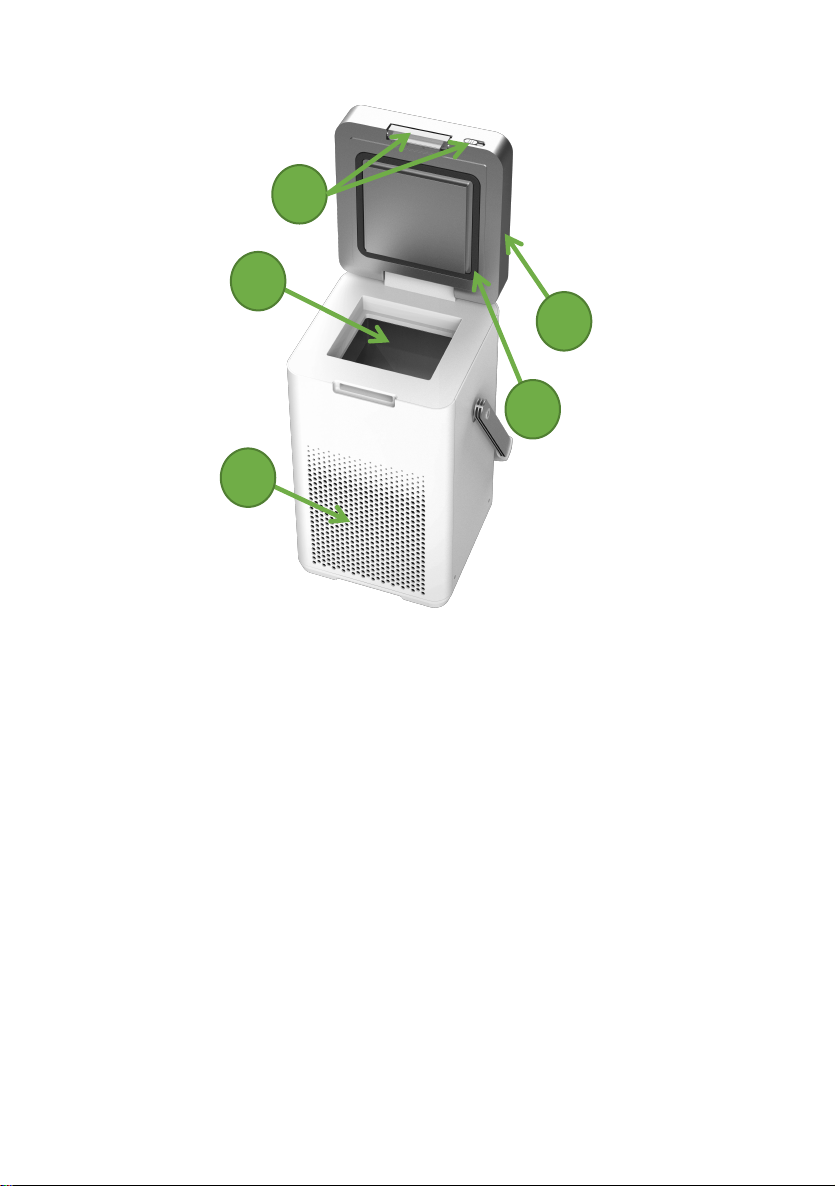

The China Stirling CPF01L86 Ultra-low Transportable Cryogenic Freezer has
the following features:
1．UI Screen
UI screen is on top of the freezer lid, easy operate and easy to look.
1

Operating Manual: CPF01L86 www.chinastirling.com
7
2．Lid lock and latch
Freezer have two lock systems, once is manual lock and other is digital RFID
lock for better protection and security of the stored items. Lid latch for positive
closure.
3．Freezer lid
Freezer is equipped with well designed insulated lid.
Providing backup power to freezer for 1 hour.
4．Lid gasket
Outer moisture seal.
5．Freezer cabinet
Metallic cabinet with proprietary coating and with double insulation for better
protection of stored items.
6．Air vent and Filter
Intake air for cooling of FPSC and filter to protect it from dust..
4
6
5
3
2

Operating Manual: CPF01L86 www.chinastirling.com
8

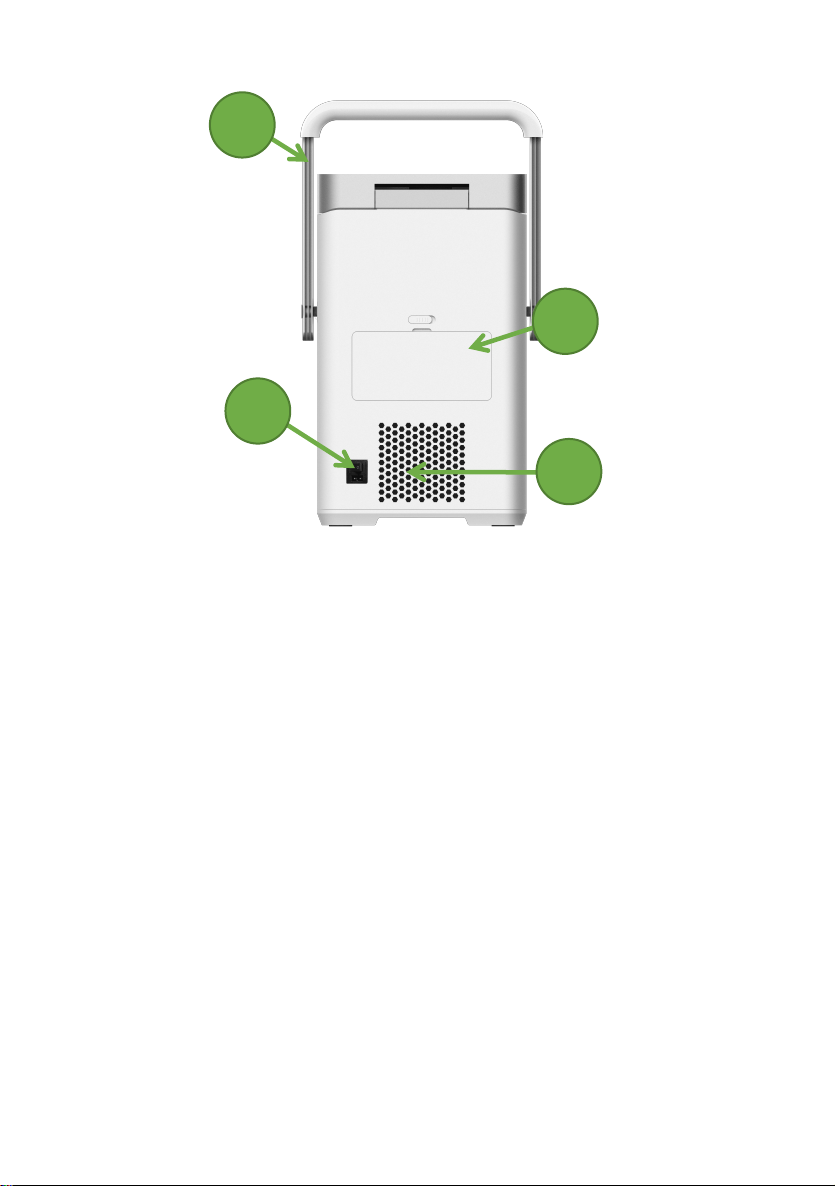

7
8
9
10
7．Handle
Aluminium handle with foam, strong easy to carry.
8．Power Switch and DC Socket
Switch to turn ON/OFF the power to Freezer, DC socket is tagged with
polarized signs to avoid errors.
9．Backup Battery
Replaceable battery with locked cover. Providing backup power to freezer unit
for more than 1 hour.
10．Exhaust Vent

Operating Manual: CPF01L86 www.chinastirling.com
9
4. Unpacking and Setup
NOTE: Prior to setting up the CPF01L86, inspect the unpacked unit and any
included items for shipping damage. Compare all contents to the packing list for
completeness.
4.1. Unpacking
Remove the Freezer and all accessories from the box. Carefully inspect the
freezer and all accessories for any shipping damage. Check the packing list to
verify that the shipment is complete.
Included Items:
Packing List
Operating Manual (this document)
Qualification Certificate
Freezer
AC Adapter
Power Cord
Cigarette lighter cable (Optional)
Unpack freezer unit and included components, ensure all packaging material has
been removed around the air inlet and outlet holes.
4.2. Setup
Place the Freezer on the floor or any flat surface, make sure the freezer switch
is turned off as show in the picture;

Operating Manual: CPF01L86 www.chinastirling.com
10
A. Using AC Power source:
After unpacking the Freezer, it can be c onnect to a power source. The Freezer
can be used with either the AC Power source through AC-DC adaptor comes with
the Freezer for lab, home or office use or the 12V-24V DC Power supply for
mobile use in vehicles, it is recommended that the initial pull-down to Set-point
be completed via AC power.
Power Cord Power Adapter
During setup, identify the power cord and plug configuration available and
then locate the appropriate line cord to attach with power adapter.
Use the B-type DC plug to connect the adaptor to Freezer, insert the plug in
to DC socket, press the plug firmly into the connection port. Turn ON the
Freezer by using the switch on the machine above the socket.
Once the power switch is turned ON, unit will be powered and display screen
will be ON after a “BEEP”. Follow the instructions from section 5 of this
operating manual to setup the parameters on the UI.
B. Using DC Power source:
Use B-type Plug with cigarette lighter for using DC power source of 12V-24V.
Use same same procedure as AC system.
Cigarette Lighter Cable
NOTE: For use with 12 volt automotive systems 10 A DC is required, consult your
automotive specialist if your vehicle lacks 10 A rated 12V outlets.

Operating Manual: CPF01L86 www.chinastirling.com
11
5. Operation
5.1. Responsible Operation
Responsibility for freezer operation should be part of the policy and procedure
documentation or guidelines for the Freezer usage. Safety requirements are
integral to these responsibilities, use this product only in the way described in
the product literature and in this manual. Before using it, verify that this product
is suitable for its intended use. If this equipment is used in a manner not
specified by the manufacturer, the protection provided by the equipment may be
impaired.
Important changes to the freezer settings require sustained button pushes, this
helps prevent accidental changes to the settings during transportation.
Turning the Freezer ON/OFF requires a Touch on the Power button. The default
display is the cooling temperature of Freezer, other displays such as Set-point,
ambient temperature, machine hot side temperature etc., are tagged with such
names and described in detail in the UI guideline section.
Operation for the AC and DC system is described in the section 4, operation in
vehicle DC system need extra precautions to avoid any incidents.
Notes on operation in a vehicle:
1. Connect cigarette lighter plug to vehicle after starting the engine.
2. The vehicle engine should be running during the operation of Freezer to
prevent accidental discharge of the battery.
3. Do not operate the Freezer in an unattended vehicle. This may lead to
overheating if left in the sun and subsequent damage to stored contents.
Disconnecting from power:
1) Turn OFF the Freezer (Press Power button on UI)
2) The Freezer will give beep sound while the unit turns off.
3) Turn OFF the switch and unplug adaptor cable from the Freezer after 30
sec of beep if battery is fully charged.
4) Do the same while using the freezer in the vehicle.
5) If you unplug the Freezer while it is on, you will hear a sudden noise as the
free-piston Stirling engine power is switched from main power supply to
battery and will cause the noise. This noise (described as a “bonk”) is not
indicative of damage.
5.2. UI operation guidelines
Values for the China Stirling Ultra-low Transportable Cryogenic Freezer

Operating Manual: CPF01L86 www.chinastirling.com
12
CPF01L86 parameters can be viewed and modified through the UI (User
Interface) touch screen. Important changes to the Freezer settings require
sustained button pushes, UI have screen lock that helps prevent accidental
changes to the settings. Temperature can be set as needed on main screen with a
touch.
The UI is programmed with default values for most parameters. Unless
parameters limits are set manually, machine will work on default values.
The applicable model and operation:
Current program of the CPF01L86 freezer is applicable to G-pro driver board
and 4.5 inch IPS resistive touch screen. Program version number cab be seen on
the display screen.
Have a Quick View at Simple operation procedure, programming is done for
friendly interface and equipment running. Keep on reading for details about the
UI and it’s usage.
The interface description:
The program has designed a total of 6 (six) operation interfaces: the boot
interface, the main interface, the Wi-Fi setting interface and the Wi-Fi
configuration interface, user setting interface and factory setting interface. The
switching between the interfaces is realized by touching the appropriate buttons
or specific area of screen. Each interface is describe below with each point.
Read carefully for better understanding and usage to avoid any mishap or
incident.
1. Boot interface display instructions:
After booting, the screen displays China Stirling logo for one second.

Operating Manual: CPF01L86 www.chinastirling.com
13
2. The main interface displays the operation instructions:
This interface is the default display interface and consists of 14 parts:
1. Display Logo, you can set whether to display it through the factory
interface;
2. Battery level display
3. Display the current mode (off / cooling / heating)
4. Display the set target temperature
5. Change target temperature
6. Temperature curve, showing the current temperature curve;
7. Display the current temperature inside the cabinet
8. Display ambient temperature
9. Machine running time;
10. Press to lock or unlock the cabinet door
11. Press to enter the user setting interface
12. Press to enter Wifi configuration interface
13. Press the Power Button to ON/OFF the machine
14. Screen status display

Operating Manual: CPF01L86 www.chinastirling.com
14
3. Wi-Fi setting interface displays operation instructions:
This consists of 5 parts：
1) Back button, click to return to the previous interface
2) Official LOTA page QR code
1. Scan QR code
2. Pay attention to the public number
3.Follow the page prompts after scan
3) Wi-Fi configuration
4) OTA upgrade
5) Program version number
4. Wi-Fi configuration operation instructions
This interface consists of 4 parts:

Operating Manual: CPF01L86 www.chinastirling.com
15
1. Back button, click to return to the previous interface;
2. Reset the Wi-Fi. Use it when airkiss is stuck or Wi-Fi is abnormal.
Click to restore the Wi-Fi configuration to factory settings. Connect
USR-215 or USR-126 to the hand held terminal and enter
“10.10.100.254” in the browser to configure
3. Turn off Wi-Fi echo (must click after resetting the configuration)
4. Set up airkiss distribution network (must click after resetting the
configuration)
5. User setting interface operation instructions
The interface consists of 11 parts:
1．Back button, click to return to the previous interface;
2．Automatic switch button,
3．Turn on the password button, click to set the password according to
personal needs, ON/OFF
4．RFID management, NFC card management;
5．Screen off time display, click to set the screen display time;
6．Brightness setting display, click to set the display brightness of the
screen;
7．Unpacking times display, showing the current number of times the box
has been opened during work;
8．DC voltage, DC current, AC current, power, machine boost command,
current temperature and set temperature, T3 hot end temperature, T2
ambient temperature, T4 cold end temperature;

Operating Manual: CPF01L86 www.chinastirling.com
16
9．Input display
10．Number buttons
11．Continuously click 6 times at bottom left corner of screen to enter
factory setting interface
6. Factory setting interface operation instructions
The interface consists of 12 parts:
1. Back button, click to return to the previous interface;
2. Maximum power: set the maximum power required by the machine,
turn the power limit to "ON" to run the machine at the set power
3. Maximum rate: Machine boost rate setting. Turn on the rate limit to
"ON" to limit the machine boost rate.
4. Master control temperature: The machine contains 5 thermometers.
The temperature of T1 is used as the master control temperature.
5. Reporting interval: the time interval for reporting data to the server
6. Temperature compensation 1: T1 temperature compensation
7. Upper temperature limit: upper target temperature setting
8. Temperature compensation 4: T4 temperature compensation
9. Lower temperature limit: lower target temperature setting
10. Alarm temperature: the hot end temperature reaches this temperature
the alarm be ON and machine will stops.
11. Alarm current: When the machine is running, the AC current reaches
the set point the alarm be ON and machine will stops.
12. Hot-end threshold: limit the operating power of the machine when hot
forging reaches this temperature.
