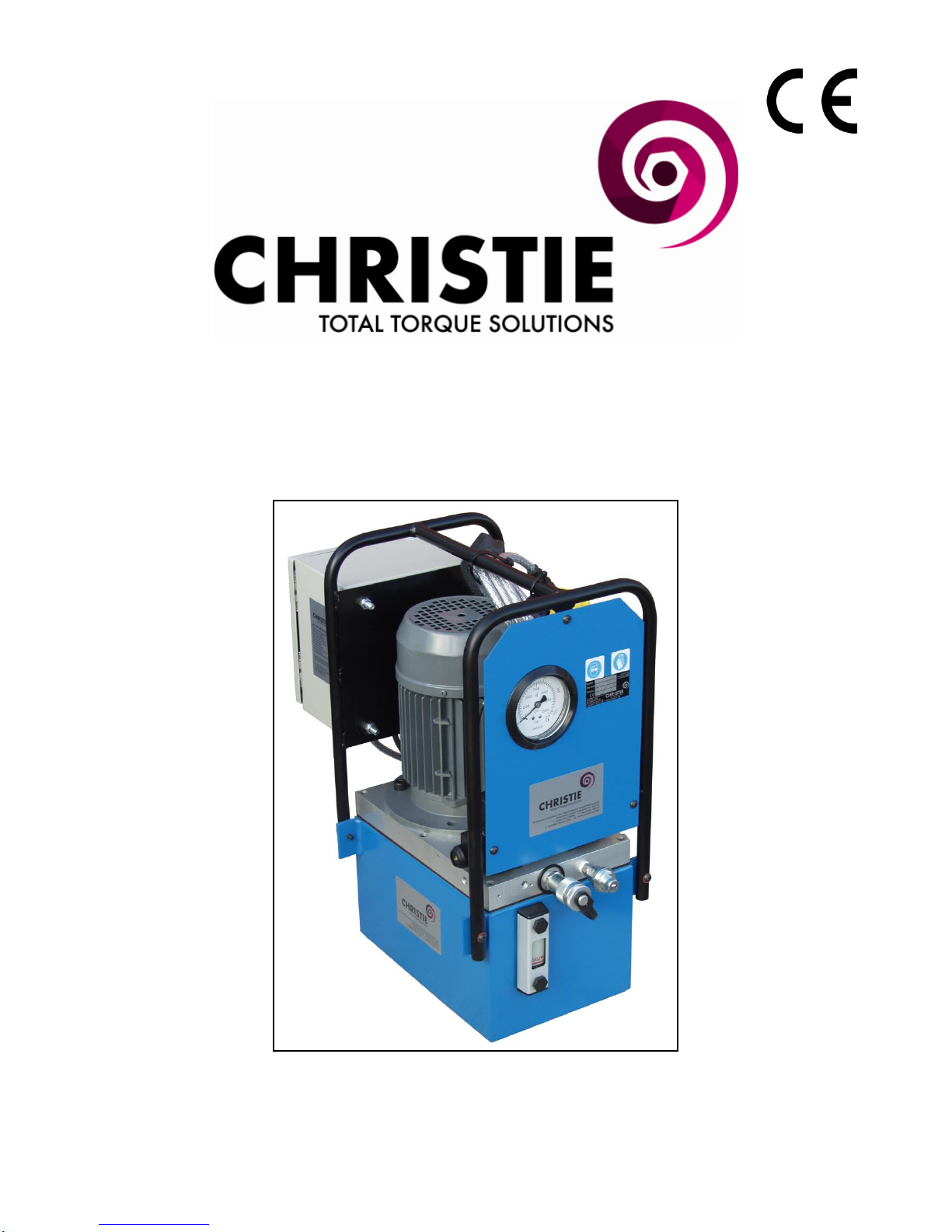

Christie EDR70X-LPR User manual

EDR70X-LPR POWER PACK (ELECTRIC)
USER GUIDE
Ref: WCOI.024 Date: June 2015 Issue: 4

CONTENTS
Page Description
1 Introduction
Specification
Accessories Available
2 Power Pack Features
3 Operating Instructions
4 Safety
5 Power Pack Parts List
6 Hydraulic Hose Parts List
7 Fault Finding
8 E.C. Declaration of Conformity

1

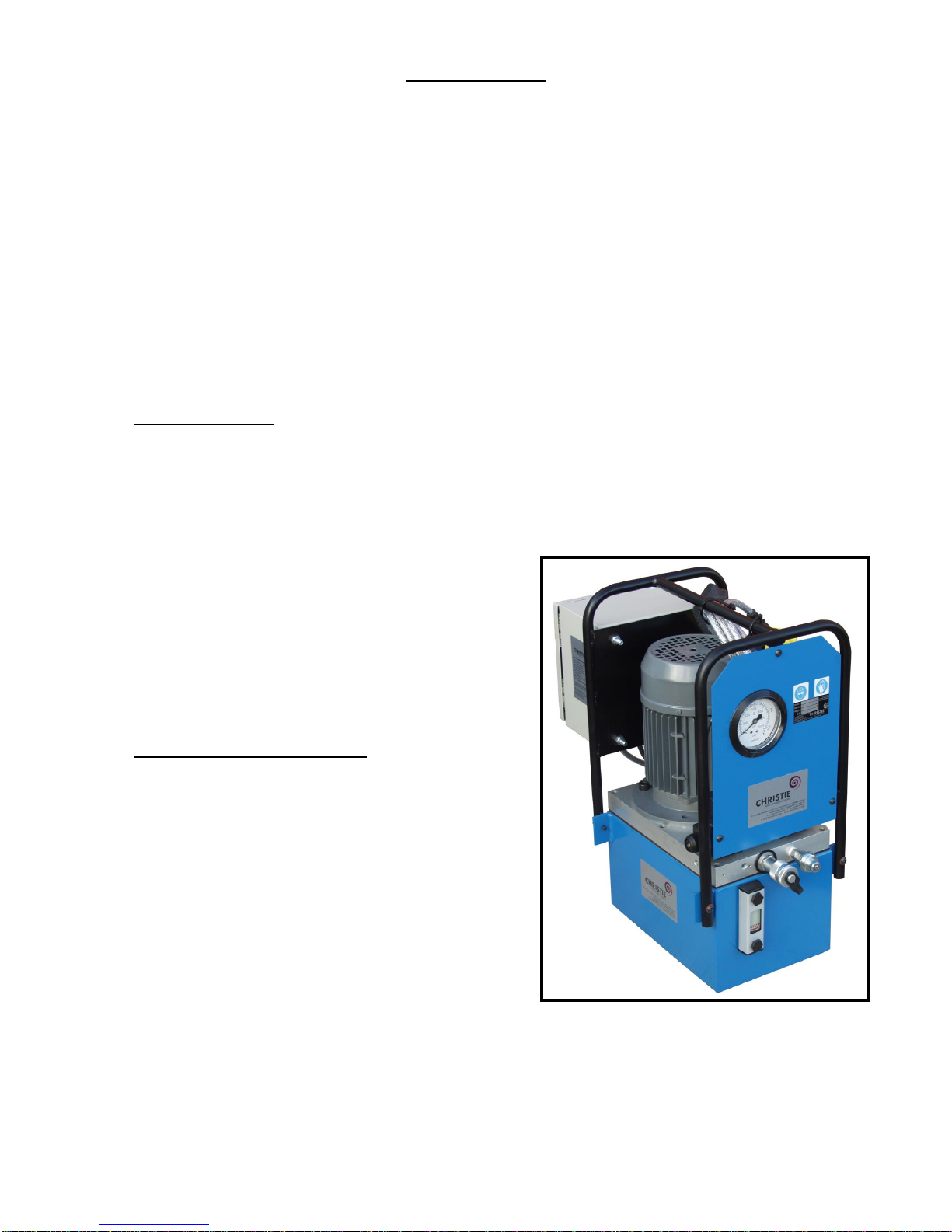

INTRODUCTION
The EDR70X-LPR power pack is a portable, electrically actuated, double acting, “Xtra” pump with a low
pressure return.
The Christie range of power packs are the toughest on the market, combining effortless power with
supreme performance.
The power pack is supplied complete with one control pendant / cable assembly and two hydraulic hose
assemblies.
The unit is operated using the two button control pendant.
SPECIFICATION
Electrical Supply Options (In): 110v 1PH / 240v 1PH / 415v 3PH
Maximum Hydraulic Pressure (Out):690 bar (10,000 psi)
Pressure Gauge Units: psi or bar
Flow Stage 1 (Out): 10 litres/minute (0.353 cfm)
Flow Stage 2 (Out): 1 litres/minute (0.0353 cfm)
Oil Reservoir Capacity: 7 Litres (427.17 in3)
Hydraulic Hoses Length: 4m
Total Weight (Excluding Hoses): ~41 Kg (90.39 lb)
Noise: Less than 85 dB(A)
Hydraulic Port Size: 1/4" NPT
ACCESSORIES AVAILABLE
The following accessories are available upon request and
can be custom made to suit requirements. Please contact W.
Christie (Industrial) Limited for more information:-
Extra Length hoses
Protective storage case
Portable trolley

2
POWER PACK FEATURES
Control Pendant
Pressure Adjuster
(Relief Valve)
Oil Tank
(Reservoir)
Oil Level
Gauge
Male Coupling
Female
Coupling
Hydraulic
Pressure
Gauge
Motor
Control Panel
Mains Cable

3
OPERATING INSTRUCTIONS
IMPORTANT: DO NOT OPERATE THIS TOOLING BEFORE THE OPERATING AND
SAFETY INSTRUCTIONS ARE READ AND UNDERSTOOD.
IF BREAKDOWN, MALFUNCTION OR DAMAGE OCCURS DO NOT
ATTEMP TO REPAIR, CONTACT W. CHRISTIE (INDUSTRIAL) LTD
IMMEDIATELY.
Before using the power pack electric unit ensure:-
1. The operating and safety instructions are read and understood.
2. The relief valve, located on the side of the unit is fully unwound (anti-clockwise)
3. Tank is filled with oil (Tellus 32 or equivalent).
4. Electric power supply is correct (110V or 240V).
5. Couplings are clean and fully engaged.
6. Connect hoses to the hydraulic tooling to be operated (see relevant operating instructions).
7. Start the pump running by pressing the ‘on’ button on the back of the control panel.
8. Depress the white button on the hand pendant.
9. Slowly rotate the relief valve, cylinder will extend.
Note: If cylinder does not extend, depress the black pendant button. Hydraulic pressure will register on
the gauge
10. Adjust the hydraulic pressure to the required setting using the relief valve on the outside of the
unit.
11. With pressure set, the power pack is now ready for use.
Note: This is a double acting pump unit, depressing the pendant control buttons will extend or retract a
cylinder. Which button extends and which button retracts is dependant on hose orientation.

4
SAFETY
1. The incorrect use of hydraulic equipment is dangerous. Ensure that personnel familiarise
themselves with the operating instructions.
2. Operating personnel should be safely and correctly attired i.e. safety glasses, safety boots,
industrial gloves and overalls.
3. If more than one engineer is involved in the operation of torque machinery, good communication
must be established to prevent accidents or misunderstandings.
4. Do not use electrical cables to tow the power pack.
5. NEVER exceed the maximum working pressure of hydraulic equipment.
6. Before use check pneumatic and hydraulic hoses are not cut, split, kinked or damaged. If in doubt
do not use.
7. Do not hold the hoses when they are pressurised, especially on the swagings. Hose failure may
lead to serious injury.
8. If any leaks are detected whilst the pump is in operation, stop using it immediately. Contact
W. Christie (Industrial) Ltd for guidance.
9. Take care not to stand on or run over hydraulic hoses or air lines. To minimise danger ensure that
these lines are not run across walkways, ladders, roadways and doorways and that people likely to
pass through the working area are aware of the danger.
10. Maintenance guidelines should be strictly adhered to, poor equipment may lead to component
failure and injury.
11. NEVER pressurise a hose or cylinder leaving the coupling at the other end disconnected. If this
coupling fails serious or fatal injury may result.
12. The pump unit contains aluminium and magnesium; this makes it unsuitable for use in certain
industries i.e. mining and petrochemical. For guidance contact W. Christie (Industrial) Ltd.
13. A power pack should never be used without a motor silencer fitted, noise may cause damage to
hearing.
14. No work should be undertaken by personnel unfamiliar with the hydraulic system. In the event of
the breakdown, contact W. Christie (Industrial) Ltd.

5
POWER PACK PARTS LIST

6
HYDRAULIC HOSE PARTS LIST

7
FAULT FINDING
FAULT
POSSIBLE CAUSE
SOLUTION
Motor will not run.
No supply to the pump
Pump not switched on
Control panel tripped
Motor / electrical fault
Check supply
Switch on
Reset Trips
Contact W.Christie
(Industrial) Ltd
Motor runs but no pressure
visible on gauge.
Low oil level
Relief valve backed off
Piston block defective
Filter blocked
Pump defective
Top up
Adjust
Replace
Replace
Replace
Motor runs but slow to reach
pressure.
Relief valve defective /
backed off
Piston block defective
Pump defective
Clean / replace / adjust
Replace
Replace
Pump runs but attached tool slow
or no movement.
Relief valve backed off /
defective
Couplings not fully
tightened
Defective coupling
Defective tool
Clean / replace / adjust
Tighten Correctly
Replace
Check tooling
Pump will only operate in one
direction
Couplings not tightened
fully / defective
Solenoid / electrical fault
Solenoid valve defective
Tighten / replace
Investigate
Replace

8
E.C. DECLARATION OF CONFORMITY
MODEL COVERED: EDR70X-LPR
DESCRIPTION: Portable, Electrically Actuated, Double Acting
Xtra Power Pack
We hereby declare that the following machinery complies with the essential health and safety
requirements of the European Machinery Directive 2006/42/EC published on the 9th June 2006
W Christie (Industrial) Ltd, Meadowbank Road, Rotherham S61 2NF, United Kingdom.
This machinery has been designed and manufactured in accordance with the following transposed
harmonised European Standard:-
BS EN ISO 12100-2:2003 Safety of Machinery –Technical Principles
SIGNED:
NAME: R. G. Askham POSITION: Senior Applications Engineer
On behalf of W Christie (Industrial) Ltd
