Chrysler 2007 Town and Country User manual

TABLE OF CONTENTS
SECTION PAGE
1
INTRODUCTION .............................................................3
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ..............................9
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE ..............................89
4
UNDERSTANDING YOUR INSTRUMENT PANEL ...................................201
5
STARTING AND OPERATING .................................................303
6
WHAT TO DO IN EMERGENCIES ..............................................379
7
MAINTAINING YOUR VEHICLE ...............................................407
8
MAINTENANCE SCHEDULES ..................................................459
9
IF YOU NEED CONSUMER ASSISTANCE .........................................477
10
INDEX ....................................................................485
1
2
3
4
5
6
7
8
9
10
Information Provided by:

Information Provided by:

INTRODUCTION
CONTENTS
䡵Introduction ........................... 4
䡵How To Use This Manual .................. 4
䡵Warnings And Cautions ................... 6
䡵Vehicle Identification Number ............... 6
䡵Vehicle Modifications / Alterations ........... 7
1
Information Provided by:

INTRODUCTION
This manual has been prepared with the assistance of
service and engineering specialists to acquaint you with
the operation and maintenance of your new vehicle. It is
supplemented by a Warranty Information Booklet and
various customer oriented documents. You are urged to
read these publications carefully. Following the instruc-
tions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.
NOTE: After you read the manual, it should be stored
in the vehicle for convenient reference and remain with
the vehicle when sold, so that the new owner will be
aware of all safety warnings.
When it comes to service, remember that your dealer
knows your vehicle best, has the factory-trained techni-
cians and genuine Mopar威parts, and is interested in
your satisfaction.
WARNING!
Engine exhaust, some of its constituents, and certain
vehicle components contain or emit chemicals
known to the State of California to cause cancer and
birth defects or other reproductive harm. In addition,
certain fluids contained in vehicles and certain prod-
ucts of component wear contain or emit chemicals
known to the State of California to cause cancer and
birth defects or other reproductive harm.
HOW TO USE THIS MANUAL
Consult the table of contents to determine which section
contains the information you desire.
The detailed index, at the rear of this manual, contains a
complete listing of all subjects.

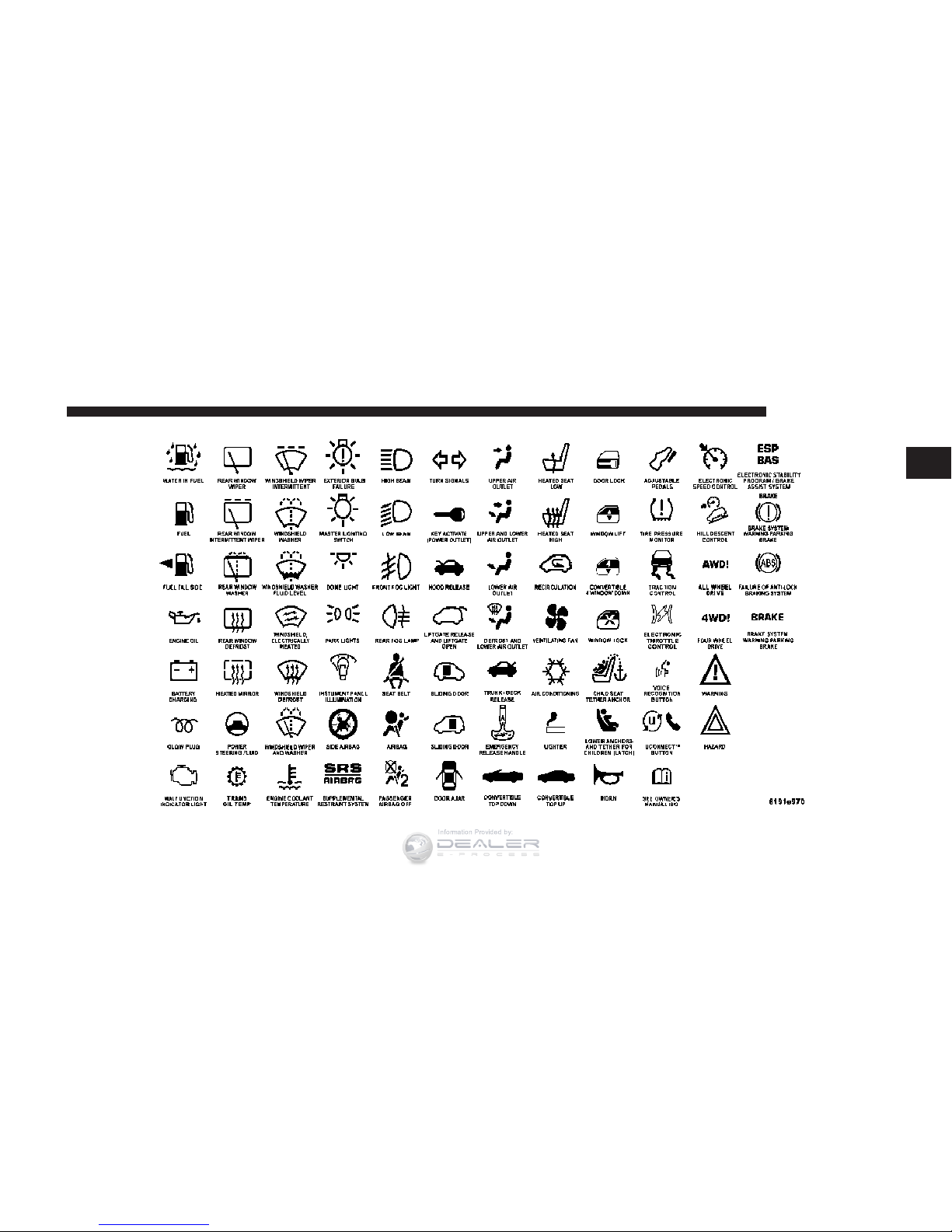

Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this owner’s manual:
4 INTRODUCTION
Information Provided by:

INTRODUCTION 5
1
Information Provided by:

WARNINGS AND CAUTIONS
This manual contains WARNINGS against operating
procedures which could result in an accident or bodily
injury. It also contains CAUTIONS against procedures
which could result in damage to your vehicle. If you do
not read this entire manual you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The vehicle identification number (VIN) is found on the
left front corner of the instrument panel, visible through
the windshield. This number also appears on the Auto-
mobile Information Disclosure Label affixed to a window
on your vehicle, the vehicle registration and title. NOTE: It is illegal to remove the VIN.
VIN Location
6 INTRODUCTION
Information Provided by:

VEHICLE MODIFICATIONS / ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle
could seriously affect its roadworthiness and safety
and may lead to an accident resulting in serious
injury or death.
INTRODUCTION 7
1
Information Provided by:

Information Provided by:

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
䡵A Word About Your Keys ..................12
▫Ignition Key Removal ...................12
▫Key-In-Ignition Reminder ................14
▫Locking Doors With The Key ..............14
䡵Steering Wheel Lock — If Equipped ..........14
▫If You Wish To Manually Lock The Steering
Wheel ..............................14
▫To Release The Steering Wheel Lock .........14
▫Automatic Transaxle Ignition Interlock System . .15
䡵Sentry Key — If Equipped .................15
▫Shaft Lock Module (Vehicles Equipped With
Premium Security System) — If Equipped .....16
▫Replacement Keys ......................16
▫Customer Key Programming ..............17
▫General Information ....................18
䡵Security Alarm System — If Equipped .........18
▫Rearming Of The System — If Equipped ......18
▫To Arm The System .....................18
2
Information Provided by:

▫To Disarm The System ...................19
▫Security System Manual Override ...........19
䡵Illuminated Entry System — If Equipped .......20
䡵Remote Keyless Entry — If Equipped .........20
▫To Unlock The Doors And Liftgate ..........22
▫To Lock The Doors And Liftgate ............22
▫Using The Panic Alarm ..................23
▫To Program Transmitters .................23
▫General Information ....................25
▫Transmitter Battery Service ...............25
䡵Door Locks ............................27
▫Manual Door Locks .....................27
▫Power Door Locks — If Equipped ..........28
䡵Windows .............................31
▫Power Vent Windows ...................31
▫Power Windows .......................31
䡵Sliding Side Door ........................33
▫Sliding Door Open Flash .................34
▫Power Sliding Door — If Equipped .........34
▫Child Protection Door Lock ...............37
䡵Liftgate ...............................39
▫Power Liftgate — If Equipped .............40
䡵Seat Storage Bin Safety Warning .............43
▫Storage Bin Cover Emergency Release ........44
▫Reinstalling Storage Bin Cover Emergency
Release .............................44
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Information Provided by:

䡵Occupant Restraints ......................45
▫Lap/Shoulder Belts .....................46
▫Lap/Shoulder Belt Untwisting Procedure .....52
▫Center Lap Belts .......................52
▫Seat Belt Pretensioners ...................53
▫Enhanced Seat Belt Use Reminder System
(BeltAlert) ...........................53
▫Seat Belts And Pregnant Women ............55
▫Seat Belt Extender ......................55
▫Driver And Front Passenger Supplemental
Restraint Systems (SRS) — Airbags ..........56
▫Event Data Recorder (EDR) ...............71
▫DaimlerChrysler Corporation Integrated Child
Seat — If Equipped .....................73
▫Child Restraint ........................73
䡵Rear Seat Delete Feature (Commercial Vehicles
Only) — If Equipped .....................82
▫Restraining Infants And Small Children With Seat
Delete Feature (Commercial Vehicles Only) ....83
䡵Engine Break-In Recommendations ...........86
䡵SafetyTips ............................87
▫Exhaust Gas ..........................87
▫Safety Checks You Should Make Inside The
Vehicle..............................87
▫Periodic Safety Checks You Should Make Outside
TheVehicle ..........................88
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2
Information Provided by:

A WORD ABOUT YOUR KEYS
The dealer that sold you your new vehicle has the key
code numbers for your vehicle locks. These numbers can
be used to order duplicate keys from your dealer. Ask
your dealer for these numbers and keep them in a safe
place.
Ignition Key Removal
Automatic Transaxle
Place the shift lever in PARK. Turn the ignition switch to
the ACC position, push the key and cylinder inward,
rotate the key to the LOCK position, and remove the key.
NOTE: If you try to remove the key before you place the
lever in PARK, the key may become trapped temporarily
in the ignition cylinder. If this occurs, rotate the key to the
right slightly, then remove the key as described. If a
malfunction occurs, the system will trap the key in the
ignition cylinder to warn you that this safety feature is
inoperable. The engine can be started and stopped but
the key cannot be removed until you obtain service.

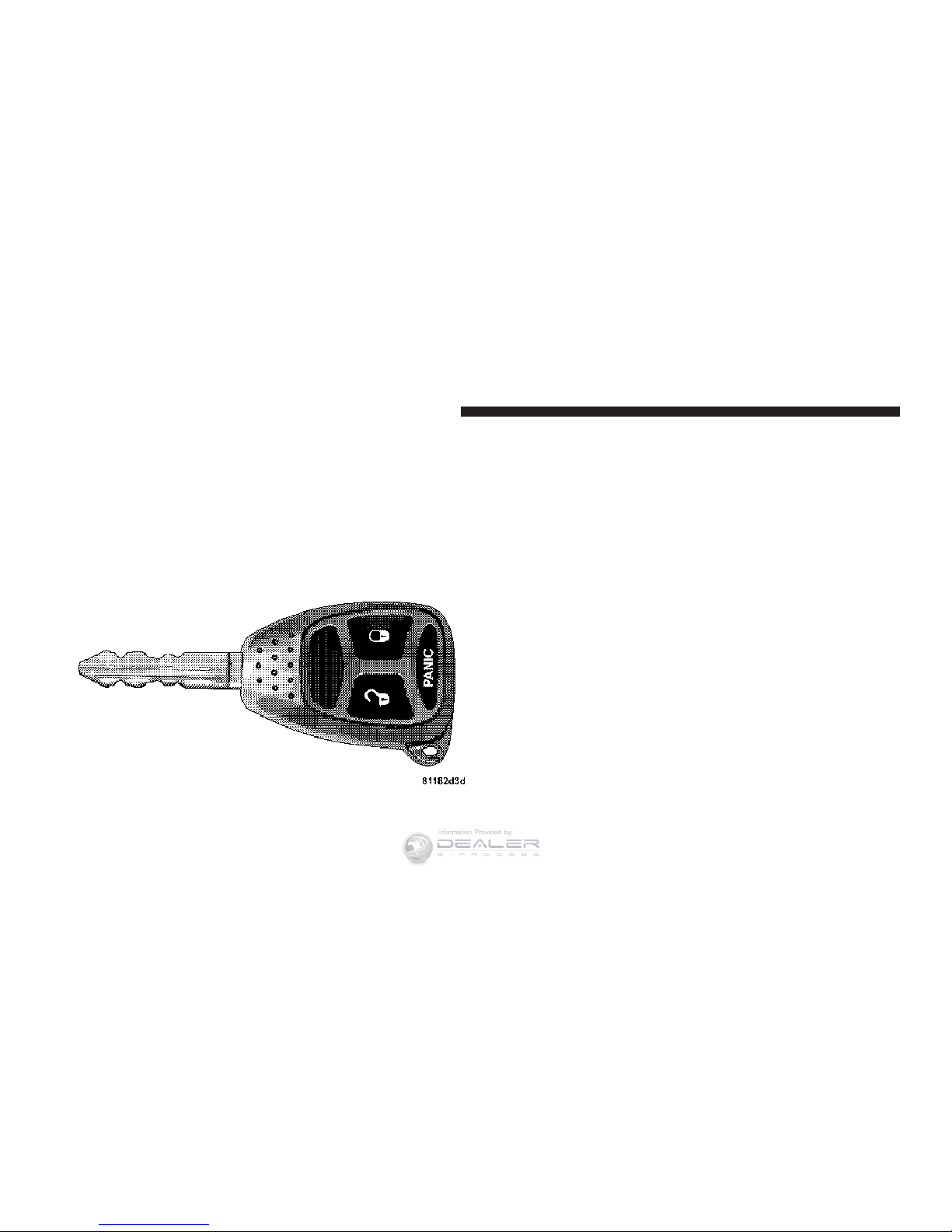

Three Button Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Information Provided by:

NOTE: The power window switches, radio, power
outlets, and removable console (if equipped), will remain
active for up to 45 seconds after the ignition switch has
been turned off. Opening a vehicle front door will cancel
this feature.
WARNING!
NEVER leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power windows,
other controls, or move the vehicle
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Ignition Key Position
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2
Information Provided by:

Key-In-Ignition Reminder
An alarm will sound to remind you if the key is left in the
ignition and the driver’s door is opened.
Locking Doors With The Key
You can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. See Section 7 of this manual for door lock
lubrication.
STEERING WHEEL LOCK — IF EQUIPPED
Your vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle with-
out the ignition key. If the steering wheel is moved no
more than 1/2 turn in either direction and the key is not
in the ignition switch, the steering wheel will lock.
If You Wish To Manually Lock The Steering
Wheel:
With the engine running, turn the steering wheel upside
down, turn off the engine and remove the key. Turn the
steering wheel slightly in either direction until the lock
engages.
To Release The Steering Wheel Lock:
Insert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.
NOTE: If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right to
disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Information Provided by:

Automatic Transaxle Ignition Interlock System
This system prevents the key from being removed unless
the shift lever is in PARK. It also prevents shifting out of
PARK unless the key is in the ACC, or ON positions, and
the brake pedal is depressed.
SENTRY KEY — IF EQUIPPED
The Sentry Key Immobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys, which have an embedded
electronic chip (transponder), to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two (2)
seconds if someone uses an invalid key to start the
engine.
NOTE: A key, which has not been programmed, is also
considered an invalid key even if it is cut to fit the
ignition lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Alarm Indicator Light will
turn on for three (3) seconds for a bulb check. If the light
remains on after the bulb check, it indicates that there is
a problem with the electronics. In addition, if the light
begins to flash after the bulb check, it indicates that
someone used an invalid key to start the engine. Either of
these conditions will result in the engine being shut off
after two (2) seconds.
If the Vehicle Security Alarm Indicator Light turns on
during normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there is a fault in
the electronics. Should this occur, have the vehicle ser-
viced as soon as possible.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2
Information Provided by:

Shaft Lock Module (Vehicles Equipped with
Premium Security System) — If Equipped
The shaft lock module is located inside the steering
column. The module works in conjunction with the
Sentry Key to prevent the steering shaft from rotating if
someone inserts an invalid ignition key into the ignition
lock cylinder in the instrument panel.
NOTE:
• The Sentry Key Immobilizer System is not compatible
with remote starting systems. Use of these systems
may result in vehicle starting problems and loss of
security protection.
• Exxon/Mobil Speed Pass,™ additional Sentry Keys, or
any other transponder equipped components on the
same keychain will not cause a key-related (transpon-
der) fault unless the additional part is physically held
against the ignition key being used when starting the
vehicle. Cell phones, pagers, or other RF electronics
will not cause interference with this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it can
not be programmed to any other vehicle.
At the time of purchase, the original owner is provided
with a four digit PIN number. This number is required
for dealer replacement of keys. Duplication of keys may
be performed at an authorized dealer or by using the
Customer Key Programming procedure. This procedure
consists of programming a blank key to the vehicle
electronics. A blank key is one which has never been
programmed and needs to be cut.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Information Provided by:

NOTE: When having the Sentry Key Immobilizer
System serviced, bring all vehicle keys with you to the
dealer.
Customer Key Programming
You can program new sentry keys to the system if you
have two valid sentry keys by performing the following
procedure:
1. Cut the additional Sentry Key Transponder blank(s) to
match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch and
turn the ignition switch ON for at least 3 seconds but no
longer than 15 seconds. Turn the ignition switch OFF and
remove the first key.
3. Insert the second valid key and turn the ignition
switch ON within 15 seconds. After ten seconds a chime
will sound and the Theft Alarm Light will begin to flash.
Turn the ignition switch OFF and remove the second key.
4. Insert a blank Sentry Key into the ignition switch and
turn the ignition switch ON within 60 seconds. After 10
seconds a single chime will sound. The Theft Alarm Light
will stop flashing, turn on for 3 seconds; then turn off.
The new Sentry Key has been programmed. The Keyless
Entry Transmitter will also be programmed during this
procedure. Repeat this procedure to program up to a
total of 8 keys. If you do not have a programmed sentry
key, contact your dealer for details.
NOTE: If a programmed key is lost, see your dealer to
have all remaining keys erased from the systems
memory. This will prevent the lost key from starting your
vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to the dealer at
the time of service to be reprogrammed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2
Information Provided by:

General Information
The Sentry Key system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM — IF EQUIPPED
This system monitors the vehicle doors and ignition for
unauthorized operation. When the alarm is activated, the
system provides both audible and visual signals. For the
first 3 minutes the horn will sound and the headlights
and security telltale will flash repeatedly. For an addi-
tional 15 minutes only the headlights and security telltale
will flash. The engine will run only if a valid Sentry Key
is used to start the vehicle. Use of the Sentry Key will
disable the alarm.
Rearming of the System — If Equipped
The security system will rearm itself after the 15 addi-
tional minutes of headlights and security telltale flashing,
if the system has not been disabled. If the condition
which initiated the alarm is still present, the system will
ignore that condition and monitor the remaining doors
and ignition.
To Arm the System
The alarm will set when you use the power door locks, or
use the Keyless Entry transmitter to lock the doors. After
all the doors are locked and closed the SECURITY light in
the instrument cluster will flash rapidly to signal that the
system is arming. The security light in the instrument
panel cluster will flash rapidly for about 16 seconds to
indicate that the alarm is being set. After the alarm is set,
the security light will flash at a slower rate to indicate
that the system is armed.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Information Provided by:

NOTE: If the SECURITY light stays on continuously
during vehicle operation, have the system checked by
your dealer.
To Disarm the System
Use the Keyless Entry transmitter to unlock the door. If
something has triggered the system in your absence, the
horn will sound three times when you unlock the doors
and the security lamp will flash for 30 seconds. Check the
vehicle for tampering.
The Security system will also disarm, if the vehicle is
started with a programmed Sentry Key. If an unpro-
grammed Sentry Key is used to start a vehicle, the engine
will run for 2 seconds and then the security alarm will be
initiated. To exit alarming mode, press the transmitter
Unlock button, or start the vehicle with a programmed
Sentry Key.
The Security Alarm System is designed to protect your
vehicle; however, you can create conditions where the
system will arm unexpectedly. If you remain in the
vehicle and lock the doors with the transmitter, the alarm
will sound when you pull the door handle to exit. The
door will be locked but the Security Alarm will not arm.
Tamper Alert
If the horn sounds 3 times when you unlock a front door
using either a key or the Keyless Entry Transmitter, the
alarm has been activated. Check the vehicle for tamper-
ing.
Security System Manual Override
The system will not arm if you lock the doors using the
manual door lock plunger.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2
Information Provided by:

ILLUMINATED ENTRY SYSTEM — IF EQUIPPED
The courtesy lights will turn on when you use the keyless
entry transmitter or open the doors. This feature is only
available if you have Remote Keyless Entry.
The lights will fade to off after about 30 seconds or they
will immediately fade to off once the ignition switch is
turned on.
NOTE:
• The front courtesy overhead console, door courtesy
and liftgate lights do not turn on if the dimmer control
is in the interior lights ON position (extreme top
position).
• The illuminated entry system will not operate if the
dimmer control is in the “defeat” position (extreme
downward position).
REMOTE KEYLESS ENTRY — IF EQUIPPED
This system allows you to lock or unlock the doors and
liftgate, and activate the panic alarm, optional power
liftgate, left power sliding door, and right power sliding
door from distances up to about 23 feet (7 meters) using
a hand held radio transmitter. The transmitter need not
be pointed at the vehicle to activate the system.
NOTE: If the key is in the ignition switch, then all
buttons on that transmitter will be disabled. The buttons
on the remaining transmitters will work. If the vehicle is
shifted out of PARK, all the transmitter buttons are
disabled for all keys.
Two (2) transmitters may be supplied with the vehicle.
Vehicles built without the powered options will be
equipped from the factory with three button transmitters
and those built with power options will be equipped
with six button transmitters.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Information Provided by:
