Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
󹘯󹘰󹘱󹘲󹘳www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz
Introduction
Strictly observe the instructions in this manual. All liability is declined for any problems,
damage or fires caused by failure to comply with the instructions in this manual. The
device is intended for domestic use only, to cook food and extract the fumes generated
by cooking. No other use is allowed (e.g. heating rooms). The manufacturer declines any
liability for inappropriate use or incorrect control settings.
•Read the instructions carefully: they include important information about
installation, use and safety.
•Do not make electrical changes to the device.
•Before installing the device, make sure that none of the components are
damaged. Otherwise, contact the dealer and do not continue with the
installation.
•Check that the device is intact before continuing with installation. Otherwise,
contact the dealer and do not continue with the installation.
Warnings
Please note! Pay strict attention to the following instructions.
•The device must be disconnected from the electric power supply before carrying
out any installation work.
•Installation or maintenance must be performed by a qualified technician, in
compliance with the manufacturer’s instructions and local safety regulations. Do
not repair or replace any part of the device unless specifically stated in the
operating manual.
•By law, the appliance must be earthed.

4
•The power cable must be long enough to allow the device built into the unit to be
connected to the power supply.
•In order for the installation to comply with current safety regulations, an
approved omni-polar circuit breaker is required that guarantees complete
disconnection of the mains in over voltage category III, in accordance with the
installation rules.
•Do not use power strips or extension cords.
•Once installation is complete, the electrical components must no longer be
accessible by the user.
•The device and its accessible parts get hot during use. Be careful not to touch the
heating elements.
•Ensure that children do not play with the device; keep children away and
supervise them because the accessible parts may become very hot during use.
•For people with pacemakers and active implants, it is important to check, prior to
using the induction hob, that their pacemaker is compatible with the device.
•Do not touch the heating elements of the device during and after use.
•Avoid contact with cloths or any other flammable material until all the hob
components have cooled down sufficiently, risk of fire.
•Do not place flammable material on or near the device.
•Overheated fats and oils easily catch fire. Supervise the cooking of fatty or oily
food.
•If the surface is cracked, switch the device off immediately to prevent the risk of
an electric shock.
•The device is not intended to be operated with an external timer or a separate
remote control system.
•Unattended cooking on a device with oil or fat can be dangerous and may cause
a fire.
•The cooking process must be supervised. A short cooking process must be
constantly monitored.
•NEVER attempt to put fires out using water. Instead, turn off the device and
smother the flames, for example with a lid or a fire blanket. Fire hazard: do not
place objects on the cooking surfaces.
•Do not use steam cleaners, risk of electric shock.
•Do not place metal objects, such as knives, forks, spoons, or lids on the device
because they could become hot.
•Before connecting the device to the electrical network: check the data plate (on
the bottom of the device) to ensure that the voltage and power correspond to the
mains supply and that the power socket is suitable. If in doubt, consult a qualified
electrician.

5
Important Notes
•After use, turn off the hob at the switch and do not rely on the pan detector.
•Prevent liquids from boiling over, so turn the heat down when boiling or heating
liquids.
•Do not leave the heating elements turned on with empty pots and pans or with
no pans.
•Switch off the relevant hot plate when you have finished cooking.
•Never use aluminium foil for cooking and never place products packaged in
aluminium on the hob. The aluminium would melt and irreparably damage your
device.
•Never heat a tin or can containing foods without opening it first: it might explode!
This warning also applies to all other types of hobs.
•High power levels such as the Booster function should not be used to heat
certain liquids, such as oil for frying. Excessive heat may be dangerous. In these
cases, we recommend the use of a lower power level.
•Containers must be placed directly on the hob and in the centre.
•Under no circumstances may any other objects be placed between the pan and
the hob.
•If the temperature becomes high, the device automatically decreases the power
level of the cooking zones.
•Before doing any cleaning or maintenance work, disconnect the device from the
mains power supply by removing the plug or turning off the mains switch. Wear
protective gloves for all installation and maintenance operations. The device can
be used by children over the age of eight and by people with impaired physical,
sensory, or mental abilities or lacking in experience or the necessary knowledge
provided that they are supervised or after they have received instruction about
how to safely use the device and understand the inherent dangers. Children
must be supervised to ensure they do not play with the device. Cleaning and
maintenance must never be performed by children unless they are properly
supervised. The room must be properly ventilated when the device is used at the
same time as other gas-powered devices or powered by other fuel. The device
must be regularly cleaned both internally and externally (AT LEAST ONCE A
MONTH), in strict accordance with the maintenance instructions. Failure to follow
the rules for device cleaning and filter replacement and cleaning may result in a
fire hazard. Food must never be cooked flambe. Using a naked flame may
damage the filters and cause a fire hazard; it must, therefore, be avoided under
all circumstances. Extra care must be taken when frying to prevent the oil from
overheating and catching fire.

6
Instructions for Use
Using the hob: The induction cooking system uses the physical principle of magnetic
induction to directly transfer energy from the generator to the pot.
Advantages: When compared to electric hobs, your induction hob is:
•Safer: lower temperature on the glass surface.
•Faster: shorter food heating times.
•More accurate: the hob immediately reacts to your commands.
•More efficient: 90% of the absorbed energy is converted into heat.
Moreover, once the pot is removed from the hob, heat transmission is immediately
interrupted, avoiding unnecessary heat losses.
Cooking Containers
Only use pots marked with induction symbol.
To prevent scratching, do not use:
•containers with less than perfectly flat bottoms,
•metal containers with enamelled bottoms,
•containers with a rough base, to avoid scratching the hob surface,
•do not place hot pots and pans on the control panel surface.
Preexisting containers
Induction cooking generates heat through the use of magnetism. Therefore, containers
must be made of a magnetic material, such as iron. To determine if a pot is suitable, test
its material with a magnet. If a pot does not respond to a magnet, it is not suitable for
induction cooking.
Recommended pan bottom diameters
IMPORTANT: If the pot size is incorrect, the cooking zones will not activate.
For details of the minimum pot diameter that needs to be used on each zone, see the
illustrated part of this manual.

7
Energy Saving
Recommendations for best results:
•Use pots and pans with a bottom diameter equal to that of the cooking zone.
•Use only pots and pans with flat bottoms.
•Keep the lid on the pot whenever possible during cooking.
•Cook vegetables, potatoes, etc. with a minimal amount of water to reduce
cooking time.
•Use a pressure cooker, as it further reduces energy consumption and cooking
time.
•Centre the pot within the cooking zone indicated on the hob.
Installation
Both the electrical and mechanical installation must be performed by qualified
professionals. This electrical appliance is designed to be installed into a worktop with a
thickness between 2 to 6 cm for a top installation, or 2.5 to 6 cm for a flush installation.
When installing the hob, keep a minimum distance of 5 cm in front, 4 cm on the sides,
and 50 cm from overhead wall units. Note: The recommended distances are provided as
examples only. When planning your kitchen, follow the guidelines provided by the
kitchen manufacturer.
Connecting to the Electrical Supply
To connect the hob to the electrical supply, proceed as follows:
•Remove the hob from its packaging and place it on a flat surface.
•Connect the power cable to the hob.
•Connect the other end of the power cable to the electrical supply.
•Make sure the electrical connection is secure and meets the local electrical
regulations.
Furthermore, follow these warnings:
•Disconnect the device from the electric power supply.
•Installation must be carried out by professionally qualified personnel with
knowledge of the regulations in force for installation and safety.
•The manufacturer denies all liability to persons, animals, or property if the
guidelines provided in this chapter are not followed.
•The power cable must be long enough to allow the hob to be removed from the
worktop.

8
•Make sure the electrical connection is secure and meets the local electrical
regulations.
•Do not use extension leads.
•The earth power cable must be 2cm longer than the other cables.
•If the electrical appliance is not supplied with a power cable, use one with a
minimum conductor diameter of 2.5 mm2for power up to 7200 watts; for higher
power levels, the diameter must be 4 mm2.
•The temperature must not reach 50°C above room temperature anywhere along
the cable.
•The appliance is intended for permanent connection to the power supply.
Notes:
•Before reconnecting the circuit to the mains power supply, make sure that it is
working correctly, always check that the power cable is correctly installed.
•The interconnection cable must be replaced by the authorized technical support
service or by a person with similar qualifications.
•The product is equipped with a Power limit function, which allows a maximum
power limit to be set. The limit must be set at the time of the product's
connection to the electrical network or when the electrical network itself is
reconnected (within the following 2 minutes).
Mounting
Before starting the installation:
•After unpacking the product, check that it has not been damaged during
transport and in the event of a problem, please contact the reseller or the
Customer support service before installing it.
•Check that the product is the right size for the installation area.
•Check for accessories (e.g. bags containing screws, warranty certificates, etc.)
inside the packaging (placed there for transport reasons). Remove and keep
them safe if present.
•Also check that there is a power socket near the installation area.
Preparing the cabinet for installation:
•The product cannot be installed above cooling appliances, dishwashers, heaters,
ovens, washing machines and dryers.
•Create the cut-outs in the cabinet before inserting the hob and carefully remove
any shavings or sawdust.
•Important: Use a single-component adhesive sealant (S), which withstands
temperatures up to 250°C; before installation, thoroughly clean the surfaces to
stick and eliminate any substance that may compromise adhesion, (e.g., release
agents, preservatives, fats, oil, dust, traces of old adhesives, etc.); the adhesive

9
should be uniformly spread all around the outside of the frame; after sticking,
leave the adhesive to dry for about 24 hours.
•Caution: Failure to install screws and fasteners in accordance with these
instructions may result in electrical hazards.
•Note: to ensure the correct installation of the product, it is recommended to tape
the pipes using an adhesive with the following characteristics:
osoft elastic PVC film, with an acrylic-based adhesive,
ocompliant with DIN EN 60454 regulations,
oflame resistant,
oexcellent resistance to wear,
oresistant to temperature fluctuations,
ocan be used at low temperatures.
List of Accessories
#
Name
Diagram
Quantity
1
ST 4x5 screw
4
2
Installation bracket
4
3
Sponge bar
2
4
Air intake grill
1
5
Square pipe
2
6
Bent pipe
2
7
Air outlet ASSY
1
8
Aluminium sticker
5
9
Carbon filter (optional)
1

10
Installation Steps
Step 1: Screw the installation brackets
on the bottom case.
Step 2: Stick the sponge bar around the
ceramic glass.
Step 3: Fix the bent pipe.
Step 4: Install the product into the
cabinet.
Step 5: Cut the windpipe if the length is
not suitable.

11
Step 6: Install the windpipe and stick
with the sealing strip.
Step 7: Install the air outlet ASSY at the
bottom of the cabinet, fix the screwing.
Step 8: Install the carbon filter in the
air outlet ASSY.
(Carbon filter is optional, not
necessary.)
Step 9: Install the grill.

12

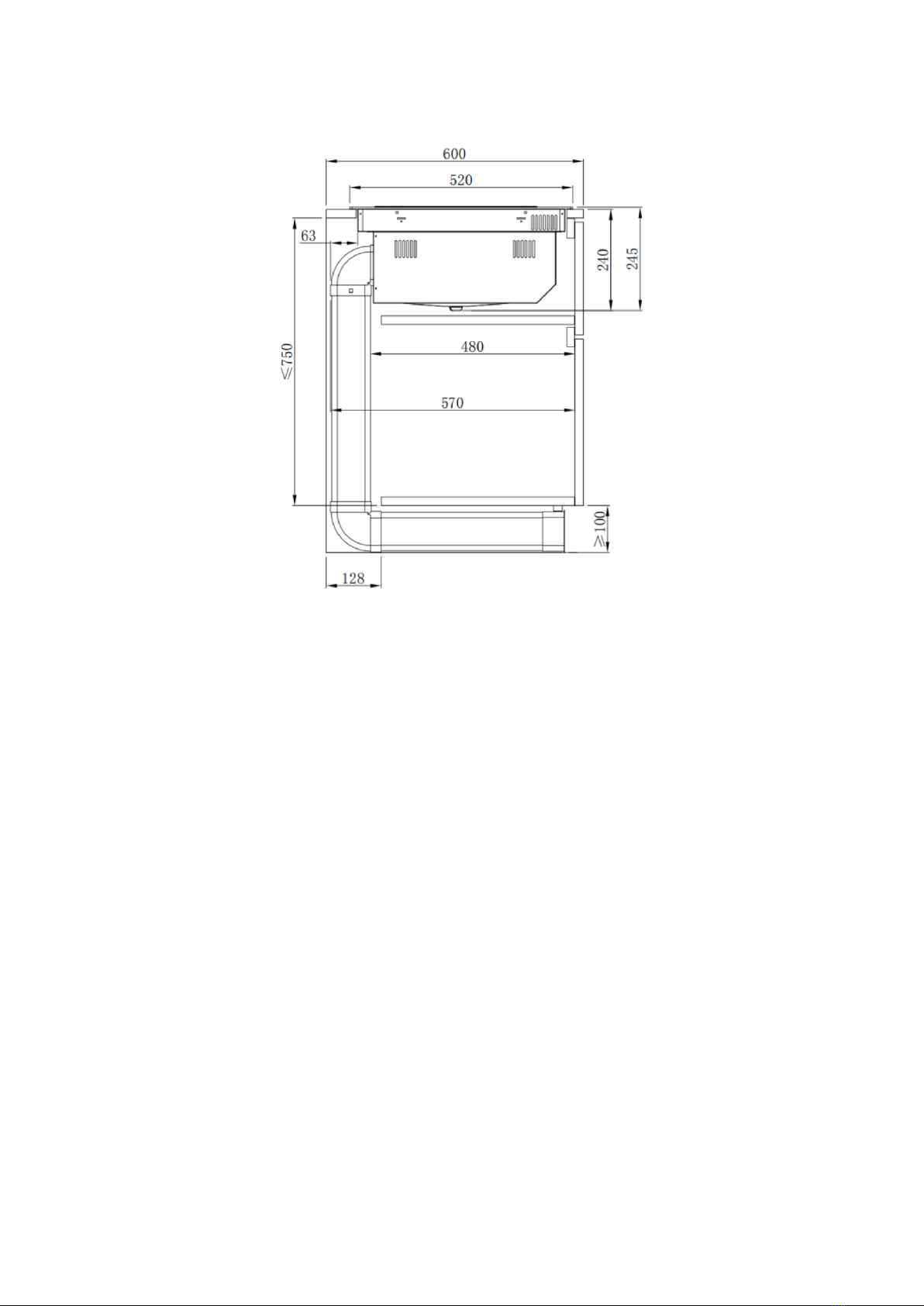

Dimensions of Installation

13
Cabinet and Windpipe Size

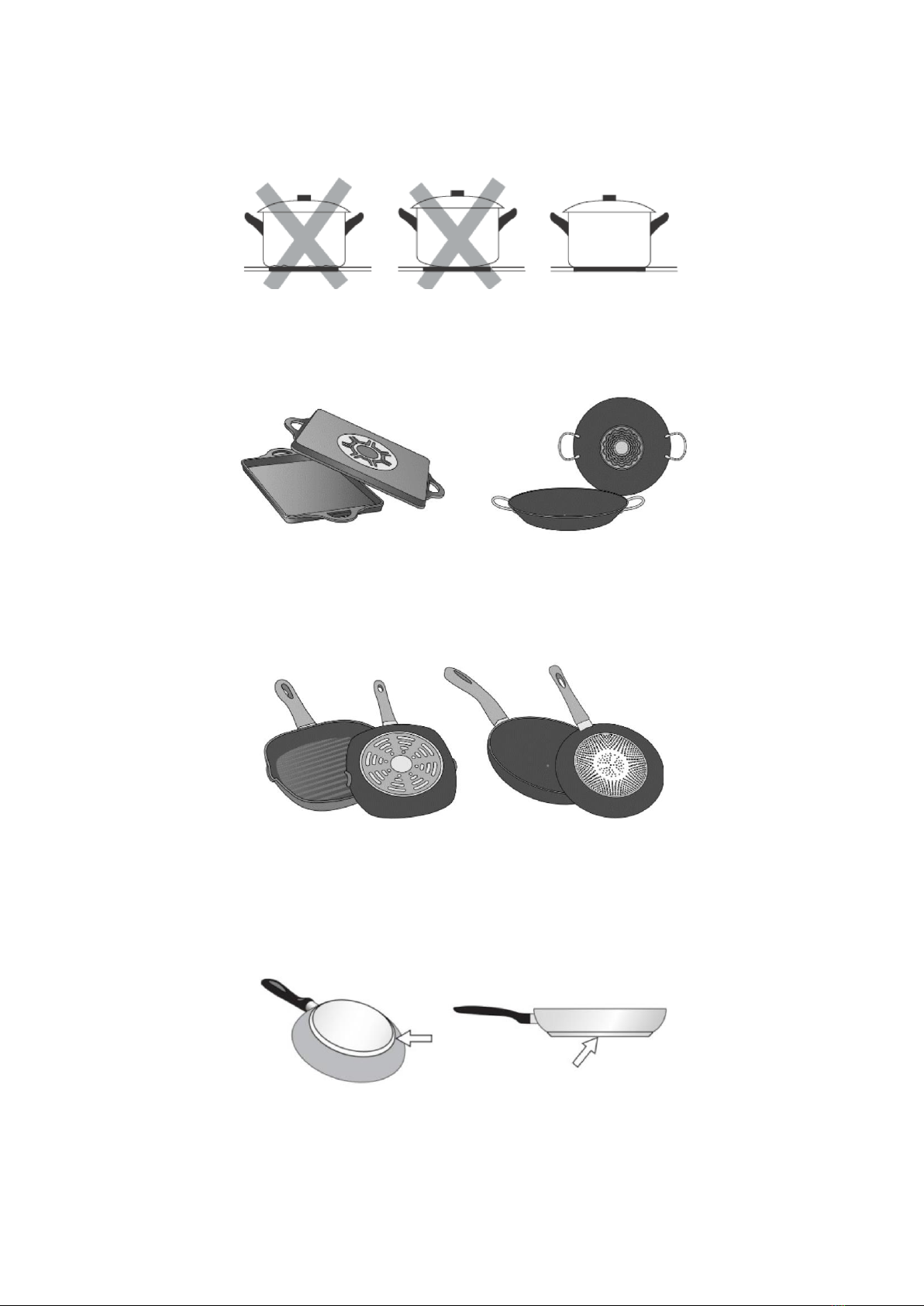

Choice of the Right Cookware
Cookware for induction hobs
Cookware for induction cooking zones must be made of metal and have magnetic
properties. The base must be sufficiently large. Only use pots with a base suitable for
induction.
This is how to establish the suitability of a pot:
Suitable cookware
Unsuitable cookware
Enamelled steel pots with a thick base.
Cast iron pots with an enamelled base.
Pots made of multi-layer stainless steel,
rustproof ferrite steel or aluminium with
a special base.
Pots made of copper, stainless steel,
aluminium, ovenproof glass, wood,
ceramic, and terracotta.
Conduct the magnet test described below or make sure that the pot bears the symbol
for suitability for cooking with induction current.
Never use pans with a misshapen base. A hollow or rounded base can interfere with the
operation of the overheating protection, so that the appliance becomes too hot. This

14
may lead to the glass top cracking and the pan base melting. Damage arising from the
use of unsuitable pans or boiling dry is excluded from the guarantee.
If the base of the cookware is only partially ferromagnetic, only the ferromagnetic area
will heat up. This may mean that heat will not be distributed evenly. The non-
ferromagnetic area may not heat up to a sufficient temperature for cooking.
NOT SUGGESTED: The ferromagnetic area will also be reduced if the material from
which the base of the cookware is made contains aluminium, for example. This may
mean that the cookware will not become sufficiently hot or even that it will not be
detected.
NOT SUGGESTED: The material(s) from which the base of the cookware is made can
affect the cooking result. Using pots and pans made from materials that distribute heat
evenly through them, such as stainless-steel pans with a three-layer base, saves time
and energy. Use cookware with a flat base; if the base of the cookware is uneven, this
may impair the heat supply.
Magnet test: Move a magnet towards the base of your cookware. If it is attracted, you
can use the cookware on the induction hob.

15
Note: When using pans suitable for induction from certain manufacturers, noises may
occur which are attributable to the design of these pans. Take care when using
simmering pans as simmering water may dry up unnoticed, resulting in damage to the
pot and to the hob for which no liability will be assumed.
Dimensions of cookware: To achieve a good cooking result, the ferromagnetic area on
the base of the pan should match the size of the hotplate. If a hotplate does not detect
an item of cookware, try placing it on another hotplate with a smaller diameter.

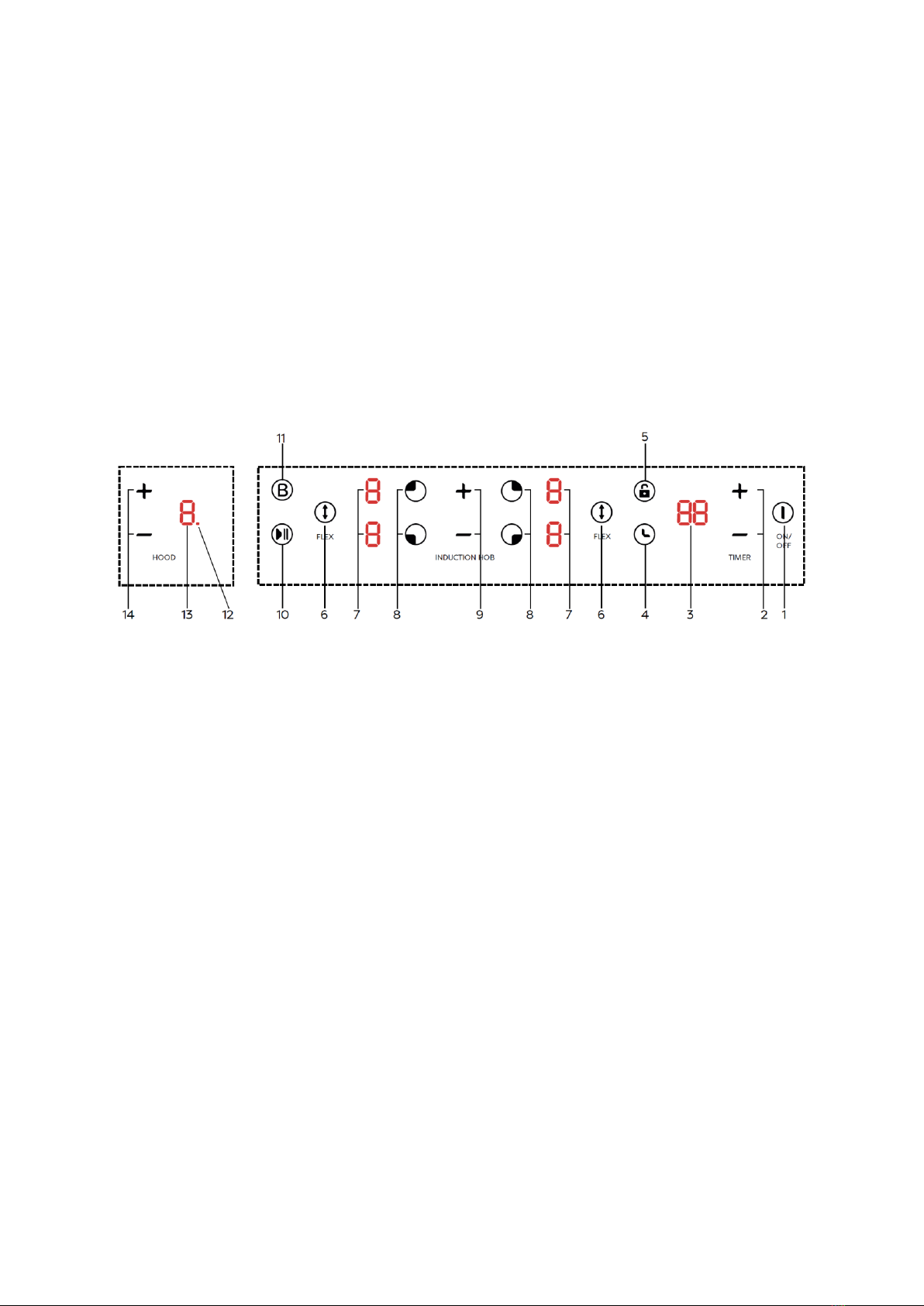

Operating the Hob with the Sensor Buttons
1. ON/OFF
2. Timer setting
3. Timer display
4. Timer selection
5. Child lock
6. Flex zone selection
7. Power level display for HOB
8. Cooking zone selection
9. Power level selection for HOB
10. Pause
11. Boost
12. PLASMA function
13. Power level display for HOOD
14. Power level selection for HOOD

16
Usage
Using the Hood
•STANDBY MODE: After powering on, the buzzer beeps once, all displays show “0”
and the hood enters the state of standby mode. You can re-activate the hood at
any time by touching any control panel.
•POWER LEVEL SETTING: Press and hold the power selection key (+) for 1 second
to activate the hood. By default, it will start on level 1. You can select the power
level by pressing the key (+) and (-).
•BOOST: Press and hold the key (+) for one second after the power level setting,
the hood will get into the BOOST MODE directly. Please note that the BOOST
MODE can only last for 10 minutes, after that, it will go to level 4 automatically.
•TURN OFF AND DELAYED SHUT-DOWN: Press the key (-) to turn off the hood
(P→4→3→2→1→d→turn off). You can press and hold the key (-) for one second
to get into delayed shutdown mode (d) directly. Delayed shutdown mode can
only last for 5min. After 5min, the hood will turn off automatically. During
delayed shutdown mode, you can press (-) to turn off the hood, or press (+) to
turn on the hood to level 1.
•HOB TO HOOD LINKAGE: There is a linkage switch function between the cooker
hood and induction hob. When the hood is turned off or in delayed shutdown
mode, if the induction hob is working, the hood will automatically turn on to level
1. Then when the induction hob is turned off, the hood will automatically get into
delayed shutdown mode.
•PLASMA FUNCTION: Press and hold (+) and (-) at the same time for 1 second,
PLASA function will be activated, and the display will show the dot “•”. Press and
hold (+) and (-) again to turn off the PLASMA function.
Using the Hob
To start cooking:
After powering on, the buzzer beeps once, and all the indicators for HOB light up for 1
second and then go out, indicating that the hob has entered the state of standby mode.
First, touch the ON/OFF switch. All the indicators show “--“. Place a suitable pan on the
cooking zone that you wish to use. Make sure the bottom of the pan and the surface of
the cooking zone is clean and dry. Touching the heating zone selection control and an
indicator next to the key will flash. Select a heat setting by touching the power level
control.
•If you don’t choose a heat setting within one minute, the induction hob will
automatically switch off.
•You will need to proceed according to the steps again.

17
•You can modify the heat setting at any time during cooking.
After cooking is finished:
First, touch the heating zone selection that you wish to switch off. Turn the cooking zone
off by touching the power level control. Make sure the display shows ”0”. Turn the whole
hob off by touching the ON/OFF control.
Note: Beware of hot surfaces. “H” will show which means the cooking zone is too hot
to touch. It will disappear when the surface has cooled down to a safe temperature. It
can also be used as an energy-saving function if you want to heat further pans, use the
hotplate that is still hot.
Using Boost Function
To activate the boost function, select the zone which is to be boosted, and touch the
booster key –the indicator now shows “P”.
To cancel the boost function, select the zone with an active boost function, touch the
booster key or press the power level to cancel the boost function, and select the level
you want to set.
Note: The boost function can only last for five minutes, after that, the zone will go to
level 9 automatically.
Using Flex Area
To activate the flex area, press flex area selection, and display with show “=” and power
level 5. Touch the power level selection to select the level you want.
To cancel the flex area, touch any of the cooking zones in the cooking zone selection.
The indication “=” will turn to “-“ or “5”. Now the flex area is cancelled.
Locking the Controls
You can lock the controls to prevent unintended use (for example children accidentally
turning the cooking zones on). When the controls are locked, all the controls except the
ON/OFF control are disabled.
To lock the controls, touch the child lock control. The timer indicator will show “Lo”.
To unlock the controls, make sure the hob is turned on, touch and hold the child lock
control button for three seconds, and after that, the hob can be used.
Note: When the hob is in lock mode, all the controls are disabled except the ON/OFF,
you can always turn the hob off with the ON/OFF control in an emergency, but you shall
unlock the hob first in the next operation.

18
Residual Heat Warning
When the hob has been operating for some time, there will be some residual heat. The
letter “H” appears to warn you to keep away from it.
Auto Shutdown
The safety feature of the hob is auto shut down. This occurs whenever you forget to
switch off a cooking zone. The default shutdown times are shown in the table below:
Power level
1
2
3
4
5
6
7
8
9
Auto shutdown after (X) hours
8
8
8
4
4
4
2
2
2
Using the Timer
You can use the timer in two different ways:
•You can use it as a minute minder. In this case, the timer will not turn any
cooking zone off when the set time is up.
•You can use it as a cut-off timer to turn one or more cooking zones off after time
is up.
You can set the timer up to 99 minutes.
Using the timer as a minute reminder:
First, make sure the cooktop is turned on, and the zone selection key is not activated
(zone indication “-“is not blinking).
Note: You can set the minute minder before or after the cooking zone power setting is
finished.
Touch the timer key, “30” will show on the timer display and blink. The default setting is
30 minutes. Set the time by touching the (+) or (-) control. Short touch for skipping by the
minute, long touch for skipping by 10 minutes. When the time is set, it will begin to
count down immediately. The display will show the remaining time. The buzzer will beep
for 30 seconds, and the timer indicator will show “--“ when the time is up.
Using the timer to switch off one or more cooking zones:
First, touch the timer key, “30” will show on the timer display and blink. The default
setting is 30 minutes. Set the time by touching the (+) or (-) control. Short touch for
skipping by the minute, long touch for skipping by 10 minutes. When the time is set, it
will begin to count down immediately. The display will show the remaining time.
Note: There will be a red dot in the right bottom corner of the power level indication
which indicates that the zone is selected.

19
When the cooking timer expires, the corresponding cooking zone will be switched off
automatically.
Note: Other cooking zones will keep operating if they are turned on previously.
If the timer is set on more than one zone:
When you set a timer for several cooking zones, red dots of the relevant cooking zones
are indicated. The timer will show the time that comes first. The dot of the
corresponding zone blinks. Once the countdown timer expires, the corresponding zone
will switch off. Then it will show the new minute timer and the dot of the corresponding
zone will flash.
Note: Touch the heating zone selection control, the corresponding timer will be shown
in the timer indicator.
Cancel the timer
Touching the heating zone selection control that you want to cancel the timer. Touch the
timer control, the indicator will flash. Touch the slider control or “-” to set the timer to
“00”, and this way the timer is cancelled.
Power settings
The heating power of the cooking zones can be set at various power levels. In the chart,
you will find examples of how to use each setting.
Cooking level
Suitable for
1
Keeping food warm, simmering small quantity (lowest power setting).
2
Simmering.
3-4
Simmering larger quantities or roasting larger pieces of meat until
they are cooked through.
5-6
Getting juices out.
7-8
Roasting, getting juices out.
9
Roasting.
P
Roasting (highest power output)
Maintenance and Care
•Before cleaning, switch off the hob and let it cool down.
•Do not use steam cleaners or high-pressure cleaners to clean the cooking hob, as
this may result in an electric shock.
•When cleaning make sure that you only wipe lightly over the on/off sensor. The
hob may otherwise be accidentally switched on!

20
Glass ceramic hob
Important! Never use aggressive cleaning agents such as rough scouring agents,
abrasive saucepan cleaners, rust and stain removers etc.
Cleaning after use
Always clean the entire hob when it has become soiled. It is recommended that you do
so every time the hob is used. Use a damp cloth and a little washing-up liquid for
cleaning. Then dry the hob with a clean dry cloth to ensure that there is no detergent left
on the surface of the hob.
Weekly clean
Clean the entire hob thoroughly once a week with commercial glass ceramic cleaning
agents. Please follow the manufacturer's instructions carefully. When applied, the
cleaning agent will coat the hob in a protective film which is resistant to water and dirt.
All dirt remains on the film and can be removed easily. Then rub the hob dry with a
clean cloth. Make sure that no cleaning agent remains on the surface of the hob since
this will react aggressively when the hob is heated up and will change the surface.
Specific soiling Heavy soiling and stains (limescale and shiny, mother-of-pearl type
stains) can best be removed when the hob is still slightly warm. Use commercial cleaning
agents to clean the hob. First, soak food which has boiled over with a wet cloth and then
remove the remaining soiling with a special glass scraper for glass-ceramic hobs. Then
clean the hob again as described above.
Burnt sugar and melted plastic must be removed immediately, when they are still hot,
with a glass scraper.
Grains of sand which may get onto the hob when you peel potatoes or clean lettuce may
scratch the surface of the hob when you move pots around. Make sure that no grains of
sand are left on the hob.
Changes in the colour of the hob will not affect the function and the stability of the glass
ceramic material. These colour changes are not changes in the material but food
residues which were not removed, and which have burnt into the surface.
Shiny spots result when the base of the cookware rubs on the surface of the hob,
particularly when cookware with an aluminium base or unsuitable cleaning agents are
used. They are difficult to remove with standard cleaning agents. You may need to
repeat the cleaning process several times. In time, the decoration will wear off and dark
stains will appear as a result of using aggressive cleaning agents and faulty pan bottoms.
In case a large amount of liquid is accidentally poured into the machine, take off the
silicone plug on the bottom case to release the liquid.
