Summit CR2220 User manual

INSTRUCTION MAN
UAL
for Ceramic Glass
Electric Cooktop Models
CR1115
CR2110
CR2220
CR3240
Felix Storch, Inc.
Summit Appliance Division
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance .com
Please read these instructions in their entirety before
installation and use of your cooktop.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

1
Table of Contents
Product Specifications ......................................................................................2
Installation Instructions for Ceramic Glass Cooktops .............................3 - 10
Step #1: Unpacking the Cooktop ...............................................................3
Step #2: Check the Electrical Supply Requirements ................................. 4
Step #3: Countertop Preparation ..........................................................5 - 7
Summary of Cutout Dimensions .................................................. 7
Step #4: Installing the Cooktop ............................................................8 - 9
Step #5: Electrical Connection ................................................................10
Step #6: Final Preparations Prior to Use .................................................10
Safety Instructions.....................................................................................11 - 12
Operation....................................................................................................13 - 14
Cookware.................................................................................................13
Heating Elements.....................................................................................13
Controls & Indicators................................................................................14
Cleaning.............................................................................................................14
Warranty ............................................................................................................15

2
Product Specifications
Single Burner
CR1115: 120V AC – one 6” (140 mm) burner @ 1200 watts
Overall dimensions: 11⅞”W x 12⅝”D x 3⅜”H
(302 mm x 321 mm x 85,7 mm)
Cutout dimensions: 11⅛”W x 11⅞”D
(282 mm x 302 mm)
Double Burner
CR2110: 120V AC – two 6” (140 mm) burners @ 1200 watts each
CR2220: 220V AC – two 6” (140 mm) burners @ 1200 watts each
Overall dimensions: 11⅞”W x 19¾”D x 3⅜”H
(302 mm x 502 mm x 85,7 mm)
Cutout dimensions: 11⅛”W x 19⅛”D
(282 mm x 486 mm)
Triple Burner
CR3240: 220V AC - three 6” (140 mm) burners @1200 watts each
Overall dimensions: 20⅝”W x 19⅛"D x 3⅜”H
(524 mm x 486 mm x 85,7 mm)
Cutout dimensions: 19⅞”W x 18⅜”D
(505 mm x 467 mm)

3
Contour Cooktop
Installation Instructions
for Ceramic Glass Cooktops
Step #1
Unpacking the Cooktop

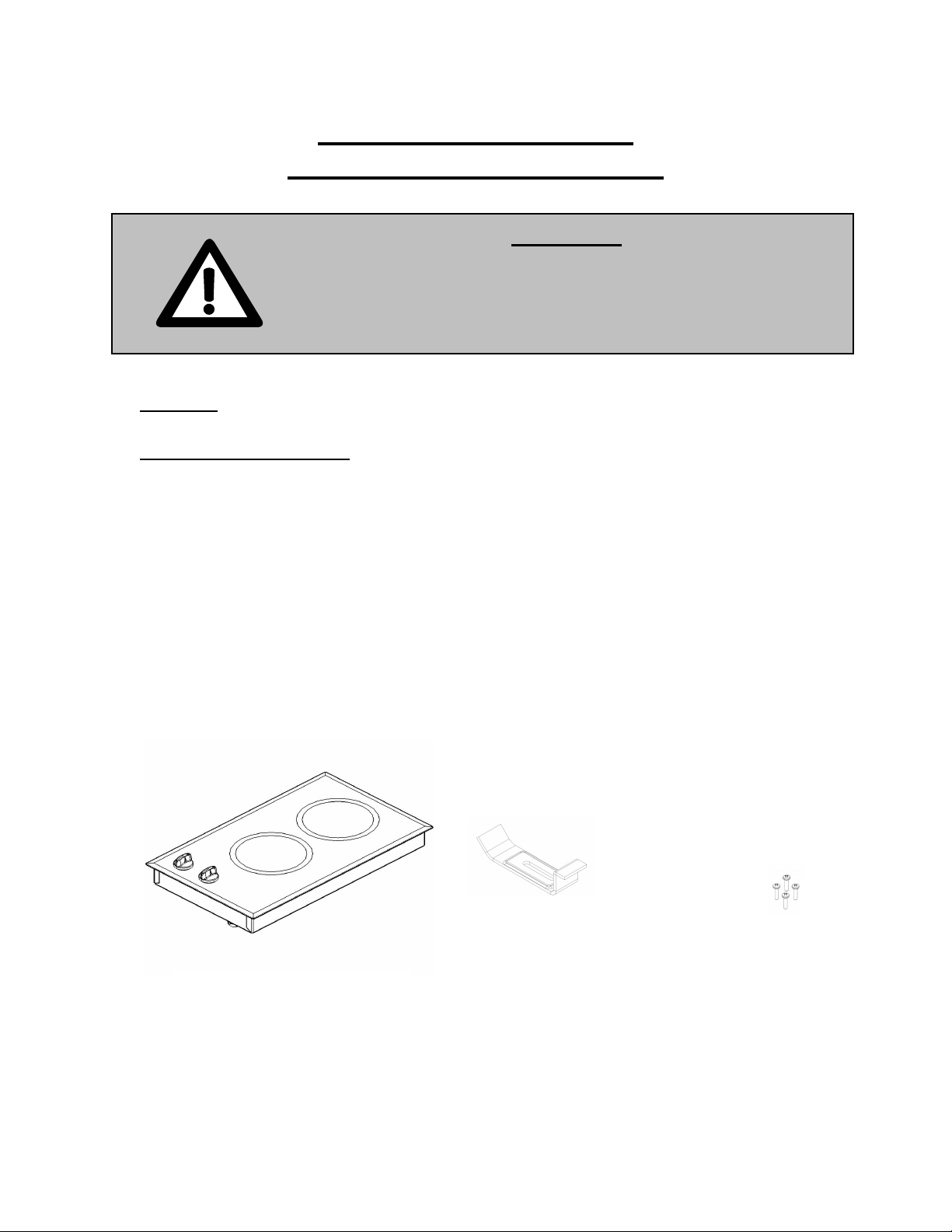

Carefully unpack the cooktop from its shipping container. If possible, retain
the original shipping carton and protective packaging in the event the unit
ever has to be returned for service.
Verify and identify the package contents. The following items should be
included in the carton. If any components are missing or damaged, call
SUMMIT immediately.
● Ceramic glass cooktop
● Mounting brackets (2 pcs. for Single and Double Burners –
4 pcs. for Triple Burners)
● Mounting screws (2 pcs. for Single and Double Burners –
4 pcs. for Triple Burners)
For future reference, please record the serial number of your cooktop here:
___________________________________________
IMPORTANT
Save this documentation for review by local inspector.
This appliance must be properly installed and grounded by
a qualified technician.
Mounting brackets
Mounting screws
Fig. 1
Ceramic glass cooktop

4
Step #2
Check the Electrical Supply Requirements
This product must be installed in accordance with national, state and local
electric codes. The following table provides the correct voltage, amperage
and frequency that must be supplied to the cooktop.
SUMMIT
Model #
Maximum
Connected
Load
Required
Power Supply
Input
Minimum
Wire Size
CR 1115 1200 Watts 120V
AC/10A/60Hz #16 AWG
CR 2110 2400 Watts 120V
AC/20A/60Hz #16 AWG
CR 2220 2400 Watts 220V
AC/10A/60Hz #16 AWG
CR 3240 3600 Watts 220V
AC/15A/60Hz #16 AWG
The supply must be from an individual grounded circuit that is protected by
a circuit breaker and rated per the specifications for the various models as
shown in the table above.
WARNING: INSTALLATIONS MUST COMPLY WITH ALL LOCAL,
STATE AND NATIONAL ELECTRICAL CODES.
Failure to comply with the applicable codes may result in fire,
property damage, personal injury or death.
If the electric power supply does not meet the product
specifications, consult with a licensed electrician before
proceeding with installation.

5
Step #3
Countertop Preparation

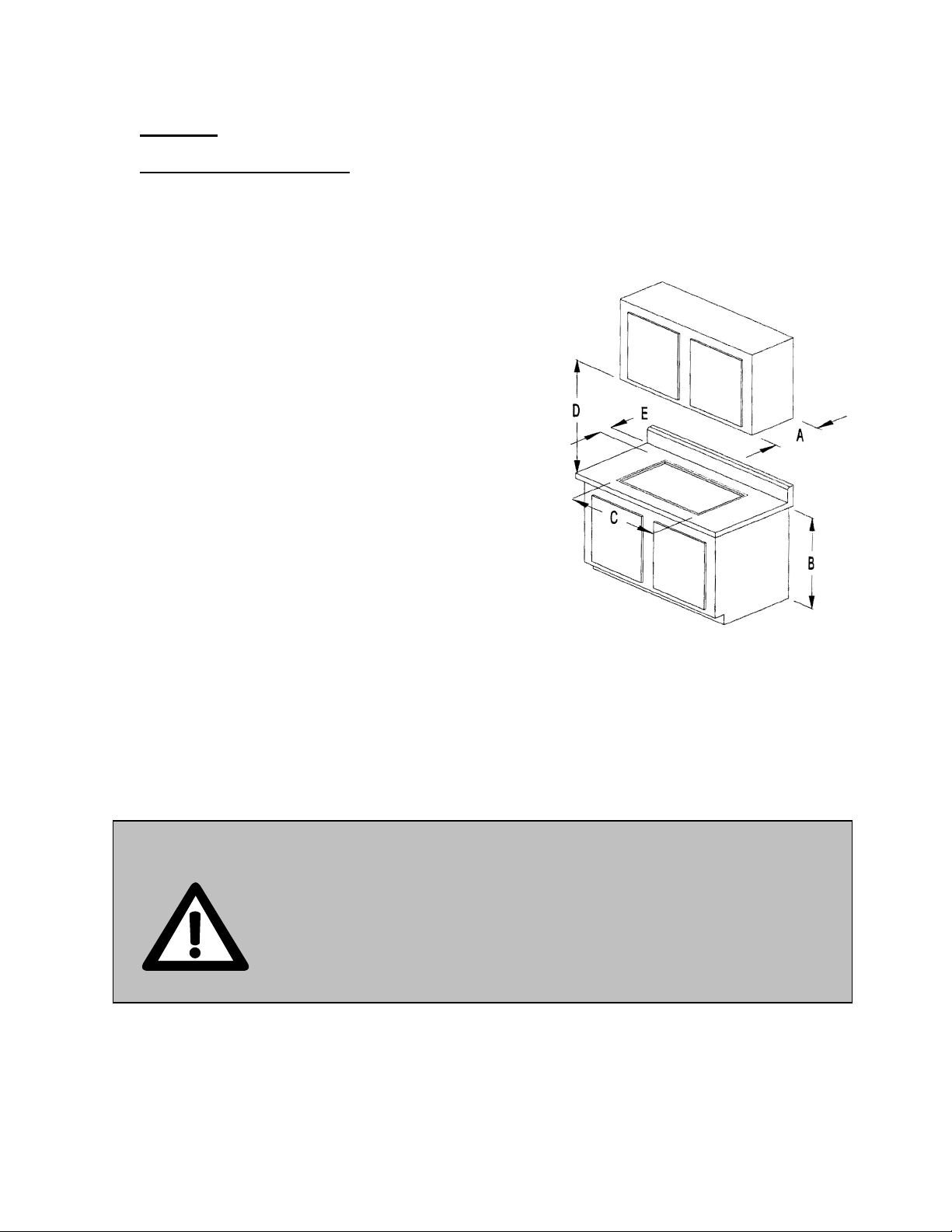

Please read this section prior to making cutout for the cooktop.
It is important to plan ahead for installation of the cooktop, keeping the
following dimensions in mind (please refer to Fig. 2).
A. 13 inches maximum depth of overhead
cabinets
B. 36 inches is minimum height of countertop
above floor
C. The minimum flat countertop surface that
the cooktop will rest upon must be equal
to or greater than the overall cooktop
dimensions (refer to the following pages
for overall cooktop dimensions).
D. 30 inches minimum clearance between
the top of the cooking surface and the
bottom of an unprotected wood or metal
cabinet or 24 inch minimum clearance
when the bottom of wood or metal cabinet
is protected by not less than ¼-inch-thick
flame retardant millboard covered with not
less than No. 28 MSG sheet steel, 0.015-inch-thick stainless steel,
0.024-inch-thick aluminum or 0.020-inch-thick copper.
E. 1-inch minimum from backsplash of countertop to edge of glass (refer to
the following pages for overall cooktop dimensions).
Do not install closer than ½ inch (12 mm) from any adjacent surface!
Before making the countertop cutout, check for clearance. Check to see if
the cooktop will clear the front and side walls of the base cabinet. It is also
important to provide enough ventilation.
WARNING: To eliminate the risk of burns by reaching over
heated surface units, cabinet storage space located above
surface units should be avoided. If cabinet storage is
necessary, the risk can be reduced by installing a range hood
that projects horizontally a minimum of 5” beyond the bottom
of the cabinets.
Fig. 2

6

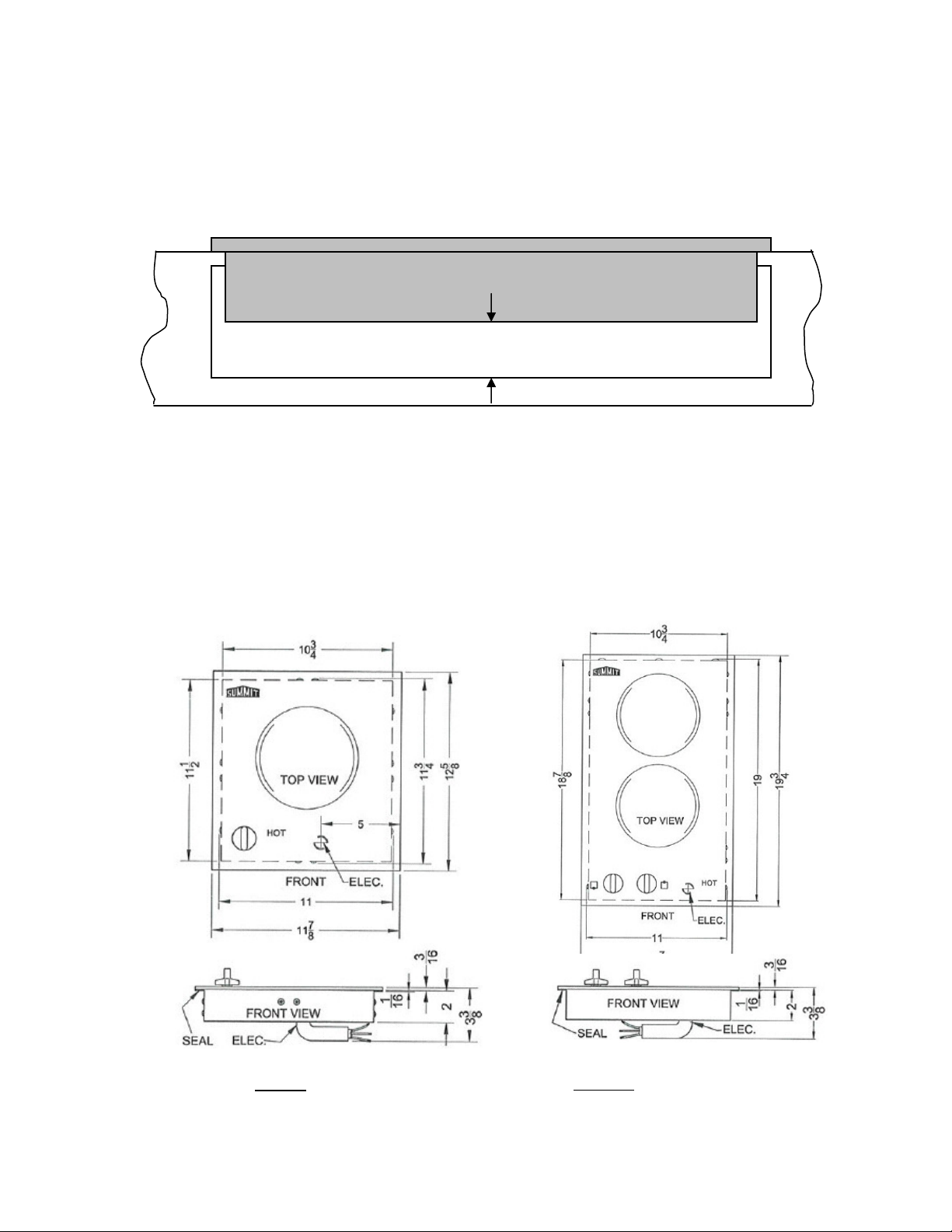

Adequate ventilation of the space below the countertop must be provided
to ensure proper operation of the cooktop. Heat transferred from the
cooktop bottom pan during operation will overheat an improperly ventilated
area.
Fig. 3
Allow a 2” minimum clearance between the bottom of the metal pan of the
cooktop and any combustible surface located below, i.e.: the upper edge of
a drawer installed below the cooktop (refer to Fig. 3). Failure to provide
proper clearances and ventilation may result in a fire hazard.
Cooktop dimensions for each model are shown below and on the following
page:
2 inch (51 mm) minimum
Model: CR1115 Models: CR2110, CR2220
Fig. 4a Fig. 4b

7
Summary of Cutout Dimensions
Model Width Depth
CR1115 11⅛" 11⅞"
CR2110, CR2220 11⅛" 19⅛"
CR3240 19⅞" 18⅜"
NOTE: When making the countertop, radius the corner of the cutout (1/4”
radius is typical). This will prevent cracking of the countertop. Follow
manufacturer’s instructions regarding minimum corner radius and
reinforcement of corners.
Model: CR3240
Fig. 4c

8
Step #4
Installing the Cooktop

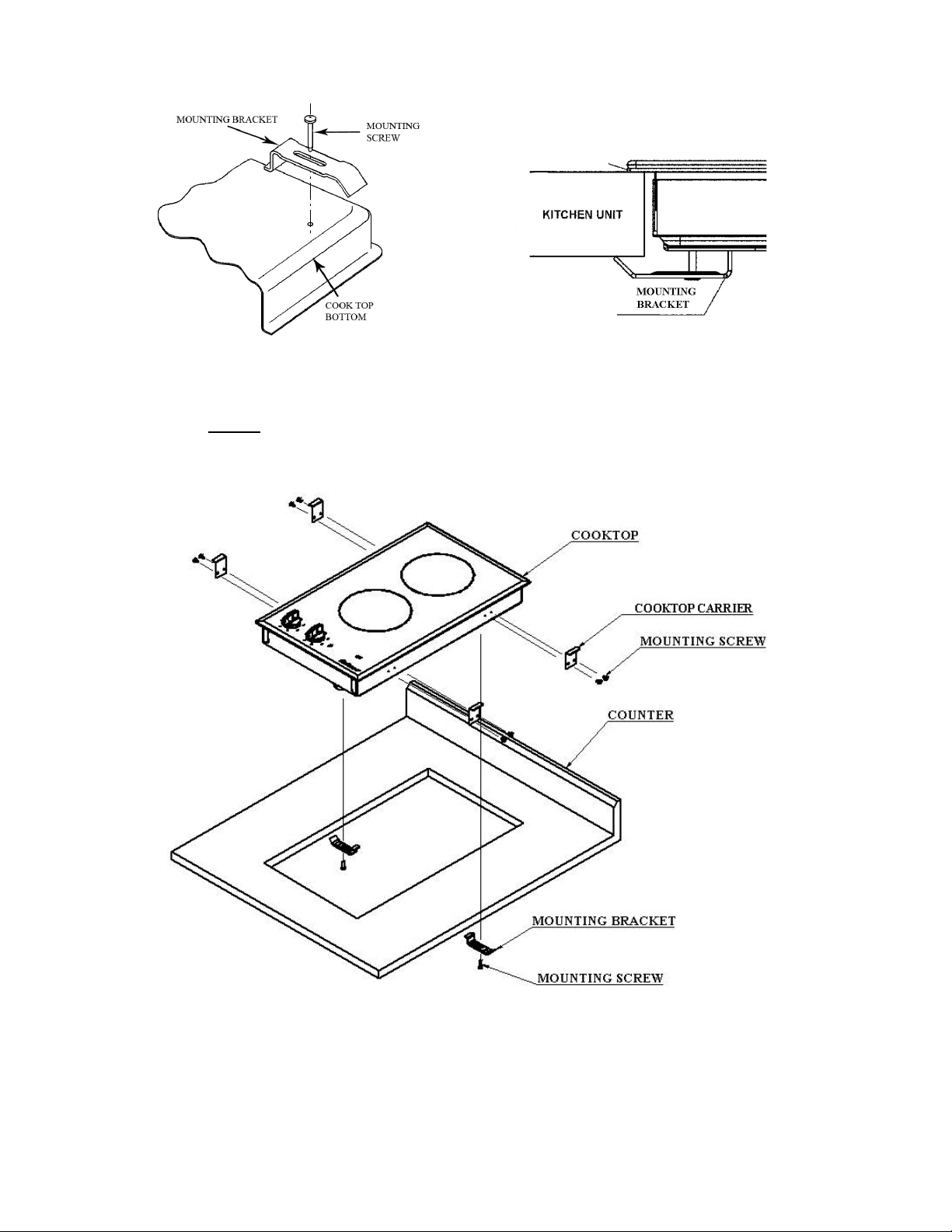

1. Strips of foam sealant have already been installed around the outer
edge of the underside of the cooktop. This special sealant prevents
liquid from infiltrating into the cabinet. Additionally, the mounted sealant
helps prevent damage to the countertop if the cooktop should ever
need to be removed for servicing.
2. Attach the mounting brackets supplied with the SUMMIT cooktop (refer
to Figs. 6-7-8) to the inside bottom surface of the cutout. The brackets
are to be mounted on opposing sides. Center the bracket in the
opening, flush with the countertop and secure with long self-tapping
screws (included). Position the cooktop in the cutout opening and press
firmly on all sides to seal the frame into the sealant strips. Secure the
cooktop to the brackets from underneath with the small sheet metal
screws that are supplied. There are two mounting brackets for the
single and double glass ceramic cooktops and four brackets for the
triple glass ceramic cooktop. These brackets are designed to tighten
the cooktop and then seal it onto the counter to avoid any movement of
the cooktop and to provide good insulation.
Fig. 5

9
NOTE: BE CAREFUL NOT TO OVERTIGHTEN THE SCREWS.
NOTE: Cooktop carrier brackets have already been installed on your cooktop.
Fig. 7
Fig. 6
SELF-
ADHESIVE
SEALANT
Fig. 8
