Circuit Fitness AMZ-979RW-BT Installation and operating instructions

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
AMZ-979RW-BT
Retain This
Manual for
Reference
200110
ASSEMBLY &
OWNER'S
MANUAL
Magnetic-Resistance
Rowing Machine
AMZ-979RW-BT
IMPEX®INC.
2801 S. Towne Ave, Pomona, CA 91766
Tel: [phone] Fax: [phone]
www.marcypro.com
[e-mail]

© IMPEX INC. www.marcypro.com
1
TABLE OF CONTENTS
BEFORE YOU BEGIN
Thank you for selecting the CIRCUIT FITNESS Magnetic-Resistance Rowing Machine
by IMPEX®INC. For your safety and benefit, read this manual carefully before using
the bike. As a manufacturer, we are committed to provide you complete customer
satisfaction. If you have any questions, or find there are missing or damaged parts, we
guarantee you complete satisfaction through direct assistance from our factory. To
avoid unnecessary delays, please call our TOLL-FREE customer service number. Our
Customer Service Agents will provide immediate assistance to you.
BEFORE YOU BEGIN
1
IMPORTANT SAFETY NOTICES
2
WARNING LABEL PLACEMENT
3
HARDWARE PACK
4
COMPONENT FOR ASSEMBLY
5
IMPORTANT ASSEMBLY INSTRUCTION
6
EXPLODED DIAGRAM
12
PARTS LIST
14
CARE AND MAINTENANCE, WEIGHT CAPACITY & DIMS.
16
COMPUTER
17

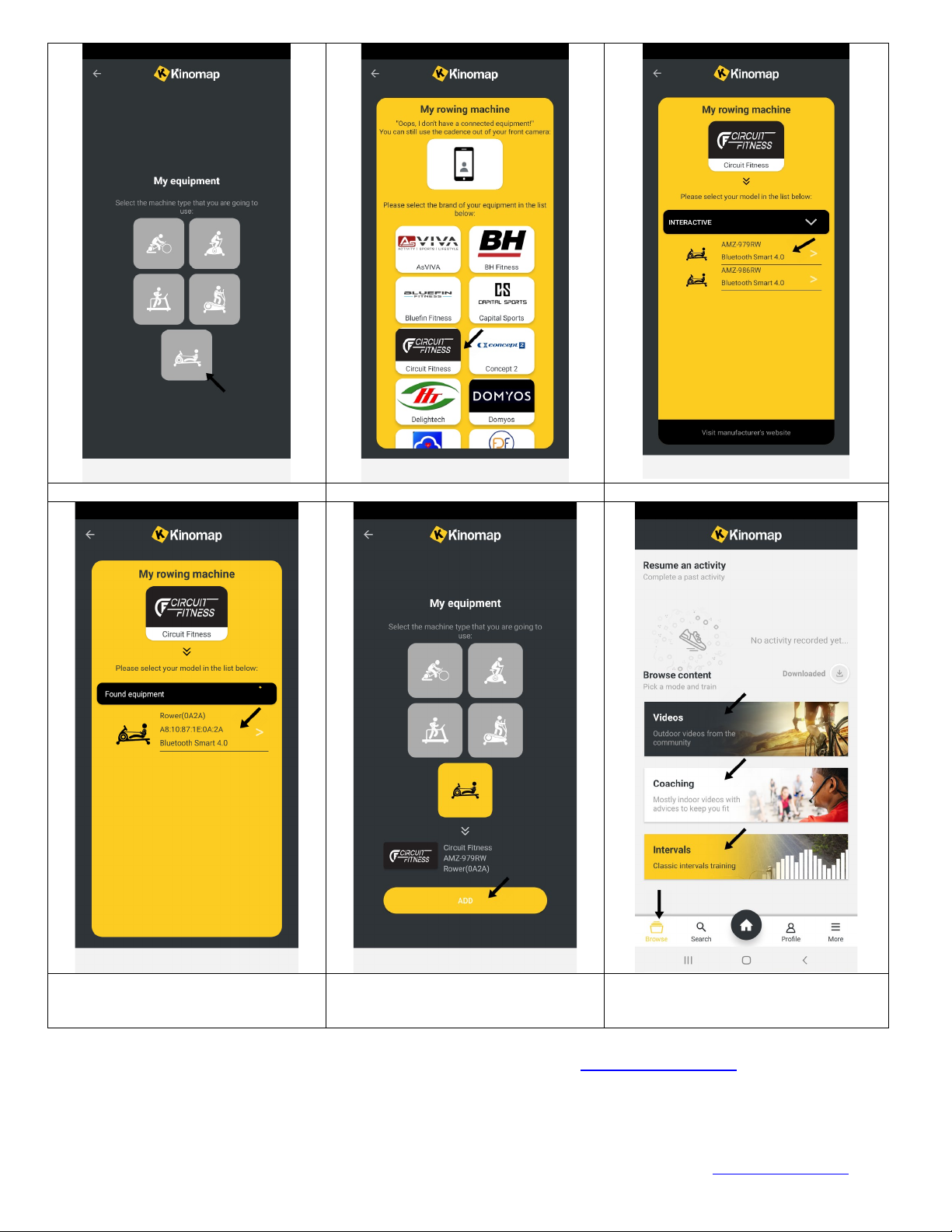

KINOMAP
18
EXERCISE GUIDELINES
20
WARRANTY
22
ORDERING PARTS
22
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.marcypro.com
[e-mail]

© IMPEX INC. www.marcypro.com
2
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT leave
children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms,
STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine near water
or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or
other clothing that could become caught in the machine. Running or aerobic shoes are
also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO NOT use
attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or physician in
attendance.
10. Before using the machine to exercise, always do stretching exercises to properly warm
up.
11. Never operate the machine if the machine is not functioning properly.
12. Read all warnings posted on the exercise bike.
13. Inspect the exercise bike for worn or loose component prior to use. Tighten/replace any
loose or wore components prior to use.
14. Care should be taken in mounting or dismounting the exercise bike.
15. This exercise bike is for consumer and home use only.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.

© IMPEX INC. www.marcypro.com
3
WARNING LABEL PLACEMENT
The Warning Labels shown here has been placed on the Front Stabilizer.
If the labels are missing or illegible, please call customer service at 1-800-999-8899 for
replacement. Apply the labels in location shown.

© IMPEX INC. www.marcypro.com
4
HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
NO. Description Qty Drawings
2 Carriage bolt M10x2⅛” 2
6 Flat washer - Large 2
7 Acorn nut M10 2
8 Curved washer 1
15 ST5*20 2
19 Carriage bolt M8x1¾” 2
22 Collar 4
23 Allen bolt M8x¾” 5
24 Allen bolt M8x⅝” 8
25 Flat Washer - Small 10
30 Allen bolt M6x ¾”2
34 Acorn nut M8 2
72 Axle of pedal tube 2
73 washer Ф6 6
74 Allen bolt M6 4
Allen key 4mm 2
Allen wrench 1
Allen key 6mm 1

© IMPEX INC. www.marcypro.com
5
COMPONENTS FOR ASSEMBLY
NO:69
NO:9
NO:1
NO:28
NO:11
NO:26
NO:3
NO:17
NO:14L/R
NO:35

© IMPEX INC. www.marcypro.com
6
ASSEMBLY INSTRUCTION
•Tools Required for Assembling the Machine: One Crossing Wrench and Allen Wrench,
provided by manufacturer.
•NOTE: It is strongly recommended that two or more people assemble this machine to
avoid possible injury.
STEP-1
1. Place the Main Frame (#1) on the ground at the angle shown to aid in installing the Stabilizer (#3).
2. Attach the Stabilizer (#3) to the main frame with two Carriage bolts (#2), Flat washers (#6), Domed nuts
(#7).
2
6
6
7
7
2X 2X
2X
1
3

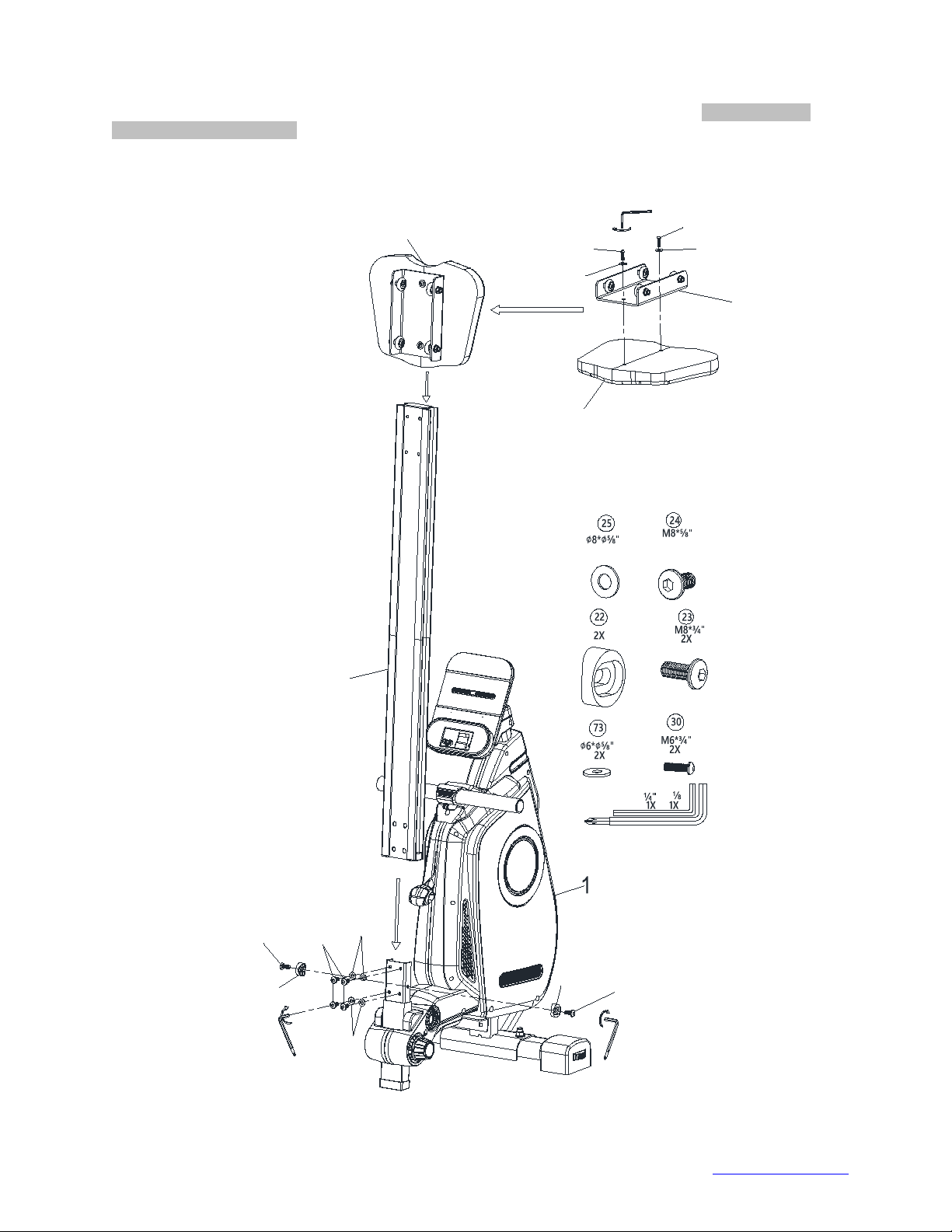

STEP-2
1. Connect the Computer Wire (#16) and Sensor Wire (#21) to the back of the computer (#9). Then insert
the Support Tube(#29) to the Main Frame (#1). Tighten with curved washer (#8), and Allen Bolt (#23).
9
29
8
23

© IMPEX INC. www.marcypro.com
7
STEP-3
1. Attach Seat Support Bracket (#35) to the Seat (#11) with two Allen Bolts (#30) and Washers (#73).
2. Attach the Slide Rail (#26) to the Main Frame, secure with two Allen Bolts (#24) and Washers (#25) at the
bottom of the slide. Tighten the two side with two Collars (#22) and Allen Bolts (#23), DO NOT OVER
TIGHTEN THE COLLARS!.
3. Slide the Seat (#11) onto the Slide Rail (#26) form the top of the Slide. The Rower should be in the Folded
position.
22
23
22 23
25
25
24
30
30
73
73
35
11
11
4X
4X
26

© IMPEX INC. www.marcypro.com
8
STEP-4
1. Attach Rear Support Tube (#28) with four Allen bolts (#24) and Washers (#25).
Please noted the orientation of the Rear Support Tube. The side with larger bolt holes will need to face upward.
22 23
22
23
25
25
24
24
28
26

© IMPEX INC. www.marcypro.com
9
STEP-5
1. Attach the Decorative cover (#69) for rear support with two self-tapping screws (#15).
69
1X
2X
26
15
15
28
STEP-6
1. Remove (unthread counter clock-wise) the locking Knob (#53) from the lower hole to unfold the Rower.
53
26

© IMPEX INC. www.marcypro.com
10

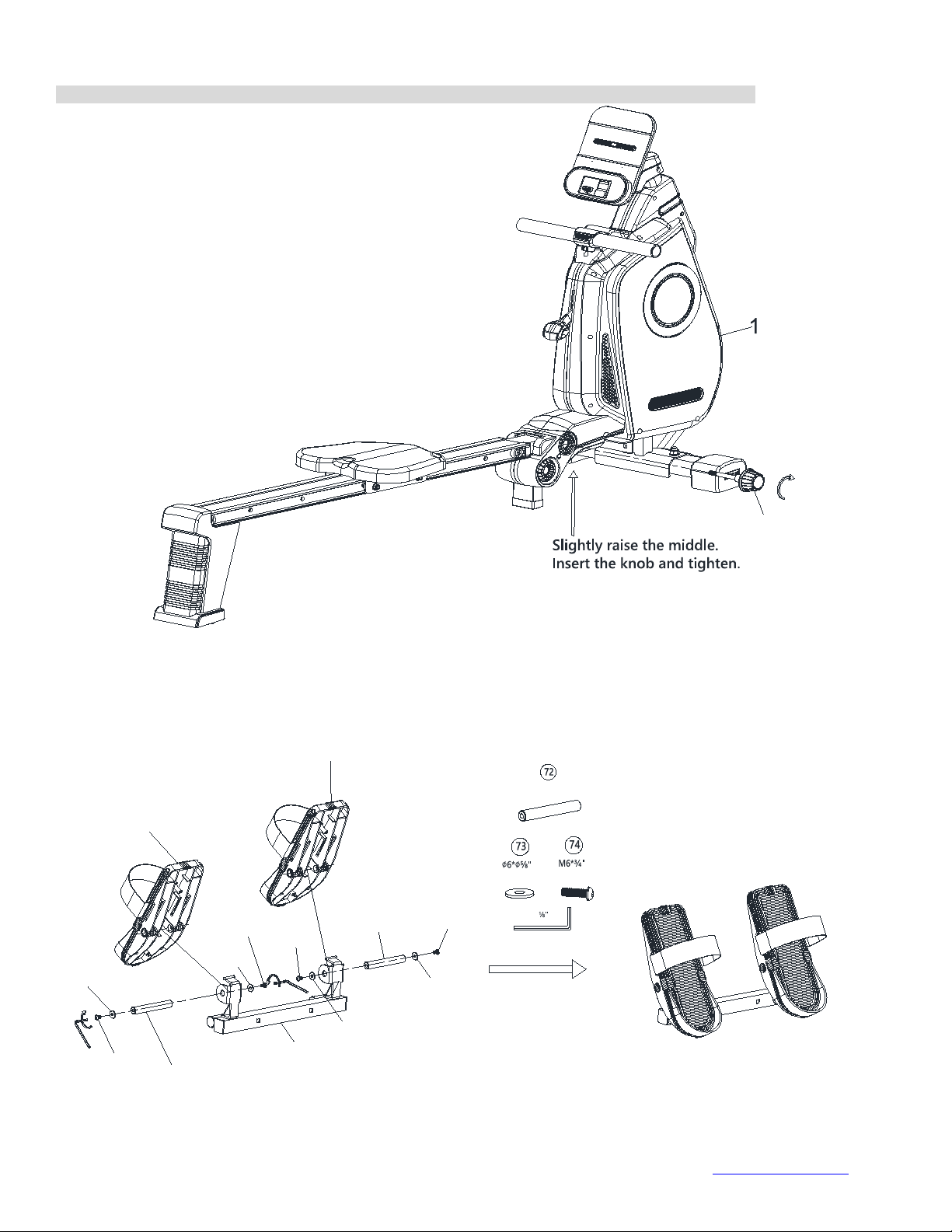

STEP-7
1. Install the locking Knob (#53) to the upper hole to fix the Rower by threading in clock-wise
(Since the rower sags a the fulcrum, it helps to slightly raise the middle to insert the knob and tighten.)
53
STEP-8
1. Assemble the pedals to the Pedal axel prior to installing to the Main Frame.
2. Secure the Left Pedal (#14L), and Right Pedal(#14R) to Pedal Axle (#72), Washer (#73) and Allen bolt(#74) to
assemble to the Pedal support tube(#17).
72
74
73
17
73
74
73
74 74
73
72
14L
14R
2X
4X 4X
2X

© IMPEX INC. www.marcypro.com
11
STEP-9
Attach the completed pedal to the main frame, use Carriage bolt(#19),washer(#25) and domed nut(#34) to tighten.
17
19
25
25
34
34
2X 2X 2X

© IMPEX INC. www.marcypro.com
12
EXPLODED DIAGRAM
3
4R
6
7
11
19
20
20
25
26
28
29
30
31 33
32
34
35
1
2
4L
5R 5L
22
22 22
22
23
23
23
23
24
25
25
25
52
53
6
9
45
12
13L
13R
15
15
45
45
15 24 69
70
45
54L
54R
15 15
45
15
15
23
8
10
14L 14R
72
72
74
73 17 73
74
74
73
10
24
25
73
73
75

© IMPEX INC. www.marcypro.com
13
38L
38R
48
18 18
36
37
56
57
58
15
63
65 66
67
68
61
62
64
39
39
43
41
40
40
41
42
42
44 46
45
55
45
45
45
55
55
47
50
49
15
15 15
60
15
68
31
31
31
31
25
59
45
51 59
71
30

© IMPEX INC. www.marcypro.com
14
AMZ-979RW-BT PARTS LIST
NO.
Description
Qty
1
Main frame
1
2
Carriage bolt M10x2⅛”
2
3
Front stabilizer
1
4L
End cap for front stabilizer L
1
4R
End cap for front stabilizer R
1
5L
End cap for slide rail L
1
5R
End cap for slide rail R
1
6
Flat washer - Large
3
7
Domed nut M10
2
8
Curved washer
3
9
Computer
1
10
End cap
2
11
Seat
1
12
Screw M5x½”
4
13L
Decorative cover L
1
13R
Decorative cover R
1
14L
Left pedal
1
14R
Right pedal
1
15
Self-tapping screw ST5x ¾”
14
16
Computer wire
1
17
Pedal support tube
1
18
Spring clutch bracket
2
19
Carriage bolt M8x1¾”
2
20
Hex head bolt M10x3⅛”
1
21
Sensor wire
1
22
Collar
4
23
Allen bolt M8x¾”
5
24
Allen bolt M8x⅝”
8
25
Flat Washer - Small
12
26
Slide rail
1
27
Screw M5x⅝”
6
28
Rear support tube
1
29
Computer support tube
1
30
Allen bolt M6x¾”
4
31
Aircraft nut M8
9
32
Wheel for seat support bracket
4
33
Axle for seat support bracket
4
34
Domed nut M8
2
35
Seat support bracket
1
36
Belt
1
37
Spring clutch w/rope
1
38L
Left chain cover
1
38R
Right chain cover
1
39
Flywheel adjustor
2
40
Nylon nut M6
2
41
Eye bolt
2

© IMPEX INC. www.marcypro.com
15
42
Flange nut
2
43
Flywheel
1
44
Hex head bolt M8x4⅛”
1
45
Self-tapping screw 5x½”
11
46
Plastic bushing
2
47
Magnet assembly
1
48
Bumper for handlebar
1
49
Hex head nut
2
50
Hex head bolt M6x1”
1
51
Sensor bracket
1
52
Nylon nut M10
1
53
Knob M10
1
54
End cap for chain cover
1/1
55
Self-tapping Screw 5x1⅜”
3
56
End cap
1
57
Bearing
2
58
Powder spacer
2
59
Tension gear
1
60
Spring
1
61
Up cover for handlebar
1
62
Bottom cover for handlebar
1
63
Handlebar
1
64
Self-tapping screw
2
65
Idler pulley
1
66
Axle for Idler
1
67
Foam grip
2
68
End cap for handlebar
2
69
Decorative cover for rear support tube
1
70
Adjustable mat
2
71
Wire
1
72
Axle of pedal tube
2
73
washer
6
74
Allen bolt
4
75
Slide tube
1

© IMPEX INC. www.marcypro.com
16
CARE, MAINTENANCE AND STORAGE
1. Inspect and tighten all parts each time you use the machine. Replace any worn parts
immediately.
2. This machine can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use
solvents.
3. Store the rower IN-DOOR. Excess moisture and water would cause rust on the frame.
4. The rower shall be placed at least 24 inches away from the wall or/and any other object such as
furniture to provide safe access to and passage around the machine.
5. To avoid possible injury, the help of two or more people are needed when moving the machine
around.
6. Disposal Instructions – The equipment can be safely disassembled and disposed without
unreasonable hazards. Call your local recycle agency regarding details of recycling.
7. The maximum user weight is 300 lbs.
8. Assembled Dimension (L x W x H): 72” x 19” x 38.5”
9. Folded Dimension: 36”x19”x53.5”
OPERATING NOTES
TRANSPORT
The Rower has a pair of roller wheels on Front Stabilizer.
To move, fold up the Rower; carefully hold and tilt the Rower, and then roll.

© IMPEX INC. www.marcypro.com
17
COMPUTER
FUNCTIONAL BUTTONS:
MODE -Push down for selecting functions.
SET - To Set the consumer movement of time, count, distance, calories.
RESET -For resetting consumer movement of time, count, distance, calories.
FUNCTION AND OPERATIONS:
1.SCAN: Press “MODE” button until “SCAN” appears, monitor will rotate through all the 6 functions: Time, count,
distance, RPM, calorie. Each display will be held for 6 seconds.
2.TIME: (1) Count the total time from exercise start to end.
(2) Press “MODE” button until “TIME” appears, press “SET” button to set exercise time. Automatically
count down from targeting value during exercise.
3.COUNT: (1) Count the count from exercise start to end.
(2) Press “MODE” button until “COUNT” appears. Press “SET” button to set exercise count.
Automatically count down from targeting value during exercise.
4.DISTANCE: (1) Count the distance from exercise start to end.
(2) Press “MODE” button until “DIST” appears. Press “SET” button to set exercise distance.
Automatically count down from targeting value during exercise.
5.COUNT/MIN(RPM)：Automatically accumulates the workout counts per minute.
6.CALORIES: (1) Count the total calories from exercise start to end.
(2) Press “MODE” button unit “CAL” appears. Press “SET” button to set exercise calories. Automatically
count down from targeting value during exercise.
7. PULSE: The pulse function will only work if it is connected to a chest strap system (not included)
NOTE：
1. If the display is faint or shows no figures, please replace the batteries.
2. The monitor will automatically shut off if there is no signal received after 4 minutes .
REPLACE BATTERY:
1. Always purchase the correct size and grade of battery most suitable for the intended use.
2. Replace all batteries of a set at the same time.
3. Clean the battery contacts and also those of the device prior to battery installation.
4. Ensure the batteries are installed correctly with regard to polarity (+ and -).
5. Remove batteries from equipment when not in use for extended periods of time.
6. Remove used batteries promptly.
7. The Computer requires two 1.5V (AAA) batteries. Batteries are not included in packaging.
8. If the display is not clear or only partial segments appeared, remove the batteries and wait for
15 seconds before re-install them.
9. The battery life is approx. 3 months under normal usage.
10.When the batteries are removed, all the functional values will reset to zero.
Note:
Please note all values on this computer are approximate and they are for comparison
purpose only. Do not use these values for any medical or rehabilitation purpose.

© IMPEX INC. www.marcypro.com
18

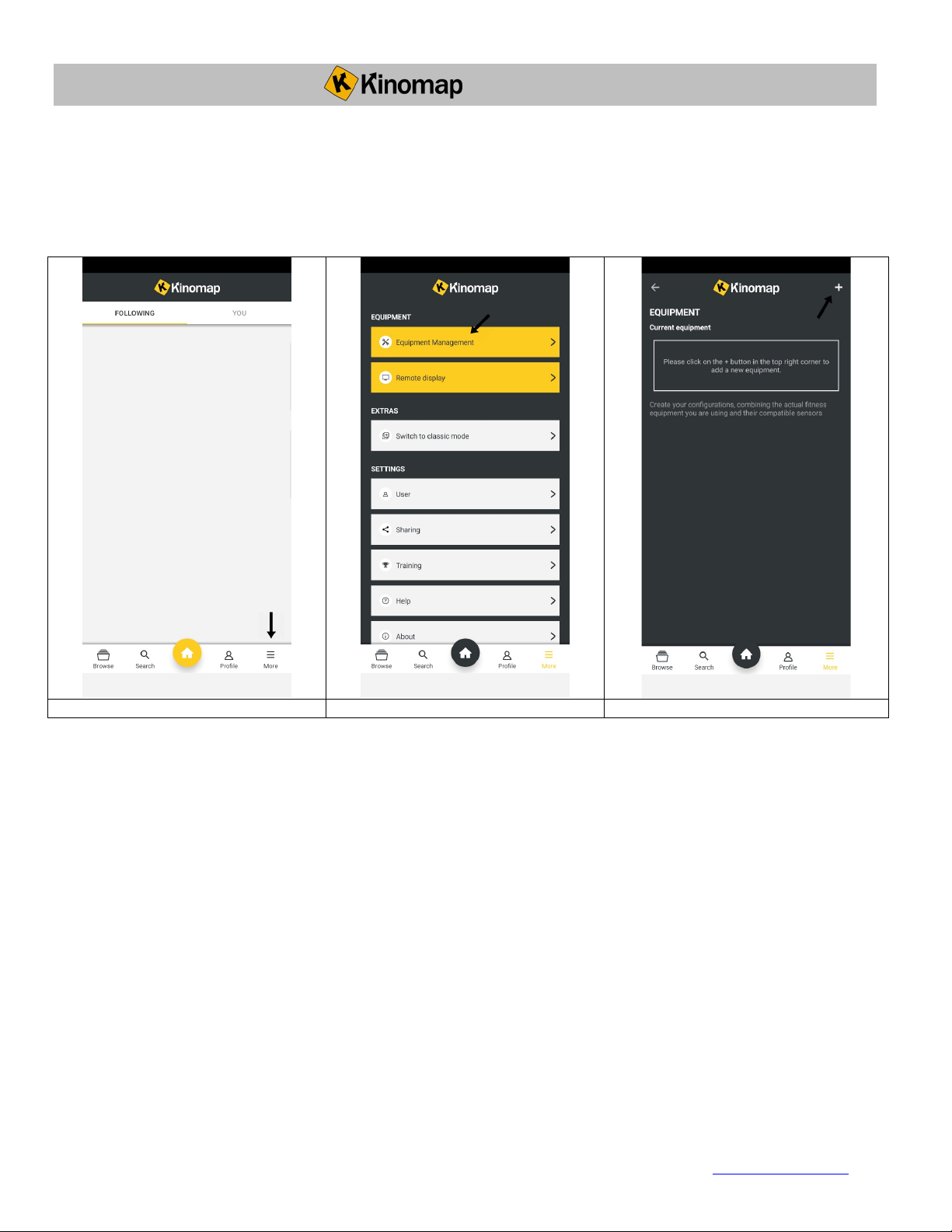

PAIRING WITH KINOMAP
1. Install and start the Kinomap App. (App can be found in Apple’s App Store and Android’s
Play Store.)
2. Register and log into Kinomap if you have not already done so.
3. Turn on your Bluetooth on your phone. (See your phone instructions on how to turn on your
Bluetooth.)
4. Ensure that the computer is powered on. (Pull the rowing handle to power on the computer.)
5. Select "More" to enter setup.
6. Click on "Equipment Management"
7. Click on the "+" to add rower.

© IMPEX INC. www.marcypro.com
19
8. Select the "rower" icon to begin.
9. Select Circuit Fitness.
10. Select the AMZ-979RW rower.
11. Select the "rower" to pair. 12. Click "Add" to complete pairing.
13. Click on “Browse”and select a
category (Videos, Coaching, Intervals)
to begin your workout journey.
14. For More information on how to use KINOMAP, please visit www.kinomap.com.
