Clarke CIS666 User manual

ASSEMBLY INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0122
MINI GARDEN SHED
MODEL NO: CIS666
PART NO: 3503579

2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
INTRODUCTION
Thank you for purchasing this CLARKE Garden Shed. Before attempting to use
this product, please read this manual thoroughly and follow the instructions
carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to your purchase giving you long and
satisfactory service.
When erected, the CIS666 Shed will be of the dimensions shown on page 4.
The product weight is 20.65 kg (unpacked) 22.4 kg (packed).
SAFETY WARNINGS
DO NOT use this product in environments for which it is not Intended (i.e.
extreme cold, high winds, extreme heat, heavy rainfall, etc).
DO NOT use open flames or cooking or heating devices inside or in close
proximity to the shed including all types of stoves, gas heaters, gas lanterns,
torches, fly killers, etc. The fabric will burn if left in continuous contact with a
naked flame.
DO NOT store flammable liquids (petrol, kerosene, propane, etc.) in the shed
or operate petrol powered vehicles/equipment in or around the shed.
ALWAYS follow the instructions for anchoring the shed.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
WARNING: READ THESE SAFETY INSTRUCTIONS TO REDUCE THE RISK OF
INJURY. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
SERIOUS INJURY TO PERSONS OR PROPERTY COULD RESULT IF THE SHED IS
NOT SECURELY ANCHORED.

3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
POSITIONING AND INSTALLATION OF THE SHED
POSITIONING THE SHED
This shed is a temporary structure and is not recommended as a permanent
building. It is designed to offer protection from sun, rain, light snow, tree sap
and bird droppings etc. It is not designed to shelter equipment from
excessively high winds or heavy snow.
Choose your shed location carefully. Check for overhead power lines, tree
branches, etc. DO NOT install near roofs or other structures that may shed snow,
ice or excessive run-off onto your shed.
SITING THE SHED
Erect your shed on level ground over a firm, level area. Allow enough space
near each corner for the ground anchors and tie-down straps supplied to be
used as intended. If the ground area is of tarmac or concrete, the use of
ground anchor holding-down bolts will be required to anchor the shed to the
floor.
Choose a dry location where dampness arising from ground water in the
environment will not undermine the protection offered by the shed.
A masonry floor such as block paving or concrete is ideal, but if this is not
being supplied, a timber or shuttering plywood floor, protected by a suitable
groundsheet should be used. This will help to create a dry storage environment
by insulating the storage space from ground moisture.
Proper anchoring and keeping the cover tight and free of snow and debris is
the responsibility of the user. Damage caused by improper anchoring is not
covered under warranty.
CARE OF THE SHED STRUCTURE
This shed is NOT designed to support heavy snow. Snow or ice accumulation
may cause your shed to collapse. To avoid overload, brush snow and ice off
the roof top with a broom or mop to prevent collapse with the resultant
damage to property or personal injury.
NEVER clear the roof of snow or debris from inside the shed.
DO NOT use hard-edged tools or instruments, such as rakes or shovels to
remove snow. These can cause punctures to the cover.
DO NOT use bleach, alkaline or harsh detergents for cleaning. Doing so will
damage the material. Soap and warm water are recommended.
In order to reduce risk of burning and avoid damage, DO NOT- cook, smoke,
refuel or use any open flame devices in or around the shed.

4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
USING THE STORAGE SPACE
Never run the engine of any machine inside a closed shed. Ensure that there is
adequate ventilation for engines or for any work with paints, cleaners. etc. by
opening the door panel and keeping it raised.
CONDENSATION
Take steps to avoid the buildup of condensation inside the shed. Cool, damp
winter days and moisture from the breath and body heat of personnel may
cause condensation on the inside of the top cover.
A supply of fresh air through the doorway will at least partly remove this issue.
For long term storage of moisture sensitive belongings in all weathers, the use
of a dehumidifier may be required, such as those in the CLARKE range. A
suitable extension lead to a locally available power supply will be required.
Condensation will be much less of an issue during the summer months.
CONSTRUCTION
Have an overview of all parts before attempting installation and make sure all
components are supplied.

5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
COMPONENT PARTS LIST

6
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
ASSEMBLY
1. Place all parts in a clear area and arrange them on the ground. Check for
completeness and for any transport damage.
2. Remove all packaging materials and place them back in the box. Do not
dispose of the packaging materials until assembly is complete.
WARNING: DO NOT PLACE THE PRODUCT UNDER TREES FROM WHICH
HARD FRUIT SUCH AS APPLES, WALNUTS OR HEAVY PINE CONES, ETC.,
MAY FALL. KEEP CHILDREN AWAY DURING ASSEMBLY. THIS PRODUCT
CONTAINS SMALL PARTS WHICH CAN BE SWALLOWED BY CHILDREN. DO
NOT ATTEMPT TO ASSEMBLE THE PRODUCT IF ANY PARTS ARE MISSING.
WARNING: DO NOT LEAVE THE SHED UNATTENDED DURING ASSEMBLY IN
CASE PERSONAL INJURY OR DAMAGE MAY OCCUR.

7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

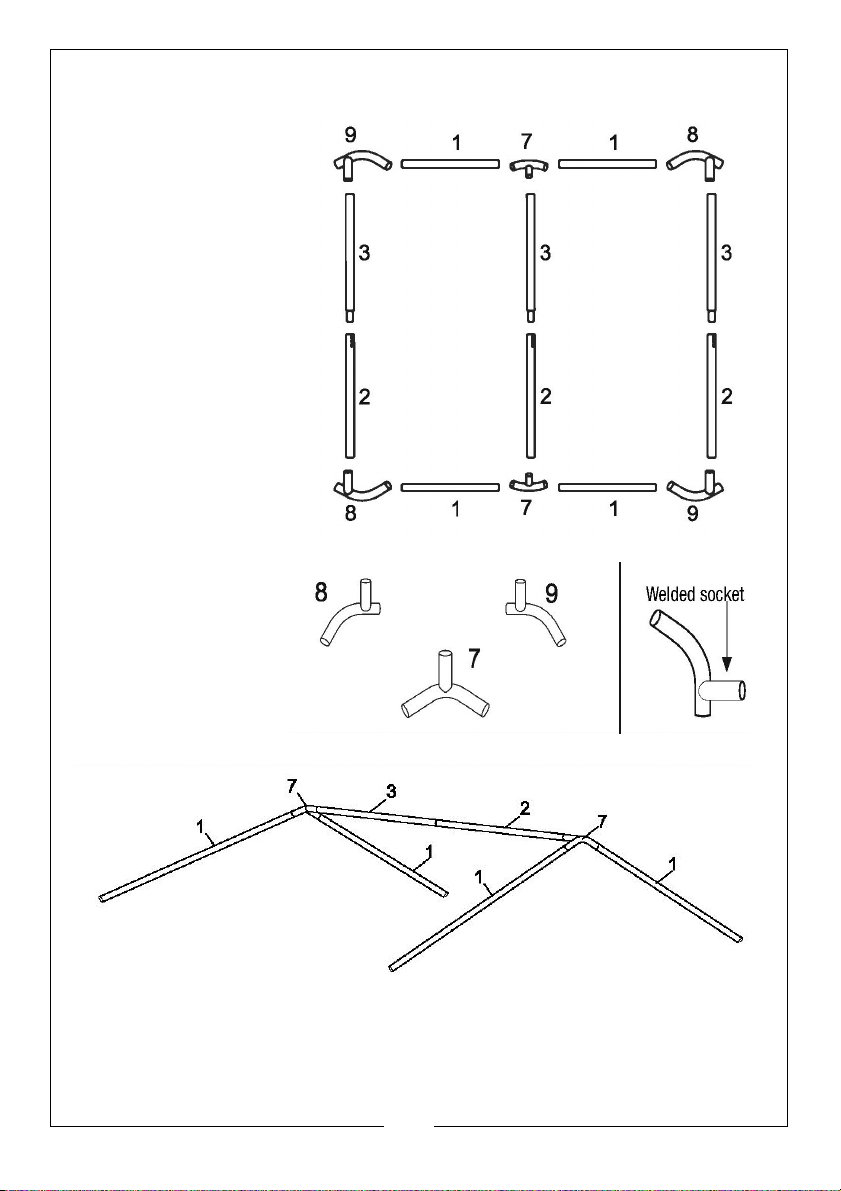

STEP 1: ASSEMBLING THE ROOF FRAME
1. Select a suitable
location for the
shed. The layout
of the roof parts is
shown.
Note: The three
connectors are
different and
individually
numbered. When
using them, ensure
the welded socket
for the cross rail is
below the bend.
2. Connect the extension pole with dimples (2) and common tube-male
union (3) together. Assemble the centre section of the roof using the
connectors (2/3) and 3-way peak connectors (7). Insert the rafter poles (1)
into the connectors afterwards.

8
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
NOTE: Be sure that all tubes are fully inserted. Use a rubber mallet if
necessary. When using the connectors, be sure to remove the
protective caps first.
STEP 2: ATTACHING THE LEGS
There are 4 corner legs for the whole shed.
These comprise the extension poles 2 (with
dimple) and the bent corner legs (6).
3. Insert the corner legs into the 3-way side
connectors (8/9).

9
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
4. Repeat the same procedure on the opposite side.
STEP 3 ATTACHING THE BOTTOM CROSS-RAIL
1. Connect the cross rail male union (4) and cross rail with punched hole (5)
together. Attach the bottom cross rail connectors (4/5) to the legs and
cover the joints with the cross rail clamps (10). Align all hole and insert the
fittings (12, 13, 14).
2. Repeat the same procedure on the opposite side.
3. Adjust the bottom cross rail connectors (4/5) so that they are of the same
height from the ground. Now tighten the fittings 12, 13 & 14, below.

10
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
STEP 4: SQUARE AND ANCHOR THE FRAME
1. Ensure the frame is standing at the desired location.
2. Level the frame both end to end and side to side.
3. Check the frame measures 6’ (183cm) in width.
4. Measure the distance between the interior of the frame diagonally. The
sections A to B and C to D should be equal length. If not, tap the corner leg
of the longer section using a rubber mallet inward until both diagonals are
equal.
WARNING: SERIOUS INJURY TO PERSONS OR PROPERTY COULD RESULT IF
THE SHED IS NOT SECURELY ANCHORED, WITH EITHER THE GROUND
ANCHORS SUPPLIED OR IF SITED ON CONCRETE OR TARMAC USE
SUITABLE SUBSTANTIAL GROUND ANCHOR BOLTS.

11
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
STEP 5 ANCHORING THE FRAME
1. Four anchors are provided to secure
the shed. They are to be installed
around the bent corner legs at each
corner of the shed.
2. Screw the anchor head into the
ground.
3. Insert the cable (19) through the
eyelets of the anchor (18) and the
bent corner leg (6). Secure the
cable (19) with the cable clamp
(20).
4. Repeat for the other three anchors.
• Ensure the clamps are gripping the cables tightly.
STEP 6: INSTALLING THE FRONT AND BACK COVERS
The front cover has a zippered door to allow entry to the shed. Be sure to
locate this cover at the desired end and ensure the zipper is in the fully closed
position while installing. The back cover is a solid piece of fabric. Both covers
are installed in the same fashion.

12
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
1. Thread the webbing strap though the spindle of the ratchet. Raise and
lower the handle several times to wind the strap onto the spindle as shown
above.
2. Locate the top part of
the front door panel
(17) near the 3-way
peak connector (7).
Disconnect the
shoulder cross rail (3)
from the 3-way peak
connector (7) and pull
the strap onto the
connector (7). Re-insert
the cross rail (3) to its
proper position.

13
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
3. Attach the other two corners
of the front door panel (17)
to the 3-way side connectors
(8/9) in the same way
4. Insert the S-hook of the
ratchet into the hole of the
bent corner leg (6). Pump the
ratchet handle repeatedly to
tighten the strap.
STEP 7: INSTALLING THE ROOF COVER
NOTE: The roof cover (15) is pre-assembled with pipe sleeves along its
lower part on each side.

14
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
1. Lay the cover on the ground next to the frame. Make sure that the ends
with the black straps are alongside the front door/back panels (16/17) and
the tube sleeves are facing upwards.
2. Stretch the roof cover (15) over the shed frame and make sure it is centred
on the frame. Use a ladder if necessary.
3. If small adjustments are needed, two people should pull the roof cover
from the same side so that it does not twist.
.
4. Remove the fittings (12, 13, 14) and 3-way cross rail clamps (10) to loosen
the bottom cross rail connectors (4/5). Slide the cross rail connectors (4/5)
through the tube sleeves on one side of the roof cover (15). Re-insert the
clamps (10) and fittings (12,13,14) and tighten gently.

15
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
Repeat the same procedure for the opposite side of the roof.
Check and ensure all bottom cross rail connectors (4,5) are level and
horizontal, and are all the same height from the ground.
Tighten all nuts and bolts at this stage.
Fasten the black straps at the four corners with the ratchet tie-down (11).
The shed is now ready for use.
USING THE SHED
1. Check periodically (two to three times in the first week) and tighten the
ratchet tie-downs and all hardware if needed. You may need to remove
and re-set the ratchet to allow for more strap material becoming wound
around the ratchet spindle.
2. Open the door with the help of an assistant, rolling the fabric up until the
door can be held in position above the opening using the webbing straps
and buckles as shown above. (When not in use, tie the ends of the straps to
the webbing loops provided for that purpose.)
DISASSEMBLY
To dismantle, execute all instructions
in reverse order.

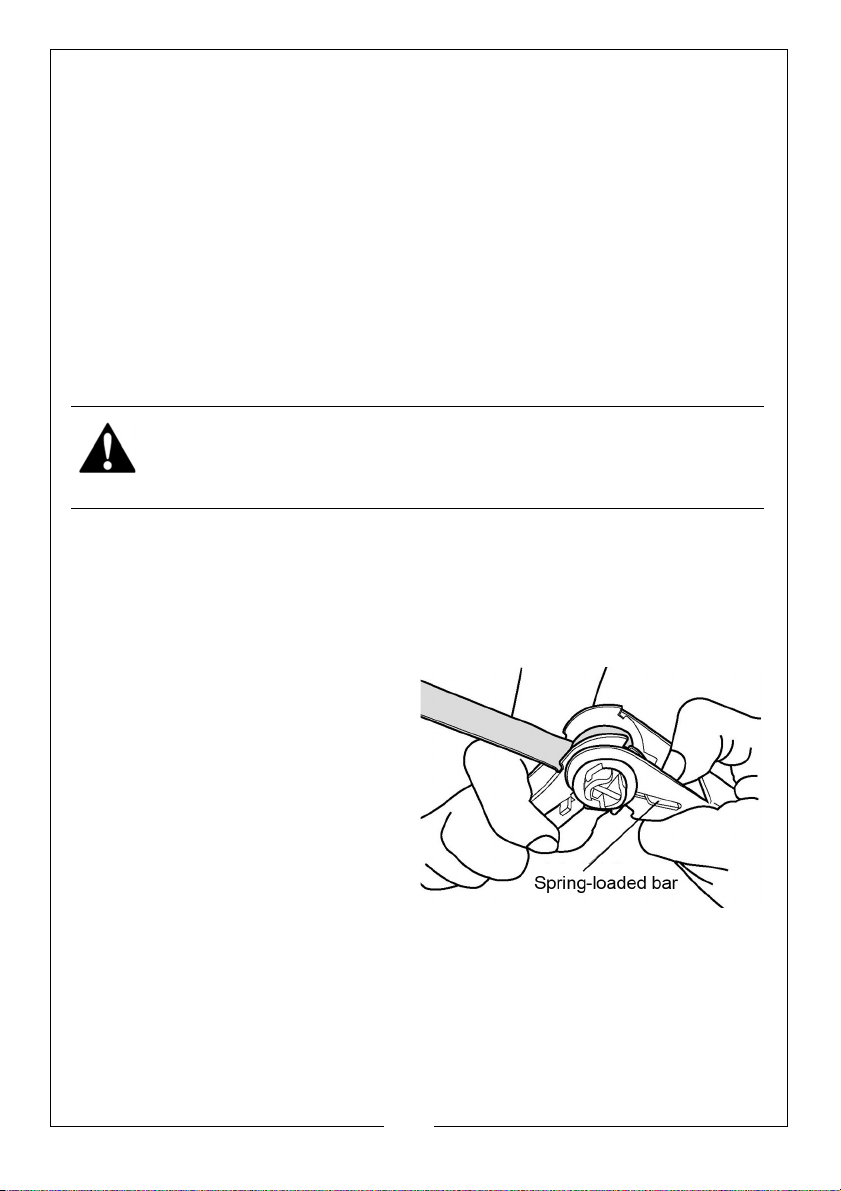

When disassembling the shed
depress the spring-loaded bar to
disengage the ratchet and open
the ratchet handle completely to
allow the webbing strap to pull
through.
Store your shed in a cool, dry
location between seasons to
prolong the usable life of all
components. Components are not equally durable and will require
replacement over time at differing intervals.
PLEASE RE-READ ALL WARNINGS ON PAGE 2 OF THESE INSTRUCTIONS. SAVE
THESE INSTRUCTIONS FOR FUTURE USE.
WARNING: IF POSITIONING THE SHED IN A WINDY LOCATION ALWAYS
ENSURE THE FRONT DOOR IS KEPT FULLY CLOSED TO PREVENT WIND
LIFTING THE SHED FROM INSIDEAND THAT THE SHED IS SECURELY
ANCHORED TO THE GROUND.

16
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
ADDITIONAL ANCHORING
Please note that when the instant shed is to be sited on soft ground an
additional, or alternative method of anchoring may be required.
This can take the form of an additional Auger Securing Set GA2 (already
supplied with CLARKE Instant Garages), which can add greater security for
exposed, windy locations.
Alternatively the Easy Hook Anchoring System GHA2, can be used to provide
greater security on soft ground. Available from your CLARKE dealer.
WARNING: SERIOUS INJURY TO PERSONS OR PROPERTY COULD RESULT IF
THE SHED IS NOT SECURELY ANCHORED.
This manual suits for next models
1
Table of contents
Popular Garden House manuals by other brands

Tiger
Tiger Tigercub Groovy Garage General assembly instructions

Dunster House
Dunster House E9-3042DBPP-45 installation manual

Pergola kits USA
Pergola kits USA PREMIUM VINYL PAVILION Assembly manual

Vitavia
Vitavia VM0013-HL 4500 Assembly instructions

Luoman
Luoman Lillevilla 498 Assembly and Maintenance

tradetested
tradetested GS506-V1 Owner's manual and assembly instructions
