Mercia Garden Products 03DTSHHP1206HGD4MW-V1 Instruction manual

P 1
Please retain product label and instructions for future reference
General Instructions
03DTSHHP1206HGD4MW-V1 & 03DTMBHP1206RFP
12x6 Clover Summerhouse
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All building’s should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy or
extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treatment
to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base dimensions,
The base should be slightly smaller than the external measurement of the building, i.e. The cladding should overlap
the base, creating a run o for water. It is also recommended that the oor be at least 25mm above the surrounding
ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
Refer to the instructions pages for your specic product code
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.

P 2
Please retain product label and instructions for future reference
03DTSHHP1206HGD4MW-V1 & 03DTMBHP1206RFP
Floor Panel
AI-R11MBF1175X1753-V1
QTY 2
Back Panel
AI-S11SHPP1180X2016
QTY 2
Side Window Panel
AI-03S11SH1SFWC1094X2016
QTY 2
Front Window Panel
AI-03S11SH1FSFWC710X2016-V1
QTY 2
Right Roof 8Ft
AI-S11MBANGRR1213X1028-V1
QTY 2
Left Roof 8Ft
AI-S11MBANGRL1213X1028-V1
QTY 2
Centre Roof
AI-S11MBSHPR1226X1028-V1
QTY 2
Plain Panel
AI-S11SHPP613X2016-V1
QTY 6
Small Floor
AI-R11MBF613X1753-V1
QTY 2
6Ft Roof
AI-S11MBDANGR1830X1028-V1
QTY 2
Upper Door Panel
AI-S11SHPPBF940X242-V1
QTY 1
Master Door
AI-STDHGMD475X1715-V1
QTY 1
Secondary Door
AI-STDHGPD475X1715-V1
QTY 1
12345
679
12
21
23
25
22
24
13
14
15
16
17
18
Fascia - 12x95x1920mm QTY 3
SR1295-1920mm
Cover Trim - 12x40x1970mm QTY 12
S1240-1970mm
Door Frame Strip - 12x40x1740mm QTY 2
S1240-1740mm
Door Frame Strip - 12x40x996mm QTY 1
S1240-996mm
Roof Bearer A - 44x58x2211mm QTY 1
F4458-G-2251mm (2x32° CUTS)
26
8
19
27
28
10
11
Eaves Frame - 28x28x1805mm QTY 6
FS2828-1805mm
20
Building Content:
Roof Bearer B - 44x58x528mm QTY 5
F4458-G-568mm (2x32° CUTS)
Fascia - 12x95x1870mm QTY 4
SR1295-1870mm
Roof Bearer Block - 44x58x84mm QTY 5
F4458-84mm
Window Cross - 16x27x1094mm QTY 4
WC1627-1094mm
Window Cross - 16x27x500mm QTY 8
WC1627-500mm
Door Stop Frame - 28x28x940mm QTY 1
FS2828-940mm
Window Strip - 12x56x576mm QTY 2
S1256-576mm
Door Strip - 12x49x940mm QTY 1
S1249-940mm
Flat Roof Strip - 12x120x1950mm QTY 1
S12120-1950mm
Overall Dimensions:
Width = 3690mm
Depth = 1868mm
Height = 2584mm
Base Dimensions:
Width = 1753mm
Depth = 3576mm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Finial QTY 2
PI-04-0023
Felt
30
31
32
33
34
35
36
37
T-Hinge QTY 6
PI-07-0185
Turn Button QTY 2
PI-07-0034
Press Lock QTY 1
PI-07-0162
Tower Bolt QTY 2
PI-07-0114
Unequal Hinge QTY 4
PI-07-0184
Window QTY 2
AI-FW540X1132-V1
Casement Stay QTY 2
PI-07-0007
38
29
Door Handle QTY 2
PI-07-0081

P 3
Please retain product label and instructions for future reference
50mm Screw x 141
20mm Screw x 64
10mm Screw x 8
40mm Screw x 52
30mm Screw x 136
Nail Bag
70mm Screw x 15
60mm Screw x 12
Felt Tacks x 300
There may be extra screws present in the nail bag
Pre Assembly
Remove the transportation blocks from
the bottom and top of each panel
before beginning assembly.
Step 1
Parts needed - No. 21 QTY 1
No. 24 QTY 1
Secure the Door Strip (No. 24) with
the edges being ush to the Door
Stop Frame (No. 21) using
5x30mm screws.
5 x 30mm Screws
Pre drill
hole
30mm
screw
21
21
24
24
SIDE VIEW
21
24
Step 2
Parts needed - No. 4 QTY 2
No. 6 QTY 1
No. 21 QTY 1
No. 24 QTY 1
Lay all of the required parts on to a
at level surface and x the Upper
Door Panel (No. 6) in the centre of
the two Front Window Panels (No.
4) with 3x50mm screws per side.
The Upper Door Panel should be
ush with the top of the left and
right Panels.
Fix the (already assembled in the
Step 1.) Door Strip (No. 24) and the
Door Stop Frame (No. 21) to the
bottom of the Front Window Panels
(No. 4) with 2x50mm screws per
side. The Door Stop Frame should
be ush with the bottom framing of
the Front Window Panels (No. 4).
10 x 50mm Screws
464
Pre drill
hole
50mm
screw

P 4
Please retain product label and instructions for future reference
Step 3
Parts needed - No. 4 QTY 2
No. 12 QTY 1
No. 13 QTY 1
No. 36 QTY 6
Fix the Secondary Door (No. 13) to
the Front Window Panel (No. 4).
Secure the T-hinges (No. 35) to the
Front Window Panel (No. 4) with
3x30mm screws per hinge.
Then x the T-hinges (No. 36) to
the door with 3x30mm screws per
hinge.
Repeat the process for the Master
Door (No. 12)
36 x 30mm Screws
36 36
Pre drill
hole
30mm
screw
13 12
Secondary Door Master Door
44
1
1
Step 4
Parts needed - No. 1 QTY 2
Secure the oors (No. 1) together
using 8x50mm screws through the
oor bearers in an alternating
pattern.
8x50mm Screws
Pre drill
hole
50mm
screw
1
1

For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
Step 5
Parts needed - No. 11 QTY 2
Secure the Small Floor Panels (No.
11) to the oors assembled in the
previous step using 8x50mm
screws through the oor bearers in
an alternating pattern.
Once xed together turn the oor
back the right way up.
Place the assembled oor panels
(No. 1 & 11) onto a rm and level
base. Ensure the base has suitable
drainage, free from areas where
standing water can collect.
16x50mm Screws
Pre drill
hole
50mm
screw
1111
11
11
1 1
1
1
Step 6
Parts needed - No. 3 QTY 2
No. 5 QTY 2
Fix the Side Window Panel (No. 3)
and the Plain Panel (No. 5) togeth-
er by screwing through the fram-
ing using 5x50mm screws.
Ensure to stagger screws to avoid
colliding.
Repeat this with the second Side
Window Panel and the Plain Panel
but the opposite way round, as
shown in the diagram.
10x50mm Screws
Pre drill
hole
50mm
screw
**Please note that when you
x the Plain Panel (No. 5) to the
second Side Window Panel (No. 3),
this is to be tted to the opposite
side.
3 5
35
P 5
Please retain product label and instructions for future reference

Please retain product label and instructions for future reference
Step 7
Parts needed - No. 2 QTY 2
No. 5 QTY 2
Fix the Back Panel (No. 2) and the
Plain Panel (No. 5) together by
screwing through the framing
using 5x50mm screws.
Ensure to stagger screws to avoid
colliding.
Repeat this with the second Back
Panel and the Small Side Panel but
the opposite way round, as shown
in the diagram.
10x50mm Screws
Pre drill
hole
50mm
screw
52
5
2
**Please note that when you
x the Plain Panel (No. 5) to the
second Back Panel (No. 2), this is
to be tted to the opposite side.
3
5
2
5
Step 8
Parts needed - No. 2 QTY 1
No. 3 QTY 1
No. 5 QTY 2
Place the two Plain Panels (No. 5)
that were assembled with the Side
Window Panel (No. 3) and the Back
Panel (No. 2) in the previous steps
into position and x together with
3x50mm screws.
**Do not secure to the Floor until
the Roof is xed in position
3x50mm Screws
Pre drill
hole
50mm
screw
Step 9
Parts needed - No. 2 QTY 1
No. 5 QTY 1
Place the second Back Panel
(No. 2) and Plain Panel (No. 5)
(that were assembled in Step
7.) in position and x with
6x50mm screws.
**Ensure to stagger screws to
avoid colliding.
**Do not secure to the Floor
until the Roof is xed in
position
6x50mm Screws
Pre drill
hole
50mm
screw
2
2
5
5
P 6

Step 10
Parts needed - No. 3 QTY 1
No. 5 QTY 1
Place the Plain Panel (No. 5) that is
already assembled with the Side
Window Panel (No. 3) in position in
a previous step and x together
with the Plain Panel (No. 5) using
3x50mm screws.
**Do not secure to the Floor until
the Roof is xed in position.
3x50mm Screws
Pre drill
hole
50mm
screw
3
5
5
Step 11
Parts needed - No. 5 QTY 2
Place the two Plain Panel (No.
5) into position and x to the
Side Window Panels (No. 3)
with 3x50mm screws per side.
**Do not secure to the Floor
until the Roof is xed in
position
6x50mm Screws
Pre drill
hole
50mm
screw
5
5
3
3
Pre drill
hole
50mm
screw
4
4
5
5
Step 12
Parts needed - No. 4 QTY 2
Place the already assembled Door
Panel (No. 4, 6,12,13,22 & 25) into
position and x together with the
two front plain panels (No. 5)
3x50mm screws per side.
If the door panel has not been
assembled yet, please refer to Step
1, 2 & 3.
**Do not secure to the Floor until
the Roof is xed in position.
16x50mm Screws
Step 13
Parts needed - No. 8 QTY 2
No. 9 QTY 2
No. 10 QTY 2
Fix the Left and Right Roof Panels
(No. 8 & 9) to either side of the
Centre Roof (No. 10) Panel by
screwing through the framing
using 8x50mm screws per assem-
bly.
repeat this action for the other roof
side.
**Ensure to stagger screws to
avoid colliding.
16x50mm Screws
Pre drill
hole
50mm
screw
98
8
10
9
10
P 7
Please retain product label and instructions for future reference

P 8
Please retain product label and instructions for future reference
Step 14
Parts needed - No. 7 QTY 2
No. 8 QTY 2
No. 9 QTY 2
No. 10 QTY 2
No. 34 QTY 1
Roll out the Felt (No. 34) and use the Roof
Panels (No. 7, 8, 9 & 10) as shown in the
illustration so you can accuartely cut the
felt before tting.
Leave a 100mm space between each panel
and cut through the centre to create
50mm overhang for each strip. Make sure
that there is a 50mm overhang under each
panel
Measure and cut four strips of felt (No. 34)
at 1600x200mm.
Measure and cut one full width strip of felt
(No. 34) at 2600mm long.
Once all the pieces of felt have been cut
keep these to one side whilst you
construct the roof.
1600x200mm
QTY 4
HANDLE
WITH CARE
12
3
4
100mm gap between each panel
50mm overhang
below each panel
50mm overhang
below each panel
50mm overhang
below each panel
2600mm
QTY 1
1
2
3
4
34
Step 15
Parts needed - No. 14 QTY 1
No. 15 QTY 5
Pre drill holes in the underside of
Roof Bearer A (No. 14) and all 5 of
the Roof Bearer B (No. 15) parts
with an oset position of 40 mm
from each of the pointed ends in
the centre of the bearers. These
holes are going to later recieve
60mm screws.
Pre drill
hole
14
15
15
14
SIDE VIEW
UNDERNEATH VIEW
40mm
SIDE VIEW
UNDERNEATH VIEW
Step 16
Parts needed - No. 7 QTY 2
Place both 6ft Roof Panels (No. 7)
on the oor and measure 195mm
from the top of the Framing and
mark the distance on the vertical
framing with a line.
Repeat this step for both roof 6Ft
Roof Panels (No. 7) .
7
195mm

P 9
Please retain product label and instructions for future reference
280mm
Step 17
Parts needed - No. 8 QTY 2
No. 9 QTY 2
No. 10 QTY 2
Place the recently assembled roof
panels (No. 8, 9 & 10) on the oor
and measure 280mm from the top
of the Framing and mark the distance
on all of the veritcal framings with
a line.
If these panels have not been assembled
yet, please refer to step 13.
Repeat this step for both sets of
assembled roof panels (No. 8, 9 & 10).
810
9
Step 18
Parts needed - No. 14 QTY 1
No. 16 QTY 5
Fix the Roof Blocks (No. 16) to Roof
Bearer A (No. 14) using 2x70mm
screws per roof block. Screw up
through the bearer into the block
using the dimensions shown.
**Place tape measure under the
bottom pointed corner and
measure and mark from this
point.
10x70mm Screws
Pre drill
hole
70mm
screw
165 471 1084
165
471
1084
16
16
16
14
16
16

P 10
Please retain product label and instructions for future reference
Step 19
Parts needed - No. 7 QTY 1
No. 14 QTY 1
Place one of the 6Ft Roof Panels
(No. 7) on the oor. Place the main
Roof Bearer A (No. 14) at on the
bevelled end with the pointed
corner meeting the line drawn in
Step 16.
Fix Roof Bearer A (No. 14) to the 6Ft
Roof Panels (No. 7) by using a
60mm screw in the pre drilled hole
that was made in Step 15.
1x60mm Screws
Pre drill
hole
60mm
screw
Position Roof Bearer A
up against the drawn line
and x to 6Ft Roof.
7
7
14
14
SIDE VIEW
VIEW FROM ABOVE
B

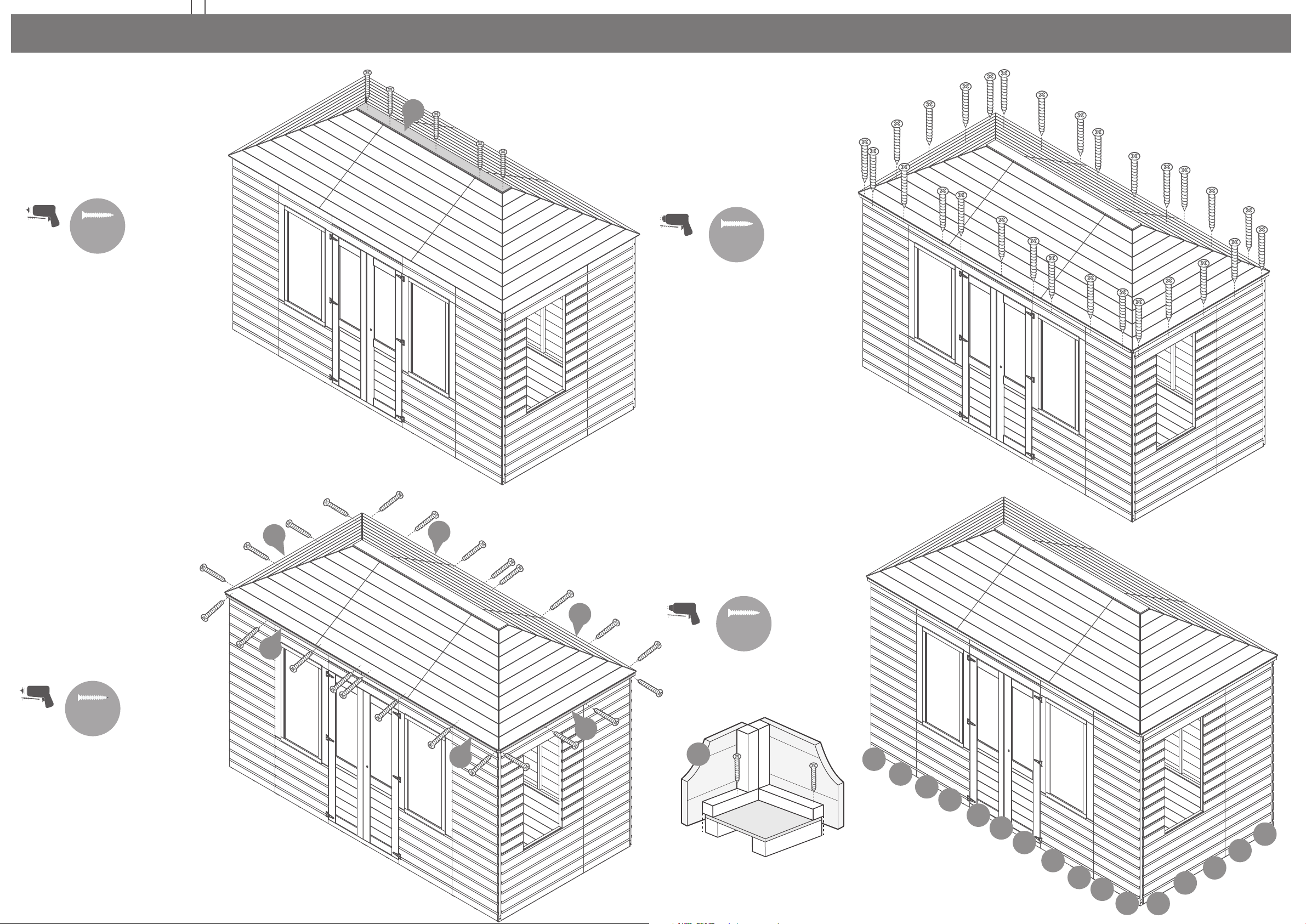

Step 20
Parts needed - No. 7 QTY 2
No. 8 QTY 1
No. 9 QTY 1
No. 10 QTY 1
No. 14 QTY 2
No. 16 QTY 5
*The use of a step ladder is
essential to construct the
roof.*
To construct the Roof,
place the previously assembled
(in Step 19) 6ft Roof Panel (No.
7) and Roof Bearer A (No. 14)
on top of the Summer House
and let the pointed edge on the
other end of the bearer meet
the line drawn (in Step 16) on
the second 6ft Roof Panel (No.
7).
When in position, Use
1x60mm screw to x up
through the previous drilled
hole (in Step 15) of the bearer
into the roof frames. The beve-
led end of the bearer must be
at against the roof.
Once secure, place the
third set of roof panels previ-
ously assembled (in Step 13)
onto the building as shown.
You will secure it in the next
couple of steps.
1x60mm Screws
Pre drill
hole
60mm
screw
A
B
A
B
C
C
16
14
8
10
9
7
7
