Classique CLM28GK User manual
0
User manual for your Classique
28L Built-in Microwave Oven
CLM 2 8 G K
NOTE: This user manual contains important information including safety & installation
points which will enable you to get the most out of your Classique appliance. Please
keep it in a safe place so that it is readily available for future reference.
PRECAUTIONS……………………………………………………………………………….2-7
CLEANING………………………………………………………………………………….………8
MATERIALS YOU CAN USE IN MICROWAVE OVEN …………………….……….9
SETTING UP YOUR OVEN………………………………………………………………...10
INSTALLATION AND CONNECTION …………………………………………………11
INSTALLATION INSTRUCTIONS………………………………………………….…12-14
OPERATION INSTRUCTION…………………………………………………………14-19
TROUBLESHOOTING…………………………………………………………………….…20
CONTENTS
Specifications
Model:
Rated Voltage:
Rated Input Power (Microwave):
Rated Output Power (Microwave):
Rated Input Power (Grill):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
240V~ 50Hz
1100 W
315 mm
1 0 W
28L
Approx.1 kg
595X400X388 mm
45
900 W
8.5
2
(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
CLM28GK
230-
Note: you can find the data plate on the front side of the microwave oven
cavity.
3
WARNING
To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive mi crowave oven
energy when using your appliance, follow basic
precautions including the following:
1. Warning: Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
3. This appliance should only be used by children aged
from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
Children should not play with the appliance. Cleaning and
user maintenance should not be conducted by children
unless they are older than 8 and are supervised.
4. Keep the appliance and its cord out of reach of
children less than 8 years.
6. The oven should be cleaned regularly and any food
deposits should be removed.
7. Read and follow the specific: "PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY" on page 2.
8. When heating food in plastic or paper containers,
keep an eye on the oven due to the possibility of ignition.
IMPORTANT SAFETY INSTRUCTIONS
5.Only use utensils that are suitable for use in the
microwave oven.
4
9. If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes.
Do not store items such as bread, cookies, etc.
inside the microwave oven.
12. Remove wire twist-ties and metal handles from
paper or plastic containers/bags before placing them in
the oven.
13. Install or locate this oven only in accordance with the
installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
15.This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement
or near a swimming pool.
19. The temperature of accessible surfaces may be high
when the appliance is operating. The surfaces are liable
to get hot during use. Keep cord away from heated
surfaces, and do not cover any vents on the oven.
5
20. Do not let cord hang over edge of a table or counter.
21. Failure to maintain the microwave oven in a clean
condition could lead to deterioration of the surface that
could adversely affect the life of the appliance and
22.The contents of feeding bottles and baby food jars
should be stirred or shaken and the temperature
checked before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be taken
when handling the container.
24.Children should be supervised to ensure that they do
not play with the appliance.
25.The appliances are not intended to be operated by
means of an external timer or separate remote-control
system.
26.Accessible parts may become hot during use.
Young children should be kept away.
2A steam cleaner is not to be used.
28.During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
29.Only use the temperature probe recommended for
this oven(for ovens provided with a facility to use a
temperature-sensing probe).
possibly result in a hazardous situation.
30.The microwave oven must be operated with the
decorative door open(for ovens with a decorative door).
The surface of the storage cabinet can get hot.
31.
7.
6
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
32.The microwave oven is intended for heating food
and beverages.
33.You must NOT remove the wave guide cover.
34.You must remove any protective film/labels and wash
the accessories before first use.
35. The interior light bulb can only be replaced by a
technician.
36. Failure to clean the interior regularly could result
in irreversible damage to the interior surfaces that may not
be covered by warranty.
7
To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard:
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this appliance.
WARNING
Electric Shock Hazard:
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short-circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
can result in electric shock.
Improper use of the grounding
extension cord.
2. If a long cord set or extension
cord is used:
8
CLEANING
Be sure to unplug the appliance from the power supply.
1.
Clean the cavity of the microwave oven after use with a slightly
wet cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
6.The exterior of the microwave oven can only be cleaned
with mild detergent and warm water.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Utensil
T
est:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4.
Do
not
exceed
1
minute
cooking
time.
Materials
you
can
use
in
microwave
oven
Utensils
Remarks
Aluminium foil
Shielding
only.
Small
smooth
pieces
can
be
used
to
cover
thin
parts
of
meat
or
poultry
to
prevent
overcooking.
Arcing
can
occur
if
foil
is
too
close
to
oven
walls.
The
foil
should
be
at
least
1
inch
(2.5cm)
away
from microwave oven
walls.
Browning dish
Dinnerware
Glass
jars
Glassware
Oven
cooking
bags
Paper
plates
and
cups
Paper towels
Plastic
Plastic
wrap
Follow
manufacturer’s
instructions.
The
bottom
of
browning
dish
must
be
at
least
3/16
inch
(5mm)
above
the
turntable.
Incorrect
usage
may
cause
the
turntable
to
break.
Microwave-safe
only.
Follow
manufacturer's
instructions.
Do
not
use
cracked
or
chipped
dishes.
Always
remove
lid.
Use
only
to
heat
food
until
just
warm.
Most
glass
jars
are
not
heat
resistant
and
may
break.
Heat-resistant
oven
glassware
only.
Make
sure
there
is
no
metallic
trim.
Do
not
use
cracked
or
chipped
dishes.
Follow
manufacturer’s
instructions.
Do
not
close
with
a
metal
tie.
Make slits
to
allow
steam
to
escape.
Use
for
short–term
cooking/warming
only.
Do
not
leave
oven
unattended
while
cooking.
Use
to
cover
food
for
reheating
and
absorbing
fat. Use with supervision
for short-term cooking only.
Microwave-safe
only.
Follow
the
manufacturer’s
instructions.
Should
be labelled
"Microwave
Safe".
Some
plastic
containers
soften
as
the
food inside
gets
hot.
"Boiling
bags"
and
tightly
closed
plastic
bags
should
be slit,
pierced
or
vented
as
directed
by
package.
Microwave-safe
only.
Use
to
cover
food
during
cooking
to
retain
moisture.
Do
not
allow
plastic
wrap
to
touch
food.
Thermometers
Microwave-safe
only
(meat
and
candy
thermometers).
*UHDVHSURRI 8VHDVDFRYHUWRSUHYHQWVSODWWHULQJUHWDLQPRLVWXUHRUDVDZUDSIRU
SDSHU VWHDPLQJ
9
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
competent person to
carry out any service
or repair operation that
involves the removal of
a cover which gives
protection against
exposure to microwave
energy.
Materials
to
be
avoided
in
microwave
oven
Utensils
Remarks
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
Aluminium tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause arcing and could cause a fire in the microwave oven.
May cause a fire in the microwave oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
SETTING UP YOUR MICROWAVE OVEN
Names
of
Oven
Parts
and
Accessories
Remove the oven and all materials from the carton and oven cavity.
Your microwave oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
A)
Control panel
B) Turntableshaft
C) Turntableringassembly
D) Glass tray
E) Observationwindow
F) Doorassembly
G) Safetyinterlocksystem
F
G
A
C B
ED
Grill Rack ( Only to be used in grill
function and be placed on the glass
tray )
10
Screw A 2
Screw B 1
Bracket 1
T
urntable
Installation
Hub (underside)
Glass tray
Turntable shaft
a.
Never place the
glass tray
upside down. The
glass tray should never be restricted.
b. Both
glass tray
and
turntable ring assembly
must
always be used during cooking.
c.
All food and containers of food must always be
placed on the glass tray for cooking.
d.
If
glass tray
or
turntable ring assembly
cracks or
breaks, contact your nearest authorized service
centre.
Turntable ring assembly
11
Installation and connection
1.This appliance is only intended for domestic use.
2.This oven is intended for built-in use only. It is not intended
for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4.The appliance can be installed in a 60cm wide wall-
5.The appliance is fitted with a plug and must only be
connected to a properly installed earthed socket.
6.The mains voltage must correspond to the voltage
specified on the rating plate.
7.The socket must be installed and connecting cable must
only be replaced by a qualified electrician. If the plug is
no longer accessible following installation, an all-pole
disconnecting device must be present on the installation
side with a contact gap of at least3mm.
8.Adapters, multi-way strips and extension leads must not
be used. Overloading can result in a risk of fire.
The accessible surface may
be hot during operation.
mounted cupboard(at least50cm deep and 85cm off the
floor).
380+2
") $%*
ELECTRICAL CONNECTION
The oven is fitted with a plug and must only be connected to a properly installed
earthed socket. The socket must only be installed and the connecting cable must
only be replaced by a qualified electrician in accordance with the appropriate
regulations. If the plug is no longer accessible following installation, an all-pole
isolating switch must be present on the installation side with a contact gap of at least
3mm. The fitted cabinet must not have a back wall behind the appliance. Minimum
installation height: 85 cm
Note: Do not trap or bend the power cable.
Do not cover the ventilation slots and suction holes.
Installation Instructions
Please Read the Manual Carefully Before Installation

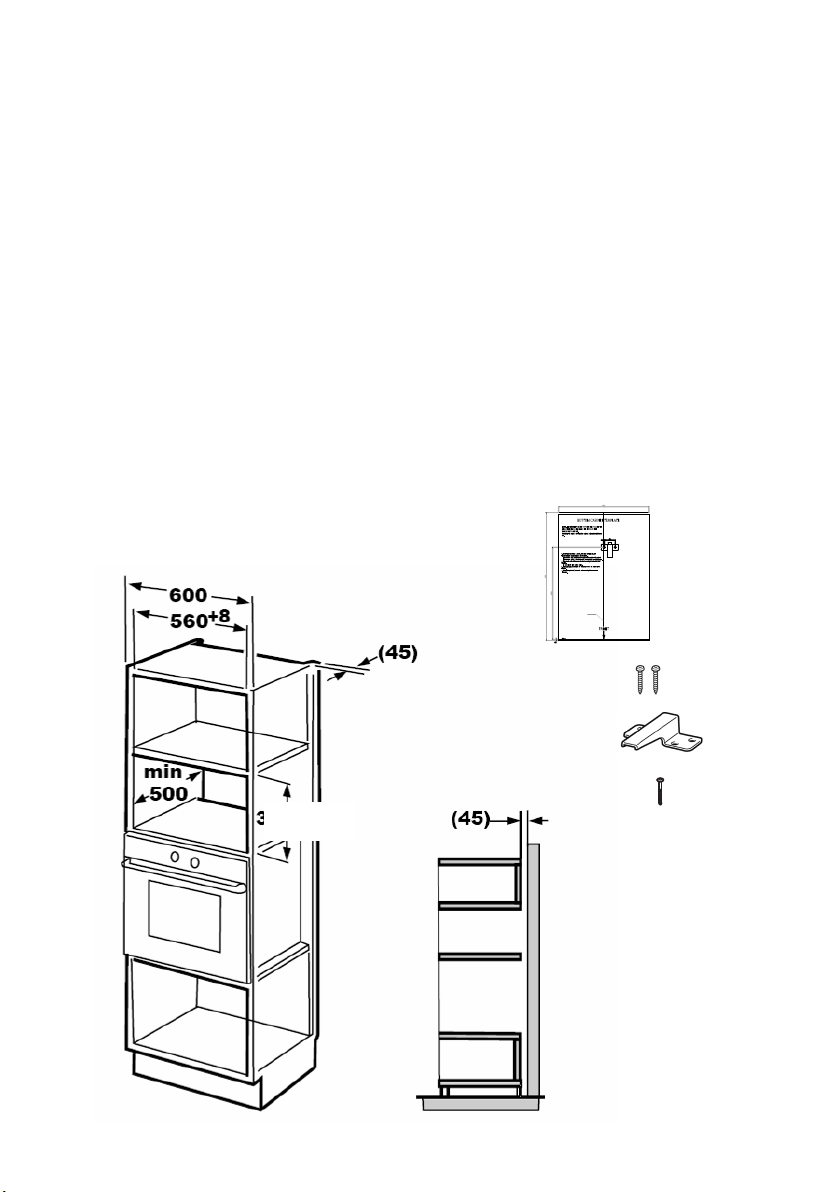

A. Built-in furniture
12
aa
CENTER LINE
FRONT EDGE
LEFT EDGE
TEDGERIGH
Screw A
Bracket
Screw B
Packing list
B. Prep are the cab inet
Read the instruction on the BOTTOM CABINET TEMPLATE,
put the template on the bottom plane of cabinet.
1.
2. Make the marks on the bottom plane of cabinet according to marks "a"
of the template
3. Remove the bottom cabinet template and fix the bracket with screw A.
aa
Bracket
Screw A
Centre line
13
C . Install the microwave oven
4. Install the oven to the cabinet
- Make sure the back of the microwave oven is locked by bracket.
- Do not trap or kink the power cord.
5. Open the door and fix the microwave oven to the cabinet with Screw B at the
bracket
Screw B
Installation Hole
14
OPERATION INSTRUCTION
This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs for better cooking.
installation hole.
3.Grill Cooking
2. Microwave Cooking
When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.
2) Turn " " to adjust the hour figures, the input time should be within 0--23.
3) Press " ", the minute figures will flash.
5) Press " " to finish clock setting. ":" will flash.
Note: 1)
2) During the process of clock setting, if no o ation in 1 minute, the microwave
1) Press " " , the hour figure flash;
Microwave Power Chart
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
1) Press the "
1) Press the " " key once, and "P100" displays.
2) Press " " for times or turn " " to select the microwave
power "P100", "P80", "P50", "P30", "P10" will display in order.
3) Press " " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " " to start cooking.
Microwave Power 80% 50% 30% 10%100%
Display P100 P80 P50 P30 P10
1.Clock Setting
" key once, and " " displays.
" to confirm .
" to start cooking.
time setting should be 0:05- 95:00.)
twice s will
P100
2) Press " " for times or turn " " to select grill function.
3) Press "
4)Turn " " to adjust the grill time. (The
5) Press "
Note: the step quantities for the adjustment time of the coding switch are as follow :
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
The clock function will not work if the clock is not set.
"G" displays.
per
15
Before first use
You should use a mild liquid detergent and a damp cloth on the internal area of the microwave
oven before it is used for the first time. This will help to remove any residue from the
manufacturing process. Also be sure to carefully inspect the appliance to remove any
packaging material from the interior and exterior before use.
oven will go back to the previous status automatically.
s
5. Speedy Cooking
6. Defrost By Weight
7. Defrost ByTime
1) In waiting state, press " " key to cook with 100% power level for 30 seconds.
Each press on the same key can increase 30 seconds. The maximum cooking time
is 95 minutes.
1) Press " " once, the screen will display "dEF1".
2) Turn " " to select the food weight. The range of weight is 100-2000g.
3) Press " " key to start defrosting.
1) Press "
3) Press " " key to start defrosting.
2) Turn " " to select the cooking time.
2) During the microwave, grill and combination cooking and time defrost process,
press " " to increase the cooking time.
3) In waiting state, turn " " left to choose the cooking time directly. After choosing
the time, press " " to start cooking. The microwave power is 100%.
Note: Under the states of auto menu and weight defrost, cooking time cannot be increased
by pressing " "
Note: If half the grill time passes, the microwave oven sounds twice. This is normal. In order to
4.Combination Cooking
1) Press the "
2) Press " " for times or turn " " to select the combination power
"C-1(55%microwave+45%grill)" and "C-2(36%microwave+64%grill)" will display in order.
3) Press " " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " " to start cooking.
" twice, the screen will display "dEF2".
" key once, and " " displays.
P100
.
Note: The default power level is P , and it cannot be changed.30
16
have a better effect of grilling food, you should open the door, turn the food over, close the
door and then press " " to continue cooking. If you do not do the above
then the cycle will continue regardless.
This function activates the buzzer without stopping cooking
8.Multi-Stage Cooking
Two stages can be maximumly set. If one stage is defrosting, it should be put in the first
stage. The buzzer will ring once after each stage and the next stage will begin.
Note: Auto menu cannot be set as one of the stages.
Example: if you want to defrost the food for 5 minutes and then cook with
80%microwave power for 7 minutes, the steps are as follows:
2) Turn " " to adjust the defrost time of 5 minutes;
3) Press " " once;
4) Turn " " to choose 80% microwave power till "P80" display ;
5) Press " " to confirm;
6) Turn " " to adjust the cooking time of 7 minutes;
7) Press " " to start cooking.
(1) Press "
", LED will display 00:00.
(2) Turn " " to enter the correct timer (the maximum cooking time is 95 minutes.)
(3) Press "
" to confirm setting.
(4) When the kitchen time is reached, the clock indicator will go out. The buzzer will ring 5
times.
If the clock has been set (24-hour system), LED will display the current time.
9. Kitchen Timer
once
s
1) Press " " twice, the screen will display "dEF2".
17
Note: The Kitchen time is different from 24-hour system. Kitchen Timer is
a timer.
10. Auto Menu
1) In waiting state, turn " " right to choose the menu from "A-1" to "A-8";
2) Press " " to confirm the menu you choose;
3) Turn " " to choose th food weight;
4) Press " " to start cooking;
5) After cooking finish , the buzzer sounds five times.
The menu chart:
Menu Weight Display
A-2
Meat
A-3
Vegetable
A-5
Potato
A-4
Pasta
A-6
Fish
A-8
Popcorn
200 g
400 g
250 g
350 g
450 g
200 g
300 g
400 g
50g(with 450 ml cold water)
100g(with 800 ml cold water)
200 g
400 g
600 g
250 g
350 g
450 g
1 cup(120 ml)
2 cups(240 ml)
3 cups(360 ml)
50 g
A-1
Pizza
A-7
Beverage
200
400
250
350
450
200
300
400
50
100
200
400
600
250
350
450
1
2
3
50
es
e
18
100 g 100
85 g 85
Table of contents
