CLEBO-HD AB-2316IR User manual

ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
Megapixel HD-SDI
Outdoor Bullet IR Camera
CLEBO-HD AB-2316IR
07022012

PRECAUTIONS
FCC COMPLIANCE
WARNING : Changes or modifications are not expressly approved by the manufacturer.
Do not open or modify.
Do not open the case except during maintenence and installation,
for it may be dangerous and can cause damages.
Do not put objects into the unit.
Keep metal objects and flammable substances from entering the camera.
It can cause fire, short-circuits, or other damages.
Be careful when handling the unit.
To prevent damages, do not drop the camera or subject it to shock or vibration.
Do not install near electric or magnetic fields.
Protect from humidity and dust.
Protect from high temperature.
Be careful when installing near the ceiling of kitchen or a boiler room,
as the temperature may rise to high levels.
Cleaning :
To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
Mounting Surface :
The material of the mounting surface must be strong enough to support the camera.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
Provide reasonable protection against harmful interference. when the equipment is
operated in a residential environment. This equipment generates, uses, and radiates
radio frequency energy; and if it is not installed and used in accordance with the
instruction manual, it may cause harmful interference to radio communications.
3

Table of Contents
Introduction
Installation
Camera OSD Menu and Glossary
Troubleshooting
Specifications
Features
Parts and Descriptions
Dimensions
Included Accessories
Installation
Connecting to Monitor
4
5
6
7
8
9
12-23
24
25
3

FEATURES*
Sony 1/2.8” CMOS Sensor
Highest Resolution 2.1 Megapixels
720P / 1080P Mode selectable
100ft IR Distance
Double Shutter WDR (Wide Dynamic Range) at 15fps Settings
True Day and Night
AGC / BLC / AWB
3D DNR (3D Digital Noise Reduction)
D-Zoom (1~112 level)
HL Mask (High Light Masking)
Mirror Image Control
Programmable Privacy Zone (24) & Motion Detection
White defecet cancellation (DEFECT DET)
12VDC Support Only
Secondary Video-BNC Output
4

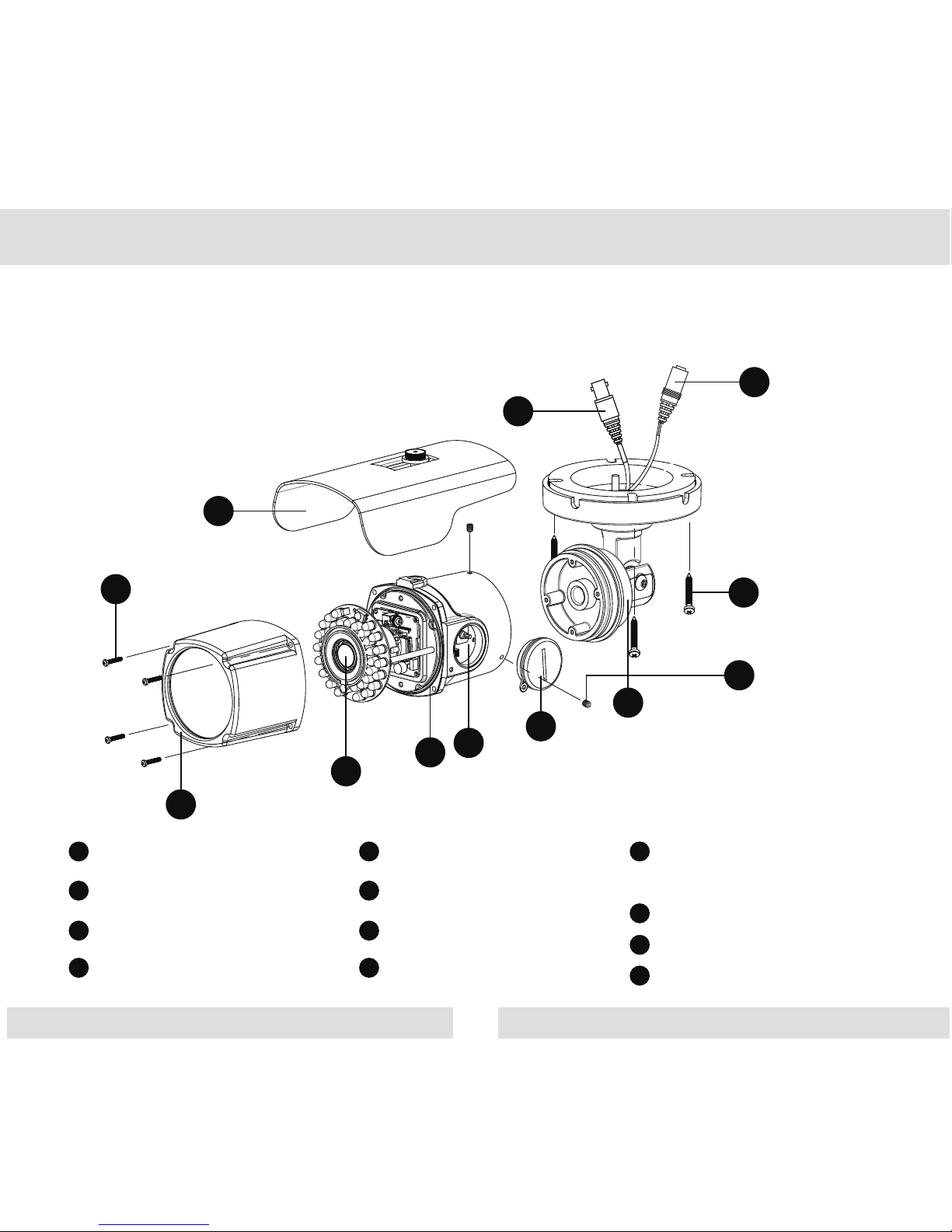

PARTS & DESCRIPTIONS*
5
1
2
8
9
3
45
6
7
10 11
12
1Front Case
2Sunshield
3Lens
4Rear Case
5Control Board
6Con Cap
7Double Arm Bracket
8BNC Jack
9Power Input Connector
Assembly Screw
Fixing Screw
DC 12V only
10
11
Set Screw
12

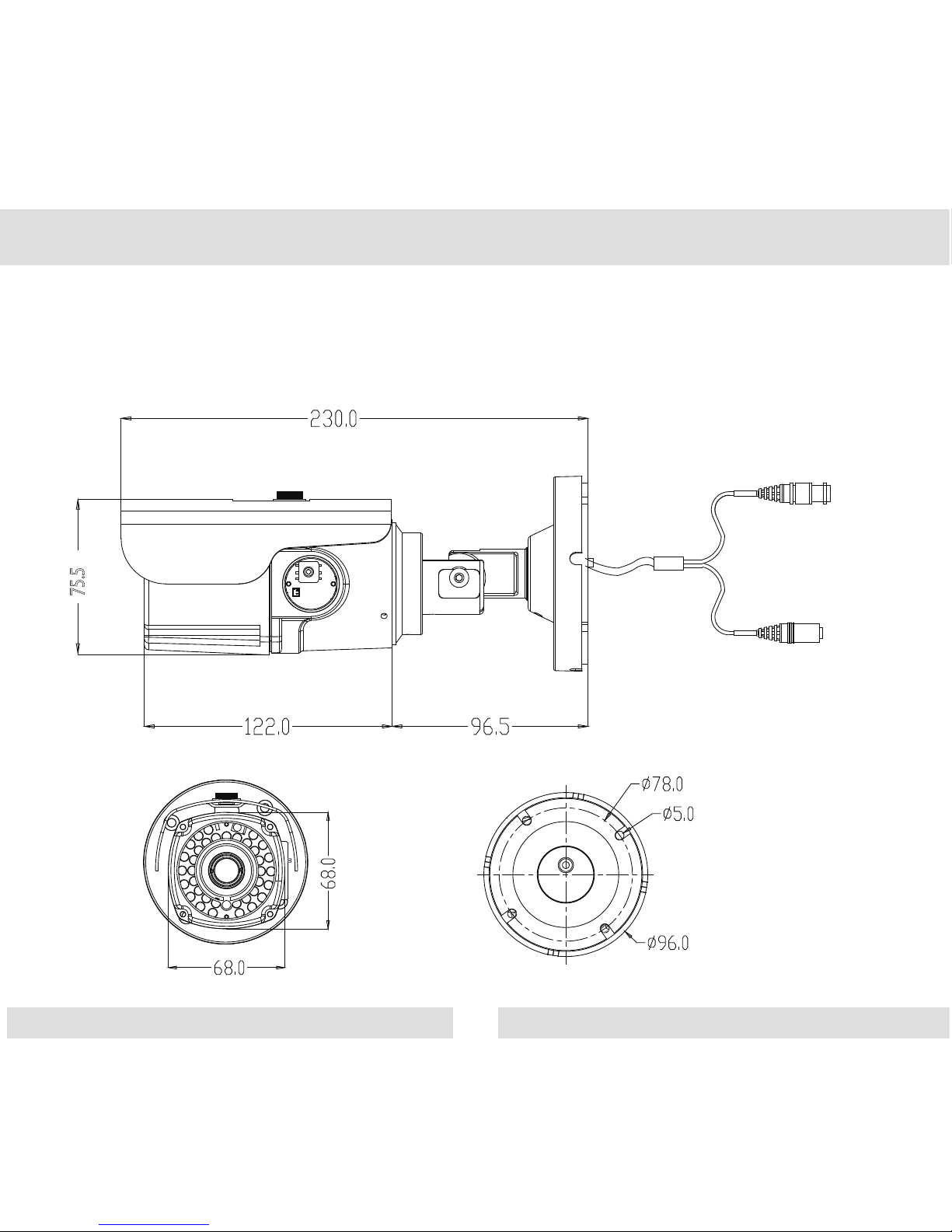

DIMENSIONS *
6
VIDEO(Yellow)
BNC JACK
POWER IN
VCC(Red)

7

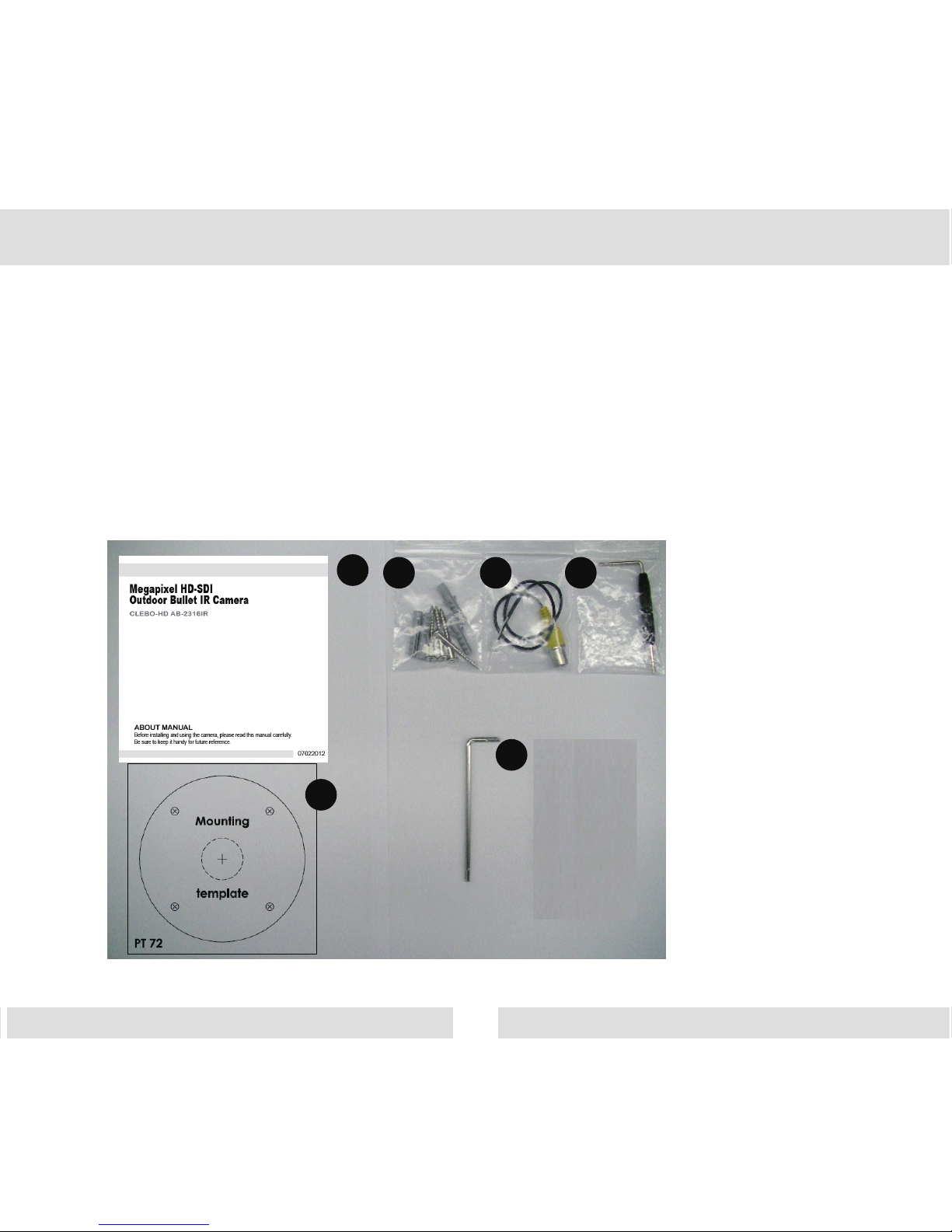

1. User Manual
2. Mounting Template
3. Four(4) Screw and Four(4) Dry Wall Anchors
4. 2nd Video Jack
5. Tool
6. L-Wrench
1
2
3 4 5
6
INCLUDED ACCESSORIES *

8
SURFACE MOUNT INSTALLATION *

9
Power DC12V Video - BNC
HDMI MONITOR
HD-SDI MONITOR
HDMI CONVERTER
CONNECTING TO MONITOR*

10

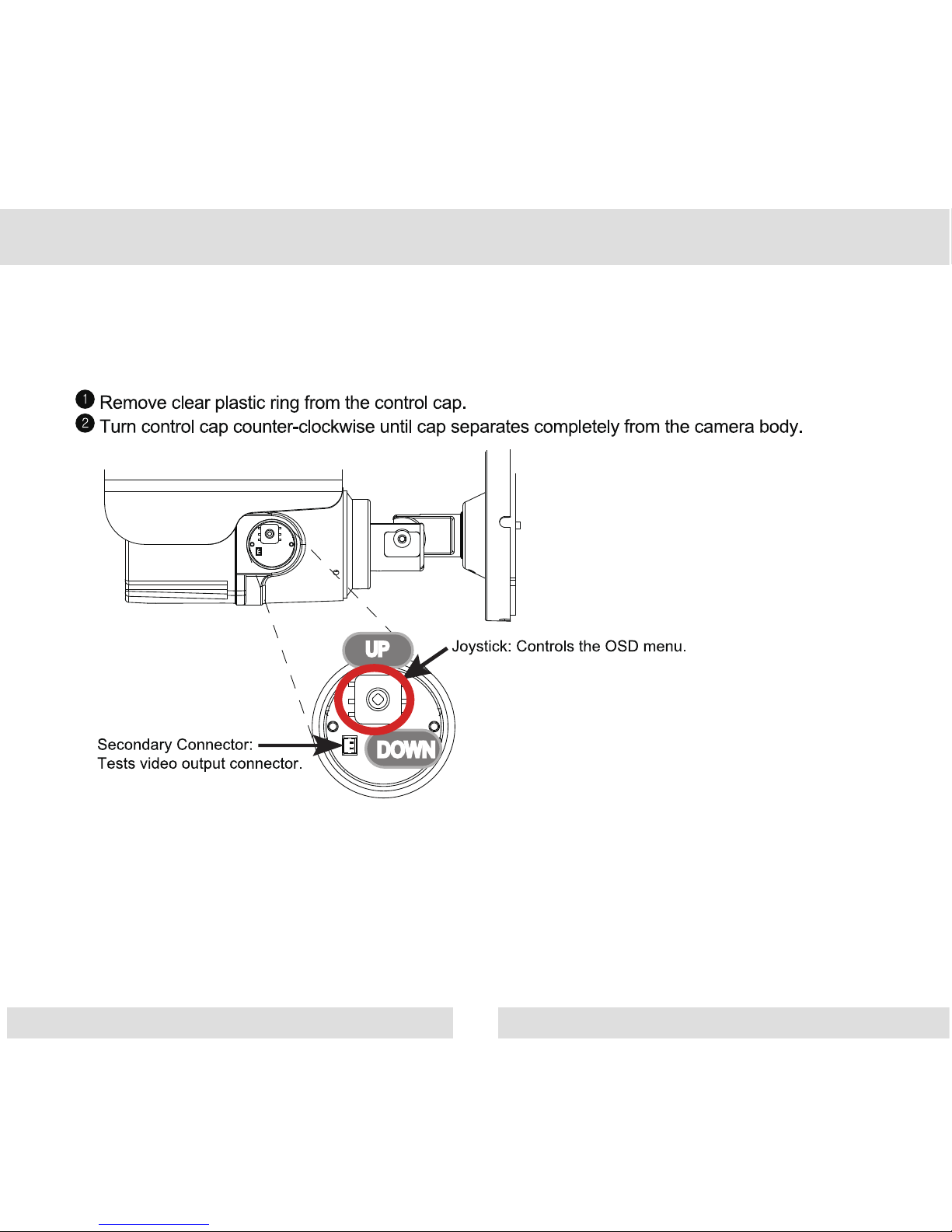

CONTROL BOARD & ADJUSTING LENS*
Adjusting Auto Focus Lens
If pushing the OSD joystick to ‘UP’,
the lens will start zoom-in.
If pushing the OSD joystick to ‘DOWN’,
the lens will start zoom-out.
If you keep pushing the joystick,
zoom in/out will be continuously operated.
When you find the right angle, take off
your finger from the joystick and wait.
The focus will be automatically adjusted.
UP
DOWN

11

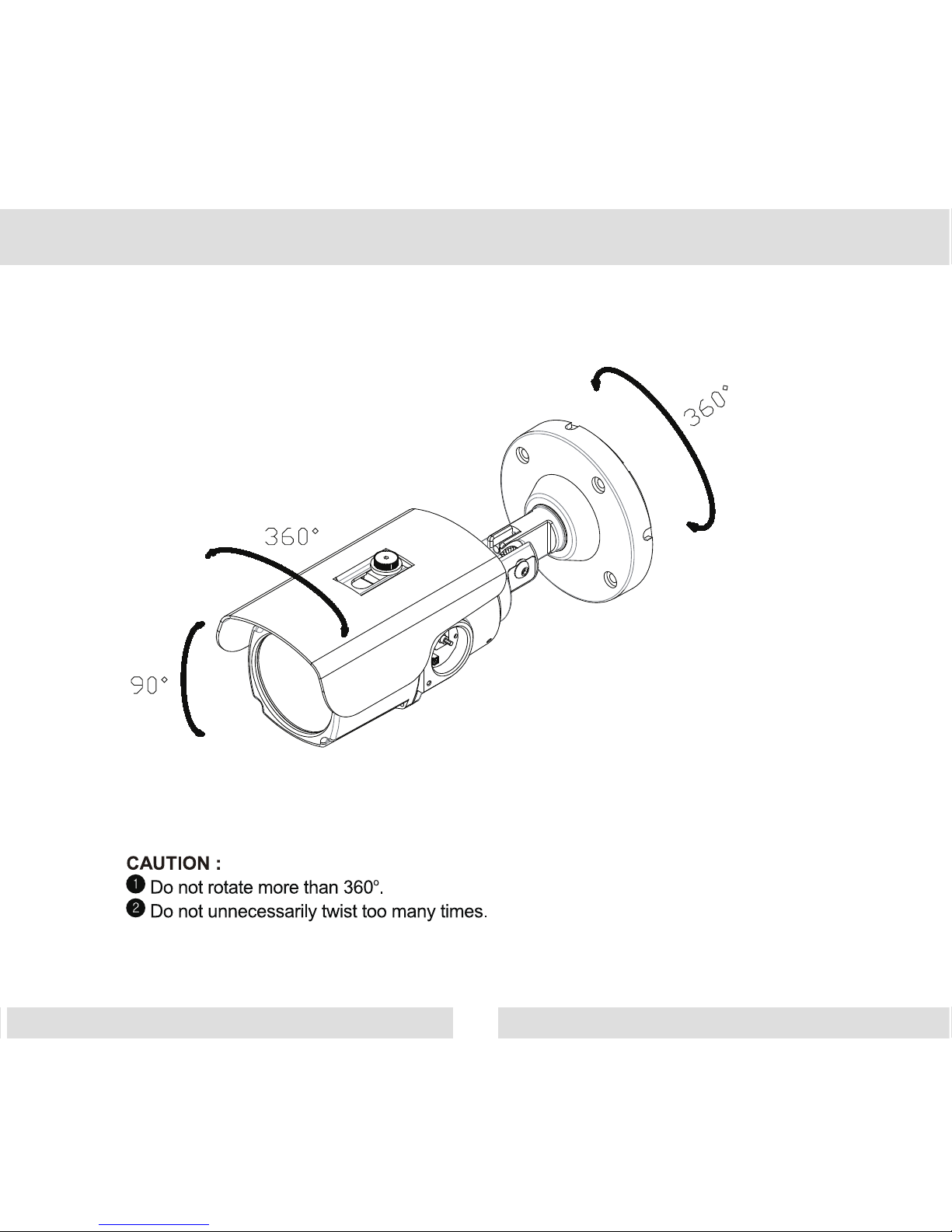

CAMERA SETTING ANGLE*

12
MODULE OSD MAP *
PROPERTY EXPOSURE LENS
FUNCTION IMAGE WDR/BLC
DAYNIGHT SET UP EXIT
CAMERA ID
0~255
TITLE
DISPLAY
NON, ID,, TITLE
PROTOCOL
PELCO-D, NADATEL
BAUDRATE
9600, 2400bps
RETURN
DZOOM
0~112
AWB
AUTO, AUTO_H, AUTO_L, PRESET,
MANUAL, AUTO-ext
PRIVACY
ON, OFF
DNR
OFF, LOW, MIDDLE, HIGH
MOTION
ON, OFF
RETURN
BRIGHTNESS
0~20
SHUTTER
AUTO, MANUAL(Indoor, Deblur120,
Deblur240, Outdoor)
DSS
OFF, x2, x3, x4
AGC
0~20
RETURN
LENS TYPE
MANUAL, DC, AF
MODE
OUTDOOR,INDOOR/FLK,Deblur120,Deblur240
OPTIC ZOOM TELE, WIDE
FOCUS MODE MANUAL, AUTO
FOCUSING FAR, NEAR
TIMER OFF, 1~10min
TDN SYNC OFF, ON
RETURN
CHROMA 0~20
SHARPNESS 0~10
MIRROR ON, OFF
FLIP ON, OFF
E-Edge ON, OFF
HLMASK ON, OFF
CONTRAST LOW, NORMAL, HIGH
HUE CONTROL R-GAIN, B-GAIN
RETURN
DETECT DET ON, OFF
2.0M MODE 1080P, 720P
720P MODE 60/50FPS, 30/25FPS
LANGUAGE ENG, GER, CHN
TDN TEST TEST OFF, TEST ON
FACTORY SET YES, NO
FREQ 60Hz, 50Hz
TYPE DOME, BOX, BULLET
FW_LOCK ON,OFF
RETURN
MAX DR OFF, ON
MODE OFF, BLC, WDR
WDR_WGT 0~9
BLC OSD OFF, ON
BLC POS-X 0~20
BLC POS-Y 0~20
BLC SIZ-X 0~20
BLC SIZ-Y 0~20
RETURN
TDN MODE
AUTO, COLOR, BW, LED
BW to C
0~9
C to BW
0~9
CDS SET
BW Low, BW High
RETURN
EXIT
No Save, Yes Save
RETURN

13
PROPERTY
1 PROPERTY
CAMERA ID
TITLE(1-)
DISPLAY
PROTOCOL
BAUDRATE
RETURN
0
NONE
PELCO-D
9600 BPS
CAMERA ID
You can define the camera ID no. from 0~2550~255
(1-)
DISPLAY
You can select whether displaying Camera ID and TITLE or not.NONE, ID, TITLE
PROTOCOL
If using Nadatel HD-SDI DVR, select the protocol NADATEL.PELCO-D, NADATEL
BAUDRATE
RETURN
9600 is the default. There are 2 choices - 9600 and 2400bps.9600,2400bps
TITLE
After setting the camera ID, you also can make the title
for each camera ID no. Title is total 8 figures with
number and alphabets.
Let me make the title name HDSDI123.
TITLE (1-H) H
TITLE (2-D) HD
TITLE (3-S) HDS
TITLE (4-D) HDSD
TITLE (5-I) HDSDI
TITLE (5-1) HDSDI1
TITLE (6-2) HDSDI12
1 PROPEARTY
CAMERA ID
TITLE(1-H)
DISPLAY
PROTOCOL
BAUDRATE
RETURN
1
HDSDI123
NONE
PELCO-D
9600 BPS

14
EXPOSURE
2 EXPOSURE
BRIGHTNESS
SHUTTER
DSS
AGC
RETURN
AUTO
OFF
10
20
BRIGHTNESS
You can adjust the brightness.
Higher number means brighter images.
The default is 10.
0~20
SHUTTER
It’s a defualt. Shutter speed is adjusted properly.
Shutter speed is selectable from 1/30 ~ 1/60000 but it’s
related to the menu LENS-MODE.
AUTO
MANUAL
DSS (Digital Slow Shutter)
The default is OFF.
If better sensitivity is required, choose x2,3,or 4.
OFF, x2, x3, x4
AGC (Auto Gain Control)
Auto Gain Control automatically adjusts the video gain to enhance picture brightness in
low light conditions.The higher number means better sensitivity.
The default is 20.
0~20
RETURN
SHUTTER
LEVEL
RETURN
1/30
If LENS MODE is OUTDOOR, shutter
speed is adjustable from 1/30~1/60000.
If LENS MODE is INDOOR/FLK, shutter
speed is fxied with 1/30.
If LENS MODE is DEBLUR120, shutter
speed is adjustable from 1/30~1/120.
If LENS MODE is DEBLUR240, shutter
speed is adjustable from 1/30~240.

15
LENS
3 LENS
LENS TYHPE
MODE
OPTIC ZOOM
FOCUS MODE
TIMER
TDN SYNC
RETURN
AF LENS
DEBLUR120
T W
AUTO
OFF 00:00
OFF
LENS TYPE
AF LENS
DC LENS
MANUAL
AF mode is supported for Auto Focus Lens.
DC mode is supported for Auto-iris Varifocal lens.
Manual mode is supported for Manual iris or Fixed
board lens.
3 LENS
LENS TYHPE
MODE
OPTIC ZOOM
FOCUS MODE
TIMER
TDN SYNC
RETURN
DC LENS
DEBLUR120
If DC or Manual mode is selected, some
menu can’t be controlled - OPTIC ZOOM,
FOCUS MODE, TIMER, TDN SYNC.
It offers full range of eletric shutter speed from 1/30~1/60000.
It fixes shutter speed with 1/30. It can avoid color rolling problem.
It offers electric shutter speed from 1/30~1/120.
It offers electric shutter speed from 1/30~1/240.
Zoom Range is adjustable from Tele to Wide.
MODE
OPTIC ZOOM
OUTDOOR
INDOOR/FLK
DEBLUR120
DEBLUR240
Both DEBLUR120, DEBLUR240 helps to avoid motion blur at still image.

16
LENS
When using Auto Focus Lens, Focus can be adjusted automatically.
Also, you can set-up the TIMER to repeat the automatic focusing after finishing the
installation. TIMER is OFF and from 1 ~ 10min.
If you want to adjust the focus manually, select MANUAL mode.
In this case, TIMER menu will be changed to FOCUSING and you can adjust the
focus Far / Near.
OFF is default. If ON is seleced, the camera will adjust the focus when every Day
and Night filter change is operated.
FOCUS MODE
TDN SYNC
RETURN
AUTO
MANUAL
OFF / ON
3 LENS
LENS TYHPE
MODE
OPTIC ZOOM
FOCUS MODE
TIMER
TDN SYNC
RETURN
AF LENS
DEBLUR120
T W
AUTO
OFF 00:00
OFF
3 LENS
LENS TYHPE
MODE
OPTIC ZOOM
FOCUS MODE
FOCUSING
TDN SYNC
RETURN
AF LENS
DEBLUR120
T W
MANUAL
N < - > F
OFF

FUNCTION
17
4 FUNCTION
DZOOM
AWB
PRIVACY
DNR
MOTION
RETURN
0
AUTO
OFF
MIDDLE
OFF
DZOOM
Digital Zoom function (Level 0~112)0~112
AWB
White Balance is automatically adjusted.AUTO
R-GAIN
Color Temperature level.
It has LOW / MIDDLE / HIGH
KELVIN
White Balance is automatically adjusted in the
condition of Color temperature is high.
White Balance is automatically adjusted in the
condition of Color temperature is low.
AUTO_H
AUTO_L
White Balance is fixed with current setting.PRESET
White Balance is manually adjustable.MANUAL
Select AUTO-ext mode when using special lightening
like hallogen.
AUTO-ext
MWB
KELVIN
R-GAIN
B-GAIN
RETURN
MIDDLE
10
10
If MANUAL mode is selected, define the following menu.
It’s to adjust the amount of red in the image.
B-GAIN It’s to adjust the amount of blue in the image.

18
FUNCTION
You can hide some parts of the screen for privacy masking. Total 30 different privacy
zone maskings are available.
PRIVACY
OFF / ON
Digital Noise Reduction reduces the noise/distortion on the screen at night, allowing clear images in low light
conditions. You can sellect OFF / LOW / MIDDLE / HIGH.
OFF/ON
DNR
MOTION
RETURN
PRIVACY
ZONE NO
ZONE OP
X-POS
Y-POS
X-SIZ
Y-SIZ
COLOR
TRANS
RETURN
0~29
ON/OFF
0~57
0~31
0~60
0~34
CYN, GRN, MAG, RED,
BLU, BLK, WHT, YEL
0~4
30 different privacy masking zones are available.ZONE NO
Zone Display. ON/OFFZONE OP
X-Position (0~57)X-POS
Y-Position (0~31)Y-POS
X-Size (0~60)X-SIZ
Y-Size (0~34)Y-SIZ
Privavy Masking Zone Color - CYN, GRN, MAG, RED,
BLU, BLK, WHT, YEL
COLOR
Transparency (0~4)
Lower number means more transperant.
TRANS
*** RESOLUTION
It’s what size of motion area must be displayed on the monitor. Higher
number means smaller size of marking for motion area.
MOTION
RESOLUTION
SENSITIVITY
RETURN
5
5
If selecting ON, define the following menu.
*** SENSITIVITY
The motion is how sensitively detected. Higher number means less sensitive.

19
5 IMAGE
CHROMA
SHARPNESS
MIRROR
FLIP
E-Edge
HLMASK
CONTRAST
COLOR SET
HUE CONTROL
RETURN
7
5
OFF
OFF
OFF
OFF
NORMAL
COLOR1
CHROMA
It’s color chroma level 0~20. The default is 7.0~20
MIRROR
OFF is the default.ON/OFF
FLIP
OFF is the default.ON/OFF
E-Edge
It’s a function of edge enhancement.ON/OFF
HLMASK
It’s to mask the high lux areas. OFF is the default.
If ON is selected, you can adjust the masking level
and color. Level is 0~10. It also has 8 different colors -
BLK, WHT, YEL, CYN, GRN, MAG, RED, BLU
OFF
ON
SHARPNESS
It’s to make the image sharper.
High number means sharper image. The default is 10.
0~10
HLMASK
LEVEL
COLOR
RETURN
10
BLK

20
CONTRAST
COLOR
HUE CONTROL
You can adjust the contrast level - Normal, High, and Highest.
You can adjust the amount of Red color. Level is 50~180.
You can adjust the amount of Blue color. Level is 50~180.
Color 1 is the default. If the color reproduction on the monitor is not satisfied, try
other modes - Color 2 or 3.
There are total 3 different color display Color 1,2, and 3.
NORMAL/ HIGH/ HIGHEST
COLOR 1,2,3
R-GAIN
B-GAIN
HUE CONTROL
R-GAIN
B-GAIN
RETURN
80
80
RETURN
