Planet ICA-3550V User manual

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
User’s Man
1
5 Mega-pixel Outdoor
IR PoE IP Camera
►ICA-3550V

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
2
Copyright
Copyright ©2013 by PLANET Technology Corp. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular
purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove
defective following their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes the
entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from
any defect in the software. Further, PLANET reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation to notify any person of such revision
or changes.
All brand and product names mentioned in this manual are trademarks and/or registered
trademarks of their respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
To assure continued compliance, for example, use only shielded interface cables when connecting to
computer or peripheral devices. Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
( 1 ) This device may not cause harmful interference, and ( 2 ) this device must accept any interference
received, including interference that may cause undesired operation.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order
to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the
antenna shall not be less than 20 cm (8 inches) during normal operation.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However,
special attention must be paid to the dangers of electric shock and static electricity when working with
electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
all times to ensure the safe use of the equipment.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
WEEE Regulation
To avoid the potential effects on the environment and human health as a result of the
presence of hazardous substances in electrical and electronic equipment, end users of
electrical and electronic equipment should understand the meaning of the crossed-out
wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste; they should be
collected separately.
Revision
User’s Manual for PLANET 5 Mega-pixel Outdoor IR PoE IP Camera
Model: ICA-3550V
Rev: 1.00 (July. 2013)
Part No. EM-ICA3550V
3

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
4
Table of Contents
Chapter 1.Introduction ...............................................................................6
1.1 Features ..............................................................................................9
1.2 Product Specifications .................................................................... 11
1.3 Package Contents ............................................................................12
Chapter 2.Basic Setup ...........................................................................13
2.1 System Requirements......................................................................13
2.2 Physical Description ........................................................................14

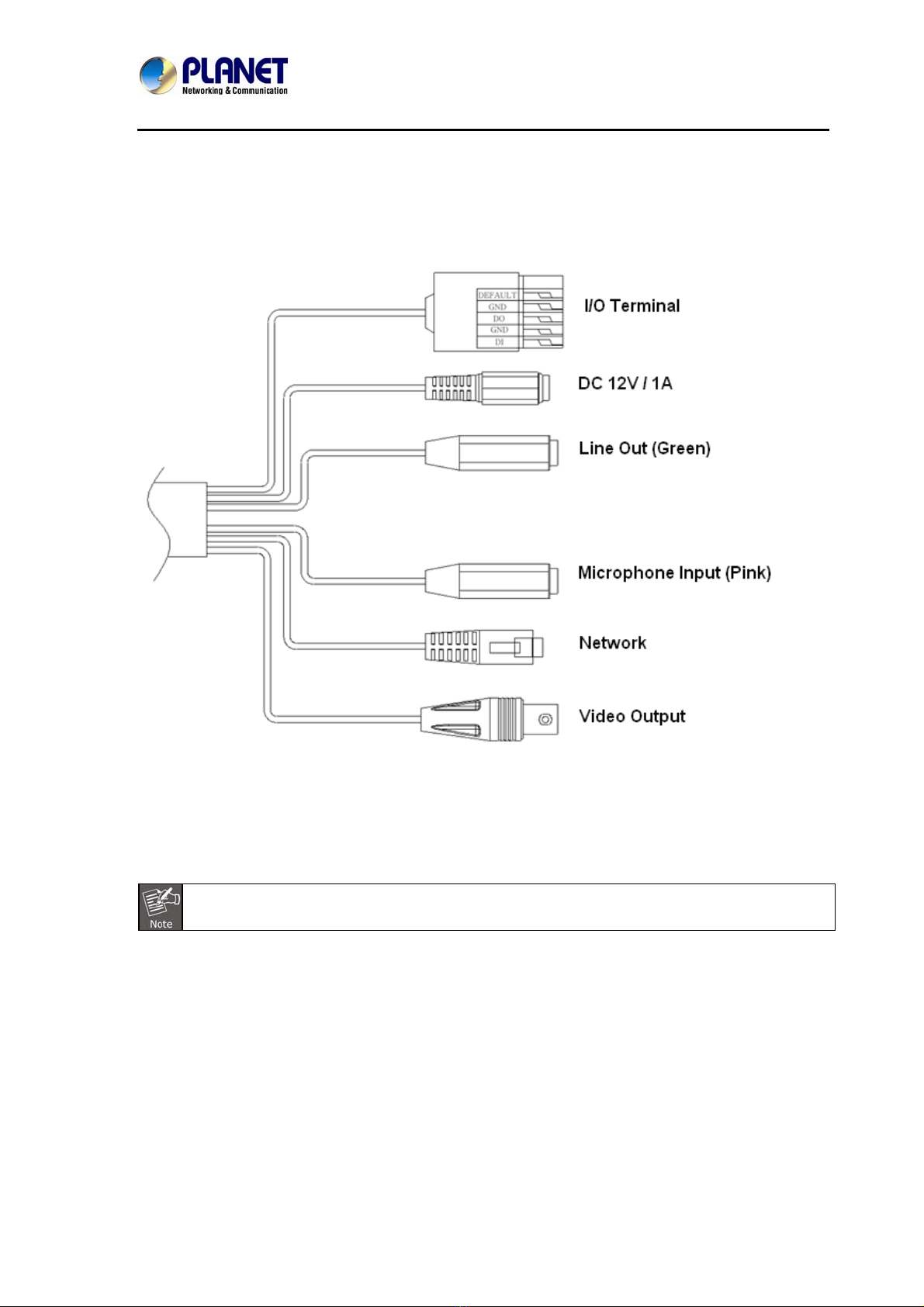

2.2.1 Identification of ICA-3550V cable .............................................14
2.2.2 ICA-3550V I/O Control Instruction............................................16
2.3 Hardware Installation .......................................................................18
2.3.1 Physical Installation ..................................................................18
2.4 Initial Utility Installation ...................................................................20
2.5 Setup ActiveX to use the Internet Camera .....................................24
2.5.1 Internet Explorer 6 for Windows XP.........................................24
2.5.2 Internet Explorer 7 for Windows XP.........................................25
2.5.3 Internet Explorer 7 for Windows Vista .....................................26
Chapter 3.Web-based Management .....................................................27
3.1 Introduction ......................................................................................27
3.2 Connecting to Internet Camera.......................................................27
Chapter 4.Live View ...............................................................................29
Chapter 5.Configuration ........................................................................32
5.1 System ..............................................................................................33
5.1.1 System Information ...................................................................33
5.1.2 User Management......................................................................35
5.1.3 System Update...........................................................................36
5.2 Network .............................................................................................37
5.2.1 IP Setting ....................................................................................37
5.2.2 Advanced....................................................................................40
5.2.3 Using UPnP of Windows XP or Vista........................................45
5.2.3.1 Windows XP ............................................................................45
5.2.3.2 Windows Vista.........................................................................51
5.2.4 PPPoE.........................................................................................53
5.2.5 DDNS ..........................................................................................53
5.2.6 Mail & FTP & SAMBA.................................................................55
5.3 A/V Setting ........................................................................................57
5.3.1 Image Setting .............................................................................57
5.3.2 Video Setting..............................................................................58
5.3.3 Audio...........................................................................................62
5.4 Event List ..........................................................................................63
5.4.1 Event Setting..............................................................................63
5.4.2 Schedule.....................................................................................64
5.4.3 I/O Setting...................................................................................65
5.4.4 Log List.......................................................................................66
5.4.5 SD card .......................................................................................67
5.4.5.1 Playback ..................................................................................67
5.4.5.2 SD Management......................................................................67
5.4.5.3 Copy to PC ..............................................................................68
Appendix A: Factory Default.....................................................................70

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
5
Appendix B: PING IP Address ..................................................................71
Appendix C: 3GPP Access........................................................................72
Appendix D: Planet DDNS Application ....................................................73
Appendix E: Configuring Port Forwarding Manually ...........................74
Appendix F: Troubleshooting & Frequently Asked Questions ............77
Appendix G: Micro SD Card Compatibility ..............................................81

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
Chapter 1. Introduction
Professional, High Resolution, Day and Night Network Camera
PLANET ICA-3550V Network Camera with IR Illuminator is a high resolution camera for round-the-clock
surveillance over IP networks. This camera supports H.264, MPEG-4, and JPEG compression formats and
delivers excellent picture quality in 5 mega-pixel resolutions at 15 frames per second (fps) and full HD

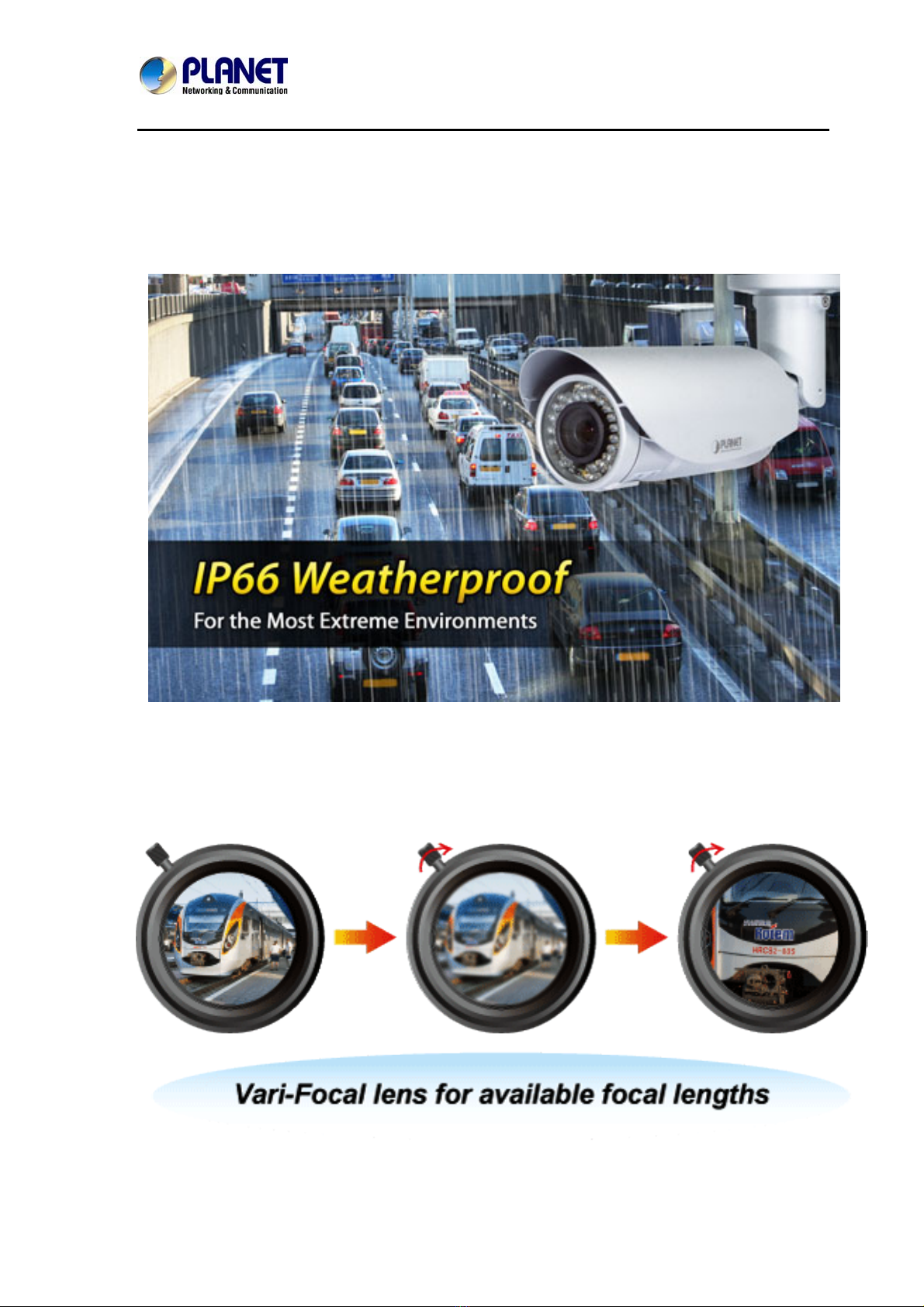

resolutions at 30 fps. For easy management and waterproofing, the ICA-3550V is also equipped with a
mounting bracket that conceals all cables within. The IP66-rated housing protects the camera body against
rain and dust and ensures operation under extreme weather conditions, which makes it an ideal solution
for outdoor applications, such as surveillance of buildings, roads, parking areas, garages, railway stations,
airports and more.
Day & Night Functionality
To adapt to constantly changing lighting conditions, the ICA-3550V comes with a removable IR-cut filter
and built-in IR illuminators, which enable the camera to provide color video when there is sufficient light,
and black/white video in dark conditions. The ICA-3550V is able to maintain clear images 24 hours a day.
6

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V

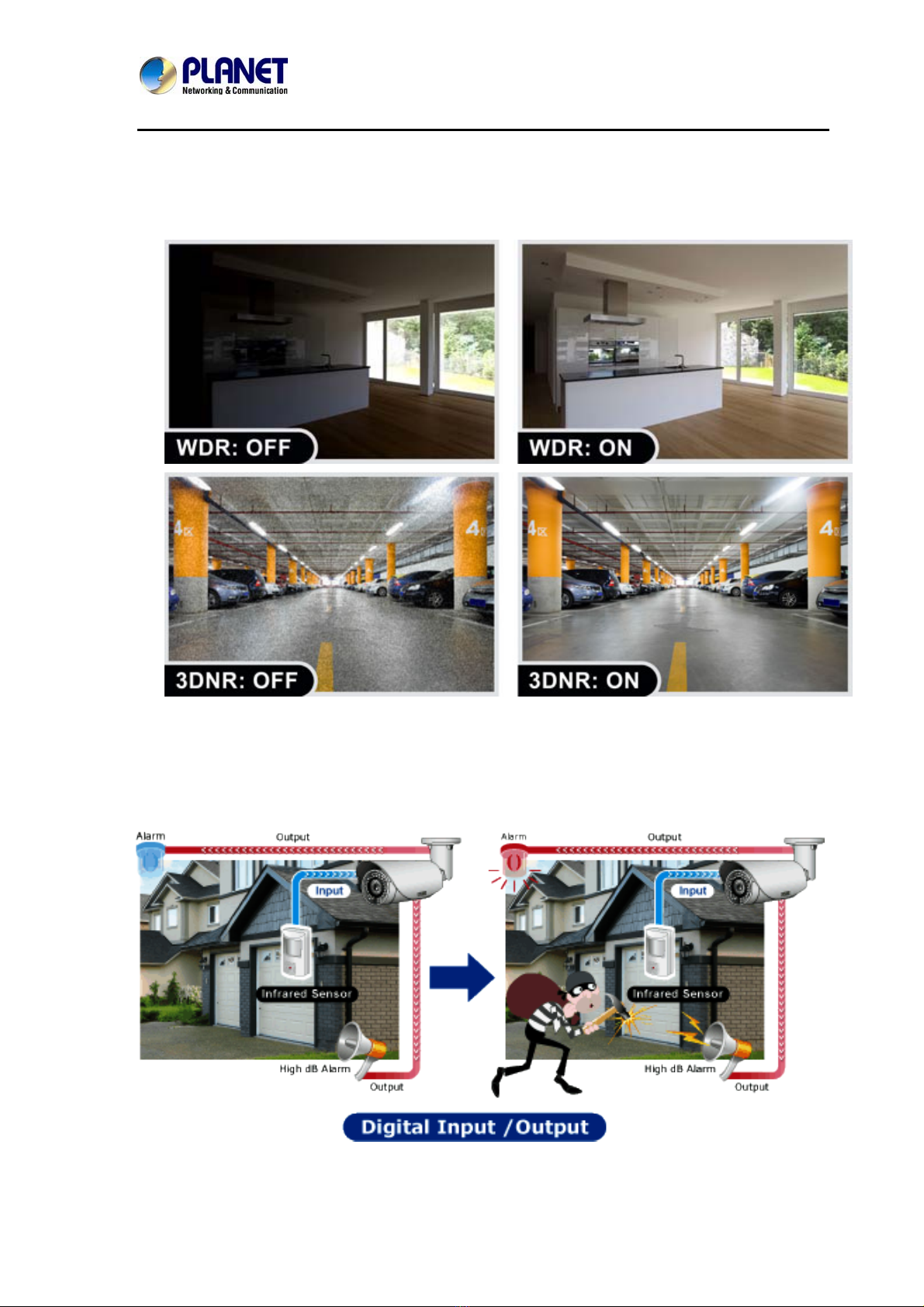

Exceptional Image Quality
Together with powerful image processing attributes like Wide Dynamic Range and 3-Dimensional Noise
Reduction technology, the ICA-3550V is able to filter the intense backlight surrounding a subject and
remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be
produced even under any challenging lighting conditions.
7
Advanced Event Management
The ICA-3550V supports a number of advanced features to enhance surveillance flexibility and event
management capabilities. The advanced features include Auto-Iris for improving the image quality to avoid
overexposure, AV out for two-way audio function, and inputs/outputs for connecting to external devices
such as door sensors and relays to activate light or close doors.

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
Flexible Installation and Power Functionality
The ICA-3550V incorporates IEEE 802.3af Power over Ethernet technology and can be powered from a
PoE Switch via the network, which eliminates the need for power cables and reduces installation costs.
The ICA-3550V is ONVIF-compliant and therefore interoperable with other brands, greatly supporting
users to integrate with their existing surveillance network. In addition, the ICA-3550V includes 64-CH

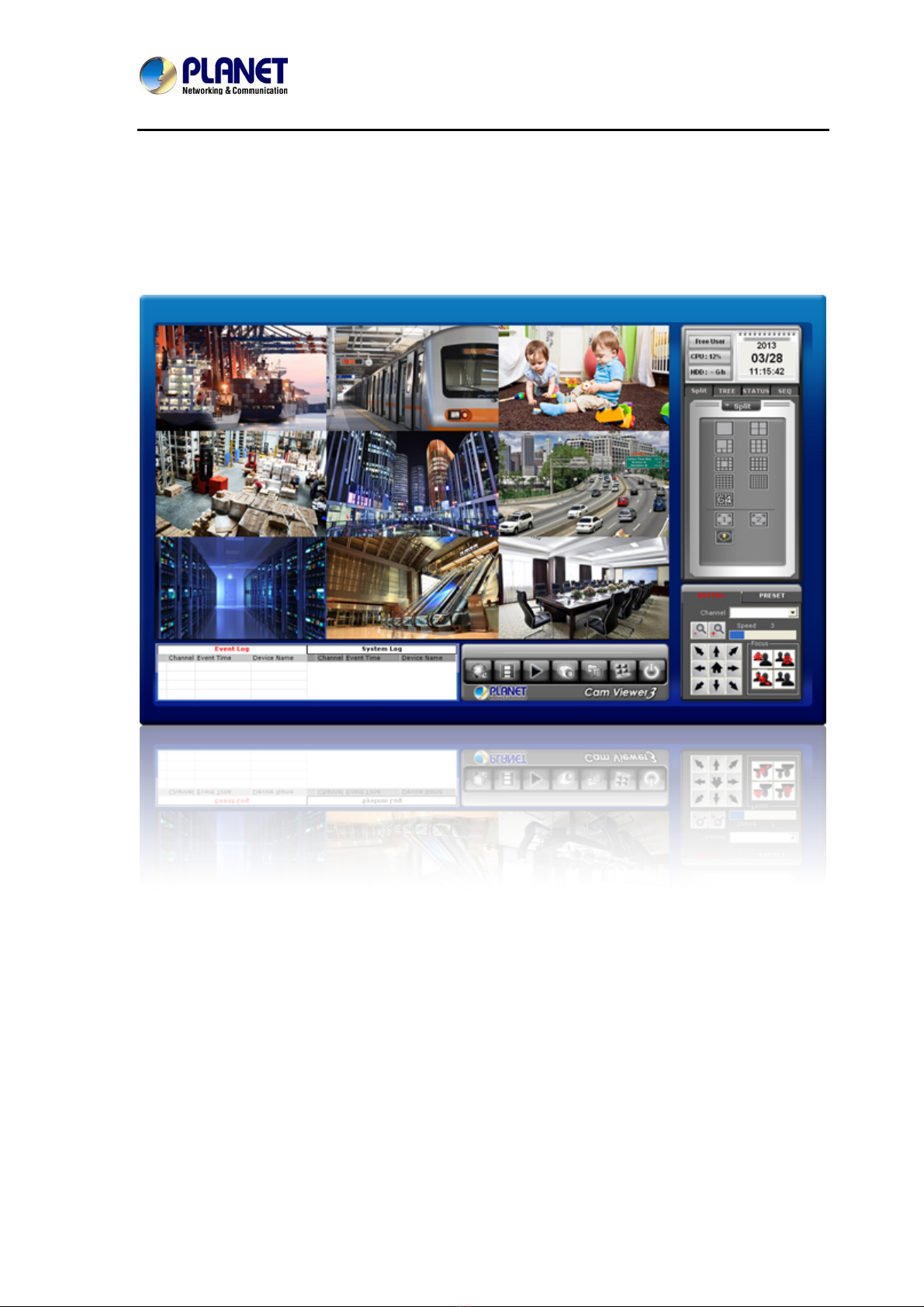

central management software for efficient monitoring. The ICA-3550V is indisputably the top choice for
reliable and high performance surveillance.
Vari-Focal and Camera Tampering Detection Offers the Best Recording Flexibility
The ICA-3550V incorporates the mega-pixel vari-focal Lens, which has the option of selecting a high
millimeter setting for narrow viewing fields or a low millimeter setting for wider viewing fields. The
ICA-3550V features three individually configurable motion detection zones. The camera can record video
or trigger alarms or alerts when camera image is tampered.
8

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
9
.1 Features
rogressive scan CMOS sensor
ight function
¾Video / Audio
/ MPEG-4 and M-JPEG video compression
aseline
-pixel at 15fps
ibility under extremely bright or dark environments
Network and Configuration
erface for flexible deployment
tocols selectable
Easy Installation & Management
to 25 meters
cket for rigorous environment
1
¾Camera
■1/3.2” 5MP p
■3.6~16 mm vari-focal, DC auto-iris lens
■0 lux minimum illumination at F1.2
■Maximum resolution 2592 x 1944
■Removable IR-cut filter for Day & N
■Simultaneous H.264
■Simultaneous multi-stream support
■H.264 high profile, main profile and b
■Max. resolution of 1080P at 30fps and 5 mega
■3DNR to improve picture quality at low Lux
■WDR Enhancement function strengthens vis
■Two-way audio support with enhanced audio quality
¾
■Compliant with IEEE 802.3af PoE int
■Auto MDI/MDI-X supported
■Supports IPv6 in addition to IPv4
■RTSP / UPnP / 3GPP / HTTPS pro
¾
■ONVIF compliant for interoperability
■Built-in 35 IR illuminators, effective up
■IP66 outdoor classifications with cable management bra

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
■Built-in Samba client for NAS
10
plications
rted
and alarms
■3GPP for 3G mobile remote ap
■Micro SD card local video recording suppo
■Digital Input/Output for integration with sensors
■Cam Viewer 3 central Management software supported

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
11
1.2 Product Specifications
Model ICA-3550V
Camera
Image Device 1/3.2” 5 mega-pixel progressive scan CMOS Sensor
Lens
Vari-focal 3.6~16 mm, DC auto-iris
Mechanical IR-cut filter
Angle of view : horizontal: 27.31 ~ 75.24 degrees / vertical: 19.09 ~
54.16 degrees
Min Illuminator 0 Lux @ F1.2
IR Illumination LED IR LED*35, 850nm
Built-in IR illuminators, effective up to 25 meters
Effective Pixels 2592 x 1944 pixels
Video Encoder H.264 / MPEG-4 / M-JPEG
Video Profile
H.264: 2592 x 1944 / 1080p / 720p / QXGA / UXGA / 1280 x 960 / VGA /
QVGA / QCIF
M-JPEG: 2592 x 1944 / 1080p / 720p / QXGA / UXGA / 1280 x 960 /
VGA / QVGA / QCIF
MPEG4: VGA / QVGA / QCIF (Only for 3GPP)
Frame Rate 5MP Up to 15fps
Full HD Up to 30fps
Image Setting Brightness, sharpness, contrast, AGC, night mode
Text, time and date overlay
Streaming Simultaneous multi-profile streaming
M-JPEG streaming over HTTP
Supports 3GPP mobile surveillance
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG4 / H.264)
Audio
Audio Streaming Two-way audio
Audio Encoder RTSP:G.711 / G.726
3GPP:AMR
Microphone External microphone input
Audio Output Phone jack
Network and Configuration
Network Standard IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
Supported Protocols
IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE
802.1X, RTSP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP,
UPnP, 3GPP, SAMBA, Bonjour
Security
Password protection, IP address filtering, HTTPS
encrypted data transmission, 802.1X port-based
authentication for network protection, QoS/DSCP
Users 10 simultaneous unicast users

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
System Integration
Application Programming
Interface
Open API for software integration
SDK
Alarm Triggers Intelligent video motion detection and external input
3-zone video motion detection
Alarm Events
File upload via FTP, email and SAMBA.
External output activation
Configurable Pre/Post alarm buffering
General
Power Supply 12V DC, 1A
IEEE 802.3af Class 0
Power Consumption DC 12V Max: 6.48W(IR On); 4.2W(IR Off)
PoE Max: 8.16W (IR on); 5.28W(IR Off)
Housing Weather-proof IP66-rated housing
Operating Temperature -20 ~ 50 degrees C
Operating Humidity 20 ~ 80% (non-condensing)
Weight 1062g
Dimensions (Φx L) 83mm x 180 mm
Emission CE, FCC
Connectors
10/100 Mbps Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input , 1 output and factory default reset
External mic input
Audio out
Micro SD/SDHC card (max 32GB, class 6)
Composited video out
1.3 Package Contents
The package should contain the following:
ICA-3550V x 1
Power Adapter x 1
Screw Package x 1
Female to Female RJ-45 Connector x 1
User’s Manual CD x 1
Quick Installation Guide x 1
1. If any of the above items are missing, please contact your dealer immediately.
2. Using the power supply that is not the one included in the Internet Camera packet will
cause damage and void the warranty for this product.
12

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
Chapter 2. Basic Setup
This chapter provides details of installing and configuring the Internet camera
2.1 System Requirements
Network Interface 10/100Base-TX Ethernet
Monitoring System Recommended for Internet Explorer 8.0 or later
System Hardware
(Suggested)
· CPU: Intel Core i3-530
· Memory Size : 2048 MB (1024 MB or above Recommended )
· VGA card resolution : 1920 x 1200
· VGA card memory : 512 MB or above
System Hardware
(Minimum)
· CPU: Intel C-2.8G
· Memory Size : 512 MB
· VGA card resolution : 1280 x 1024
· VGA card memory : 64 MB
The listed information is minimum system requirements only. Actual requirement will vary
depending on the nature of your environment.
13

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
2.2 Physical Description
2.2.1 Identification of ICA-3550V Cable
1. RJ-45 LAN socket: Connect to PC or Hub/Switch.
For connection to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling, this Ethernet port built N-Way
protocol can detect or negotiate the transmission speed of the network automatically. Please use CAT-5
cable to connect the Network Camera to a 100Mbps Fast Ethernet network switch or hub.
2. Power Jack: The input power is DC 12V.
ONLY use package power adapter supplied with the Internet. Otherwise, the product may be
damaged.
3. I/O Control Instruction
I/O terminal connector is used for such applications as motion detection, event triggering and alarm
notifications
4. Video Output
The Internet camera also provides composite video output. User can use BNC video cable to connect the
internet camera with a TV monitor or VCR.
5. MIC in (audio in)
Connect a microphone to the network camera.
6. Line out (audio out)
14

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
15
Connect a loud speaker to the network camera. This is for voice alert and two-way audio.

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
2.2.2 ICA-3550V I/O Control Instruction
1) Please connect the GND & DO pin to the external relay (buzzer) device.
2) Please connect the GND & DI pin to the external trigger device.
3) I/O PIN definition
zGND (Ground): Initial state is LOW
zDO (Digital Output): DC 5V
zDI (Digital Input): Max. 50mA, DC 5V
4) I/O Setup
zClick I/O Setting from the system setup page via IE, and check “Out1” to
enable I/O signal.
16

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
5) Output Test
After the external input and output hardware is installed, you can use the
"Relay Out" button on the live video page to test if DO / Relay Out works.
zOn/Off Switch mode:
Click "ON" and the camera will trigger the external output devise for
10 seconds. For example, your alarm buzzer will continuously ring for
10 seconds. After 10 seconds the buzzer stops ringing, or you can manually
break off the output signal by clicking "OFF".
zTime Switch mode:
Click "Pulse" and the camera will trigger the external output devise for
several seconds; the duration length is according to the "interval" setting in Output
Setting.
Relay out function needs extra purchase relay box. Relay out box connected
to I/O terminal connector will provide relay out function with ICA-3550V.
17

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
2.3 Hardware Installation
2.3.1 Physical Installation
1. Connect an Ethernet cable
Connect the LAN cable on the camera to the network device (hub or switch).
If there is an IEEE802.3af PoE switch in your network, you can connect the camera LAN cable to
this PoE switch to obtain power. The power adapter is unnecessary when Internet camera is
connected to a PoE switch.
2. Attach the power supply
Plug the power adapter into a power source. After power is on, the camera will start to operate.
1. Only use the power adapter supplied with Internet camera. Otherwise, the product may
be damaged.
2. The power adapter is unnecessary when Internet camera is connected to a PoE switch.
Otherwise, the product may be damaged when Internet camera is connected to a PoE
switch and power adapter simultaneously.
3. Attach BNC connector
Connect the video BNC connector to a monitor set if necessary and check camera viewing angle
and focus.
4. Attach speaker to camera (optional)
If user needs not only video stream but also audio stream, then the speaker should be attached to
the camera.
18

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
5. PoE (Power over Ethernet)
Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure.
It enables power to be provided to the network device, such as an IP phone or a network camera,
using the same cable as that used for network connection. It eliminates the need for power outlets
at the camera locations and enables easier application of uninterruptible power supplies (UPS) to
ensure 24 hours a day, 7 days a week operation.
19

5 Mega-pixel Outdoor IR PoE IPCamera
User’s Manual of ICA-3550V
2.4 Initial Utility Installation
This chapter shows how to quickly set up your H.264 camera. The camera is with the default settings.
However, to help you find the networked camera quickly the windows utility PLANET IP Installer can
search the cameras in the network that will help you to configure some basic setting before you start
advanced management and monitoring.
1. Insert the bundled CD into the CD-ROM drive to launch the auto-run program. Once completed, a
welcome menu screen will appear.
2. Click the “PLANET IPInstaller II” hyperlink; you will see the dialog box as shown below.
If the welcome screen does not appear, click “Start” at the taskbar. Then, select “Run” and type
“D:\Utility\PLANETIPinstaller\PLANETIPinstaller.exe”, assume D drive is your CD-ROM drive.
When you install the camera in a LAN environment, you may execute PLANET IP Installer to discover
camera’s IP address and set up related parameters in the camera.
When you installed the Camera on a LAN environment, you have two easy ways to search your
Cameras by PLANET IP Installer or UPnP discovery. Here is the way to execute PLANET IP Installer to
discover Camera’s IP address and set up related parameter in a Camera.
Search and Configure Network
1. OS: Windows XP SP2 or above. If the following “Windows Security Alert” pops up, please click
“Unblock”.
20
