Clinton Electronics ce-x109 User manual

1
High Resolution Built-in Lens Color Camera
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
◆ Do NOT use power sources other than those specified.
◆ Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and
should conform to all local codes.

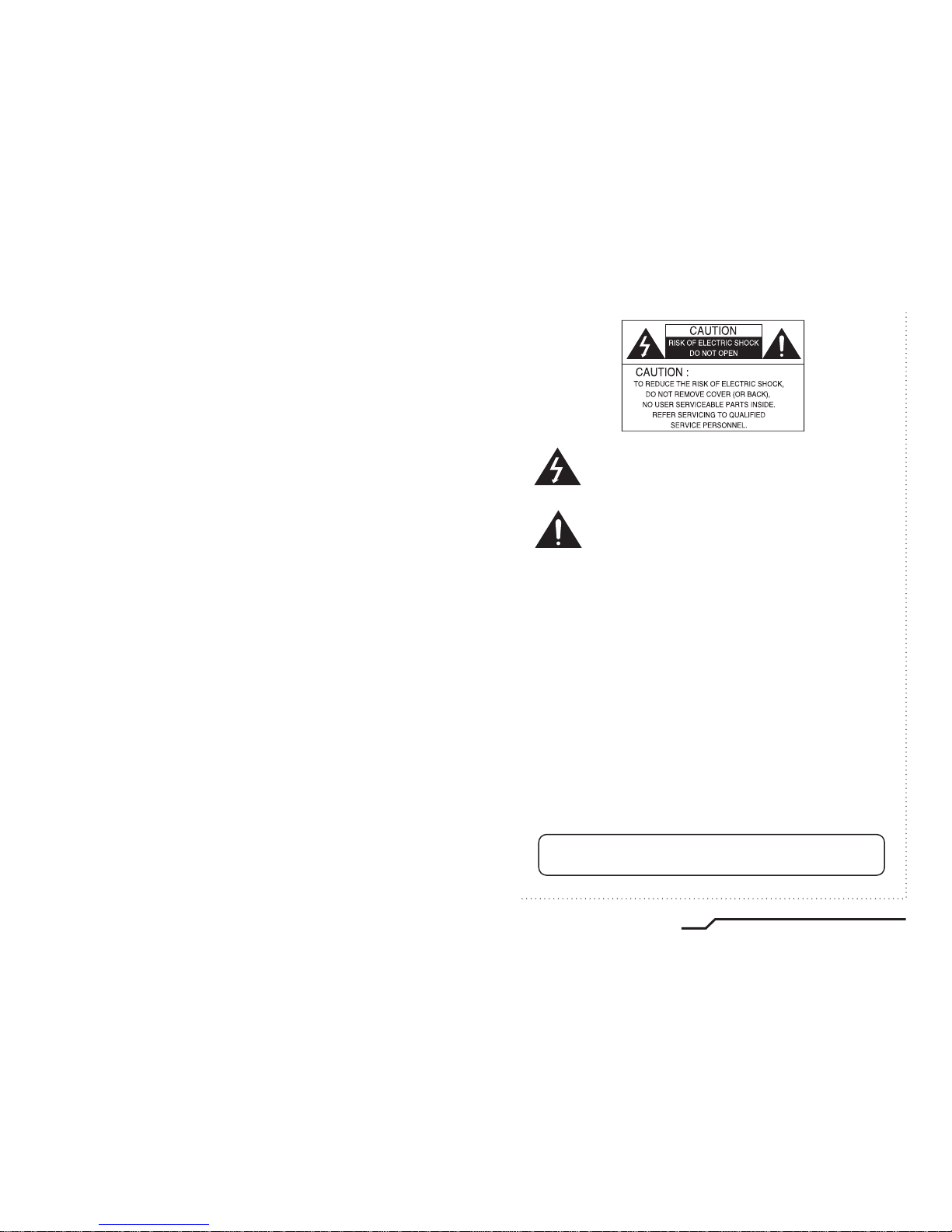

The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:

2
High Resolution Built-in Lens Color Camera
3
High Resolution Built-in Lens Color Camera
■Contents
Camera Operation 12
■Settings 13
■EXIT 25
ㆍLENS 14
ㆍSHUTTER 16
ㆍWHITE BALANCE 17
ㆍ BLC (Back Light Compensation) 18
ㆍAGC (Auto Gain Control) 19
ㆍADJUST 20
ㆍFUNCTION 21
- CAMERA ID 21
- DAY & NIGHT 22
- MIRROR 23
- MOTION DETECTION 23
- PRIVACY 24
- GAMMA 24
- LANGUAGE 25
- RESET 25
- RETURN 25
Specifications 28
Troubleshooting 26
Features
Warnings and Precautions
Names and Functions of Parts
■ Front
■ Top
■ Rear
4
5
8
8
9
10
Installation
■ Connecting to a monitor
■ Connecting to power
11
11
11

4
High Resolution Built-in Lens Color Camera
5
High Resolution Built-in Lens Color Camera
■Features
Warning ■
The camera requires periodic inspection.
Contact an authorised technician to carry out the inspection.
Stop using your camera when you find it malfunctioning.
If the camera emits smoke or is unusually hot for a long period,
a fire may be caused.
Do not Install the camera on a surface that can not support it.
If the camera is installed on an inappropriate surface, it may fall
and cause injury.
Do not hold plug with wet hands.
It could cause an electric shock.
Do not dis-assemble the camera.
It may result in an electric shock or other hazards.
Do not use the camera close to a gas or oil leak.
It may result in a fire or other hazards.
Horizontal Resolution of 540 TV
Lines
Clear image quality has been achieved by
employing a SONY CCD with 410,000
(effective) pixels, which provides a
horizontal resolution of 540 TV lines.
PRIVACY Function
The PRIVACY function conceals the areas
not required to appear on the image.
High Sensitivity
The built-in high sensitivity SONY COLOR
CCD enables a clear image even at 0.15Lux
Programmable GAMMA Processing
Controlled by OSD Menu
The camera functions are controlled by selecting
text displayed on the monitor screen.
Additional Functions
MOTION DETECTION, MIRROR,
SHARPNESS and COLOR ADJUST
functions are also available.
Electronic IRIS
The electronic IRIS function enables
continuous automatic control of the
shutter between 1/50(1/60)~1/100,000 seconds.
Auto Iris Vari-focal Built-in Lens
DC Auto Iris Vari-focal Lens is built in.
Fashionable Design
The most modernized and simple design
of the camera will go well with the place
inquiring good appearance.
DAY & NIGHT
This camera has a function that automatically
selects the mode that is appropriate for daytime
or night-time conditions. The COLOR mode
operates in daytime conditions to provide optimum
colors, and BW mode operates in nighttime
conditions to enhance the definition of the image.
DNR (Digital Noise Reduction)
The amount of low illuminance noise has been
significantly reduced, and the signal-to-noise
ratio (S/N ratio) as well as horizontal resolution
have been improved, resulting in a clear and
sharp image display even in the dark.

6
High Resolution Built-in Lens Color Camera
7
High Resolution Built-in Lens Color Camera

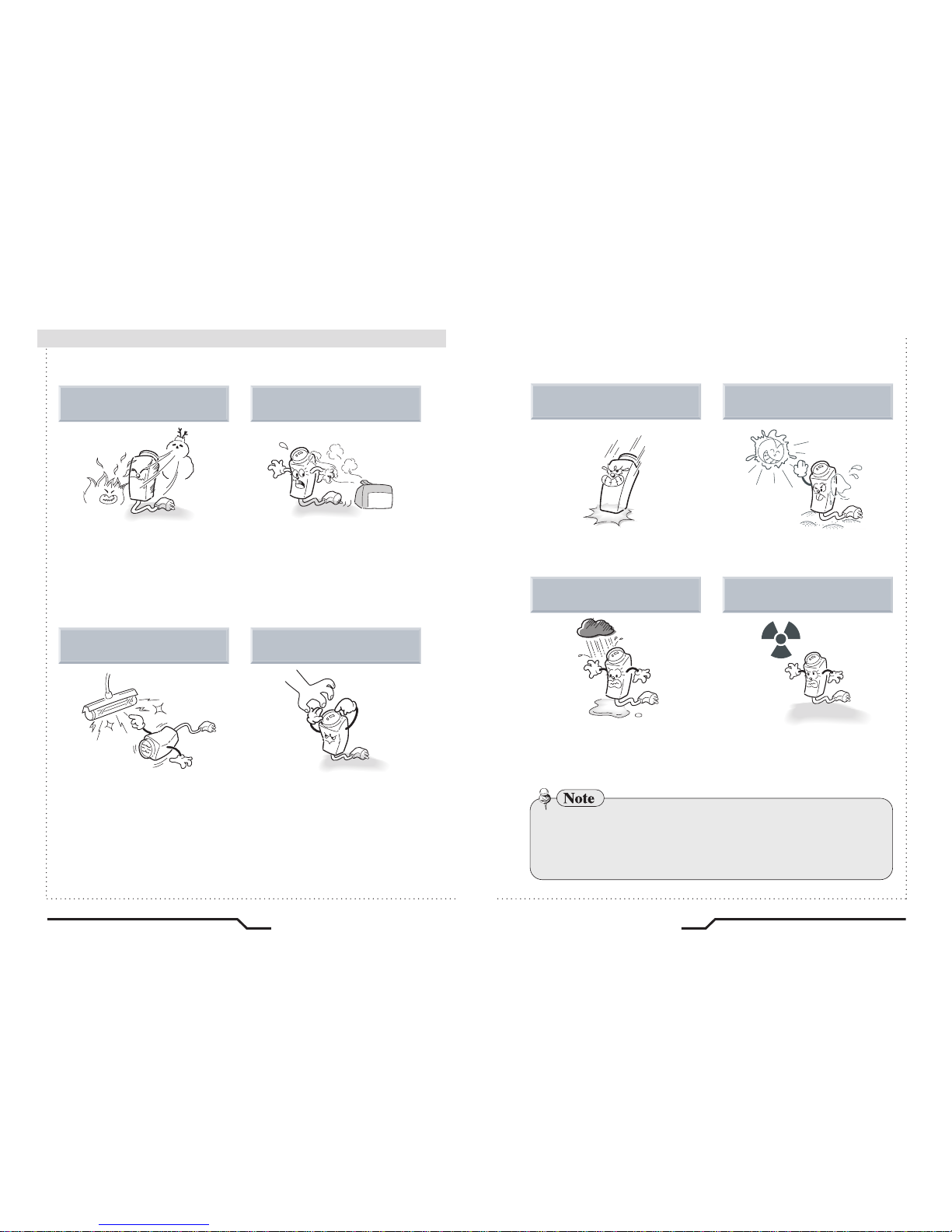

■Precautions
Do not install the camera in
extreme temperature conditions.
Do not install the camera under
unstable lighting conditions.
Do not touch the front lens of the
camera.
Only use the camera under conditions
where temperatures are between
-10˚C and +50˚C. Be especially
careful to provide ventilation when
operating under high temperatures.
It can cause the image quality to be
poor.
Severe lighting change or flicker can
cause the camera to work improperly.
This is one of the most important parts of
the camera. Be careful not to leave
fingerprints on the lens cover.
Do not install or use the camera in an
environment where the humidity is high.
ㆍIf the camera is exposed to spotlight or an object reflecting strong light,
smear or blooming may occur.
ㆍPlease check the power supply satisfies the normal specification before
connecting the camera.
It can cause malfunctions to occur.
If it gets wet, wipe it dry immediately.
Liquids can contain minerals that
corrode the electronic components.
If exposed to radioactivity the CCD
will fail.
It can damage the CCD.
Do not drop the camera and protect
it from physical shocks.
Do not expose the camera to rain
or spill beverage on it.
Do not expose the camera to
radioactivity.
Never keep the camera pointed
directly at strong light.

8
High Resolution Built-in Lens Color Camera
9
High Resolution Built-in Lens Color Camera

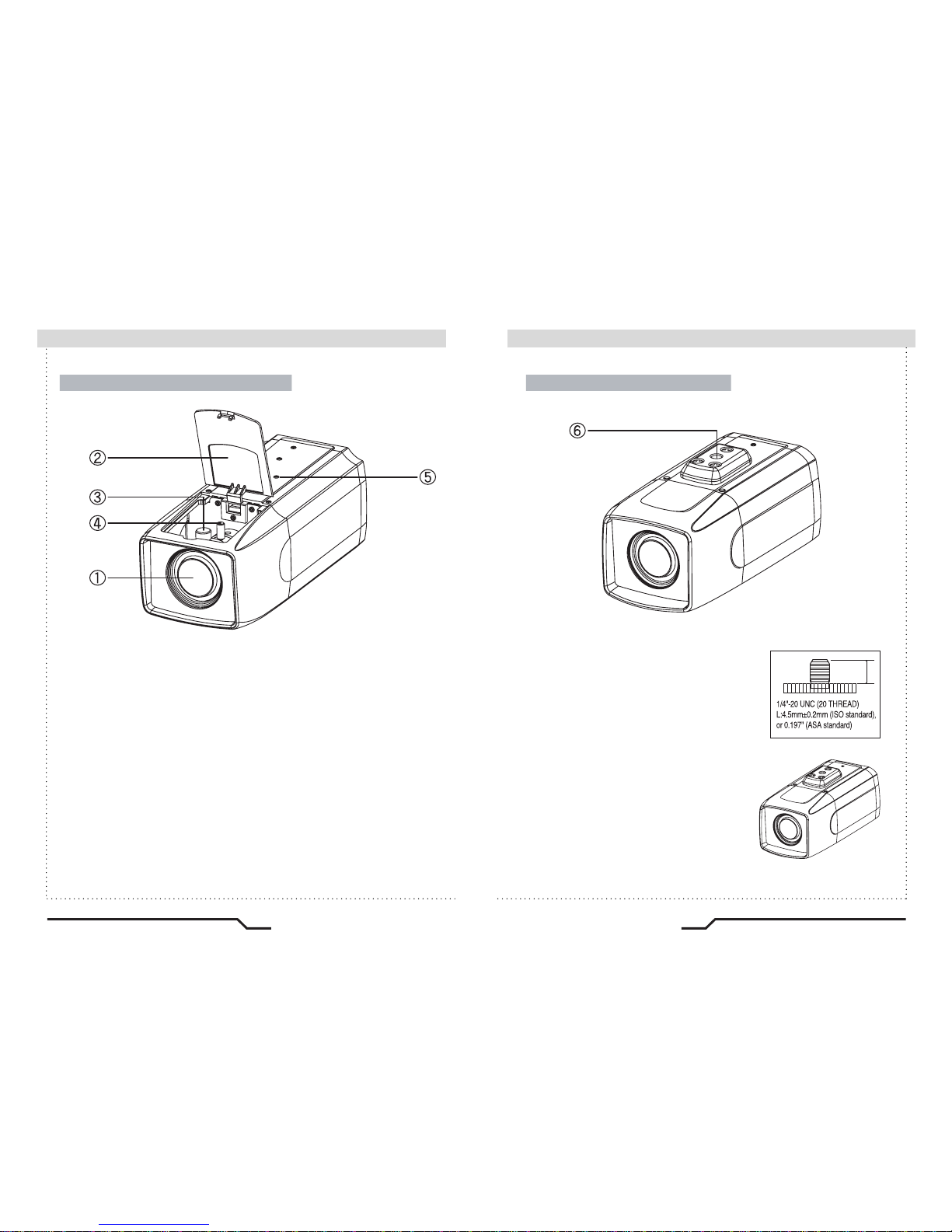

Front
■Components Names and Functions of Parts ■
Top
①Built-in Lens
Built-in DC Auto Iris Vari-focal lens.
②Front Cover
Used to access focus or zoom handle. After adjusting, be sure to
close it.
③Focus Handle
Used to provide accurate focusing of object within lens field of view.
④Zoom Handle
Used to adjust zoom magnification of lens.
⑤Tripod Mount Bracket Screw Hole
Used to fix the tripod mounting bracket on the top of the camera
⑥Mounting bracket screw hole
Please use the screw hole when fixing the
camera onto the mounting bracket. Please use
the clamp screw as specified picture.
※ The mounting bracket can be separated and attached
to the top of the camera.
In this instance please do not tighten the
screw to a depth of more than 5mm,
otherwise serious damage can occur
to the inside of the camera.
L

12
High Resolution Built-in Lens Color Camera
13
High Resolution Built-in Lens Color Camera
■
Camera Operation
■
Menu
SETUP menu
LENS (selection)
SHUTTER
( condition and speed control)
WHITE BALANCE control
BLC
(Back Light Compensation)
AGC (Auto Gain control)
ADJUST
FUNTION
EXIT
ㆍMANUAL ㆍDC
ㆍFIXED ㆍAUTO ㆍFLK
ㆍATW
ㆍMANUAL
ㆍAWB ㆍFIXED
ㆍBLC AREA ㆍBLC RATIO
ㆍAGC CONTROL
ㆍCONTRAST ㆍCAMERA ID
ㆍCR - GAINㆍCB - GAIN
ㆍRETURN ㆍCAMERA ID
ㆍDAY / NIGHT ㆍMIRROR
ㆍMOTION ㆍPRIVACY
ㆍGAMMA ㆍLANGUAGE
ㆍRESET

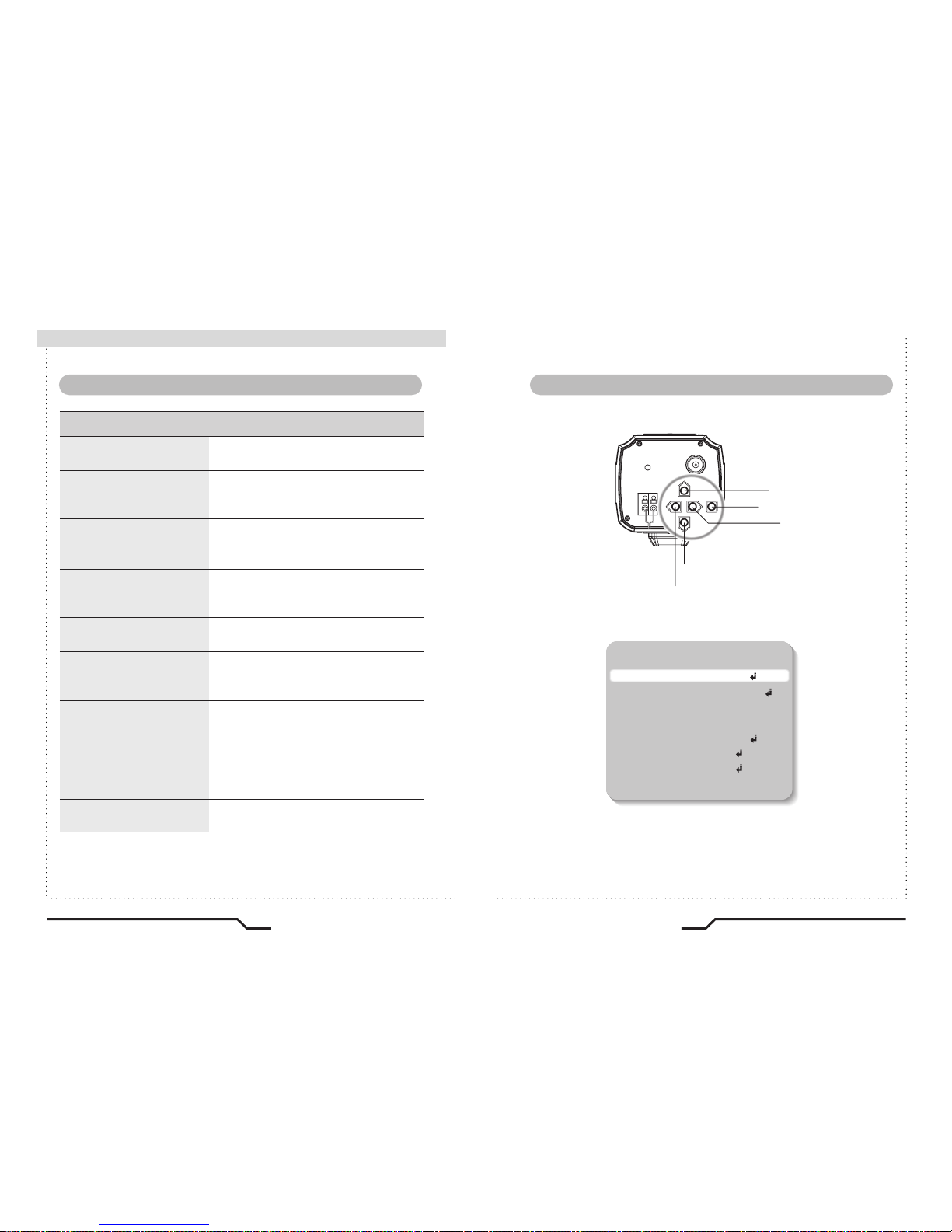

Settings can be made using the 5 buttons located in the camera.
1. Press the SET button
ㆍSettings can now be made. The SETUP menu is displayed on the monitor.
2. Select a menu item from the list available by using the UP and DOWN
buttons.
ㆍ Funtions are selected using up and down buttons.
ㆍ The selected position is displayed in blue.
■
Settings
SETUP
LENS DC
SHUTTER FIXED
WHITE BAL. ATW
BLC OFF
AGC ON
ADJUST
FUNCTION
EXIT
AC 24V IN
DC 12V IN
VIDEO OUT
POWER
UP button
SETUP button
RIGHT button
DOWN button
LEFT button
SET

Note
SETUP
LENS DC
SHUTTER FIXED
WHITE BAL. ATW
BLC OFF
■
Camera Operation
3. Press the LEFT or RIGHT button to change modes.
ㆍWhen the LEFT or RIGHT button is pressed, available values and modes
are displayed in order. Keep pressing the button until you get to the
mode you wish to select.
4. Select 'EXIT' and then press the SET button to exit the set up menu.
This function is used to adjust the brightness of the screen.
1. When the SETUP menu is displayed on the screen, position the cursor to point
to 'LENS' by using the UP and DOWN buttons.
2. Select the type of the lens setting to use by pressing the LEFT or RIGHT button.
LENS (selection)
ㆍIf appears at the mode selected, it means that there is a sub-menu
which can be selected by pressing the SET button.
●DC : Auto Iris Lens selection
●MANUAL : Manual Lens selection
3. Press the SET button to return to the previous menu.
Note
ㆍThe brightness of the screen can be adjusted in DC mode. The
brightness can be adjusted within the range of 0 ~255. The optimum
level of brightness can be achieved using this adjustment.
SETUP
LENS DC
SHUTTER FIXED
WHITE BAL. ATW
BLC OFF
AGC ON
ADJUST
FUNCTION
EXIT
Modes can be changed
using the LEFT and
RIGHT buttons.
Select the desired
menu item by
using the UP and
DOWN buttons.
LENS DC
: RETURN
BRIGHTNESS 093
14
High Resolution Built-in Lens Color Camera
15
High Resolution Built-in Lens Color Camera

16
High Resolution Built-in Lens Color Camera
17
High Resolution Built-in Lens Color Camera
SETUP
LENS MANUAL
SHUTTER FIXED
WHITE BAL. ATW
BLC OFF
■
Camera Operation
Auto or manual control can be selected.
1. When the SETUP menu is on the screen, position the cursor to point to
'SHUTTER' by using the UP and DOWN buttons.
2. Select the shutter mode by pressing the LEFT or RIGHT button.
●FLK : Select 'FLK' mode when flickering occurs on the screen
due to an imbalance between illumination and frequency.
NTSC Model:1/100, PAL Model: 1/120
●AUTO : Automatic control of the shutter speed is enabled.
When AUTO mode is on, the shutter speed is controlled
automatically according to the brightness of the scene.
●FIXED : The shutter speed can be controlled manually.
●MANUAL mode (256 steps) :
There are 256 pre-defined electronic shutter speeds in manual mode
available for selection; set according to environment conditions.
3. Select 'FIXED' mode for manual shutter speed adjustment.
ㆍ Selectable speeds are from '1/60' to '1/120,000'sec (NTSC) and '1/50'
to '1/120,000'sec (PAL).
4. Press the SET button when the settings are completed.
SHUTTER (condition and speed control)
The screen colors can be adjusted using the WHITE BALANCE function.
1. Position the cursor to point to 'WHITE BAL' on the SETUP menu by using the
UP and DOWN buttons.
2. Select the mode you wish to adjust by pressing the LEFT or RIGHT buttons.
WHITE BALANCE
※Select one of the 4 modes below.
● ATW (Auto Tracking White Balance) : This mode can be used within the
color temperature range 1,800˚K ~ 10,500˚K (eg, fluorescent light, outdoor,
sodium vapour lamp etc.)
● AWB(Automatic White Balance) : Press the SET button while the
camera is directed at a piece of white paper to obtain the optimum state
under current illumination. If the environment, including the light source,
changes the white balance will need to be adjusted again.
● MANUAL : The manual adjustment mode enables finer adjustment.
Select ATW or AWB first then change to manual adjustment mode and
press the SET button. Set the appropriate color temperature then increase
/ decrease the red and blue color values and monitor the color
changes of the object.
● AWB FIXED optimized at 2100˚K
MODE1 : 2680˚K (No light source)
MODE2 : 3200˚K
MODE3 : 5500˚K (Fluorescent light source)
MODE4 : 5100˚K
SETUP
LENS MANUAL
SHUTTER AUTO
WHITE BAL. ATW
BLC OFF
AGC ON
ADJUST
FUNCTION
EXIT

SETUP
LENS MANUAL
SHUTTER FLK
WHITE BAL. ATW
BLC ON
AGC ON
ADJUST
■
Camera Operation
ㆍUnder the following conditions the WHITE BALANCE function may not operate
properly. In such cases, please select the AWB mode.
①
When the object's surroundings have a very high color temperature
(eg, a clear sky and sunset)
②
When the object's surroundings are dark
③
If the camera directly faces a fluorescent light or is installed in a place where
there are considerable changes in illumination, the WHITE BALANCE function
may become unstable.
Note

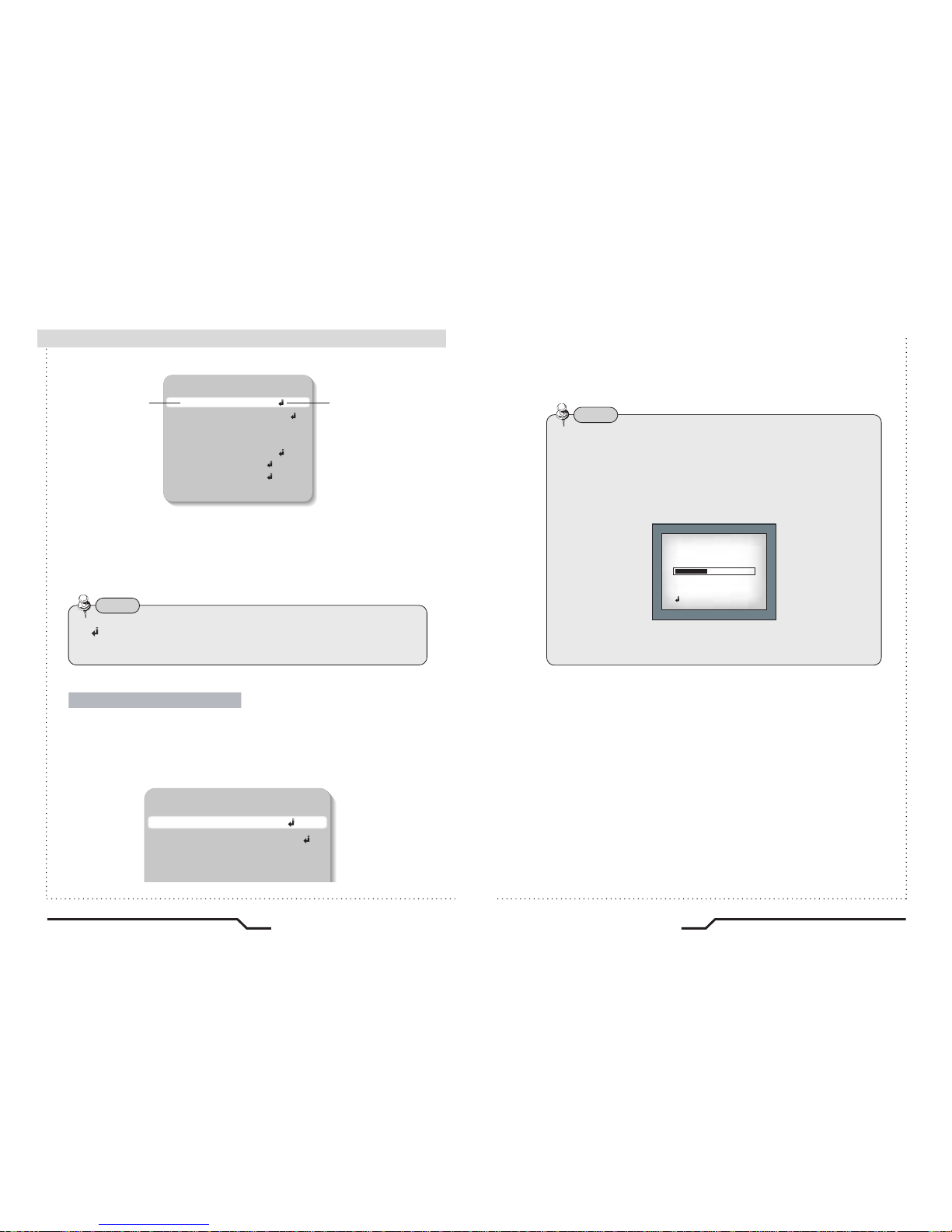

1. Position the cursor to point to 'AGC' on the SETUP menu by using the
UP and DOWN buttons.
2. Select the value required by pressing the LEFT or RIGHT button. As the
level of gain increases the screen gets brighter but the level of noise will
also increase. (256 steps)
AGC (Auto Gain Control)
When there is a strong backlight behind the object, clear images of the
background as well as the object can still be obtained by using the
BACKLIGHT function.
1. Position the cursor to point to 'BLC' on the SETUP menu by using the
UP and DOWN buttons.
2. Select the value required by pressing the LEFT or RIGHT button.
3. Press the SET button to enter the BLC AREA and BLC RATIO menus.
4. The BLC Area contains a grid of 64 squares where BLC can be
applied.
5. The BLC RATIO can now be adjusted (64 steps); a higher value
leads to a clearer image.
BLC (Back Light Compensation)
SETUP
LENS MANUAL
SHUTTER FLK
WHITE BAL. ATW
BLC OFF
AGC ON
ADJUST
FUNCTION
EXIT
BLC AREA
ALL SET
RETURN
EXIT
BLC SETUP
RETURN
BLC RATIO
BLC AREA
31
BACKLIGHT ON BACKLIGHT OFF
18
High Resolution Built-in Lens Color Camera
19
High Resolution Built-in Lens Color Camera

20
High Resolution Built-in Lens Color Camera
21
High Resolution Built-in Lens Color Camera
■
Camera Operation
●Contrast : The image contrast can be adjusted using the left and right
buttons. (256 steps)
●Sharpness : The sharpness of the image can be adjusted using the left
and right buttons. (32 steps)
●CB-Gain : The blue color can be increased/decreased using the left
and right buttons. (256 steps)
●CR-Gain : The red color can be increased/decreased using the left
and right buttons. (256 steps)
ADJUST FUNCTION
1. Position the cursor to point to 'FUNCTION' on the SETUP menu by using
the UP and DOWN buttons.
2. Select the mode required by pressing the LEFT and RIGHT button.
● CAMERA ID : If an ID is input, this camera ID appears on the monitor
and recorded footage.
1) Position the cursor to point to 'CAMERA ID' by using the UP or
DOWN button.
2) Select 'ON' by pressing the LEFT or RIGHT button.
ㆍ If 'OFF' is selected, the ID does
not appear on the monitor even
if it has been input.
Note
SETUP
LENS MANUAL
SHUTTER AUTO
WHITE BAL. ATW
BLC ON
AGC ON
ADJUST
FUNCTION
EXIT
FUNCTION
RETURN
ON
DAY NIGHT
OFF
RESET
LANGUAGE
MOTION
OFF
0 . 45
ENGLISH
MIRROR
OFF
CAMERA ID
COLOR
PRIVACY
GAMMA
DAJUST
RETURN
CONTRAST 083
SHARPNESS 16
CB _GAIN 193
CR _GAIN 253
FUNCTION
RETURN
ON
DAY NIGHT
OFF
RESET
LANGUAGE
MOTION
OFF
0 . 45
ENGLISH
MIRROR
OFF
CAMERA ID
COLOR
PRIVACY
GAMMA

22
High Resolution Built-in Lens Color Camera
23
High Resolution Built-in Lens Color Camera
■
Camera Operation

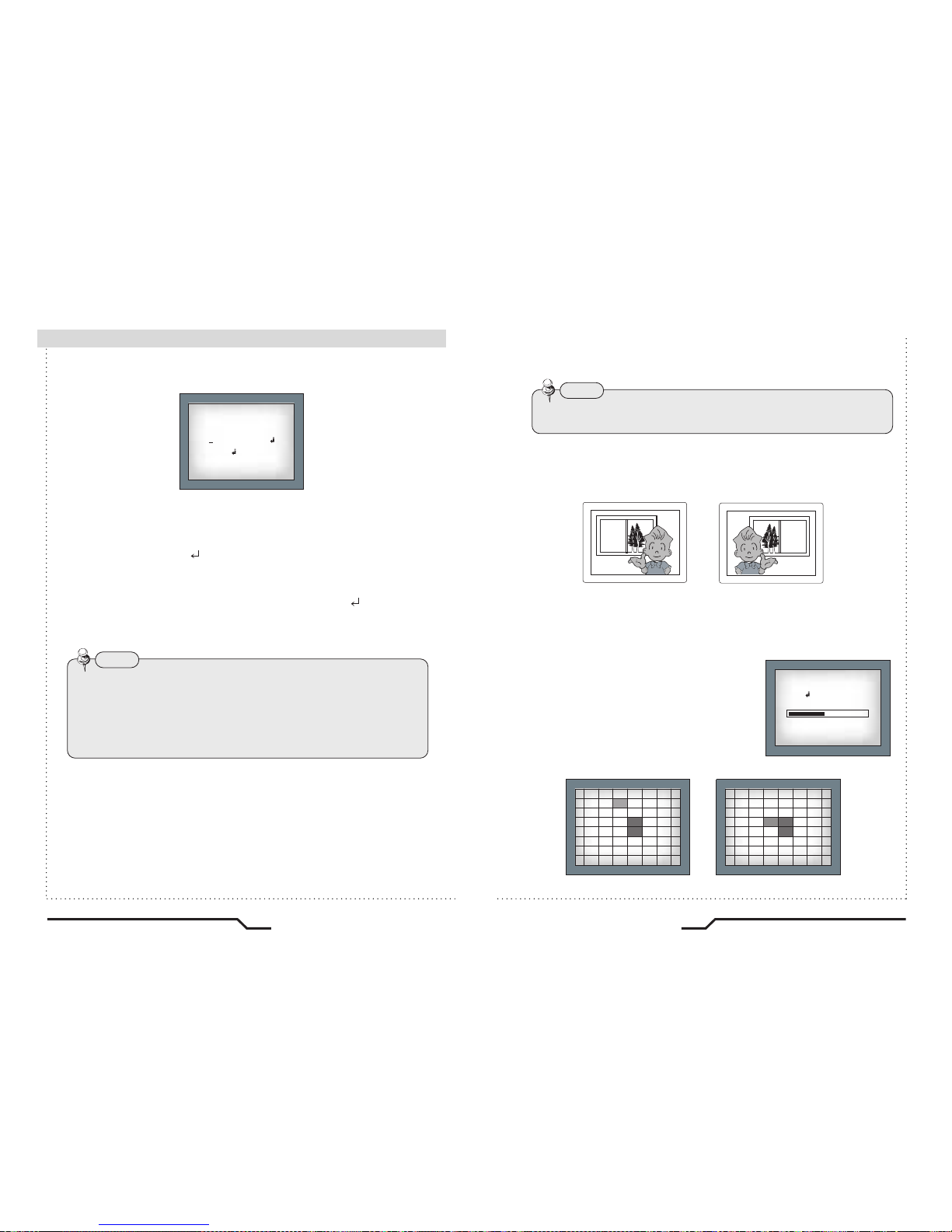

ㆍIf the wrong name has been input.....
Press the SET button after moving the cursor to CLR and all the letters will
be erased. If you want to correct a letter move the cursor to the arrow at
the bottom left of the screen and press 'SET'.
Position the cursor above the letter you wish to correct and then move the
cursor onto the letter you wish to choose and press the SET button.
Note
3) Press the SET button.
4) Up to 15 characters can be used for the camera ID.
5) User can select a position to display the camera ID.
ㆍMove the cursor to a Position and choose a character by using the
UP and DOWN button.
ㆍSelect from the alphabet, numbers(0~9) or 27 special symbols.
ㆍRepeat the above steps until the ID is complete.
ㆍ Move the cursor to ' ' symbol and press SET to finish the ID process.
ㆍLock in the characters by using the SET button at ' ' position.
ㆍ Move the cursor to ' C ' letter and press SET to delete the selected letter.
●DAY & NIGHT
- AUTO : This camera has a function which automatically changes to the
appropriate mode dependant on lighting levels. COLOR mode
is selected during daylight and B/W mode at night time.
- COLOR : The color mode is selected as the default, and the camera
does not change automatically.
- B/W : Discards the color information and displays in black and white.
ㆍWhen the AGC is turned off, COLOR does not operate.
Note
● MIRROR
- ON : Sets a horizontal image inversion.
- OFF : Cancels the inversion.
ID SETUP
RETURN
POSITION
CAMERA ID
CT C
● MOTION DETECTION
Users can set the motion detection area just like BLC area setting.
The screen is divided in to 64 squares. Selected areas are brighter than
non-selected areas. The cursor turns red
within selected areas, whilst it turns yellow
in non-selected areas. To escape from
the area selection press the 'SET' button
for 3 seconds and select 'EXIT' to return to
the main menu. Users can select all areas
using 'ALL SET' and can deselect all areas
using 'ALL CLEAR'.
MOTION
RETURN
MOTION TH.
AREA
037
MOTION TRACE. OFF
MIRROR ON MIRROR OFF

24
High Resolution Built-in Lens Color Camera
25
High Resolution Built-in Lens Color Camera
■
Camera Operation
● PRIVACY
Users can set up to 4 areas as privacy zones. 'AREA STATE' allows
users to turn the privacy mode on or off within each designated area.
The value of 'LEFT' cannot be greater than the value of 'RIGHT'.
The value of 'TOP' cannot be greater than the value of 'BOTTOM'.
'COLOR' setting is applied to all 4 privacy areas.
● LANGUAGE
Users can select their preferred language for the OSD menu from either,
English, Korean, Chinese (Big5), Chinese (Simplified) or Japanese.
● GAMMA
Users can change the gamma settting in 0.5 steps, between 0 and 1.0 (20 steps).
● RESET : Returns to factory settings.
● RETURN : Saves the FUNCTION menu and returns to the SETUP menu.
Saves all the setting menus and then exits.
EXIT
FUNCTION
RETURN
OFF
DAY NIGHT
OFF
RESET
LANGUAGE
MOTION
OFF
0 . 45
ENGLISH
MIRROR
OFF
CAMERA ID
COLOR
PRIVACY
GAMMA
FUNCTION
RETURN
OFF
DAY NIGHT
OFF
RESET
LANGUAGE
MOTION
OFF
0 . 45
ENGLISH
MIRROR
OFF
CAMERA ID
COLOR
PRIVACY
GAMMA
PRIVACY
AREA SEL AREA0
RETURN
ON
AREA STATE
LEFT 137
185
RIGHT
TOP 029
BOTTOM 084
COLOR 008

■Troubleshooting
If there are problems with the camera operation, check the tables below. If
the problem persists, please contact the agent who supplied the product.
Problems
Nothing appears on the
screen.
The video image is not
clear.
The screen is dark.
There is a problem with
the camera operation.
The camera surface is
too hot and black stripes
appear on the screen.
ㆍCheck the power connection.
ㆍCheck the video signal line connection.
ㆍMake sure that the lens is clean.
Clean the lens with a clean lint free cloth or
brush.
ㆍAdjust the contrast control on the monitor.
ㆍMake sure that the screen is not exposed
directly to a bright light.
Re-position the camera if necessary.
ㆍAdjust the contrast control of the monitor.
ㆍIf there is an intermediate device, set the75ohm
Hi-z correctly, and also check the connections.
ㆍIf necessary, adjust the brightness level..
ㆍCheck if an appropriate power source to
the camera complies with the manufacturer's
standard requirement, or if the voltage is
fluctuating. Check for ground loops.
Troubleshooting
Problems
The MOTION
DETECTION function is
not working.
Colors are not quite
right.
The screen is
flickering.
COLOR mode is not
working.
ㆍCheck if 'MOTION DETECTION' mode is
turned on.
ㆍCheck the setting of the MD AREA.
ㆍCheck the 'WHITE BAL' setting.
(Please refer to page 16)
ㆍCheck if the camera is facing directly into
sunlight or fluorescent light.
ㆍCheck if the AGC menu is set to the OFF
position.
Troubleshooting
26
High Resolution Built-in Lens Color Camera
27
High Resolution Built-in Lens Color Camera

28
High Resolution Built-in Lens Color Camera
■Specifications
ITEM
Power Source
Total Pixels
Effective Pixels
Size
Scanning System
Synchronisation
Frequency
Resolution
Video Output
S/N (Y signal)
Min. Illumination
Color
White Balance
Electronic Shutter Speed
O.S.D
Motion Detection
BLC
Mirror
Privacy Function
C
C
D
sync
E
L
E
C
T
R
I
C
A
L
AC24V / DC12V DC12V AC24V / DC12V DC12V
130mA(AC24V)/180mA(DC12V) 130mA 130mA(AC24V)/180mA(DC12V) 130mA
811(H) x 508(V) 795(H) x 596(V)
768(H) x 494(V) 752(H) x 582(V)
SONY 1/3" Super HAD High Sensitivity Color CCD
2:1 Interlace
INT
Horizontal:15.734 KHz Vertical :59.94 Hz Horizontal: 15.625 KHz Vertical : 50.00 Hz
More than 540 TV Lines
1.0Vp-p/75(Video 0.714Vp-p Sync 0.286Vp-p) 1.0Vp-p/75 (Video 0.7 Vp-p Sync 0.3 Vp-p )
50dB (AGC Off)
0.15Lux 40 IRE (F1.2)
COLOR / AUTO / BW
ATW / AWB / FIXED / MANUAL(1,800˚K~10,500˚K)
AUTO / MANUAL(1/60~1/100,000) AUTO / MANUAL(1/50~1/100,000)
Built-in
ON / OFF (64 Programmable Zones)
ON / OFF (64 Programmable Zones)
Built-in (Horizontal Image Inversion)
ON / OFF (4 Programmable Zones)
-10˚C ~ +50˚C / 30~90% RH
380g
NTSC PAL
Operating Temperature/Humidity
Weight
