Coca-Cola CCSR2 User manual

- OPERATING INSTRUCTIONS -
Retro Bluetooth Speaker with FM Radio
CCSR2

*
*
*
*
*
*
*
* Do not insert any metallic object into the unit.
Please protect the unit and accessories well. Please use them under
the clean environment.
Do not expose the unit in the raining or moist environment.
Do not throw or trample the unit.
Do not use the unit near any heat source such as stove, radiators or any
apparatus that can produce heat.
Please turn off the unit before cleaning it. Please clean the unit only by
using the soft anti-static dry cloth.
When the unit is charging or under normal operation, it will become a
little hotter, which is a normal phenomenon.
Please do not disassemble the unit and repair it by yourself.
SAFETY PRECAUTIONS
We certify that the power supply is used as a device for
disconnecting the power distribution network, which should stay
easily accessible.

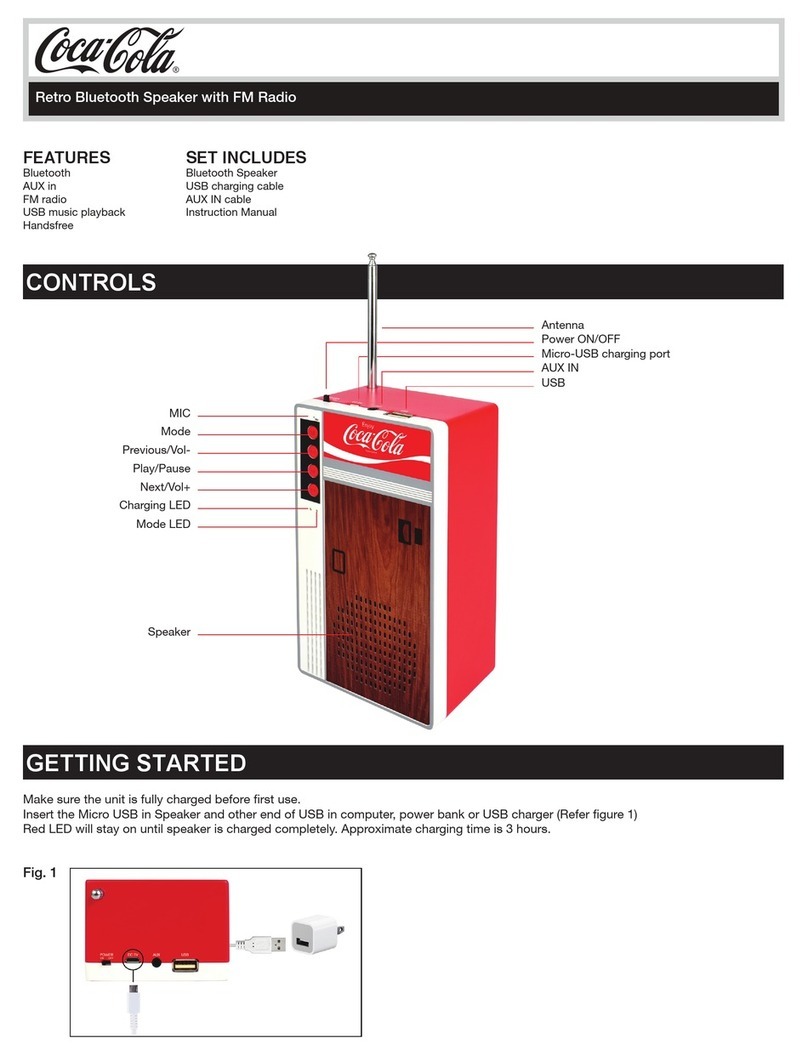

LOCATION OF CONTROLS
1. Antenna
2. MIC
3. Mode
4.
5. Play&Pause
6. Next/VOL+
7. Charging LED Instruction Light
PREV/VOL-
8. Mode LED Instruction light
9. Speaker
10.Power ON/OFF
11.Micro-USB Charging Port
12.AUX
13.USB
MIC
1
2
3
4
5
6
7
8
9
10
11
12
13

2. Pull the Power ON/OFF Knob to the ON side to turn on the unit.
3. Check that your Bluetooth features are turned ON. If you have already
paired the speaker with a Bluetooth enabled device, it will automatically
connect.
4. If you are using the speaker for the first time, go to the “BLUETOOTH
CONNECTIVITY” section of this User Manaul, and pair the speaker to
your desired Bluetooth device.
If any of these items are missing, consult your dealer. Keep any packaging
in case you want to transport the main unit at some later date.
1. Carefully unpack the Main unit from its carton (do not attempt to
connect anything at this stage).
You should have the following items:
PREPARATION FOR USE
Packing included
1). Manual Book
2). Main Unit
3). Charging Cable
4). AUX cable
BLUETOOTH CONNECTIVITY
1.Power on the unit. The unit was set on Bluetooth mode, and
Shortly press MODE key also can switch into bluetooth mode.
2. The Mode LED light is quickly flashing in blue before connected.
3. Set your Bluetooth enable device to search for Bluetooth devices.
4. When the Bluetooth enable device finds the Speaker, select CCSR02
from the list of the found devices.
If required, enter the password 0000. Select OK or Yes to pair the two
units.
5. After a successful pairing, the Mode LED light will be slow flashing.
6. Shortly press PLAY/PAUSE key to pause or play; Long press this key to
pair a new device.
7. Shortly press NEXT & PREV keys for next or previous song playback.
8. Long press VOL+/VOL- keys for volume adjustment.
along
with voice prompt: Bluetooth Mode.

AUX-IN OPERATION
1.Power on the unit.
2.Plug one end of the 3.5mm Auxiliary cable into an external device’s
headphone port, and the other end into the AUX port on the top side of
the speaker, the system will switch into AUX mode automatically.
Shortly press MODE key also could switch into AUX-IN mode, but ensure
an external device has already connected to the speaker by AUX cable.
3. The Mode LED light is solid blue under AUX-IN mode.
4. Shortly press PLAY/PAUSE key to mute sound.
5. Long press VOL+/- keys for volume adjustment.
FM INSTRUCTION
1.Power on the unit.
2.Shortly press MODE key to switch into FM mode, along with voice
prompt: FM Mode.
3. Pull up the antenna of the unit.
4. Long press PLAY&PAUSE key to scan stations automatically; Shortly
press PLAY&PAUSE key to mute sound.
5. Shortly press NEXT&PREV keys for next or previous station playback.
6. Long press VOL+/- keys for volume adjustment.
USE USB FUNCTION
1.Power on the unit.
2.Insert USB device, the unit will switch into USB mode automatically
and play it.
Shortly press MODE key also could switch into USB mode, but ensure
USB device has been already inserted.
3.The Mode LED light is slow flashing during USB device playback; it will
be solid blue if USB device is undetected.
4. Insert your USB flash disk. Now users can enjoy their favorite songs.
Songs could be in MP3, WMA format.
5. Shortly press PLAY/PAUSE key to pause or play.
6. Shortly press NEXT & PREV keys for next or previous song playback.
7. Long press VOL+/- keys for volume adjustment.

Power Charging
The charging LED light will be slow flashing when unit was in low power
status. It means which built-in battery was in low power and need to
make power charging.
During power charging, red light is solid red and after power charging
finished, red light will be off automatically.
TECHNICAL SPECIFICATIONS
Power Charging Supply: 5V / 500mA
Power Consumption: 3W
Audio Output Power: 3W x 1
FM Frenquence: 87.5~108 MHz
Bluetooth Version: JL 4.2
Bluetooth profiles: A2DP, AVRCP, HFP
Bluetooth range: Line of sight, 10M or 30FT
Lithium Battery Capacity: 1200mAh
Unit Size: 140x80x55 mm
DETAILS AND PRECAUTIONS ON THE USE OF BATTERIES
- Discard a used battery in nature or garbage pollutes and prevents the
recovery of recyclable materials.
It is therefore important to limit consumption of batteries and follow
these guidelines:
•focus on alkaline batteries (that last longer than the saline batteries)
and when possible, rechargeable batteries
•deposit batteries and accumulators in specific containers arranged
among traders.
For example, metals will be valued and polluted the environment
because they contain heavy metals hazardous to health and the
environment primarily (cadmium and nickel)
- The piles must installation by respecting the polarity indicated on the
apparatus and the pile.

An incorrect positioning can is to damage the apparatus, is to cause
escapes on the level of the pile, is to the extreme to cause a fire or the
explosion of the pile.
- To ensure proper operation, the batteries must be in good condition.
In case of abnormality in the functioning of the device, put fresh
batteries
- Never attempt to recharge non-rechargeable batteries. They could run,
warm up, causing a fire or explosion.
- Replace all batteries at the same time. Never mix zinc batteries with
alkaline batteries or rechargeable batteries
- The batteries must be removed from the device
- Also, remove the batteries from your device if you do not use it for a
long time, if the batteries may leak and cause damage.
- Never try to short-circuit the battery terminals
- Never dispose of batteries in fire, they might explode
- Charging of batteries is to be performed by an adult.
- Remove batteries from the device before reloading.
- We recommend an adult to supervise children when they change the
batteries so that these instructions are complied with or to make himself
the replacement of batteries.
- If a battery is swallowed, immediately consult a doctor or poison
control center nearest you.
Do not forget to carry the product with you.

TROUBLESHOOTING TIPS
Before contact with the repair person, you should check the problem
reason follow the instructions.
I can pair the Bluetooth Speaker with my Bluetooth device, but I cannot
hear any music.
1.Make sure your Bluetooth device ssupports A2DP profile.
2.Turn up the volume on your Bluetooth device.
3.You may have to unpair the speaker, then re-pair to your device.
My Bluetooth device is not able to pair with the wireless speaker.
1.Turn the speaker ON. A tone will be heard and the LED indicator light
will quickly flash BLUE.
2.Keep your Wireless Stereo Speaker and Bluetooth enable device within
3 feet of each other during the pairing process.
3.Check that YOUR device's Bluetooth feature is turned ON.
I cannot get the wireless speaker into pairing mode.
1.Turn the speaker ON. A tone will be heard and the LED indicator light
will quickly flash BLUE.
2.A tone will be heard and the LED Bluetooth indicator light will quickly
flash BLUE.
3.The speaker is now in pairing mode.

Warning： changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
a minimum distance of 20 centimeters between the radiator and your body or
nearby persons.
