cocweb CF-A-GR Owner's manual

READ AND SAVE THESE INSTRUCTIONS
GRAHAM
CEILING FAN INSTALLATION AND
OPERATION INSTRUCTION
FAN RATING AC 120V. 60Hz
UL LISTED MODEL: AC-552RM52B
MODEL# CF-A-GR

1
2. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (4)
b. Hanger bracket and canopy assembly
c. Ball/downrod assembly
d. Collar cover
e. Fan motor assembly
f. Light plate
g. Wire cover
h. Glass shade
i. 40 Watt candelabra bulbs (3)
j. Receiver
k. Transmitter+holder+2 mounting screws
l. 9 Volts battery
m. Package hardware
1) Mounting hardware :
screws (2), lock washers (2),
star washers (2), wire nuts (3)
wood screws (2), washers (2)
2) Blade attachment hardware:
screws (13), fiber washers (13)
3) Balance kit
Philips screwdriver
Blade screwdriver
11 mm wrench
Step ladder
Wire cutter
1. TOOLS AND MATERIALS
REQUIRED
a
b
c
d
e
f
j
k
l
m
g
h
i

2
3. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. WARNING: To reduce the risk of electrical
shock and fire, do not use this fan with any
solid-state fan speed control device.
4. WARNING: To reduce the risk of fire,
electric shock, or other personal injury,
mount fan only on an outlet box or
supporting system marked acceptable for
fan support of 35 lbs (15.9 kg) or less and
use mounting screws provided with the
outlet box. Most outlet boxes commonly
used for the support of lighting fixtures are
not acceptable for fan support and may
need to be replaced. Consult a qualified
electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only UL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge
of the blades to the floor.
7. To operate the reverse function on this
fan, press the reverse button while the
fan is running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment-grounding conductor on
one side of the outlet box.
12. Electrical diagrams are reference only.
Light kit that are not packed with the fan
must be UL Listed and marked suitable
for use with the model fan you are
installing. Switches must be UL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
ATTENTION
Under the Energy Policy Act of 2005, federal
regulations require all ceiling fans with light kits
manufactured or imported after January 1, 2009,
to limit the total wattage consumed by the light
kit to 190 watts. Therefore, this product is
equipped with a 190W limiting device. If lamping
exceeds 190 watts, the light kit will shut off
automatically until the proper wattage of bulbs
are installed. Reset the light kit by turning it off,
replacing the bulbs with the correct wattage, and
then turning the light kit back on.

3
4. INSTALLING YOUR FAN
Mounting Options
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
bracket
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
Angled ceiling
maximum
20° angle

4
5. HANGING THE FAN
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise. (Fig. 5)
Step 2. Remove the hanger bracket from the
canopy by loosening the non-slotted screw
on the bottom of the hanging bracket a half
turn from the screw head and removing the
slotted one, and then turn the canopy counter
clockwise. (Fig. 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling hanger
bracket as shown in Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 5. Remove the hanger pin, lock pin and
set screws from the top of the motor
assembly.
Step 6. Route wires exiting from the top of
the fan motor through the coupling cover,
canopy cover, canopy and then through the
ball/ downrod. (Fig. 7)
Step 7. Align the holes at the bottom of the
downrod with the holes in the collar on top of
the motor housing (Fig. 7). Carefully insert
the hitch pin through the holes in the collar
and downrod. Be careful not to jam the pin
against the wiring inside the downrod. Insert
the locking pin through the hole near the end
of the hitch pin until it snaps into its locked
position.
Step 8. Tighten two set screws on top of the
fan motor firmly. (Fig. 7)
Step 9. Place the downrod ball into the
hanger bracket socket. (Fig. 8)
Figure 6
Figure 5
Tab
Mounting screws
(supplied with
electrical box)
UL Listed
electrical
box
Hanger bracket
Hanger bracket
Ceiling
canopy
Canopy
cover
Ball/downrod
assembly
Ceiling canopy
Motor wires
Coupling cover
Locking pin
Hanger pin
Tighten screws
firmly
Canopy cover
Figure 8
Figure 7
Registration slot

5
6. MAKE THE ELECTRIC
CONNECTIONS
WARNING: To avoid possible electrical shock,
be sure electricity is turned off at the main fuse
box before wiring.
NOTE: This remote control unit is equipped with
16 code combinations to prevent possible
interference from or to other remote units. The
frequency switches on your receiver and
transmitter have been preset at the factory.
Please recheck to make sure the switches on
transmitter and receiver are set to the same
position, any combination of settings will
operate the fan as long as the transmitter and
receiver are set to the same position. (Fig. 9)
Step 1. (Fig. 10) Insert the receiver into the
mounting bracket with the flat side of the
receiver facing the ceiling.
Step 2. (Fig. 11) Motor to receiver electrical
connections: Connect the black wire from the
fan to black wire marked "TO MOTOR L".
Connect the white wire from the fan to the white
wire marked "TO MOTOR N" from the receiver.
Connect the blue wire from the fan to the blue
wire marked "For bottom Light" from the
receiver. Secure wire connections with the
plastic wire nuts provided.
Step 3. (Fig. 11) Receiver to House Supply
Wires Electrical Connections: Connect the
black (hot) wire from the ceiling to the black wire
marked "AC in L" from the receiver. Connect the
white (neutral) wire from the ceiling to the white
wire marked "AC in N" from the Receiver.
Secure the wire connections with the plastic
wire nuts provided.
Step 4. (Fig. 11) If your outlet box has a ground
wire (green or bare copper) connect it to the fan
ground wires; otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided. After connecting the wires, spread
them apart so that the green and white wires
are on one side of the outlet box and black and
blue wires are on the other side. Carefully tuck
the wire connections up into the outlet box.
Note: Fan must be installed at a maximum
distance of 20 feet from the transmitting unit for
proper signal transmission between the
transmitting unit and the fan's receiving unit.
Figure 9
Figure 10
Figure 11
Receiver
Hanger
bracket
Code switch
ON
ON
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
Outlet box
Black (hot)
Black ("AC IN L")
Receiver
White (neutral)
White ("to motor N")
Ground
(green) (Connect to
ground wire on
hanger bracket
if no house
ground
wire exists.)
Black ("to motor L")
Blue (for light)
Blue (for light)
Black (motor)

Figure 12
Figure 13
7. FINISHING THE
INSTALLATION
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to hanger bracket
and place the key hole on the canopy over the
screw on the hanger bracket, turn canopy until
it locks in place at the narrow section of the
key holes. (Fig. 12)
Step 3. Align the circular hole on canopy with
the remaining hole on the hanger bracket,
secure by tightening the two set screws. Note:
Adjust the canopy screws as necessary until
the canopy and canopy cover are snug.
Warning: Make sure tab at bottom of hanger
bracket is properly seated in groove of hanger
ball before attaching canopy to bracket.
Failure to properly seat tab in groove could
cause damage to electrical wiring.
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws
8. ATTACHING THE FAN
BLADES
Step 1. Insert the blade through the blade slot
in the decorative housing. Align the holes in
blade and blade arm as showing in Figure 13,
secure with fiber washers and screws
provided.
Step 2. Repeat this procedure for remaining
blades.
6
Blades
Screws and fiber
washers
Slot
making sure the holes are also aligned and

Figure 14
Figure 15
9. INSTALLING THE LIGHT
PLATE
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box. Turning power
off using the fan switch is not sufficient to
prevent electric shock.
Step 1. Remove the 1 of 3 screws from the
mounting ring and keep it for future use.
Loosen the other 2 screws (Do not remove).
Step 2. Raise and hold the light plate close to
the mounting ring, put the wires from the fan
through the central hole of light plate (Fig. 14),
and then place the light plate key holes over
the 2 screws previously loosened from the
mounting ring, turn light kit until it locks in
place at the narrow section of the key holes,
secure the light plate by tightening the 2
screws previously loosened and the one
previously removed.
Step 3. Proceed the wire connections:
Connect the white wire connectors from the
light kit and fan. Follow the same procedure
with the black wire connectors.
Step 4. Carefully push all wires back into the
concave inside the light plate, place the wire
cover onto the light plate by placing the key
holes on the wire cover over the 3 screws
already located in the light plate, be sure to
place the light wire on the indentation of wire
cover to avoid scratch. Turn the wire cover
until the screws lock in place at the narrow
section of the key holes. Secured with the 3
screws. (Fig. 15)
7
Light plate Mounting ring
Screws
Connection plugs
Light plate
Wire cover
Concave

Figure 16
10. INSTALLING THE
LIGHT BULBS AND
GLASS SHADE
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box. Turning power
off using the fan switch is not sufficient to
prevent electric shock.
Step 1. Install 3 x 40W candelabra bulbs
(included). (Fig. 16)
Step 2. Raise glass shade up against the light
plate and secure it by turning clockwise until
snug. Do not over tighten.
Step 3. Restore power and your light kit is
ready for operation.
8
Light plate
Glass
shade
Bulbs

Figure 17
Figure 19
Figure 18
Figure 20

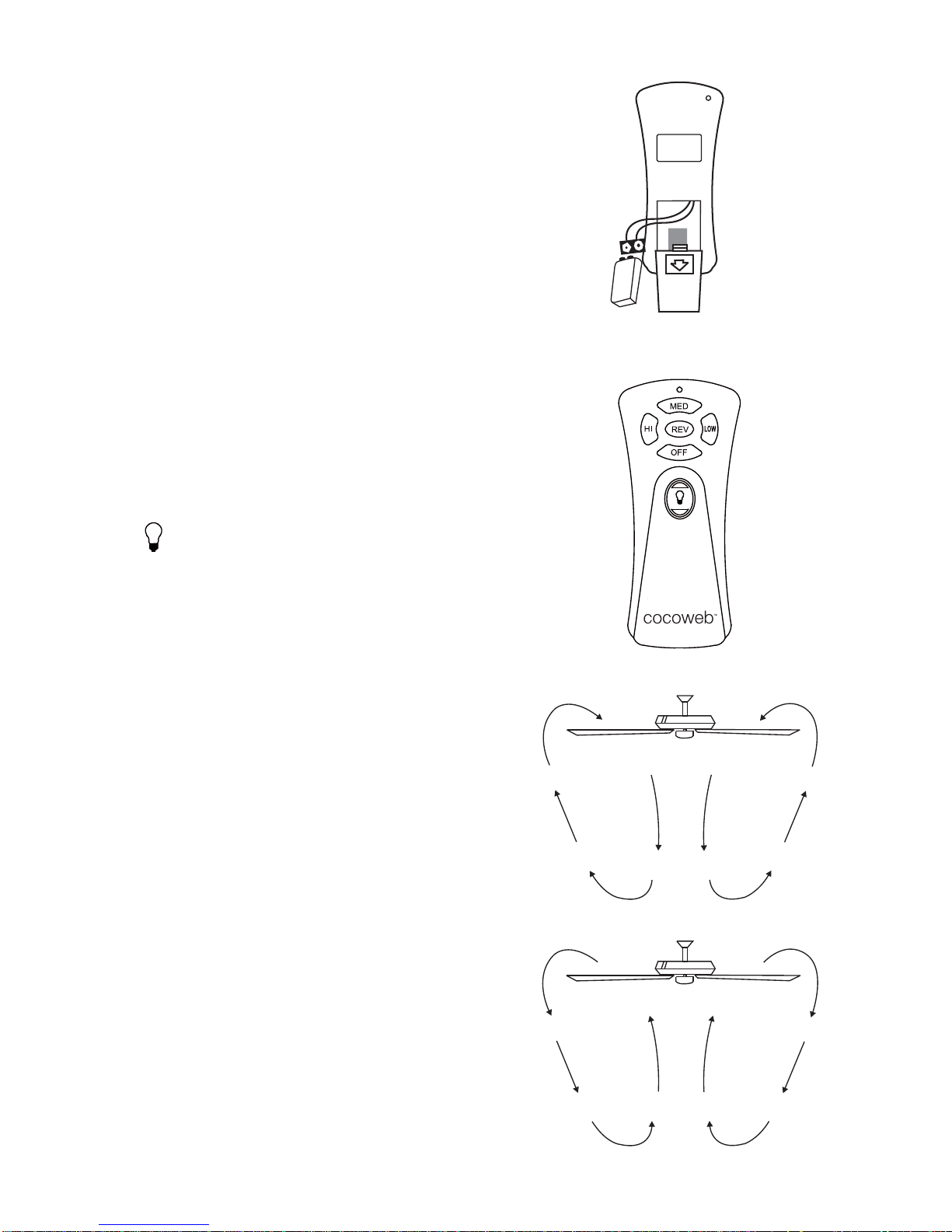

11. INSTALLING THE
BATTERY
Install 9 volt battery (included), to prevent
damage to transmitter, remove the battery if
not used for long periods. (Fig. 17)
12. OPERATING YOUR
TRANSMITTER
Restore power to ceiling fan and test for
proper operation.
A. "HI, MED, and LOW" buttons:
These three buttons are used to set the fan
speed as follows:
HI= high speed
Med= medium speed
Low= low speed
B. "OFF" button: This button turns the fan off.
C. The " " button turns the light ON or OFF
and also controls the brightness setting.
Press and release the button to turn the light
ON or OFF. Press and hold the button to set
the desired brightness. The light key has an
auto-resume, it will stay at the same
brightness as the last time it was turned off.
The "REV" button is used to set the fan
forward or reverse.
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
NOTE: To operate the reverse function on
this fan, press the reverse button while the
fan is running.
Warm weather - (Forward) A downward
airflow creates a cooling effect as shown in
Fig. 19. This allows you to set your air
conditioner on a warmer setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Fig. 20. This allows you to set your heating
unit on a cooler setting without affecting your
comfort.
9
9 Volt
Battery

10
13. CARE OF YOUR FAN
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT
ANY REPAIRS. REFER TO THE SECTION "MAKING ELECTRICAL CONNECTIONS".
Here are some suggestions to help you maintain your fan
1. Because of the fan's natural movement, some connections may become loose. Check the
support connections, brackets, and blade attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use only a
soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer
to minimize discoloration or tarnishing. Do not use water when cleaning. This could damage
the motor, or the wood, or possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to the wood blades for additional protection and
enhanced beauty. Cover small scratches with a light application of shoe polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.

Problem
Fan will not start.
Fan sounds noisy.
Remote control
malfunction.
Lights shut off and
will not come back
on.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the
switch housing. CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver
are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub
is tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is
off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new
fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the
glassware are tight. Check that light bulb is also secure.
6. Do not connect the fan with wall mounted variable speed control(s).
7. Make sure the upper canopy is a short distance from the ceiling. It should
not touch the ceiling.
1. Do not connect the fan with wall mounted variable speed control (s).
2. Make sure the dip switches are set correctly.
1. This unit is equipped with a wattage limiting device. Lamping in excess of
190 watts will disable your ceiling fan's light kit. To reset your light kit you
must turn the power off and re lamp, keeping the wattage under 190
watts. Restore power to your ceiling fan and continue normal operation.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of
the blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance
deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still
noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADE ARM WHILE INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN
ROTATING FAN BLADES.
14. TROUBLESHOOTING
11
