Cole Parmer CLW-108i and CLW-128iInstallation / Operation / Maintenance... General instructions

UNDERCOUNTER
GLASSWARE WASHER
MODELS CLW-108i and CLW-128i
Installation / Operation / Maintenance Manual
Undercounter and Freestanding / Mobile Versions
230V, 1 φ, 50 Hz
SERIAL # ______________________
COLE-PARMER
625 East Bunker
Court
Vernon Hills, IL
60061-9872
[phone]
001 [phone]
Internet: www.coleparmer.com
For Service, contact:
Cole-Parmer Service
Phone: [phone]
001 [phone]
FAX: [phone]
001 [phone]
E-mail: [email protected]
Part Number: MAN385 (445030)
Revision: MG, 22 July 2005
Cole-Parmer Instrument Company
625 East Bunker Court
Vernon Hills, IL 60061-9872
US & Canada: [phone]
Fax: [phone]
Outside US & Canada: 001 [phone]
Fax: [phone]
www.coleparmer.com
E-Mail:
General Information: [email protected]
Application Service: [email protected]
Returns/Repairs/Parts: [e-mail]
International Inquiries: [email protected]
Document P/N: MAN385 (445030)
Revision: MG, 22 July 2005

© Copyright Cole-Parmer, 2005.
All rights reserved.
IMPORTANT: SHIPMENT INSPECTION
Before leaving our factory, each unit is certified by Cole-Parmer’s
Quality Assurance department and carefully packed. Upon arrival,
inspect all containers for visible loss or damage and report any damage
on the carrier’s freight bill or express receipt. Failure to do so may
void the carrier’s responsibility.
Should concealed loss or shipping damage be observed after opening
containers, have the carrier inspect the packaging within 15 days of
delivery, and then file a claim with the carrier.
Cole-Parmer will assist in claims, but must be notified immediately and
sent a copy of the carrier’s inspection report.
WARNING:
DO NOT STORE OR PROCESS FLAMMABLE MATERIALS
This unit is not designed nor is it intended to be used
for the purpose of processing or storage of materials that
may contain volatile flammable solvents or that may emit
flammable vapors during processing or storage.

i
IMPORTANT SYMBOLS USED IN THIS MANUAL
Within this manual, please read closely any warnings, instructions,
and advice accompanied by the following symbols:
WARNING
PROPERTY RISK
ADVICE
INJURY OR EVEN DEATH MAY RESULT
IF A RECOMMENDATION MARKED
WITH THIS SYMBOL IS NOT HEEDED.
This symbol also indicates equipment safety components and
safety features. See Section 2, “Safety,” for a description of
safety elements designed into the washer.
IMPORTANT INSTRUCTIONS
To prevent damage to the washer and/or the load, adhere to
the procedures designated by this icon.
PRACTICAL TIPS
These recommendations are intended to streamline washer
installation or operation and maximize productivity.
CAUTION

ii
TABLE OF CONTENTS
1) INTRODUCTION AND FEATURES ...............................................1
2) SAFETY ......................................................................................3
3) WASHER OVERVIEW ..................................................................4
4) INSTALLING THE WASHER.........................................................7
Preparing for Installation .................................................................................... 7
Required Tools................................................................................................ 7
Required Plumbing Supplies........................................................................... 7
Required Utilities............................................................................................ 8
Dimensional Requirements............................................................................. 8
Step-by-Step Installation Instructions............................................................... 10

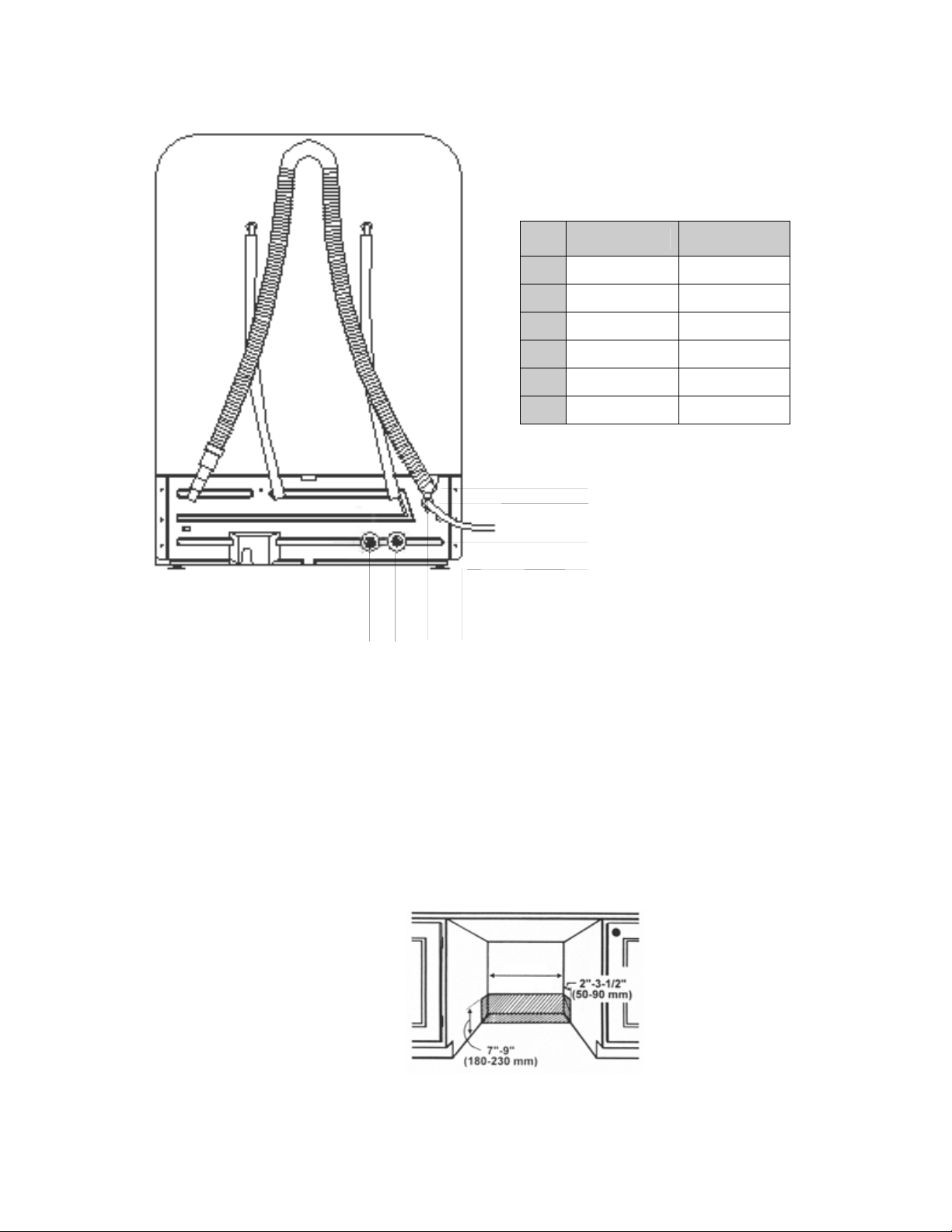

1) Prepare the Tap and DI Water Connections ............................................ 10
2) Prepare the Electrical Connection ........................................................... 10

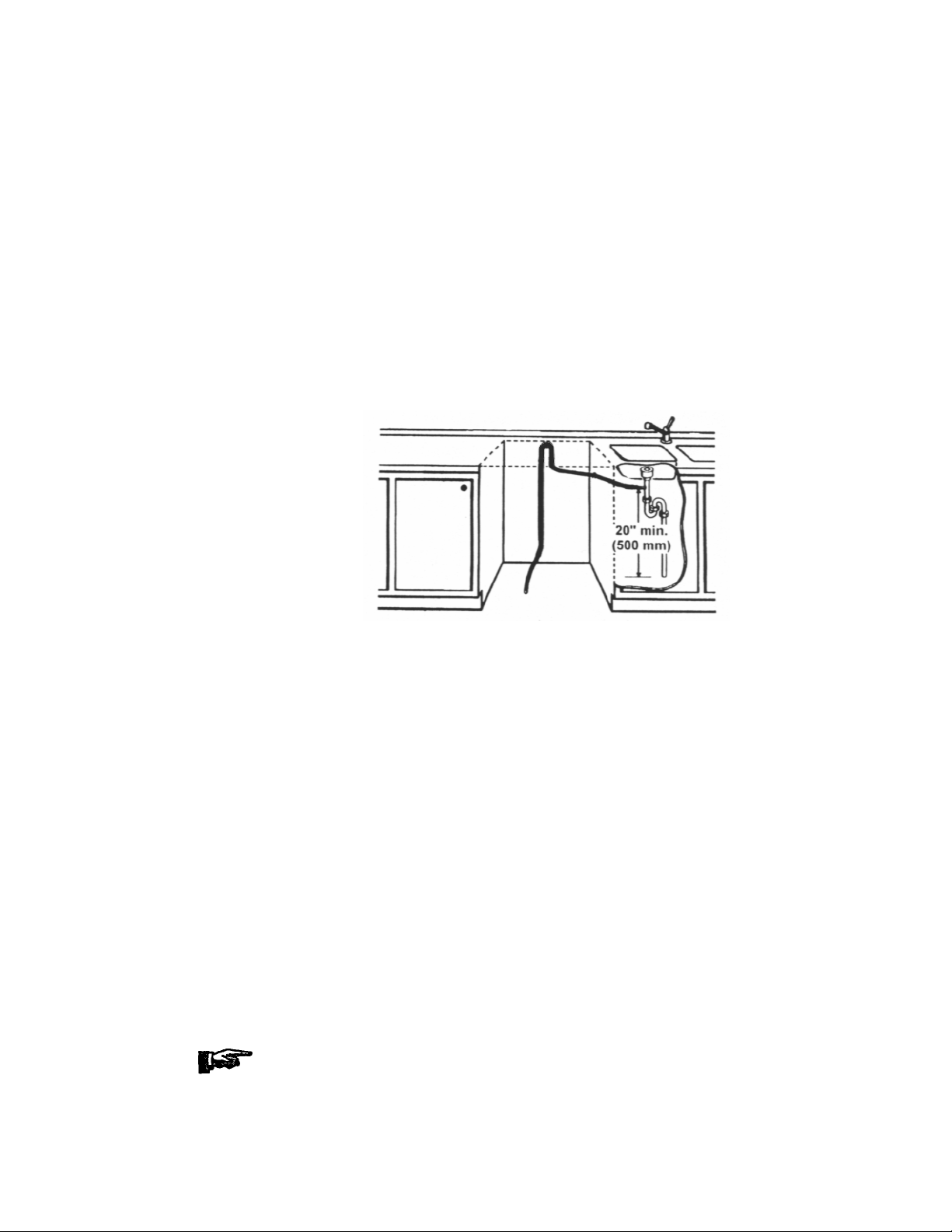

3) Connect to the Facility Drain................................................................... 11
4) Connect the Tap and DI Water Supplies ................................................. 12
5) Connect the Electrical Supply ................................................................. 12
6) Test For Leaks ......................................................................................... 12
7) Move the Unit Into Final Position ........................................................... 12
8) Adjust the Leveling Legs......................................................................... 13
9) Secure the Washer In Its Final Position................................................... 13

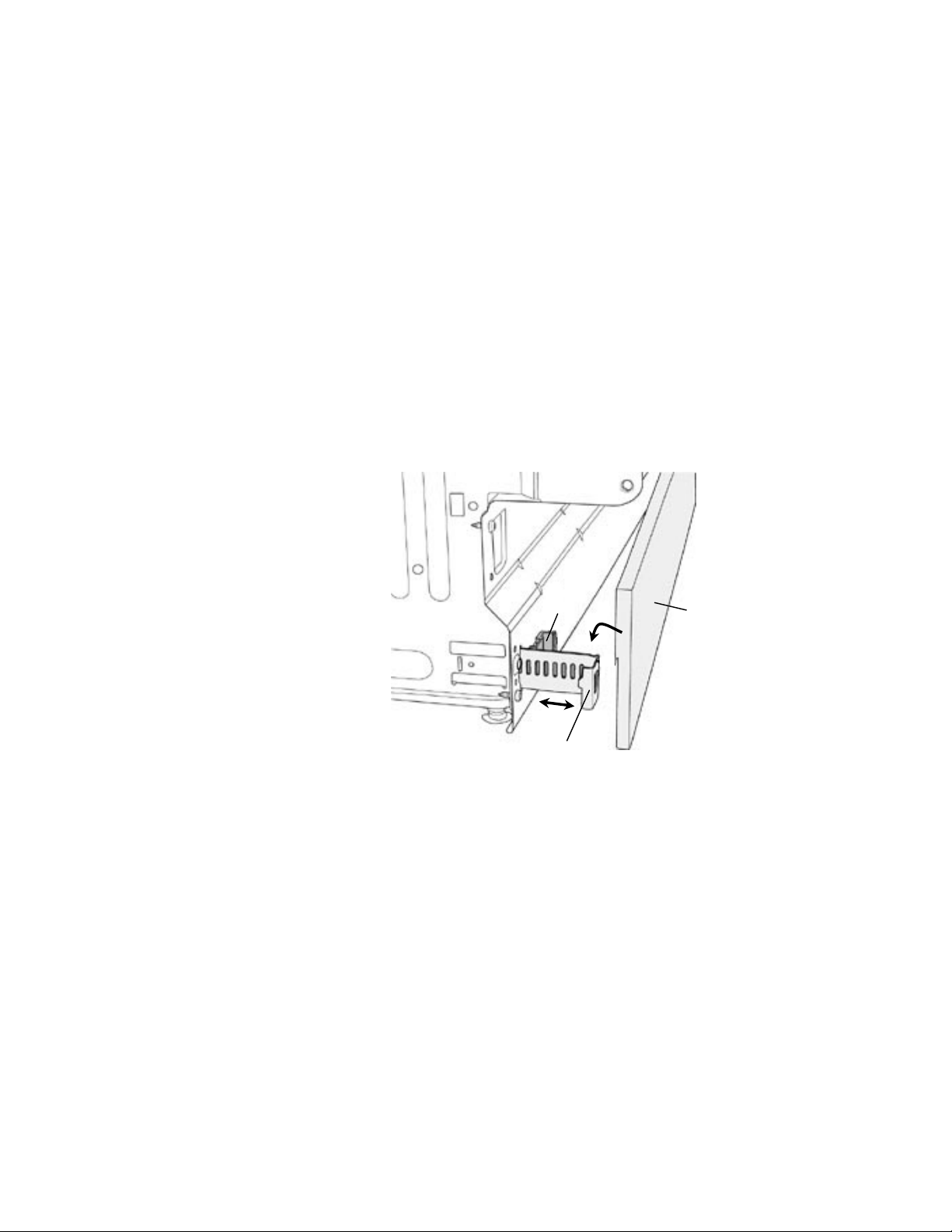

10) Toe-Kick Plate Installation (Optional) .................................................... 14
5) WASHER COMPONENTS ..........................................................15
6) HOW TO RUN A WASH CYCLE ..................................................23
Detergent Recommendations............................................................................ 23
Before Starting a Cycle..................................................................................... 23
How to Start a Cycle......................................................................................... 24
How to Pause or Abort a Cycle......................................................................... 24
Using the Cycle Lock Function ........................................................................ 25
7) MAINTENANCE ........................................................................26
8) TROUBLESHOOTING ...............................................................29
APPENDIX A: PARTS, DETERGENTS, & ACCESSORIES .................................... 33
APPENDIX B: ELECTRICAL SCHEMATICS ......................................................... 37
APPENDIX C: PLUMBING SCHEMATIC .............................................................. 41
APPENDIX D: SERVICE SAFETY ASSURANCE FORM......................................... 43

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
1
INTRODUCTION AND FEATURES
Cole-Parmer offers several laboratory /
industrial glassware washers and dryers
engineered to satisfy requirements in the
life scientific, pharmaceutical, and bio-
industrial fields. Model CLW-108i and
CLW-128i washers offer deionized water
final rinsing, stainless steel chambers,
easy-to-use pushbutton controls, six cycle
program selections, selectable wash
temperature, and a variety of time-saving
/ energy-saving settings. Model CLW-128i accommodates
optional spindle racks, which effectively clean narrow-neck
glassware such as volumetric and Erlenmeyer flasks.
1
Equipped with built-in door dispensers for detergent and liquid
neutralizer, these models are available in both Undercounter and
Freestanding / Mobile configurations. A wide variety of optional
specialty baskets and inserts is available to facilitate washing petri
dishes, test tubes, small graduated cylinders, bottles, and other loads
whose shapes require special consideration. A list of stainless steel
rack accessories appears on page 33 of this manual.
Available options include Spindle Racks for optimal cleaning of
narrow-neck glassware (Model CLW-128i only).
Product installation specifications and dimensions are listed on the
next page.
1
For an illustration comparing the standard rack and optional spindle rack functions, see page 21.

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
2
REQUIREMENT SPECIFICATION
TAP WATER SUPPLY
3 gal./min. minimum
(11 liters/min.)
@ 18 – 60 PSIG (124 – 414 kPa)
Although not required, hot water speeds
water heat-up, decreasing cycle time.
DEIONIZED WATER
SUPPLY
3 gal./min. minimum
(11 liters/min.)
@ 18 – 60 PSIG (124 – 414 kPa)
Resistivity ≤1 MΩ/cm
ELECTRICAL
REQUIREMENTS
230V, 1φ, 50 Hz
10A fused circuit.
Installation Overvoltage Category II.
Main supply voltage fluctuations not
to exceed ±10% of normal voltage.
ENVIRONMENTAL
CONDITIONS
This product is intended for indoor use
at altitudes up to 6500 ft (2000 m);
temperatures from 41 – 104°F (5 – 40°C);
Maximum relative humidity 80% for
temperatures up to 88°F (31°C),
decreasing linearly to 50% relative humidity
at 104°C (40°C).
Table 1-1. Specifications.
UNDERCOUNTER WASHER
MEASUREMENT
UNIT CABINET
OPENING (MIN.)
FREESTANDING /
MOBILE WASHER
HEIGHT
Adj. 32-1/2" to
34-7/8"
(825 – 886 mm)
As needed to
fit washer’s
adjustable height.
38-5/8" Min.
adjustment.
(980 mm)
WIDTH 23-1/2" (597 mm) 23-5/8" (600 mm) 23-3/4" (603 mm)
DEPTH 24-1/2" (622 mm) 25" (635 mm) 23-7/8" (606 mm)
WEIGHT 120 lbs (54 kg) 175 lbs (80 kg)
Table 1-2. Washer Dimensions.
Designs and specifications are subject to change without notice.

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
3
SAFETY
Your Cole-Parmer washer offers the following safety features:
OVERFILL PROTECTION — In the unlikely event that a
malfunction overfills the chamber, an overflow float sensor device
activates chamber draining.
DOOR SWITCH — The unit is equipped with a door switch that
automatically pauses the washer if the door is opened during a
cycle. The wash cycle will continue from the point of interruption
after the door is re-closed.
SAFETY CATCH — The washer is fitted with a safety catch
that, when engaged, prevents unintentional door opening and the
resulting risk of injury from exposure to hot water or steam. When
engaged, opening the door requires two hands. See Section 5,
“Washer Components.”
To ensure safe operation, please follow these recommendations:
• Read all instructions carefully before using the washer.
• This glassware washer must be properly grounded. See
Section 4, “Installing the Washer.”
• Use only detergents and neutralizers recommended by Cole-
Parmer for use in glassware washers. Heikol products have
been specifically formulated for use in Cole-Parmer washers.
• Before opening the door, always wait for the sounds of
rotating spray arms and circulating water to stop.
• Do not wash plastic items unless they are marked “washer
safe.” Check with the item’s manufacturer if unmarked.
• Remove the door before discarding an old washer.
WARNING:
If this equipment is used in a manner not specified in this manual,
safety protections designed into the equipment may be impaired.
Only qualified service personnel should remove cabinet panels.
CAUTION

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
4
WASHER OVERVIEW
This section describes washer capabilities and the sequence of
phases composing wash cycles.
Through available control settings, your washer offers a variety of
different operation cycles—permitting you to design the cycle best
suited for your application.
In Main Wash and Heated Rinse phases, an in-line heater element
heats water to a programmed temperature.
1
You can use the HW
(HIGH-HEAT WASH) and HR (HIGH-HEAT RINSE) buttons
to maximize operating water temperatures.
Cycles then proceed through the following sequence of (possible)
phases:
On some program cycles, not all of these phases are utilized.
Table 3-1 on page 6 lists the phases for each program type.
PRE-WASHES — In Pre-Wash phases the chamber sump well
fills with tap water and then the circulation pump activates to wet
down the load from the rotating spray arms and (on spindle-rack-
equipped CLW-128i units) from the spindles. Pre-Wash phases
may be heated or unheated (depending on the cycle selected).
They conclude by draining all water from the chamber.
MAIN WASH — The chamber fills with tap water, which is heated
to the temperature called for by the selected program and option-
button settings. At the start of the Main Wash phase, the detergent
compartment cover hinges open to introduce detergent. The load is
bathed with recirculating heated water. The Main Wash phase
concludes by draining all water from the chamber.
1
Heated-Phase durations are determined by the cycle program selected and the required water heat-up time.
Therefore, total cycle time is influenced by the source-water temperature and operator control selections.
PRE-WASHES MAIN WASH
TAP WATER
RINSE(S)
DI WATER
RINSE(S)
DRYING
PHASE

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
5
RINSES — Depending upon the cycle selected, up to two tap water
rinses and up to two DI water rinses may follow the Main Wash
phase. Table 3-1 on page 6 lists the phases for each program type.
During each rinse phase, water fills the chamber and then circulates
over the load. The terminal DI Water Rinse phase (on cycles having
this phase) is heated to the temperature called for by the selected
program and option-button settings. If neutralizer is loaded, it is
delivered into the chamber during rinse phases as described in
Table 3-1. Rinsing concludes by draining all water from the chamber.
DRYING — During the Drying phase, a fan blower circulates
and vents chamber air to speed drying.
Overall time to complete a cycle varies depending upon the cycle
selected, selected control panel functions, and the facility’s water
temperature. Although not required, hot source water speeds water
heat-up, decreasing cycle time.
To learn about washer components and controls, please refer to
Section 5, “Washer Components,” on page 15.
For step-by-step operating instructions, jump ahead to Section 6,
“How to Run a Wash Cycle,” on page 23.
For installation instructions, go to Section 4, “Installing the
Washer,” on page 7.

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
6
_
________________________________
*
The duration and/or temperature of program phases increases in progression from Quick Wash to Max Wash. Program
times are dependent upon facility water temperature during heated phases. Cooler source water prolongs cycle times.
**
Neutralizer injection will not occur if the washer door was opened by the operator after the cycle’s detergent door
activation. If neutralizer injection is required, either avoid opening the washer door mid-cycle, or add manually.
HPW = HEATED PRE-WASH (105°F / 40°C)
UPW1, UPW2 = UNHEATED PRE-WASHES
HW = “MAIN WASH PHASE” = HEATED WASH
UR1, UR2 = UNHEATED TAP WATER RINSES
UR3 = UNHEATED DI WATER RINSE
HR = HEATED DI WATER RINSE
DRY = FAN DRYING
1 = DETERGENT DOOR OPENS AND OPTIONAL AUTODISPENSER
DETERGENT PUMP OPERATES.
2 = DOOR DISPENSER NEUTRALIZER INJECTION OCCURS AFTER
HEAT-UP (IF FILLED).* *
3 = FOR RINSE-ONLY AND QUICK WASH CYCLES, THIS PHASE
OCCURS ONLY IF THE “HR” BUTTON IS ACTIVATED.
4 = THIS PHASE DOES NOT OCCUR IF THE “HR” BUTTON IS
ACTIVATED.
5 = OPTIONAL AUTODISPENSER NEUTRALIZER PUMP OPERATES.
HPW UPW1 UPW2 HW UR1 UR2 UR3 HR
PROGRAM
TAP WATER DI WATER
DRY
RINSE-ONLY
9
4
9
3
9
3
QUICK WASH
9
1
9 9
4,5
9
3,2,5
9
3
LIGHT WASH
9
1
9 9
5
9
2
9
MEDIUM WASH
9 9 9
1
9 9
5
9
2
9
HEAVY WASH
9 9 9
1
9 9
5
9 9
2
9
MAX WASH
9 9 9
1
9 9
5
9 9
2
9
Table 3-1. Available Cycle Programs and Program Phases.
*
Table 3-2. Cycle Temperatures.
CYCLE
SELECTION
HW
BUTTON
WASH TEMP
(°F / °C)
HR
BUTTON
RINSE TEMP
(°F / °C)
DRY TIME
(MIN.)
ON
122 / 50 20
ON
—
OFF UNHEATED
0
ON
122 / 50 20
RINSE ONLY
OFF
—
OFF UNHEATED
0
ON
140 / 60 30
ON
120 / 49
OFF UNHEATED
0
ON
140 / 60 30
QUICK
OFF
85 / 29
OFF UNHEATED
0
ON
140 / 60 30
ON
120 / 49
OFF
122 / 50 20
ON
140 / 60 30
LIGHT
OFF
105 / 40
OFF
122 / 50 20
ON
158 / 70 48
ON
140 / 60
OFF
122 / 50 20
ON
158 / 70 48
MEDIUM
OFF
130 / 54
OFF
122 / 50 20
ON
158 / 70 48
ON
160 / 71
OFF
140 / 60 48
ON
158 / 70 48
HEAVY
OFF
130 / 54
OFF
140 / 60 48
ON
158 / 70 48
ON
160 / 71
OFF
140 / 60 48
ON
158 / 70 48
MAX
OFF
140 / 60
OFF
140 / 60 48

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
7
INSTALLING THE WASHER
Your Cole-Parmer glassware washer must be enclosed on the top,
back, and both sides. The cabinet enclosure into which
Undercounter units are installed supplies this protection.
Freestanding / Mobile units are equipped with a #3 stainless steel
cabinet.
Only qualified, factory-trained personnel familiar with local plumbing
and electrical codes and ordinances should install the washer. For a
first-time installation, all site preparation work must be completed
before the washer can be installed with final utility connections. If
the new washer replaces an existing unit, verify that all plumbing
and electrical connections are properly sized and located.
To protect floor surfaces, Undercounter
units are supplied with leg slides for
attachment to washer feet. These decrease
friction as the unit is moved across the floor.
Preparing for Installation
REQUIRED TOOLS
• Phillips #2 screwdriver
• Flat blade screwdriver
• Adjustable wrenches
• 5/8" (16 mm) open-end wrench
• Tape measure
• Spirit level
• Electric drill
• Hole-saw bits up to 2" (50 mm) diameter
REQUIRED PLUMBING SUPPLIES
Your unit is supplied with two rear-mounted barbed fittings for
connection to your facility’s tap water and DI water supplies.
Two 6' lengths of 1/4" ID x 3/8" OD flexible tubing are provided.
Mating extension hoses are available in a Facility Installation Kit
(Part Number 445490). We recommend installing a shutoff valve
at the water supply connection. You will also need an appropriate
fitting for connecting the supplied drain hose to your drain system.
CAUTION
LEG
SLIDE
LEG
SLIDE

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
8
REQUIRED UTILITIES
• Electrical: A 10-Amp rated outlet receptacle for a
dedicated, properly grounded branch circuit supplying
230V, 1φ, 50 Hz. Provide a local disconnect or switch for
safe maintenance access.
• Tap Water: 18 – 60 PSI (124 – 414 kPa) @ minimum
3 gallons/min. (11 liters/min.). Although not required, hot
water speeds water heat-up, decreasing cycle time. To
facilitate service, install a shutoff valve (not supplied) in
the water supply line at a readily accessible location.
• Deionized Water: 18 – 60 PSI (124 – 414 kPa) @
minimum 3 gallons/min (11 liters/min). IMPORTANT:
To prevent corrosion, D. I. Water should not exceed
1 MΩ/cm resistivity.
• Drain Supply: 3/4" (18 mm) Minimum ID piping.
DIMENSIONAL REQUIREMENTS
For all models, allow for 25"
(635 mm) door extension when
open. Allow at least 2" (5 cm)
space to the side of the door.
Prepare an installation space or
cabinet recess consistent with these
and the other dimensions listed for
your model in Table 1-2, “Washer
Dimensions,” on page 2.
Undercounter Model Only — A typical cabinet recess for the
undercounter model is pictured here:
Rear connection locations are listed in Figure 4-1 below.
25"
(635 mm)
32-5/8" min.
(830 mm)
23-5/8"
(600 mm)
CAUTION
DOOR RADIUS:
25" (635 mm)

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
9
During Undercounter installation, ensure that the water and
electrical services enter the cabinet recess within the shaded area
shown here:
A to E to
B
2-1/4" (5.7 cm) —
C
6-1/8" (15.5 cm) —
D
8" (20.3 cm) —
F
— 2-1/4" (5.7 cm)
G
— 5" (12.7 cm)
H
— 6-1/2" (16.5 cm)
D C B A
H
G
F
E
SADDLE
IMPORTANT:
Hose must remain
installed in saddle.
NOT
PRESENT
ON UNITS
SHIPPED
OUTSIDE
THE USA.
NOT
PRESENT
ON UNITS
SHIPPED
OUTSIDE
THE USA.
DRAIN
HOSE
TAP WATER
DI WATER
Figure 4-1. Rear Connection Locations (Approximate).
NOTE: “E to” dimensions are minimum distances from
the bottom of the adjustable leveling foot.
23-5/8" min.
(
600 mm
)

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
10
Step-by-Step Installation Instructions
1) PREPARE THE TAP AND DI WATER CONNECTIONS
Plan the fitting connections and the route for water supply tubing
from the washer to your water supplies. On Undercounter units,
drill appropriately sized cabinet entry holes as required, keeping
within the shaded area pictured in the previous section. With the
washer outside of the cabinet recess, feed the water supply tubing
through the cabinet hole(s) toward the water source connectors.
For DI water connection, use plastic or stainless fittings. Brass
fittings corrode in contact with DI water and are not recommended.
2)
PREPARE THE ELECTRICAL CONNECTION
For convenience, the unit is provided with a pre-wired electrical
cable and plug. Locate or install a code-conforming electrical
receptacle within reach of the washer’s supplied cable. The
electrical supply should be a dedicated circuit that is properly
grounded and breaker-equipped.
Drill an appropriately sized cabinet entry hole within the shaded
area pictured on page 9.
WARNINGS:
1) The electrical receptacle must be properly
grounded and must comply with applicable
portions of all national and local electrical
codes.
2) All washer servicing should occur with the
power cord disconnected from power.
SHUTOFF
VALVE
AC RECEPTACLE
HOLE FOR POWER CABLE

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
11
No other appliance or outlets should share this circuit. Provide a
local disconnect or switch to ensure safe maintenance access.
With the washer still outside of the cabinet recess, feed the power
cord through the cabinet hole toward the AC outlet.
3)
CONNECT TO THE FACILITY DRAIN
The unit is supplied with a drain hose oriented over a rear-mounted
“high-loop” saddle. To prevent problems with drainage, backflow,
and siphoning, the high-loop configuration must be preserved—
typically by an arrangement similar to the following (shown here
for an Undercounter model):
Fashion a drain connection that conforms to these requirements:
• No part of the drain hose should exceed 35" (90 cm) above
the bottom of the washer.
• The drain connection must be at least 20" (50 cm) above
the bottom of the washer.
• The drain hose extends no more than 10' (3 m).
• Any joints or fittings must be 3/4" (18 mm) ID or larger.
• The drain hose is not directly connected to a floor well or
its equivalent—this could cause a siphon that empties the
machine during cycles. The drain line should never be
connected to a check valve.
• Do not route the washer drain through a vent or air gap, as
this may impede flow during some drain phases. If the drain
cannot be hard piped as shown above, locate the drain hose
over an open counter drain or floor drain instead.
Drill an appropriately sized cabinet entry hole as required to reach
the drain connection. Feed the supplied drain hose through the
(HOSE ORIENTATION
WITH UNIT IN PLACE)

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
12
cabinet hole toward the drain connection, then connect the drain
hose to your drain.
4)
CONNECT THE TAP AND DI WATER SUPPLIES
Connect and tighten all water connections securely.
5) CONNECT THE ELECTRICAL SUPPLY
For a Freestanding / Mobile unit, roll the washer into its final
location and connect the supplied power cord to an appropriate
receptacle. Secure the unit by depressing the caster brake levers on
the unit’s casters. After circuit power is activated, the washer is
ready to operate.
For an Undercounter unit, connect the unit’s AC power plug to its
AC receptacle.
6) TEST FOR LEAKS
Before final leveling and securement in position, test for leaks as
follows:
a. Turn ON the electrical power and water supplies.
b. Push the door closed until it is securely latched.
c. Follow the “How to Start a Cycle” procedure on page 24
to select and operate a LIGHT cycle. This cycle executes
both tap water and DI water rinses.
d. While the cycle is operating, carefully check all water
supply and drain connections to ensure that there are no
leaks. Correct any observed leaks.
7)
MOVE THE UNIT INTO FINAL POSITION
Using an assistant if necessary to take up excess cable and hose
slack, push the washer fully into its final position.

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
13
8) ADJUST THE LEVELING LEGS
On Undercounter units, leg height may be adjusted as follows:
Use a 5/8" (16 mm) wrench to adjust leveling legs to the required
height and to level the unit. Any inclination must be ≤2°. Use the
locking nut to lock your adjustments:
If rear-leg height adjustment is necessary, temporarily remove the
washer from final position to adjust the rear leg.
9) SECURE THE WASHER IN ITS FINAL POSITION
Undercounter Units:
To prevent forward
tilting when downward
force is applied to the
open door or when
heavily loaded baskets
are pulled outward, use
screws to fasten the washer to the cabinet. Using the supplied
screws, plastic spacers, and rubber cosmetic plugs, secure the
washer to the cabinet using alternative “A” or “B” (one screw on
each side) as shown here.
Freestanding / Mobile Units: If your application creates the
potential for forward tilting, use the supplied TIP GUARDS or
your own fashioned brackets to secure the washer’s rear castors
to the wall or floor. Typical installations are shown here:
LOCKING NUT
FOOT / SLIDER
HEX NUT
LOCK
WASHER
FLAT
WASHER

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
14
If you prefer to fix the Freestanding / Mobile washer in a
permanent location, leveling feet are provided to replace the
castors.
10) TOE-KICK PLATE INSTALLATION (OPTIONAL)
On Undercounter Units, the supplied TOE-KICK PLATE can be
attached to the washer’s lower front to optimize appearance. You may
decide that attaching this plate is unnecessary for your installation.
To attach the TOE-KICK PLATE, position each of the two PLATE
SUPPORT BRACKETS inward or outward to the desired depth
(pulling its catch inward to release the bracket). Then, simply hook
the TOE-KICK PLATE onto the front of the bracket.
TOE-KICK PLATE
PLATE
SUPPORT
BRACKET
CATCH

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
15
WASHER COMPONENTS
ON / OFF POWER SWITCH — Press
this pushbutton to energize the washer and
illuminate control panel indicator lights.
HANDLE COVER — To unlatch the door insert your hand, palm
up, into this cover and pull the latch. The door is securely latched
until the door handle is grasped and pulled forward. When re-
closing the door, push the door firmly closed to reactivate the
latch. A switch inside the door handle detects if you open the door
during a cycle, and pauses the cycle until you re-close the door.
EXTERNAL
COMPONENTS
SAFETY CATCH LEVER & CONTROL
To minimize the chance of opening the door accidentally
during runs, the Safety Catch can be engaged. If the Safety
Catch is engaged, you must push the white Safety Catch Lever
to the left in order for the door handle to operate:
To engage or disengage the Safety Catch mechanism, push the
handle cover to access the Safety Catch Control. Rotate this
control with a flat-blade screw driver to the desired position:
ENGAGED DISENGAGED
OFF
ON
HANDLE COVER CONTROL
PANEL
ON / OFF POWER SWITCH
(ON TOP DOOR SURFACE)
VENTILATION
PORT

_____________________________________________________________________________
Cole-Parmer CLW-108i & CLW-128i Washers
16
VENTILATION PORT — During the drying phase, fan-
circulated air exhausts from this port. Avoid obstructing this
port during washer operation.
CONTROL PANEL — Your washer provides a user-friendly
panel of pushbutton controls and indicator lamps:
Figure 5-1. Control Panel Detail.
The control panel buttons and indicators are:
1.
PROGRAM SELECTOR BUTTON — Press this button
repeatedly until the desired
PROGRAM INDICATOR LAMP
illuminates.
2. PROGRAM INDICATOR LAMPS — Indicates the currently
selected program.
3. HIGH-HEAT WASH (HW) SELECTOR BUTTON & INDICATOR
— Press this button to select high or low temperature washing.
The indicator illuminates when the high temperature mode has
been selected. Available temperatures are listed in Table 3-2
on page 6. Heated Wash and Heated Rinse phases both
control to the selected temperature.
4. START-DELAY SELECTOR BUTTON & INDICATOR —
If a delay of 1 to 12 hours is desired before automatically
starting a wash cycle, press this button until the desired
number of hours appears in the DISPLAY WINDOW (#8).
1
2
6
345
7
9
8
