commercial cool CPT05WBA User manual

PORTABLE AIR CONDITIONER
User Manual
MODEL
CPT05WBA, CPT06WB, CPT07WB

Page 3
CONTENTS
SAFETY INFORMATION
Important Safety Instructions......................................................................................................................................... 4-6
Grounding Instructions.....................................................................................................................................................7-8
Safety Guidelines .................................................................................................................................................... 9
Power Cord Operation........................................................................................................................................ 10
SET UP & USE

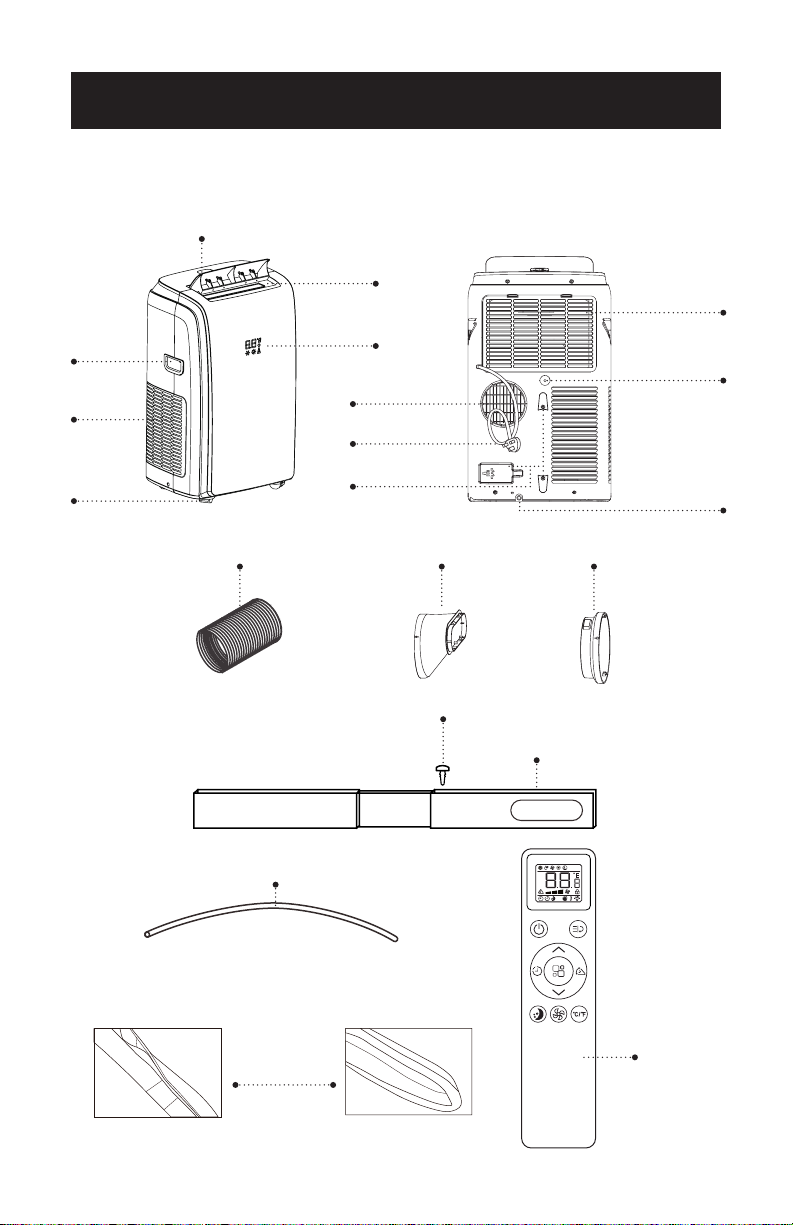

Parts & Features .......................................................................................................................................................................11
Specications ..........................................................................................................................................................12
Installation Guide ...................................................................................................................................................12
Window Slider Kit Installation...........................................................................................................................13
Exhaust Hose Installation....................................................................................................................................14

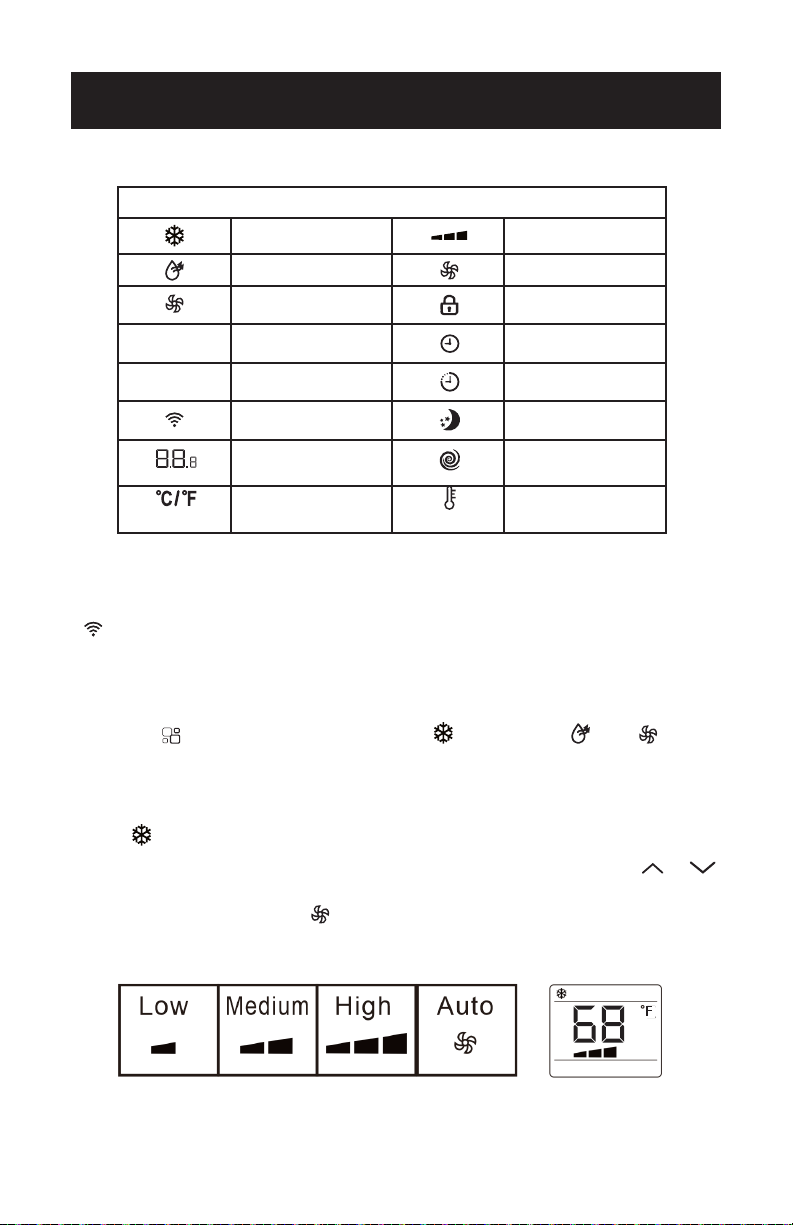

Control Panel ...........................................................................................................................................................15
Operating from the Control Panel.............................................................................................................15-16
Operating from the Remote Control.......................................................................................................17-24
Water Drainage .....................................................................................................................................................25
CLEANING & CARE............................................................................................................................................ 26
TROUBLE SHOOTING & WARRANTY
Before You Call For Service..............................................................................................................................27
Customer Service..................................................................................................................................................27
Troubleshooting ....................................................................................................................................................28
Limited Warranty.................................................................................................................................................................. 29
1. READ these instructions carefully before installing and operating the appliance.
Keep them for further reference.
2. Record in the space below the “SERIAL/MODEL NUMBER” found on the back or
bottom of your appliance and retain this information for future reference.
SERIAL NUMBER:
MODEL NUMBER:
DATE OF PURCHASE:
Save and staple your sales receipt to your manual for warranty coverage.

Page 4
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
DANGER
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
WARNING
When using electrical appliances, basic safety precautions
should be followed, including the following
1. To reduce risk of injury, read this guide before using the appliance.
2. Air conditioner must be connected to proper electrical outlet with
the correct electrical outlet with the correct electrical supply.
3. Proper grounding must be ensured to reduce the risk of shock and
re. DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do
not have a three-prong electric receptacle outlet in the wall, have a
certied electrician install the proper receptacle. The wall receptacle
MUST be properly grounded.
4. Do not operate air conditioner if power cord is frayed or otherwise
damaged. Avoid using it if there are any cracks or abrasion damage
along the length, plug connector or if the unit malfunctions or is
damaged in any manner. Contact an authorized service technician
for examination, repairs or adjustments.
5. DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
6. Do not block airow around the air conditioner. The exhaust hose
should be free of any obstructions.
7. Always unplug the air conditioner before servicing it or moving it.
8. Do not install or use the air conditioner in any area where the
atmosphere contains combustible gases or where the atmosphere is
oily or sulphurous. Avoid any chemical coming in contact with your
air conditioner.
9. Do not place any object on the top of the unit.
10. Never operate the air conditioner without lters in place.
11. Do not use the air conditioner near a bathtub, shower or wash basin.
12. This appliance is not intended for use by persons (including children)
with reduced physical sensory or mental capabilities or lack of
experience & knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible
for their safety.
13. Children should be supervised to ensure that they do not play with
the appliance.
14. If the SUPPLY CORD is damaged, it must be replaced by the
manufacturer, a service agent or similarly qualied persons in order
to avoid a hazard.
15. The air conditioner shall be installed in
accordance with national wiring regulations.

Page 5
HANDLING ALKALINE BATTERIES
WARNING
When handling alkaline batteries, basic safety precautions
should be followed, including the following
SAFETY INFORMATION
1. Should uid from the battery accidentally get into your eyes, there is a threat
of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap
water and then consult a physician immediately.
2. Do not put the battery in a re, expose it to heat, dismantle or modify it. If the
insulation or safety valve is damaged, the battery may leak uid, overheat or
explode.
3. Do not insert the battery with the poles reversed. Doing so may cause some
abnormality or a short and the battery may leak uid, overheat or explode.
4. Keep the battery out of the reach of children. If the battery is swallowed, contact
a physician immediately.
5. If the alkali uid gets in your mouth, rinse your mouth with water and contact a
physician immediately.
6. If the alkali uid gets on your skin or clothes, it may burn your skin, thoroughly
rinse the affected area with tap water.
7. Do not mix new and old batteries or other makes of batteries. The different
attributes may cause the battery to leak uid, overheat or explode.
8. This battery was not made to be recharged. Recharging this battery may damage
the insulation or internal structure and may cause the battery to leak uid,
overheat or explode.
9. Do not damage or remove the label on the exterior of the battery. Doing so may
cause the battery to short, leak uid, overheat or explode.

Page 6
HANDLING ALKALINE BATTERIES
WARNING
When handling alkaline batteries, basic safety precautions
should be followed, including the following
SAFETY INFORMATION
10. Do not drop, throw or expose the battery to extreme impact. Doing so may cause
the battery to leak uid, overheat or explode.
11. Do not alter the shape of the battery. If the insulation or safety valve is damaged,
the battery may leak uid, overheat or explode.
12. Immediately remove batteries when they have lost all power. Leaving the
batteries in the unit for a long time may cause the batteries to leak uid, overheat
or explode due to gas that is generated by the batteries.
13. Remove the batteries from the unit when not using the unit for an extended
period of time. The batteries may leak uid, overheat or explode due to gas that is
generated by the batteries.
14. Do not apply solder directly to the batteries. The heat may cause the batteries to
leak uid, overheat or explode.
15. Do not get the batteries wet. Doing so may cause the batteries to overheat
16. Store batteries someplace out of direct sunlight where the temperature and
humidity are not high. Not doing so may cause the batteries to leak uid,
overheat or explode. Also, it may cause the life and performance of the batteries
to decline.
17. Follow the regulations of the local government when disposing of these batteries.
18. NEVER mix alkaline, standard (carbon-zinc), rechargeable (nickel-cadmium)
batteries with this product.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY

Page 7
GROUNDING INSTRUCTIONS
ELECTRICAL REQUIREMENTS
In the event of malfunction or breakdown, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock.
The appliance must be connected to a cord having an equipment-
grounding conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment grounding conductor
can result in a risk of electric shock. The conductor with insulation
having an outer surface that is green with or without yellow stripes is
the equipment grounding conductor. If repair or replacement of the
cord or plug is necessary, do not connect the equipment-grounding
conductor to a live terminal. Check with a qualied electrician or service
person if the grounding instructions are not completely understood, or
if in doubt as to whether the appliance is properly grounded. Do not
modify the plug connected to the appliance – if it will not t the outlet,
have a proper outlet installed by a qualied electrician.
FOR GROUNDED, CORD-CONNECTED APPLIANCE RATED LESS THAN
15A AND INTENDED FOR USE ON A NOMINAL 120V SUPPLY CIRCUIT
The appliance is for use on a nominal 120V circuit and should be
connected to a grounding outlet that looks like the one illustrated
below. The use of a temporary adaptor is not recommended.
SAFETY INFORMATION

Page 8
SAFETY INFORMATION
LCDI POWER CORD AND PLUG
This air conditioner is equipped with an LCDI (Leakage Current
Detection and Interruption) power cord that is required by UL. This
power supply cord contains state-of-the-art electronics that sense
leakage current. If the cord is damaged and leakage occurs, power will
be disconnected from the unit.
The test and reset buttons on the LCDI Plug are used to check if the
plug is functioning properly.
WARNING: Test LCDI before each use.
To test the plug:
1. Plug power cord into a grounded 3 prong outlet.
2. Press RESET (on some units a green light will turn on).
3. Press the TEST button, the circuit should trip and cut all power to the air
conditioner(on some units green light may turn off).
4. Press the RESET button for use. You will hear a click and the A/C is ready
for use.
5. The power supply cord must be replaced if it fails to trip when the TEST
button is pressed and the unit fails to reset.
NOTES:
• Do not use this device to turn the unit on or off.
• Always make sure the reset button is pushed in for correct operation
• WARNING:
• The power supply cord must be replaced if it
fails to reset when either the test button is
pushed, or it cannot be reset.
• If power supply cord is damaged, it cannot
be repaired.
• It must be replaced by one obtained from
the product manufacturer.
WARNING – RISK OF FIRE
• It is important the plug ts tightly into the wall outlet.
• If the plug does not t securely and appears loose, it should not be used.
• Have a licensed electrician replace the receptacle.

Page 9
SAFETY INFORMATION
SAFETY GUIDELINES
To prevent injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions
may cause harm or damage.
ALWAYS DO THIS NEVER DO THIS ENERGY SAVE
• Your air conditioner
should be used in such a
way that it is protected
from moisture. e.g.
condensation, splashed
water, etc. Do not place or
store your air conditioner
where it can fall or be
pulled into water or any
other liquid. Unplug
immediately.
• Always transport your air
conditioner in a vertical
position and stand on a
stable, level surface during
use.
• Turn o the product when
not in use.
• Always use the switch on
the control panel to start or
shut off the unit.
• Always contact a qualied
person to carry out
repairs. If the supply cord
is damaged it must be
repaired by a qualied
technician.
• Keep an air path of at least
12 inches. all around the
unit from walls, furniture
and curtains.
• If the air conditioner is
knocked over during use,
turn off the unit and unplug
from the power supply
immediately.
• Do not operate your air
conditioner in a wet room
such as a bathroom or
laundry room.
• Do not touch the unit with
wet or damp hands or when
barefoot.
• Do not press the buttons
on the control panel with
anything other than your
ngers.
• Do not remove any xed
covers. Never use this
appliance if it is not working
properly, or if it has been
dropped or damaged.
• Never use the plug to start
and stop the unit.
• Do not cover or obstruct the
inlet or outlet grilles.
• Do not use hazardous
chemicals to clean or come
into contact with the unit.
Do not use the unit in the
presence of inammable
substances or vapour such as
alcohol, insecticides, gasoline,
etc.
• Do not allow children
to operate the unit
unsupervised.
• Do not use this product for
functions other than those
described in this instruction
manual.
• Use the unit in the
recommended room size.
5,000 BTU
up to 150 sq. ft.
6,000 BTU
up to 250 sq. ft.
7,000 BTU
up to 300 sq. ft.
• Locate the unit where
furniture cannot obstruct
the air ow.
• Keep blinds / curtains
drawn.
• Keep the lters clean.
• Keep doors and windows
closed to keep cool air in
and warm air out.

Page 10
OPERATING CONDITION
The air conditioner must be operated within the temperature range indicated below:
NOTE: · Unit performance may be affected when in use outside of these operating temperatures.
SAFETY INFORMATION
MODE ROOM TEMPERATURE
COOL 64˚F (18˚C) ~ 95˚F (35˚C)
DEHUMIDIFY 64˚F (18˚C) ~ 95˚F (35˚C)

Page 11
PARTS & FEATURES
SET UP & USE
Handle
Intake
Grill
Air Exhaust
Hose Housing
Plug
Plug Cord
Storage System
Display
Screen
Air Outlet
Grill
Castors(4)
Filter
Condesation
Drain
Dehumidication
Drain
Control Panel and Remote Control Sensor
Air Exhaust Hose Hose Outlet Hose Inlet
Remote
Control
Window Bracket
Drip Pan
Foam Seal
Locking Screw
Drain Hose
3.3 feet long
0.5 inch diameter
2 pcs 1 pc.

Page 12
SET UP & USE
SPECIFICATIONS
CPT05WBA
Unit dimensions (W x D x H): 16.54” x 12.2” x 27.56”
Unit weight approx.:52.9 lbs.
CPT06WB
Unit dimensions (W x D x H): 16.54” x 12.2” x 27.56”
Unit weight approx.: 53.9 lbs.
CPT07WB
Unit dimensions (W x D x H): 16.54” x 12.2” x 27.56”
Unit weight approx.: 56.4 lbs.
Electric Requirements: 115V ~ 60Hz
INSTALLATION GUIDE
LOCATION
• The air conditioner should be placed on a rm oor to minimize noise and
vibration. For safe and secure positioning, place the unit on a smooth, level
oor strong enough to support the unit.
• The unit has casters to aid placement, but it should be rolled on smooth, at
surfaces. Use caution when rolling on carpet surfaces. Do not attempt to roll
the unit over objects.
• The unit must be placed within reach of a properly rated grounded socket.
• Never place any obstacles around the air inlet or outlet of the unit.
• Allow 12 inches to 36 inches of space from the wall with window for efcient
air-conditioning.
SUGGESTED TOOLS FOR WINDOW KIT INSTALLATION
• Screwdrivers (medium size Phillips)
• Tape measure or ruler
• Knife or scissors
• Saw (In the event that the window kit needs to be cutdown in size because the
window is too narrow for direct installation)

Page 13
SET UP & USE
WINDOW SLIDER KIT INSTALLATION
Your window slider kit has been designed to t most standard “Vertical” and
“Horizontal” window applications; however, it may be necessary for you to
improvise/modify some aspect of the installation procedures for certain types of
window. Minimum and maximum window openings:
MAXIMUM : 50” (127 cm) MINIMUM: 20.5” (52 cm)
NOTE: · A plastic locking screw is holding the window slider kit together during shipment.
Prior to installation, remove the locking screw, adjust to desired length and use
provided locking screw to secure.
NOTE: · If the window opening is less than 20.5” the minimum length of the window slider
kit, cut the one with a hole in it short to t for the window opening. Never cut out
the hole in window slider kit.
DOUBLE-HUNG SASH/SLIDING CASEMENT
WINDOW INSTALLATION
1. Cut the foam seal (adhesive type)
to the proper length and attach it
to the window sash.
2. Attach the window slider kit to the
window sash. Adjust the length of
the window slider kit according to
the width of window. Shorten the
adjustable window kit if the width
of window is less than 20.5”.
3. Cut the foam seal (adhesive type)
to the proper length and attach it
on the top of the window.
4. Close the window securely against
the window slider kit.
5. Secure the window slider kit to the
window sash.
6. Cut the foam seal to an
appropriate length and seal the
open gap between the top window
frame and outer window frame.
Horizontal Window Vertical Window Window Slider Kit
Cut on opposite
side of hole.
Foam
Seal
Foam
Seal
Foam
Seal
Window
Slider Kit
Window
Slider Kit
20.5”~50”
Foam
Seal
Window
Slider Kit
Window
Slider Kit
20.5”~50”
Window Sash
Locking
screw
Window slider kit can be secured
by inserting the locking screw

Page 14
SET UP & USE
EXHAUST HOSE INSTALLATION
The air exhaust hose and hose inlet must be installed or removed from the portable
air conditioner in accordance with the way it is being used:
COOL, AUTO: Air exhaust hose and hose inlet should be connected to the portable
air conditioner.
FAN, DUHUMIDIFY: Air exhaust hose and hose inlet should be disconnected from the
portable air conditioner.
1. Align Arrow of hose inlet and hose.
Turn either clockwise or counterclockwise
to secure (Fig. 1).
2. Align arrow of hose outlet and hose.
Turn either clockwise or counterclockwise
to secure (Fig. 2).
3. Attach the hose inlet onto the back of the unit (Fig. 3).
4. Afx the hose outlet into the window slider kit and seal (Fig. 4 & 5).
.
NOTE: The exhaust hose can be compressed or extended
moderately, but it is desirable to keep the length to a
minimum. Also make sure that the hose does not
have any sharp bends.
Hook
Fig. 4 Fig. 5
Fig. 1 Fig. 2
Fig. 3
Slide onto
Slide onto

Page 15
SET UP & USE
Pictures are for illustration purpose only. Your model may or may not have all the features.
The control panel is located on top of the unit. Some functions should be accessed using the
remote control.
CONTROL PANEL
TURNING THE APPLIANCE ON
• Plug into the dedicated electrical outlet. The unit will be on standby.
• Press the button until the appliance comes on. The last function active when
it was turned off will appear.
* Never turn the air conditioner off by unplugging from the outlet. Always press
the button , then wait for a few minutes before unplugging. This allows the
appliance to perform a cycle of checks to verify operation.
Note: Before pressing Power On button make sure the condensate drain plug in
the rear of the unit is securely in place to avoid any leaking.
MODE BUTTON
• Selects the appropriate operating mode. Each time you press the Mode button,
a mode COOL, DEHUMIDFIY or FAN is selected. The LED display will indicate.
Power
Mode ButtonFan
Up Button
(Increase)
Down Button
(Decrease)
COOL FANDRY

Page 16
LED DISPLAY
• Displays the programmed settings.
• When the appliance is on standby
press and hold the Mode button
for 20 seconds to change the unit
of temperature from Fahrenheit to
Celsius. The appliance is in standby
when the unit is powered on but
mode has not yet been selected.
COOL MODE
• Press the “MODE” button until the
symbol appears on the LED display.
• Press the ADJUST buttons “ ” or
“ ” to select your desired room
temperature. The temperature can be
set within a range of 64˚F(18˚C) to
95˚F(35˚C).
• Press the Fan speed button to select
the fan speed: HIGH, MED, LOW or
AUTO digital display.
DEHUMIDIFICATION MODE
• Press the “MODE” button until the
“” is indicated on the LED Display.
• Under this mode the fan speed is
selected automatically.
• Keep window and door closed for
the best dehumidifying effect.
• Exhaust hose attachment is not
required to reduce humidity,
however it is recommended in very
humid rooms so the warm air can be
exhausted outside.
DRAINING IN
DEHUMIDIFICATION MODE
• It is recommended that the
dehumidication drain and drain
hose can be used for continuous
drainage.
• WATER FULL - When the water level
reaches a predetermined level,
will be indicated on the display. The
unit will have to be drained.
NOTE: Refer to Water Drainage
section.
FAN MODE
• Press the “MODE” button until the
appears on the LED display.
• Press the FAN Button to choose
either the HIGH, MED or LOW fan
speed.
• Exhaust hose attachment is not
required in this mode.
SET UP & USE

Page 17
SET UP & USE
OPERATING FROM THE REMOTE CONTROL
BATTERY INSTALLATION (BATTERIES NOT INCLUDED)
(1) Slide open the battery compartment cover.
(2) Insert 2 דAAA”batteries as shown.
(3) Slide back the battery cover.
CAUTION: Use only AAA or IEC R03 1.5V alkaline batteries. Remove the batteries
if the remote is not used for a month or longer. Do not attempt to
recharge the batteries. Both batteries should be replaced at the same
time. Do not dispose of the batteries in a re as they man explode.
Point the remote control at the receiver on the appliance. The remote control
must be no more than 7 meters away from the appliance (without obstacle
between the remote control and the receiver).
The remote control must be handled with extreme care. Do not drop it or expose
it to direct sun light or sources of heat.
23 Feet

Page 18
SET UP & USE
REMOTE CONTROL
POWER BUTTON: Press to Turn ON or OFF
MODE BUTTON: Each time you press the button COOL, DEHUMIDIFY, FAN
INCREASE: Increase the temperature setting to 90°F. Also used to set time.
DECREASE: Decrease the temperature setting to 64°F. Also used to set time.
FAN SPEED BUTTON: Used to select the HIGH, MED, LOW or AUTO fan speed.
FUNCTION BUTTON: Access FOLLOW ME or TURBO functions.
TIMER BUTTON: Used to set a delay start or shut down time.
SLEEP BUTTON: Gradually increase the temperature in COOL mode
˚C / ˚F SELECTOR BUTTON: Select Fahrenheit or Celsius.
Fan
Remote Signal
Power Button
Increase
Decrease
Sleep Button
Timer Button
Child Lock
Follow Me
Turbo
Function
Button
˚C / ˚F
Selector
Timer
Sleep
Dehumidify
Cool
Mode Button
Fan Speed
Fan Speed
Button
Auto
Fan Speed
˚C / ˚F

Page 19
SET UP & USE
POWER BUTTON
• Press to Turn Air Conditioner ON or OFF.
• Will show on the remote LED screen when buttons are pressed to show that
the remote control is sending a signal to the air conditioner.
MODE BUTTON
• Press the button to scroll through COOL , DEHUMIDIFY , FAN .
• The corresponding symbol will illuminate on the LED display to indicate which
mode is selected.
COOL
• Select the target temperature 64˚F-90˚F (18˚C-32˚C) by pressing the or
buttons until the desired temperature is displayed on the LED screen.
• Press the Fan Speed Button to select Low, Medium, High or Auto Speed.
LED Display Indicators
Cooling mode Fan speed
Dehumidify mode Auto speed
Fan mode Child lock
Timer on
Timer off
Signal Sleep
Display tempera-
ture or hours Turbo
Fahrenheit or
Celsius. Follow me

Page 20
SET UP & USE
DEHUMIDIFY
Ideal for reducing humidity.
• Keep window and door closed for the best dehumidifying effect.
• Exhaust hose attachment is not required in this mode.
Draining in Dehumidify mode
• It is recommended that the dehumidification drain and drain hose be used for
continuous drainage.
• WATER FULL - When the water level reaches a predetermined level, will be
indicated on the display. The unit will have to be drained.
NOTE: · Refer to Water Drainage section.
• In this mode, fan speed is selected automatically by the appliance and can not
be set manually.
FAN
• Press the Fan Speed Button to select Low, Medium or High Speed.
FUNCTION BUTTON
• Press the to access FOLLOW ME and TURBO functions.
• TURBO is ideal for a warm room. It will automatically set the temperature to
64°F (18°C) at HIGH Fan speed to cool the room in the shortest time.
• This function only operates in COOL mode.
TO OPERATE TURBO
• Press the Function button. Then Press either the or
button until the TURBO symbol flashes on the LED screen
• Press the Function button again. The TURBO symbol will
stop flashing and will illuminate on the LED screen indicating that TURBO is
activated.
