Compcooler COMP-RDCS-12200-BS User manual

Compcooler, keep your body cool and comfortable in harsh conditions.
1
Racing Driver Cooling System
Basic Model
Model: COMP-RDCS-12200-BS
Rev. A
Operation Manual
Designed for Racing Drivers to Combat Heat in Extreme Hot Conditions!
Keeping body ready cool, extend endurance, reduce lap times.

Compcooler, keep your body cool and comfortable in harsh conditions.
2
COMPCOOLER Introduction:
Compcooler Technology specializes in working for personal cooling & heating systems for harsh
conditions. Compcooler has established its resume as a manufacturer for Military, Electronic,
Medical cooling equipment. The employees at Compcooler’s state of the art manufacturing facility
have been producing liquid heating & cooling systems over 15 years. Quality system: ISO9001 and
AS9100 registered facility. Certifications for major items: CE, FCC, UL, PSE, CB, FDA.
Product Categories
1. ICE Water Circulation Systems
2. Micro Refrigeration Chiller Units
3. Liquid Heating Systems
4. Liquid Cooling & Heating Garment and Pad
5. Customized Cooling Systems
6. Industrial Chiller or Cooling Module
Certifications for major items
Quality System for facility

Compcooler, keep your body cool and comfortable in harsh conditions.
3
Racing Driver Cooling Unit
Model: COMP-RDCS-12200-BS
Description:
Compcooler Racing Driver Cooling System (RDCS) is a rugged vehicle-based refrigeration
cooling unit and specially designed for Racing drivers body cooling in the extreme hot
ambient. Maintain energy, extend endurance, ensure focus, to reduce lap times for driver
ultimately.
Compact Micro Refrigeration Chiller unit pumps the cold liquid to cooling vest and
continuously flow around the body, it will keep user’s body temperature at a conformable
range to against heat stress. Chiller unit delivers up to 300W cooling capacity, user can set up
temperature from -5℃to 30℃(23℉to 86℉), once circulation liquid reaches to set point
temperature, system intellectually control the cooling capacity to that temperature. User may pre-
cool the unit and get the coldest liquid as he needs, 3” air intake device with fresh air flow to
increase the cooling performance in the hot condition. Iceless cooling unit, maintain free, this
model was operated by 12V vehicle power or 12V rechargeable battery.
Components List:
Item
Part number
Description
Quantity
1
COMP-CRCU-12200
Micro Refrigeration Chiller Unit
1
Remote Controller
1
Power Cord
1
Quick Release Base
1
2
COMP-LCG-TX
Liquid Cooling T-shirt
1
3
COMP-ET2M
Extension Tubing
1
4
Operation Manual
1

Compcooler, keep your body cool and comfortable in harsh conditions.
4
Optional Components
Item
Part Number
Description
Note
1
COMP-LCG-FB
Full body cooling garment
2
COMP-LCG-FBFR
Full body cooling garment (Fire Resistant)
3
COMP-LCG-TXFR
Cooling T-shirt (Fire Resistant)
4
COMP-ET2M-1T2
1 to 2 Extension Tubing
5
COMP-RB-1220
Rechargeable Battery 12V 20A
6
COMP-FIT-2M
Fresh Air Inlet Tubing 2Meters
KEY FEATURES
Compact Chiller Unit
Micro refrigeration chiller, Small size, Light weight, 1/3 of same powerful unit.
Rugged Unit Design
Aluminum base and structure parts, Absorber base, Racing vehicle installation for 8G shock
acceleration testing.
Hot Ambient Operation
High cooling performance in the extreme hot ambient 60℃(140℉)，better than standard
cooling system only work below 50℃(122℉)
Enhance Cooling Capacity
Unit top panel reserves 3” fresh air intake tubing assembly to enhance cooling capacity in the
extreme hot ambient.
Remote Controller Panel
User may fix the remote controller anywhere he want，control unit start, compressor speed
and liquid temperature
Pre-cool for circulation liquid
User may turn on system only without pump circulation to pre-cool the liquid to the lowest
temperature as he needs, anti-freeze liquid is need for setting below 0℃(32℉).
Confined Space Installation
Unit only need one side ventilated for installation, could be installed at corner or confined
space,
Vehicle Power Operation
Chiller unit operated by Vehicle power 12V DC, or Compcooler 12V 20A rechargeable battery.

Compcooler, keep your body cool and comfortable in harsh conditions.
5
Chiller Unit Technical Datasheet
Cooling Capacity (Ambient Temp. 40℃)
W
200
Cooling Capacity (Ambient Temp. 104℉)
Btu
682
Max Cooling Capacity
W
300
Power Supply
V DC
11-16
Operation Current
A
6-17
Max Current
A
20
Max Power Consumption
W
250
Refrigerant
Type
R134a
Compressor Speed Setting
Auto
RPM
2000-6000
Temp Control
℃
-5 to 30
℉
23-86
Coolant
Anti-freeze liquid
Yes
Circulation Tubing
ID
inch
1/4
Miniature Rotary
Compressor
Qty
PC
1
Voltage
V DC
12
Discharge
CC
2.0
Weight
G
900
Fan
Qty
PC
2
Voltage
V DC
12
Air Flow
CFM
110
Pump
Voltage
V DC
12
Water flow
L/Min
5
Lift
M
5
Power Connector
3 pins Aero
connector
yes
Controller Connector
5 pins Aero
connector
yes
Operation Ambient
Max
℃
65
℉
150
Storage Temp
℃
-20 to 70
Noise
Max
dBA
65
Color
Black and silver
yes
Dimension
L x W x H
MM
356x200x217
INCH
14x7.9x8.5
Weight
KGS
8.2
LBS
18

Compcooler, keep your body cool and comfortable in harsh conditions.
6
Rechargeable Battery Specifications
Model: COMP-RB1220
Rechargeable Battery: Li-Ion
Voltage: 12V DC
Operation Voltage: 11V to 16.8V
Capacity: 20A
Max Output: 40A @12V
Charging: 16.8V 5525 plug charging by 110/220V AC adaptor
Capacity Checking: 3 lights checking for capacity remaining
Battery Case: Aluminum
Color: Black
Operation Time: 60-150 minutes
Liquid Cooling T-shirt
COMP-LCG-TX
Fabric: Stretch Cotton/Poly/Lycra Fabric
Stretch Rate: 10%
Color: Dark Blue
Cooling channel: Silicon 3x5mm
Cooling Zones: Four zones
Manifold fitting: Aluminum one 1/4” to four 1/8”
Connector: 1/4” quick fitting
Dry weight: 0.5kg
Size: XS/S, M/L, XL/2XL, 3XL/4XL
Optional:
Fire Resistant Liquid Cooling T-shirt
COMP-LCG-TXFR
Fabric: Nomex/Lycra
Color: Cream
Stretch rate: 10%
Cooling channel: Silicon 3x5mmCooling Zones: Four zones Manifold
fitting: Aluminum one 1/4” to four 1/8”
Connector: 1/4” quick fitting
Dry weight: 0.5kg
Size: XS/S, M/L, XL/2XL, 3XL/4XL

Compcooler, keep your body cool and comfortable in harsh conditions.
7

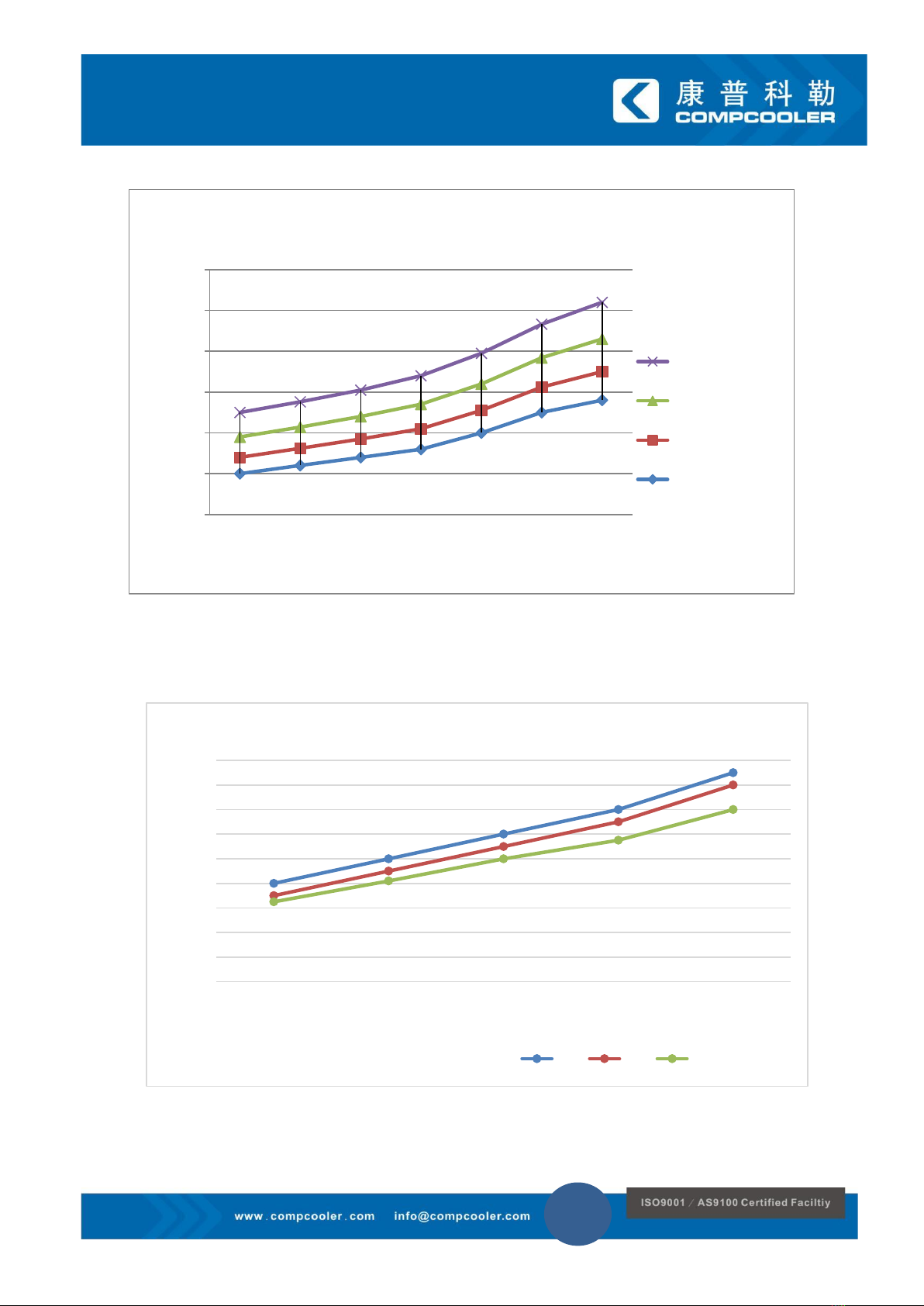

Cooling Capacity Performance Curves
Power Consumption Curves
(Compressor Speed)
0
100
200
300
400
500
600
1 5 10 15 20 25 30
Cooling Capacity (W)
Coolant Temperature (℃)
Cooling Capacity Performance Curves for RDCS
Compressor Speed: 4500rpm
Ambient 30℃
Ambient 40℃
Ambient 50℃
Ambient 60℃
0
2
4
6
8
10
12
14
16
18
2000 3000 4000 5000 6000
Current of Chiller
Compressor Speed RPM
Power Consumption Curves
60 40 25
Ambient Temp.

Compcooler, keep your body cool and comfortable in harsh conditions.
8
Operation processes
Preparation
Chiller Unit Installation:
Unit could be installed on the flat surface at corner or confined spaces, make sure it is a well-
ventilated area, no blocks for fresh air inlet portal on the top panel and hot air outlet port on
the side panel.
Quick Release Base Installation:
User may fix the chiller on the flat surface by screw and nut.
Power Connection
One power cord was provided with chiller, it is for 12V DC ONLY, voltage range 11V to 16V.
User may connect it with 12V vehicle power.
DO NOT plug the chiller with AC input!

Compcooler, keep your body cool and comfortable in harsh conditions.
9
Remote controller connection
User may remove or replace the controller from chiller unit by disconnect or connect 5 pins
aero connector.
Cooling Garment Connection
User may connect the chiller with Compcooler Cooling Vest by quick release fitting.
Or user may remove the quick fitting from extension hose and replace the new fittings to
compatible with other cooling garment.
Circulation Liquid
User needs to fill circulation liquid by twice.
The first time, remove the filler cap from top side, add liquid to full by funnel, connect the cooling
garment, turn on the pump and circulates the liquid from reservoir to cooling garment.
The second time, keep running and allow the liquid cooling garment fill with water for 30-60
seconds (without cooling), refill again to full (maybe couple times, be patient), then tight the filler
cap.
Clean or distilled water is fine if ambient more than 1℃
Deionized water for isolation request.
Anti-freeze liquid for ambient below 0℃.
DO NOT use salt water, caustic, corrosive or flammable fluids!
Refrigeration or Pre-cool Testing
User may turn on the system and start refrigeration, no pump circulation, temperature will down
in minutes. Cooling unit will be in standby mode once liquid temperature reaches to setting point.
Fresh Air Tubing Assembly
User may assemble 3”fresh air inlet tubing from top panel of chiller.

Compcooler, keep your body cool and comfortable in harsh conditions.
10
Operation Processes
1. Garment or Pad connection: Connect the extension tubing with liquid heating unit and liquid
cooling garment.
Once you hear a click, it’s in position.
2. Power Connection: connect the chiller with vehicle power, light the controller.
The cooling unit will be in standby mode.
3. Start cooling: user may press ON/OFF to start chiller, liquid temperature will go down to set
point in minutes.
pump is not working at this time.
4. Temp setting: user may press up and down to set up the temp for circulation liquid as need.
5. Start circulation:
User may press the pump to start or stop circulation. Please make sure the tubing is connected
(no kinks) before circulation.
Chiller Auto Control:
Chiller Stop: Liquid temperature 3℃(6℉) lower than setting
Chiller Restart: Liquid temperature 1℃(2℉) higher than setting

Compcooler, keep your body cool and comfortable in harsh conditions.
11
Clean and Maintenance
Chiller Unit:
Unplugged the power, use a clean damp cloth to clean the outside of chiller unit.
Use compressed air to remove dust and debris.
Reservoir cleaning
Please disconnect the extension tubing from chiller unit.
Empty the remain water or liquid from drain cap on the bottom, and open for dry.
Condenser clean
To keep the system at optimum cooling capacity, the condenser should be kept free of dust and
dirt, user may check and clean it if necessary.
Open the side panel and remove the fans, use 50-100psi compressed air to clean the
contamination.
Charging Refrigerant
(not recommend for uncertified operator)
If cooling capacity was decreased because of lack of refrigerant, user may vacuum the unit and
recharge 150g R134a refrigerant.
Liquid Cooling Garment:
Machine wash liquid heating and cooling garment using a front-loading wash machine with cold
water on a gentle/delicate cycle.
Note: DO NOT BLEACH, NO IRON, NO DRYER, TUMBLE DRY ON LOW
Chiller Unit Storage:
1. Turn off chiller unit, disconnect the power cord.
2. Disconnect the extension tubing.
3. Empty the circulation water from chiller unit by open bottom drain cap, then clean and
disinfect the reservoir, then tight the cap after open dry.
4. Pack the unit for storage.
Restart: after long term storage, please fill in clean water with less degerming agent, run system
over 10 minutes with cooling vest connection. Then empty the system and re-fill in the liquid as
need.

Compcooler, keep your body cool and comfortable in harsh conditions.
12
Components Renewal:
User may open side panel to replace the fans and pump if damaged.
User may disconnect the remote controller and replace the new one if damaged.
Battery Storage:
1. Shall be in the clean and dry ventilation room at temperature 0-35℃
2. Shall be keep out of fire or heat and avoid touching corrosion elements.
3. Shall be charged every 6 months during storage
4. Keep the battery out of children’s reach
Cautions:
1. Please confirm vehicle voltage is 12V DC before connect chiller unit.
2. Please confirm vehicle power 250W or 20A before operation.
3. Please do not turn ON/OFF to run to stops system frequently within a short period, it may
affect the refrigeration system, and significant enhance power consumption, reduce
cooling time.
4. Please do not block air inlet and outlet, it may cause the problem of compressor overheat
or less cooling capacity.
5. Please make sure cooling garments or vest be connected before start pump circulation, it
may cause unit leak because of pump pressure.
6. Please use anti-freeze liquid if temperature setting lower than 0℃
7. Please use Compcooler battery only to run the chiller unit.
8. Please do not run the system close to fire or under water.

Compcooler, keep your body cool and comfortable in harsh conditions.
13
Fault Code
Item
Code
Description
1
E1
Wrong Polarity or reverse connection from power input
2
E2
Low voltage protection, less than 11V
3
E3
High voltage protection, more than 18V
4
P1
No liquid temp signal from sensor
Trouble shoot
Item
Problem Description
Root Cause
Trouble Shoot
1
No Cooling Performance
Compressor locked,
Overheat protection,
Low Voltage
Check the compressor drive,
yellow light means normal, red
light means abnormal.
No liquid circulation
Check if cooling garment be
connected, check if pump be
turned on
Power connection
Check if power connection loose
or not.
2
Less cooling capacity
Less heat exchange rate
for evaporator
Check if circulation water inside
reservoir is enough or not?
Lack of refrigerant
Check if hot air out from
condenser air outlet
Low compressor speed
Check compressor speed setting
Low voltage
Check unit input voltage
3
No pumping
Pump ON/OFF
Check if pump be turned on
Quick fitting connection
Check quick fitting connection
loose or not
Pump blocked
Check if pump be blocked
4
Remote controller can’t
operate
Connection loose
Check if the connection loose or
not
Controller LED vague or
twinkle
Check the unit input voltage
5
Temp sensor
No feedback, P1 on the
panel
Check if the connection loose or
not

Compcooler, keep your body cool and comfortable in harsh conditions.
14
Safety:
It is important to become thoroughly familiar with the manual and operating characteristics
of the unit. It is the owner’s responsibility to assure proper operator training, installation,
operation and maintenance of the unit. Observe all warning can result in injury to the
operator and severe mechanical damage to the unit.
Warranty:
Compcooler Warrants to the original Purchaser that products sold shall be free from defects
material and workmanship for warranty period not exceed one year from the date of
shipment. Compcooler agrees to correct for the original user of this product, either by repair,
or at the manufacturer’s election by replacement. This warranty shall not apply if the defect or
malfunction was caused by accident, neglect, unreasonable use, improper service, or other
causes not arising out of defects in material or workmanship. The manufacturer’s sole
obligation under this warranty is limited to the repair or replacement of a defective product
and shall not in any event be liable for any incidental or consequential damages of any kind
resulting from use or possession of this product.
