conexa Corona Plus MSC-09HRDN1-QD0E User manual

Corona Plus varmepumper
SERVICEMANUAL
MSC-09HRDN1-QD0E
MSC-12HRDN1-QC6E

CONTENTS
1. Precaution .................................................................................................................................................... 1
1.1 Safety Precaution................................................................................................................................................1
1.2 Warning...............................................................................................................................................................1
2. Function........................................................................................................................................................ 4
3. Dimension .................................................................................................................................................... 6

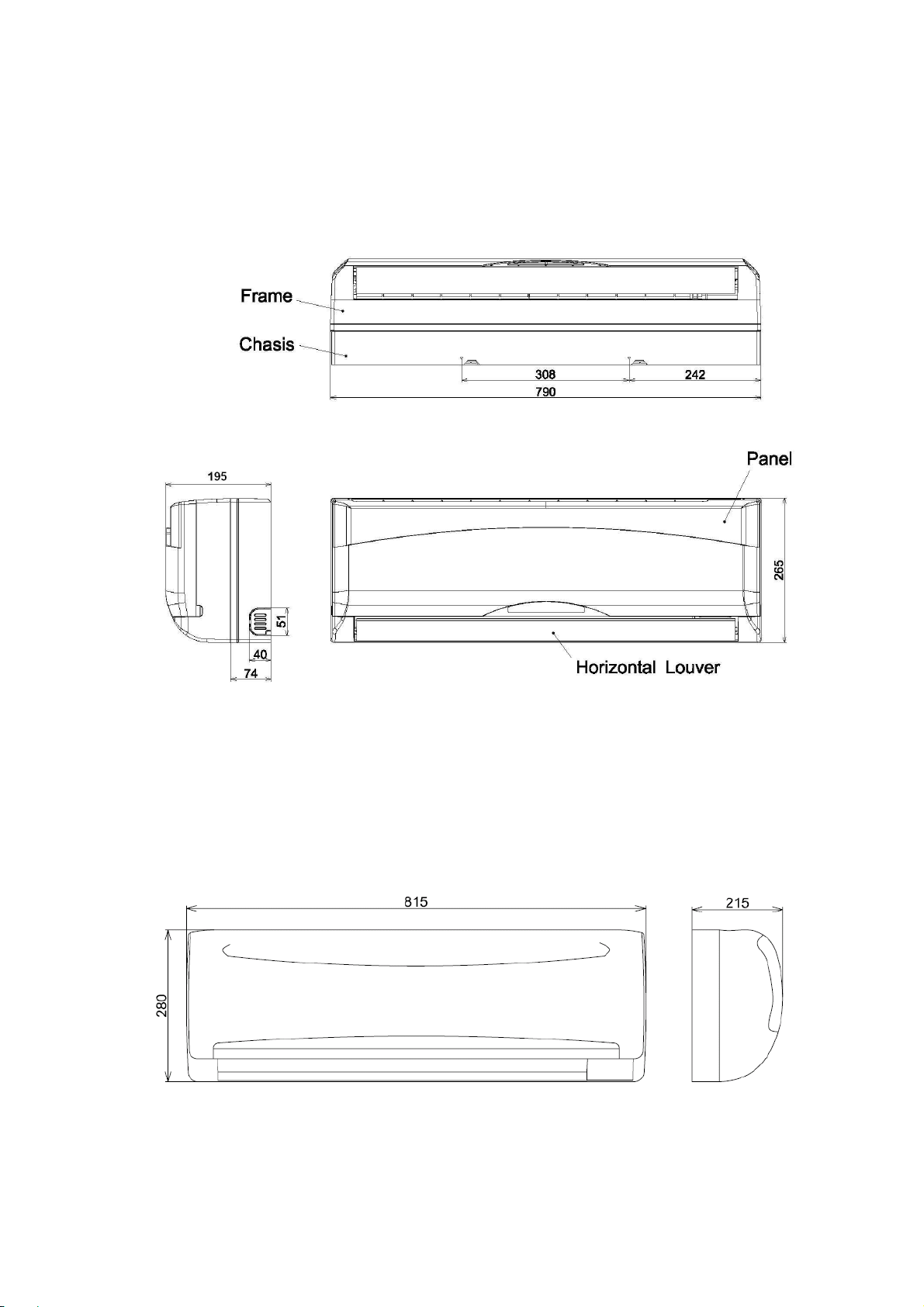

3.1 Indoor Unit...........................................................................................................................................................6
MSC-09HRDN1-QD0(E) MSC-12HRDN1-QC6(E)....................................................................................6
MSH-09HRDN1-QD0(E) MSH-12HRDN1-QC6(E)....................................................................................6
3.2 Outdoor Unit........................................................................................................................................................7
MOC-09HDN1-QD0(E) MOC-12HDN1-QC6(E)...................................................................................7
4. Specification ................................................................................................................................................ 8
5. Refrigerant cycle diagram ........................................................................................................................ 10
6. Wiring diagram............................................................................................................................................11
6.1 Indoor Unit......................................................................................................................................................... 11
MSC-09HRDN1-QD0(E) MSC-12HRDN1-QC6(E).................................................................................... 11
MSH-09HRDN1-QD0(E) MSH-12HRDN1-QC6(E).................................................................................... 11
6.2 Outdoor Unit......................................................................................................................................................12
MOC-09HDN1-QD0(E) MOC-12HDN1-QC6(E) .............................................................................................12
7. Installation details...................................................................................................................................... 13
7.1 Wrench torque sheet for installation..................................................................................................................13
7.2 Connecting the cables.......................................................................................................................................13
7.3 Pipe length and the elevation............................................................................................................................13
7.4 Air purging of the piping and indoor unit............................................................................................................13
7.5 Pumping down (Re-installation).........................................................................................................................15
7.6 Re-air purging (Re-installation)..........................................................................................................................16
7.7 Balance refrigerant of the 2-way, 3-way valves .................................................................................................17
7.8 Evacuation.........................................................................................................................................................18
7.9 Gas charging.....................................................................................................................................................19
8. Operation characteristics ......................................................................................................................... 20
8.1 MSC-09HRDN1-QD0(E)....................................................................................................................................20
8.2 MSC-12HRDN1-QC6(E)....................................................................................................................................21
8.3 MSH-09HRDN1-QD0(E)....................................................................................................................................22
8.4 MSH-12HRDN1-QC6(E)....................................................................................................................................23
9. Electronic function.................................................................................................................................... 24
9.1 Abbreviation.......................................................................................................................................................24
9.2 Display function.................................................................................................................................................24
9.3 Protection..........................................................................................................................................................25
9.4 Fan-Only Mode..................................................................................................................................................25
9.5 Cooling Mode ....................................................................................................................................................26
9.6 Drying mode......................................................................................................................................................27
9.7 Heating mode....................................................................................................................................................27
9.8 Auto mode function............................................................................................................................................30

9.9 Forced operation function..................................................................................................................................31
9.10 Action of 4-way valve.......................................................................................................................................31
9.11 Two speeds outdoor fan function.....................................................................................................................31
9.12 Timer function..................................................................................................................................................31
9.13 Sleep function mode........................................................................................................................................31
9.14 Auto-Restart function.......................................................................................................................................32
9.15 Ionizer/Plasma dust collector function(optional)..............................................................................................32
9.16 Outdoor chassis heating cable (optional).........................................................................................................32
10. Troubleshooting....................................................................................................................................... 33
10.1 Indoor Unit Error Display.................................................................................................................................34
10.2 Diagnosis and Solution....................................................................................................................................36
10.3 Key parts checking. .........................................................................................................................................39

1
1. Precaution
1.1 Safety Precaution
To prevent injury to the user or other people
and property damage, the following instructions
must be followed.
Incorrect operation due to ignoring
instruction will cause harm or damage.
Before service unit, be sure to read this
service manual at first.
1.2 Warning
Installation
Do not use a defective or underrated circuit
breaker. Use this appliance on a dedicated
circuit.
There is risk of fire or electric shock.
For electrical work, contact the dealer, seller,
a qualified electrician, or an Authorized service
center.
Do not disassemble or repair the product, there is
risk of fire or electric shock.
Always ground the product.
There is risk of fire or electric shock.
Install the panel and the cover of control
box securely.
There is risk of fire of electric shock.
Always install a dedicated circuit and
breaker.
Improper wiring or installation may cause fore or
electric shock.
Use the correctly rated breaker of fuse.
There is risk of fire or electric shock.
Do not modify or extend the power cable.
There is risk of fire or electric shock.
Do not install, remove, or reinstall the unit
by yourself (customer).
There is risk of fire, electric shock, explosion, or
injury.
Be caution when unpacking and installing
the product.
Sharp edges could cause injury, be especially
careful of the case edges and the fins on the
condenser and evaporator.
For installation, always contact the dealer or
an Authorized service center.
There is risk of fire, electric shock, explosion, or
injury.
Do not install the product on a defective
installation stand.
It may cause injury, accident, or damage to the
product.
Be sure the installation area does not
deteriorate with age.
If the base collapses, the air conditioner could fall
with it, causing property damage, product failure,
and personal injury.
Do not let the air conditioner run for a long
time when the humidity is very high and a door
or a windows is left open.
Moisture may condense and wet or damage
furniture.
Take care to ensure that power cable could
not be pulled out or damaged during operation.
There is risk of fire or electric shock.
Do not place anything on the power cable.
There is risk of fire or electric shock.
Do not plug or unplug the power supply
plug during operation.
There is risk of fire or electric shock.
Do not touch (operation) the product with
wet hands.
There is risk of fire or electric shock.
Do not place a heater or other appliance
near the power cable.
There is risk of fire and electric shock.
Do not allow water to run into electric parts.
It may cause fire, failure of the product, or electric
shock.
Do not store or use flammable gas or
combustible near the product.
There is risk of fire or failure of product.
Do not use the product in a tightly closed
space for a long time.
Oxygen deficiency could occur.
When flammable gas leaks, turn off the gas
and open a window for ventilation before turn the
product on.
Do not use the telephone or turn switches on or off.
There is risk of explosion or fire.
If strange sounds, or small or smoke comes
from product. Turn the breaker off or disconnect
the power supply cable.
There is risk of electric shock or fire.
Stop operation and close the window in
storm or hurricane. If possible, remove the
product from the window before the hurricane

2
arrives.
There is risk of property damage, failure of product,
or electric shock.
Do not open the inlet grill of the product
during operation. (Do not touch the electrostatic
filter, if the unit is so equipped.)
There is risk of physical injury, electric shock, or
product failure.
When the product is soaked (flooded or
submerged), contact an Authorized service
center.
There is risk of fire or electric shock.
Be caution that water could not enter the
product.
There is risk of fire, electric shock, or product
damage.
Ventilate the product from time to time
when operating it together with a stove, etc.
There is risk of fire or electric shock.
Turn the main power off when cleaning or
maintaining the product.
There is risk of electric shock.
When the product is not be used for a long
time, disconnect the power supply plug or turn
off the breaker.
There is risk of product damage or failure, or
unintended operation.
Take care to ensure that nobody could step
on or fall onto the outdoor unit.
This could result in personal injury and product
damage.
CAUTION
Always check for gas (refrigerant) leakage
after installation or repair of product.
Low refrigerant levels may cause failure of product.
Install the drain hose to ensure that water is
drained away properly.
A bad connection may cause water leakage.
Keep level even when installing the product.
To avoid vibration of water leakage.
Do not install the product where the noise
or hot air from the outdoor unit could damage
the neighborhoods.
It may cause a problem for your neighbors.
Use two or more people to lift and transport
the product.
Avoid personal injury.
Do not install the product where it will be
exposed to sea wind (salt spray) directly.
It may cause corrosion on the product. Corrosion,
particularly on the condenser and evaporator fins,
could cause product malfunction or inefficient
operation.
Operational
Do not expose the skin directly to cool air
for long periods of time. (Do not sit in the draft).
This could harm to your health.
Do not use the product for special purposes,
such as preserving foods, works of art, etc. It is a
consumer air conditioner, not a precision
refrigerant system.
There is risk of damage or loss of property.
Do not block the inlet or outlet of air flow.
It may cause product failure.
Use a soft cloth to clean. Do not use harsh
detergents, solvents, etc.
There is risk of fire, electric shock, or damage to the
plastic parts of the product.
Do not touch the metal parts of the product
when removing the air filter. They are very sharp.
There is risk of personal injury.
Do not step on pr put anything on the
product. (outdoor units)
There is risk of personal injury and failure of product.
Always insert the filter securely. Clean the
filter every two weeks or more often if necessary.
A dirty filter reduces the efficiency of the air
conditioner and could cause product malfunction or
damage.
Do not insert hands or other object through
air inlet or outlet while the product is operated.
There are sharp and moving parts that could cause
personal injury.
Do not drink the water drained from the
product.
It is not sanitary could cause serious health issues.
Use a firm stool or ladder when cleaning or
maintaining the product.
Be careful and avoid personal injury.
Replace the all batteries in the remote
control with new ones of the same type. Do not
mix old and mew batteries or different types of
batteries.
There is risk of fire or explosion.
Do not recharge or disassemble the
batteries. Do not dispose of batteries in a fire.
They may burn of explode.
If the liquid from the batteries gets onto

3
your skin or clothes, wash it well with clean
water. Do not use the remote of the batteries
have leaked.
The chemical in batteries could cause burns or other
health hazards

4
2. Function
When the power supply is
interrupted and then restore, the air
conditioners automatically restore
the previous function setting.
Tele Remote control (Optional)
Maintain the room temperature in accordance w
ith the setting temperature.
The
mode can be change by the room temperature.
The louver can be set at the desired position or
swing up and down automatically
The function is usually used in rainy days in
springtime or damp areas.
The fan is turn to low speed (cooling/heating).
The unit will be turn off at the seventh hour.
The unit will decide the louver direction according to
operation mode.
Turbo wind, high, med, low, breeze.
Restarting is for approx. 3 minutes..
Prevent the water being frozen on evaporator by sensing
the evaporator pipe temperature in cooling mode
Room temperature sensor.
Pipe temperature sensor.
Indoor unit
Operation by remote controller
Sensing by room temperature
Room temperature control
Anti-freezing control in cooling
Time Delay Safety control
Indoor fan speed control
Two-direction air vane
Sleep mode auto control
Independent dehumidification
Air flow Direction control
Auto mode
Temp. Compensation Flexible wiring connection
Auto defrost
Plasma (Optional)
Anti-cold function
Self-diag. function
Auto-restart function
Work voltage (160V-253V)
Ionizer (Optional)
Prevent the cold wind at the
beginning of unit start.

5
It protects the valves and prevents wat
er from dripping.
The unit has 3 mins delay between continuously ON/OFF operations.
Outdoor unit
Power relay control
The hydrophilic fin can improve the heating efficiency at operation mode.
Hydrophilic aluminum fin
It is only operated in the
heating operation mode except defrosting operation.
Anti-rust cabinet
Valve protection cover
4 way valve control
Made from electrolytic zinc steel sheet and anti
-
rust coated components.
Low noise air flow system
Bird tail propeller fan ma
kes the outdoor unit run more quietly.
Discharge pipe temperature protect
Heating cable (Optional)
Driving heating at -15℃

6
3. Dimension
3.1 Indoor Unit
MSC-09HRDN1-QD0(E) MSC-12HRDN1-QC6(E)
MSH-09HRDN1-QD0(E) MSH-12HRDN1-QC6(E)

7

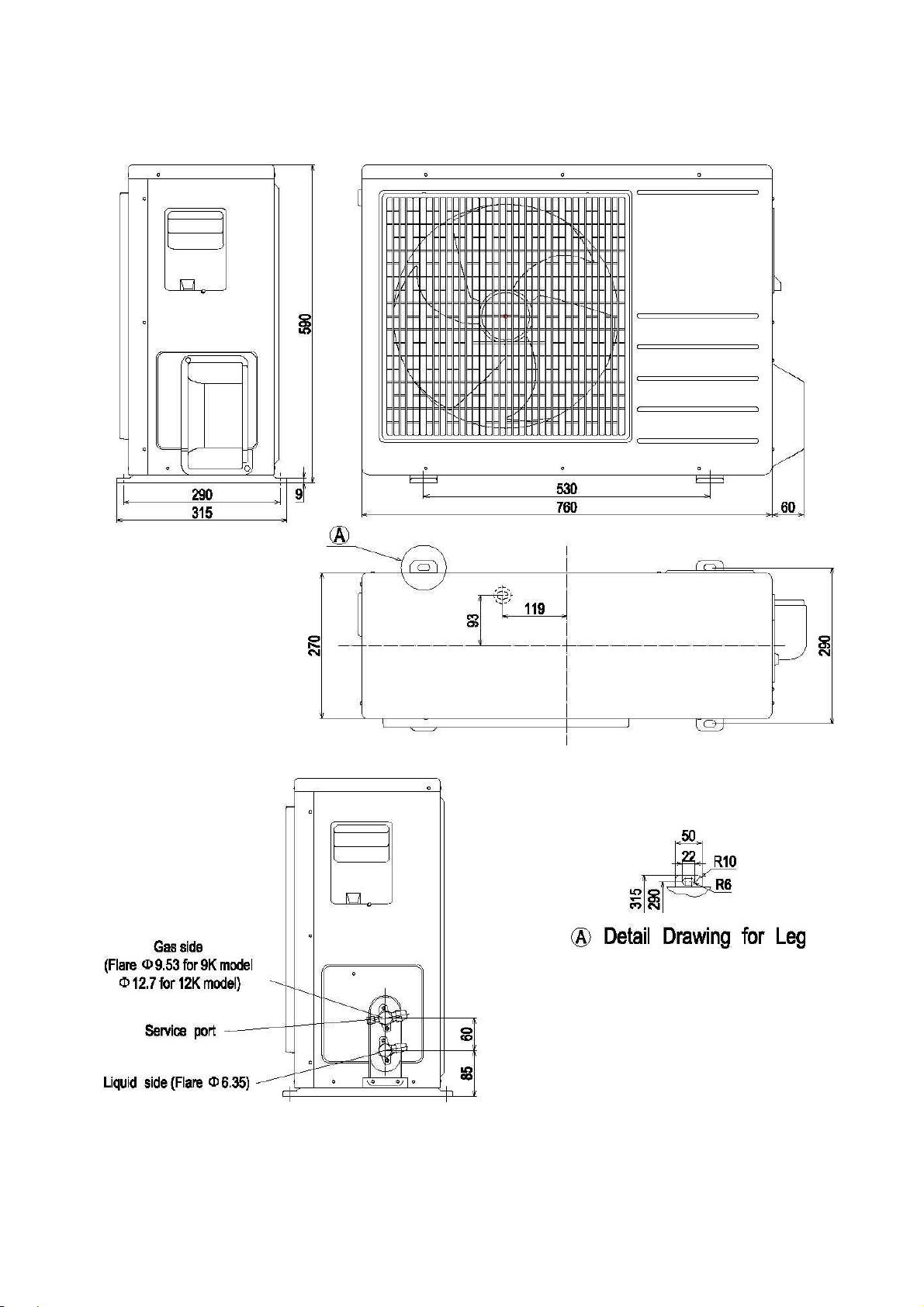

3.2 Outdoor Unit
MOC-09HDN1-QD0(E) MOC-12HDN1-QC6(E)

8
4. Specification
Indoor
MSC
-
09HRDN1
-
QD0(E)
MSC
-
12HR
DN1
-
QC6(E)
Outdoor
MOC
-
09HDN1
-
QD0(E)
MOC
-
12HDN1
-
QC6(E)
Power supply
Ph
-
V
-
Hz
1,220
-
240V~,50Hz
1, 220
-
240V~, 50Hz
Capacity
Btu/h
9000(3100~11200)
12000(3800~14700)
Input
W
660(300~1100)
970(400~1480)
Rated current
A
2.9(1.3~4.8)
4.3(1.8~6.5)
Cooling
EER
Btu/w.h, w/w
13.6,4.0
12.4, 3.62
Capacity
Btu/h
10000(3300~12300)
13000(4000~15200)
Input
W
690(310~1150)
950(390~1460)
Rated current
A
3.0(1.4~5.0)
4.2(1.7~6.4)
Heating
COP
W/W
4.2
4
Moisture Removal
L/h
0.8
1.2
Max. input consumption
W
1500
1600
Max. current
A
8
8.5
Starting current
A
3.2
4
.5
PTC Heater(optional)
W
85
85
Model
DA108X1C
-
20FZ3
DA108X1C
-
20FZ3
Type
Rotary
Rotary
Brand
TOSHIBA
TOSHIBA
Capacity
Btu/h
10918
10918
Input
W
855
855
Rated current(RLA)
A
5.3
5.3
Locked rotor Amp(LRA)
A
8
8
Thermal protector
CS
-
74
CS
-
74
Capacitor
uF
No
No
Compressor
Refrigerant oil
ml
480
480
Model
RPG20D
RPG20D
Brand
Welling
Welling
Input
W
38
38
Capacitor
uF
1.5
1.5
Indoor fan motor
Speed(hi/mi/lo)
r/min
1150/1000/80
0
1250/1060/800
Indoor air flow (Hi/Mi/Lo)
m3/h
590/470/325
615/485/325
Indoor noise level (Hi/Mi/Lo)
dB(A)
4
0
/35/
28
4
1
/3
6
/
29
Dimension (W*H*D)
mm
790*265*19
5
790*265*19
5
Packing (W*H*D)
mm
875*375*285
875*375*285
Indoor unit
Net/Gross weight
Kg
9
.0
/1
1.0
9.0/11.0
Model
YDK24
-
6G
YDK24
-
6G
Brand
Welling
Welling
Input
W
59
59
Capacitor
uF
2.5
2.5
Outdoor fan motor
Speed
r/min
800/550
800/550
Outdoor air flow
m3/h
1650/1060
1650/1060
Outdoor noise level
dB(A)
52
54
Dimension(W
*H*D)
mm
760*590*285
760*590*285
Packing (W*H*D)
mm
887*655*355
887*655*355
Outdoor unit
Net/Gross weight
Kg
40.5/43
40.5/43
Refrigerant type R410A
g
1230
1230
Liquid side/ Gas side
mm(inch)
Ф6.35/Ф9.53
Ф6.35/Ф12.7
Max. refrigerant pipe leng
th
m
20
20
Refrigerant piping
Max. difference in level
m
8
8
Operation temp
℃
17
~
30
17
~
30
Ambient temp
℃
-
15 ~ 50
-
15 ~ 50

9
Indoor
MS
H
-
09HRDN1
-
QD0(E)
MS
H
-
12HRDN1
-
QC6(E)
Outdoor
MOC
-
09HDN1
-
QD0(E)
MOC
-
12HDN1
-
QC6(E)
Power supply
Ph
-
V
-
Hz
1,220
-
240V~,50Hz
1, 220
-
240V
~, 50Hz
Capacity
Btu/h
9000(3100~11200)
12000(3800~14700)
Input
W
660(300~1100)
970(400~1480)
Rated current
A
2.9(1.3~4.8)
4.3(1.8~6.5)
Cooling
EER
Btu/w.h, w/w
13.6,4.0
12.4, 3.62
Capacity
Btu/h
10000(3300~12300)
13000(4000~15200)
Input
W
690(310~1150)
950(390~1460)
Rated current
A
3.0(1.4~5.0)
4.2(1.7~6.4)
Heating
COP
W/W
4.2
4
.0
Moisture Removal
L/h
0.8
1.2
Max. input consumption
W
1500
1600
Max. current
A
8
8.5
Starting current
A
3.2
4
.5
PTC Heater(optional)
W
85
85
Model
DA108X1C
-
20FZ3
DA108X1C
-
20FZ3
Type
Rotary
Rotary
Brand
TOSHIBA
TOSHIBA
Capacity
Btu/h
10918
10918
Input
W
855
855
Rated current(RLA)
A
5.3
5.3
Locked rotor Amp(LRA)
A
8
8
Thermal protector
CS
-
74
CS
-
74
Capacitor
uF
No
No
Compressor
Refrigerant oi
l
ml
480
480
Model
RPG20D
RPG20D
Brand
Welling
Welling
Input
W
38
38
Capacitor
uF
1.5
1.5
Indoor fan motor
Speed(hi/mi/lo)
r/min
1150/1000/800
1250/1060/800
Indoor air flow (Hi/Mi/Lo)
m3/h
650/515/375
675/520/375
Indoor noise level (Hi/Mi/Lo)
dB(A)
4
0
/35/
28
4
1
/3
6
/30
Dimension (W*H*D)
mm
810*282*215
810*282*215
Packing (W*H*D)
mm
915*360*290
915*360*290
Indoor unit
Net/Gross weight
Kg
9.5/11.5
9.5/11.5
Model
YDK24
-
6G
YDK24
-
6G
Brand
Welling
Welling
Input
W
59
59
Capacitor
uF
2.5
2.5
Outdoor fan motor
Speed
r/min
800/550
800/550
Outdoor air flow
m3/h
1650/1060
1650/1060
Outdoor noise level
dB(A)
52
54
Dimension(W*H*D)
mm
760*590*285
760*590*285
Packing (W*H*D)
mm
887*655*355
887*655*355
Outdoor unit
Net/Gross weight
Kg
40.
5/43
40.5/43
Refrigerant type R410A
g
1230
1230
Liquid side/ Gas side
mm(inch)
Ф6.35/Ф9.53
Ф6.35/Ф12.7
Max. refrigerant pipe length
m
20
20
Refrigerant piping
Max. difference in level
m
8
8
Operation temp
℃
17
~
30
17
~
30
Ambient temp
℃
-
15 ~ 50
-
15 ~ 50
The above design and specifications are subject to change without prior notice for product improvement.

10

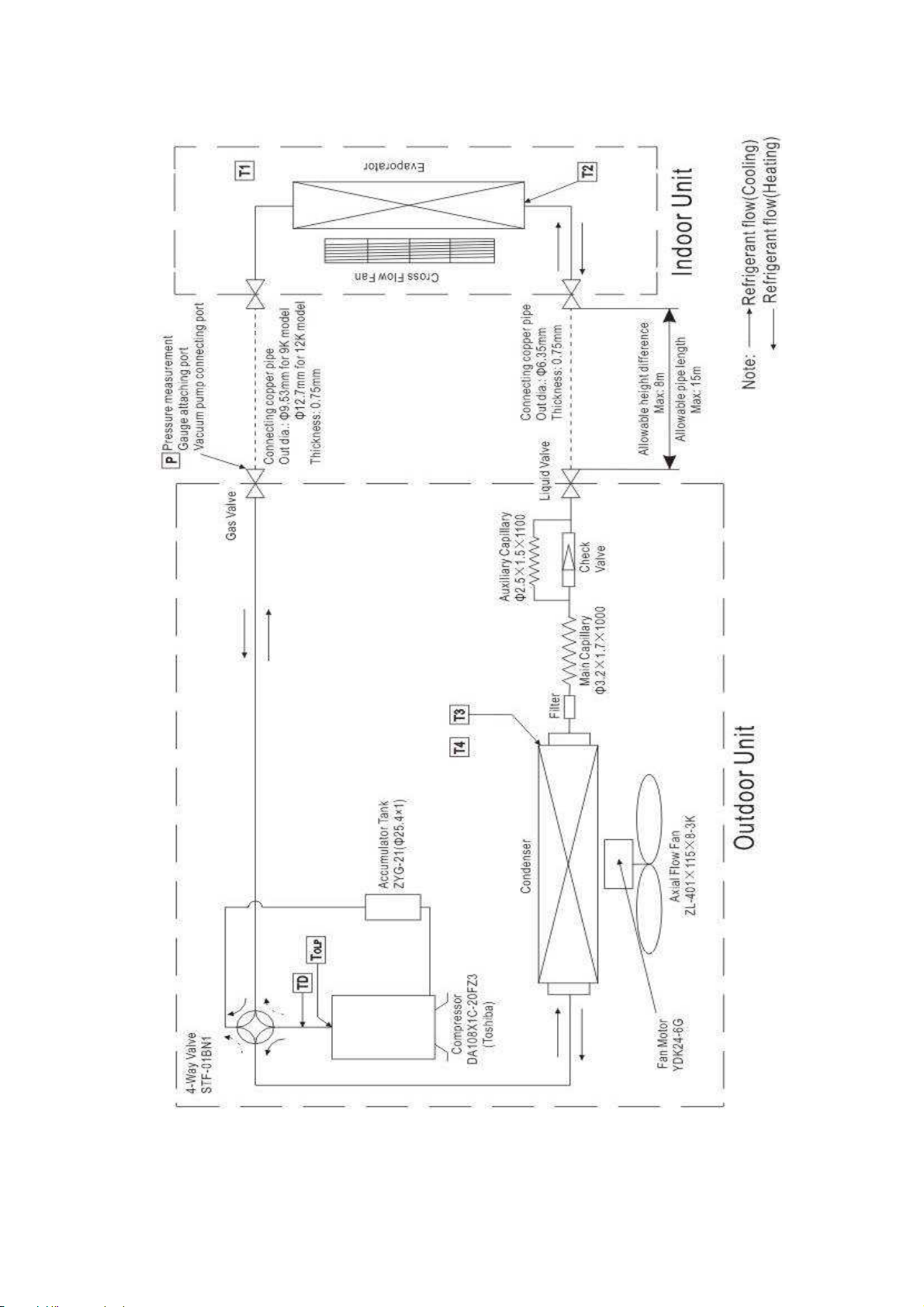

5. Refrigerant cycle diagram

11
6. Wiring diagram
6.1 Indoor Unit
MSC-09HRDN1-QD0(E) MSC-12HRDN1-QC6(E)
MSH-09HRDN1-QD0(E) MSH-12HRDN1-QC6(E)

12
6.2 Outdoor Unit
MOC-09HDN1-QD0(E) MOC-12HDN1-QC6(E)

13
7. Installation details
7.1 Wrench torque sheet for installation
Outside diameter Torque
mm inch Kgf.m
Ф6.35 1/4 1.8
Ф9.52 3/8 4.2
Ф12.7 1/2 5.5
7.2 Connecting the cables
The power cord of connect should be selected according to the following specifications sheet.
Grade
Unit 9K 12K
mm
2
1.5 1.5
7.3 Pipe length and the elevation
Pipe size
Capacity
Btu/h Gas Liquid
Standard
length
(m)
Max.
Elevation
B (m)
Max.
Length
A (m)
Additional
refrigerant
(g/m)
3/8’’ (Ф9.52) 1/4’’ (Ф6.35) 5 8 20 30
9k~12K 1/2’’ (Ф12.7)
1/4’’ (Ф6.35) 5 8 20 30
Caution:
Capacity is base on standard length and maximum allowance length is base of reliability.
Oil trap should be installed per 5-7 meters.

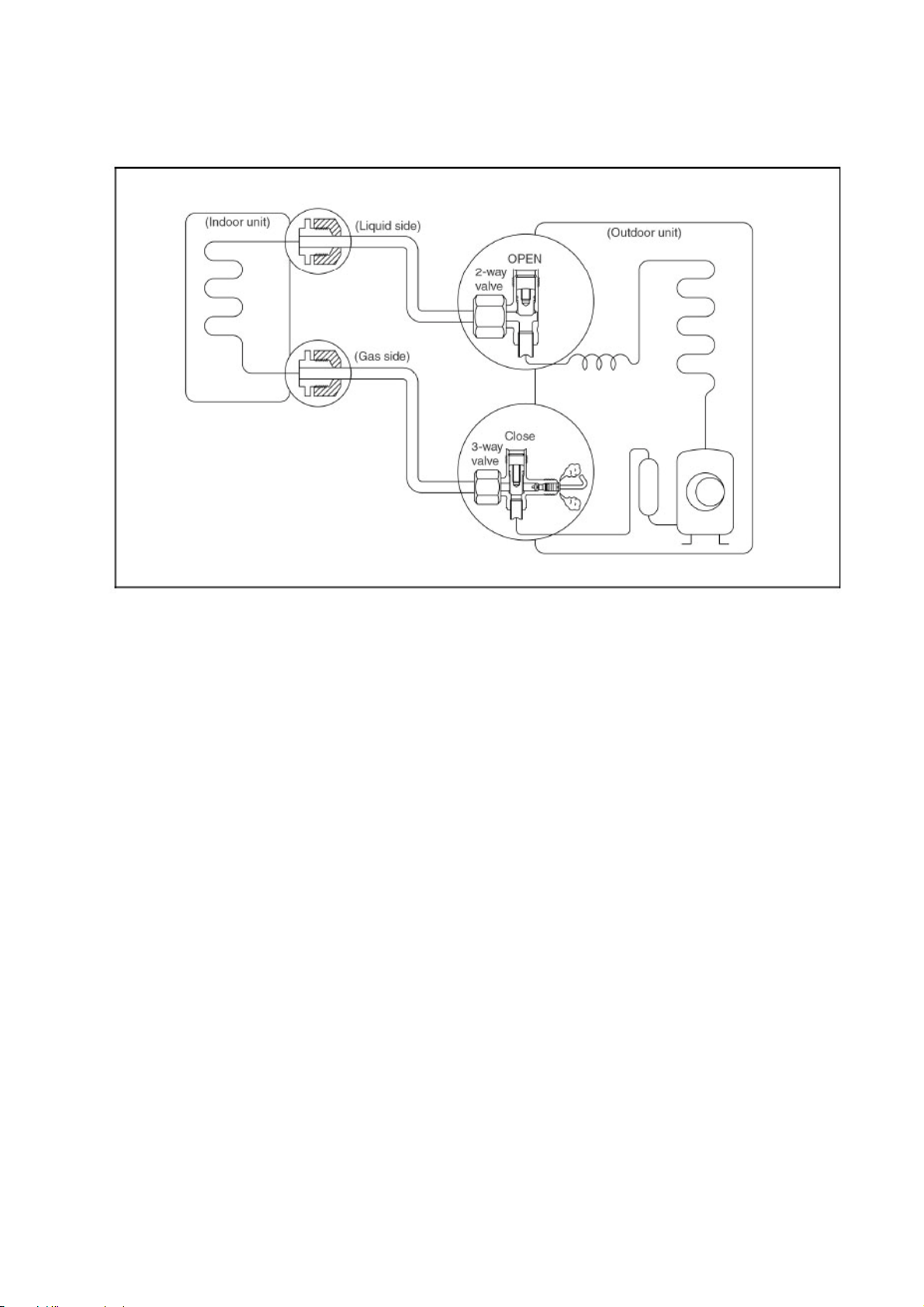

7.4 Air purging of the piping and indoor unit
Required tools:
Hexagonal wrench; adjustable wrench; torque wrenches, wrench to hold the joints and gas leak detector.
Note:
The air in the indoor unit and in the piping must be purged. If air remains in the refrigeration piping, it will affect the

14
compressor, reduce the cooling capacity, and could lead to a malfunction of unit.
Be sure, using a torque wrench to tighten the service port cap (after using the service port), so that it prevents the gas
leakage from the refrigeration cycle.
Procedure
1. Recheck the piping connections.
2. Open the valve stem of the 2-way valve
counterclockwise approximately 90’, wait 10
seconds, and then set it to closed position.
Be sure to use a hexagonal wrench to operate the
valve stem.
3. Check for gas leakage.
Check the flare connection for gas leakage
4. Purge the air from the system.
Set the 2-way valve to the open position and
remove the cap from the 3-way valve’s service
port.
Using the hexagonal wrench to press the valve
core pin, discharge for three seconds and then wait
for one minute.
5. Use torque wrench to tighten the service port cap
to a torque of 1.8 kgf.m. (18N.m)
6. Set the 3-way valve to the opened position.
7. Mounted the valve stem nuts to the 2-way and
3-way valves.
8. Check for gas leakage.
At this time, especially check for gas leakage from
the 2-way and 3-way stem nuts, and from the
service port.
Caution:
If gas leakage is discovered in step (3) above, take the
following measures.
If the leaks stop when the piping connections are
tightened further, continue working from step (4).
If the gas leaks do not stop when the connections are
retightened, repair the location of the leak, discharge all
of the gas through the service port, and then recharge
with the specified amount of gas from a gas cylinder.

15

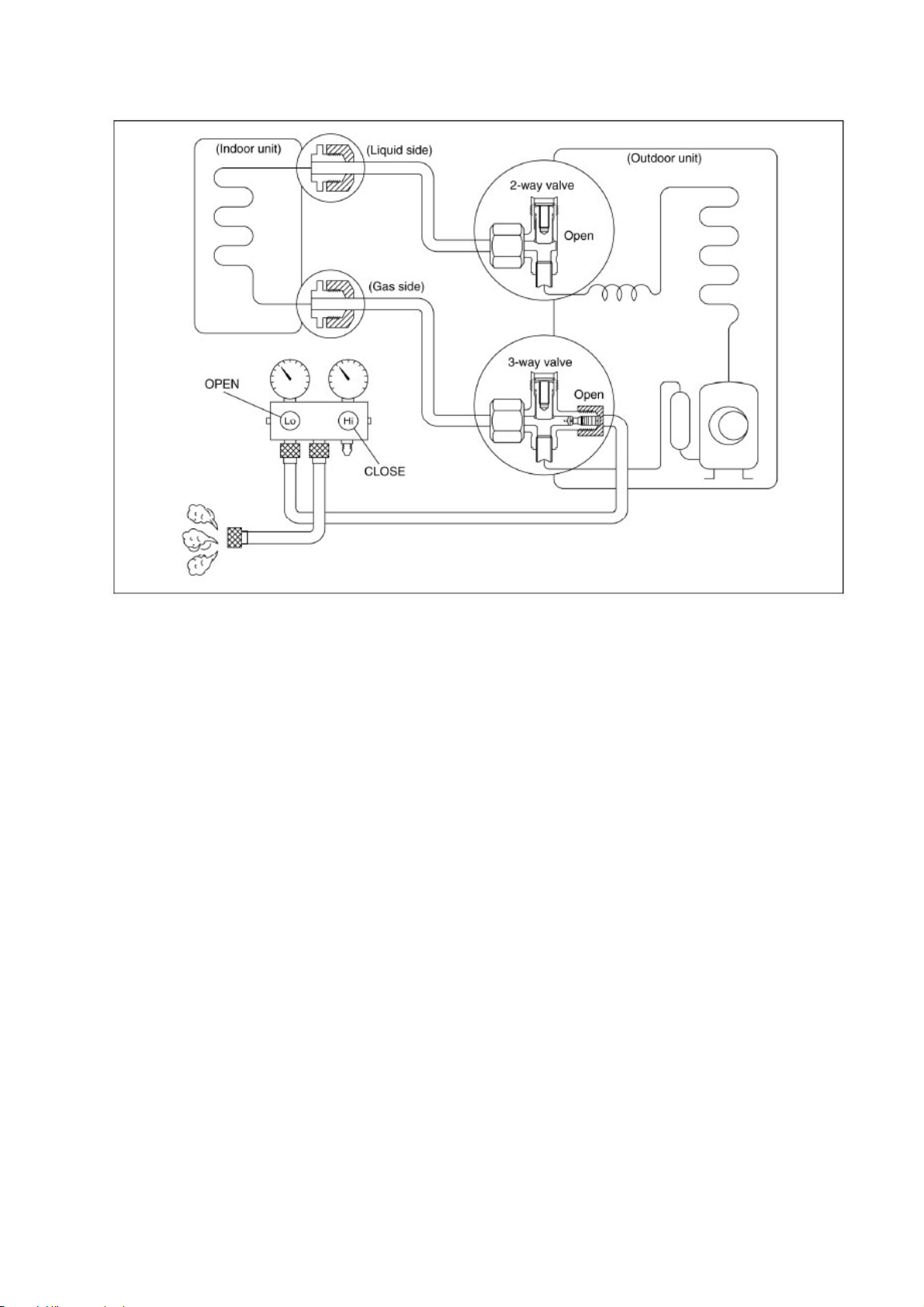

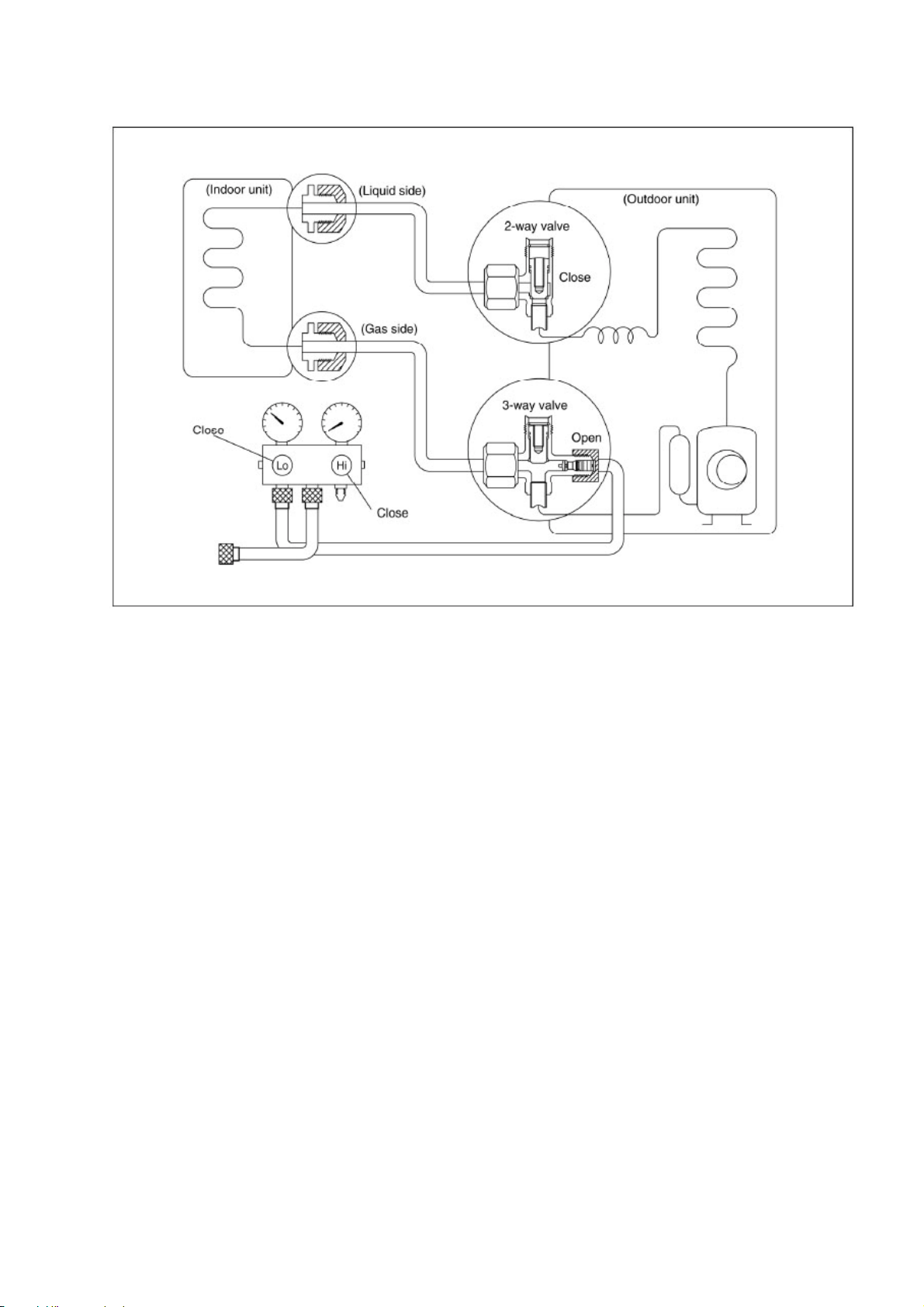

7.5 Pumping down (Re-installation)
Procedure
1. Confirm that both the 2-way and 3-way valves are set to the opened position.
Remove the valve stem caps and confirm that the valve stems are in the opened position.
Be sure to use a hexagonal wrench to operate the valve stems.
2. Operate the unit for 10 to 15 minutes.
3. Stop operation and wait for 3 minutes, then connect the charge set to the service port of the 3-way valve.
Connect the charge hose with the push pin to the gas service port.
5. Air purging of the charge hose.
Open the low-pressure valve on the charge set slightly to purge air from the charge hose.
6. Set the 2-way valve to the close position.
7. Operate the air conditioner at the cooling cycle and stop it when the gauge indicates 0.1MPa.
8. Immediately set the 3-way valve to the closed position.
Do this quickly so that the gauge ends up indicating 0.3 to 0.5Mpa.
Disconnect the charge set, and amount the 2-way and 3-way valve’s stem nuts and service port caps.
Use a torque wrench to tighten the service port cap to a torque of 1.8 kgf.m.
Be sure to check for gas leakage.

16
7.6 Re-air purging (Re-installation)
Procedure:
1. Confirm that both the 2-way and 3-way valves are set to the closed position.
2. Connect the charge set and a charging cylinder to the service port of the 3-way valve.
Leave the valve on the charging cylinder closed.
3. Air purging.
Open the valves on the charging cylinder and the charge set. Purge the air by loosening the flare nut on the 2-way
valve approximately 45’ for 3 seconds then closing it for 1 minute; repeat 3 times.
After purging the air, use a torque wrench to tighten the flare nut to on the 2-way valve.
4. Check the gas leakage.
Check the flare connections for gas leakage.
5. Discharge the refrigerant.
Close the valve on the charging cylinder and discharge the refrigerant until the gauge indicates 0.3 to 0.5 Mpa.
6. Disconnect the charge set and the charging cylinder, and set the 2-way and 3-way valves to the open position.
Be sure to use a hexagonal wrench to operate the valve stems.
7. Mount the valve stems nuts and the service port cap.
Be sure to use a torque wrench to tighten the service port cap to a torque 18N.m.
Be sure to check the gas leakage.

17
7.7 Balance refrigerant of the 2-way, 3-way valves
Procedure:
1. Confirm that both the 2-way and 3-way valves are set to the open position.
2. Connect the charge set to the 3-way valve’s service port.
Leave the valve on the charge set closed.
Connect the charge hose with the push pin to the service port.
3. Open the valves (Low side) on the charge set and discharge the refrigerant until the gauge indicates 0.05 to
0.1Mpa.
If there is no air in the refrigeration cycle [the pressure when the air conditioner is not running is higher than 0.1Mpa,
discharge the refrigerant until the gauge indicates 0.05 to 0.1 Mpa. If this is the case, it will not be necessary to
apply an evacuation.
Discharge the refrigeration gradually; if it is discharged too suddenly, the refrigeration oil sill be discharged.
