Chest Freezer
SERVICE MANUAL
MODEL：
ALASKAH320B1
ALASKAH430B1
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
dose not contain warnings and cautions to advice non-technical individuals of potential dangers in attempting to service a product.
Product powered by electricity should by serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
WARNING

SERVICE MANUAL
Model：ALASKAH320B1; ALASKAH430B1 2
Issue 2017-8-4
REV Ref1708S011V0
Contents
Chapter 1 General Information .............................................................................................................3
1-1. General Guidelines........................................................................................................................3
1-2. Insurance Test ...............................................................................................................................3
1-3. How to read this Service Manual ...................................................................................................4
Chapter 2 Product Feature...................................................................................................................5
2-1. SPECIFICATIONS ......................................................................................................................... 5
2-2. External views ...............................................................................................................................6
Chapter 3 Installation, adjustments and maintenance ..........................................................................6
3-1. Installation .....................................................................................................................................6
3-2 Defrosting and Draining..................................................................................................................7
3-3 Cleaning the Freezer ......................................................................................................................8
Chapter 4 Disassembly......................................................................................................................... 9
4-1. Door assembly (Door, hinge, hinge cover) ....................................................................................9
4-2. Compartment Grill assembly .........................................................................................................9
4-3. Control panel assembly (Panel, cover board, knob, indicator light) ............................................... 9
4-4. Thermostat assembly ..................................................................................................................10

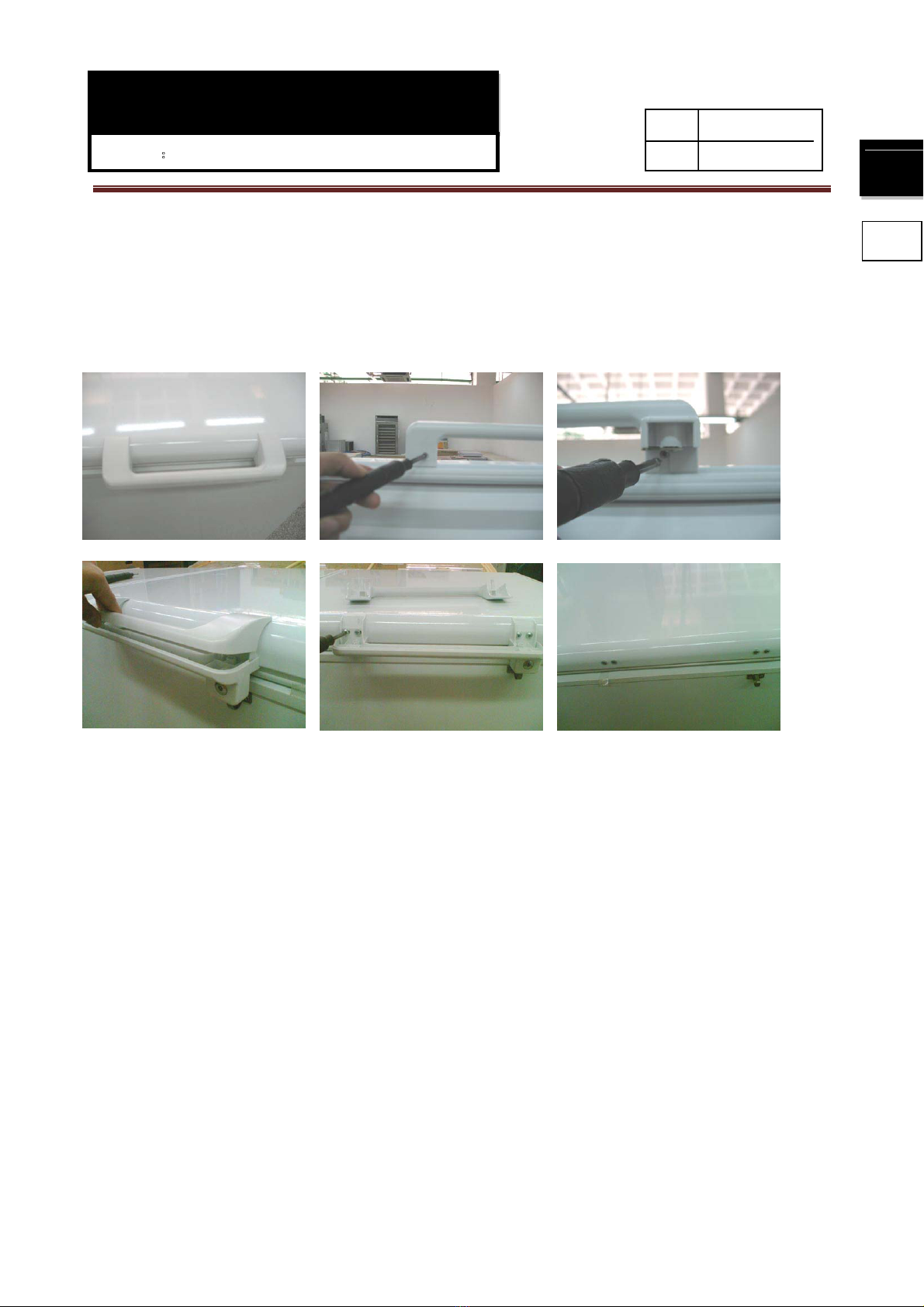

4-5.Disassemble the handle ............................................................................................................... 11
Chapter 5 Control and display system ................................................................................................12

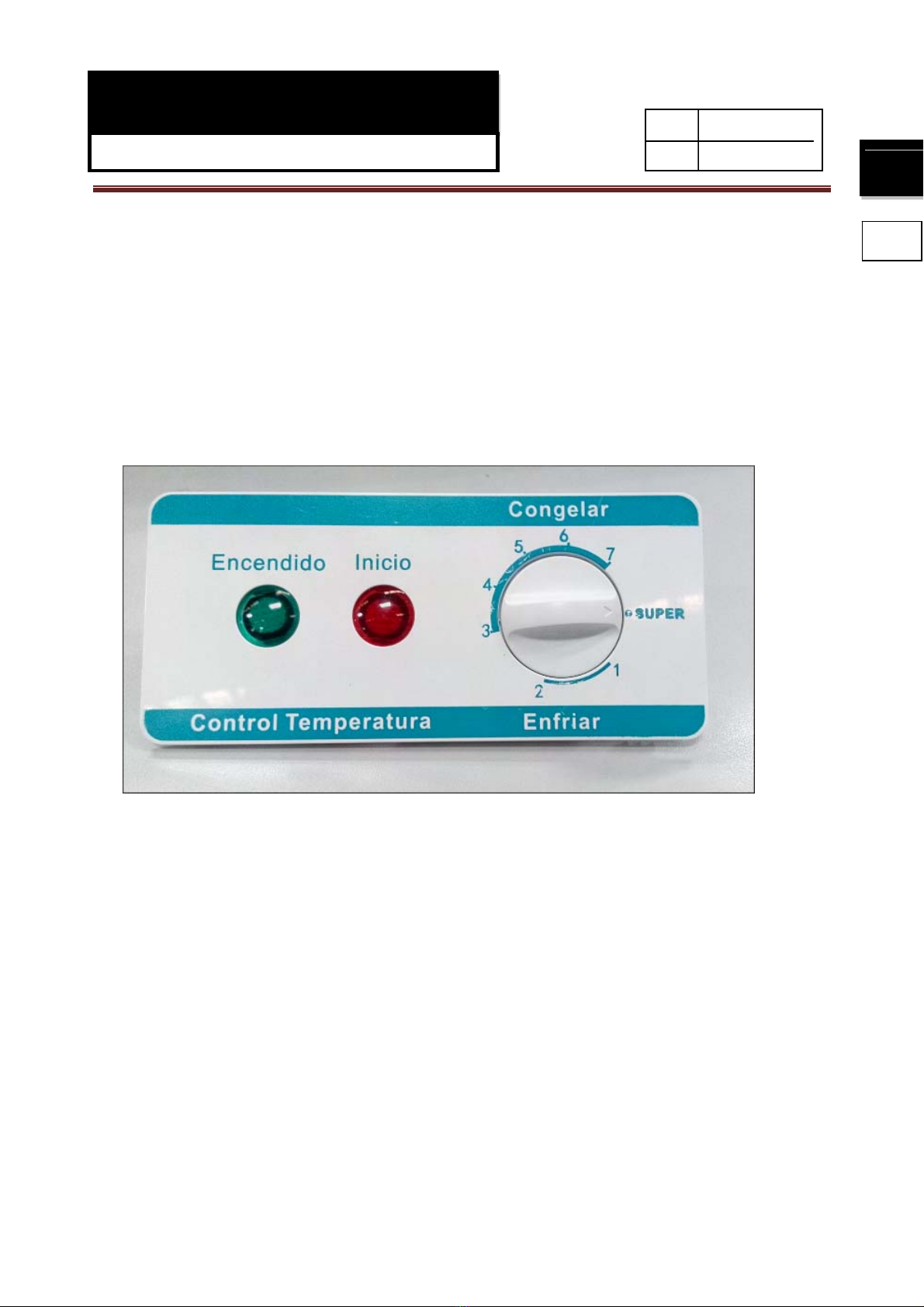

5-1. Control panel ...............................................................................................................................12
5-2. Starting the Freezer .....................................................................................................................12
Chapter 6 System flow principle .........................................................................................................13
6-1. Refrigeration flow chart................................................................................................................13

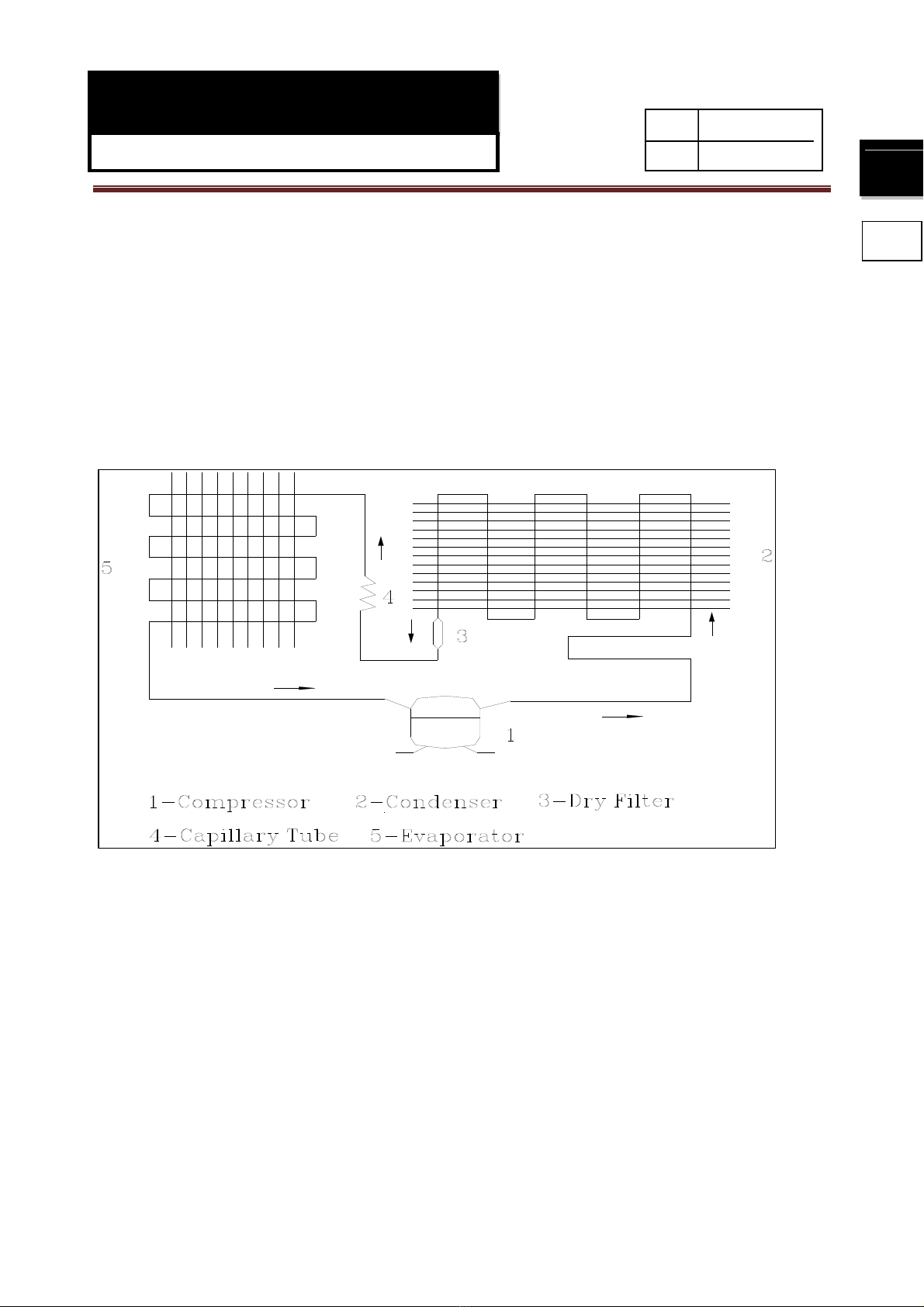

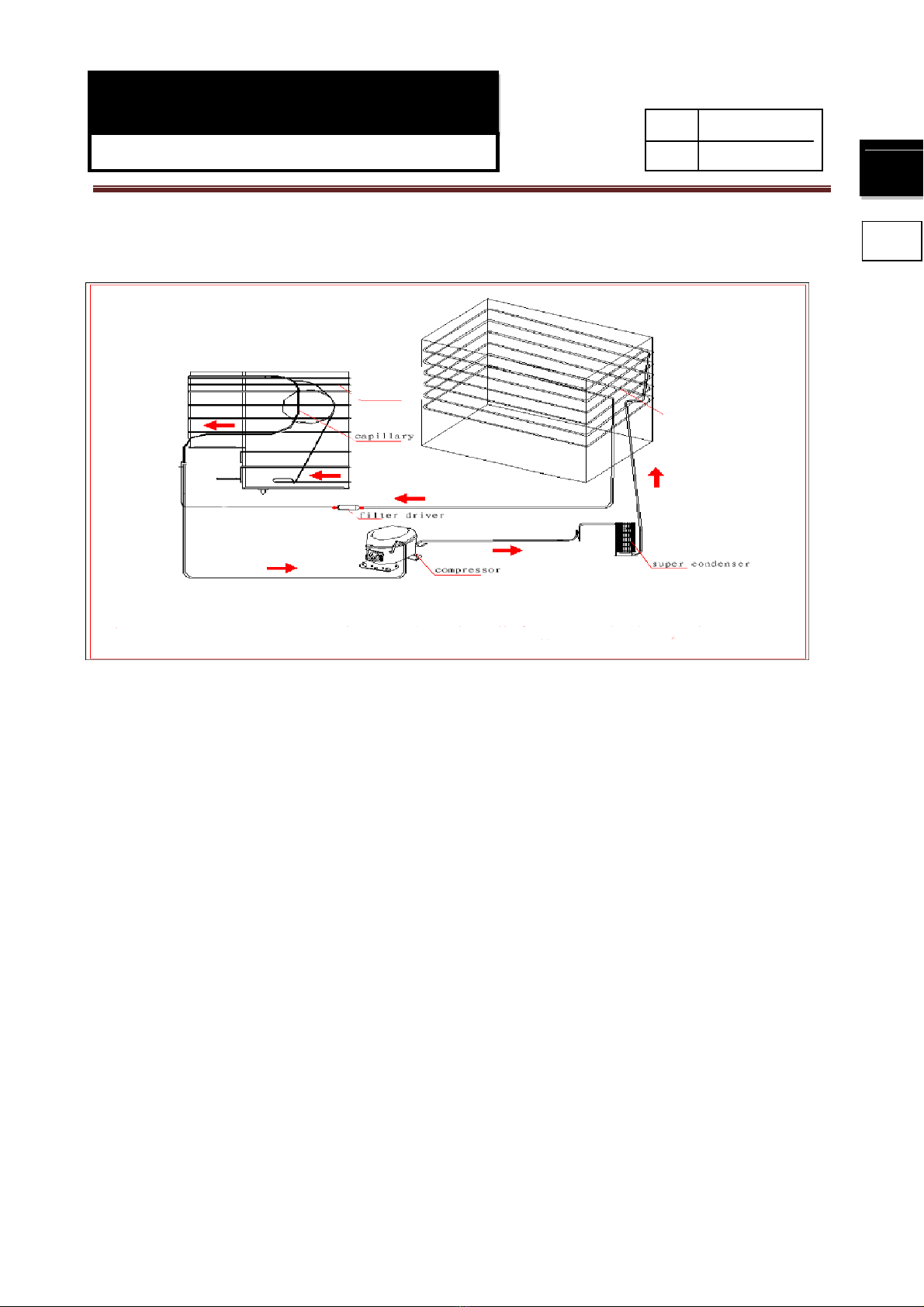

6-2. Refrigeration flow scenograph .....................................................................................................14
Chapter 7 Circuit diagram...................................................................................................................14
7-1. Brief principle diagram.................................................................................................................15
Chapter 8 Trouble shooting ................................................................................................................16
8-1. Normal phenomena .....................................................................................................................16
8-2. Abnormal phenomena.................................................................................................................. 18

SERVICE MANUAL
Model：ALASKAH320B1; ALASKAH430B1 3
Issue 2017-8-4
REV Ref1708S011V0
Chapter 1 General Information
1-1. General Guidelines
When servicing, observe the original lead dress. If a short circuit is found, replace all parts which
have been overheated or damaged by the short circuit. After servicing, see to it that all the protective
devices such as insulation barriers, insulation papers shields are properly installed. After servicing,
make the following leakage current checks to prevent the customer from being exposed to shock
hazards.
1) Leakage Current Cold Check
2) Leakage Current Hot Check
3) Prevention of Electro Static Discharge (ESD) to Electrostatic Sensitive
1-2. Insurance Test
1. Check if there is any leak of current.
2. Cut out the power supply before the repair to avoid an electrical shock hazard.
3. In the case of a live-line test, insulating gloves should be worn to avoid potential electrical shock.
4. Confirm the rated current, voltage and capacity before testing with any kinds of instruments.
5. Watch if the upper door is open when you check something at a lower position.
6. Take out every part in the cabinet before moving the machine, especially things like panels (e.g.
glass shelf).
7. Please wear intact cotton gloves when repair any parts of the evaporator, so that scratches by
the sharp fins can be avoided.
8. If there is a breakdown with the refrigeration system, please surrender the machine to the service
center, else the leaked refrigerant may pollute the atmosphere.
9. The refrigerator use AC of 115V with a frequency of 60Hz.
10. A big fluctuation of voltage may cause a start failure of the refrigerator, a burn-out of the control
panel and compressor, or an abnormal sound from the compressor in operation.

SERVICE MANUAL
Model：ALASKAH320B1; ALASKAH430B1 4
Issue 2017-8-4
REV Ref1708S011V0
11. Take care not to damage the supply line. Don’t yank at the line; pull the plug out gently from the
receptacle. Don’t press the line under the cabinet or step on it. Take care not to roll on or damage the
supply line when moves the machine from the wall.
12. In the case of leakage of inflammable gases like carbon monoxide, open the door and windows.
Don’t pull out or insert the plugs of the appliance.
13. Don’t touch the refrigeration surface of the freezing compartment when the refrigerator is in
operation, especially when your hand is wet, else you may be glued to the surface.
14. Pull out the plug of power supply during clearance or power outage. Wait at least five minutes to
resume the power supply in order to prevent damage to the compressor caused by continuous restart.
Photo used in this manual
The illustration and photos used in this Manual may not base on the final design of products, which
may differ from your products in some way.
1-3. How to read this Service Manual
Icons are used to attract the attention of the reader to specific information. The meaning of each icon
is described in the table below:
Note: A “note” provides information that is not indispensable, but may nevertheless be
valuable to the reader, such as tips and tricks.
Caution: A “caution” is used when there is danger that the reader, through incorrect
manipulation, may damage equipment, loose data, get an unexpected result or has to restart (part of)
a procedure.
Warning: A “warning” is used when there is danger of personal injury.
Reference: A “reference” guides the reader to other places in this binder or in this manual,
where he/she will find additional information on a specific topic.

SERVICE MANUAL
Model：ALASKAH320B1; ALASKAH430B1 5
Issue 2017-8-4
REV Ref1708S011V0
2 Product Feature
2-1. SPECIFICATIONS
Model / ALASKAH320B1 ALASKAH430B1
Type of appliance (FS=free standing / BI=
built-in) / FS FS
Climate class (N=16-32℃ST=16-38℃
T=18-43℃) / T T
Key features
Total net capacity l 320 429
Freezing capacity(kg/24h) kg/24h 26 30
Energy consumption/year kW.h/year 319.4 358
Max storage time at breakdown h 40 40
Kind of coolant (R134a/R600a) / R600a/95g R134a/230g
Technical data
Voltage / frequency V/Hz 115~/60 115~/60
Input power / currency W/A 100/1.5 180/2.1
Lenght of cable / incl. plug cm 150/155 150/155
Temperature range (from>to) °C ≤-18 ≤-18
Equipment & accessories
Defrostdrain / ● ●
Interior light / ● ●
Product net dimensions /
Unit dimensions (H / W / D) cm 1110/745/845 1410/745/860
Height with open lid cm 150 150
Net weight kg 51 67
Packing dimensions & loadability
Packing dimensions(H / W / D) cm 1165/775/895 1470/775/895
Gross weight kg 58 76
Service
User instruction / English English

SERVICE MANUAL
Model：ALASKAH320B1; ALASKAH430B1 6
Issue 2017-8-4
REV Ref1708S011V0

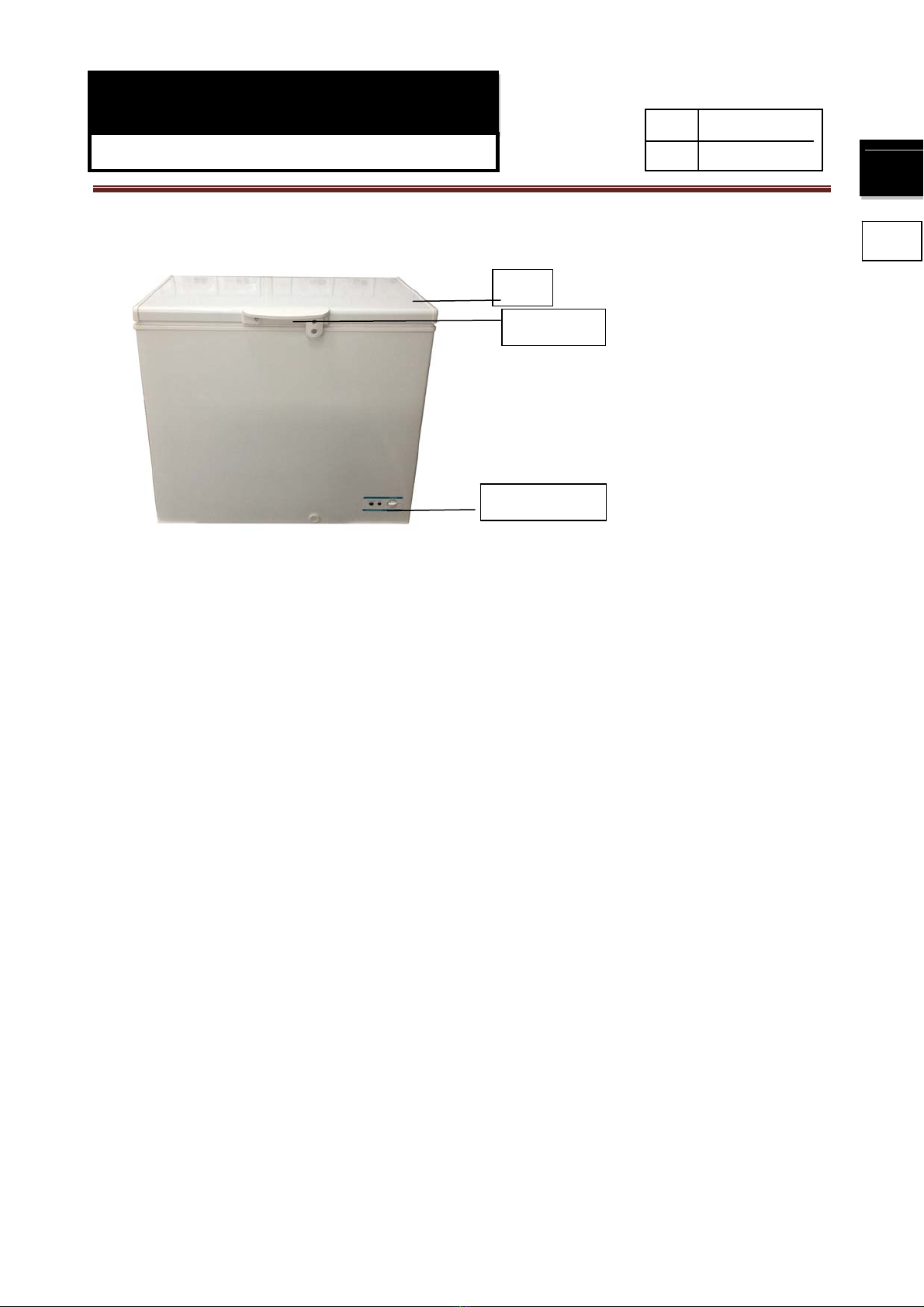

2-2. External views
Chapter 3 Installation, adjustments and
maintenance
3-1. Installation
The freezer should be conveniently located for day-to-day use in a dry well-ventilated room.
Do not install the freezer where the temperature will go below 0°F or above 110°F, because it will not
maintain proper temperatures.
Be sure to install the freezer on a floor strong enough to support it when it is fully loaded.
The freezer must be solidly positioned on the floor if it is to function at its best. Shims may be used to
accomplish this wherever the floor is too uneven. If the place selected for the freezer is damp or moist,
place 2 X 4 s (51 mm X 102 mm) under its entire length to assure adequate support.
Door
Control panel
Handle

SERVICE MANUAL
Model：ALASKAH320B1; ALASKAH430B1 7
Issue 2017-8-4
REV Ref1708S011V0
3-2 Defrosting and Draining
In most climates, defrosting will be necessary only about twice a year.
To have the freezer operate most efficiently, do not permit more than 1/2” (13 mm) of frost to
accumulate on the shelves.
To remove frost, scrape with a plastic or wood spatula or scraper.
Do not use an ice pick or sharp-edged instrument as it may damage or scratch the freezer.
Do not use any electrical device in defrosting your freezer.
For Complete Defrosting
1.Turn the temperature control to the OFF position and unplug the freezer.
2.Remove all food and place it in corrugated boxes, insulated bags, picnic coolers, etc. Use towels
and newspapers for insulation as needed.
3.With the door/lid open, use pans of hot water to speed loosening of frost. Remove large pieces
before they melt. Chest models have a defrost water drain at the front.
4.Sponge excess water from the bottom of the freezer as it collects to prevent over flowing.
5.After defrosting, clean the inside of the freezer.
6.Replace the drain plug inside the cabinet and the cap on the defrost drain. Fold over and dry the
gasket on the hinge side of the lid.
7.Plug in the freezer. Return the temperature control to its previous position and return food to the
freezer.
Water may drip from the back flange of the lid cover during defrosting. This is normal. Ice
builds up in the lid insulation when the lid is open for adding or removing food, and melts during the
defrosting operation.

SERVICE MANUAL
Model：ALASKAH320B1; ALASKAH430B1 8
Issue 2017-8-4
REV Ref1708S011V0
3-3 Cleaning the Freezer
Outside. Protect the paint finish. The finish on the outside of the freezer is a high quality baked-on
paint finish. With proper care, it will stay new-looking and rust-free for years. Apply a coat of appliance
polish wax when the freezer is new and then at least twice a year. Appliance polish wax also works
well to remove tape residue from freezer surfaces.
Keep the finish clean. Wipe with a clean cloth lightly dampened with appliance polish wax or mild
liquid dishwashing detergent. Dry and polish with a clean, soft cloth. Do not wipe the freezer with a
soiled dishwashing cloth or wet towel. Do not use scouring pads, powdered cleaners, bleach, or
cleaners containing bleach.
Inside. Clean the inside of your freezer at least once a year. We recommend that the freezer be
unplugged before cleaning. If this is not practical, wring excess moisture out of sponge or cloth when
cleaning in the vicinity of switches, lights or controls.
Use warm water and baking soda solution-about a tablespoon of baking soda to a quart of water.
Rinse thoroughly with water and wipe dry. Do not use cleaning powders or other abrasive cleaners.
An open box of baking soda in the freezer will absorb stale freezer odors. Change the box ever y three
months.
Care should be taken in moving the freezer away from the wall. All types of floor coverings can
be damaged particularly cushioned coverings and those with embossed surfaces.

SERVICE MANUAL
Model：ALASKAH320B1; ALASKAH430B1 9
Issue 2017-8-4
REV Ref1708S011V0
Chapter 4 Disassembly
4-1. Door assembly (Door, hinge, hinge cover)
Disassemble the hinge assembly and the hinge cover: take away the top and bottom cover by pull it, then
screw off the eight screws on the bottom hinge, so the whole hinge could be moved.
4-2. Compartment Grill assembly
Unscrew the two screw of the grill; then it can be taken away.

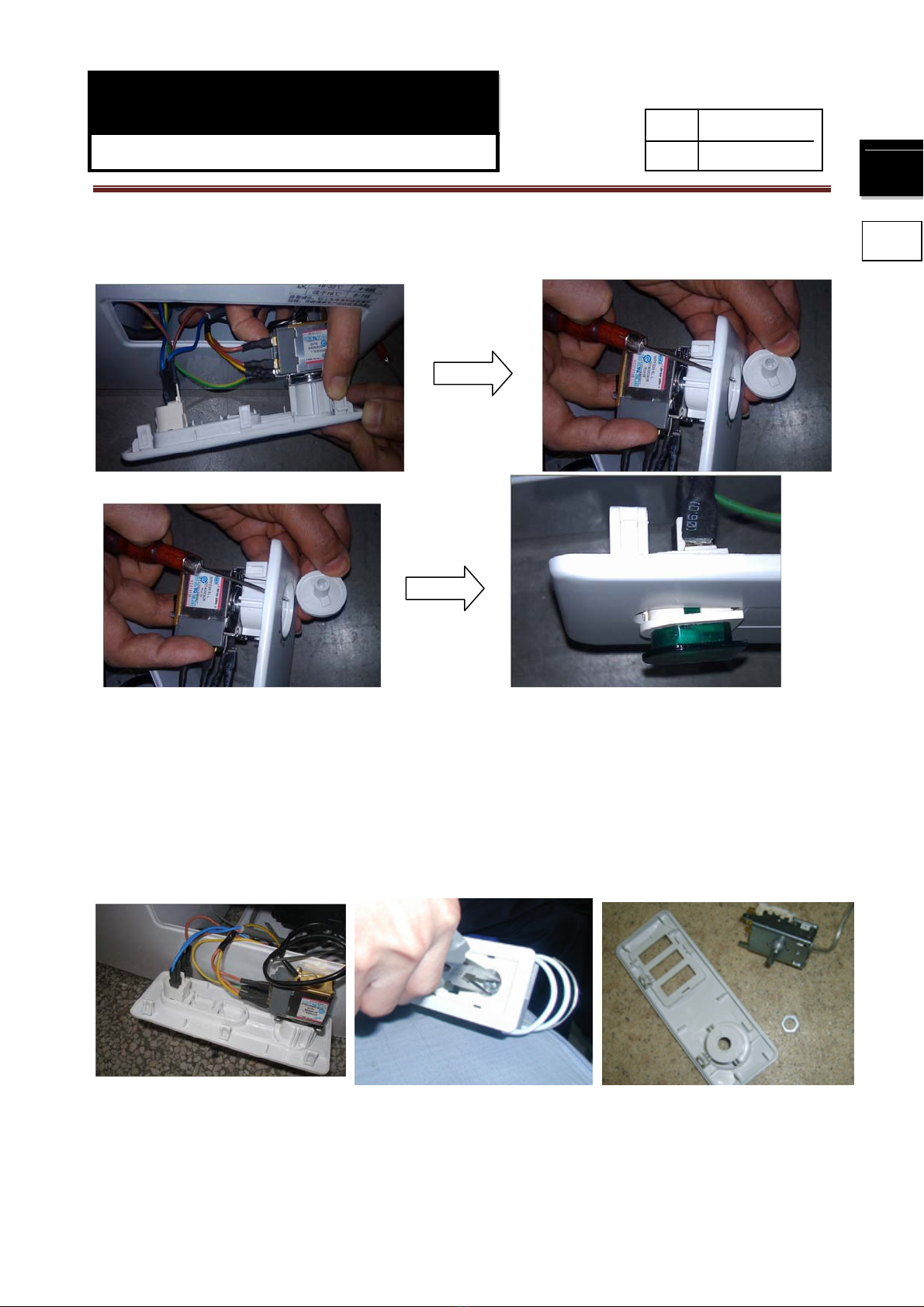

4-3. Control panel assembly (Panel, cover board, knob, indicator light)
Unscrew the compartment grill (refer 4-2), push the panel claw gently with your finger or tools, at the
same time pull panel outside then take away it.
1.Take away the knob with a sharp-edged tool.

SERVICE MANUAL
Model：ALASKAH320B1; ALASKAH430B1 10
Issue 2017-8-4
REV Ref1708S011V0
2.Press the cover board and take away it.
3.Press two claws on indicator light side and push it from back to front.
4-4. Thermostat assembly
First take off the knob (refer 4-3), Use turnbuckle spanner or acutilingual plier, unscrew the turnbuckle,
then thermostat can be moved from back of panel.
Note: When assemble thermostat you should placed thermostat in originally direction.
