Contec CheckMate IV RT-U49C User manual

To program your TV / VCR combination unit...
1. First, program your remote as a TV
Following the steps in this section, find a TV Setup
Code that operates the TV functions of your TV /
VCR (power, vol +/ – , mute, ch +/ – 0 – 9).
2. Then, program your remote as a VCR
Following the steps in Section 6 for code number
programming, enter, lock and test each 3-digit
VCR Setup Code until a code is found that
operates the VCR functions of your TV / VCR
(play, stop, fast-forward, rewind, pause, record).
Note: You can not use the Point and PressTM
Programming method to program the VCR
functions of the TV / VCR.
If you have a TV that’s operated by remote control, it
is recommended that you plug it directly into a wall
outlet instead of the cable set-top terminal.
To program your TV...
1. Turn on your TV.
2. Press [TV], then [SELECT]together - hold both
buttons down until [TV]illuminates.
3. a. Press and hold [CH +] until your TV turns off.
As soon as your TV turns off, release [CH +].
OR
b. From the TV Setup Code list, locate and enter
a 3-digit code for your brand. If multiple codes
are listed, you may have to enter several codes
until your TV turns off.
4. Press [MUTE]. If your TV turns back on, press
[TV]to lock in the code. The [TV]button will blink
and go out.
If your TV does not turn back on, repeat steps 3
and 4 until you can turn your TV off and on❶.
Write your TV brand & setup code .
Refer to section 16 for code number readback.
❶Note When using the Point and PressTM
Programming method (step 3a). If you find a code
that turns your TV off but not back on (step 4),you
may have gone past the correct matching code. Try
pressing [CH–] one press at a time until you find a
code that turns your TV back on.
2
2
1. Introduction

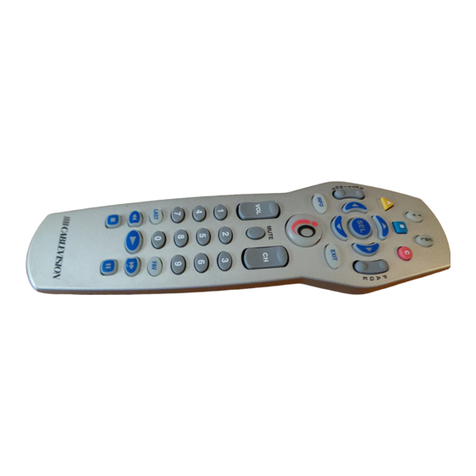

Your CheckMate™ IV (Model RT-U49C) universal
remote control is simple to program, easy to use, and
can operate up to four (4) devices, which include:
2. Before Getting Started
Some of the special features and buttons on your
remote control are as follows:
Point and PressTM Programming
Let’s you program your TV, VCR Audio devices
without codes. For more information, see sections
5, 6 and 7.
[ALL]
Turns all of your devices on / off with one button
press. [ALL]can even be programmed to
automatically tune your TV to its correct output
channel. For more information, see section 8.
[Movies], [Sports], [News]
Program your favorite channels on the “Movies”,
“Sports” and “News” buttons. For more information
see section 9.
[VCR / VOD]Toggle
“Toggles” the VCR buttons between cable Video-
On-Demand (VOD) and VCR / DVD functions. For
more information, see section 10.
SmartKeysTM
Program multiple button presses on the [CBL], [TV]
and [BYPASS]buttons. For more information, see
section 15.
[DEVICE]
Tells which device you are currently operating by
illuminating the device’s power button. While the
current device is illuminated, press a nonilluminated
power button to operate a different device.
Memory GuardTM
Eliminates reprogramming after battery changes.
Time Out
Shuts remote off if any button is pressed and held
for 45 seconds. This extends battery life in the
event the remote becomes lodges under or
between heavy objects.
Before you can use your remote control, it must be
programmed (set-up) to operate the above devices.
CABLE
TV
VIDEO
AUDIO
Cable set-top terminals
Televisions
VCR, DVD
Cassette deck, CD, receivers,
amplifiers, 2nd TV, 2nd VCR.
5
5
5. Programming Your TV
3
3
Reset
Lets you reset your remote to its original default
settings. For more information, see section 17.
3. Installing / Replacing Batteries
Install two (2) new “AA” batteries as indicated by the
diagram in the battery compartment.
When the illuminated buttons become dim or do not
illuminate during use, install two (2) new “AA” size
batteries.
Your remote control has Memory GuardTM, which
eliminates reprogramming after battery changes.
4. Programming Your Cable Set-Top Terminal
Model RT-U49C is pre-programmed to operate
the Scientific-Atlanta Explorer , Pioneer Voyager
and Pace 510 digital set-top terminals.
To operate a different cable set-top terminal, look up
the brand and model in the Cable Setup Code list. If
you are not sure of your brand and model, contact
your cable company.
To program your cable set-top terminal...
1. Turn on your cable set-top terminal.
2. Press [CBL], then [SELECT]together - hold both
buttons down until [CBL]illuminates.
3. From the Cable Setup Code list, locate and enter
the 3-digit code for your brand and model.
4. Press [CBL]to lock in the code. The [CBL]
button will blink and go out.
Write your cable set-top terminal brand & setup
code__________
Refer to section 16 for code number readback.
Cable Setup Codes
4
4
Pace
510 digital 004
Philips
digital 017
Pioneer
Voyager 004
BC-4600, BA-6000 008
BA-9000 009
BA-V1000, BA-V2000 010
Tocom
5503VIP, 5507, 5508 011
Zenith
Z-Tac 012
MM2500 013
Oak
Sigma One, P1, P2, P3 014
Sigma 2000
6
6
TV Setup Codes
Admiral 058 061 062 067
Adventura 004
Akai 065
Aiwa 135
Amark 007 086
Ampro 112
Amstrad 006
Anam 088 089 093 111 120 125 134
AOC 065
Audio Vox 111
Belcor 041
Bell & Howell 062
Broksonic 011 054
Brokwood 041
Candle 027 052
Centurion 044 051
Citizen 027 052 059 062
Concerto 041 051
Contec 020
Coronado 007
Craig 134
Crown 007
Curtis Mathes 044 061 062
Daewoo 027 039 040 041 042 051 090 091
092 094 101 102 108 114 118 121
123 130
Daytron 041 044 051
Dumont 041
Electro Home 041 051
Elektra 002
Emerson 007 008 011 012 017 054 065 079
108 110 131
Envision 041 051
Fisher 010 028
Funai 004
GE 005 019 027 031 037 041 046 051
053 055 061 070 131
Gibralta 007 025 027 031 041 044 051 059
060 065
Goldstar(LG) 007 027 031 041 044 059 060 065
124
Grundig 059
Hall Mark 041 051
Hitachi 007 027 049 051 083 085 098 100
Inkel 075
JC Penney 005 010 027 037 041 051 065 069
070
JVC 048 077 080 132
Kawasho 041 051
KMC 007
KTV 007 030 059 065
Kurazai 062
Lodgenet 062
Logik 062
Luxman 027 041 051
LXI 006 035 067
Magnavox(Philips) 001 005 007 014 026 027 041 052
068 081
Majestic 062
Marantz 003 065 076
Megatron 086
Memorex 010 031 062
MGA/Mitsubishi 003 027 031 041 044 051 065 076
084
Montgomery Ward 007 037 044 057 058 062 065 067
081
NEC 023 027 031 044 101
Orion 013 017 033 045 047 078
Panasonic 018 019 021 024 053 063
Philco 001 007 027 052 065 081
Philips(Magnavox) 001 005 007 014 026 027 041 052
068 081
Pilot 041 059 097
Pioneer 056 103
Portland 007 027
ProScan 055 061 073 082 112
Proton 031 126 128
Pulsar 041
Quasar 019
Radio Shack 041
Realistic 012 057 079
RCA 022 027 046 053 055 061 065 072
073 082
Sampo 031 044
Samsung 007 016 020 031 044 119 129
Sanyo 002 010 028 104 133
Scott 031 044 079
Motorola (General Instrument)
DCT, CFT 2200 001
CFT2100, CFT2000 002
Jerrold 003
DL4, DP(V), DQN(V), DPBB
Scientific Atlanta
Explorer 004
Explorer(#, *) 015
Explorer(Blue Ridge) 016
Explorer(WorldGate™) 018
8600X 005
8600 006
8540, 70, 90 007

7
79 910 10 12 12
Hitachi 106
Jensen 126
JVC 053 145
Kenwood 045
luxman 110
Marantz 080 114 124 131
NAD 108 120
Onkyo 052 105 118 147
Optimus 040 115 158
Panasonic 104 109
Parasound 155
Philips 089
Pioneer 058 090 081 135
Quasar 104
Radio Shack 012 040
Realistic 079 137 138
Rotel 140
Sansui 114
Sanyo 044
Scientific Atlanta 116
Scott 055
Sharp 082
Sherwood 012 040
Sony 008 020 059 091
Soundesign 048 092 093 094
SSI 134
Taekwang 158
Teac 054 064
Technics 095 104
Victor 053 145
Yamaha 030 133 171
Zenith 048 088 092 093 094
Adcom 139
Aiwa 163 165
Akai 158
Bose 136 163
Carver 073 167
Citation 162
Denon 034 068 102
Everquest 107
Fisher 073
Fosgate Audionics 169
Goldstar(LG) 088
Harman/Kardon 043 169 170 172
Aiwa 153
Akai 157
Audio Access 161
B&K 141 142
Denon 039
Dynamic Bass 087
Fisher 129
Fosgate Audionics 168
Haitai 164
Harman/Kardon 051 168
Inkel 164
JCPenny 143
JVC 056 098
Kenwood 042 129 160 164
Kloss 143
Lexicon 154
Luxman 111 159
Marantz 125 130
NAD 121
Nakamichi 150
Onkyo 066 119 146
Optimus 122 123 157
Philips DCC 026
Pioneer 010 032 099 113 117
Sansui 149 152 166
Sherwood 112
Sony 022 096
Taekwang 157
Teac 127 150
Technics 037 144 148
Technics DCC 026
Toshiba 151
Wards 129
Yamaha 067 100 101 132
2. Compact Disc
11
11
7. Programming Your Audio Device
To program your laser disc, compact disc,
receiver / amplifier or cassette tape...
1. Turn on your Audio device - cassette deck, CD,
receiver, amplifier.
2. Press [AUDIO], then [SELECT]together - hold
both buttons down until [AUDIO]illuminates.
3 a. Press and hold [CH +] until your Audio device
turns off. As soon as your Audio device turns
off, release [CH +].
OR
b. From the Audio Setup Code list, locate and
enter a 3-digit code for your brand. If multiple
codes are listed, you may have to enter several
codes until your Audio device turns off.
4. Press [MUTE]If your Audio device turns back on,
press [AUDIO]to lock in the code. The [AUDIO]
button will blink and go out.
If your Audio device dose not turn back on, repeat
steps 3 and 4 until you can turn your Audio device
off and on❶.
Write your Audio brand & setup code .
To program your 2nd TV, 2nd VCR, or 2nd DVD...
1. Turn on your 2nd TV, 2nd VCR, or 2nd DVD.
2. Press [AUDIO], then [SELECT]together - hold
both buttons down until [AUDIO] illuminates.
3. Press [TV]to program a 2nd TV (or [VIDEO]for 2nd
VCR). The [AUDIO]and [TV] buttons will blink.
4. a. Press and hold [CH +] until your 2nd TV turns
off. As soon as your 2nd TV turns off, release
[CH +]
OR
b. From the TV Setup Code list, locate and enter
a 3-digit code for your brand. If multiple codes
are listed, you may have to enter several codes
until your 2nd TV turns off.
5. Press [MUTE]If your 2nd turns back on, press
[AUDIO]to lock in the code. The [AUDIO]button
will blink and go out.
If your 2nd TV does not turn back on, repeat steps
3 and 4 until you can turn your 2nd TV off and on❶.
Write your 2nd TV brand & setup code .
Refer to section 16 for code number readback.
❶ Note when using the Point and Press™
Programming method (step 4a). If you find a code
that turns your Audio device off but not back on (step
4), you may have gone past the correct matching
code. Try pressing [CH –] one press at a time until
you find a code that turns your Audio device back on.
Audio Setup Codes
1. Laser Disc
3. Receiver / Amplifier
4. Cassette Tape
6. Programming Your Video (VCR / DVD)Device
8
8
❶ Note When using the Point and Press™
Programming method (step 3a). If you find a code
that turns yourVCR/DVD off but not back on (step 4),
you may have gone past the correct matching code.
Try pressing [CH –] one press at a time until you find
a code that turns your VCR / DVD back on.
VCR Setup Codes
To program your VCR or DVD...
1. Turn on your VCR or DVD.
2. Press [VIDEO], then [SELECT]together - hold
both buttons down until [VIDEO]illuminates.
3 a. Press and hold [CH +] until your VCR or DVD
turns off. As soon as your VCR or DVD turns
off, release [CH +].
OR
b.From the VCR - DVD Setup Code list, locate
and enter a 3-digit code for your brand. If
multiple codes are listed, you may have to enter
several codes until your VCR or DVD turns off.
4. Press [MUTE]If your VCR or DVD turns back on,
press [VIDEO]to lock in the code. The [VIDEO]
button will blink and go out.
If your VCR or DVD does not turn back on, repeat
steps 3 and 4 until you can turn your VCR or DVD
off and on❶.
Write your VCR / DVD brand & setup code .
Refer to section 16 for code number readback.
Sears 002 007 010 016 027
028 043 069
Sharp 007 009 023 035 057 064 067 096
Signature 2000 007 044 058 062 067
Sony 032 038 050 066
Soundesign 052
Squareview 006
Supre-Macy 071
Sylvania 001 005 006 026 027 031 044 052
081 108
Symphonic 004 006
Tatung 019
Techwood 027
Teknika 001 007 027 052 062 079
Telerent 007 062
TMK 027 031
Tera 127
Toshiba 016 029 043 069
Totevision 059
Universal 027 070
Vidtech 027
Wards 027 031
White Westinghouse 058
XR-1000 062
Yamaha 027
York 031 044
Zenith 004 015 025 034 036
Admiral 014 056
Adventura 025
Aiwa 025 106
Akai 011 021 051 092 098 103
Audio Dynamics 007 044
Bell & Howell 005 024
Broksonic 009 048 053 064
Canon 008 034 105
Citizen 002 006 028 060
Colortyme 044
Craig 028 030
Curtis Mathes 008 013 034 044 060
Daewoo 006 010 012 057 058 112 114 116
Daytron 055 058
DBX 007 044
Dynatech 025 106
Emerson 002 003 006 008 009 022 033 040
049 051 064 091 101 106 107 109
Fisher 005 015 024 030 052
Funai 025 106
GE 008 027 028 034 041
Go Video 019 043 063
Goldstar(LG) 002 060
Harman/Kardon 044
Hitachi 025 046 059 106 113
Instant Replay 008 017 034
JC Penney 005 008 017 028 034 044 046
JVC 004 005 007 038 026 060 095 102
JCL 008
Kenwood 004 005 007 060 106
Logik 042
Lloyd 025 106
LXI 002 025 106
Magnavox 008 025 034 036 106
Marantz 005 008 036 044 060
Marta 002
Matsui 094
Memorex 002 005 025 030 034 104 106 110
Mitsubishi 023 029 031 047 106
MTC 025 028 106
Montgomery Ward 014 025 027 034 037 062
Multi Tech 025 028 042 106
NEC 004 005 007 044 070 071
Orion 022 049 065 066 067 068
Panasonic 008 013 034 099
Pentax 046
Philco 008 034 036 106
Philips 008 017 034 036 106
Pioneer 004 045 046
Portland 058
ProScan 027 041
Quasar 013 034
Quartz 005 009
RCA 001 008 016 017 027 028 037 041
046 106
Realistic 005 014 025 030 034 106
Samsung 021 028 039 098 108 111
Sansai 042
Sansui 004 093
Sanyo 005 024 114
Sayyo 030
Scott 003 006 031 042
Sears 002 005 015 030 046
Sharp 014 056
Shintom 042
Signature 2000 014 025 027 037 062
Sony 032 035 050
Soundesign 106
Sylvania 008 016 017 025 034 036 047 054
065 073 074 106
Symphonic 025 106
Tandy 005 025 106
Tashiko 002
Tatung 007
Teac 007 025 106
Technics 008
Teknika 002 053 106
Thomas 106
TMK 091
Toshiba 006 015 046 052 096
Totevision 002 028
Unitech 028
Vector Research 031 044
Video Concepts 044 106
Wards 002 014 025 028 060 106
XR-1000 042
Yamaha 005 007 044 106
Zenith 004 018 035 038 061 106
DVD Setup Codes
Denon 076
GE 077 078
Hitachi 117
JVC 079
KLH 118
LG 079
Magnavox 081 082
Mitsubishi 083
Panasonic 084
Pioneer 085
Samsung 086
Sharp 119
Sony 087
Thomson 120
Toshiba 088
Yamaha 089
Zenith 089
Pioneer 013 014
Proscan 029
RCA 029
Sanyo 006
Sony 025
Zenith 006
ADC 085
Akai 017 031
Aiwa 086
Carver 086
Crown 033
Denon 036
Fisher 001 003
Goldstar(LG) 016
Harman/Kardon 041
JVC 063
Kenwood 001 015 028 065 086
Krol 086
Magnavox 002 007 019 038
Mission 086
Mitsubishi 017 070
NAD 024 046 072
Nakamichi 075 077
NEC 018
NSM 086
Onkyo 076
Panasonic 009 035
Philips 007 019 038
Pioneer 009 047 097
Quasar 035
Radio Shack 009 023 028 049 062
RCA 019 038 057
Sanyo 003 032
SAE 086
Scott 023
Sharp 021 028
Sony 050 061 071
Soundesign 004 005 027 060
STS 085
Sylvania 007
Teac 023
Technics 035 042 103
Toshiba 024
Yamaha 074

Once you have programmed each of your devices,
press [ALL]to turn all of them on / off with a single
button press.
If you would like the [ALL]button to also tune
your TV to its correct output channel (typically 3)
follow these steps:
1. Press [DEVICE], then [CBL]to select the remote’s
cable mode.
2. Press [SETTINGS], then [ALL]together - hold
both buttons down until the [TV]illuminates.
3. Press [0], then [3]❶, ❷.
4. Press [CH+] to store the TV channel. The [TV]
button will blink and go out.
❶Your TV output channel may also be 2 or 4.
If you are not sure, contact your cable operator.
❷Depending on your TV brand, the channel may
have to be entered as “3”, “03” or “003”.
Note : When pressing the [ALL]button, be sure to
keep the remote control aimed at the devices to
ensure all functions are received in their entirety.
Each of these buttons can be programmed to store a
favorite cable channel.
For example, to program the [MOVIES]button to
cable channel 53, follow these steps:
1. Press [DEVICE], then [CBL]to select the remote’s
cable mode.
2. Press [CBL], then [MOVIES]together - hold both
down until [CBL]illuminates.
3. Press [0], [5], [3]. (enter ch. # in 3-digit format)❶.
4. Press [MOVIES]to store this channel. The [CBL]
button will blink and go out.
Programming the [SPORTS]or [NEWS]buttons is
the same general procedure as above.
❶May also be 4-digit (or 5-digit) format.
The exact # of digits you need to enter depends
on how your cable operator has setup your
cable set-top terminal.
Your remote control is designed to operate all the
features and functions of your digital cable set-top
terminal.
To operate your cable set-top terminal, press
[DEVICE], then [CBL]. In your remote’s cable
mode, you can then press...
[ALL]ALL devices on / off.
[CBL]Cable set-top terminal on / off.
[TV]TV on /off.
[VIDEO]VCR / DVD on / off.
[AUDIO]Audio on / off.
[CH
+
]/ [CH
–
]Increases / decreases cable channel.
[VOL
+
]/ [VOL
–
]Increases / decreases cable volume.
[MUTE]Mute cable volume.
[EXIT]Exits on-screen menus, view guide,
interactive screens.
[SETTINGS]Displays program settings.
[GUIDE]Displays interactive program guide.
[INFO]Displays channel, time information.
[FAV ]View favorite channels.
[LAST]Last channel viewed.
[A], [B], [C]On-screen decision buttons.
[0][9]Numeric entry buttons.
[PAGE
+ –
]Page up / down through menus,
program guide.
[], [ ], [ ], [ ] Navigate on-screen menus, program
guide, PPV events and interactive
services.
[SELECT]Select menu, interactive screen item.
[BYPASS]Switch between cable set-top terminal
and TV.
[TV / VCR]Changes VCR video inputs.
[VCR / VOD]“Toggles” the VCR buttons between
cable Video-On-Demand (VOD) and
VCR / DVD functions.
Press [VCR / VOD]. If...
a.[CBL]illuminates, the VCR buttons
are operating your cable Video-On
-Demond(VOD) functions.
OR
b.[VIDEO]illuminates, the VCR
buttons are operating your VCR or
DVD functions.
While [CBL]or [VIDEO]is illuminated,
press [VCR / VOD]to switch from
Video-On-Demond to VCR or VCR to
Video-On-Demand.
[] VCR / DVD or VOD rewind.
[] VCR / DVD or VOD play.
[] VCR / DVD or VOD fast-forward.
[] VCR / DVD or VOD pause.
[] VCR / DVD or VOD stop.
[] VCR / DVD or VOD record.
[MOVIES]Programmable favorite channel.
[SPORTS]Programmable favorite channel.
[NEWS]Programmable favorite channel.
When you first program your remote, volume /
mute are controlled through your TV(except
AUDIO which defaults to the AUDIO device).
The volume control options in each mode of the
remote are:
CBL TV (default), Cable or Audio.
TV TV (default), Cable or Audio.
VIDEO TV (default), Cable or Audio.
AUDIO
Audio device (default), Cable or TV.
To control volume / mute through your cable
set-top terminal in the remote’s cable mode...
1. Press [CBL], then [SELECT]together - hold both
buttons down until [CBL]illuminates.
2.Press [VOL
+ ], then [CBL]for cable volume. The
[CBL]button will blink and go out.
To return volume control to your TV, repeat step 1,
then press [VOL
+ ], then [TV]in step 2.
To control volume / mute through your cable
set-top terminal in the remote’s Video mode...
1. Press [VIDEO], then [SELECT]together - hold
both bottons down until [VIDEO]illuminates.
2. Press [VOL
+ ], then [CBL]for Cable volume. The
[VIDEO]button will blink and go out.
To return volume control to your TV, repeat step 1,
then press [VOL
+ ], then [TV]in step 2.
Your remote has three SmartKeysTM ([CBL], [TV],
[BYPASS]) that operate in its cable mode.
Each SmartkeyTM can be programmed so whenever
it’s pressed, it can transmit up to 12 individual button
presses in sequence.
Programming and using the [CBL]SmartKeyTM
The [CBL]button normally turns on / off your cable
set-top terminal.
You can program the [CBL]SmartkeyTM to turn on
your cable set-top terminal and TV, and tune your TV
to its correct output channel (typically 3) with one
button press.
1. Press [DEVICE], then [CBL]to select the remote’s
cable mode.
2. Press [CBL], then [SETTINGS]together - hold
both button down until [CBL]illuminates.
3.In this order, press [CBL], [TV], [0], [3]❶, ❷.
The [CBL]button will blink and remain illuminated.
4.Press [CH
+ ]to lock in this setting. The [CBL]
button will blink and go out.
To return the [CBL]button to its normal function,
repeat steps 1 & 2, then press [CH
– ].
Programming and using the [TV]SmartKeyTM
The [TV]button normally turns on / off your TV.
You can program the [TV]SmartKeyTM to turn on your
TV and tune your TV to its correct output channel
(typically 3) with one button press.
1. Press [DEVICE], then [CBL]to select the remote’s
cable mode.
2.Press [TV], then [SETTINGS]together - hold both
buttons down until [TV]illuminates.
3.In this order, press [TV], [0], [3]❶, ❷.
The [TV]button will blink and remain illuminated.
4. Press [CH
+ ]to lock in this setting. The [TV]button
will blink and go out.
To return the [TV]button to its normal function,
repeat setps 1 and 2 above, then press [CH
– ]
Programming and using the [BYPASS]
SmartKeyTM
The [BYPASS]button (cable mode) normally places
your Cable set-top terminal in a BYPASS mode.
While the cable set-top terminal is in its BYPASS
mode, you can record one program on your VCR
and watch a different program through your TV.
When exiting the cable set-top terminal’s BYPASS
mode, your TV must be re-tuned to its correct
output channel (typically 3) for proper cable
reception.
You can program the [BYPASS]SmartKeyTM so
automatically tune your TV to its correct output
channel.
1. Press [DEVICE], then [CBL]to select the remote’s
cable mode.
2.Press [BYPASS], then [SETTINGS]together -
hold both buttons down until [CBL]illuminates.
3. In this order, press [BYPASS], [DEVICE], [TV], [0],
[3]❶, ❷. The [CBL]button will blink and remain
illuminated.
4. Press [CH
+ ]to store the setting. The [CBL]
button will blink and go out.
To return the [BYPASS]button to its normal function,
repeat steps 1 and 2 above, then press [CH
– ].
❶Your TV output channel may also be 2 or 4. If you
are not sure, contact your cable operator.
❷Depending on your TV brand, the channel may
have to be entered as “3”, “03” or “003”
Note : When using any SmartKeyTM to transmit a
series of functions, be sure to keep your remote
aimed at the devices to ensure all functions are
received in their entirety.
To identify a 3-digit setup code stored under the
Point and PressTM method, follow these steps:
To identify the TV setup code...
1.Press [TV], then [SELECT]together - hold both
buttons down until [TV]illuminates.
2. Press [INFO]The [TV]button will blink back the
code numbers, with a 1-second interval between
each digit of the code.
Example : For code “035”, the remote will blink 10
times, then 3 times, then 5 times.
To identify the 3-digit Video code, press [VIDEO],
then [SELECT]in step 1, then press [INFO].
11. Operating Your TV
To operate your TV, press [DEVICE], then [TV]. In
your remote’s TV mode , you can then press...
[ALL]
ALL devices on / off.
[CBL]
Cable set-top terminal on / off.
[TV]
TV on /off.
[VIDEO]
VCR / DVD on / off.
[AUDIO]
Audio on / off.
[
CH
+]
/
[
CH
–]
Increases / decreases TV channel.
[0] [9]
Numeric entry buttons.
[
VOL
+]
/
[
VOL
–]Increases / decreases TV volume.
[
MUTE
]
Mute TV volume.
[
TV / VCR
]
Change TV’s video inputs.
[]
VCR / DVD rewind.
[]
VCR / DVD play.
[]
VCR / DVD fast-forward.
[]
VCR / DVD pause.
[]
VCR / DVD stop.
[]
VCR / DVD record.
13. Operating Your Audio Device
[ALL]
ALL devices on / off.
[CBL]
Cable set-top terminal on / off.
[TV]
TV on /off.
[VIDEO]
VCR / DVD on / off.
[AUDIO]
Audio on / off.
[CH+]/ [CH–]
Increases / decreases channel.
[0] [9]
Enter channels.
[VOL+]/ [VOL–]
Increases / decreases volume.
[
MUTE
]
Mute volume.
[
TV / VCR
]Change VCR / DVD video inputs.
[ ]
Rewind.
[ ]
Play.
[ ]
Fast-forward.
[ ]
Pause.
[ ]
Stop.
[ ]
Record.
Your remote control can operate many functions of
your VCR or DVD.
To operate your VCR or DVD, press [DEVICE]
then [VIDEO]. In your remote’s Video, you can
then press...
[
ALL
]ALL devices on / off.
[
CBL
]Cable set-top terminal on / off.
[
TV
]TV on /off.
[
VIDEO
]VCR / DVD on / off.
[
AUDIO
]Audio on / off.
[
CH+
]
/ [CH –
]
Increases / decreases VCR channel.
[
0
]
-
[
9
]Enter VCR channels.
[
VOL+
]
/ [VOL–
]
Increases / decreases TV volume.
[MUTE]Mute TV volume.
[TV / VCR ]
Change VCR video inputs.
[ ]
VCR / DVD rewind.
[
]
VCR / DVD play.
[
]
VCR / DVD fast-forward.
[
]
VCR / DVD pause.
[
]
VCR / DVD stop.
[
]
VCR / DVD record.
Your remote control can operate many functions of
your TV.
Your remote control can be setup to operate a tape
deck, CD, receiver, amplifier, 2
nd
TV, 2
nd
VCR as an
Audio device.
To operate your Audio device, press [DEVICE],
then [AUDIO]. In your remote’s Audio mode, you
can press...
14
14
13
13 15 15 16 16
8. Programming the [ALL] Button
10. Operating Your Cable Set-Top Terminal
9. Programming [MOVIES], [SPORTS] [NEWS]
12. Operating Your Video(VCR or DVD) Device
14. Programming Volume Control
15. Your Remote’s SmartKeysTM
18
18
17
17
16. Code Number Readback

To identify the 3-digit Audio code, press [AUDIO],
then [SELECT]in step 1, then press [INFO].
To reset your remote control to its factory default
settings...
1. Press [CBL], then [SELECT]together-hold both
down until the [CBL]illuminates.
2. Press [SETTINGS], then [SETTINGS]again. The
[CBL]button will blink and go out.
18. Helpful Tips and Troubleshooting
1. Your remote is equipped with a Point and PressTM
Programming label on the back of its case. This
will help you quickly program the remote without
using codes.
2. An illuminated mode (power) button will remain
on while the remote is in a programming mode. In
the absence of an entry, the illuminated button will
go out after 45 seconds.
When locking in your devices, the illuminated
button will blink and go out,
3. When using the Point and PressTM programming
method, you may find a code that turns your
device off but not back on. If this happens...
a.the correct code has not been found. Continue
pressing [CH
+ ]until your devices turn on and
off.
OR
b.you may have gone past the correct matching
code. Try pressing [CH
– ]one press at a time
until you find a code that turns your devices turn
back on.
4.If the same button is pressed and held for 45
seconds, your remote control will turn itself off.
This extends the battery life by should the remote
become lodged under or between heavy objects.
5. For diagnostic functions on Motorola (GI) DCT
and CFT2200 cable set-top terminal, press
[SELECT]
+ [INFO]together.
6. If you have any questions concerning the operation
of your cable set-top terminal, contact your cable
operator.
C
h
e
c
k
M
a
t
e
I
V
M
o
d
e
l
R
T
-
U
4
9
C
17. Resetting Your Remote control
19
19
Model
Mfg Scientific Atlanta
8600 8540,70,90
Explorer 8600x
004
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Guide
Info
Settings
Select
<
>
Page +
Page -
Mute
Exit
Vol +
Vol -
Ch +
Ch -
A
B
C
0, 1 - 9
Last
Fav
REW - Cable or Video
PLAY - Cable or Video
FF - Cable or Video
PAUSE - Cable or Video
STOP - Cable or Video
REC - Cable or Video
Bypass
TV / VCR (VCR)
VCR / VOD
Movies
Sports
News
005
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
View Guide
Info
Menu
Sel
<
>
Day >
< Day
Mute
Vol +
Vol -
Ch +
Ch -
PPV
0, 1 - 9
Last
Fav
Back
Fwd
Pause
Bypass
TV / VCR (VCR)
VCR / VOD
Movies
Sports
News
006
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Display
Menu
Sel
Sleep
Mute
Vol +
Vol -
Ch +
Ch -
Buy
0, 1 - 9
Last
Fav
TV / VCR (VCR)
VCR / VOD
Movies
Sports
News
007
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Sel
AU
Prg
Mute
Vol +
Vol -
Ch +, Power on
Ch -, Power on
Buy
0, 1 - 9
Lch
Rcl
TV / VCR (VCR)
VCR / VOD
Movies
Sports
News
Explorer
(#, *)
015
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Guide
Info
Settings
Select
<
>
Page +
Page -
Mute
Exit
Vol +
Vol -
Ch +
Ch -
A
B
C
0, 1 - 9
Last
Fav
REW - Cable or Video
PLAY - Cable or Video
FF - Cable or Video
PAUSE - Cable or Video
STOP - Cable or Video
REC - Cable or Video
Bypass
TV / VCR (VCR)
VCR / VOD
#
Channel Memory
*
Explorer
(Blue Ridge)
016
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Guide
Info
Settings
Sel
<
>
Day >
< Day
Mute
Exit
Vol +
Vol -
Ch +
Ch -
A
B
C
0, 1 - 9
Last
Fav
REW - Cable or Video
PLAY - Cable or Video
FF - Cable or Video
PAUSE - Cable or Video
STOP - Cable or Video
REC - Cable or Video
Bypass
TV / VCR (VCR)
VCR / VOD
CH Link
WEB
MALL
Explorer
(WorldGate™)
018
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Guide
Info
Settings
Sel
<
>
Day >
< Day
Mute
Exit
Vol +
Vol -
Ch +
Ch -
A
B
C
0, 1 - 9
Last
Fav
REW - Cable or Video
PLAY - Cable or Video
FF - Cable or Video
PAUSE - Cable or Video
STOP - Cable or Video
REC - Cable or Video
Bypass
TV / VCR (VCR)
VCR / VOD
CH Link
WorldGate
Channel Memory
Setup Code
Device
ALL
CABLE
TV
VIDEO
AUDIO
GUIDE
INFO
SETTINGS
SELECT
<
>
PAGE
PAGE
MUTE
EXIT
VOL +
VOL -
CH +
CH -
A
B
C
0, 1 - 9
LAST
FAV
REW
PLAY
FF
PAUSE
STOP
REC
BYPASS
TV / VCR
VCR / VOD
Movies
Sports
News
Model
Mfg Pioneer Philips
BA-9000
Digital
BA-V1000
BA-V2000
Voyager
BC-4600,
BA-5000, BA-6000
004
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Guide
Info
Settings
Select
<
>
Page +
Page -
Mute
Exit
Vol +
Vol -
Ch +
Ch -
A
B
C
0, 1 - 9
Last
Fav
REW - Cable or Video
PLAY - Cable or Video
FF - Cable or Video
PAUSE - Cable or Video
STOP - Cable or Video
REC - Cable or Video
Bypass
TV / VCR (VCR)
VCR / VOD
Movies
Sports
News
008
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Clock
Timer
Mute
Clr
Vol +
Vol -
Ch +
Ch -
Str
Auth
#
0, 1 - 9
Rcl
C / R
TV / VCR (VCR)
VCR / VOD
Movies
Sports
News
009
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Menu
Cursor
Mute
Vol +
Vol -
Ch +
Ch -
Enter
Order
0, 1 - 9
Last Ch
Fav Ch
A / B
TV / VCR (VCR)
VCR / VOD
Movies
Sports
News
010
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Guide
Info
Menu
Sel
<
>
Page
Page
Mute
Exit
Vol +
Vol -
Ch +
Ch -
Clear
Order
Help
0, 1 - 9
Last
Fav
Prev
PC
Next
A / B
TV / VCR (VCR)
VCR / VOD
Movies
Sports
News
017
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Guide
info
Menu
OK
<
>
Page +
Page -
Mute
Exit
Vol +
Vol -
Ch +
Ch -
A
B
C
0, 1 - 9
Last
Fav
P
TV / VCR (VCR)
VCR / VOD
PPV
Setup Code
Device
ALL
CABLE
TV
VIDEO
AUDIO
GUIDE
INFO
SETTINGS
SELECT
<
>
PAGE
PAGE
MUTE
EXIT
VOL +
VOL -
CH +
CH -
A
B
C
0, 1 - 9
LAST
FAV
REW
PLAY
FF
PAUSE
STOP
REC
BYPASS
TV / VCR
VCR / VOD
Movies
Sports
News
Rev. 7/2001
© 2001, CONTEC CORPORATION
<>
<>
<>
Motorola (General Instrument)
DCT, CFT2200
CFT2200,2100 DL4, DP(V),
DQN(V), DPBB
001
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Guide
Info
Menu
Select/OK
<
>
Page +
Page -
Mute
Exit
Vol +
Vol -
Ch +
Ch -
A
B
C
0, 1 - 9
Last
Fav
REW - Cable or Video
PLAY - Cable or Video
FF - Cable or Video
PAUSE - Cable or Video
STOP - Cable or Video
REC - Cable or Video
Bypass
TV / VCR (VCR)
VCR / VOD
PPV/Lock
Help
Music/Enter
002
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Display
Menu
Sel
Mute
Del
Vol +
Vol -
Ch +
Ch -
Enter
F
Prog
0, 1 - 9
< Ch
Fav
A / B
TV / VCR (VCR)
VCR / VOD
Movies
Sports
News
003
CBL
All on
CBL on / off
TV on / off
Video on / off
Audio on / off
Learn
Sel (Event)
PC / PM
TCP
Mute
Del
Vol +
Vol -
Ch +
Ch -
Enter
F
Prog
0, 1 - 9
< Ch
Fav
A / B
TV / VCR (VCR)
VCR / VOD
Movies
Sports
News
<>
<> <>
<>
<>
<>
<>
<>
<>
<>
<>
