Contour ContourHD 1300 Installation and operation manual

ContourHD 1080p
Wearable Camcorder
Product Information Guide
Manual_and Info_2009_1080_capa.indd 1 25/9/2009 16:36:55

Manual_and Info_2009_1080_capa.indd 2
Manual_and Info_2009_1080_capa.indd 2
25/9/2009 16:36:55
25/9/2009 16:36:55

1
About the
Camera
aPower Button
bBattery Status
cRecord Button
dRotating Lens
eRecord Status
f Memory Status
gResolution Switch
hUSB
iCharge Indicator
jBattery Latch
kBattery Slot
lMicroSD card
Quick Start
Manual_and Info_2009_1080.indd 1 25/9/2009 16:25:07

2
Getting Ready
Open the back door.s
Insert battery with (+)s
aligned and close latch.
Align back door slightlys
above camera and slide
down until it locks in.
Power Up
Push power button.s
Camera beeps and lights turn off.s
You are ready to record.s
Note: Power up with record switch
forward to enable silent mode
Manual_and Info_2009_1080.indd 2 25/9/2009 16:25:07

3
Record
Start: Slide switch forward.s
Stop: Slide switch back.s
Congrats, your first video!s
Share
Install Easy Edit Softwares
directly from MicroSD card provided or download at:
www.VholdR.com/support/software.
Connect camera to computer with USB cable.s
Then import, clip and share your videos…s
Note: HD is beautiful but some computers cannot play smooth
HD Video. Higher bitrates & resoultions are more demanding..
Visit www.vholdr.com/support for system requirements.
Manual_and Info_2009_1080.indd 3 25/9/2009 16:25:07

4
Video
Default Resolutionss
HI: 1920x 1080 at 30fps
LO: 1280x720 at 60 fps
Alternate Resolutionss
1280 x 960 at 30 fps | 720 x 1280 at 30 fps
848 x 480 at 60 fps
Use Easy Edit Software to select alternate resolutions, adjust
video and audio settings, and set camera time.
Power
Recharge
Connect to computer withs
USB cable.
Red light indicates charging.s
Charge complete whens
camera beeps and red light
turns off. (about 4 hrs)
Power Off
Press and hold power buttons
3 sec.
Double beep & lights turn off.s
Note: Camera atomatically turns
off after 15 min of inactivity.
Manual_and Info_2009_1080.indd 4 25/9/2009 16:25:07
s
Use switch under back door to select video resolution.

5
Status
Press power button to check status.
Memory / Battery Availables
Green > 80%
Yellow 20-80%
Red < 20%
Error Conditions
Time invalid: memory/battery flash red at power on.s
Memory full: (3) beeps, recording stops.s
No card or memory corrupt: (3) beeps, shuts off.s
Note: Always turn camera off before removing SD card.
Low battery: lights flash, beeps, shut off.
Record Statuss
Green = ready
Red = recording
Flashing = memory full or corrupt
Manual_and Info_2009_1080.indd 5 25/9/2009 16:25:07
s
s
No beeps: camera in silent mode.
2GB microSD card included. Accepts up to 16GB microSD.s
(SDHC compatible)

6
Flat Surface Mount
Unhook leash on base and loops
through camera.
Slide camera onto rails until it iss
completely forward.
Adhere mount to flats
surface (top or side of
helmet recommended).
Hold base, pull cameras
away, rotate to align,
and press into mount to
reattach.
Manual_and Info_2009_1080.indd 6 25/9/2009 16:25:07

7

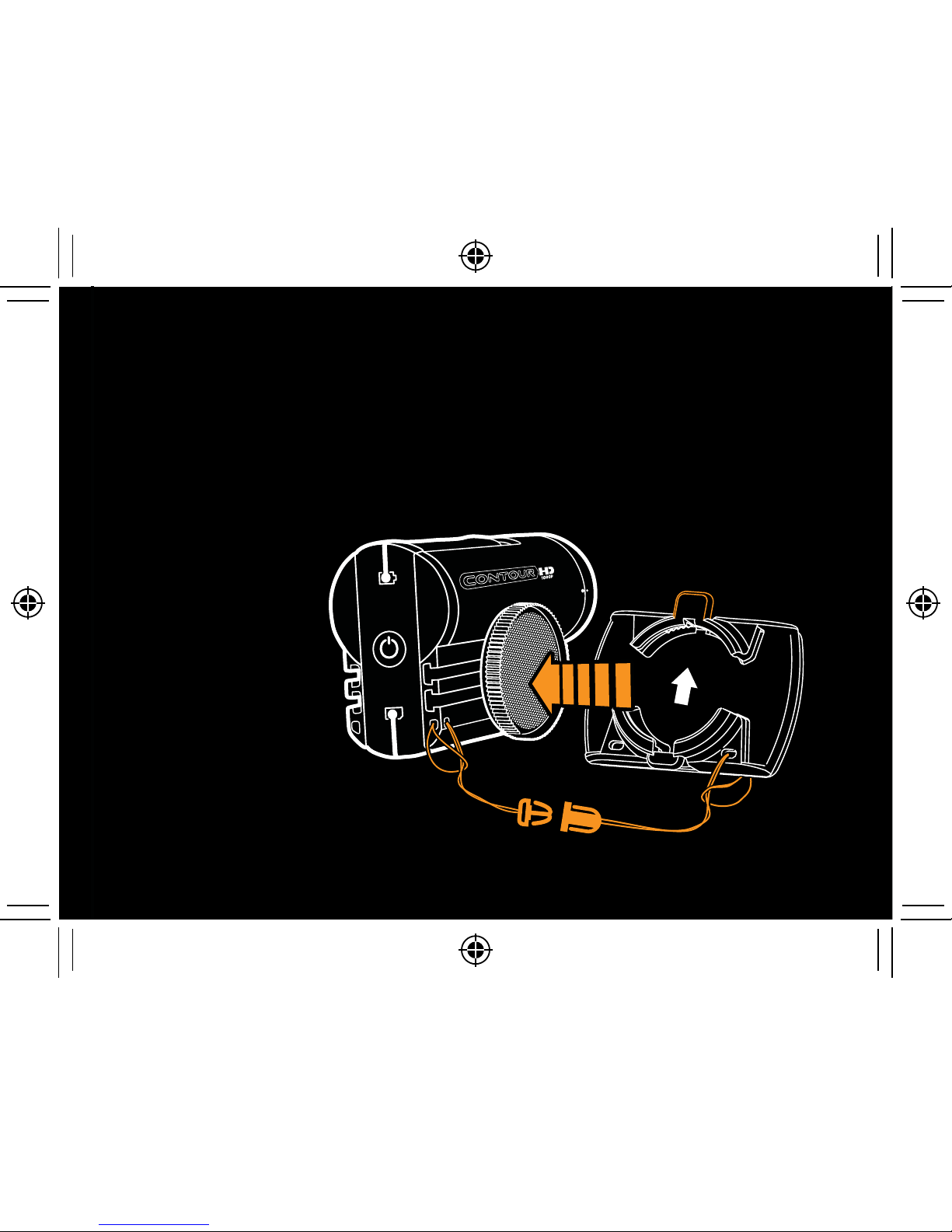

Goggle Mount
Slide camera on rails until completely forward.s
Press thumb on large tab (top of mount)s
and pull camera away.
Slide goggles
strap into base.
Align verticals
angle of
camera.
Snap rails backs
into mount
over strap.
Manual_and Info_2009_1080.indd 7 25/9/2009 16:25:07

8
Press power button to activate lasers.s
Aim at your hand, a wall, or other object.s
Rotate lens to align lasers horizontally.s
Remove and reorient mount rails to adjust mount angle. Aim as
little high for the best shot.
Align
