Convergent Design Odyssey7Q ProRes 422 (HQ) User manual

User Manual Odyssey7Q
Updated 04 Mar 2014 | Firmware Release v1.0.314
2014

3
TABLE OF CONTENTS
READ THIS FIRST!4
PRODUCT FEATURES5
Recording5
Other Features6
Mounting6
PRODUCT SPECIFICATIONS7
RECORDING CAPABILITIES8
Included Free with Odyssey7Q8
Optional Record Keys (available for purchase)9
RECORD TIME CAPACITIES10
PACKAGE CONTENTS11
CONVERGENT DESIGN SSD MEDIA12
2.5” Premium SSD Media12
ODYSSEY7Q ANATOMY13
Bottom Side of Odyssey7Q13
Top of Odyssey7Q13
Left Side of Odyssey7Q14
Right Side of Odyssey7Q14
Mounting14
Odyssey7Q Activation15
Initializing15
Setting Up & Using the Odyssey7Q16
The Odyssey7Q Menu16
Powering Down16
WORKING W/ MEDIA17
Recording to SSD Media17
Loss of Power During a Record17
Downloading Media17
File Management Software18
File Storage19
POST PRODUCTION20
Working with Files Recorded by the Odyssey7Q20
Uncompressed Support (DPX sequence) 20
Sony FS700 Raw Support (DNG Sequences) 21
FS700 Raw: Dealing with Raw Files21
Canon C500 4K Raw Support23
ARRI Alexa ARRIRAW Support23
Uncompressed Support (DPX sequence) 23
Sony FS700 Raw Support (DNG Sequences) 24
ODYSSEY7Q MENUS25
System Status Buttons25
Upper T
ool Bar - Play Mode28
Lower Tool Bar29
Odyssey33
SETUP34
RECORD35
INPUTS36
OUTPUTS36
CONVERGENT DESIGN
ACCESSORIES38
Power SUPPLY OPTIONS38
Battery OPTIONS38
THIRD-PARTY ACCESSORIES39
ESATA Adapters39
Mounting and Battery Plates39
Soft Case39
OLED Screen Protector39
RELEASE NOTES ODYSSEY7Q
FIRMWARE 1.1.10540
Not Supported at this time41
New Cinema DNG Recommended settings /
Davinci Resolve.41
Firmware Fixes42
LIMITED WARRANTY43

4 5
Read This First!
Before you begin using the Odyssey7Q, we strongly suggest you review
the included Quick Start Guide, as well as:
1. Always record to the INTERNAL MEDIA OF THE CAMERA; this is critical for proper
timecode and ideal for dual media / backup.
2. DO NOT REMOVE THE FOUR SCREWS FROM REAR OF CASE. This may result in damage
to the OLED panel. Such damage is not covered by warranty.
3. Power and Cabling: Make sure you have PROPER POWER (6.5-34vdc), plugged in to the
proper power port (left side of recorder), and that 3G-rated SDI cables are used.
4. Power source must be able to provide up to 24 watts at all times to the Odyssey7Q.
5. When powering the Odyssey7Q from an ARRI ALEXA camera, we recommend using the
24V R/S Fischer-3 output from the ALEXA using the optional Convergent Design cable.
6. Familiarize yourself with the equipment and test prior to shooting.
7. Before using the SSD’s it is IMPERATIVE TO FORMAT them in the Odyssey7Q. For-matting
SSD media is a DESTRUCTIVE PROCESS; any existing data will be lost during format.
8. Ensure that the camera’s viewfinder data is not being recorded; IF YOU SEE VIEW-FINDER
DATA ON THE ODYSSEY7Q monitor, then it will be recorded! In a future update, if your
camera can provide both clean and data-overlayed video feeds, it will be possible to monitor
one while recording the other.
9. NEVER DELETE ANY FILES OFF AN SSD FROM A COMPUTER, except when going
through a firmware update procedure.
10. While we recommend that you always maintain the latest firmware on your Odyssey7Q,
we DO NOT RECOMMEND UPDATING IF YOU ARE IN THE MIDDLE OF A SHOOT (unless
instructed by Technical Support).
11. When ooading media, ALWAYS MAKE A BACKUP COPY, ideally to a RAID1 drive.
12. Be sure to allow the Odyssey7Q to finish closing a Record file before taking any further
action.
Product Features
Monitoring
đƫProfessional Monitor. 7.7” 1280x800 OLED panel featuring full range color gamut for
REC709 and DCI P3 viewing.
đƫImage analysis tools. Waveform, Vectorscope (in future update), Histogram, False Color
exposure view, Zebra, three-mode Focus Assist, Pixel Zoom (1:1 & 2:1), and Frame Guides.
đƫMulti-Stream Monitoring. Up to four HD video signals can be input and viewed
simultaneously (quad-split) or sequentially (choose between inputs for full screen display).
A future paid update will allow Multi-Stream Recording and a greater control live switching.
đƫFlexible I/O. Two dedicated 3G-SDI inputs, two dedicated 3G-SDI outputs, two switchable
3G-SDI input/outputs, one HDMI input, one HDMI output.
RECORDING
đƫHigh-Capacity Recording. Two high-speed Solid State Drives (SSD), available in 256GB or
512GB, allow for extended recording.
đƫUncompressed 4:4:4 RGB HD video recording. Record HD video in 10-bit DPX files.
Additional popular compressed codecs will be available at a later date via free firmware
update.
đƫRAW Record Options. Optional recording features available at any time for purchase or
time-based rental*.
RAW Record options include: ARRIRAW (ALEXA), Canon RAW (C500), Sony RAW (FS700),
2K RAW(various specialty & industrial manufacturers) and Apple ProRes 422.
đƫCompressed Apple ProRes 422
!
For the latest firmware, product manuals and other information visit Convergent-Design.com
i

6 7
OTHER FEATURES
đƫVersatile Power. Wide voltage range (6.5-34v) and low draw (8-15w, depending on mode)
for great flexibility of battery and other power options.
đƫLight Weight. A magnesium case and ecient board design means only 1.25lbs for the
basic unit.
đƫSmall Size. Even with a 7.7” screen, the Odyssey7Q is approximately 8”x6”x1”, making it
easy to use on cameras, mounted in tight spots or held in one’s hand.
đƫDual SSD Architecture. Long record time, will automatically span from one SSD to the other.
MOUNTING
The Odyssey7Q features three ¼”x20 threaded sockets, one on the lower rear of the case and
one each on the left and right sides of the case. Do not exceed 11mm of depth when inserting a
bolt, otherwise damage may occur to the Odyssey7Q. Additionally, there are four M3 threaded
socketson the rear of the case and two M4 sockets on each of the sides of the case.
Product Features (Continued) Product Specifications
Display 7.7" OLED, 1280x800, RGB 8-Bit Panel, ~ 16 million colors, wide gamut, 3400:1
Contrast, 176° Viewing, True Blacks
SDI Video I/O SD*/HD/3G Support: Single/Dual Link, 2-Inputs, 2-Outputs, 2 Bi-Directional (Can
be inputs or outputs), Full-size BNCs
HDMI Video I/O HDMI I/O Version 1.4a support, Up to 1080p30 422 8-bit
LUT Support ARRI, Canon, Sony, or Custom User-Loadable LUTs*
Focus Assist Video + Edges, Edges Only, Enhanced Edges, user choice of color: Red, Green, or
Blue + Pulsing
Zebras Two Levels, one allows for a user specified range, the other is active on a specified
IRE level and above
False Color False color with 4 programmable levels
Waveform Monitor Luma only, RGB, Red only, Blue only, Green only, and RGB Parade
Histogram Luma only, RGB, or Red, Blue or Green individually
Vectorscope** Color vectorscope with 2X zoom
1:1 Pixel Mode Image Zoom, Vertical Flip and Horizontal Flop, Aspect Ratio Guides, Horizon
Indicator
Quad Stream Display Display four independent HD streams simultaneously (Quad-Split) with live-switch
capability
Digital Audio I/O** 8-Channel Embedded Audio (48KHz, 24-bit) (2 Channel initially, 8-Channel via
future firmware update)
Analog Audio I/O** 3.5mm stereo unbalanced input up to -10dB, 3.5mm stereo headphone output
Remote and Timecode** RS-232 I/O*, programmable GPIO. Timecode: LTC I/O (BNC) or embedded SDI /
HDMI
User Interface Capacitive Touchscreen, Two user-programmable context-sensitive mechanical
keys
DC Power Input 6.5 to 34 VDC with built-in reverse polarity protection; locking Neutrik connector,
built-in power switch
Power Draw 8 Watts (monitor only), 9-15 Watts (simultaneous monitor/record mode)
Weight and Size 560 grams / 1.3 lbs., 7.9" x 6.1" x 1.0" (200 x 155 x 25 mm), -10 to +40°C
(Operating), -20 to +70°C (Storage)
Onion Skinning** Overlay pre-recorded still frame on live video with opacity slider*
View Monitor Out, Display the monitor-out (viewfinder data) on the OLED while recording a clean
video signal.
Record Clean Video Available when using the Sony F3, Sony FS700, Canon C500 and ARRI Alexa
cameras.
Record Triggers Touchscreen, SDI record trigger (ARRI, Canon, Panasonic, Red, Sony), Optional
Remote Control Cable
Recording SSD Media Convergent Design SSDs with power-loss protection, in 256 and 512 GB sizes,
420MB/sec write, 500MB/sec read speed, compatible with USB 3.0 and
Thunderbolt adapters. SSDs and adpaters sold separately.
Recording Formats
(Base Odyssey7Q)**
Compressed formats: 1080p 10-bit YCC 422 up to 120fps, 1080p RGB 12-bit 444
up to 60fps* Uncompressed formats: 1080p RGB 10/12-bit 444 up to 60fps
* Available in RAW modes only currently.
** Available in the future via a free firmware update.

8 9
Recording Capabilities
The Odyssey7Q can record a variety of HD video signals and, with optional recording keys,
several RAW data video formats. With another optional recording key the Odyssey7Q will also
be able to record up to four HD video signals simultaneously.
All recording options are available for demo on the Odyssey7Q, but will appear with a blue line
“watermark” across the recorded image.
Recording options are available to purchase or (in the near future) rent on a time-active basis
from the Convergent Design website at:
http://www.convergent-design.com/Products/Odyssey7Q.aspx#Overview-42.
INCLUDED FREE WITH ODYSSEY7Q
HD VIDEO The Odyssey7Q records HD video as uncompressed 10-bit.DPX stacks or
10-bit Apple ProRes 422
All .DPX files are recorded 4:4:4. 4:2:2 video signals are upconverted to
4:4:4.
3G-SDI: Accepted 1080p/psf frame rates: 23.98, 24, 25, 29.97, 30, 50, 59.97,
60 (Adding More) Note: 50, 59.97 & 60 are only available in DPX
HDMI: Accepted 1080p/psf frame rates: 23.98, 24, 25, 29.97, 30, 50i, 60i
Future free firmware updates will include additional compressed video
codecs with expanded frame rate, resolution selections, interlaced support,
and pull down support.
MULTI-STREAM HD
VIDEO MONITORING
3G-SDI accepted 1080p/psf frame rates: 23.98, 24, 25, 29.97, 30, 50i, 60i
Up to four HD video signals viewable simultaneously.
OLED display divided into quadrants or a single input may be selected for
full screen display.
Inputs are SDI A, SDI B, SDI A IO, SDI B IO (signals autodetected; SDI A
must always be present).
HD video signals do not need to be Genlocked.
HD video signals do not need to match frame rates.
HDMI input available in future free firmware update.
NOTE: This is a monitoring mode only. A future option will allow recording
of up to four HD video signals.
Recording Capabilities (Continued)
OPTIONAL RECORD KEYS (AVAILABLE FOR PURCHASE)
ARRI ALEXA
ARRIRAW
The Odyssey7Q supports all ARRIRAW formats and frame rates output by
ALEXA Classic cameras.
ARRIRAW data is recorded as .ARI files.
ARRIRAW 16:9 frame rates: 23.98, 24, 25, 29.97, 30, 48*, 50*, 59.97*, 60*
ARRIRAW 4:3 frame rates: 23.98, 24, 25, 29.97, 30, 48*
NOTE: ARRIRAW above 30fps requires two SSDs to simultaneously record.
In a future firmware update only one SSD will be required for all frame rates.
CANON C500
CINEMA RAW
The Odyssey7Q supports Canon C500 4K RAW. Future firmware updates
will support 4K “Half RAW”, “Slow & Fast” mode, and other C500 formats.
Canon Cinema RAW data is recorded as .RMF files.
4K (4096x2160 & 3840x2160)
Supported 4K RAW frame rates: 23.98, 24, 25, 29.97, 50*, 59.94*
2K/1080p 12-Bit support 23.98, 24, 25, 29.97
NOTE: Canon RAW 50-60p requires two SSDs to simultaneously record.
SONY FS700 RAW The Odyssey7Q supports Sony FS700 4K & 2K RAW. Future firmware
updates will support 4K solutions, high bit-depth HD derived from 4K,
other recording options.
FS700 4K RAW frame rates: 23.98, 25, 29.97, 50, 59.94
FS700 2K RAW frame rates: 23.98, 25, 29.97, 50, 59.94, 100, 120, 200*, 240*
FS700 4K/2K RAW data is recorded as .DNG files.
FS700 4K RAW to Apple ProRes 422 / 10-Bit / 23.98, 25, 29.97
NOTE: *2K RAW 200fps and 240fps require two SSDs to simultaneously
record.
HD/2K RAW
Future firmware updates will include a recording option for several industrial and special-use
cameras.

10 11
Package Contents
Odyssey7Q box contains one (1) Odyssey7Q monitor/recorder and one (1) universal power
supply.
MEDIA AND ACCESSORIES SOLD SEPARATELY!
Record Time Capacities
The Odyssey7Q can record numerous video and data formats. Record time varies based on
format. The chart below indicates maximum record time in minutes based on the use of two
512GB SSDs (1TB). For 512GB (one 512GB SSD or two 256GB SSDs), divide in half. For 256GB,
divide by four.
MAXIMUM RECORD TIME IN MINUTES TO TWO 512GB SSDS (1TB)
Recording Format 24fps 25fps 30fps 50fps 60fps
2K/1080p HD Video (Uncompressed 12-Bit DPX) 74 72 60
2K/1080p HD Video (Uncompressed 10-bit DPX) 87 84 70 42 35
Apple ProRes 422 (10-Bit Compressed 1080p HD) 670 644 580
Sony FS700 4K RAW 52 50 40 25 20
Sony FS700 2K RAW 200 192 160 96 80
FS700 2K RAW @ 120fps = 40 minutes
FS700 2K RAW @ 240fps = 20 minutes
Sony FS700 4K RAW to Apple ProRes 422 (HD) 670 644 580
ARRIRAW 16:9 100 97 80 46 40
ARRIRAW 4:3 (48fps top speed = 38 minutes) 76 73 60
Canon C500 Cinema RAW 4K 62 60 50 30 25

12 13
Odyssey7Q Anatomy

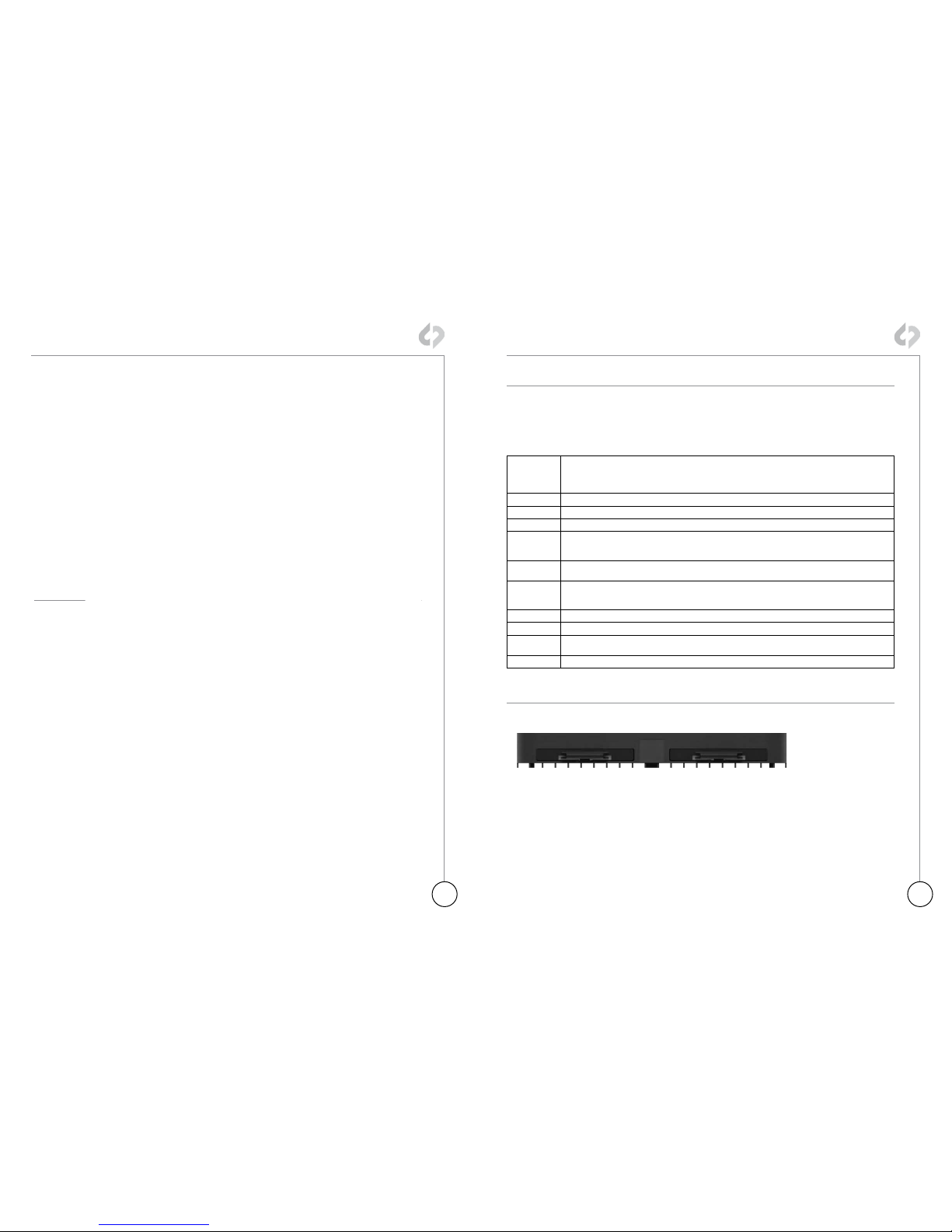

BOTTOM SIDE OF ODYSSEY7Q
There are eleven connector ports on the bottom side of the Odyssey7Q (left to right)
PWR ON Power input socket to Odyssey7Q (see Getting Started – Power). Just in front of the PWR
ON port is a button, which is a Force Power On/O control. Hold button five seconds to
force power o. This is only to be used if standard power on or o procedures fail (see
Getting Started – Initializing).
SDI A IN BNC connector for 3G-SDI input A
SDI B IN BNC connector for 3G-SDI input B
LTC IO BNC connector for Linear Timecode input/output
SDI A IO BNC connector for 3G-SDI input/output A. In Multi-Stream monitoring mode, the Odyssey7Q
can accept up to four HD video inputs. These IO ports allow additional inputs or additional
outputs for the Odyssey7Q.
HDMI IN HDMI 1.4 input from HDMI video source.
SDI B IO BNC connector for 3G-SDI input/output B. In Multi-Stream monitoring mode, the Odyssey7Q
can accept up to four HD video inputs. These IO ports allow additional inputs or additional
outputs for the Odyssey7Q.
SDI A OUT BNC connector for 3G-SDI output A
SDI B OUT BNC connector for 3G-SDI output B
AUD IN 3.5mm mini-phone stereo socket for analog audio in. This input will be enabled in a free
future firmware update.
AUD OUT 3.5mm mini-phone stereo headphone socket.
TOP OF ODYSSEY7Q
There are two Solid State Drive (SSD) slots, SSD1 and SSD2.
Only Convergent Design 256GB and 512GB SSDs can be used on the Odyssey7Q. To mount
SSD, insert connector-end first with the label facing forward and the handle near flush with the
back of the Odyssey7Q. Push gently but firmly until the handle flange is flush with the top of
the Odyssey7Q. It is a snug fit, but the SSD should insert smoothly.
Note: There is a plastic cover plate on the top center of the Odyssey7Q. This protects a Bluetooth
antenna, which will be used in a future free firmware update to allow remote control of the
Odyssey7Q from smartphones, tablets and other Bluetooth-enabled devices via free Convergent
Design Apps. When using a Bluetooth device with the Odyssey7Q, take care not to block this area as
it may interfere with the Bluetooth signal.
Convergent Design SSD Media
2.5” PREMIUM SSD MEDIA
To enable recording on the Odyssey7Q, you must use specific SSD media: Only Convergent
Design Premium SSD’s will work in the Odyssey7Q. These SSD’s, available in 256GB and 512GB,
must be purchased separately.
256GB SSD for Odyssey7 and 7Q CD-SSD-256GB
512GB SSD for Odyssey7 and 7Q CD-SSD-512GB

14 15
Getting Started
ODYSSEY7Q ACTIVATION
Convergent Design requires each Odyssey7Q be registered via our website. This is so that we
can provide notices of free firmware updates, issue alerts for critical issues, and track rentals or
purchases of record options.
Upon first initializing of the Odyssey7Q (see below), a prompt will appear asking if the device is
to be Activated at this time or if it is to be used in DEMO mode. In DEMO mode the Odyssey7Q
is fully functional, however a blue bar “watermark” will appear in any recorded video. The
Activation prompt will appear upon every initialization of the Odyssey7Q until the device is
Activated. When Activate is selected, follow the prompts to Activate the Odyssey7Q.
In order to Activate the Odyssey7Q after initial purchase, go to http://www.convergent-design.
com to register the unit.
Also, make sure your Odyssey7Q has the latest firmware, posted here:
http://www.convergent-design.com/FirmwareUpdates/Odyssey7Q.aspx.
See Firmware Updates under the Appendix below for more information on how to put new
firmware on your Odyssey7Q.
INITIALIZING
Plug in power to the Odyssey7Q. It should take about 5-10 seconds to initialize, depending on
the mode it is set to. If the Odyssey7Q does not self-initialize, push the PWR ON button next to
the power socket on the lower left corner of the Odyssey7Q.
As part of the initializing process, SMPTE color bars may
appear briefly on the screen. If there is a signal input into SDI
A IN that matches the record format the Odyssey7Q is set to,
then the image should appear on the screen. If there are SSDs
mounted in the Odyssey7Q then a DETECTING SSD message
will appear on the lower left of the screen. If the SSD needs to
be re-initialized or formatted, a second message may appear.
If the Trigger Button in the Upper Tool Bar appears as a red
box surrounding a white circle, then the Odyssey7Q is ready to
record.
LEFT SIDE OF ODYSSEY7Q
There are two Function buttons, F1 LOCK and F2 SHUT DOWN.
F1 LOCK Lockout control for the Odyssey7Q touchscreen. Push to engage and SCREEN LOCK will
appear in the center of the touchscreen’s Upper Tool Bar. Push F1 again to disengage.
F2 SHUT
DOWN
Preferred method to power down the Odyssey7Q. Properly closes files on the SSDs and
performs other maintenance functions (see Getting Started -- Powering Down). Push to
activate prompt asking SAFELY POWER DOWN UNIT? In a future free firmware update it will
be possible to program these buttons for additional func-tions.
RIGHT SIDE OF ODYSSEY7Q
There are three connector ports, (top to bottom) USB, HDMI OUT and RMT.
USB An access point for servicing by Convergent Design. A future free firmware update
will allow firmware updates via this port.
HDMI OUT Output to an HDMI compatible device
RMT A remote control connection to the Odyssey7Q.
In a future free firmware update the RMT port will allow full control
interface with the functions of the Odyssey7Q.
KENSINGTON
LOCK PORT
A rectangular hole above the RMT port is for accepting a Kensington
Security Lock.
MOUNTING
The Odyssey7Q features three ¼”x20 threaded sockets, one on the lower rear of the case and one
each on the left and right sides of the case. Do not exceed 11mm of depth when inserting a bolt,
otherwise damage may occur to the Odyssey7Q. Additionally, there are six M3 threaded sockets,
four on the rear of the case and two each on the left and right sides of the case.
Odyssey7Q Anatomy (Continued)

16 17
SETTING UP & USING THE ODYSSEY7Q
The touch screen of the Odyssey7Q features all of the device’s controls in a straightforward,
easy to navigate structure. Each box is a “virtual button.” Tap it briefly to activate/deactivate
it, or hold it for a few seconds to open up the menu defining its function. The controls at the
top of the display (Upper Tool Bar) are the recording, playback and formatting administration.
The controls at the bottom of the display (Lower Tool Bar) are the image analysis adjustments.
Upper Tool Bar – Record Mode
THE ODYSSEY7Q MENU
Starting on the left, tapping the [ ʏ ] button brings up the initial setup menus for the
Odyssey7Q. Don’t be intimidated by the number of selections in the [
ʏ ] section. This is by far
the most in-depth section of the Odyssey7Q touchscreen menus:
(Please see the Odyssey7Q Menus section of this manual for a full explanation of all menu
functions.)
POWERING DOWN
While it may seem an odd time to note this, it is important to know that there is a preferred
method to shutting down the Odyssey7Q. On the left side of the case, the F2 SHUT DOWN
button should be pressed. This prompts a confirmation to “SAFELY POWER DOWN UNIT?”
Powering down in this fashion properly closes the files and directory system on the SSDs,
preventing corruption. If the Odyssey7Q should ever suer a failure and the F2 SHUT DOWN
sequence does not function properly, the unit can be Force Power O by holding the PWR ON
button by the power socket on the lower left corner of the Odyssey7Q, or simply by pulling
the power connector out of the power socket. If the Odyssey7Q is ever powered down in this
fashion, it is important to run a recovery on the SSDs in the Odyssey7Q menu at
MENU » ODYSSEY » SSD’S » RECOVER SSD1 » RECOVER SSD2
Working w/ Media
RECORDING TO SSD MEDIA
The SSDs will automatically Span from SSD1 to SSD2. This means that if a file is recording to
SSD1 and fills the available memory, the recording will continue uninterrupted on SSD2. The
exception to this is when recording in a high data rate mode that requires both SSDs to be
recorded to simultaneously, such as FS700 Record Option, 2K RAW @ 240fps. For more
information on record times and SSD capacity, see Record Time Capacities. A future free
firmware update will also allow the option of simultaneous dual recording, in which both SSDs
record identical files for backup purposes.
LOSS OF POWER DURING A RECORD
You should never power o the camera while recording, many camera’s including the
ALEXA, disable the user from doing so while recording. Built into the Odyssey 7Q’s recovery
mechanism, is in case of power loss, you will loose the last couple frames of the record, but
not the last take. You will receive several error messages due to the loss of source. If the unit
fails to close the last clip and return to normal operation once the source has returned. You will
need to remove the power from the unit, then re-power the unit.
Note that when doing so, or after any failure of this type, the Odyssey will automatically mark
the SSD’s as full, once power is restored to the unit, this being said. You will need to ooad the
footage, before you will be able to continue recording, in order to help ensure proper recovery
of the previous recordings.
DOWNLOADING MEDIA
Always make sure to properly Safe Eject to dismount SSDs before removing from Odyssey7Q.
While the Odyssey7Q drives are exclusive Convergent Design products, they utilize a standard
2.5” eSata interface. No expensive proprietary download stations are required. Consumer
card adapters such as Seagate GoFlex adapters (see Third Party Accessories in this manual)
are available with Thunderbolt or USB 3.0 interface. Thunderbolt is fastest and USB 3.0 is most
common and self-powering. Firewire 800 is not recommended as it will take a very long time
to download files.
Getting Started (Continued)
!"#$$%# $%&'( )%*!)" +,('&$ !'&('&$

18 19
FILE MANAGEMENT SOFTWARE
Convergent Design has two free file utility programs, CD Transfer and CD Clip Merger, available
for download for both Mac & PC on our website:
http://www.convergent-design.com/Downloads.aspx#tptab44
CD DATA UNPACKER
Higher frame rate DPX files are recorded in “Packed” files. CD Data Unpacker Utility copies
and converts 1080p/59.94 and 1080p/60 DPX files and clips. The DPX files are converted from
a “Packed” to “Unpacked” data format. Other DPX frame rates and other files formats do not
need unpacking. All 12-Bit formats (1920x1080, 2048x1080) require unpacking.
CD CLIP MERGER
Some high data rate formats need to be striped (aka RAIDed) across two SSDs when recording
in the Odyssey7Q. After ooading these file folders onto a local drive on a computer, CD Clip
Merger combines matching RAIDed folders into single file folders.
Odyssey7Q RAIDed recording formats include ARRIRAW 4:3 @ 48fps and Sony FS700 2K RAW
@ 200fps and 240fps.
Basic Instructions for Using CD Clip Merger Software
1. Create a folder to hold your footage on our Hard Disk Drive or Raid System, giving it a
name meaningful to you, such as “Project Name - Camera A - 2013-09-12”
2. Open the }CLIPS{_Odyssey7Q folder on your first SSD and copy all of the folders to the
folder created in Step 1. Do not copy the folder itself, copy the contents of the folder.
3. Open the }CLIPS{_Odyssey7Q folder on your second SSD and copy all of the folders to the
folder created in Step 1. Do not copy the folder itself, copy the contents of the folder.
4. Run the CD Clip Merger Program.
Additional instructions are available in the “Readme” file included in the download.
Working w/ Media (Continued) Working w/ Media (Continued)
FILE STORAGE
The Odyssey SSD’s support read rates of 500 Mbytes/sec. Keep in mind you will be limited by
the slowest median in the transfer process. For example: eSATA 3Gbps interface cards have a
max performance of ~270MBps, and eSATA 1.5Gbps have a max performance of ~130MBps.
Typical Hard Drives (Non-RAID) generally perform anywhere in the range of 80-130MBps.
For maximum performance, make sure you are using eSATA 6 Gbps, USB 3.0 or Thunderbolt to
a Raid configuration.
Video Format Video Data Rate Suggested RAID Configuration
Real Time Playback/Edit
ARRI/2K/1080p24 4:4:4 10-Bit DPX 186.6 MB/Sec. 300
1080p25 4:4:4 10-Bit 194.4 MB/Sec. 300
1080p30 4:4:4 10-Bit 233.3 MB/Sec. 400
1080p50 10-Bit 400 MB/Sec. 600
1080p60 10-Bit 500 MB/Sec. 600
HD Compressed Apple ProRes 422 30MB/Sec.
2K RAW 23.98-120
4K RAW 23.98-29.97
4K RAW 50/60p 2K 200/240p
