Cooke & Lewis BFU60CL User manual
Built under larder fridge
BFU60CL - Version: 01
GB IE Built under larder fridge - Barcode: 5052931258499
WARNING: Read the instructions before using the appliance.
BFU60CL-C&L-A5-GB-IM-11.indd 1 10/15/13 4:13 PM
2

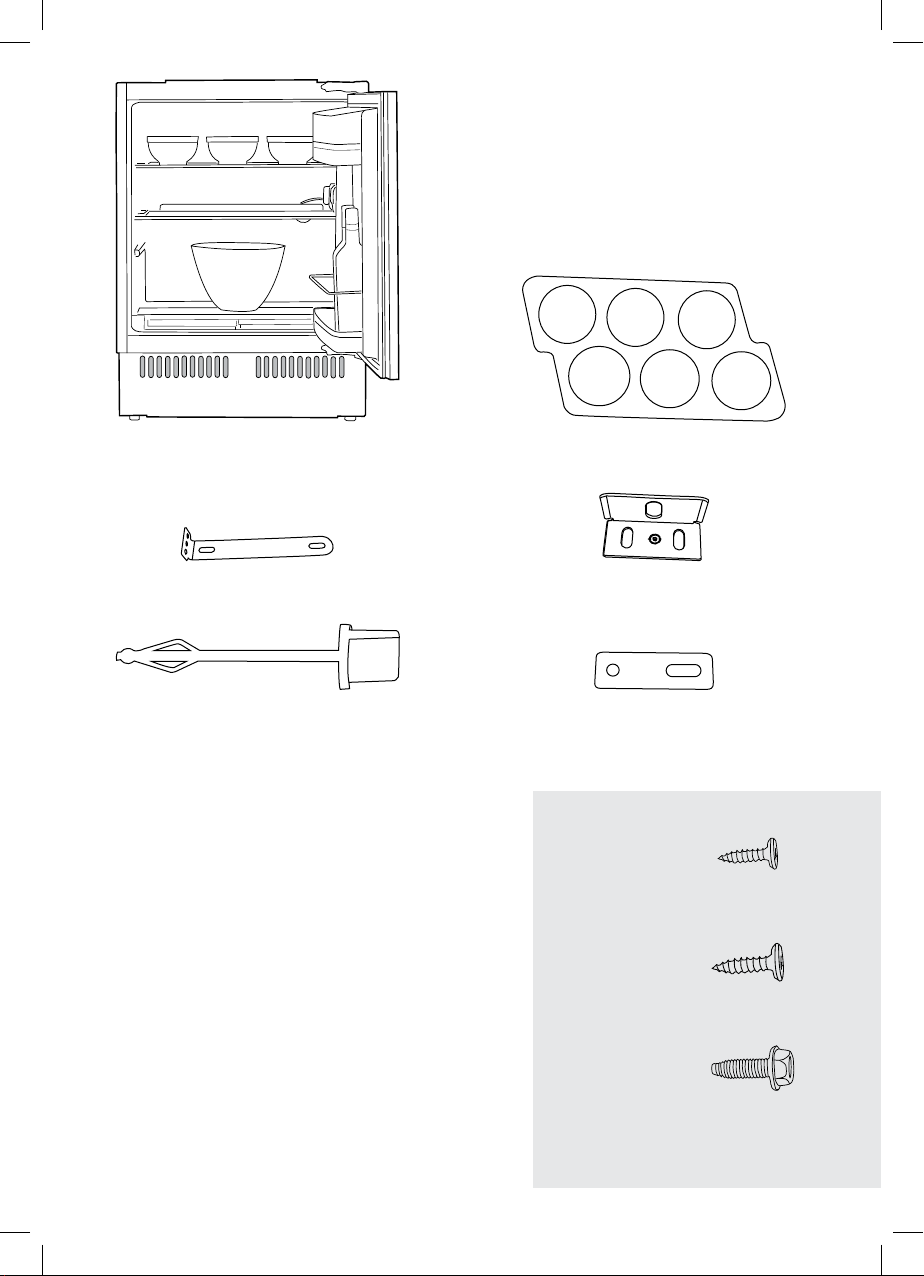

[01] x 1 [02] x 2
[03] x 2 [04] x 2
[05] x 1 [06] x 2
BFU60CL Built under freezer
1 : 1
[08] x 4 (4 x 18mm)
[07] x 27 (3 x 12mm)
(2 for spare use)
[09] x 2 (5 x 16mm)
BFU60CL-C&L-A5-GB-IM-11.indd 2 10/15/13 4:13 PM
3
Let's
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started… 04
Your product 04
Before you start 05
Safety 06
In more detail… 10
Operation 10
Care and maintenance 13
Troubleshooting 14
Recycling and disposal 15
Technical and legal information 15
Guarantee 16
CE Declaration of conformity 18
Appendix...
19
Installation
GB
IE
BFU60CL-C&L-A5-GB-IM-11.indd 3 10/15/13 4:13 PM
4
BFU60CL Built under larder fridge
Getting started...
GB
IE
Your product
Installation guide
located at the end of
the guidebook

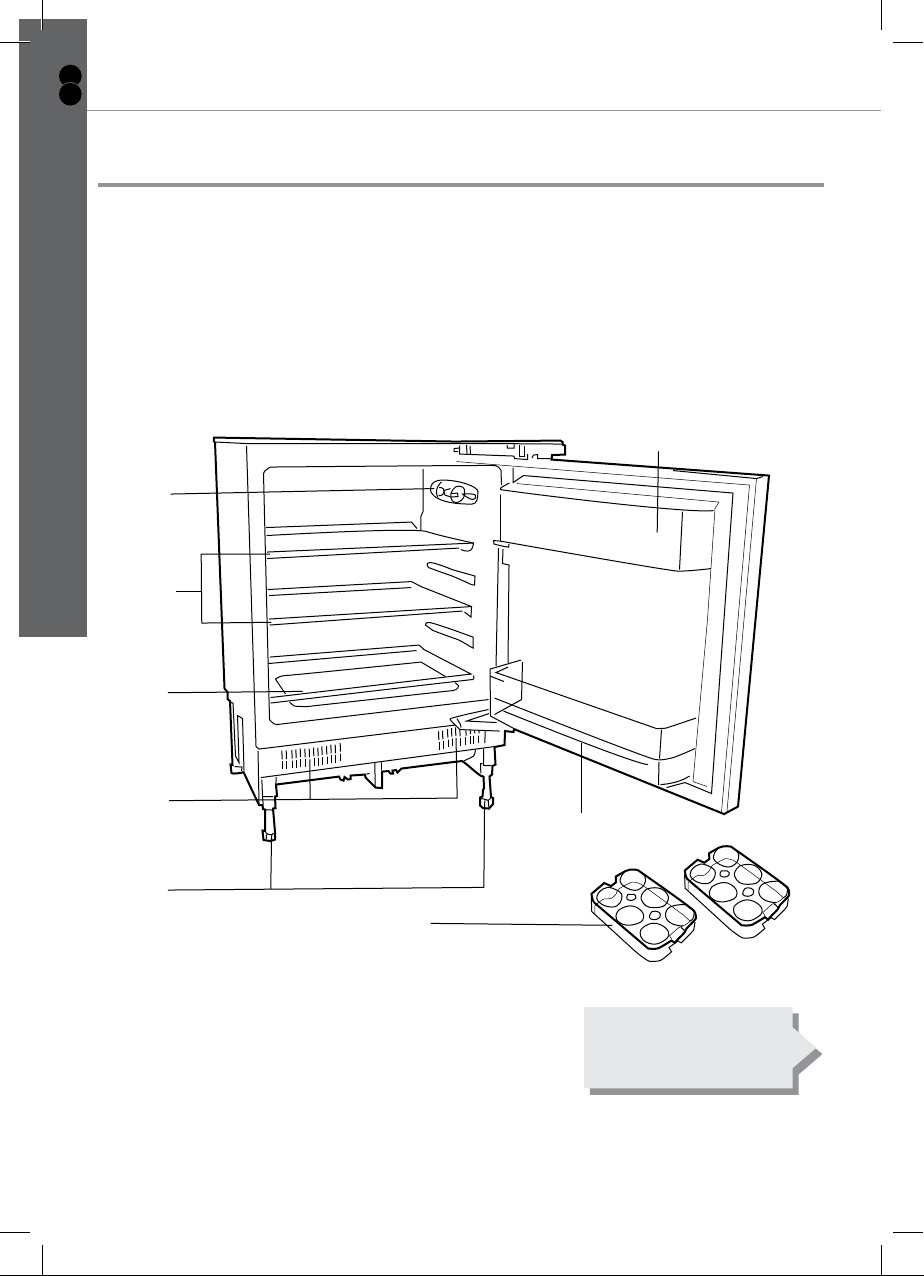

Your product
01. Thermostat dial and light
02. Removable glass shelves
03. Crisper
04. Ventilation grills
05. Leveling feet
06. Egg trays
07. Bottle shelf
08. Dairy shelf
[08]
[01]
[02]
[03]
[04]
[05]
[06]
[07]
BFU60CL-C&L-A5-GB-IM-11.indd 4 10/15/13 4:13 PM
5
Getting started...
BFU60CL Built under larder fridge GB
IE
Your product
Shelves
• The shelves may be placed in any of the guide slots within the interior of the
appliance.
• To remove a shelf, take off all of the items that are stored on the shelf that
you want to remove. Then lift the front of the shelf and carefully pull it out of
the grooves.
Defrost water outlet
• Theinterioroftherefrigeratoriscooledbythecoolingplatethatisontherear
wall. Beneath this there is a channel and an outlet for the defrost water.
• Itisimportantthatthischannelneverbecomesclogged(SeeThe defrost drain
hole section for a detailed explanation of how to keep the channel clear).
Crisper drawer and cover
• Thecrisperdrawerareinthebottomofyourrefrigeratorandthereisaglass
cover that goes over it.
• Thecoverhelpstopreventfruitandvegetablesfromdryingoutprematurely.
Dairy shelf
• Thedairyshelfissuitableforstoringeggs,cheeseandyogurt.Aswellas
smaller packages, tubes, cans etc.
Bottle shelf
• Thelowershelfshouldbeusedforstoringreasonablysizedbottles.
Note
It is important that none of the shelves that sit in the door are
overloaded, as this will drastically reduce their working life.
Warning:
Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
Your product
BFU60CL-C&L-A5-GB-IM-11.indd 5 10/15/13 4:13 PM
6
BFU60CL Built under larder fridge
Getting started...
GB
IE
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this appliance is installed correctly and that
youreadthesafetyinstructionscarefullytoavoidmisuseandhazards.
Please keep this instruction booklet for future reference and pass it on to
anyfutureowners.Afterunpackingtheappliancepleasecheckthatitis
not damaged. If in doubt, do not use the appliance but contact Customer
Serviceson08448001128(UK)and014475261(Ireland).
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.
Ifthisproductcontainsglasspleasetakecarewhenttingorhandlingto
prevent personal injury or damage to the product
Thespecicationplatelocatedontheappliancedisplaysallthenecessary
identicationinformationfororderingreplacementparts.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you pass on this manual so that the new owner can
become familiar with the appliance and its safety warnings.
You will need
Before you start
BFU60CL-C&L-A5-GB-IM-11.indd 6 10/15/13 4:13 PM
7
Getting started...
BFU60CL Built under larder fridge GB
IE
Safety
These instructions are for your safety. Please
read through them thoroughly prior to
installation and retain them for future reference.
•Allinstallationworkmustbecarried
outbyacompetentpersonorqualied
electrician.
•This appliance must be installed correctly
byasuitablyqualiedperson,strictly
following the manufacturer’s instructions.
Your appliance is only designed to be used in the
home. It is suitable for storing food that needs
to be chilled and refrigerated. If it is used for any
other purpose or it is not used correctly, then
manufacturer will accept no liability for any damage
that might be caused.
Alteringthespecicationoftheappliancemust
not be attempted for reasons of safety.
Check the appliance for any signs of transport
damage. If you notice any damage, then you
should not connect your appliance to your
mains supply and should contact your supplier.
Your appliance contains R600a refrigerant,
which is a natural gas that does not contain
CFCs that can damage the environment.
Howeveritisaammablesubstance,therefore
care should be taken:
BFU60CL-C&L-A5-GB-IM-11.indd 7 10/15/13 4:13 PM
8
BFU60CL Built under larder fridge
Getting started...
GB
IE
Safety
• During the transportation and installation of
the appliance, make sure that the refrigeration
pipework does not get damaged.
• If it does become damaged then sources of
ignitionandopenamesshouldbeavoided.
Alsotheroomthattheapplianceissituatedin
should be thoroughly ventilated.
Do not place any objects on top of the
appliance, as this may damage the table top.
Packaging material should be kept away from
children.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance
inasafewayandunderstandthehazards
involved. Children shall not play with the
appliance. Cleaning and user maintenance
shall not be made by children without
supervision.
Do not pull on the power supply cable to
remove the plug from your mains supply
socket.
Do not pull out or insert the plug with wet hands.
BFU60CL-C&L-A5-GB-IM-11.indd 8 10/15/13 4:13 PM
9
Getting started...
BFU60CL Built under larder fridge GB
IE
Safety
Do not attempt to use your appliance outdoors
or any place where it is likely to come into
contact with the elements.
Before cleaning the appliance or performing
maintenance work, ensure that the appliance
has been disconnected from your mains supply.
Never allow the back coils of the appliance to
come into contact with the wall surface.
Alwaysensurethatthelocationwhereyouare
installing your appliance is free of stored items
suchaspapersandotherammablematerials.
Never block the ventilation openings of the
appliance, either on the inside or its exterior.
It is vital to keep your appliance well ventilated,
sothatthereisproperairowbetweenthe
bottom of the unit and the plinth/kick plate
which it is sitting on.
Do not place electrical devices inside of the
appliance, such as mixers and electric ice
cream makers.
Service
You should not attempt to repair the appliance
yourself, as this could cause injury or a more
serious malfunction. If you require a service call
thenpleasecontactCustomerServiceson
08448001128(UK),014475261(Ireland).
BFU60CL-C&L-A5-GB-IM-11.indd 9 10/15/13 4:13 PM
10
In more detail...
BFU60CL Built under larder fridge
GB
IE
Operation
Product functions
Before switching on
• Makesurethatithasbeeninstalledbyasuitablyqualiedperson,asperthe
information contained in installation instructions.
• Afterdelivery,waitforeighthoursbeforeconnectingtheappliancetoyour
mains supply. This will allow any refrigerant gasses that may have been
disturbed during the transportation process to settle.
• The outside of the appliance and the removable accessories contained within
it, should be cleaned with a solution of liquid detergent and water.
• The interior of the appliance should be cleaned with a solution of sodium
bicarbonate dissolved in lukewarm water. The interior and accessories
should be thoroughly dried, after the cleaning process has been completed.
• Therecanbeanodourwhenyourstswitchontheappliance.Itwilllessen
as the appliance starts to cool.
Before rst use
• You should set the thermostat dial to its maximum setting for 24 hours after
switchingontheapplianceforthersttime.
• Whenyourstswitchontheappliance,thecompressorwillruncontinuously
until the refrigerator reaches a cool enough temperature.
• You should then adjust the thermostat dial down to its normal operating
position.
• During this period of time, you should try not to open the door frequently or
place a large amount of food within the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes
before restarting the appliance.
Switching on the appliance and setting the thermostat
MAX 15W
2
3

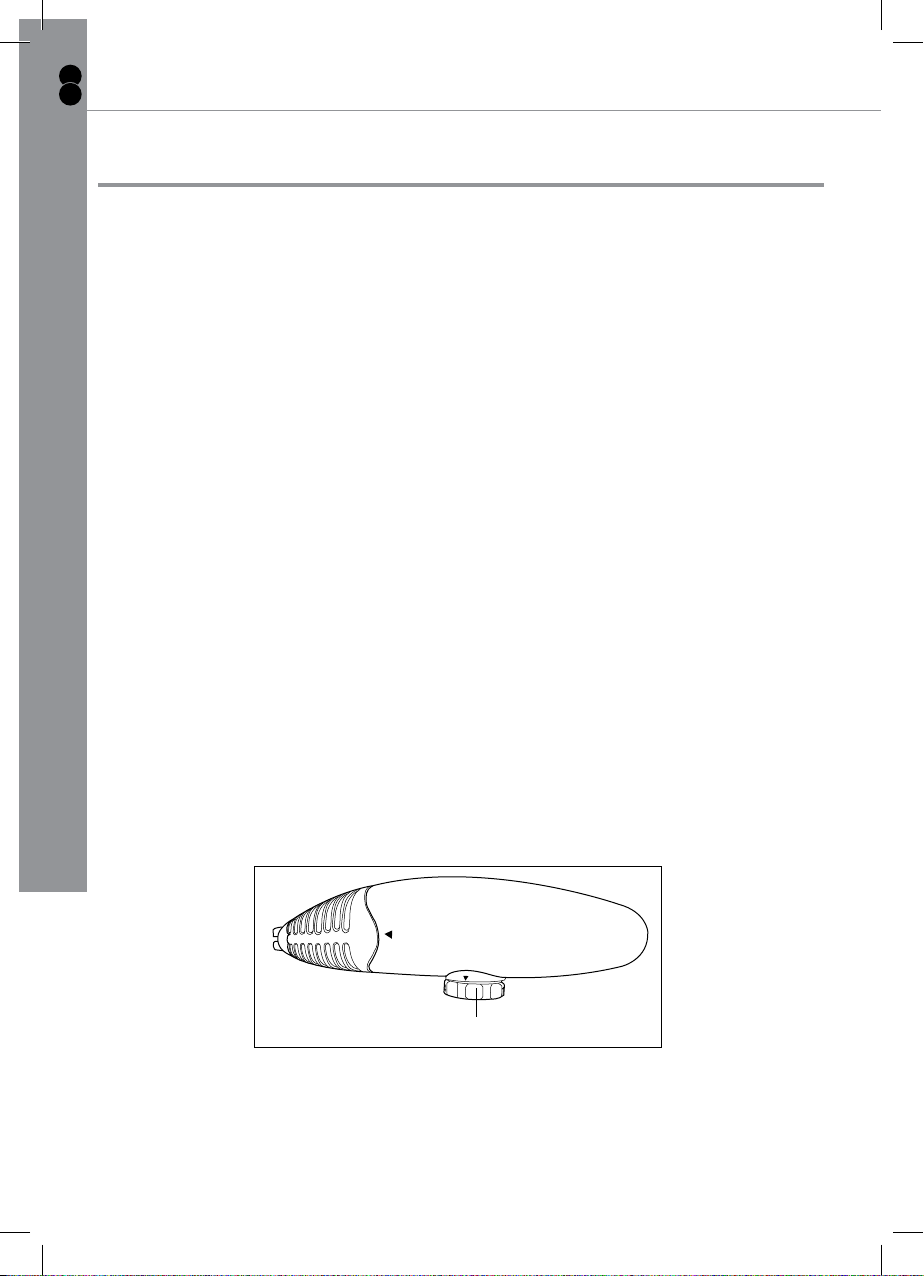

Thermostat control dial
You switch on your appliance by connecting it to your mains supply and setting
the thermostat. The thermostat control knob is located on the right hand side of
the fridge.
BFU60CL-C&L-A5-GB-IM-11.indd 10 10/15/13 4:13 PM
11
In more detail...
BFU60CL Built under larder fridge GB
IE
Operation
Product functions
• The thermostat automatically regulates the temperature inside the
refrigerator, depending on what number you have turned the thermostat
control knob to:
Position <0> means that the appliance will not operate.
Position <1> provides highest temperature inside of the fridge.
Position <7> provides lowest temperature inside of the fridge.
Ideally the thermostat should be set to a position of between <3> to <4>.
Your refrigerator can maintain a temperature of between 4 to 6°C.
Note
The ambient temperature of the room, the temperature of food and the
amount of food that has been placed in the appliance and how often
the door is opened, will all affect the temperature being maintained by
the appliance.
Note
Do not run the appliance with the thermostat above number <5> in
normalusageotherwisethedefrostdrainholewillfreeze.
Arranging and storing food in your refrigerator
• Warm food or evaporating liquids should not be stored in your refrigerator, as
this will increase the humidity inside of the appliance.
• Allfoodsshouldbewrappedorcovered,thisisparticularlyimportantif
thefoodhasastrongavour.Youshouldusepolythenebagsorsheets,
aluminium foil or wax paper to wrap the food. Liquids should be stored in
sealed containers or bottles.
• To maximise the space inside of your refrigerator, any excessive packaging
on the food should be removed.
• Quickly perishable food should be stored at the back of the refrigerator, which
is the coldest part of the appliance.
• No food items should be allowed to come into contact with the back wall of
the refrigerator.
• Make sure that you arrange food in such a way that the door can close
completely. Particular attention should be given to bottles that may protrude
when placed on shelves inside the main section of the refrigerator.
BFU60CL-C&L-A5-GB-IM-11.indd 11 10/15/13 4:13 PM
12
In more detail...
BFU60CL Built under larder fridge
GB
IE
Operation
Arranging and storing food in your refrigerator
• Someorganicsolutions,suchastheoilsinlemon/orangepeelandacidinbutter,
can cause damage to the plastic parts contained inside of the refrigerator.
• Do not open the refrigerator door too often or leave the door open for long
periods of time, as this will increase the temperature inside of the appliance.
• Meat should be wrapped in polythene bags and then placed on the glass
shelf above the salad drawer. Meat should only be stored in this manner
for one or two days at the most.
• Cold dishes/cooked food should be covered and can be placed on any shelf.
• Fruit and vegetables should be cleaned thoroughly and placed in the salad
drawer.
• Cheese and butter should be placed in airtight containers, or they can be
wrappedinaluminiumfoilorpolythenebags.Asmuchairaspossibleshould
be removed from the bags.
• Milk bottles should have a cap on them and be stored on the bottle shelf that
sits in the door.
• Garlic, potatoes, onions and bananas should only be stored in a refrigerator if
they are stored in airtight containers.
Saving energy when using your refrigerator
Installing
• Install the appliance in a cool position. If it is placed in direct sunlight or next to an
oven or other heat source, the energy consumption can increase substantially.
• Ensure the appliance is installed with the correct ventilation requirements.
Restricting ventilation can increase the energy consumption by 15%.
Cleaning and maintenance
• Clean the door gasket with warm water or a neutral detergent that leaves
noresidue.Atight-sealingdoorgasketiscriticaltotheefciencyofyour
appliance.
Usage
• Do not open the door repeatedly or more frequently than you have to.
• Donotsetthethermostattoolow.Achangeofjustonedegreecaneffectthe
energy consumption by 5%. Use a thermometer to check the temperature.
• The refrigerator should operate at around 3 to 4 °C.
• Allowfoodtosufcientlycoolbeforeputtingitintheappliance(butdon’tletit
sit at room temperature for too long).
• If you are going away for a long period of time, turn off the appliance, empty
and clean it and leave the door ajar.
• If you have a second appliance that is not used, make sure that it is stored
with the power off and the door left ajar until it is actually required.
BFU60CL-C&L-A5-GB-IM-11.indd 12 10/15/13 4:13 PM
13
In more detail...
BFU60CL Built under larder fridge GB
IE
Operation
Care and maintenance
Saving energy when using your refrigerator
Disposal
• If you're going to throw out your old refrigerator, see if there's a
chlorouorocarbons(CFCs)recyclerinyourarea.Thegovernmentdepartment
which looks after the environment in your area may be able to help you.
Care and maintenance
Warning:
Please ensure that your appliance is disconnected from your mains
supply before attempting to clean it.
• Do not clean the appliance by pouring water onto it or spraying water over it.
• The refrigerator compartment should be cleaned periodically.
• Clean the accessories separately with soap and water. Do not clean them in
a dishwasher.
• Do not use abrasive products, detergents or soaps.
• Afterwashingtheappliance,wipeovertheareathatyouhavecleanedwitha
damp cloth and then dry it thoroughly.
• When cleaning is complete, dry your hands and then reconnect the plug to
your mains supply.
• Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
The drain hole
[05]
• The drain hole should be cleaned periodically with a drain hole cleaner [05]
or cotton wool bud.
Note
Please note that the drain hole cleaner should not be left in position
permanently. Otherwise this may prevent the defrost water from
entering the drain hole.
BFU60CL-C&L-A5-GB-IM-11.indd 13 10/15/13 4:13 PM
14
In more detail...
BFU60CL Built under larder fridge
GB
IE
Care and maintenance
Troubleshooting
Replacing the light bulb
Warning:
Please ensure that your appliance is disconnected from your mains
supply before attempting to replace the light bulb.
• Press the rear end of the bulb cover until the sides release and then lift the
bulb cover clear of the bulb.
• Change the present light bulb with a new one. The replacement bulb should
not have a greater rating than 15W; (E14 15W bulb should be used).
• Replacethelightcoverandafterwaitingveminutes,reconnectyourplugto
your mains supply.
Troubleshooting
Note
If your refrigerator appears not to be operating properly, before
contactingtheCustomerServices,pleaserefertothechecklist
below.
My fridge does not appear to be working/there is no power to my appliance
• Check that the plug is fully inserted into the power socket.
• Check that there is power to your mains supply (e.g. that there hasn’t been a
power cut or that the fuse hasn’t blown).
• Check that the thermostat inside the appliance has not been turned to the off
position.
• Check that your mains supply voltage, corresponds to the voltage stated on
the rating plate of your appliance.
My fridge appears to be performing poorly
• Check that the appliance isn’t overloaded and that food hasn’t been packed
too tightly into it.
• Ensure that the door is closing properly and that the door has not been
opened for a prolonged period in error.
• Ensure that there is adequate ventilation for your appliance.
BFU60CL-C&L-A5-GB-IM-11.indd 14 10/15/13 4:13 PM
15
In more detail...
BFU60CL Built under larder fridge GB
IE
Troubleshooting/Recycling and disposal
Troubleshooting
Please refer to the conditions of guarantee that appear on the warranty card that
you receive with the appliance.
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with household waste.
Pleaserecyclewherefacilitiesexist.CheckwithyourLocalAuthorityorretailerfor
recycling advice.
The symbol on the product or its packaging indicates that this
product cannot be treated as normal household waste. This
product must be handed over to an electric and electronic
equipment collection point for recycling.
On ensuring that this product is disposed of correctly, you will help to avoid
possible negative consequences for the environment and public health, which
could occur if this product is not handled correctly. To receive more detailed
information about recycling this product, contact your local government, domestic
waste disposal services or the outlet where the product was bought.
Technical specications
Supplyvoltage 220-240V~,50Hz
Rated current 0.5A
Dimensions (W x D x H) 596x550x818-868mm
Max. power consumption 100W
Net weight 30kg
Gross capacity 145 litres
Net capacity 144 litres
Energy class A+
Technical and legal information
BFU60CL-C&L-A5-GB-IM-11.indd 15 10/15/13 4:13 PM
16
In more detail...
BFU60CL Built under larder fridge
GB
IE
Guarantee
Guarantee
This appliance is covered by a full manufacturer’s 24 month parts and labour
guarantee and covers all parts and labour costs associated with the repair of the
appliance in a domestic environment. We will repair any defect that arises due to
faulty materials or workmanship and use genuine manufacturers parts.
Allclaimsmustbesupportedwiththeoriginalreceiptorotherreasonableproofof
purchase.
If, during the guarantee period, the appliance becomes irreparable as agreed
bytheengineerapprovedbyGAAthenwereservetheright,atourdiscretion,to
exchangethedefectiveproductwithareplacementapplianceatGAA’ssolecost.
If the same product is no longer available an alternative will be offered with the
same functions as the faulty item.
Afteranappliancehasbeenrepairedorreplacedanyremainingbalanceofthe
GAAguaranteewillbevalidandanyfurthercalloutsduringthisprescribedperiod
willbecoveredbyGAAonthereplacementappliance.
Shouldanypersonotherthananauthorizedengineermodifyorattempttorepair
the appliance then the warranty will be invalid.
TheguaranteeappliestotheUKmainland,Scotland,Ireland,ROIandFrancebut
is not transferable between EU countries.
This guarantee is non-transferable to any other person or product.
TheguaranteeiscoveredbyUKlawandisinadditiontoanddoesnotdiminish
your legal rights.
Exclusions to the guarantee
This guarantee does NOT cover:
Appliancesthathavebeendamagedorneglectedasaresultoffailureto
store, assemble, install , use or care of the products in accordance with the
manufacturer’sinstructions-GAAwillnotacceptresponsibilityunderthis
guarantee if a product is damaged or becomes defective due to, misuse, neglect,
wilful or accidental damage or act of god.
Normal wear and tear.
Consumableitemssuchascarbonltersandbulbs.
BFU60CL-C&L-A5-GB-IM-11.indd 16 10/15/13 4:13 PM
17
In more detail...
BFU60CL Built under larder fridge GB
IE
Guarantee
Guarantee
Exclusions to the guarantee (continued)
Claims arising from non-domestic use or commercial environment.
Anygasappliancenotttedbyagassafequaliedinstaller.
IfnofaultisfoundthenGAAreservestherighttochargeforthecalloutatthegoing
rateof£55.00plusVAT.
In the course of the service work carried out it may be necessary to remove the built
inappliancefromitsttedposition.Iftheapplianceisglued,groutedortiledinsuch
a manner that it cannot be removed, it is the responsibility of the customer/installer
to remove and reinstall the appliance to facilitate the repair.
This Guarantee does not affect your statutory rights.
TheguaranteeisofferedbyGAALtd,1301-1303LuPlaza,
2WingYipSt,KwunTong,Kowloon,HongKong.
Customer Service
To arrange an in guarantee service call, please contact customer services on the
following numbers.
UK & Northern Ireland
Phone: 0844 800 1128
Email: [email protected]
Web: www.myspareparts.co.uk
Republic of Ireland (Eire)
Phone: 014475261
BFU60CL-C&L-A5-GB-IM-11.indd 17 10/15/13 4:13 PM
18
In more detail...
BFU60CL Built under larder fridge
GB
IE
Built under larder fridge
David Sala
Technical Manager
BFU60CL
APPLIED INTERNATIONAL TECHNICAL
STANDARDS AND SPECIFICATIONS: ISO9001.2008
PLACE: Torelló
MACHINE APPLICATION:
TYPE:
EC DIRECTIVES APPLIED:
APPLIED HARMONIZED
STANDARDS:
We hereby certify that the mentioned accessory complies with the essential require-
ments of the European Directives applicable, including their modifications and the
corresponding transpositions
Standard EN 60335-1 Safety of household and similar electrical appliances
Comply with the European Directives 2006/95/CE:
LVD and the 2004/108/CE: EMC
MANUFACTURER: CATA
ADDRESS:
C/ Ter nº 2, Torelló 08570 - Barcelona (Spain)
B&Q plc,
Chandlers Ford, Hants,
SO533LEUnitedKingdom
www.diy.com
CE Declaration of Conformity
CE Declaration of Conformity
This appliance respects laws of the suppression of radiointerference.
AstheManufacturerhasapolicyofcontinuousproductimprovement,itreserves
therighttoadaptandcarryoutanymodicationconsiderednecessarywithout
prior warning.
BFU60CL-C&L-A5-GB-IM-11.indd 18 10/15/13 4:13 PM
19
01
Installation
30-90mm
550mm
596mm
Min 560mm
600mm
820-870mm
818-868mm
Theappliancemustbeplacedonaleveloor.Youcanusethelevelingfeetto
takeintoaccountanyminorunevennessintheoor.
Dimensions of appliance Dimensions of aperture*
Height: 818-868mm Height: 820-870mm
Width: 596mm Width: 600mm
Depth: 550mm Depth: 560mm (min)
*Pleaserefertotheinstallationinstructionsformorespecicinformationonthe
sizeofaperturethatyouwillrequire.
Warning:
Do not damage the refrigerant circuit.
Note
When you install your appliance it is important to bear in mind its
climatic rating.
Inordertondouttheclimaticratingofyourappliance,youshouldcheckthe
rating plate. The rating plate is located on the front left edge of the inside of the
fridge.Youwillneedtoopenthedoorofyourappliancetobeabletondit.
The rating plate will indicate the ambient temperature range that your appliance
will function correctly within.
Aperture dimensions
BFU60CL-C&L-A5-GB-IM-11.indd 19 10/15/13 4:13 PM
20
Warning:
Before installation and usage read all the instructions and make sure
thatthevoltage(V)andthefrequency(Hz)indicatedontherating
plate are exactly the same as the voltage and frequency in your
home. The rating plate can be found on the front left edge of the
inside of the refrigerator.
The manufacturer declines all responsibility in the event of the installer failing to
observe all the accident prevention regulations in force, which are necessary for
normal use and the regular operation of the electric system.
Electrical connection
Warning:
Toavoidahazardduetoinstabilityoftheappliance,itmustbexed
in accordance with the instructions.
Note
Yourrefrigeratorisintendedforttedandpermanentinstallation.
Werecommendthattheapplianceisconnectedbyaqualiedelectrician,who
is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and local
regulations.
• Yourrefrigeratorcomessuppliedwitha13ampplugtted.Ifinfutureyou
needtochangethefuseinthisplug,thena13ampASTAapproved(BS
1362) fuse must be used.
The wiring in the mains lead is coloured as follows:
Brown Live
Blue Neutral
Green and yellow Earth
• Asthecoloursofthewiresintheappliance’smainsleadmaynotcorrespond
with the coloured markings identifying the terminals in your spur box, please
proceed as follows:
The brown wire must be connected to the terminal marked “L” (live), or
coloured red.
The blue wire must be connected to the terminal marked “N” (neutral), or
coloured black.
The green and yellow wire must be connected to the terminal marked “E”
(earth), or by the earth symbol, or coloured green and yellow.
• When the connection is completed, no stray strands or cut wire should be
present. The cord clamp must be secured over the outer sheath.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
serviceagentorsimilarlyqualiedpersonsinordertoavoidahazard.
BFU60CL-C&L-A5-GB-IM-11.indd 20 10/15/13 4:13 PM
Table of contents
Other Cooke & Lewis Refrigerator manuals
