Cooke & Lewis CLR1W-C User manual

CLR1W-C Free Standing Refrigerator v4c
Barcode 5052931055814
GB IE
CLR1W-C

[01] x 1
[04] x 1
[02] x 2
[03] x 1

GB IE Freestanding Refrigerator 04
Installation 19
CLR1W-C
3

4
GB IE
Let's
get started...
Getting started... 05
Before you start 06
Safety 07
In more detail... 10
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Technical and legal information
Guarantee
CE Declaration of conformity
10
12
14
15
15
16
18
Appendix
19
Installation

5
Getting
Started...
Getting started...
GB IE
Before you start 06
Safety 07

Before you start
You will need
Before you start
To avoid the risks that are always present when you use
an electrical appliance it is important that this appliance is
installed correctly and that you read the safety instructions
carefully to avoid misuse and hazards. Please keep this
instruction booklet for future reference and pass it on to any
future owners. After unpacking the appliance please check
that it is not damaged. If in doubt, do not use the appliance
but contact Customer Services on 0844 800 1128 (UK),
1 800 535542 (Ireland) and 01 56 48 02 60 (France).
Check the package and make sure you have all of the parts
listed.
Decide on the appropriate location for your product.
If this product contains glass please take care when tting
or handling to prevent personal injury or damage to the
product.
The specications plate is available on this appliance. This
plate displays all the necessary identication information for
ordering replacement parts.
If you sell the appliance, give it away, or leave it behind
when you move house, make sure you also pass on this
manual so that the new owner can become familiar with the
appliance and its safety warnings.
6
Getting started...
GB IE

Safety
These instructions are for your safety. Please read through
them thoroughly prior to installation and retain them for
future reference.
This appliance complies with all current European safety legislation,
however, the Manufacturer must emphasise that this compliance does
not prevent the surfaces of the appliance from heating up during use and
remaining hot during its operation.
Accessible parts may become hot during use. Young children should be kept
away. Care should be taken to avoid touching the appliance (e.g hob, cooker).
Therefore, the Manufacturer highly recommends that this appliance be kept
out of the reach of babies and small children.
Children should be supervised to ensure that they do not play with the
appliance.
This appliance is not intended for use by persons (including children) with
reduced physical sensory, or mental capabilities, or by those who lack
experience and knowledge, unless they have been given supervision and
instruction concerning the use of the appliance by a person responsible for
their safety.
Do not allow the electric cables to touch the hot parts of the appliance.
Make sure that the power cord is not caught under or in the appliance and
avoid damage to the power cable.
Do not remove the plug in the presence of ammable gas.
Do not install the appliance outdoors in a damp place or in an area which
may be prone to water leaks such as under or near a sink unit. In the event
of a water leak allow the machine to dry naturally.
Please dispose of the packing material carefully.
Do not use ammable sprays in close vicinity to the appliance.
• All installation work must be carried out by a
competent person or qualied electrician.
• This appliance must be installed correctly by a
suitably qualied person, strictly following the
manufacturer’s instructions.
7
Getting started...
GB IE

Safety
Caution: The refrigerator cannot be inclined to more than 45° when it is
xed or moved. Do not place the refrigerator directly on a carpet or close
to a wall or furniture.
Caution: Do not apply force to any external part such as the pipe,
condenser, door or handle when moving.
Caution: Good ventilation is required around the refrigerator for
easier dissipation of heat, high refrigeration efciency and low power
consumption. Sufcient clearance is required around the refrigerator. The
refrigerator should not be placed near anything that may echo.
Caution: The oor on which the refrigerator is to be placed must be at
and solid. It should not be placed on soft material such as foam, etc.
Connect the refrigerator to the power supply (220 to
240 V~/50 Hz).
WARNING: Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by the
manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance
WARNING: Do not store explosive substances such as aerosol cans with
a ammable propellant in this appliance.
We also recommend that great care be taken during use and cleaning.
Read the cleaning and maintenance sections for this appliance carefully.
A steam cleaner is not to be used.
The appliance is not intended to be operated by means of external timer or
separated remote-control system.
The appliance is for domestic use only.
The Manufacturer declines all liability for personal or material damage as a
result of misuse or incorrect installation of this appliance.
8
Getting started...
GB IE

Caution: The cord should be neither lengthened nor
coiled up during operation. Moreover, the cord must
not be stored close to the compressor at the back of
the refrigerator.
This appliance is intended to be used in household and similar
applications such as:
– staff kitchen areas in shops, ofces and other working environments;
– farm houses and by clients in hotels, motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
9
Getting started...
GB IE

10
In more detail...
In more
detail...
GB IE
Operation 10
Care and maintenance 12
Troubleshooting 14
Recycling and disposal 15
Technical and legal information 15
Guarantee 16
CE Declaration of conformity 18

Operation
Operation
Temperature regulator (thermostat)
Defrosting
Warning: Always switch off the electricity supply and
unplug before performing maintenance work. In the
event of a fault, contact customer services.
Caution: The refrigerator chamber should not be
directly heated using hot water or a hair dryer while
defrosting to avoid deformation of the inner casing.
NOTE: Water contained inside or air getting into the refrigerator
when the door is opened forms a layer of frost inside.
Thick frost will make the refrigerator less efcient. Frost that is
more than 2 mm thick should be defrosted.
1. Before defrosting, take the food and the shelf separately from
cold chamber -A-.
2. Defrosting in the refrigerator
chamber is operated manually.
Set the temperature regulator
-1- to position “0”.
3. Leave the unit door open.
4. Keep removing water from the
base to avoid spillages.
A
A
A
OFF
11
In more detail...
GB IE

Operation
NOTE: The compressor will stop running and ice and frost will
dissolve completely and fall to the bottom of the refrigerator
chamber.
5. Wipe off the water with soft cloth in order to speed up
defrosting.

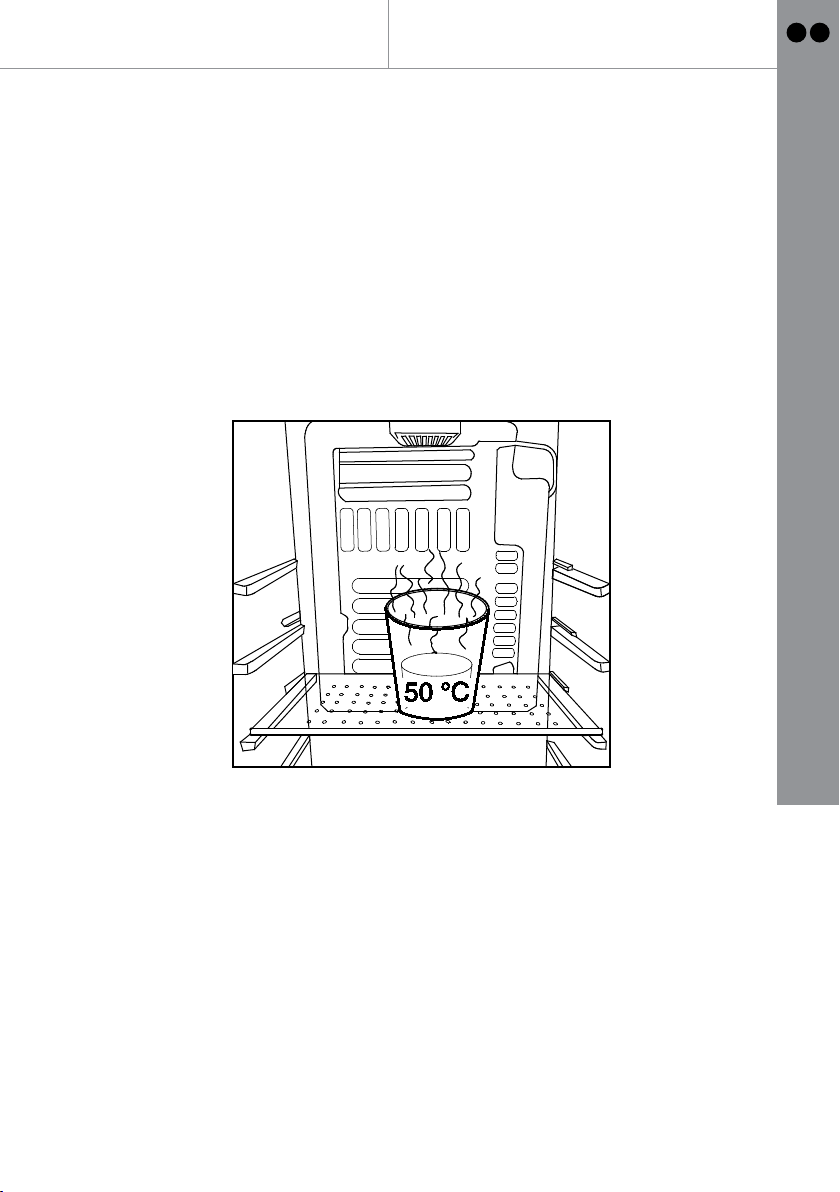

6. You may put a bowl of warm water (about 50 °C) into the
refrigerator chamber. Remember to set the temperature
regulator to its original position after defrosting.
7. So as not damage the inner casing or the surface of the
evaporator, ice and frost should not be scraped off and food
should not be separated from containers that have been frozen
together using sharp instruments.
12
In more detail...
GB IE

Care and maintenance
Care
Damaged power cables must be replaced by a
competent person or qualied electrician.
For domestic use only.
Protection from moisture
• Avoid placing the refrigerator in a place when heavy moisture
is present in order to minimise the possibility of its metal parts
becoming rusted.
Protection from heat
• The refrigerator should be kept away from any heat source or
direct sunlight.
Maintenance
Machine cleanliness
Warning: Always switch off the electricity supply and
unplug before performing maintenance work. In the
event of a fault, contact customer services.
Caution: Do not use hot water, diluents, petrol,
alcohol, kerosene, washing powder, cleanser, alkaline
detergent, acid, chemical cloth, etc. for cleaning so
as not to damage the enamel coating and plastic.
Refrigerators must not be cleaned directly with water
as this could cause rusting or render the insulation
less efcient.
OFF
13
In more detail...
GB IE

Care and maintenance
• The refrigerator should be cleaned and maintained once a
month.
• Wipe the inner and outer surface of the refrigerator and its
accessories with wet cloth. If they are too dirty, scrub them with
a neutral detergent and then clean with water and dry with a
clean cloth.
• Be careful to check the rubber seals on the doors, as they
should remain clean.
Bulb replacement
Warning: Always switch off the electricity supply
before performing maintenance work. In the event
of a fault, contact an ofcial distributor or authorised
dealer.
10’
1. Remove the xing screw cap.
2. Remove the cover.
3. Replace the bulb.
OFF
Periods without use: If the refrigerator is switched
off and left un-used, the door must be left open to
avoid the build up of odours in the appliance.
14
In more detail...
GB IE

Troubleshooting
Troubleshooting
The following circumstances may not be a problem. Do not contact the
customer services until the problem has been conrmed.
If your refrigerator is still not functioning properly after making the above
checks, please contact customer services.
Fault Cause Solution
The refrigerator
does not work
There is power failure Check if there is power
failure
The power plug is not
connected to the socket
Connect the plug to the
socket
The fuse has blown Switch off and change the
fuse
The refrigerator
is cooling too
much
The temperature control
dial may be set too high
Set the temperature
control properly
You are placing food
containing a lot of moisture
directly under the cool air
outlets
This does not indicate
malfunctioning
The refrigerator
is not cooling
enough
The food may be packed
together too tightly, which
will block the ow of cool air
This does not indicate
malfunctioning
You may have placed
something hot or a large
quantity of food in the
refrigerator
This does not indicate
malfunctioning
The door may not have
been closed properly
Close the door properly
The door seals may leak Contact the customer
services
There may be insufcient
clearance between the
refrigerator and the
surfaces immediately on
both sides and above
Refer to Assembly.
The temperature control
dial may not be set properly
Set temperature control
properly
15
In more detail...
GB IE

Recycling and disposal
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
The symbol on the product or its packaging indicates
that this product cannot be treated as normal
household waste. This product must be handed over to
an electric and electronic equipment collection point for
recycling.
On ensuring that this product is disposed of correctly, you will help
to avoid possible negative consequences for the environment
and public health, which could occur if this product is not handled
correctly. To receive more detailed information about recycling this
product, contact your local government, domestic waste disposal
services or the outlet where the product was bought.
Technical and legal information
Technical data
Power supply : 220-240 V~/50 Hz
Rated current : 0.7A
Refrigerant / Amount : R600a / 24g
Climate class : N
Dimensions (W x H x D) : 450 x831x473mm
Net weight : 19 kg
Legal information
The Manufacturer declines all liability for damage caused to
persons and objects due to incorrect or improper installation of the
appliance.
16
In more detail...
GB IE
Technical and legal information

Guarantee
Manufacturer's Guarantee
This appliance is covered by a full manufacturer’s 24 month parts and
labour guarantee and covers all parts and labour costs associated with
the repair of the appliance in a domestic environment. We will repair any
defect that arises due to faulty materials or workmanship and use genuine
manufacturers parts.
All claims must be supported with the original receipt or other reasonable
proof of purchase.
If, during the guarantee period, the appliance becomes irreparable as
agreed by the engineer approved by GAA then we reserve the right, at our
discretion, to exchange the defective product with a replacement appliance
at GAA’s sole cost. If the same product is no longer available an alternative
will be offered with the same functions as the faulty item.
After an appliance has been repaired or replaced any remaining balance
of the GAA guarantee will be valid and any further call outs during this
prescribed period will be covered by GAA on the replacement appliance.
Should any person other than an authorized engineer modify or attempt to
repair the appliance then the warranty will be invalid.
The guarantee applies to the UK mainland, Scotland, Ireland, ROI and
France but is not transferrable between EU countries.
This guarantee is non-transferrable to any other person or product.
The guarantee is covered by UK law and is in addition to and does not
diminish your legal rights.
Exclusions to the guarantee
This guarantee does NOT cover:
Appliances that have been damaged or neglected as a result of failure to
store, assemble, install , use or care of the products in accordance with the
manufacturer’s instructions - GAA will not accept responsibility under this
guarantee if a product is damaged or becomes defective due to, misuse,
neglect, wilful or accidental damage or act of god.
Normal wear and tear.
Consumable items such as carbon lters and bulbs.
17
In more detail...
GB IE

Exclusions to the guarantee (continued)
Claims arising from non-domestic use or commercial environment.
Any gas appliance not tted by a gas safe qualied installer.
If no fault is found then GAA reserves the right to charge for the call out at
the going rate of £55.00 plus VAT.
In the course of the service work carried out it may be necessary to
remove the built in appliance from its tted position. If the appliance is
glued, grouted or tiled in such a manner that it cannot be removed, it is the
responsibility of the customer/installer to remove and reinstall the appliance
to facilitate the repair.
This Guarantee does not affect your statutory rights.
The guarantee is offered by GAA Ltd, 1301-1303 Lu Plaza,
2 Wing Yip St, Kwun Tong, Kowloon, Hong Kong.
Customer Service
To arrange an in guarantee service call, please contact customer services
on the following numbers.
UK and N.Ireland – ISDAL Customer Care Centre
T: 0844 8001128 E: [email protected]
www.myspareparts.co.uk
Republic of Ireland (ROI) – ISDAL Customer Care Centre
T: 1-800 535542 E: [email protected]
France – SIDEPAR Customer Care Centre
T: 01 56 48 02 60 E: [e-mail]
Guarantee
18
In more detail...
GB IE

CE Declaration of conformity
CE Declaration of conformity
This appliance respects laws of the suppression of radio-interference.
The Manufacturer has a policy of continuous product improvement, it
reserves the right to adapt and carry out any modication considered
necessary without prior warning.
B&Q plc
Chandlers Ford, Hants
SO53 3LE United Kingdom
www.diy.com
Castorama
Parc d'Activités B.P.101
59175 Templemars - France
www.castorama.fr
19
In more detail...
GB IE
ADDR ESS:
C/ Ter nº 2, Torelló 08570 - Barcelona (Spain)
M A C HIN E A P PL IC A T IO N: C L R 1W  C
TY PE: F rid g e
EC DIREC TIVES APPLIED:
StandardEN603351:2002+A11:2004+A12:2006+A2:2006+A13:2008
StandardEN60335224:2003+A11:2004+A1:2005+A1:2005+A2:2007
StandardEN550141:2006 StandardEN153:2006
StandardEN550142:1997+A1:2001 StandardENISO15502:2005
StandardEN6100032:2006 StandardEN62233:2008
StandardEN6100033:1995+A1:2001+A2:2005
A P P LIE D IN T E R N A T IO NA L T E C HN IC A L
S T A N D A R D S A N D S P E C IF IC A T ION S :IS O 9 0 0 1.2 0 0 8
P L A C E :T o relló
MANUFACTURER:CATA
D avid S ala
T ec hnic alM anag er
We hereby certify t hat t he ment io ned accessory complies with the ess ential
req uirements of t he E uro p ean D irec tives applicable, inc lud ing t heir modifications and
thec o rr es p o nd ing  tr ans p o s i tio ns f ro mt henat io nal law.
C omplywiththeess entialreq uirements o ftheLo wV oltag e
D irective(2 00 6/95/E C )andE lectromag neticC o mp atib ility
Directive(2004/108/EC)
A P P L IE D  HA R M O N IZ E D 
STANDARDS:

Installation
20
Appendix...
Appendix...
GB IE
