Cookology CITFZ177 User manual

Freezer
Instruction Manual
CITFZ177
Built in
Before use, please read and follow all the safety rules and operating
instructions.
Simple but stylish home appliances

European Safety Certificate
Compliance Declaration
The manufacturer assumes full responsibility for the compliance
of products manufactured with relevant safety, health and
environmental protection requirements set out in European
Directives. Test reports are available for verification upon
request. The manufacturer will present the quality certificate or
manufacture licence to a refrigerator dealer if so required.
Furthermore, the manufacturer declares that all parts intended
to be in contact with fresh food as described in this User’s
Manual are free of toxic substances.
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it shall be handed overto the applicable
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent negative consequences for the
environment and human health, which
could otherwise be caused by inappropriate
handling of this product. For more detailed
information about recycling of this product,
please contact your local authority,
household waste disposal service or the
retailer from whom you purchased the
product.

Content Page
1. Environmental Protection and Proper Disposal.........2
2. Location.....................................................................2
3. Installation ....................................... . .....................2-3
4. Rating Plate........................................................... ...3
5. Electric Connection ...................................................3
6. Operation Instructions... .........................................3-4
7.
Freezer .....................................................................4
8. Ice & Ice Cream Making ...........................................5
9. Preparing for Vacation .............................................5
10.Cleaning & Maintenance .........................................5
11.Defrosting .................................................... ..........5-6
12.Problem Diagnosis ..................................................6
13.Troubleshooting ................................ .....................6-7
14.During a Power Cut.................................................7
15.Making A Service Call .............................................7
16.Installation In Kitchen ..............................................7
17.Warranty..................................................................7
18.Illustration of Parts...................................................7
Please read these instructions carefully before
use. Underline the important instructions and
keep the Manual in a safe place for later reference.
Remember to hand it over to the new owner, if
you ever sell the appliance.
What you have bought is a safe and reliable
appliance. With appropriate use and maintenance, it will
be in service for years. The last page of this User’s
Manual sets out specifications of this appliance and
the performance data indicated in the rating plate are
test results obtained at an ambient temperature range
of 16~32°C.
Important!
It is intended strictly for household use.
A leakage test has been conducted in accordance with
relevant UK safety standards.
To avoid the risk of child entrapment, please make
sure your old refrigerator is inoperative and safe by
removing any locks before disposal.
Important!
Please note that refrigeration systems contain refrigerants,
which require specialised waste disposal. Contact your local
waste disposal centre for disposal of an old appliance and
contact your local authority or dealer if you have any
questions. Please ensure that the pipework of your freezer
is not damaged prior to being collected by the relevant
waste disposal centre and contribute to environmental
awareness by insisting on an appropriate, anti-pollution
method of disposal. Please see the rating plate for the type
of refrigerant and insulation used.
The plug should be accessible after the appliance is
positioned.
If the power cable is damaged, it must be replaced with a
new power cable from the manufacturer or an authorised
service agent.
Caution:
The appliance should be installed in a well ventilated place.
The transport packaging should be removed.
Caution:
Do not use a sharp or pointed item to defrost.
Caution:
Ensure the refrigeration system is not damaged.
Caution:
Do not use electrical appliances inside the food storage
compartments of the appliance, other than those
recommended by the manufacturer.
This User’s Manual is applicable to a variety of models and
therefore there may be slight changes in certain aspects
from model to model.
1

1.Environmental Protection and
Proper Disposal
Packaging Materials
The appliance is packaged in a way to prevent damages
during transportation. Recyclable materials are used.
The carton is made of corrugated board / cardboard
(mainly from recycled paper).
·Polystyrene parts (CFC-free foamed polystyrene)
·Linings and polyethylene bags
·Polypropylene straps
All these valuable materials may be taken to a waste
collecting centre and used again after adequate recycling.
All waste materials should be disposed of correctly.
2.Location
Make sure the freezer is kept upright during handling. If
tilting is required, it should not exceed 45 degrees,
otherwise the appliance may be damaged, resulting in
compromised refrigeration performance.
To avoid product damage or personal injury, the
refrigerator should be unpacked by two persons after it is
located in the required location.
Before installation, make sure the refrigerator has no
visible exterior damage.
When handling the appliance, do not lift it by holding the
doors, to prevent any damage to the refrigerator.
Do not start up a refrigerator that is damaged.
Check the refrigerator carefully for:
·Damaged package due to inappropriate handling
during transportation
Damage to the exterior
·Damage to the power cable / plug
If in doubt, please contact Customer Service for a
thorough check-up of the appliance.
Take necessary measures to prevent leakage of
refrigerant at the start-up of the refrigerator, which may
result in environmental pollution.
3.Installation
a) Remove all packaging materials.
b) Remove any items inside the freezer.
c) Ensure that all film and tape on the cabinet and the
door is removed.
d) Remove polystyrene chips (if any) around the freezer.
e) Take out accessories and literature from the freezer.
f) Clean the inside of the freezer with lukewarm water
and vinegar and then dry it with a soft cloth.
g) Use the spanners supplied to adjust the levelling leg to
ensure the freezer is stable.
Do not use detergents, sharp or pointed instruments
or soda-based cleansers to clean the refrigerator.
·Before installation, make sure the refrigeration system is
free of any damage.
·The freezer should be used for its intended purpose
only.
·The freezer should be positioned on a solid and even
floor to ensure refrigerant circulation and good
refrigerating performance.
·If possible, position the freezer in a cool and dr y well
ventilated room.
·Do not expose the freezer to direct sunshine and ensure
the ambient temperature is not too high.
·Keep the freezer away from heat sources, such as
heating systems, ovens or cookers. Otherwise, the
compressor will operate more frequently resulting in
extra power consumption.
Do not place any radiating apparatus, such as a
microwave oven, on top of the appliance.
Make sure the air vent is not obstructed.
Never unplug the refrigerator by pulling on the power
cable. Always switch off at the mains, then grip the plug
firmly and pull it straight out from the socket.
2
If the freezer is placed near a heat source, it is
recommended to install a thermal barrier between the
appliance and the heat source (asbestos is prohibited) or
maintain adequate space between the freezer and heat
source as follows:
3 cm
30 cm
Cooker or Stove
Radiator or Oven
Another Refrigerator 2 cm

Warning!
After the freezer is installed, allow it to stand still for at
least 2 hours before starting it up to ensure stable
refrigerant circulation and faultless operation.
Before starting up the freezer, make sure the inner
compartment is dry (especially corners).
Danger!
Depending on the chemical composition, the refrigerant
may be flammable. The leak-proofness of the refrigerant
circulation system is test proven. Unauthorised
intervention with the refrigerant circulation system may
cause fire.
Make sure the refrigerant circulation system and the
peripheral parts of compressor are not affected.
Any intervention with the refrigerating system should
be conducted only by professional personnel.
Warning!
Refrigerant getting into eyes can cause serious injury. In
this case, rinse the eyes under running water and consult
an ophthalmologist without delay.
The appliance should be used within an appropriate
room temperature range, according to its climate type.
The room temperature for a specific climate type should be
observed. See the rating plate for the climate type of your
appliance.
Climate type Room temperature
SN +10°C~+32°C
N +16°C~+32°C
ST +18°C~+38°C
T +18°C~+43°C
4. Rating Plate
A rating p late is found on the side p anel or back panel of
the refrigerator, indicating important technical data.
Write down these technical data.
Write down This Technical Data.
Write down the technical data for later reference to avoid
the need for moving the refrigerator when such data are
needed.
Model / Type
Storage............................................................... Litre
Working voltage…………………………………… Volt Max
input power (W) ……………………………… Watt
Current……………………………………………... Amp
Energy consumption …………………………….. kWH/24hr
Freezing capacity ………………….. kg/24hr
5.Electric Connection
The freezer should use a properly earthed socket, which
should be checked by a qualified electrician. The
appliance should always be plugged into its own
individual electrical socket (no extension cables) which
has a voltage rating and a fuse rating in conformity with
the rating plate.
In case of non-conformity, consult the local service centre
or the dealer immediately.
The appliance should not be connected to a converter
(such as solar cell panels)
Do not use an extension cable.
6.Operation Instructions
Temperature Settings
a) Switch on the appliance (or switch off) and select
· Temperature regulator (thermostat)
·(Temperature regulator is used to power on/off the
refrigerator, and select temperature settings.)
b).Startup
Turn the temperature regulator clockwise to start up the
appliance. (Do not try to turn the dial past the restricted
position, or you may break the temperature regulator).
The compressor starts to operate, until the interior
temperature reaches the required settings.
c). Setting the Temperature
In order to adjust the setting of the temperature regulator
of the freezer, use the key supplied by the manufacturer
and turn the temperature regulator clockwise or
anticlockwise to a desired setting.
3

To select a lower temperature: Turn clockwise.
To select a higher temperature: Turn anti-clockwise.
Turn temperature regulator anti-clockwise to the lowest
setting = lightest cooling;
Turn the regulator anti-clockwise to the highest setting =
freezer will power off, compressor will stop)
Turn temperature regulator anti-clockwise to the highest
setting = coldest setting;
Temperature setting should conform to the following
conditions:
· Ambient temperature;
· Quantity of food stored;
·Number of door openings;
Through observation, you will learn how to select an
appropriate temperature setting.
Appropriate temperature setting is very important for food
storage. Microbes can spoil food very quickly, unless their
growth is prevented by a low temperature environment.
It is recommended to set the temperature to 18°C or lower,
which may effectively eliminate the food spoiling process.
d) Stopping
Turn temperature regulator anti-clockwise to the lowest
setting.
The compressor should stop.
Unplug from wall outlet.
7.Freezer
3-star or 4-star freezers are suitable for storing deep-frozen
food (already frozen before put in the freezer), storing fresh
food for a short period (2-3 weeks) by freezing it, or
making ice, ice cream and water ice.
Recommended expiry dates must be observed.
The freezer can be used to produce ice cubes.
1.The temperature within the freezer can be adjusted by
setting the temperature regulator. For fresh food and
food which needs to be stored for a long period, -18°C or
below is recommended, as microbes can barely survive
under this temperature. Once the temperature reaches
higher than -10°C, microbes will activate and the storage
period will be effectively reduced. If you need to freeze
food which is already partly or totally thawed, please
cook it before adding it to the freezer again. The high
temperature of the cooking process can eliminate most
microbes.
2 The higher the temperature regulator is set, the lower
the temperature within the freezer will be.
3 Normally, when food requires only a short period of
storage, select a medium setting.
4 Normally, when food requires a long period of storage,
select a high setting.
NOTE!
· Never add canned or bottled carbon dioxide drinks to
the freezer, as carbon dioxide may expand when
freezing and lead to an explosion hazard.
· Bottled food, which needs immediate cooling, should
be stored in the freezer for no more than one hour
before being taken out, otherwise the bottles may burst.
·Ice cream or water ice should be allowed several
minutes to thaw before eating, as lips and tongue may
get frostbite. Meanwhile, avoid touching inner walls of
freezer with wet hands.
IMPORTANT!
· Food to be added to freezer must be well wrapped.
·Observe expiry dates of frozen food.
·Only high quality fresh food is suitable for freezing
storage.
·Food stored in the freezer should be properly sized.
·The weight of a single package of frozen food should
not exceed 2 kg.
·Please use reusable plastic or aluminum film for packing
food, or put food in containers.
·Food packages should not entrap too much air inside.
·Use clips or freezing-resistant tape for sealing of food
packages.
·Place the larger side of the food package downward
for a faster freezing process.
·Wipe the packages dry before adding them to the
freezer, as they may stick together when frozen.
·If you need to freeze food which is already partly or
totally thawed, please cook before adding it to the
freezer again.
·Don’t use food which has already expired, as it may
cause food poisoning.
4

8.Making Ice cubes, Ice cream and
Water ice
Making Ice Cubes:
· Add water to ice tray to 3/4 of its volume, place it at the
bottom area of the freezer. When the ice cubes are
ready, hold the ice tray under a running tap, then the ice
cubes can be easily removed.
Making Ice cream:
·Remove the separators of the ice tray. Please note that
the creamier your ice cream is, the longer it will take to
make it. When ice cream is ready, allow to thaw for a
few minutes before use.
9.Preparing for Vacation
For long vacation or period of non-use, unplug the
appliance and clean it as described in “ Cleaning and
Maintenance”. Leave the doors open to prevent formation
of mildew or odours.
10. Cleaning and Maintenance
Unplug or disconnect the appliance before cleaning.
Keep the exterior clean. Use furniture polish to clean the
outside regularly (do not use for the interior!). Wipe the
door gasket with a cloth lightly dampened with lukewarm
water. Do not use detergent. Never use oil or grease to
clean the door gasket.
Clean the inside regularly!
·We recommend that you clean the freezer on a monthly
basis.
·Remove food from the freezer and keep these foods in a
cool place.
·Remove all detachable parts.
·Interior parts are not suitable to be washed in a
dishwasher. Wash them manually using lukewarm water
and a gentle detergent. Do not use concentrated
detergent, abrasive agents and chemicals such as
acids. Mild washing up liquid is recommended.
Steam cleaners are dangerous and strictly prohibited.
Wash the inner compartment with lukewarm clean water
and dry with a soft cloth. It is absolutely dry after waiting
for 3-4 minutes. Ensure water does not get into electric
parts in the appliance.
If a condenser is mounted on the back of refrigerator, dust
and lint should be removed regularly to enable efficient
heat dissipation and avoid excessive power consumption.
Use a soft brush or a duster to clean the outside of heat
exchanger.
The defrost water drains away through the drain hole. This
should be cleaned regularly using a cotton bud or similar.
Ensure water doesn’t run down the drain hole during
cleaning, otherwise water may spill or splash on the
ground due to evaporation.
11. Defrosting
The freezer should be defrosted regularly. Defrost the
freezer whenever the thickness of ice layer reaches 5cm.
Unplug the appliance before defrosting. Remove food from
the freezer and keep these foods in a cool place. Use an
ice scraper to remove the ice. To speed up the process,
place a bowl of hot water in the bottom of the cabinet.
Clean the appliance and plug back into the wall socket.
POTENTIAL SAFETY HAZARD!
Do not use electricdevices such as hair dryers,
electrical fans,steam cleaners, defrost spraysor
naked flames (eg. candle) to defrost the freezer. The
plastic parts of the interior may melt andanyspark or
naked flame may cause fire in presence ofexplosive
gas. Never use a steam cleaner to defrost the freezer
– danger of electric shock!)
Caution!
Remove the drawers and wrap up frozen food with
newspaper or a blanket.
·Keep the food in a cool place while the defrosting
process is taking place.
·Keep the door of the freezer open.
5

· Ice and frost form on the surface of the evaporator
during operation. A thick layer of ice or frost acts as heat
insulation and hinders thermal conducting.
·Defrost the freezer as quickly as possible, to avoid
thawing of the frozen food.
·Do not remove the ice or frost in the freezer with a sharp
or pointed item, otherwise the evaporator surface may
become damaged.
·Wipe off defrost water with a sponge.
·Place a container of hot water (do not use boiling water)
near the door of the freezer to speed up the defrosting
process.
·Dry the freezer interior and replace the frozen food.
· Reconnect the appliance after defrosting.
· Start up the appliance by adjusting the temperature
control knob.
·Close the door of the freezer.
12. Problem Diagnosis
The latest manufacturing techniques and state-of-the-art
freezing technology have been used to ensure safe and
reliable operation of your appliance. In case of problems,
please check first,as described below, before making
a service call:
Things to be noted:
The compressor does not operate continuously, but
cycles on and off as required.
The compressor is controlled by the automatic
temperature regulator represented by a temperature dial.
When the interior temperature exceeds the pre-set
temperature, the compressor starts automatically and
when the interior temperature falls below the pre-set
temperature, the compressor stops automatically.
It is normal that the compressor makes a noise during
operation. The noise comes from the motor. The flow of
refrigerant through the refrigerating system may make a
gurgling noise. These noises do not mean that there is a
fault with the appliance.
The exterior surface may be wet when cold and the
ambient temperature is low. This is normal and the
exterior surface will become dry as the ambient
temperature rises.
If the reasons of such phenomena cannot be identified
and resolved, please consult the service centre.
13. Troubleshooting
a) Problem: Freezer does not operate (doesnot
work)
Please check:
· Is the power cable in good condition? Is the appliance
properly plugged into the wall socket?
· Is there a power cut? (Use a small appliance to check ,
eg. hair dryer)
·Has the freezer started up? (The temperature dial
should not be set at “0”.)
·Has the fuse blown?
b) Problem: The inner compartment is not cool
enough; the compressor cycles on and off
frequently;
Please check:
· The freezer should stand for at least 2 hours after
installation to stabilise the refrigerant circulation
system. See “Start-up”. If it still does not work, unplug
the appliance and tilt it to one side for a while or place it
on an angle, then replace it in its original position.
Connect the appliance after 2 hours. Keep the door
closed for 12 hours.
·Is the door properly closed? If so, the door gasket
should press on the external cabinet securely and
evenly.
Test: It should bedifficult to pull out a piece of paper
placed between the door gasket and the external
cabinet. If the paper slips away easily, consult the
service centre.
· If there is thick ice in the freezer. (See “Cleaning and
Maintenance”)
·Is the appliance exposed to direct sunshine or near a
heat source (oven, radiator, etc.)?
What to do: Do not expose the appliance to direct
sunshine; keep it away from any heat source;
install a thermal barrier between the
appliance and the heat source (see “Location”).
· Is the inner compartment overloaded?
· Is the room well ventilated? Is the air vent obstructed?
Is the heat exchanger (condenser) on the back covered
by dust?
c) The temperature of the freezer is too low
Please check:
· Is the temperature regulator properly set?
· Is the door of the freezer properly closed?
·Is there a lot of fresh food (more than 1kg) in the
freezer? (If the freezer operates for long periods, the
temperature of the freezer falls accordingly.)
d) The freezer is too warm / frozen food is thawed
· the ambient temperature too low? (If so, the appliance
will malfunction, resulting in higher temperatures in the
freezer.)
What to do: Raise the ambient temperature.
6

e) There is thick ice in the freezer. Please check:
· Is the door of freezer properly closed?
· If some food becomes frozen to the inner walls, try to
remove it with a blunt instrument such as a spoon
handle.
· Defrost and clean the freezer compartment (see
“Defrosting”). A thick ice layer will impede freezing
performance and increase power consumption.
f) Unusual noise
Please check:
· Is the appliance solidly positioned? Is the freezer in
contact with other furniture or items? Is there anything
stuck between the back of the appliance and the wall?
· Move any items in contact with the refrigerator out of
the way and keep an adequate space between the
appliance and the surroundings.
·Are movable parts securely retained in place?
· Are bottles or containers in the interior in contact with
each other?
Note!
It is normal that there is noise of refrigerant flowing
through the refrigerating system.
It is normal that moisture forms around the door
handle in summer. Dry with a soft cloth.
The appliance is not user-serviceable, therefore do not
attempt to intervene with the normal operation of the
appliance.
14. During a Power Cut
There is no need to remove the frozen foodfrom the freeze
if the power cut lasts no more than 2 hours. Otherwise,
remove the food after 2 hours.
15. Making A Service Call
Servicing and repair should be conducted by authoried
professional personnel. The manufacturer is not
responsible for the risk of damages or injuries due to failure
to comply with this provision and the warranty will then be
voided. The warranty indicatesthe authorised after-sales
service provider for your appliance. Please consult your
retailer if the there is no service centre in your area. For
faults or problems caused due to improper use or breach of
the instructions contained herein, the costs and expenses
incurred in servicing and repair will be born by the user and
the retailer takes no responsibility for such costs and
expenses. In order to receive prompt assistance, the
following information is required:
·Type and Model of Appliance (see rating plate)
·Date of Purchase.
·Name and Address of the Retailer.
·Description of Fault / Problem.
16. Installation in Kitchen
If you want to place the appliance in the kitchen, you
should contact a professional installer.
DO NOT do it yourself.
17. Warranty
The terms and conditions as well as the period of warranty
are indicated in the Letter of Warranty enclosed hereto.
The dealer will brief you of the same upon purchase.
The manufacturer reserves the right to improve the
design, construction and technology from time to time
without further notice.
18. Illustration of Parts
1 Thermostat
2 Drawer
3 Lower hinge Levelling Leg
7
12
3
45
OFF
S S
Fast Freezing Function
Fast Freezing Function Button
1. When fast freezing is required, turn on the fast freezing function button
(yellow light is on). After 24 hours, the function will be switched off
automatically.
2. During fast freezing, press and hold the fast freezing button for 3 seconds,
then the function will be manually switched off immediately.

Installation and Ventilation
This appliance must never be installed close to heat sources i.e.
heating elements, cookers or in damp places
The diagram shows the ventilation requirements for your product.
Failure to provide adequate ventilation can lead to increased running
costs and
premature failure and may invalidate the warranty provided with the
product.
fig. 2
1770
45
57
545
540
1770-
1788
min. 30
560-570
550 min
= airow

Ventilation
The main consideration when installing any refrigeration unit into
a fitted kitchen is ventilation. The heat removed from the cooling
compartment needs to be dissipated into the atmosphere. Incorrect
ventilation can lead to premature compressor failure, excessive power
consumption and total system failure. For products intended to be
installed into a tall housing unit, the following requirements need to be
met: -
Important
Please follow the instructions to install this unit
300
300
plan view of cut out and ventilation gaps
The top of the cabinet needs to be
vented into the room
Recommended size of vent opening:
500 x 35mm
If the furniture does not allow free air
into the room then a plinth vent, or other
means of ventilation needs to be pro-
vided to ensure a natural flow of air
There should be space at the rear of the
cabinet to allow cool air to be drawn over
the condenser.
Recommended:
500 x 35mm
An air intake
should be
provided
somewhere in
the cabinet run to
allow free air in.
In this example,
a plinth vent is
shown underneath
the refrigerator .
A thin section of
the plinth can be
removed to allow
air into the unit
(recommended
600mm x 10mm)
Refrigerator
outline
Min 30mm
A hole should be cut in the supporting
shelf, as shown below
fig. 3

The open channel at the rear is clearly shown. For the correct
operation of the appliance it is important that the top of the housing
unit is not blocked o. A channel depth of 40-50mm is normal with
most units.
A hole is shown in the base shelf of the unit; this allows air to be
drawn over the compressor & heat exchange. Some installers fit a
decorative plinth vent. In most cases this is not required, but is a
welcome aesthetic addition.
As a rule, the more air can get in, the better and more ecient the
operation of the product.

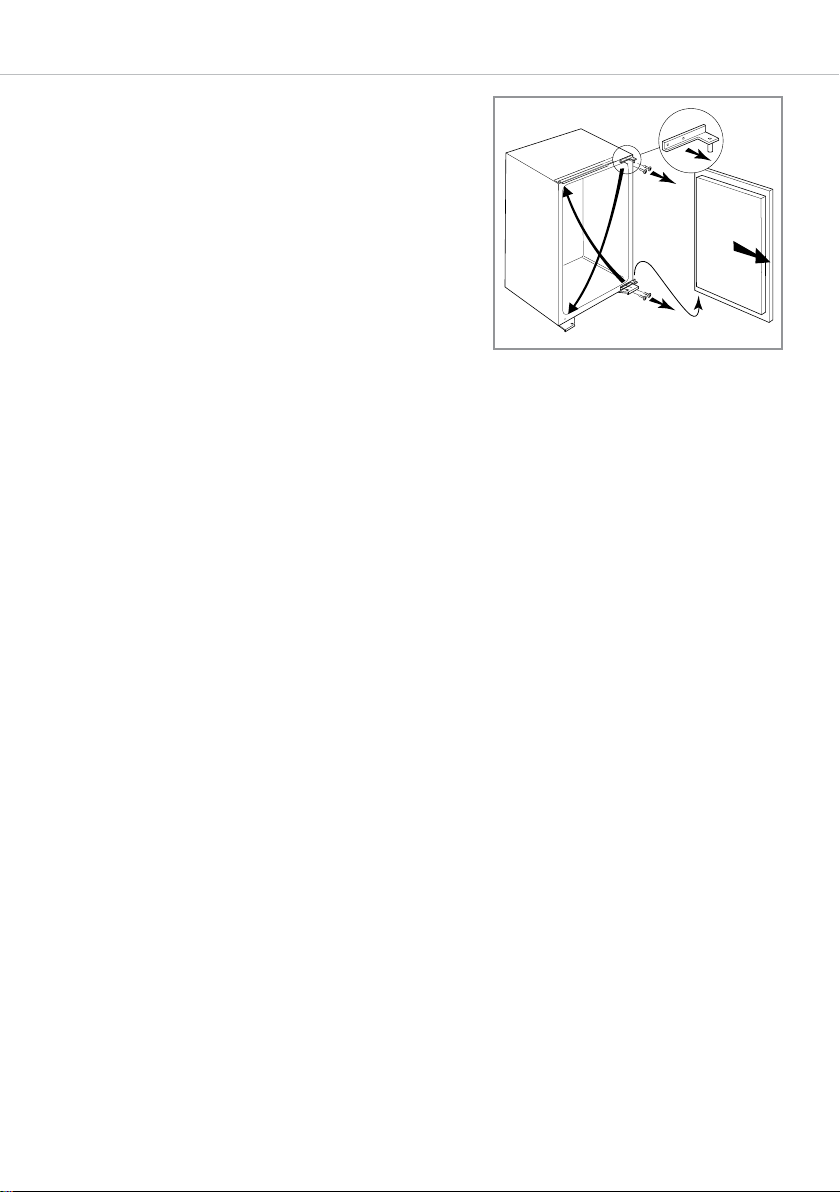

Reversing the Door
It is possible to reverse the door on
this appliance, if required. To do so,
follow the steps below:
1. Loosen the top hinge fixing screws
and remove the top hinge, taking
care to support the weight of the
door.
2. Lift the door from the bottom hinge
and place on a soft surface to
protect the door from damage.
3. Refit the hinge taken from the top
to the opposite lower corner, as in
figure 4.
4. Replace the door and refit the
hinge taken from the lower corner
to the opposite top corner.
5. Adjust the hinges to ensure the
door is aligned correctly.
fig. 4

Mounting the Fascia
Door
• Using a screwdriver, fix the mounting
brackets to the appliance door, as
shown in figure 5.
• Position the appliance within the unit.
Ensure that there is a gap of 3
to 4 mm between the non-hinged
side and the cabinet wall.
• Locate the slider in the bracket and fix
the slider to the fascia
door 20 to 22 mm from the edge of
the fascia as shown in figure 6,
ensuring that the slider is positioned
centrally and horizontally
within the bracket. Tighten securely
by hand.
• Fill the gap on the non-hinged side
with the seal strip provided, as
shown in figure 7.
fig. 5
fig. 6
fig. 7
20 mm
door gasket
x4
x4

Manufacturer’s Declaration
The manufacturer hereby declares that this product meets the re-quirements of the following European directives:
·Low Voltage Directive 2014/35/EC
·Electromagnetic Compatibility (EMC) Directive 2014/30/EC
·ErP Directive 2009/125/EC
·Directive RoHS 2011/65/EC
and has thus been marked with the symbol and been issued with the CE symbol and been issued with
a declaration of compliance made available to market regulators.
Simple but stylish home appliances
