Cooper safety Ceag AT-S+ Series Service manual

Mounting and Operating Instructions
Automatic Test System AT-S+
Target group, part 1: Qualified electrician acc. to DIN VDE 0105, part1
Target group. part 2: Electrical instucted persons

CEAG Notlichtsysteme GmbH2
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
1. General Information
1.1 Description of Symbols . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Information regarding these Instructions. . . . . . . . . . . . . . . . . . . 5
1.3 Further Applicable Documents . . . . . . . . . . . . . . . . . . . . . 5
1.4 Liability and Guarantee . . . . . . . . . . . . . . . . . . . . . . . 5
1.5 Copyright Protection . . . . . . . . . . . . . . . . . . . . . . . . 6
1.6 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.7 Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. Safety
2.1 Inteded Use . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Contents of Operating Instructions . . . . . . . . . . . . . . . . . . . . 7
2.3 Changes and Modifications to the System . . . . . . . . . . . . . . . . . . 7
2.4 Responsibility of the Operator . . . . . . . . . . . . . . . . . . . . . 7
2.5 Personnel Requirements . . . . . . . . . . . . . . . . . . . . . . . 7
2.6 Operational Safety . . . . . . . . . . . . . . . . . . . . . . . . 7
2.7 Personal Protective Equipment . . . . . . . . . . . . . . . . . . . . . 7
3. Technical Data

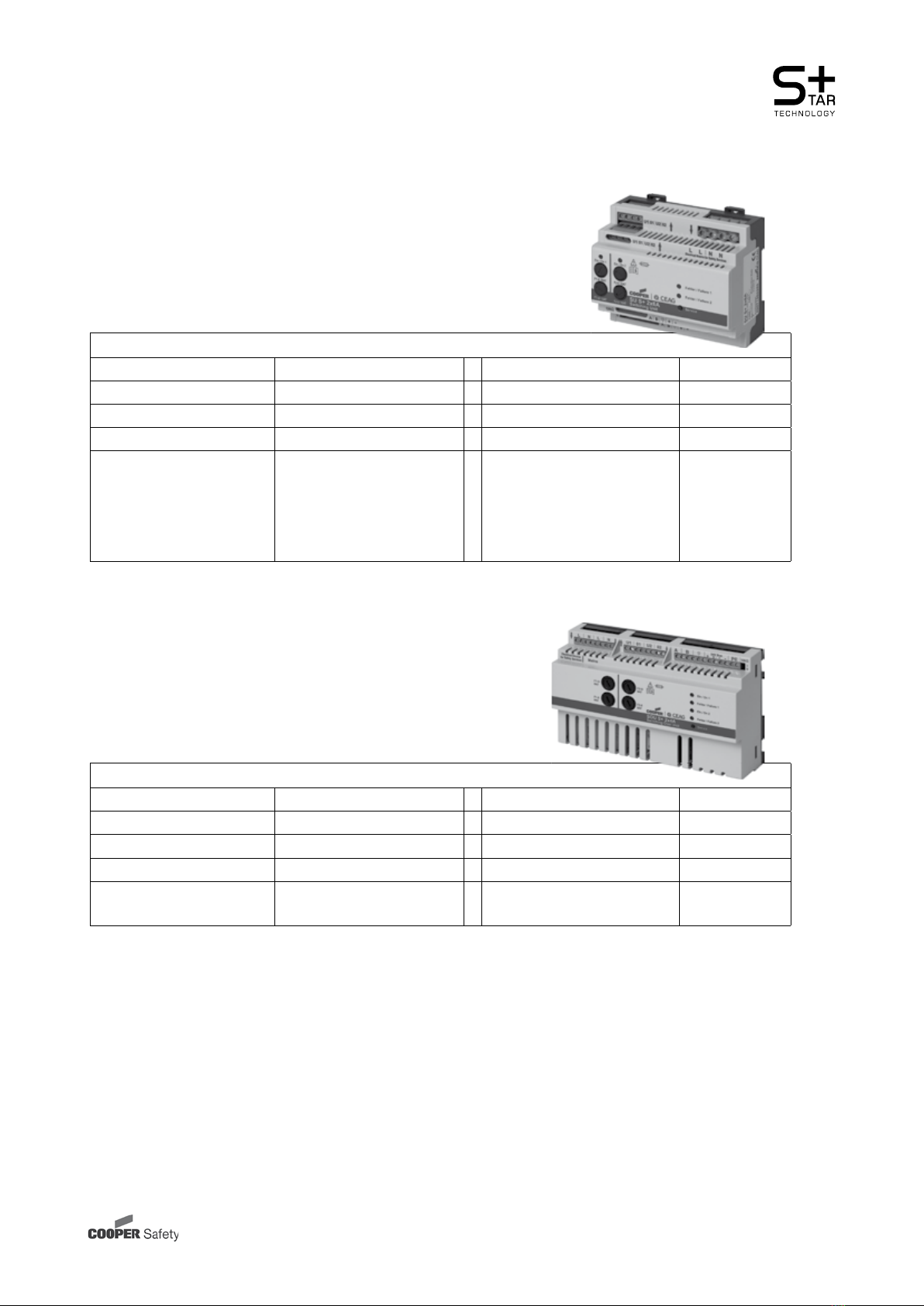

3.1 Data Sheet for AT-S+C30. . . . . . . . . . . . . . . . . . . . . . . 8
3.2 Data Sheet for AT-S+C16. . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Data Sheet for AT-S+C4 . . . . . . . . . . . . . . . . . . . . . . . 10
3.4 Data Sheet for AT-S+C0 . . . . . . . . . . . . . . . . . . . . . . . 11

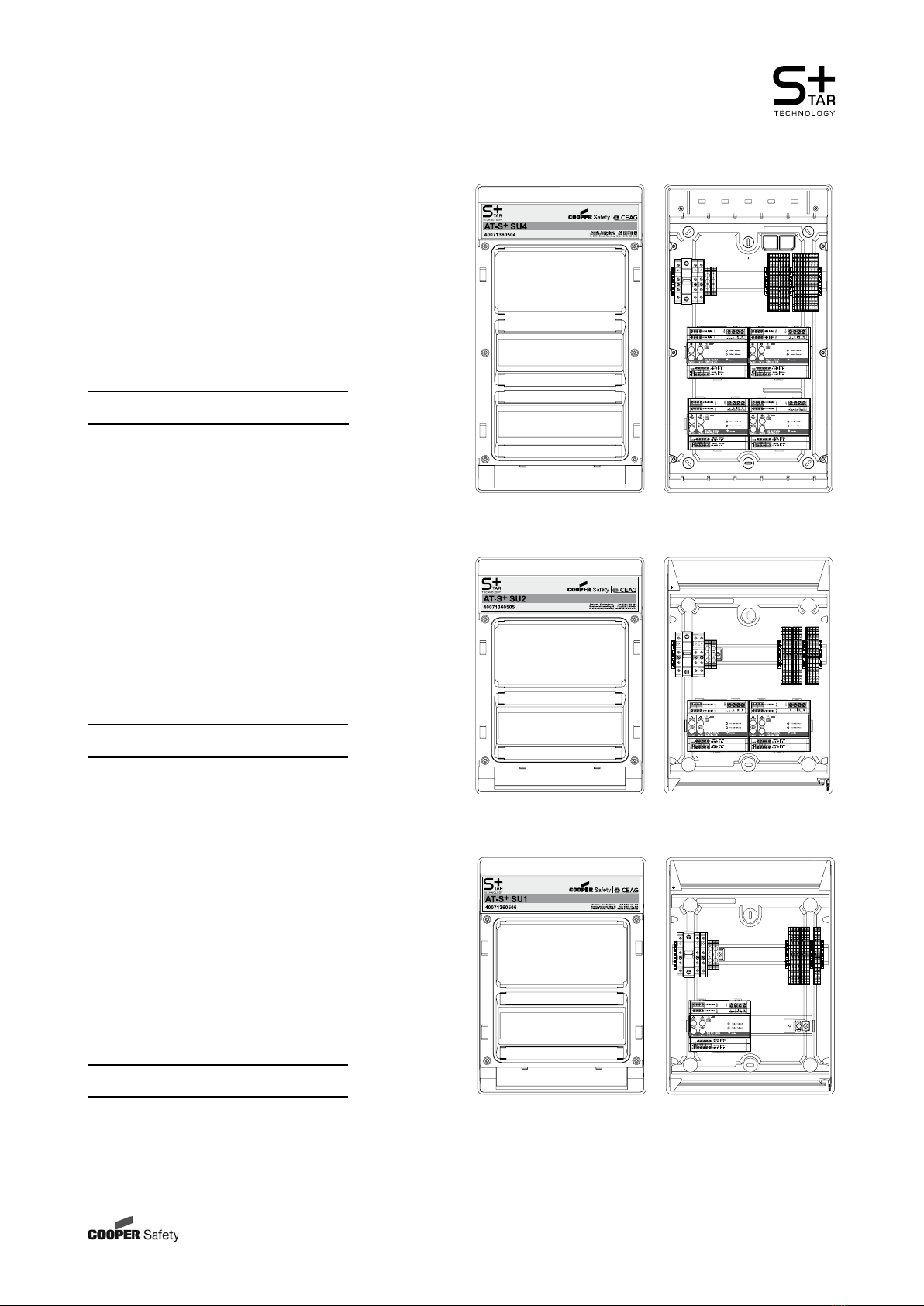

3.5 Data Sheet for AT-S+SU4 . . . . . . . . . . . . . . . . . . . . . . 12
3.6 Data Sheet for AT-S+SU2 . . . . . . . . . . . . . . . . . . . . . . 12
3.7 Data Sheet for AT-S+ SU1. . . . . . . . . . . . . . . . . . . . . . . 12
3.8 Data Sheet for AT-S+SOU2 . . . . . . . . . . . . . . . . . . . . . . 13
3.9 Data Sheet for AT-S+ SOU1 . . . . . . . . . . . . . . . . . . . . . . 13
4. Construction and Function

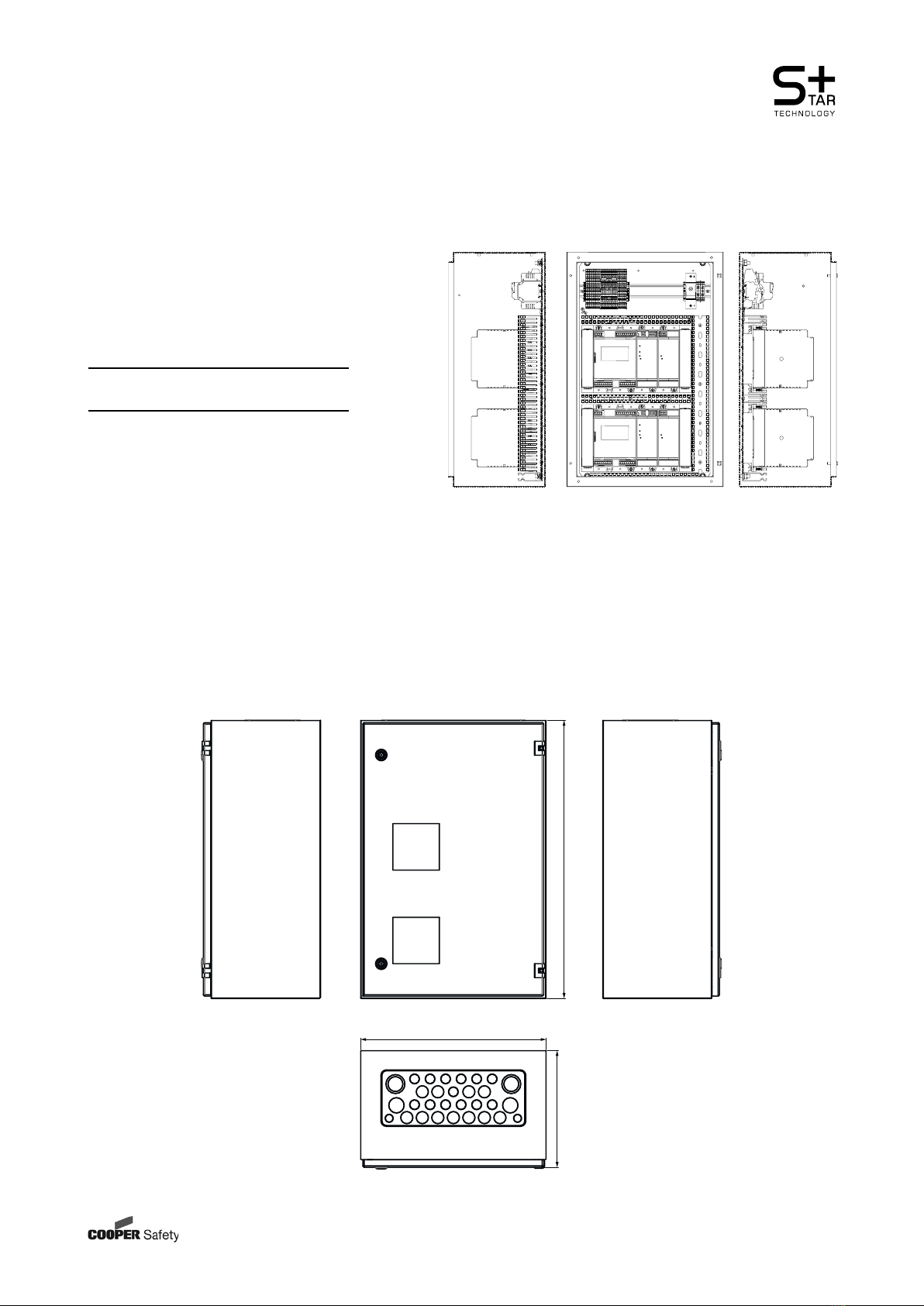

4.1 Example of Control Cabinet-Construction (AT-S+C30) . . . . . . . . . . . . . . . 14
4.2 Product Description . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3 Operation Modes. . . . . . . . . . . . . . . . . . . . . . . . . 15
4.4 Overview over the Components . . . . . . . . . . . . . . . . . . . . . 16
4.4.1 Control Module CU-S+. . . . . . . . . . . . . . . . . . . . . . . 16
4.4.2 DC/DC Converter.2 . . . . . . . . . . . . . . . . . . . . . . . . 19
4.4.2.1 AC-Module . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.4.3 Circuit change-over modules overview (SU/SOU) . . . . . . . . . . . . . . . . 19
4.4.4 F3 remote indication . . . . . . . . . . . . . . . . . . . . . . . . 23
4.4.5 External TLS-bus-module . . . . . . . . . . . . . . . . . . . . . . 24
4.4.6 External DLS/3Ph-bus-module and ext. DLS/3Ph-bus-module inverse . . . . . . . . . . . 25
4.4.7 Bus-Technology according to RS 485 or CG-S-Bus . . . . . . . . . . . . . . . . 27
4.5 Label of AT-S+. . . . . . . . . . . . . . . . . . . . . . . . . 28
4.6 Example of Installation . . . . . . . . . . . . . . . . . . . . . . . 30
PART 1
Index

CEAG Notlichtsysteme GmbH3
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
5. Transport, Packaging and Storage
5.1 Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.2 Transport inspection . . . . . . . . . . . . . . . . . . . . . . . . 32
5.3 Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.4 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6. Installation
6.1 Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6.2 Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6.3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 36
6.4 Connection to mains . . . . . . . . . . . . . . . . . . . . . . . . 36
6.4.1 Connection to mains supply of a AT-S+station . . . . . . . . . . . . . . . . . 36
6.4.2 Connection to mains of substations AT-S+ S . . . . . . . . . . . . . . . . . . 37
6.5 Connection and installation of internal modules . . . . . . . . . . . . . . . . . 37
6.6 Connection and installation of external SU S+ modules . . . . . . . . . . . . . . . 38
6.6.1 DLS/3Ph-Bus-Module . . . . . . . . . . . . . . . . . . . . . . . 38
6.6.2 TLS-Bus-Module . . . . . . . . . . . . . . . . . . . . . . . . . 39
6.6.3 CEAG 3-phase monitors with 24V current loop . . . . . . . . . . . . . . . . . 39
6.6.4 Completing Assembly . . . . . . . . . . . . . . . . . . . . . . . 40
7. Commissioning and other work
7.1 Checking all connections. . . . . . . . . . . . . . . . . . . . . . . 41
7.2 Voltage measurements . . . . . . . . . . . . . . . . . . . . . . . 41
7.3 Insulation Testing . . . . . . . . . . . . . . . . . . . . . . . . . 41
7.4 Checking / replacing of fuses . . . . . . . . . . . . . . . . . . . . . 42
7.4.1 Checking the fuses of the mains supply . . . . . . . . . . . . . . . . . . . 42
7.4.2 Checking the fuses on the module SU S+. . . . . . . . . . . . . . . . . . 42
7.5 Checking and replacing internal modules . . . . . . . . . . . . . . . . . . 43
7.6 Checking and replacing external modules . . . . . . . . . . . . . . . . . . 43
7.7 Powering up the system . . . . . . . . . . . . . . . . . . . . . . . 43
8. Operating
8.1 Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . 44
8.2 General information about operating. . . . . . . . . . . . . . . . . . . . 44
8.3 Controls and displays on the modules . . . . . . . . . . . . . . . . . . . 45
8.3.1 Control module CU-S+. . . . . . . . . . . . . . . . . . . . . . . 45
8.3.2 DC/DC Converter. . . . . . . . . . . . . . . . . . . . . . . . . 45
8.3.3 SU-S+of the final circuits. . . . . . . . . . . . . . . . . . . . . . . 45
8.4 Operating the CU S+control module . . . . . . . . . . . . . . . . . . . . 46
8.4.1 Menu 1: “Test & Status Menu” . . . . . . . . . . . . . . . . . . . . . 50
8.4.2 Menu 2: “Block, reset” . . . . . . . . . . . . . . . . . . . . . . . 52
8.4.3 Menu 3: “Basic settings” . . . . . . . . . . . . . . . . . . . . . . . 53
8.4.4 Menu 4: “DLS/TLS setup” . . . . . . . . . . . . . . . . . . . . . . 59
8.4.5 Menu 5: “Circuit setup” . . . . . . . . . . . . . . . . . . . . . . . 60
8.4.6 Menu 6 “Luminaire setup” . . . . . . . . . . . . . . . . . . . . . . 62
8.4.7 Menu 7 “Logbooksetup” . . . . . . . . . . . . . . . . . . . . . . . 64
Index
PART 2

CEAG Notlichtsysteme GmbH4
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
9. Failures
9.1 Interference immunity by screening . . . . . . . . . . . . . . . . . . . . 65
9.1.1 Cable screens . . . . . . . . . . . . . . . . . . . . . . . . . 65
9.1.2 Screen connection . . . . . . . . . . . . . . . . . . . . . . . . 66
9.1.3 The fail-safe system . . . . . . . . . . . . . . . . . . . . . . . . 66
10. Maintenance / Checking
10.1 Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . 67
10.2 General information to maintenance / checking . . . . . . . . . . . . . . . . . 67
10.3 Enabling of end circuits with maintenance work . . . . . . . . . . . . . . . . . 68
Index
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . from 69

CEAG Notlichtsysteme GmbH5
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
Important Notes
1. General Information
1.1 Description of Symbols
Important safety notes are marked with symbols in these instructions. These stated notes have to be observed
essentially.
WARNING! DANGER! RISK OF INJURY OR DEATH!
Signifies notes which, when not observed, can cause impairment of health, (steady) injury or death.
ATTENTION! DAMAGE TO PROPERTY!
Signifies notes which, when not observed, can cause damage to property and even the collapse of the
system.
NOTE!
Includes important hints and advice that is important for failure-free operation.
1.2 Information regarding these Instructions
These operating instructions show the safe and proper handling with the system. The stated safety no-
tes and instructions as well as the local accident prevention- and safety regulations have to be observed.
Before working with the system, the instructions have to be read carefully, especially the chapter „Safety Instruc-
tions“.
The figures and circuit diagrams contained in these assembly and operating instructions are in part intended only
to illustrate the products which are described. In all cases where
rdimensionally accurate work is required, or
raccurate drawings or circuit diagrams that reflect the specifics of the site are required,
the drawings and plans that have been created specially for the lighting system must be followed.
1.3 Further Applicable Documents
In the systems, components from other manufacturers are mounted. These purchasing-components are checked
according to danger evaluation by the manufacturer. They declare the compliance of the construction with the
European and national regulations.
1.4 Liability and Guarantee
All information and notes in these instructions are compiled according to the valid regulations, the state of the art,
our long-standing knowledge and experience.
Keep the instructions near to the system, accessible for every person working with the system and at all times.
Read the instructions carefully before working on and with the system!
CEAG Notlichtsysteme GmbH can accept no liability and/or give no warranty in respect of any defects that may
occur with the supply and intallation of CEAG emergency lighting systems and luminaires on the basis of other stan-
dards and regulations which are mandatory in complete installation packages in conjunction with CEAG products.
You must also comply with all statutes, standards and directives of the country in which the system is installed
and operated.
CEAG will give no warranty or accept any liability for damage or consequential damage caused as a result of
rimproper use,
rfailure to comply with regulations and codes of conduct for the safe operation of the system,
runauthorised or inexpert modifications to the connections and settings of the system, or to the programming
of the system,
roperating proscribed or unsuitable devices or groups of devices in the AT-S+system.

CEAG Notlichtsysteme GmbH6
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
Important Notes
1.5 Copyright Protection
All information from the contents, text, drawings, pictures and further representations are protected with regards
to copyright.
1.6 Spare Parts
Only use original spare parts from the manufacturer
ATTENTION!
Wrong or faulty spare parts can cause damage, failure or collapse of the system.
When using unapproved spare parts, all guarantee, service, damage and liability claims are forfeited.
1.7 Recycling
Packing materials are not refuse, they are valuable materials and should be re-used or recycled.
CEAG has been awarded the Recycling Certificate of INTERSEROH GmbH. The contract number
is 85405. It guarantees that the packaging materials which it covers are properly recycled and that
all the requirements of the German Packaging Code are complied with.
INTERSEROH collection points are required to dispose of CEAG packaging free of charge.
Electronic components contain materials that can damage health and the environment if not properly disposed of.
Dispose of electronic components in accordance with national guidelines and regulations.
2. Safety
The automatic test system is designed and built in conformity with the latest technical rules at the time of its deve-
lopment and production, so it is safe to operate. Danger maybe presented by the device, if it will be used for other
than the intended purpose and by unskilled personnel.
WARNING!
When planning a lighting system with a AT-S+system you first establish wether the proposed electrical
installations satisfy local environmental conditions.
Special environmental conditions (e. g. areas subject to explosion hazards or areas with an aggressive
atmosphere) call for special equipments and installations.
Only operate the system and parts connected to it when they are in a technically perfect condition, and comply
with
rthe safety and hazard information given in these assembly and operating instructions,
rthe work and safety instructions issued by the operator of the system,
rthe installation and operating data given in „3 Technical data“ and in the CEAG Catalogue.
Faults that can affect the operation or safety of the system must be reported immediately to the company officers
and remediated.
2.1 Inteded Use
The automatic test systems AT-S+systems are exclusively designed to monitor and control a lighting system with
general and emergency lighting.
Their operation is program controlled. They must be programmed and set up by engineers with specialist know-
ledge of the legal and technical requirements governing the assembly and operation of lighting systems.
The operating safety can only be guaranteed by intended use of the systems.
ATTENTION!
Every use beyond or different than the intended purpose is prohibited, and therefore not in accordance with
regulations!

CEAG Notlichtsysteme GmbH7
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
Important Notes
2.2 Contents of Operating Instructions
Every person, ordered to work with the system, has to read the instructions carefully to understand them before
work begins. This takes also place when the person has already worked with a similar kind of system or was in-
structed by the manufacturer.
2.3 Changes and Modifications to the System
To avoid danger and to assure optimum performance, changes and modifications to the system are not allowed,
except when the manufacturer has approved them.
Any work involved in extensions, conversions or repairs and which is not described in this manual must be carried
out by specially trained technical and service personnel (of the manufacturer CEAG or of CEAG-authorised distri-
bution and service contractors)!
2.4 Responsibility of the Operator
Keep the instructions near to the system, accessible for every person working with the system and at all times.
The System must be in a proper and safe condition when using it. System has to be checked for intactness before
using it.
Adhere to the information of the instructions completely!
2.5 Personnel Requirements
Only authorised and skilled personnel are allowed to work on and with the system. The personnel must have re-
ceived instructions regarding the existing danger.
Skilled personnel refers to those with expert training, with knowledge and experience as well as knowledge of the
relevant regulations. He should be able to evaluate his work and recognize the presence of danger.
Personnel without the necessary knowledge must
rhave received qualified and proper training,
rget their tasks and activities by full description for complete understanding
rcarry out the activities under the supervision and control of skilled and qualified personnel.
2.6 Operational Safety
Observing the stated safety instructions and regulations can avoid damage to property and people when working
with the system.
However the following organisational measurements must be specified in writing and be kept:
rDuties of information and reporting (start, duration, end of the work)
rSafety measures while the work is being carried out: e. g. standby lighting, power supply isolation and lock-
out (e. g. removing the fuses, key-operated switch, safety signage)
rSafety equipment for the personnel carrying out the work on the plant (s. chapter 2.7)
rSafety equipment providing protection from hazards caused by adjacent plant (e. g. safety grilles, barriers,
making safe of roads)
Attend to the ESD-protection during working at the system!
The applicable work and safety regulations are set out in these assembly and operating instructions, and in
rthe management´s internal organisational instructions (example see above)
rand the general and specialist technical guidelines and accident prevention regulations.
2.7 Personal Protective Equipment
When working on and with the system it is necessary to wear:
rProtective Clothes
Close fitting protective clothes (low tensile strength, no wide arms,
no rings and further jewelry, etc).
rSafety Boots
Boots electrostatic conductive acc. to EN 345
and to protect against heavy falling parts.

CEAG Notlichtsysteme GmbH8
Technical Data
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
3. Technical Data

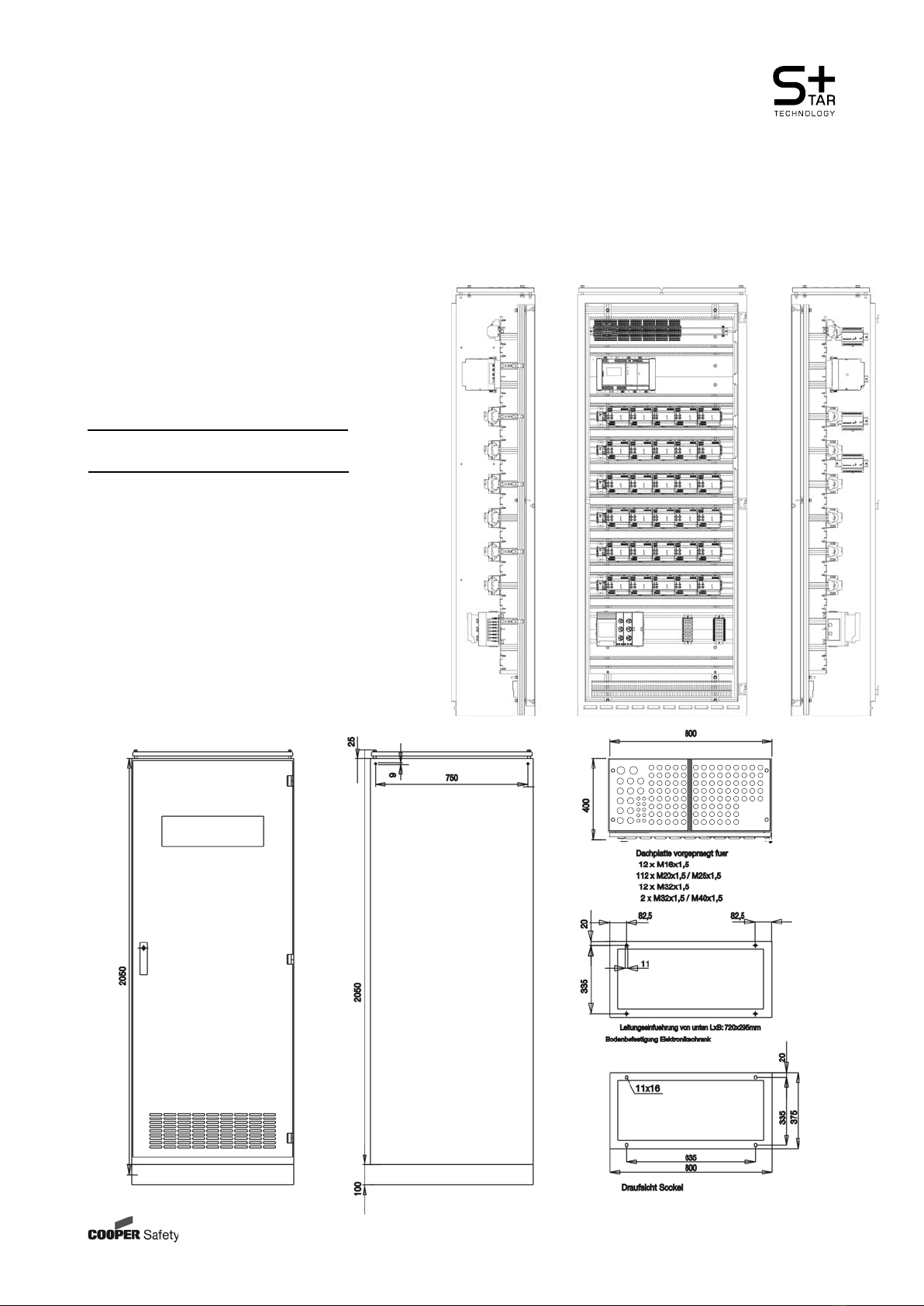

3.1 Data Sheet for AT-S+C30
Interior side view, left Interior side view, right
Type of system . . . . AT- S +C30
Construction. . . . . . Sheet steel cabinet with partial viewing window
in the door
Height . . . . . . . . . 2050 mm
Width . . . . . . . . .800 mm
Depth . . . . . . . . .400 mm
Weight . . . . . . . . . approx. 150 kg
Insulation class . . . .I
Degree of protection. . IP 21
External painting. . . . Structure powder laquer RAL 7035 light grey
Cable entry . . . . . . at the top (prepunched roof sheeting)
at the bottom (open bottom with propping
tracks on the side)
Hinge . . . . . . . . .right
Mains rated voltage . . . . . . . . . . . . . . . . . . . .400V AC, 50/60 Hz
Ambient temperature operation. . . . . . . . . . . . . . .-5°C up to +35°C
(please attend to the attachted operating and installation instructions)
Mains feed in (max. 50 mm²) . . . . . . . . . . . . . . . .Q1
Max. 60 circuits (max. 4 mm²)* . . . . . . . . . . . . . . .X1.1, X2.1, X3.1, X4.1
Marshalling mains (max. 16 mm²) . . . . . . . . . . . . . .F10 - F15
Addresses optional places DLS-3Ph, TLS (max. 2,5mm²) .customised
Connection to ext. control switch (max. 4 mm²) . . . . . .X1.1.S1-S2
Connection to 24V current loop (max. 4 mm²) . . . . . . .X1.1.S3-S4
Connection to potential-free signal contacts (max. 4 mm²) X1.1.C0 14; 12; 24; 22;
34; 32/C1 44; 54
Connection to CG-S Bus (max. 4 mm²) . . . . . . . . . . .X1.1.A-B
Connection to RS485 Bus (max. 4 mm²) . . . . . . . . . .X1.1.RS485.A-B
Connection to 24V analog output (max. 4 mm²) . . . . . .X1.1.+24V Out--24V Out
Connection to 24V analog input (max. 4 mm²) . . . . . . .X1.1.Z1.1-Z1.2/Z2.1-Z2.2/
Z3.1-Z3.2/Z4.1-Z4.2
* Max. 2.5mm² flexible with wiring sleeve.
The final circuits get wired customised.
Front view, open

CEAG Notlichtsysteme GmbH9
Technical Data
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology

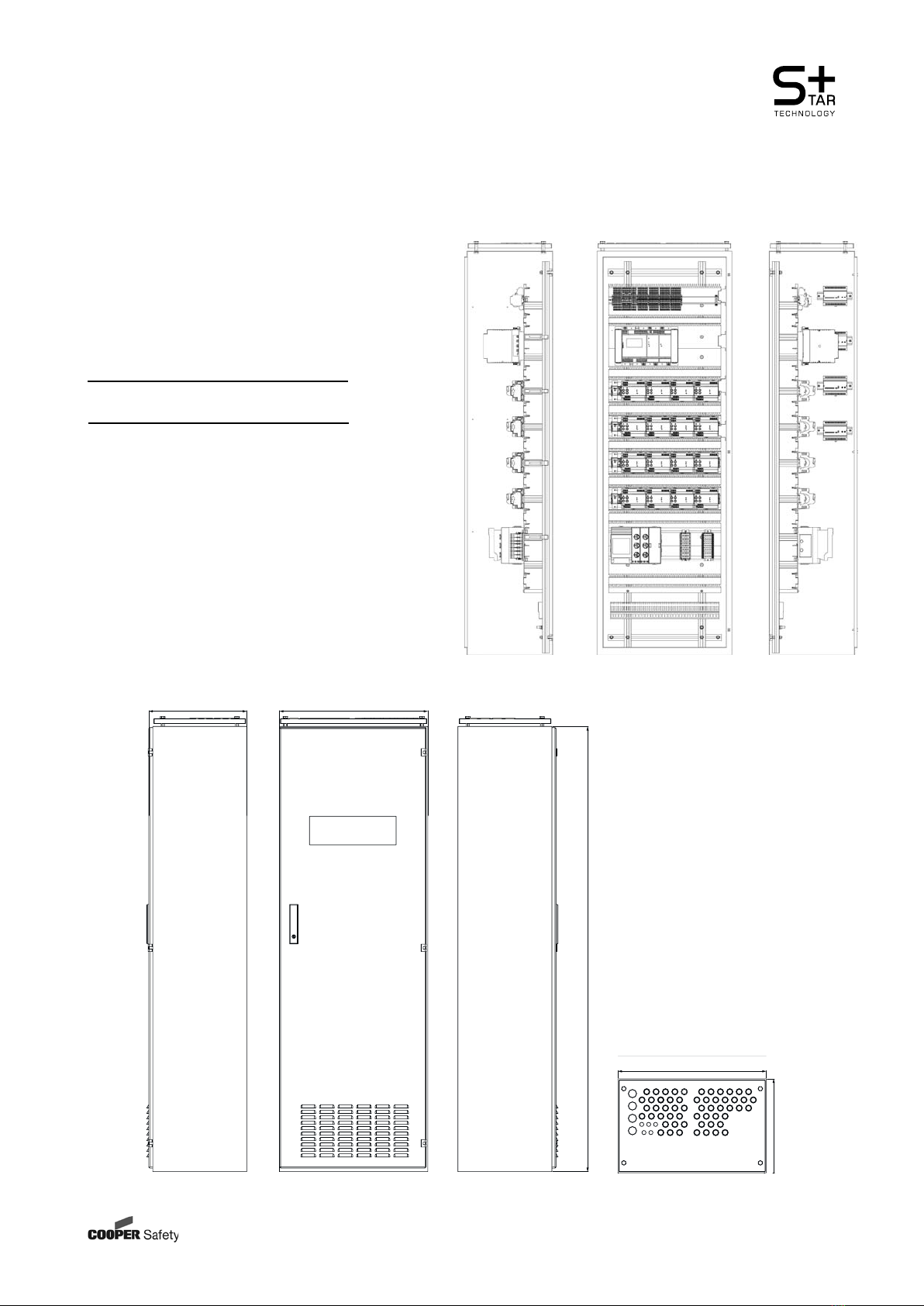

3.2 Data Sheet for AT-S+C16
Interior side view, left Interior side view, right
Type of system . . . . AT- S +C16
Construction. . . . . . Sheet steel cabinet with partial viewing window
in the door
Height . . . . . . . . . 1800 mm
Width . . . . . . . . .600 mm
Depth . . . . . . . . .400 mm
Weight . . . . . . . . . approx. 120 kg
Insulation class . . . .I
Degree of protection. . IP 21
External painting. . . . Structure powder laquer RAL 7035 light grey
Cable entry . . . . . . at the top (prepunched roof sheeting)
at the bottom (open bottom with propping
tracks on the side)
Hinge . . . . . . . . .right
Mains rated voltage . . . . . . . . . . . . . . . . . . . .400V AC, 50/60 Hz
Ambient temperature operation. . . . . . . . . . . . . . .-5°C up to +35°C
(please attend to the attachted operating and installation instructions)
Mains feed in (max. 50 mm²) . . . . . . . . . . . . . . . .Q1
Max. 60 circuits (max. 4 mm²)* . . . . . . . . . . . . . . .X1.1, X2.1, X3.1, X4.1
Marshalling mains (max. 16 mm²) . . . . . . . . . . . . . .F10 - F15
Addresses optional places DLS-3Ph, TLS (max. 2,5mm²) .customised
Connection to ext. control switch (max. 4 mm²) . . . . . .X1.1.S1-S2
Connection to 24V current loop (max. 4 mm²) . . . . . . .X1.1.S3-S4
Connection to potential-free signal contacts (max. 4 mm²) X1.1.C0 14; 12; 24; 22;
34; 32/C1 44; 54
Connection to CG-S Bus (max. 4 mm²) . . . . . . . . . . .X1.1.A-B
Connection to RS485 Bus (max. 4 mm²) . . . . . . . . . .X1.1.RS485.A-B
Connection to 24V analog output (max. 4 mm²) . . . . . .X1.1.+24V Out--24V Out
Connection to 24V analog input (max. 4 mm²) . . . . . . .X1.1.Z1.1-Z1.2/Z2.1-Z2.2/
Z3.1-Z3.2/Z4.1-Z4.2
* Max. 2.5mm² flexible with wiring sleeve.
The final circuits get wired customised.
Front view, open
600400
600
400
1800
600400
600
400
1800

CEAG Notlichtsysteme GmbH10
Technical Data
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology

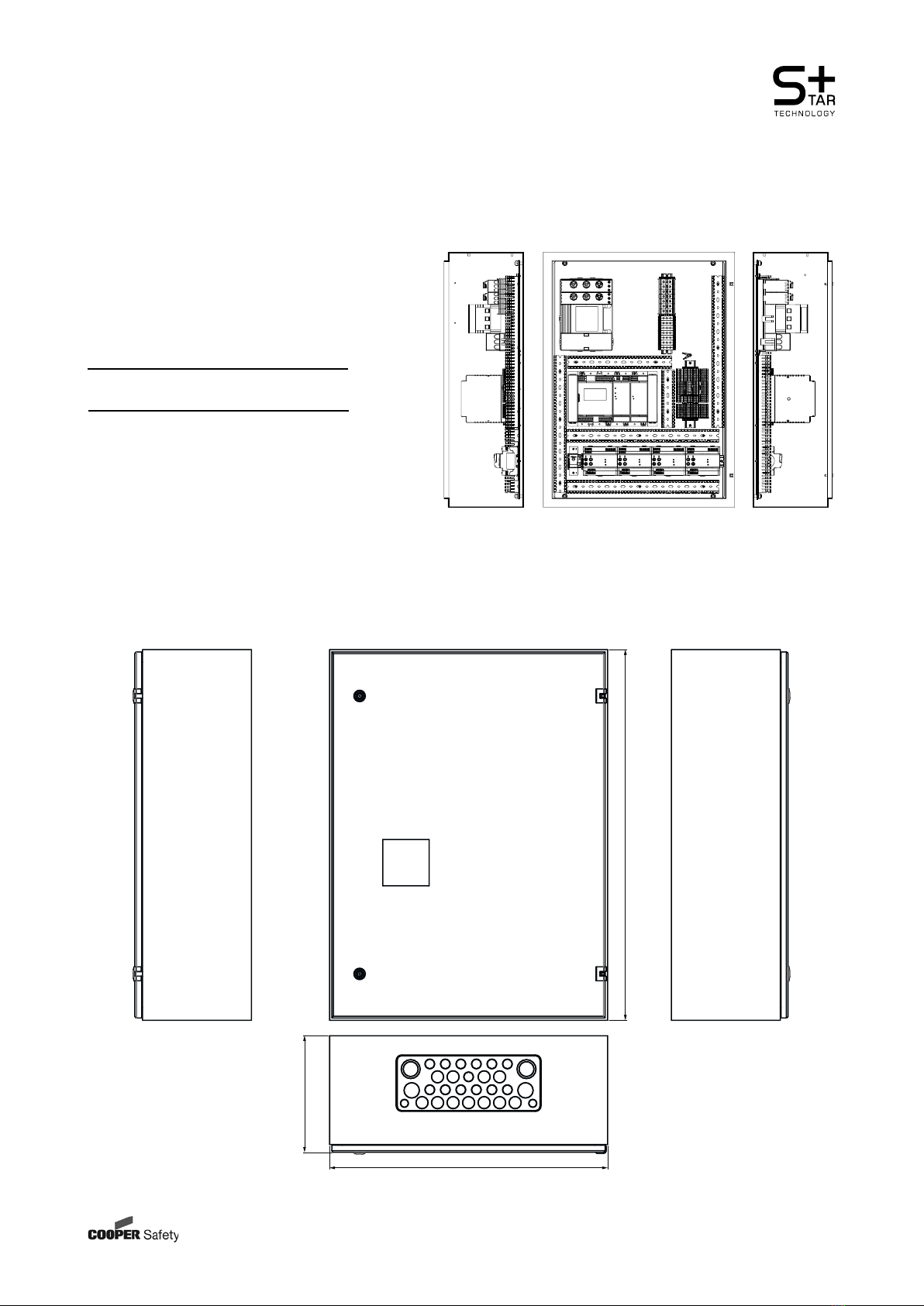

3.3 Data Sheet for AT-S+C4
250
800
600
Interior side view, left Interior side view, rightFront view, open
Type of system . . . . AT- S +C4
Construction. . . . . . Sheet steel cabinet with partial viewing window
in the door
Height . . . . . . . . . 1000 mm
Width . . . . . . . . .600 mm
Depth . . . . . . . . .400 mm
Weight . . . . . . . . . approx. 80 kg
Insulation class . . . .I
Degree of protection. . IP 21
External painting. . . . Structure powder laquer RAL 7035 light grey
Cable entry . . . . . . at the top (prepunched roof sheeting)
Hinge . . . . . . . . .right
Mains rated voltage . . . . . . . . . . . . . . . . . . . .400V AC, 50/60 Hz
Ambient temperature operation. . . . . . . . . . . . . . .-5°C up to +35°C
(please attend to the attachted operating and installation instructions)
Mains feed in (max. 50 mm²) L1, L2, L3. . . . . . . . . . .Q1, X14, X12
Max. 8 circuits (max. 4 mm²)* . . . . . . . . . . . . . . . .X2.1
Marshalling mains (max. 16 mm²) . . . . . . . . . . . . . .F10 - F15
Addresses optional places DLS-3Ph, TLS (max. 2,5mm²) .customised
Connection to ext. control switch (max. 4 mm²) . . . . . .X1.1.S1-S2
Connection to 24V current loop (max. 4 mm²) . . . . . . .X1.1.S3-S4
Connection to potential-free signal contacts (max. 4 mm²) X1.1.C0 14; 12; 24; 22;
34; 32/C1 44; 54
Connection to CG-S Bus (max. 4 mm²) . . . . . . . . . . .X1.1.A-B
Connection to RS485 Bus (max. 4 mm²) . . . . . . . . . .X1.1.RS485.A-B
Connection to 24V analog output (max. 4 mm²) . . . . . .X1.1.+24V Out--24V Out
Connection to 24V analog input (max. 4 mm²) . . . . . . .X1.1.Z1.1-Z1.2/Z2.1-Z2.2/
Z3.1-Z3.2/Z4.1-Z4.2
* Max. 2.5mm² flexible with wiring sleeve.
The final circuits get wired customised.

CEAG Notlichtsysteme GmbH11
Technical Data
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
3.4 Data Sheet for AT-S+C0
Interior side view, left Interior side view, rightFront view, open
Type of system . . . . AT- S +C0
Construction. . . . . . Sheet steel cabinet with partial viewing window
in the door
Height . . . . . . . . . 1000 mm
Width . . . . . . . . .400 mm
Depth . . . . . . . . .250 mm
Weight . . . . . . . . . approx. 38 kg
Insulation class . . . .I
Degree of protection. . IP 54
External painting. . . . Structure powder laquer RAL 7035 light grey
Cable entry . . . . . . at the top (prepunched roof sheeting)
Hinge . . . . . . . . .right
Mains rated voltage . . . . . . . . . . . . . . . . . . . . .230V AC, 50/60 Hz
Ambient temperature operation. . . . . . . . . . . . . . . .-5°C up to +35°C
(please attend to the attachted operating and installation instructions)
Mains feed in (max. 4 mm²) . . . . . . . . . . . . . . . . . .X8
Addresses optional places DLS-3Ph, (max. 2,5mm²) . . . . .customised
Connection to ext. control switch (max. 4 mm²)**. . . . . . .X1.1.S1-S2
Connection to 24V current loop (max. 4 mm²)**. . . . . . . .X1.1.S3-S4
Connection to potential-free signal contacts (max. 4 mm²)** .X1.1.C0 14; 12; 24; 22;
34; 32/C1 44; 54
Connection to CG-S Bus (max. 4 mm²)** . . . . . . . . . . .X1.1.A-B
Connection to RS485 Bus (max. 4 mm²)** . . . . . . . . . .X1.1.RS485.A-B
Connection to 24V analog output (max. 4 mm²)**. . . . . . .X1.1.+24V Out--24V Out
Connection to 24V analog input (max. 4 mm²)** . . . . . . .X1.1 Z11, Z12, Z21, Z22.
Z31, Z32, Z41, Z42
Optional:
Addresses optional places DLS-3Ph, (max. 2,5mm²) . . . . .customised
Connection to ext. control switch (max. 4 mm²)**. . . . . . .X2.1.S1-S2
Connection to 24V current loop (max. 4 mm²)**. . . . . . . .X2.1.S3-S4
Connection to potential-free signal contacts (max. 4 mm²)** .X2.1.C0 14; 12; 24; 22;
34; 32/C1 44; 54
Connection to CG-S Bus (max. 4 mm²)** . . . . . . . . . . .X2.1.A-B
Connection to RS485 Bus (max. 4 mm²)** . . . . . . . . . .X2.1.RS485.A-B
Connection to 24V analog output (max. 4 mm²)**. . . . . . .X2.1.+24V Out--24V Out
Connection to 24V analog input (max. 4 mm²)** . . . . . . .X2.1 Z11, Z12, Z21, Z22.
Z31, Z32, Z41, Z42
* Max. 2.5mm² flexible with wiring sleeve.
The final circuits get wired customised.
** Two strands to max. 0.5 mm² with twin wire end sleeve can be clamped in a
clamp spring terminal.
400
250 600

CEAG Notlichtsysteme GmbH12
Technical Data
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
3.5 Data Sheet for AT-S+SU4
3.6 Data Sheet for AT-S+SU2
3.7 Data Sheet for AT-S+ SU1
Type of system . . . . AT- S +SU4
Construction. . . . . . Surface-mounted plastic distributor
housing of thermoplastic with
transparent viewing door
Height . . . . . . . . . 583 mm
Width . . . . . . . . . 295 mm
Depth . . . . . . . . . 129 mm
Weight . . . . . . . . . approx. 8.2 kg
Insulation class* . . . . Il
Degree of protection. . IP 65
Colour . . . . . . . . . Grey (RAL 7032)
Cable entry . . . . . . from above (with integral elastic sealing
membranes for cable infeed, with cable
infeed shield)
Hinge . . . . . . . . . left
Mains rated voltage. . . . . . . . . . . . . . . 230V AC, 50 or 60 Hz
Ambient temperature operation. . . . . . . . . . -5° C up to +35° C
Mains feed in (max. 10 mm² solid) . . . . . . . . . X1.1
Max. 4 circuits (max.4 mm²)** . . . . . . . . . . . X1.4
Connection to RS485 Bus (max. 4 mm²). . . . . . . X1.1.RS485.A-B
Connection to 24V analog output (max. 4 mm²) . . . . X1.1.+24V Out--24V Out
* Connect the earth conductor inside the distributor housing.
** Max. 2.5mm² flexible with wiring sleeve. The final circuits get wired customised.
Type of system . . . . AT- S +SU2
Construction. . . . . . Surface-mounted plastic distributor
housing of thermoplastic with
transparent viewing door
Height . . . . . . . . . 458 mm
Width . . . . . . . . . 295 mm
Depth . . . . . . . . . 129 mm
Weight . . . . . . . . . approx. 7.6 kg
Insulation class* . . . . Il
Degree of protection. . IP 65
Colour . . . . . . . . . Grey (RAL 7032)
Cable entry . . . . . . from above (with integral elastic sealing
membranes for cable infeed, with cable
infeed shield)
Hinge . . . . . . . . . left
Mains rated voltage. . . . . . . . . . . . . . . 230V AC, 50 or 60 Hz
Ambient temperature operation. . . . . . . . . . -5° C up to +35° C
Mains feed in (max. 10 mm² solid) . . . . . . . . . X1.1
Max. 4 circuits (max.4 mm²)** . . . . . . . . . . . X1.4
Connection to RS485 Bus (max. 4 mm²). . . . . . . X1.1.RS485.A-B
Connection to 24V analog output (max. 4 mm²) . . . . X1.1.+24V Out--24V Out
* Connect the earth conductor inside the distributor housing.
** Max. 2.5mm² flexible with wiring sleeve. The final circuits get wired customised.
Type of system . . . . AT- S +SU1
Construction. . . . . . Surface-mounted plastic distributor
housing of thermoplastic with
transparent viewing door
Height . . . . . . . . . 458 mm
Width . . . . . . . . . 295 mm
Depth . . . . . . . . . 129 mm
Weight . . . . . . . . . approx. 7.3 kg
Insulation class* . . . . Il
Degree of protection. . IP 65
Colour . . . . . . . . . Grey (RAL 7032)
Cable entry . . . . . . from above (with integral elastic sealing
membranes for cable infeed, with cable
infeed shield)
Hinge . . . . . . . . . left
Mains rated voltage. . . . . . . . . . . . . . . 230V AC, 50 or 60 Hz
Ambient temperature operation. . . . . . . . . . -5° C up to +35° C
Mains feed in (max. 10 mm² solid) . . . . . . . . . X1.1
Max. 4 circuits (max.4 mm²)** . . . . . . . . . . . X1.4
Connection to RS485 Bus (max. 4 mm²). . . . . . . X1.1.RS485.A-B
Connection to 24V analog output (max. 4 mm²) . . . . X1.1.+24V Out--24V Out
* Connect the earth conductor inside the distributor housing.
** Max. 2.5mm² flexible with wiring sleeve. The final circuits get wired customised.

CEAG Notlichtsysteme GmbH13
Technical Data
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
Type of system . . . . AT- S +SOU2
Construction. . . . . . Surface-mounted plastic distributor
housing of thermoplastic with
transparent viewing door
Height . . . . . . . . . 583 mm
Width . . . . . . . . . 295 mm
Depth . . . . . . . . . 129 mm
Weight . . . . . . . . . approx. 7.8 kg
Insulation class* . . . . Il
Degree of protection. . IP 65
Colour . . . . . . . . . Grey (RAL 7032)
Cable entry . . . . . . from above (with integral elastic sealing
membranes for cable infeed, with cable
infeed shield)
Hinge . . . . . . . . . left
Mains rated voltage. . . . . . . . . . . . . . . 230V AC, 50 or 60 Hz
Ambient temperature operation. . . . . . . . . . -5° C up to +35° C
Mains feed in (max. 10 mm² solid) . . . . . . . . . X1.1
Max. 4 circuits (max.4 mm²)** . . . . . . . . . . . X1.4
Connection to RS485 Bus (max. 4 mm²). . . . . . . X1.1.RS485.A-B
Connection to 24V analog output (max. 4 mm²) . . . . X1.1.+24V Out--24V Out
* Connect the earth conductor inside the distributor housing.
** Max. 2.5mm² flexible with wiring sleeve. The final circuits get wired customised.
Type of system . . . . AT- S +SOU1
Construction. . . . . . Surface-mounted plastic distributor
housing of thermoplastic with
transparent viewing door
Height . . . . . . . . . 458 mm
Width . . . . . . . . . 295 mm
Depth . . . . . . . . . 129 mm
Weight . . . . . . . . . approx. 7.4 kg
Insulation class* . . . . Il
Degree of protection. . IP 65
Colour . . . . . . . . . Grey (RAL 7032)
Cable entry . . . . . . from above (with integral elastic sealing
membranes for cable infeed, with cable
infeed shield)
Hinge . . . . . . . . . left
Mains rated voltage. . . . . . . . . . . . . . . 230V AC, 50 or 60 Hz
Ambient temperature operation. . . . . . . . . . -5° C up to +35° C
Mains feed in (max. 10 mm² solid) . . . . . . . . . X1.1
Max. 4 circuits (max.4 mm²)** . . . . . . . . . . . X1.4
Connection to RS485 Bus (max. 4 mm²). . . . . . . X1.1.RS485.A-B
Connection to 24V analog output (max. 4 mm²) . . . . X1.1.+24V Out--24V Out
* Connect the earth conductor inside the distributor housing.
** Max. 2.5mm² flexible with wiring sleeve. The final circuits get wired customised.
3.8 Data Sheet for AT-S+SOU2
3.9 Data Sheet for AT-S+ SOU1

CEAG Notlichtsysteme GmbH14
Construction and Function
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
4. Construction and Function
4.1 Example of Control Cabinet-Construction (AT-S+C30)
Cable infeed from above
Triple deck tension spring
installation terminal
with neutral wire dis-
connect terminal
Control unit CU S+
DC/DC converter.2
AC module
Fuse circuit breaker D02
25 A per field
Fuse circuit breaker NH 00
Cable infeed from below
Lütze mounting system
Circuit switching modules
30 x SU-S+2 x 6 A
6-fold mains distribution box
D02 16 A

CEAG Notlichtsysteme GmbH15
Construction and Function
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
4.2 Product Description
The AT-S+automatic test system is a symbiosis of STAR and CEWA GUARD technology, and now also enables
the monitoring and specification of switching mode of the connected emergency lighting in networks using an
aggregate, dual network or central converter with 50 or 60 Hz AC voltage as supply voltage as power sources for
safety services.
The main benefits of this technology include the fact that
within a final circuit, the switching modes
- Non-maintained light (Emergency lighting is switched on when the main lighting fails or when a function test
is initiated manually or automatically)
- Maintained light and (Emergency lighting is always on)
- Switched maintained light (as non-maintained light with emergency lighting controlled by switch queries,
e. g. from external DLS-modules)
can be implemented in hybrid mode for each emergency luminaire.
each safety and EXIT luminaire can be programmed without an extra data cable ,
the switching modes can be later modified without the need to interfere in the existing luminaire installation.
The functions of the emergency luminaires are defined with a user-friendly parameter setup system.
The use of V-CG-S type ballasts/modules is a requirement.
All settings are stored in a nonvolatile memory and so are not lost even in a total shutdown situation (230V mains
supply).
Parameter settings and the names of circuits, luminaires and DLS/TLS-modules as well as test log entries can
also be stored on a memory card. As well as archiving, this also allows (optional) external parameter setting and
transfer to control modules of the AT-S+system.
Aggregates, dual networks and central converters supply the energy for operation of the emergency lighting upon
failing of the power supply via the general 230V mains grid. During normal operation, the AT-S+system monitors
the functionality of the connected emergency lighting.
The system AT-S+is designed and manufactured in compliance with the following EC directives:
Low-voltage Directive 2006/95/EG
Directive 2004/108/EG on electromagnetic compatibility
National (DIN-), European (EN-) and international (IEC-) standards which the system complies will be found in
the system´s CE Certificate of Conformity.
4.3 Operation Modes
Different system configurations are used depending on the requirements of the site. These standardised configu-
rations have names like
AT- S +C30 or AT-S+C16
for operation of max. 30 or 16 SU-S+2x6A circuit modules with 60 or 32 optional circuit terminals. Up to 6 AT-S+
substations can be supplied with mains current (up to six lines with 1-phase substations, up to two 3-phase
substations).
AT- S +C4
for operation of max. 4 SU-S+2x6A circuit modules with circuit terminals. Up to 4 lines with AT-S+substations
can be supplied with 1-phase mains current.
AT- S +C0
for operation of max. 2 CU-S+control units. For monitoring of up to 40 SU-S+/ SOU-S+circuit modules per
control unit via the RS 485 bus.
AT- S +SU4, AT-S+SU2, AT-S+SU1
for operation of 4, 2 or 1 SU-S+2 x 6A circuit modules with 8, 4 or 2 circuit terminals.
AT- S +SOU2, AT-S+SOU1
for operation of 2 or 1 SOU-S+2 x 4A circuit modules, with 4 or 2 circuit terminals and supplementary mains
feed for rental current counting.

CEAG Notlichtsysteme GmbH16
Construction and Function
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
All devices and substations are constructed modularly. The technologies of changing-over and of monitoring form
a unit working undependent from each other, so that interactions can be excluded. Due to the modular
construction and the pre-configured modules a flexible and high quality handling is ensured. The objective of the
automatic test system is to secure the function standby of all connected emergency and exit luminaires by an
automatic monitoring.
4.4 Overview over the Components
4.4.1 Control Module CU-S+
The terminal blocks on the module simplify assembly and dismantling; the connections are taken out to a 3-tier-
installation-terminal with tension spring-connection. (s. fig on page 14)
Free programmable control
with a nonvolatile programm memory for programming and user-specific parameter setting.
Internal log book recording
The CU-S+control module stores the test log (max. 360,000 entries) according to the specifications of DIN VDE 0108-
100 (EN 50172). An external reporting with a memory card is possible.
Operation
Directly on the device
CU-S+controller using
- sealed keypad and
- graphic display (4 x 20 characters, with adjustable backlighting) (Compare chapter 9).
Local switch
operation of combined main/emergency lighting can be achieved with DLS/3Ph and TLS bus modules.
Connection for blocking
switch and external
phase monitor
3 buttons for: test (mains
failure), function test,
duration test
(without function)
SD card slot
Status LED display
RS 485 / CG-S bus con-
nection
5 freely programmable
signal contacts
3 freely assignable
function buttons
Graphic display, 4 x 20
characters, backlit, cont-
rast and brightness can be
set via programmes
7 control buttons for
user-friendly
navigation
4 freely assignable
24 V analogue inputs

CEAG Notlichtsysteme GmbH17
Construction and Function
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
Configuration
At the front of the device
using keys and graphic gisplay. There are considerable possiblities for userdefined settings via a menu
controlled parameterisation (compare chapter 9).
Via data exchange
via memory card, e. g. for a transfer of the settings between similar cabinets.
External configuration of the control module is possible with
– a usual personal computer (PC) and
– CEAG-software for the system AT-S+.
Communication and control
Data exchange
with installed S+components and V-CG-S-compatible ballasts (using the cables of the final circuits)
RS485 bus
suitable for central or decentral configuration of the SU S+and SOU S+circuit modules. Up to max. 40 circuit
modules can thus be assigned to the CU S+control unit. The RS 485 bus also enables data exchange with
external assemblies (DLS/3PH-bus-modules or TLS-bus-modules, RS485 port on the control module, up to 25
devices).
External CG-S bus port
(CEAG bus protocol) for data exchange with BMS.

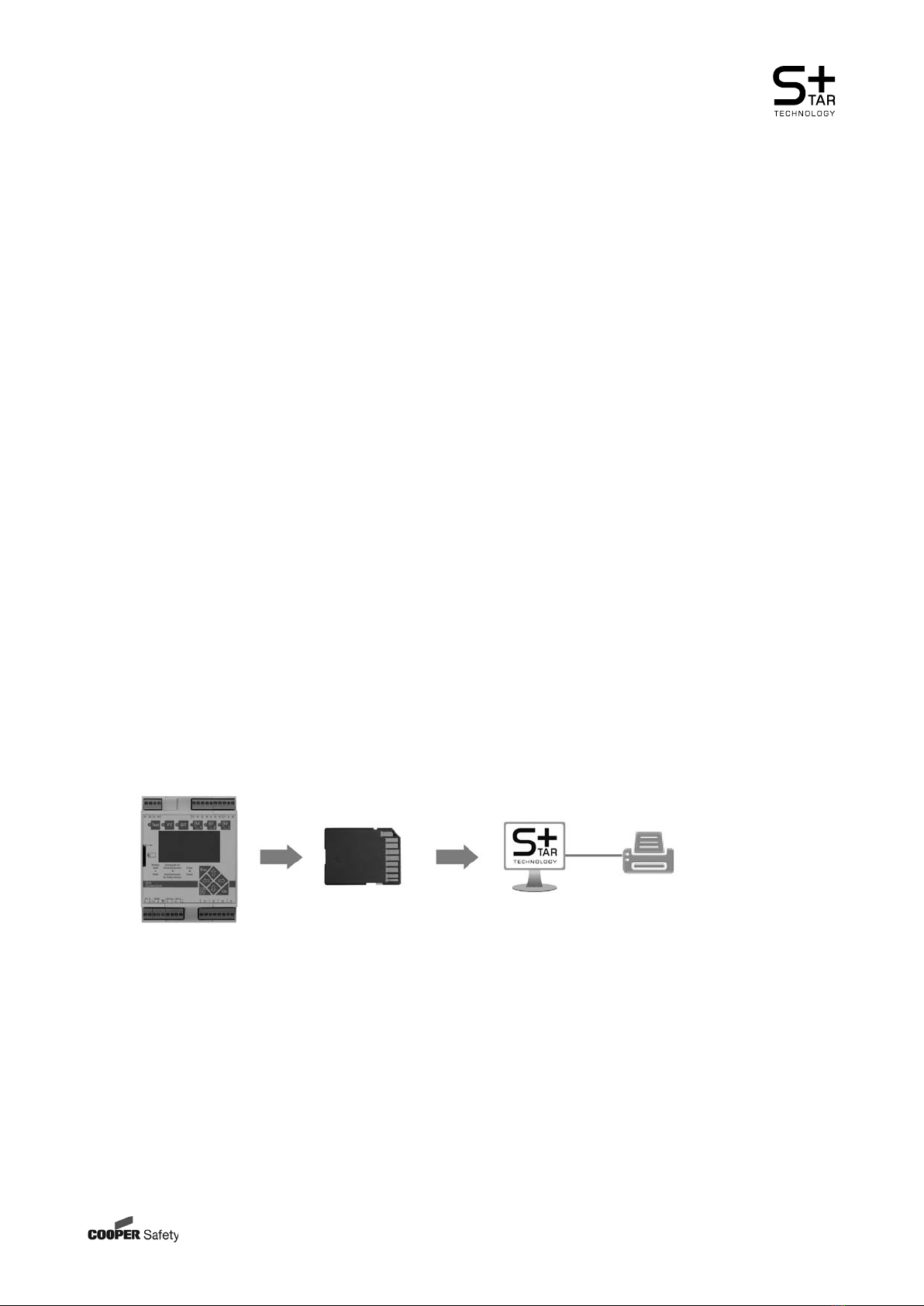

Data Exchange and Storage
Internal:
with non-volatile memory in the CU S+control module
External:
with a memory card reader, type of the uses memory card:
SD-card / CEAG part no. 400 71 347 911 (preprogrammed)
SD-adapter
enables data exchange and saving with usual PC under the CEAG-Software for the system AT-S+
Connections
3-tier-installation terminal with tension spring
all connections are taken out to a 3-tier-installation terminal with tension spring, see page 14: detail view and
Appendix A: „Connection Assignment“
Pluggable screw terminal block
at the device enables a simple assembly and disassembly.
Bus cables
4 x 2 x 0,8 mm, type: JY(ST)Y, Twistet Pair screended (minimum requirement).
5 signal-relay contact
over here the operating state can be recalled. For this the connection´s capacity is max. 24 V AC/DC and
0.5 A, the max. cable length is 1000m. The switching characteristic can be linked with different events.
Standard PC with
CEAG software for
the AT-S+system
Standard printer for printing off
the test log stored on the memory
card or a system configuration

CEAG Notlichtsysteme GmbH18
Construction and Function
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
t > 100ms
t > 1s
Control inputs
The 24V analog inputs Z1 ... Z4 are to control the external control panels, a programmable trip of operational
functions (e. g. bloc / release system, manual reset, etc.) is given.
Optional inputs Z1 - Z4
Z1 Z2 Z3 Z4 Comments:
No function - factory setting
Switch Level triggered (by use of a switch)
24VDC = ON, 0V = OFF Used as a switch and switches the
circuit or the luminaires with “S”
function.
Switch inverted Level triggered (by use of a switch)
24VDC = OFF, 0V = ON
Manual reset Edge triggered (by use of a push switch)
LOW  HIGH
To reset the circuit arrangement
”manual reset“.
Start functiontest Start a function test.
All luminaires on Level triggered (by use of a switch)
24VDC = ON, 0V = OFF For switching on all luminaires
F-Test cancellation
Edge triggered (by use of a push switch)
LOW  HIGH
Cancel function test
Block device
Block / Release function of mains/
emergency lighting during shut
downs.
Maintained off
Switch off all luminaires /circuits,
which are programmed as maintai-
ned light.
Non-maintained on
Switch on all luminaires /circuits,
which are programmed as non-
maintained light.
Ventilator monitor
Level triggered (by use of a switch)
24VDC = OK, 0V = Failure
Set charging failure at the potential-
free relay contacts of the control
module to the CG IV relay module
and the CGVision, as long as 0 V is
present.
Ext. ISO monitor
Ext. Battery monitor
Ext. Monitor
Ext. Source ready Level triggered (by use of a switch)
24VDC = normal operation, 0V = not ready
Sets „Ready“ at the potential-free
relay contacts of the control module
and the CGVision, as long as 24 V
DC is present.
Ext. Source active
Level triggered (by use of a switch)
24VDC = ext. Source active
0V = normal operation
Sets „Ext. Source active“ at the
potential-free relay contacts of the
control module and the CGVision, as
long as 24 V DC is present.
Ext. Source failure
Level triggered (by use of a switch)
24VDC = normal operation
0V = failure
Sets „Ext. Source failue“ at the
potential-free relay contacts of the
control module and the CGVision, as
long as 0 V is present.
Level trigger: Edge trigger:
Z1 to Z4, connection for analogue inputs:
4 freely assignable 24 V analogue inputs, can
be programmed either inverted or non-inverted

CEAG Notlichtsysteme GmbH19
Construction and Function
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
4.4.2 DC/DC Converter.2
This assembly supplies the CU S+control unit of the automatic test system as well as external electrical operating
equipment with 24V and 6V DC voltage. AC feed possible only via the AC supply module.
Light-emitting diodes
   24 V external The LED lights up when the external 24V DC is present at the
terminal 24V DC OUT.
24 V internal The LED lights up when the interal 24V DC voltage is present at
the AT-S+system.
6 V internal The LED lights up when the interal 6V supply voltage is
present.
The „Service PIN“ button is located behind the hole.
Additional Features:
24 V external
– 20 W continuous output
– outgoing circuit over frontline plug
– voltage galvanic separated
24 V internal
– 100 W continuous output
– 140 W top performance (20 msec.)
4.4.2.1AC-Module
This optional unit supplies the automatic test system with an AC-voltage
galvanically isolated, in mains operation.
Connection to terminals 1~ 2 IN to DC/DC converter.2.
Attention!
Only the AC-module has to be connected to this terminals.

4.4.3 Circuit change-over modules overview (SU/SOU)

CEAG Notlichtsysteme GmbH20
Construction and Function
Assembly and Operating Instructions
Automatic Test System AT-S+with STAR+Technology
SU S+2 x 6 A with STAR+Technology
Number of circuits 2 Weight 350 g
Rated current per circuit 6 A H x W X D (in mm) 107 x 90 x 58
Fuse protection per circuit 10 A Module width 6 subunits
Max. inrush peak current 250 A Item no. 400 71 360 350
Max. cable diameter
Circuit outlets:
Feed:
flexible 2.5 mm² with wire
end sleeve and rigid 4 mm²
flexible 4 mm² with wire end
sleeve and rigid 6 mm²
SOU S+2 x 4 A with rental current feed and STAR+Technology
Number of circuits 2 Weight 625 g
Rated current per circuit 4 A H x W X D (in mm) 178 x 108 x 60
Fuse protection per circuit 8 AT Module width 10 subunits
Max. inrush peak current 250 A per circuit Item no. 400 71 360 461
Max. cable diameter flexible 2.5 mm² with wire
end sleeve and rigid 4 mm²
